Sauce filling machines are intended for various viscosities, temperatures, serving sizes, and production parameters of sauces. As some sauces may differ in filling characteristics, the equipment should be able to provide precise portioning along with efficient product handling.
Packaging format, filling principle, heating or mixing requirements, and automation level can all affect the Sauce Filling Machine configuration. Common types include bottle filling machines, cup filling and sealing machines, piston filling machines, and sachet filling machines.
1. Sauce Filling Machine for Precise and Efficient Bottle Packaging
What Are the Key Features of Bottle Filling Machines?
Bottle filling machines are designed for consistent and efficient dosing across different sauce viscosities and bottle sizes. Piston or servo-driven systems can provide precise filling volumes, while adjustable filling parameters and multiple filling heads can improve production flexibility. For sauces affected by temperature, heating and mixing systems can also help maintain stable viscosity during filling.

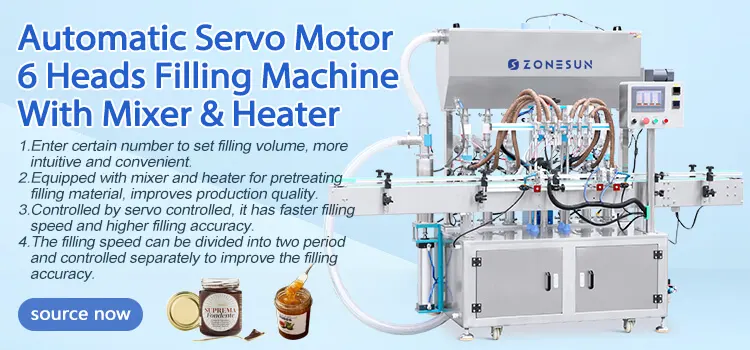

For applications requiring precise filling and temperature control, ZONESUN’s Automatic Servo Motor 6 Heads Filling Machine With Mixer & Heater combines these functions in one system. This Sauce Filling Machine features:
- Six piston pumps: Provide controlled and consistent sauce dosing.
- Servo motor control: Allows precise adjustment of filling parameters.
- Mixer and heater: Help maintain suitable sauce temperature and viscosity.
- Direct volume setting: Allows operators to set the required filling volume.
- Two-stage filling: Helps improve filling accuracy for suitable products.
What Bottle Sizes and Sauce Products Can They Handle?
Bottle fillers can be configured for different filling volumes, bottle openings, and container designs. This type of Sauce Filling Machine is suitable for products such as hot sauce, jam, chocolate jam, ketchup, and other semi-fluid foods. Products containing particles may require specific pump and nozzle configurations.
2. Sauce Filling Machine for Convenient Single-Serve Cups
What Are the Main Characteristics of Cup Filling and Sealing Machines?
The cup filling and sealing machines combine cup feeding, filling, film feeding, and sealing in one line. It helps to minimize manual handling while providing consistency of portioning and packaging. Multiple filling heads can increase output, while the system can be adapted to different cup sizes and product requirements.

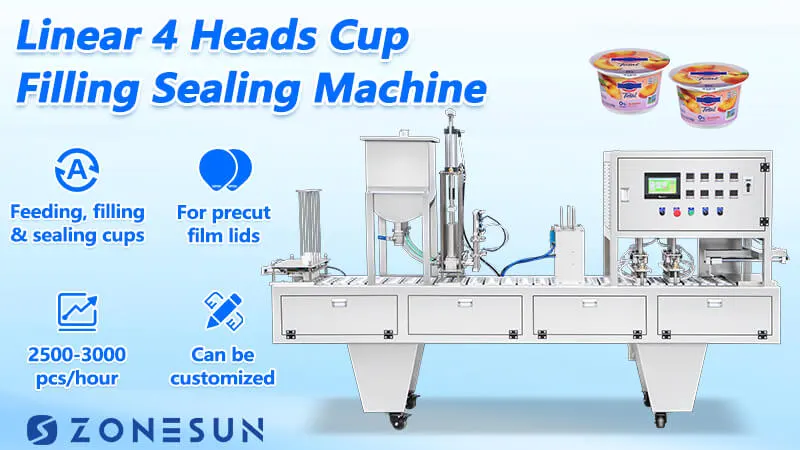

For producers needing higher output with consistent portioning, the ZONESUN ZS-AFS01P Linear 4-Head Cup Filling and Sealing Machine offers a practical solution. This Sauce Filling Machine includes:
- Four filling heads: Fill multiple cups in each production cycle.
- 2,500–3,000 cups per hour: Suitable for medium- to high-volume production.
- Precut film lids: Provide convenient cup sealing.
- Customizable cup specifications: Can accommodate different cup sizes and filling requirements.
- Integrated filling and sealing: Combines the major packaging operations in a single process.
Which Sauces Can Be Packaged in Single-Serve Cups?
The single-serve cups are often used for packaging such sauces as ketchup, chili sauce, mayonnaise, dips, salad dressing, and other sauces. The cups are used in the food service and retailing industry where single portion packaging is required. Size of the cup, serving volume, film type, and filling characteristics of the sauce are important to take into account during configuration of this Sauce Filling Machine.
3. Piston Filling Machines for Thick and High-Viscosity Sauces
What Are the Main Features of Piston Filling Machines?
Piston filling machines use positive displacement to deliver a controlled amount of product through the filling nozzle, making them suitable for thick sauces and pastes. Filling volume can be adjusted through the piston stroke, while different piston sizes and nozzle configurations can accommodate different products. For temperature-sensitive sauces, heating can help reduce viscosity changes and maintain more stable filling performance.
What Types of Viscous Sauces Can Piston Filling Machines Handle?
Piston filling machines can be used for tomato paste, jam, chocolate spreads, thick chili sauce, BBQ sauce, and other high-viscosity food products. For sauces containing particles, nozzle and pump configurations should be selected according to the particle size. Product viscosity, filling temperature, particle characteristics, and required filling volume all affect the performance of a piston-based Sauce Filling Machine.
4. Sauce Filling Machine for Fast and Flexible Sachet Packaging
What Are the Key Features of Sachet Filling Machines?
Sachet filling machines are designed for compact, single-use portions and continuous production. They can combine forming, filling, and sealing while allowing filling parameters to be adjusted for different sachet sizes and products. For sauces with temperature-sensitive viscosity, heating and mixing functions can help maintain more consistent product flow.

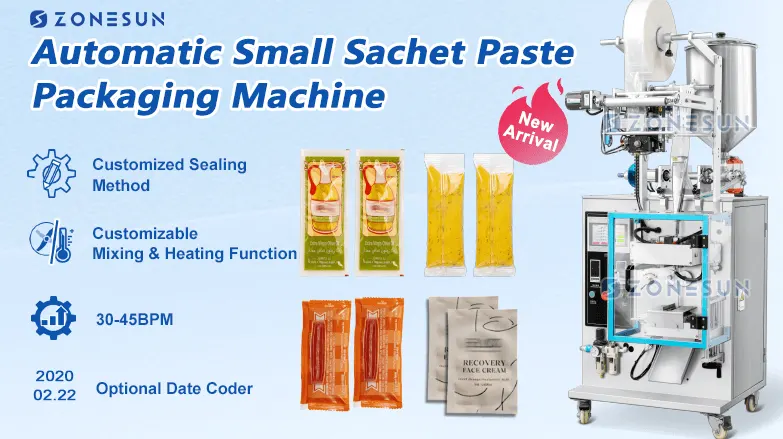

For manufacturers looking for high-speed sachet packaging with better viscosity control, ZONESUN’s Small Sachet Paste Mixing Heating Filling Sealing Machine combines these functions in one machine. This Sauce Filling Machine includes:
- Mixing and heating hopper: Helps maintain stable sauce temperature and viscosity.
- Up to 45 bags per minute: Supports continuous sachet production.
- Integrated filling and sealing: Reduces manual packaging steps.
- Adjustable filling volume: Allows different portion sizes to be accommodated.
- Optional date coder: Can print production dates or batch information.
What Sauces Are Suitable for Sachet Filling and Sealing?
Sachets can be used for ketchup, hot sauce, chili sauce, mayonnaise, soy sauce, and many other single-use condiments. They are suitable for fast-food restaurants, takeaway foods, hotels, catering, and promotional packages. Film material, sachet size, seal strength, filling volume, and product temperature should be considered when configuring the Sauce Filling Machine.
5. Key Factors Affecting Sauce Filling Machine Performance
Sauce Viscosity and Product Characteristics
Viscosity is one of the main factors affecting Sauce Filling Machine performance. Thin sauces may require a different dosing method from dense pastes, while products that change viscosity with temperature may benefit from heating and mixing systems. Testing the equipment with the actual product whenever possible can help confirm consistent filling results.
Packaging Format and Container Requirements
Bottle, cup, and sachet formats serve different market needs. Bottles are suitable for retail products and larger portions, cups work well for individual servings, and sachets are convenient for takeaway and food-service applications. Each format requires a corresponding filling and packaging configuration.
Filling Volume and Production Capacity
Production requirements should be measured in pieces per minute or hour. The required output will determine the appropriate number of filling heads and overall machine configuration.
Level of Automation and Production Requirements
Semi-automatic equipment can suit smaller batches, frequent product changes, and lower production volumes. Fully automatic systems are more suitable for consistent output, reduced labor, and integration with other packaging equipment. Cleaning time, changeover requirements, operator access, and available floor space should also be considered when planning a Sauce Filling Machine system.
6. Conclusion
Different Sauce Filling Machine types are designed for different products and packaging formats. Bottle fillers are suitable for retail bottles, cup filling and sealing machines are designed for individual portions, piston fillers handle thick and high-viscosity sauces, and sachet machines provide compact, continuous packaging. The right machine depends on the sauce characteristics, packaging format, filling volume, and production requirements. If you need more solutions or specific machine configurations, feel free to contact ZONESUN for technical guidance.
