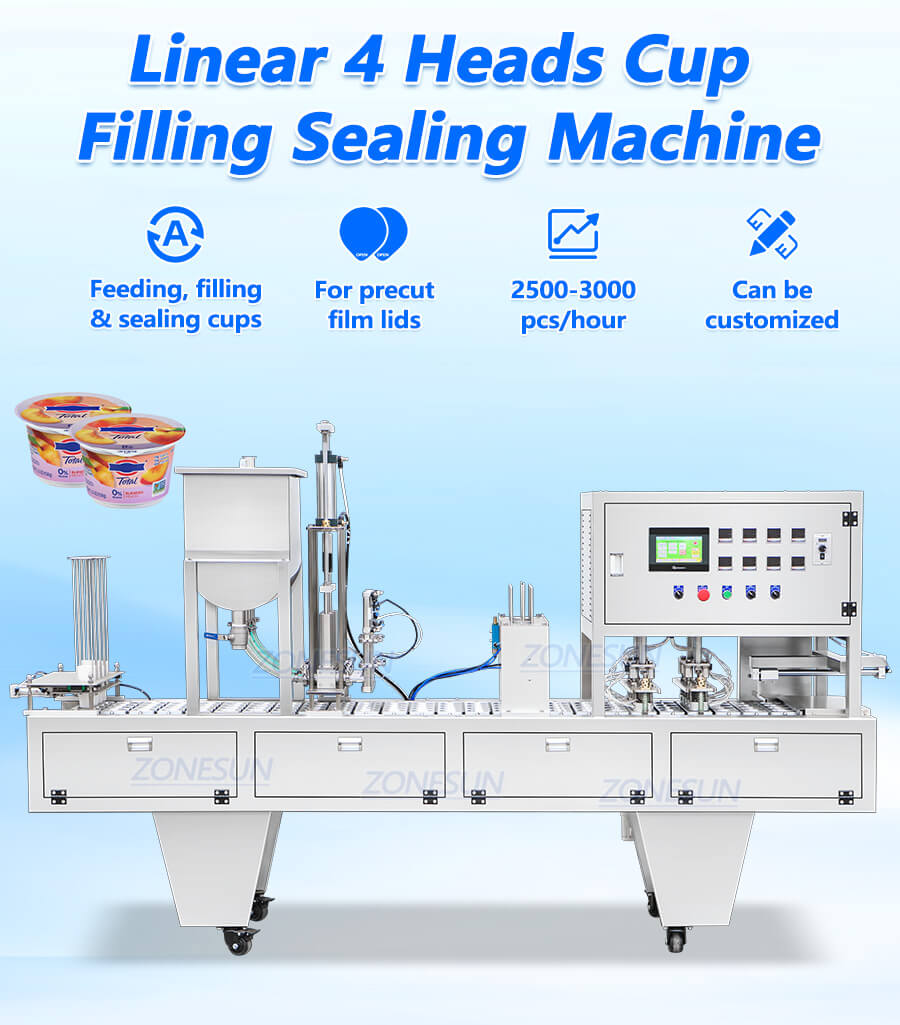

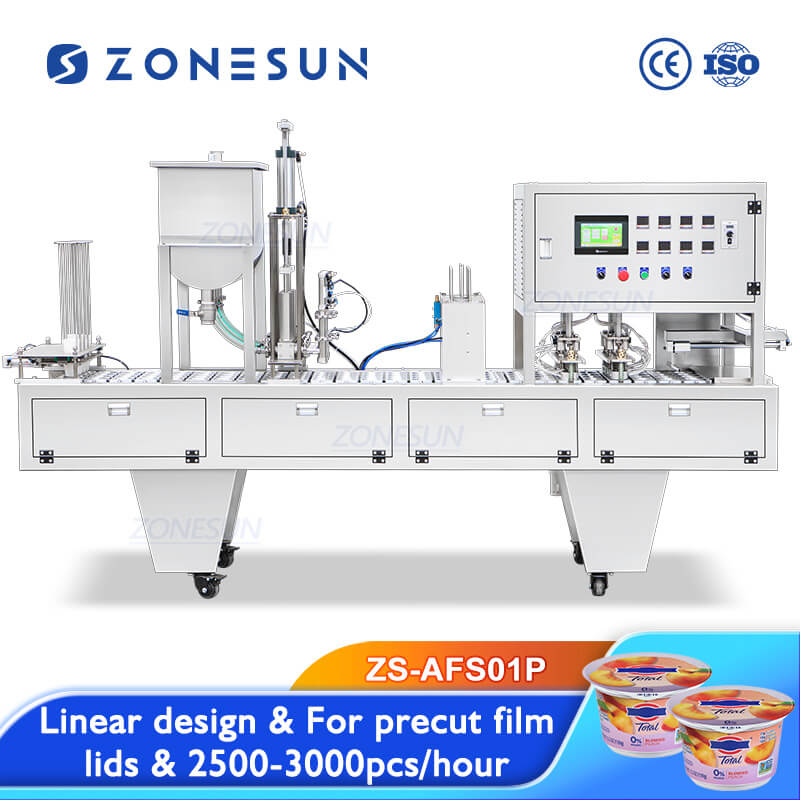

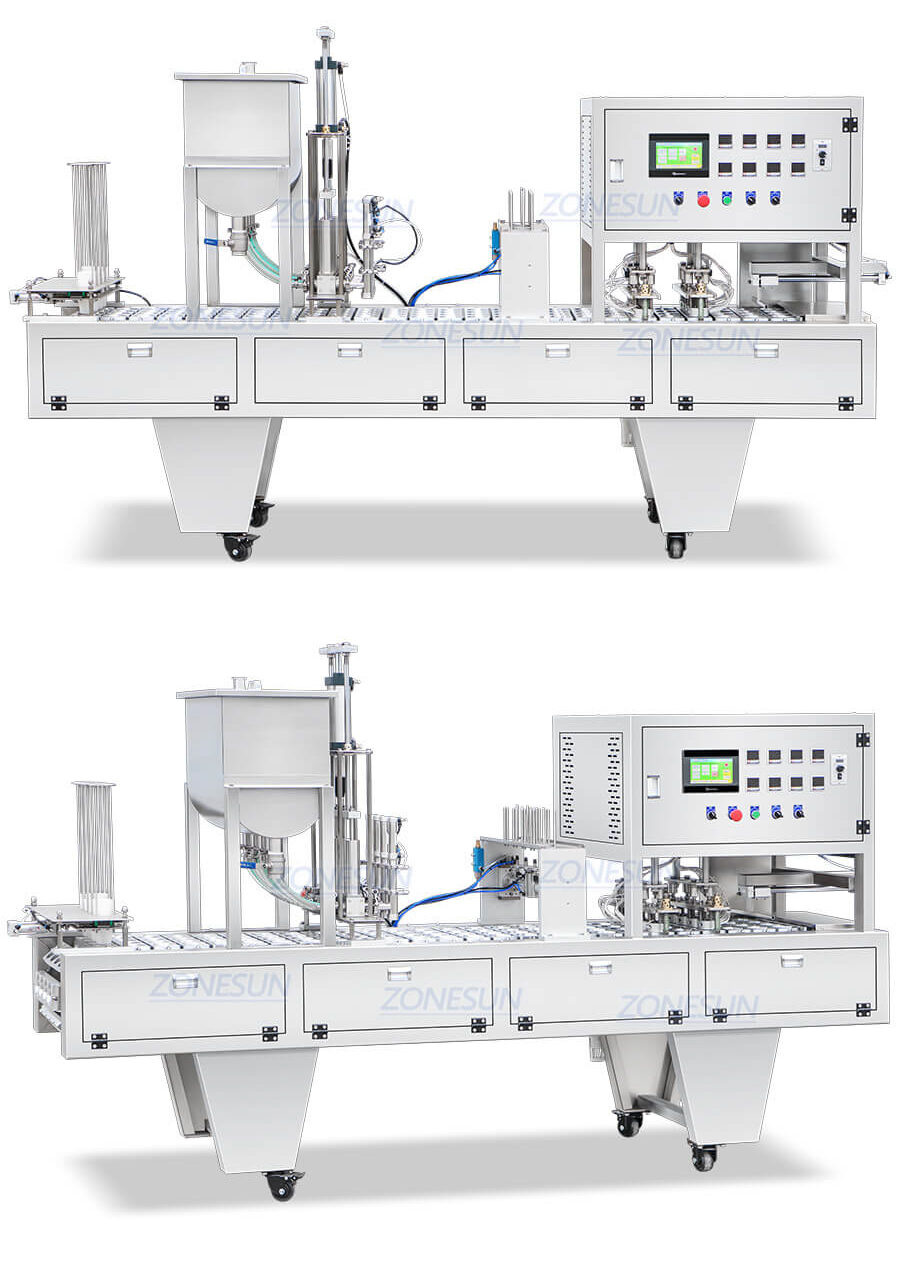

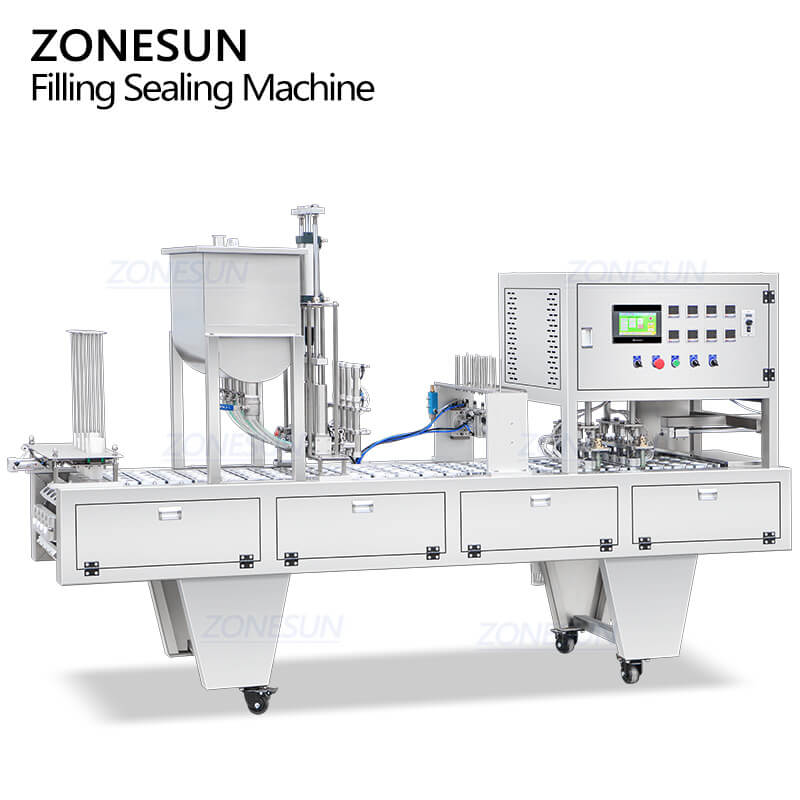

ZONESUN ZS-AFS01P Cup Filling Sealing Machine
Boost your throughput with the zonesun Linear 4 heads cup filling and sealing machine. Capable of 2500-3000 pcs/hour, it automates cup feeding, precise filling, and sealing with precut film lids. Perfect for dairy, beverages, or snacks, this food-grade system ensures airtight consistency and hygiene. Fully customizable to your cup specifications, it is designed to maximize efficiency while reducing manual labor.
Original price was: $15,399.00.$14,899.00Current price is: $14,899.00.
Share to
Product Description
Boost your throughput with the zonesun Linear 4 heads cup filling and sealing machine. Capable of 2500-3000 pcs/hour, it automates cup feeding, precise filling, and sealing with precut film lids. Perfect for dairy, beverages, or snacks, this food-grade system ensures airtight consistency and hygiene. Fully customizable to your cup specifications, it is designed to maximize efficiency while reducing manual labor.

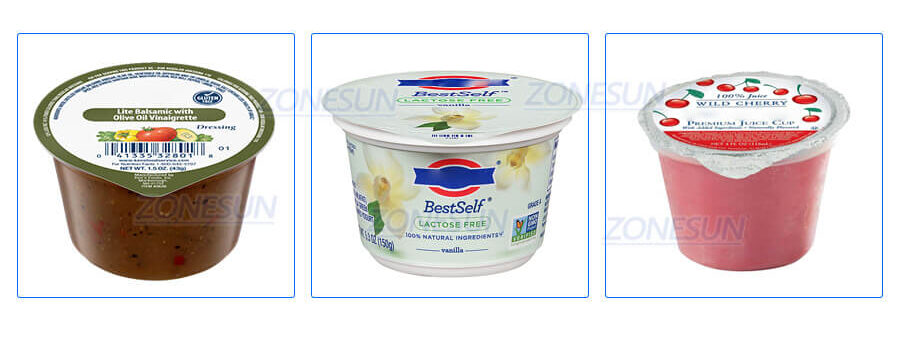

Product Applications
Product Parameter
| Machine model | ZS-AFS01P |
| Power supply | 380V/220V 50-60Hz 3.2kW |
| Working speed | About 2500-3000pcs/hour(depending on filling range & materials) |
| Filling pump | Piston pump |
| Filling range | Customizable |
| Suitable cup size | Customizable |
| Hopper size | About 60L |
| Air pressure | 0.6-0.8MPa |

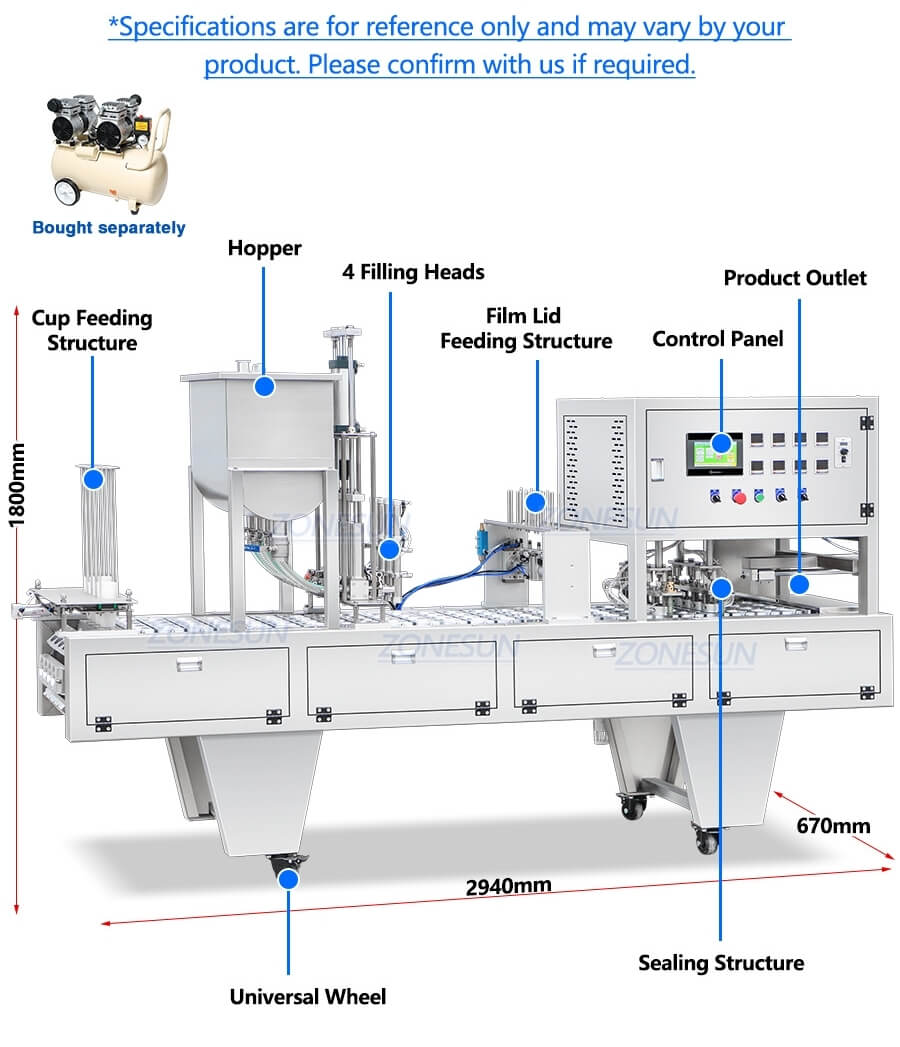

| Machine size | About 2940*670*1800mm(L*W*H) |
| Package size | About 3070*760*1950mm(L*W*H) |
| Package weight | About 692kg |
Product Details

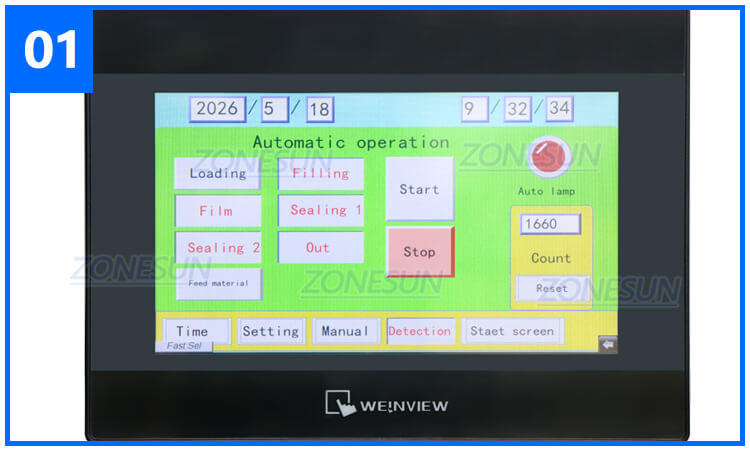

Touchscreen Control Panel
Allows for real-time monitoring and easy machine debugging.

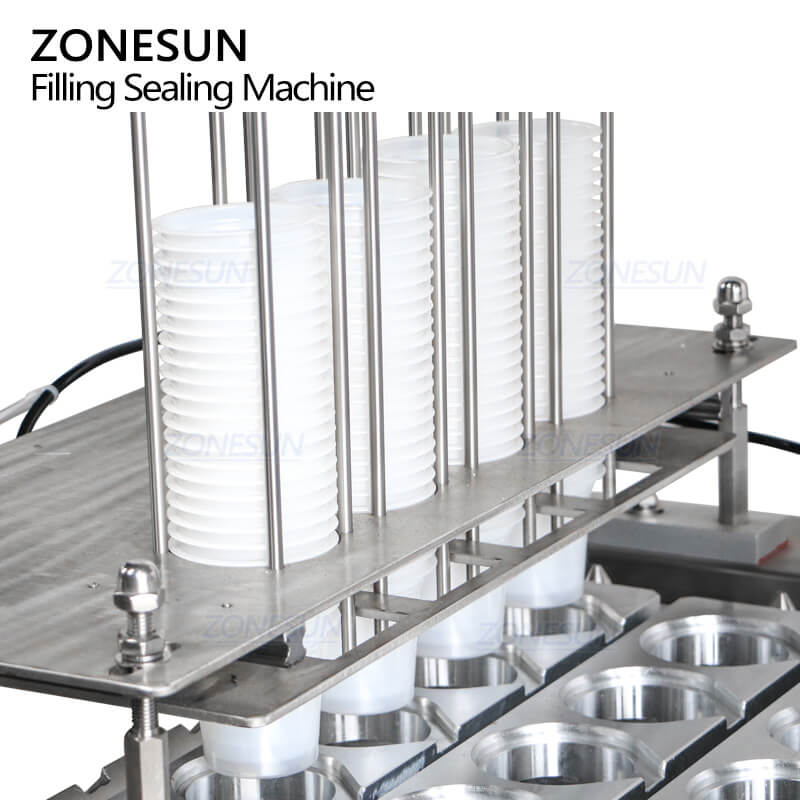

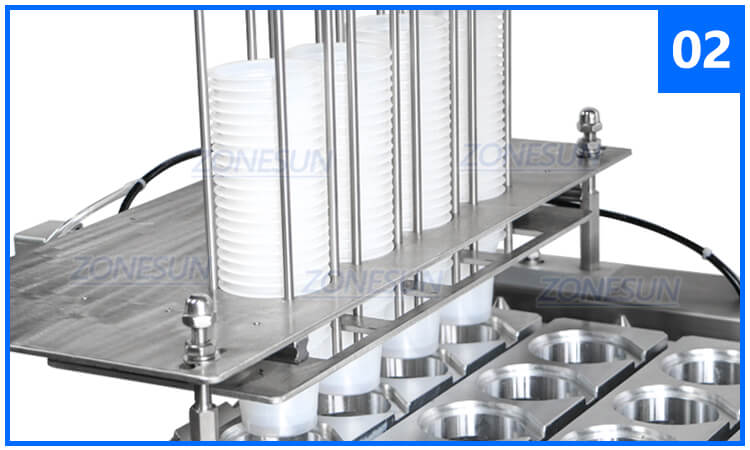

Cup Feeding Structure
Feeds and places cups into molds automatically. It is customizable as cup size.

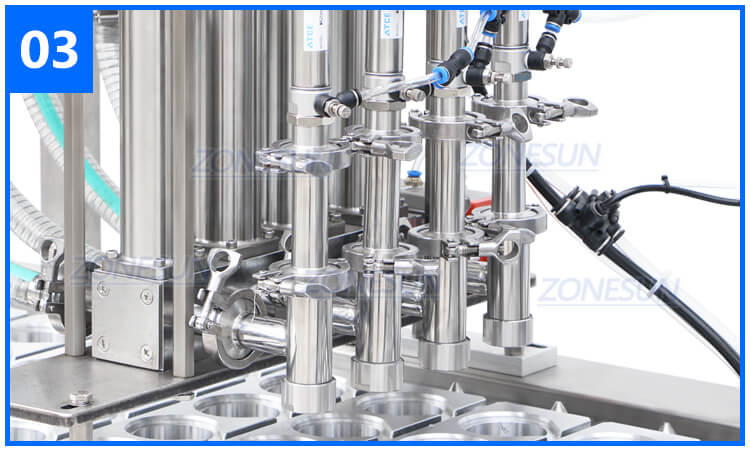

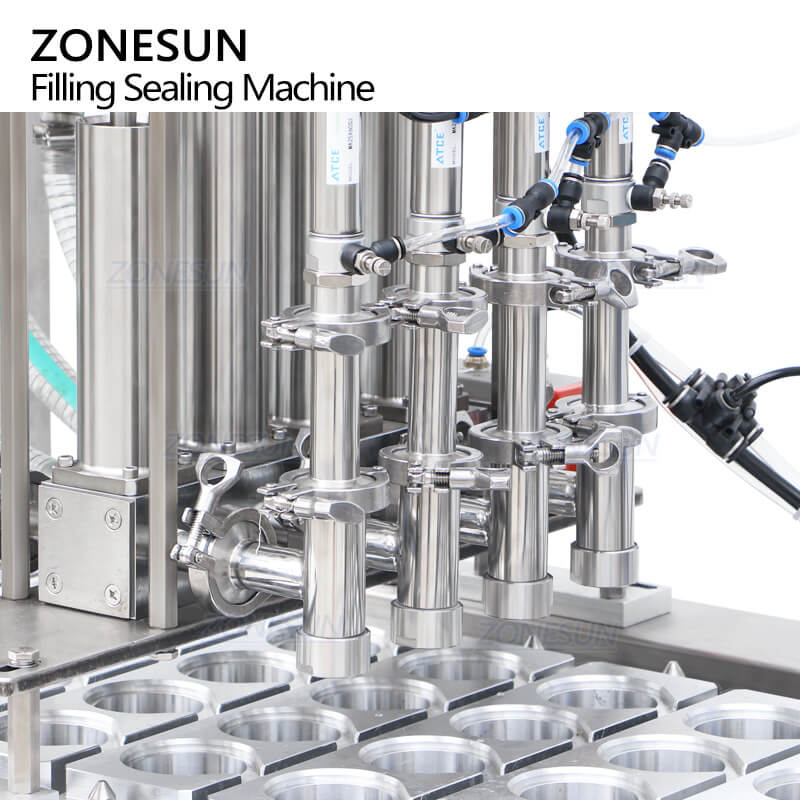

Piston Pump System
Suitable for filling liquids or viscous pastes. Filling range & filling head quantity are customizable as needed.

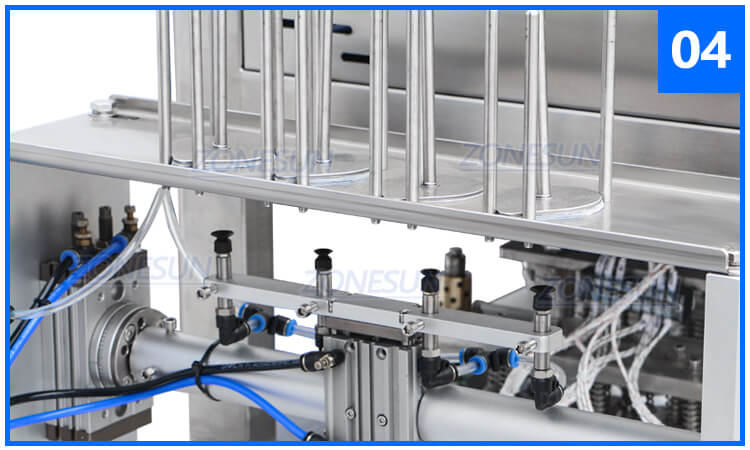

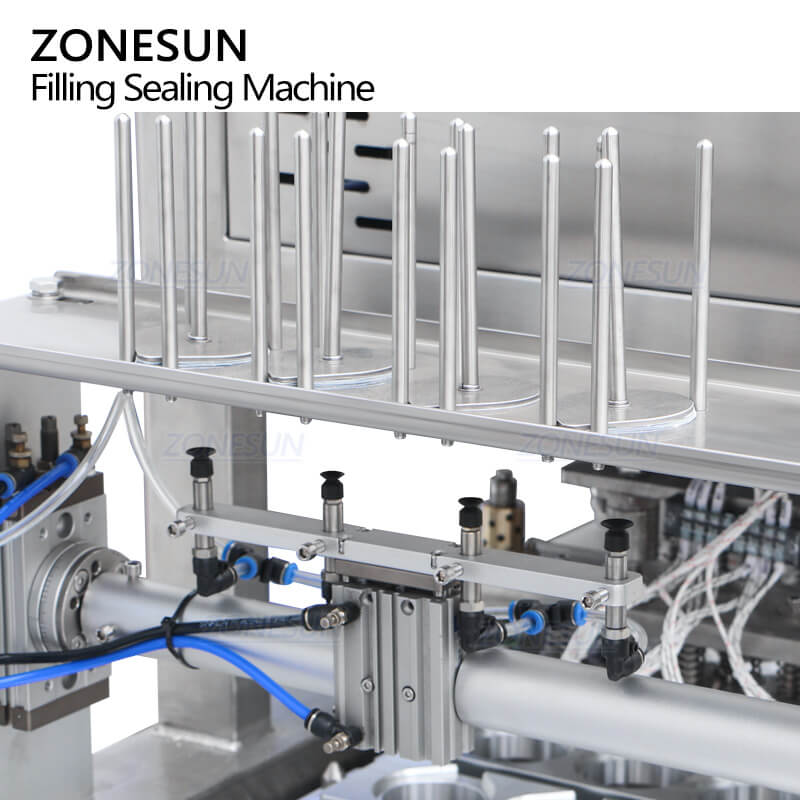

Film Lid Feeding Structure
Accurately picks and transfers film lids onto cups. It is customizable for roll films.

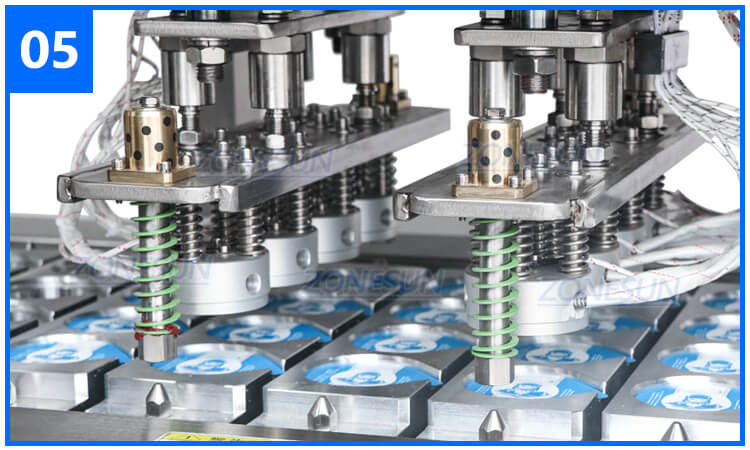

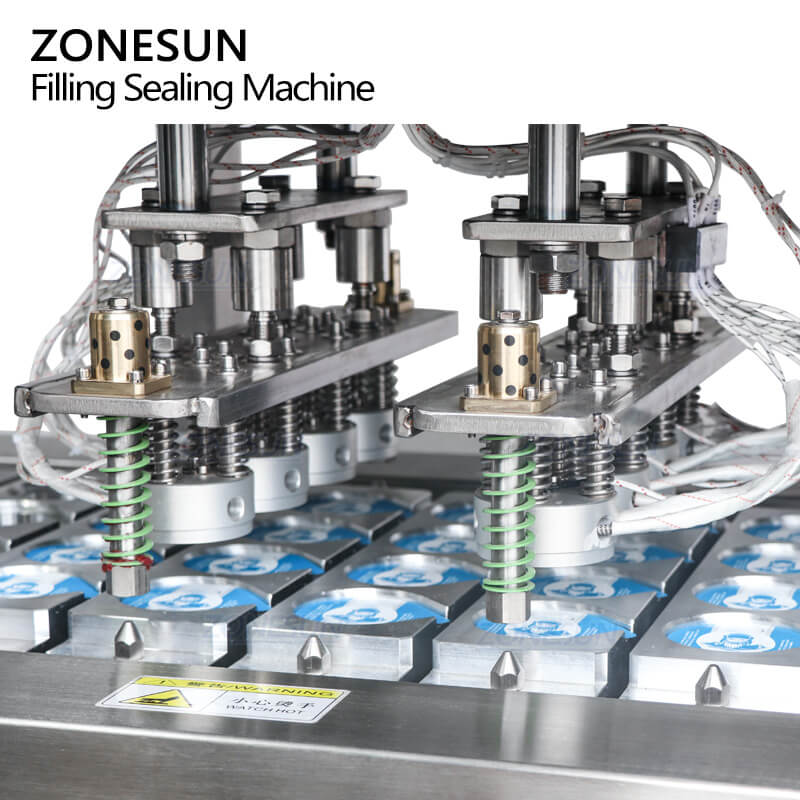

Sealing Structure
Double sets of sealing heads ensure secure seal. Sealing temperature can be adjusted as needed.

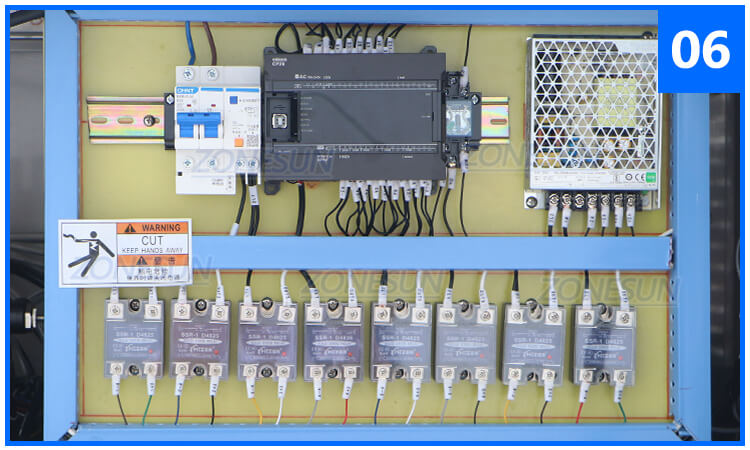

Electrical Control Components
Coordinates filling and sealing motions and ensures stable production.
Product Real Shot
