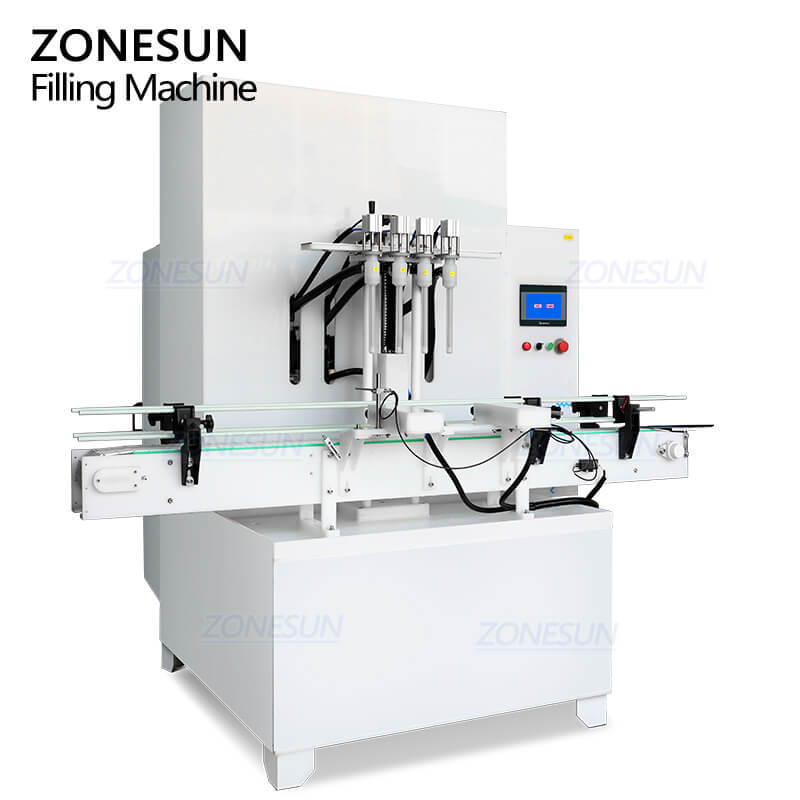

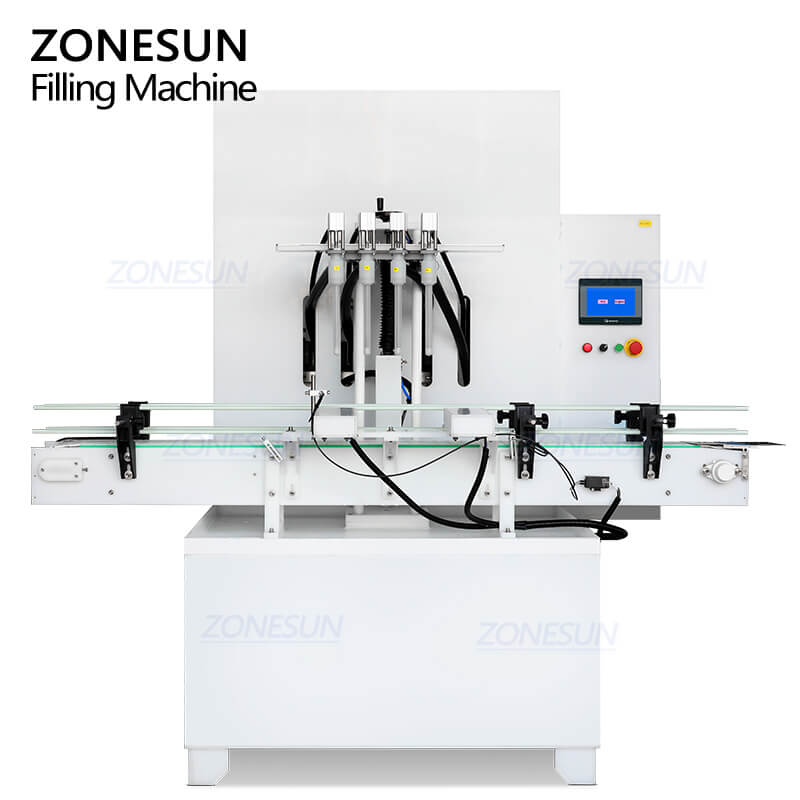

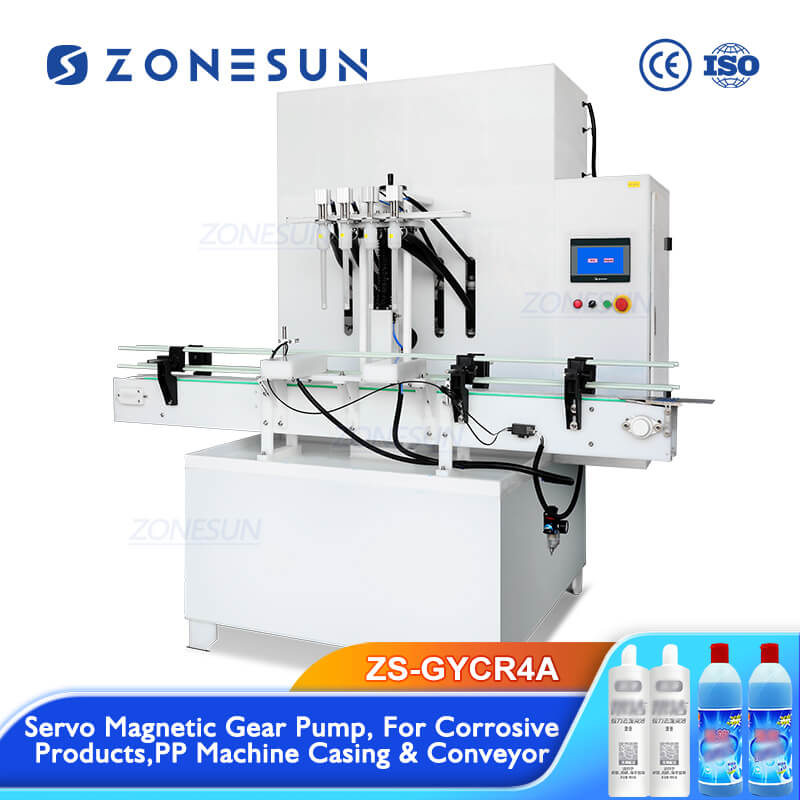

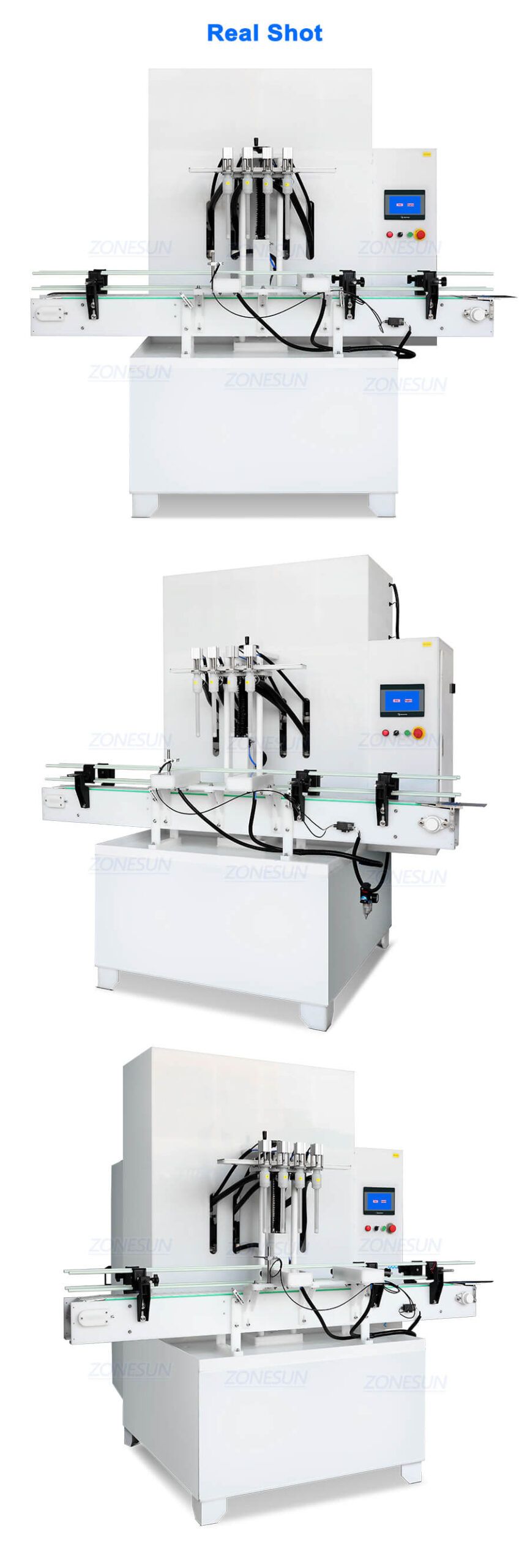

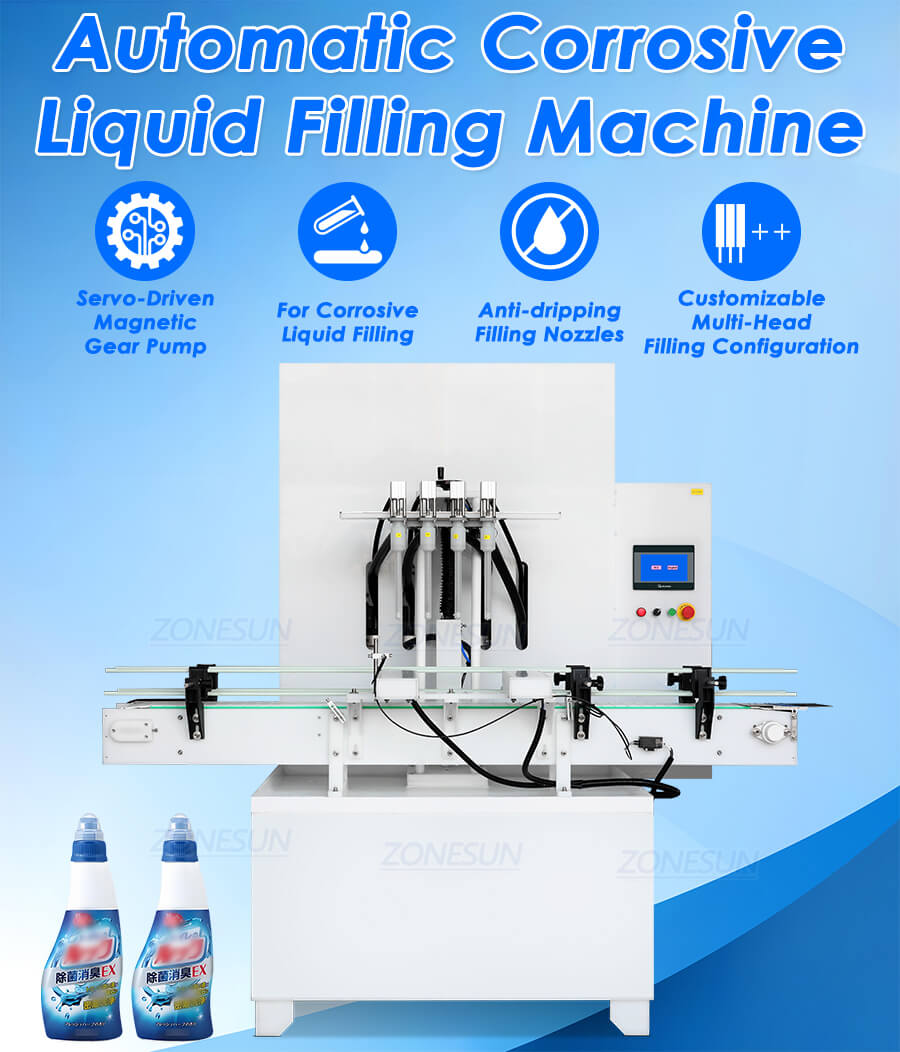

ZONESUN ZS-GYCR4A Servo Corrosive Liquid Filling Machine
The filling machine is equipped with a servo-driven magnetic gear pump system designed for filling corrosive liquids with high precision and stability. It is suitable for products such as bleach, hypochlorous acid, disinfectants, toilet cleaners, degreasers, detergents, fertilizer solutions, and automotive chemicals. The machine uses an anti-corrosion centrifugal pump for material feeding and anti-drip filling nozzles to ensure clean and accurate filling.
$11,799.00
Share to
Product Description:
The filling machine is equipped with a servo-driven magnetic gear pump system designed for filling corrosive liquids with high precision and stability. It is suitable for products such as bleach, hypochlorous acid, disinfectants, toilet cleaners, degreasers, detergents, fertilizer solutions, and automotive chemicals. The machine uses an anti-corrosion centrifugal pump for material feeding and anti-drip filling nozzles to ensure clean and accurate filling.
Product Parameters:
| Machine Model | ZS-GYCR4A |
| Voltage / Power | 110V / 220V, 50–60 Hz, 5000 W |
| Air Pressure Requirement | 0.4–0.7 MPa |
| Suitable Bottle Diameter | φ50–φ110 mm |
| Suitable Bottle Height | 60–300 mm |
| Hopper Capacity | About 120 L |
| Recommend Filling Range | 300 ml – 10L |
| Max Flow Rate | 27L/min |
| Filling Material Temperature Range | Room Temperature(Customizable for high-temperature materials) |
| Filling Material Viscosity | 0-1000cps(Customizable for higher viscosity) |
| Filling Speed | 200–2500 BPH (based on filling volume) |

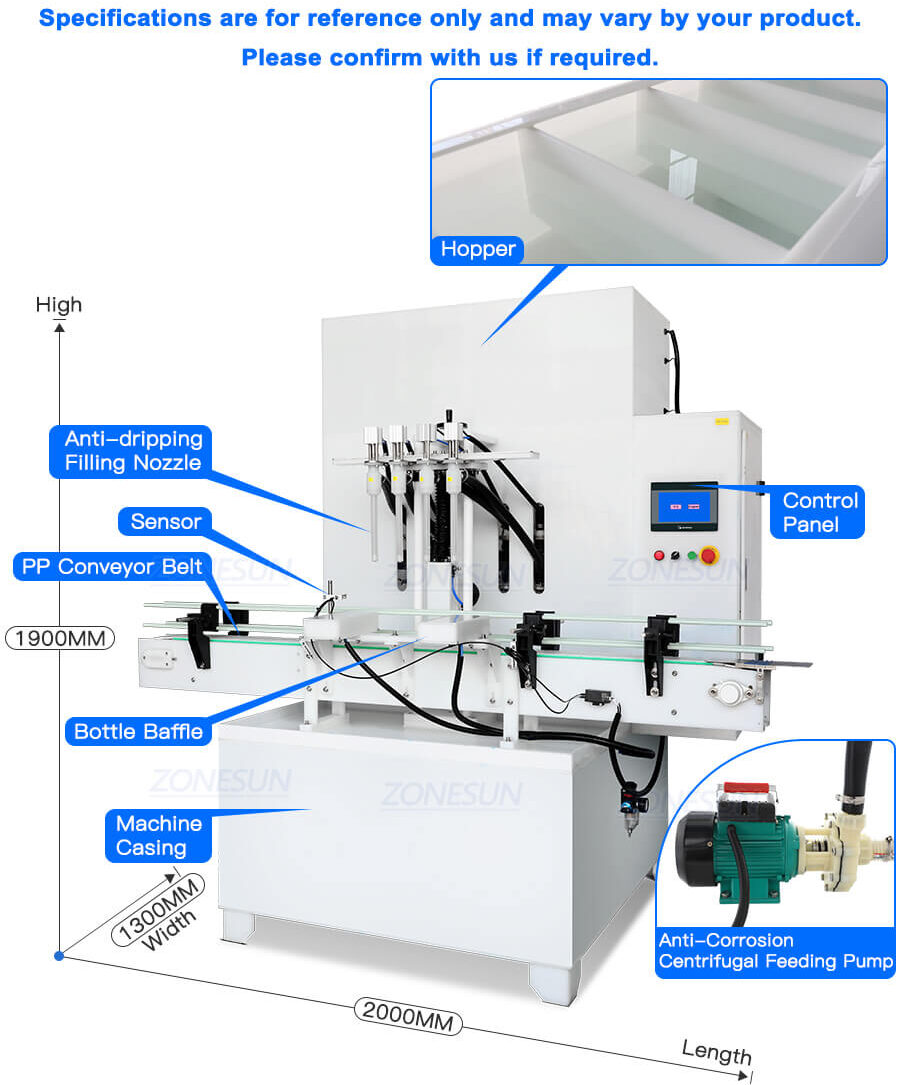

| Machine Size | About 2000 × 1300 × 1900 mm (L×W×H) |
| Machine Weight | About 280 kg |
Product Details:

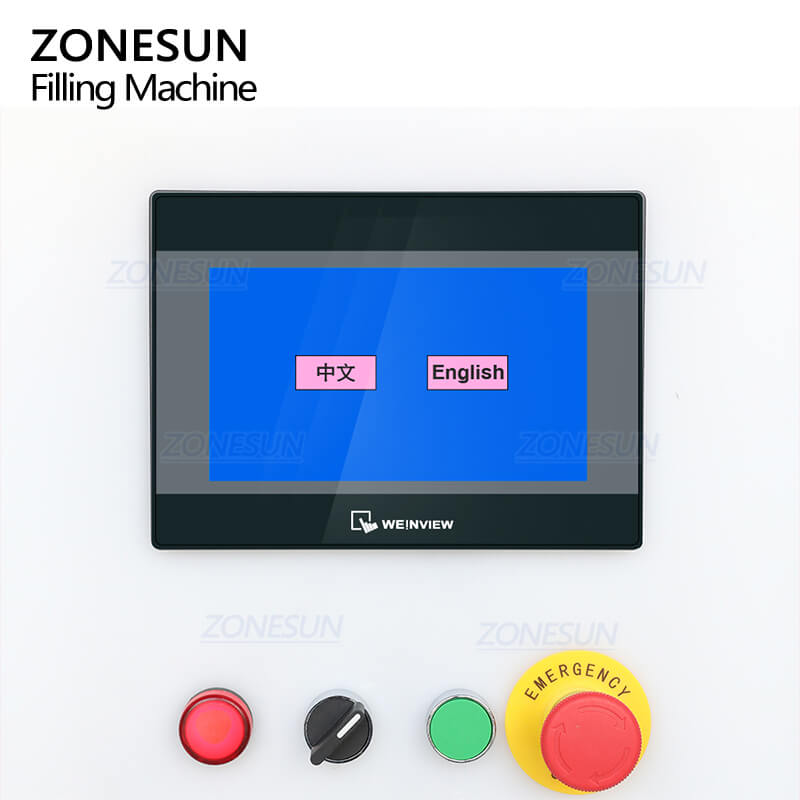

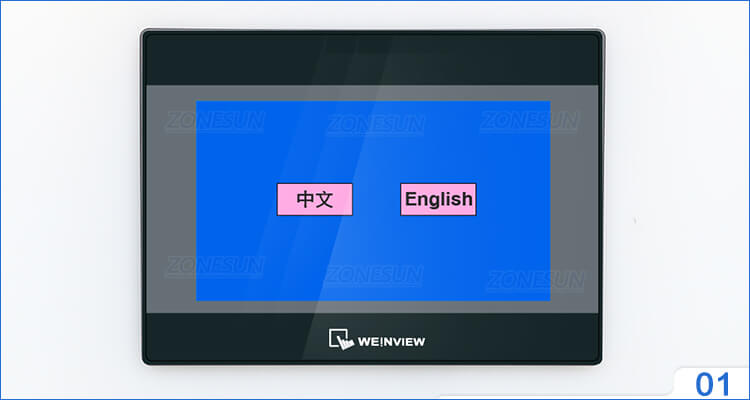

Touchscreen Control Panel
Setup & adjust filling volume through control panel directly, it provide an intuitive interface,simplifies machine operation.

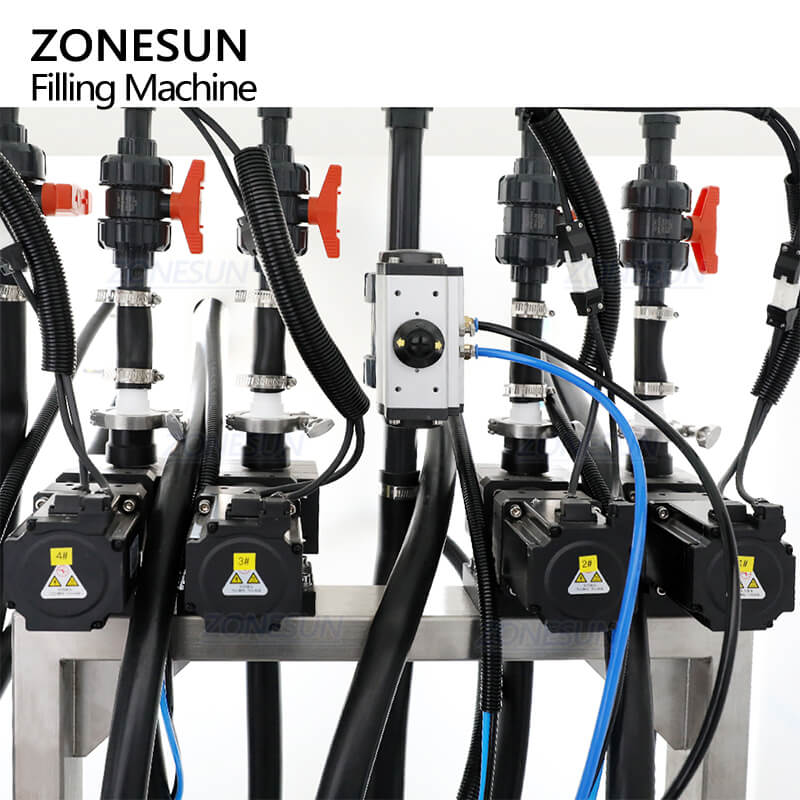

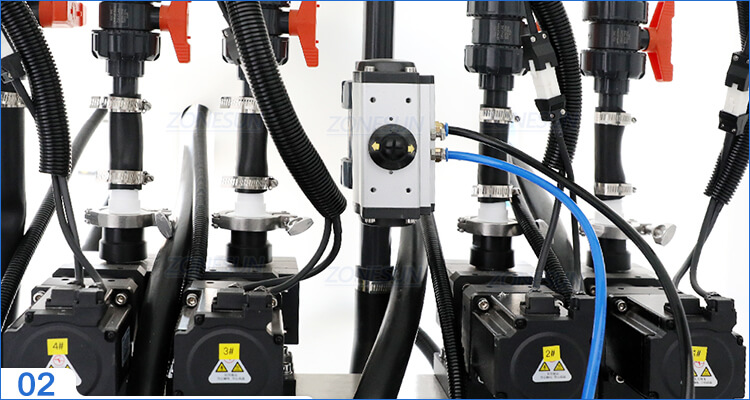

Magnetic Gear Pump System
Designed for corrosive products, it provides accurate and quantitative filling.

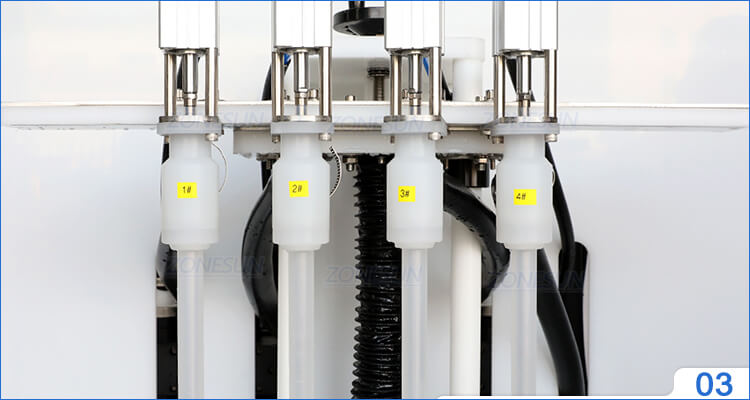

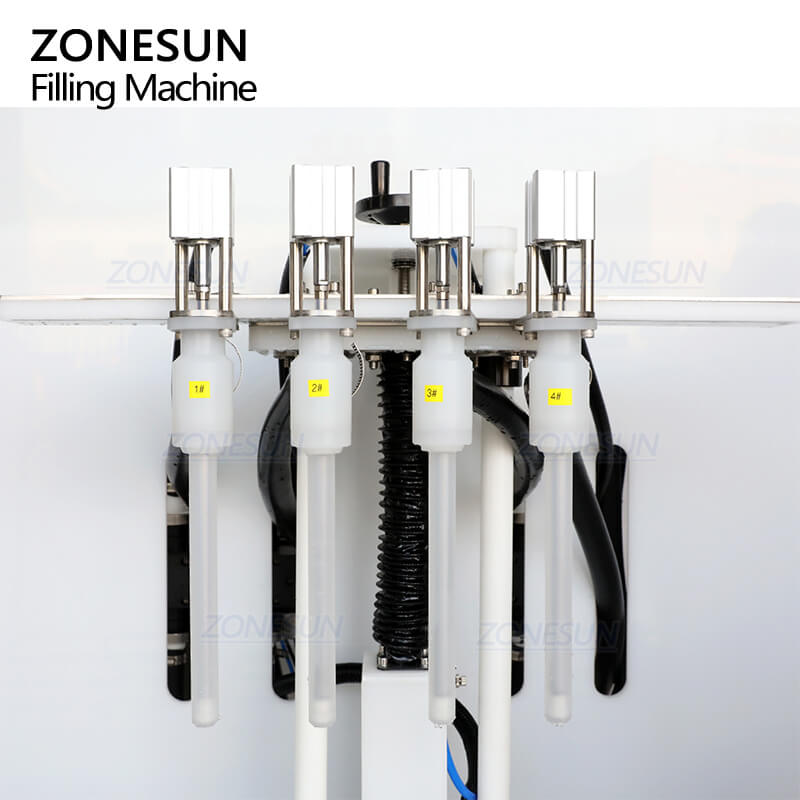

Filling Nozzles
Anti-dripping nozzles help prevent leakage, multiple filling nozzles are customizable.

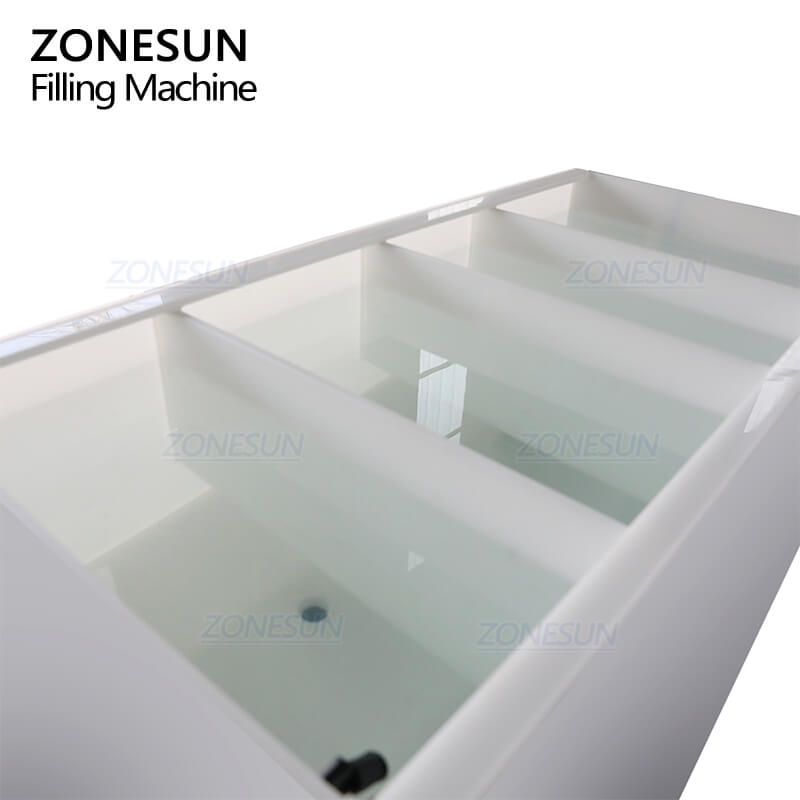

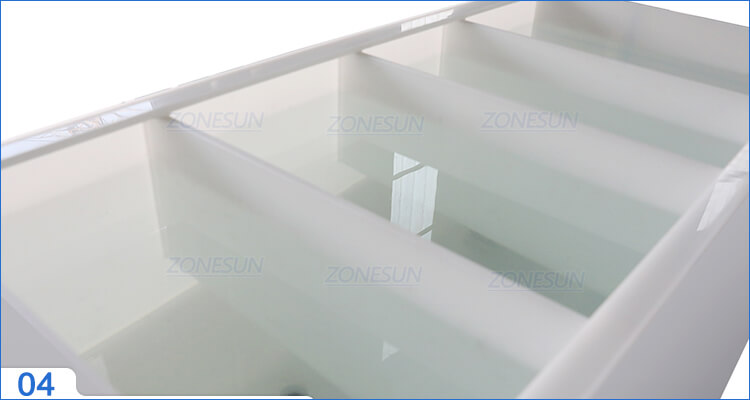

Hopper
Supplies liquid materials through anti-corrosion centrifuga pump steadily to the filling system during operation.

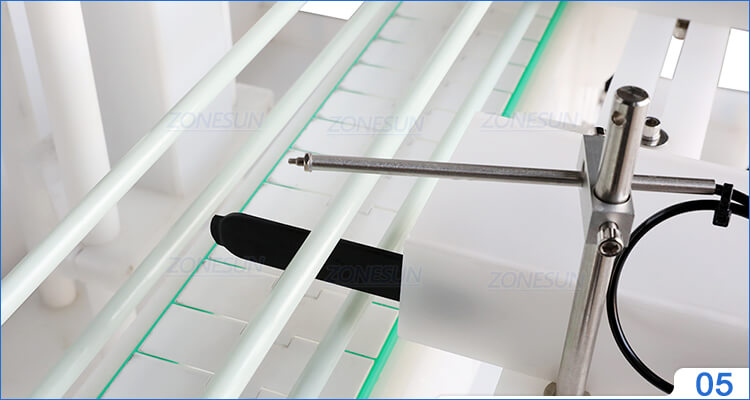

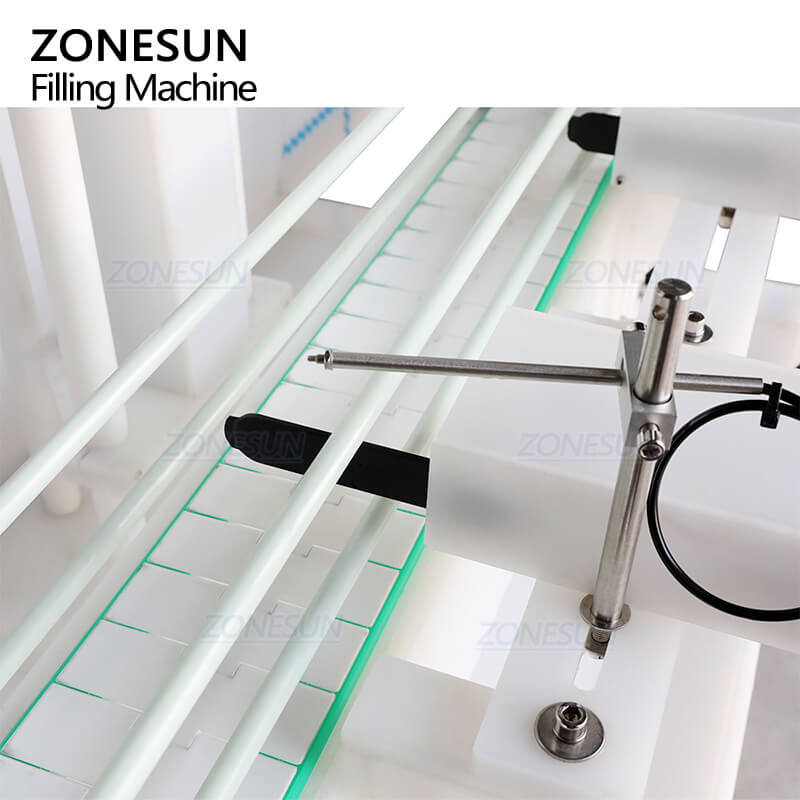

PP Material Conveyor
Corrosion-resistant PP conveyor ensures stable and reliable bottle transportation.
