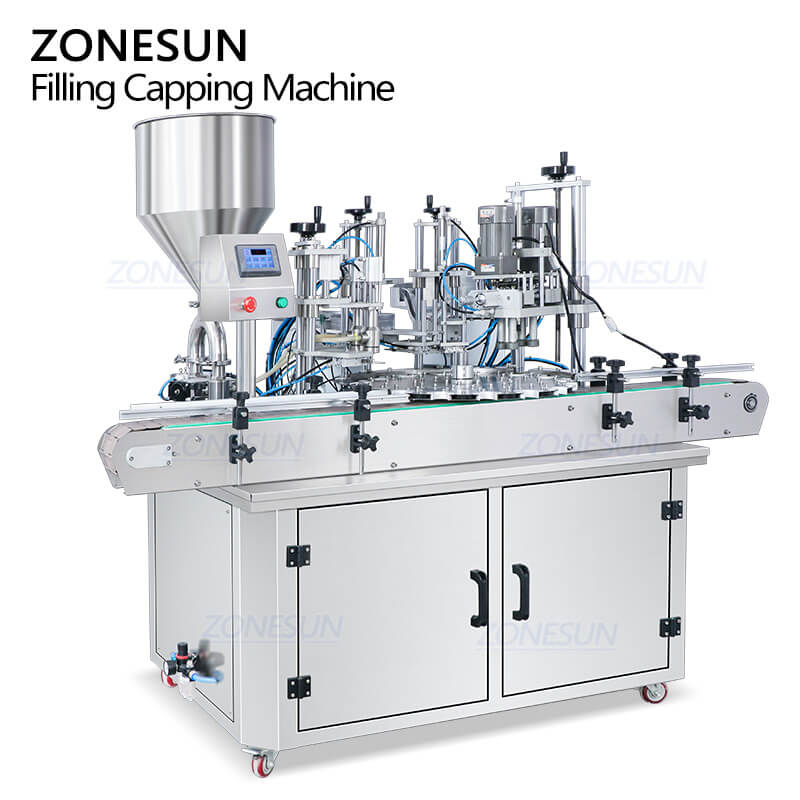

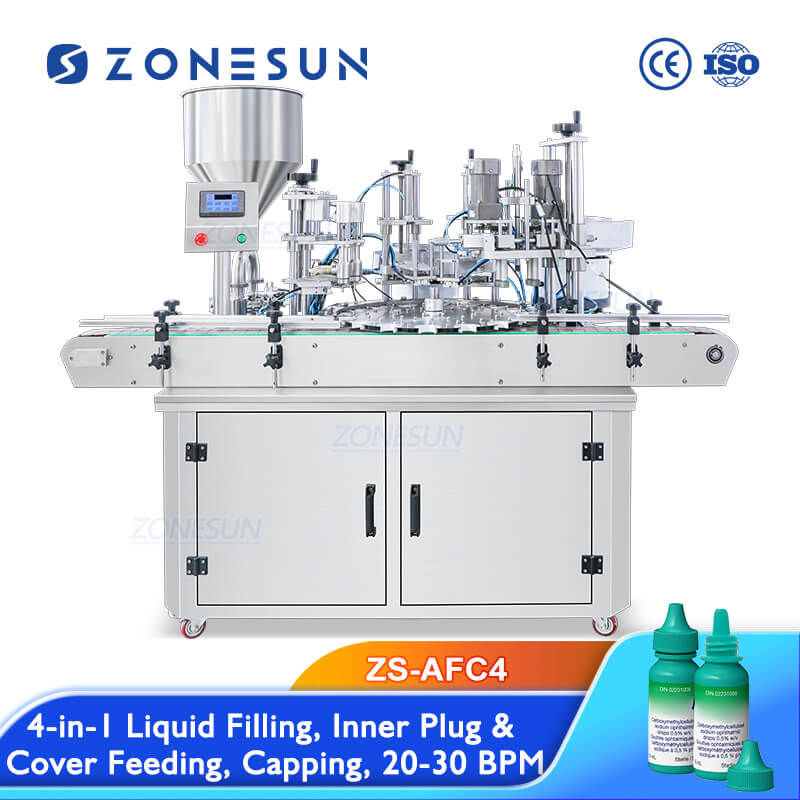

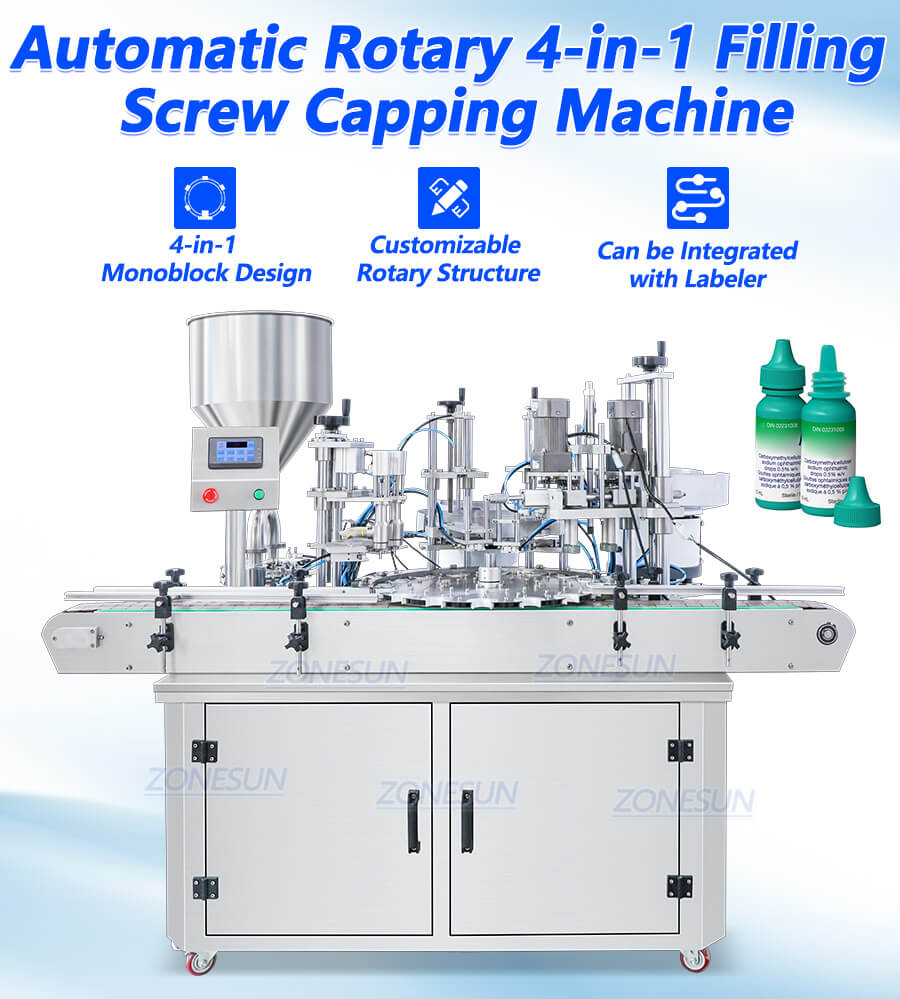

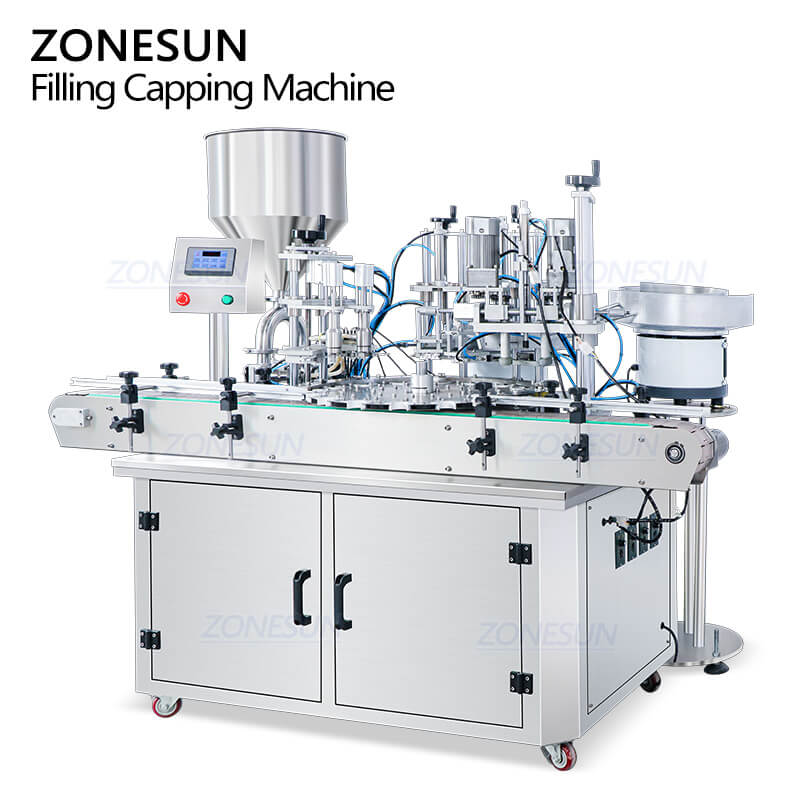

ZONESUN ZS-AFC4 Automatic Bottle Filling Capping Machine
$11,499.00
Share to
Product Description
Product Applications
This machine suits small bottles that need a stopper or dropper insert under a screw cap. The applications shown are essential oil bottles with a dropper insert, an eye drop bottle with a dropper tip stopper, and a vitamin drop bottle, all narrow neck bottles in small volume. Products of this kind need the liquid dosed, the stopper seated, and the screw cap pressed on and tightened, which is the sequence this machine is built around.

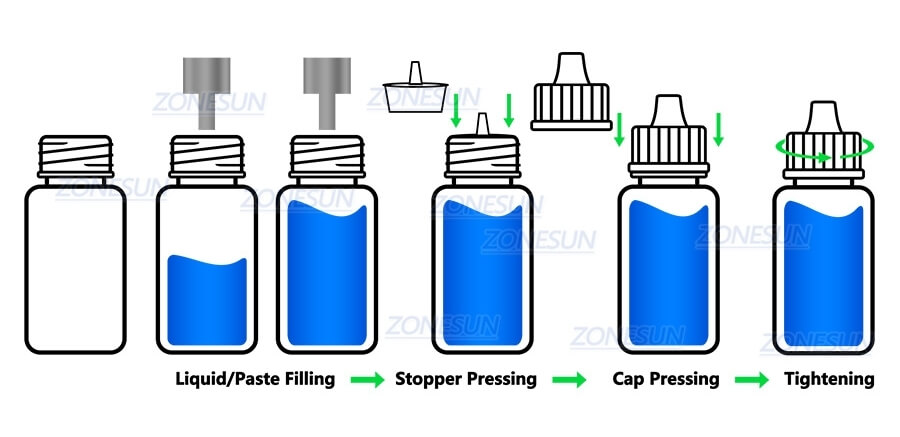

Product Production Process
How the machine runs: the bottle is filled with liquid or paste, a stopper is pressed into the neck, the screw cap is pressed down onto the bottle, and the cap is tightened at the last station. All four steps sit on one rotary platform, so a bottle goes from filling to tightening without leaving the machine, and the line can be extended with a labeler.
Product Parameter
| Machine Model | ZS-AFC4 |
| Voltage | 220V/110V 50-60HZ 1.2KW |
| Filling Material | liquid and paste |
| Filling Range | Customize |
| Conveyor Size | 1920mm*100mm(L*W) |
| Bottle Height | Customize |
| Bottle Diameter | Customize |
| Bottle Caps Diameter | Customize |
| Working Speed | About 20-30 bottles/min(according to liquid and filling range) |
| Machine Weight | About 455kg |
| Package Weight | About 576kg |
Product Details

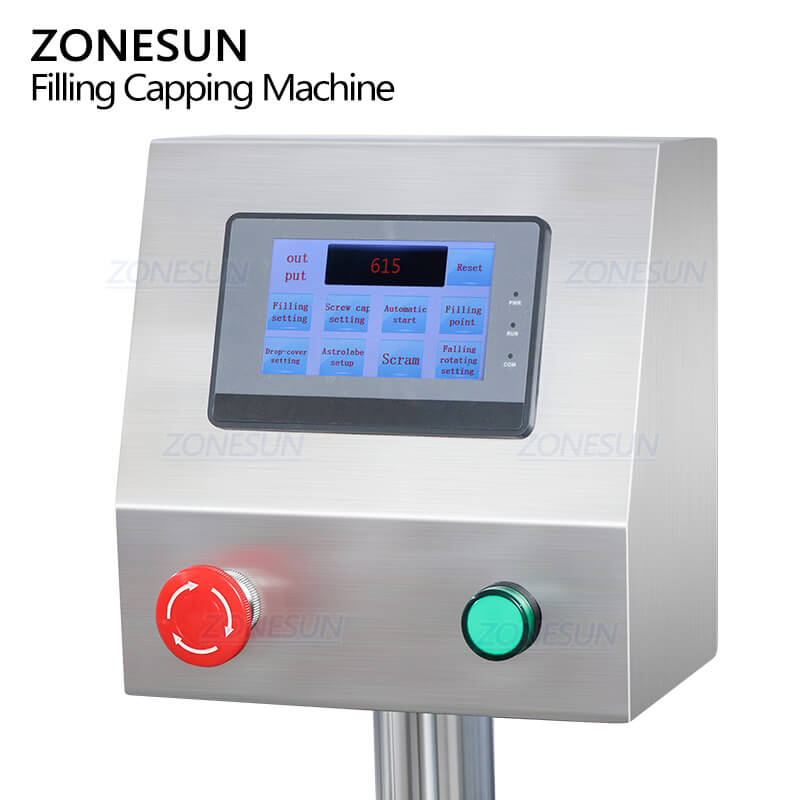

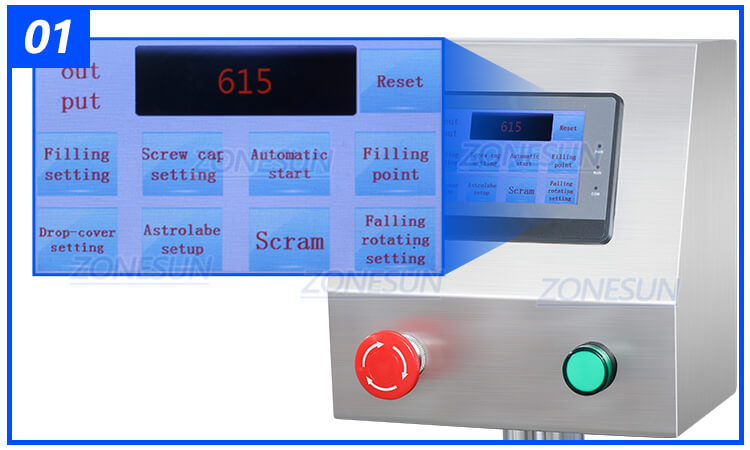

Touch Screen Control Panel
Quick machine setup, making it more convenient to control the machine, with customizable language options.

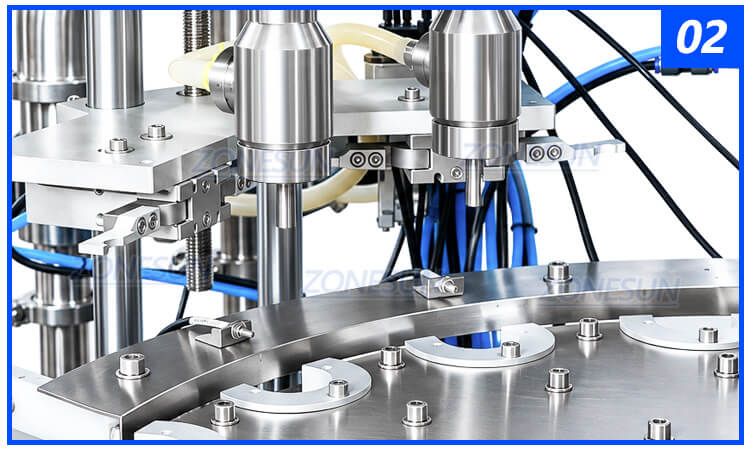

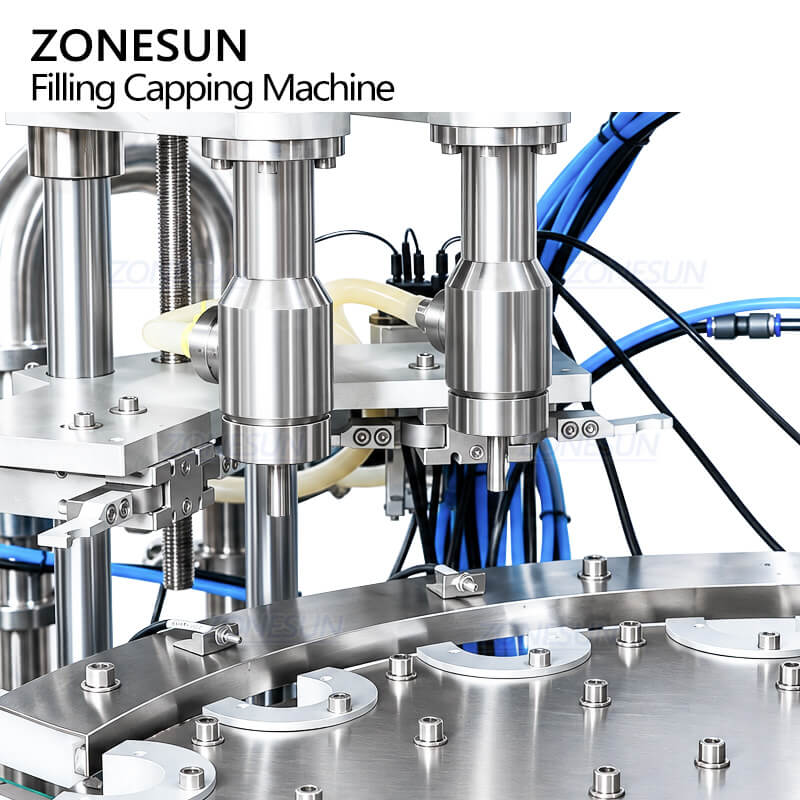

Double Pneumatic Filling Heads
Suitable for filling thicker liquids such as lotion, hand cream and essential oil, with individually controlled nozzles.

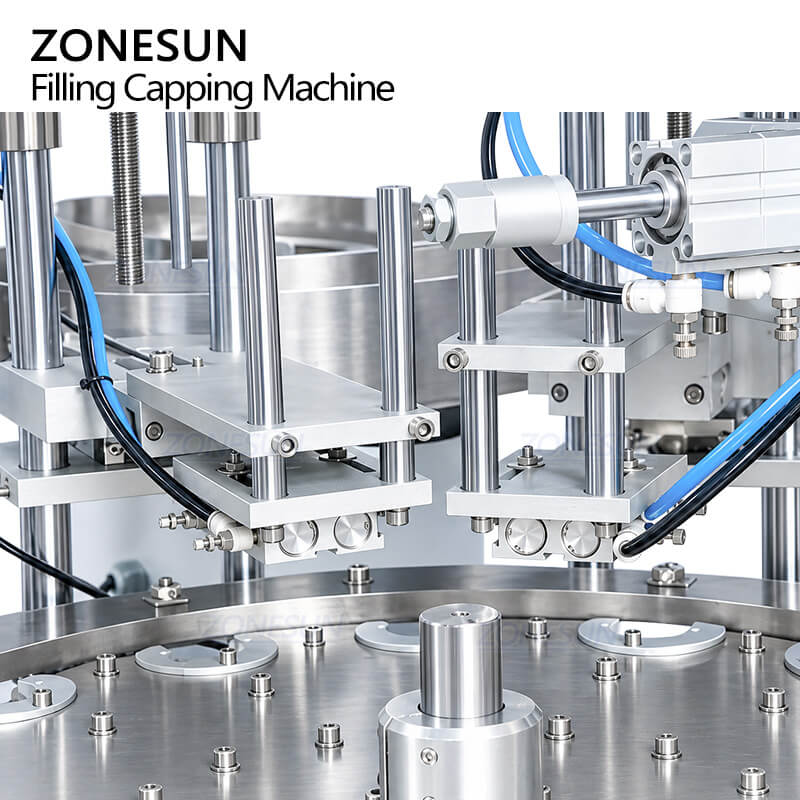

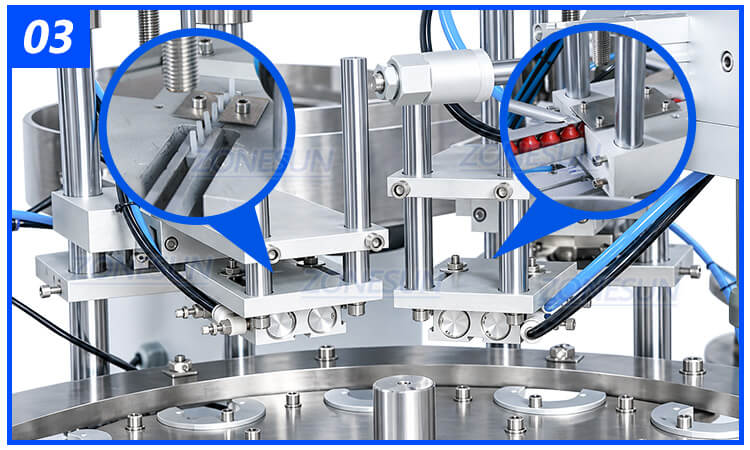

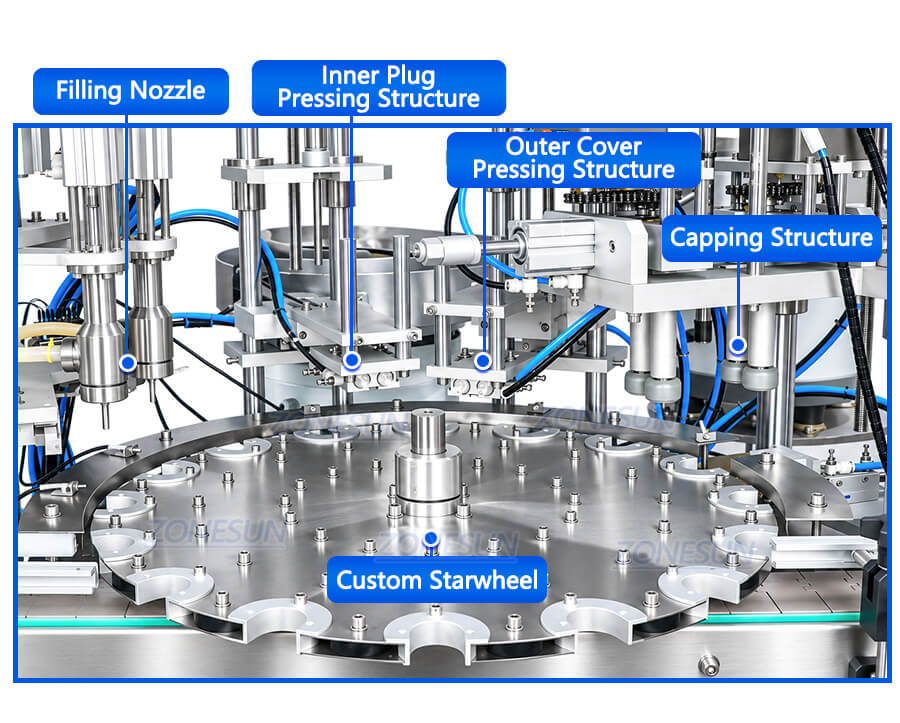

Stopper & Cap Feeding Structure
Automatically feeds and presses inner plugs and outer covers, reducing working labor while improving efficiency.

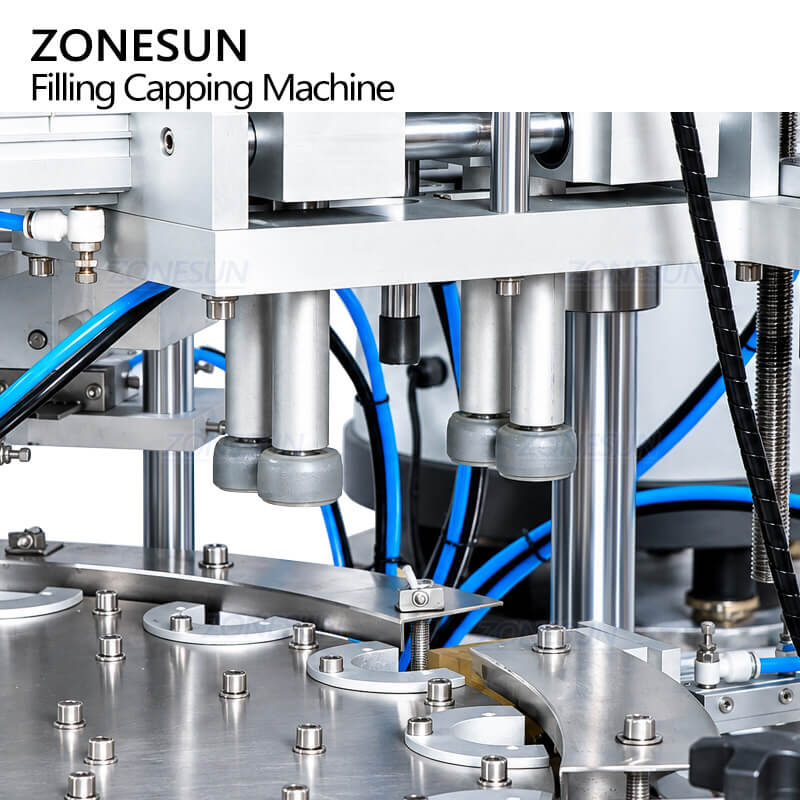

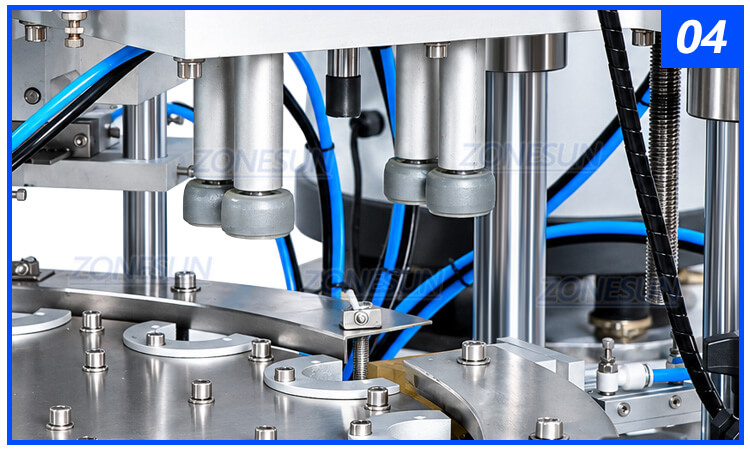

Cap Tightening Structure
Four rubber wheels rotate to tighten bottle caps, making the machine suitable for different types of caps, such as spray and dropper caps.

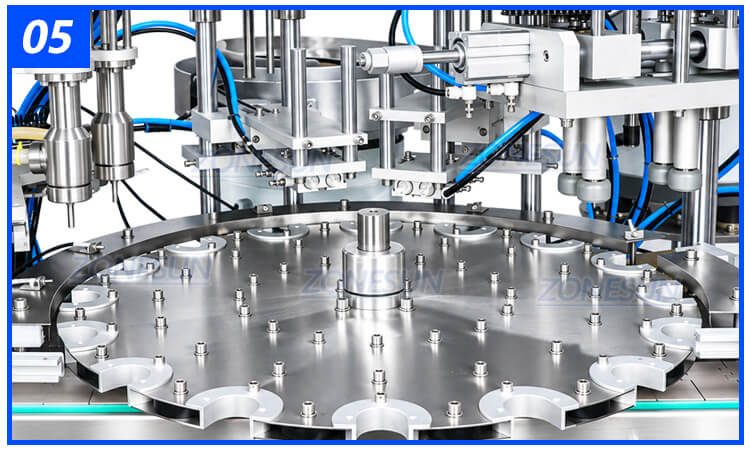

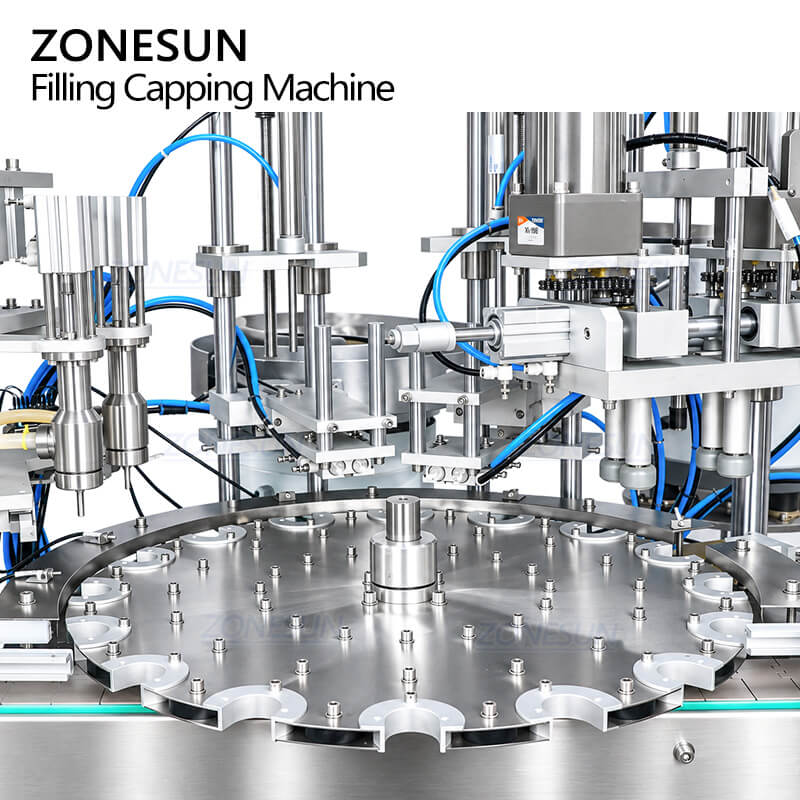

Compact Rotary Structure
Precisely positions bottles during filling and capping, with customization available for bottle specifications.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.

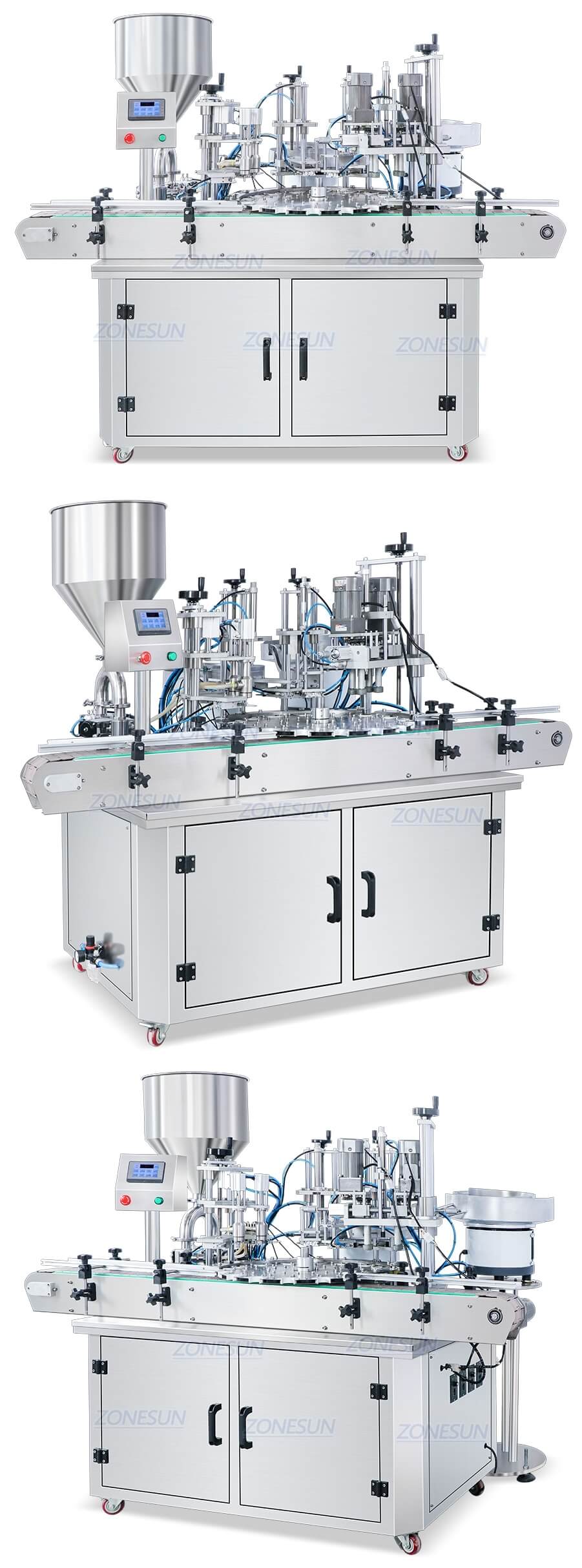

Product Real Shot
