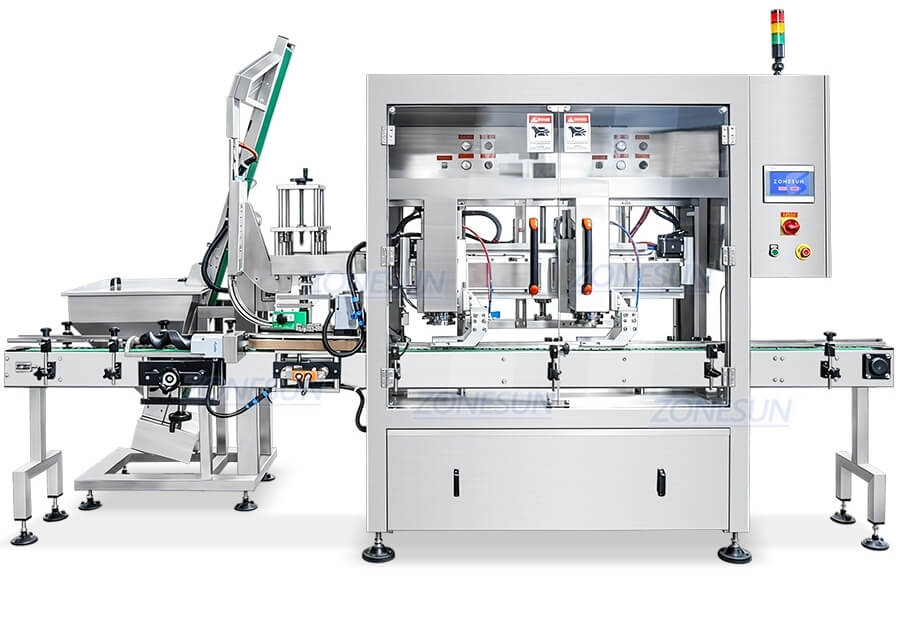

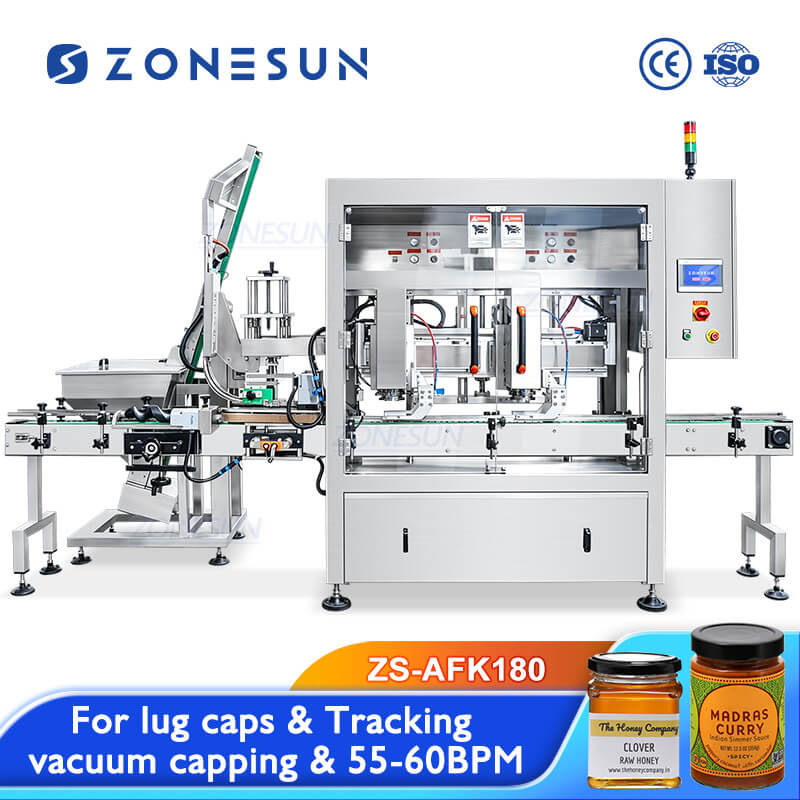

ZONESUN ZS-AFK180 Tracking Vacuum Capping Machine
The automatic glass bottle tracking vacuum capping machine keeps your production moving with dual tracking heads that cap bottles at 55-60 BPM without stopping the conveyor.A real throughput upgrade over intermittent cappers. The integrated vacuum capping system seals honey, jam, sauces, and pickles under vacuum to extend shelf life and prevent leakage, while the modular design connects directly into your existing filling and labeling line.
$29,599.00
Share to
Product Description
The automatic glass bottle tracking vacuum capping machine keeps your production moving with dual tracking heads that cap bottles at 55-60 BPM without stopping the conveyor.A real throughput upgrade over intermittent cappers. The integrated vacuum capping system seals honey, jam, sauces, and pickles under vacuum to extend shelf life and prevent leakage, while the modular design connects directly into your existing filling and labeling line.
Product Applications

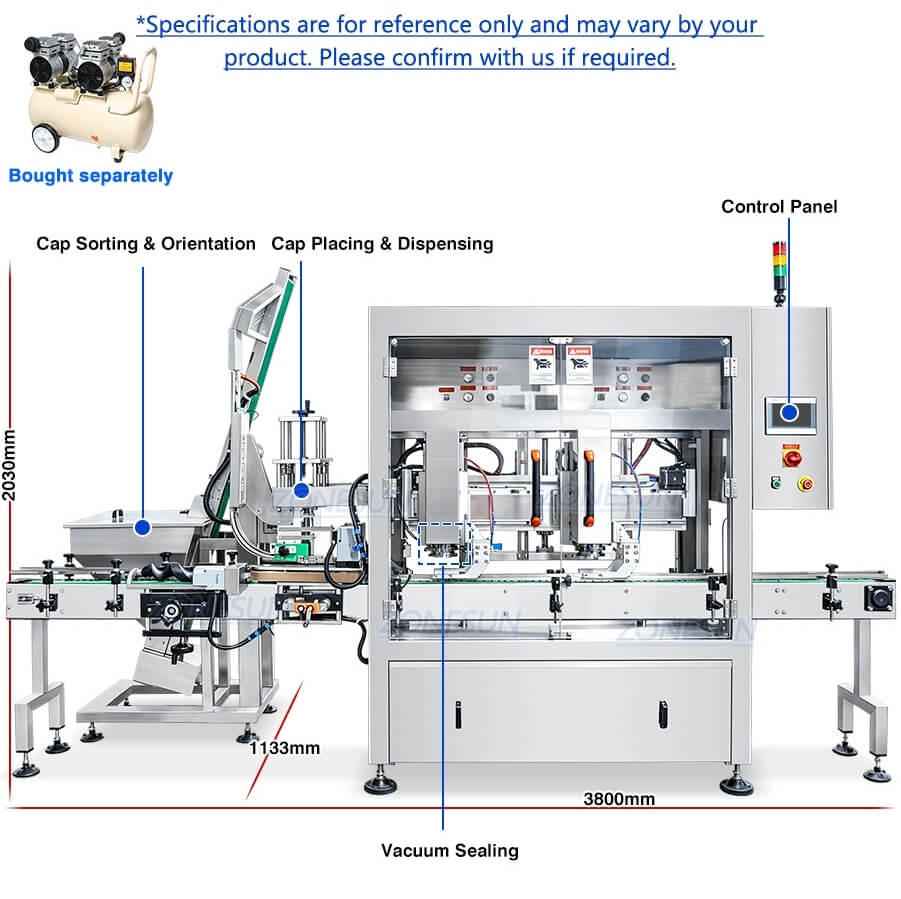

Product Parameter
| Model | ZS-AFK180 |
| Bottle Material | Glass jar bottles |
| Cap Diameter | Ø38–Ø80mm |
| Bottle Diameter | Ø50–Ø80mm |
| Bottle Height | 65–200mm |
| Production Capacity | 55–60 bottles/min |
| Capping Heads | 2 heads (follow-type tracking) |
| Capping Torque | 5–25 kg·cm |
| Power Supply | AC 380V, 50Hz |
| Conveyor Power | 0.75 kW |
| Total Power | About 5 kW (including cap sorter) |
| Air Source | >0.5 MPa |
| Air Consumption | 0.3 m³/min |
| Vacuum Level | −50 to −70 kPa |
| Conveyor Height | 800 ± 30mm |
| Conveyor Speed | 0–15 m/min (frequency adjustable) |
Product Details

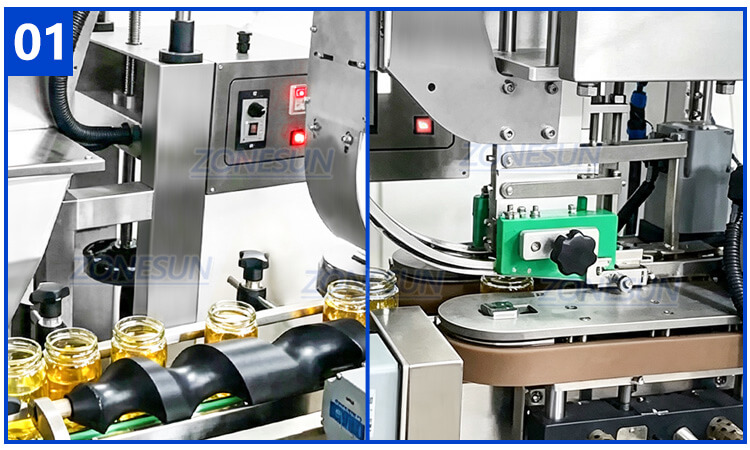

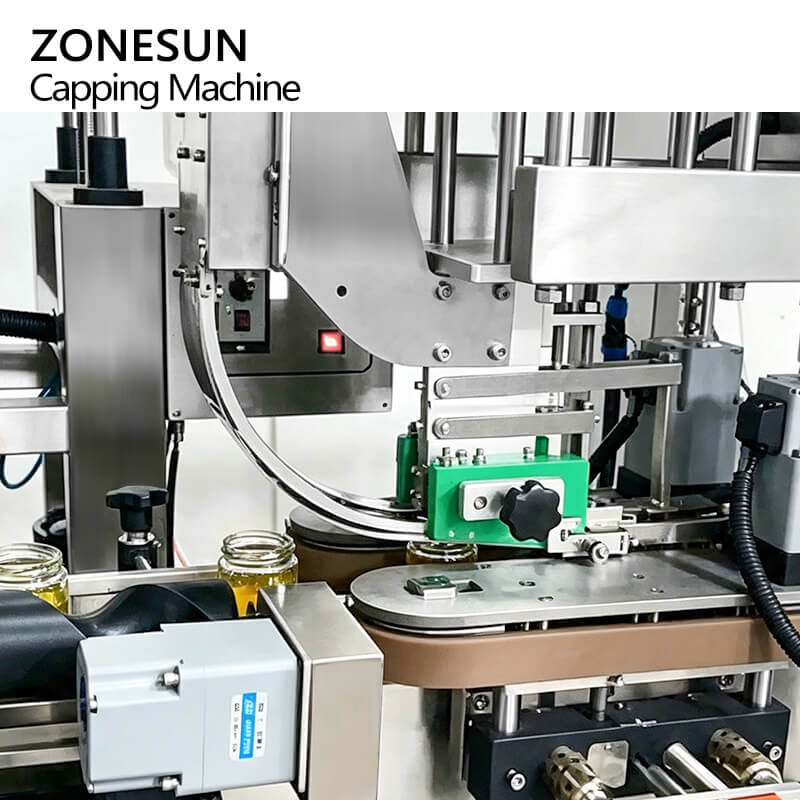

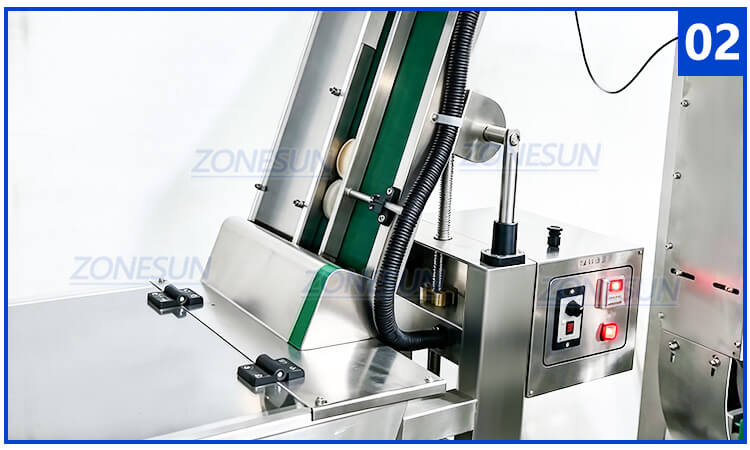

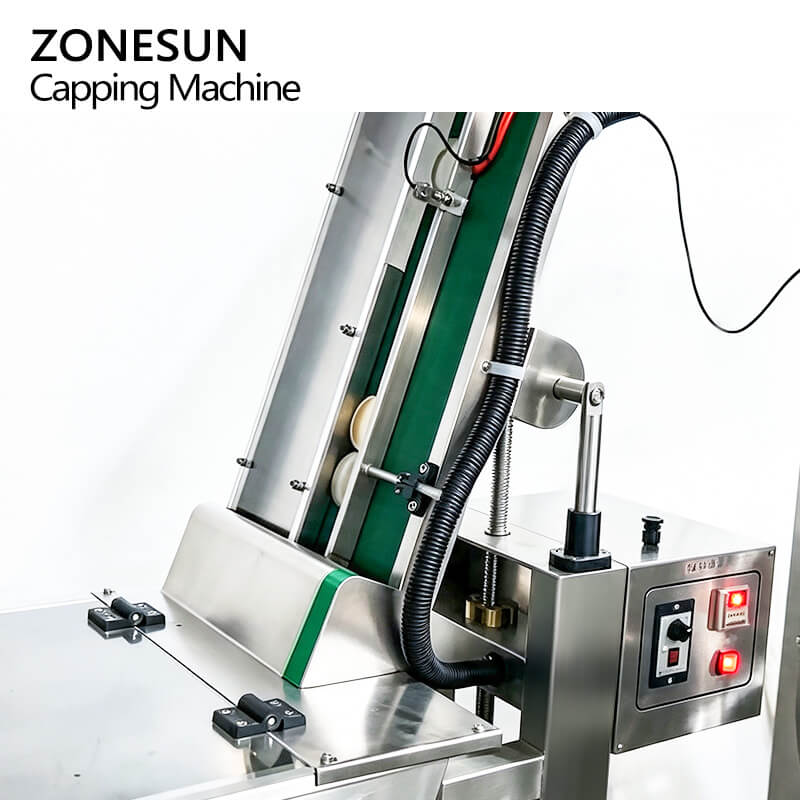

PLACING & DISPENSING
Precisely places caps onto bottle mouths as they move alongthe conveyor, enabling high-speed, zero-miss automaticpre-capping for smooth, continuous capping performance.

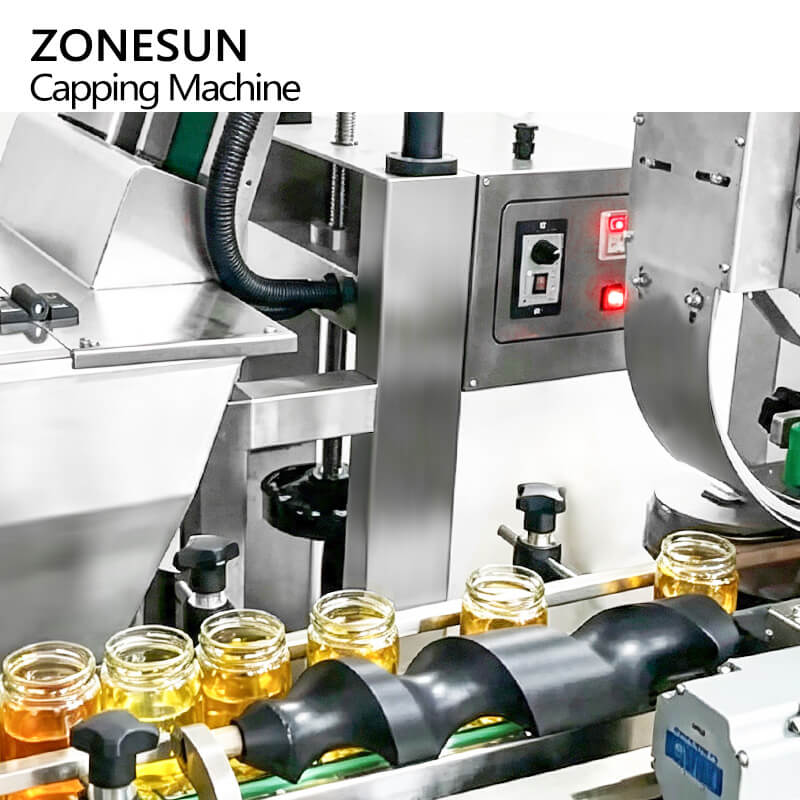

SORTING & ORIENTATION
Automatically sorts and orients messy caps from thehopper, ensuring each cap enters the feed track in thecorrect direction for smooth, high-speed, jam-free operation.

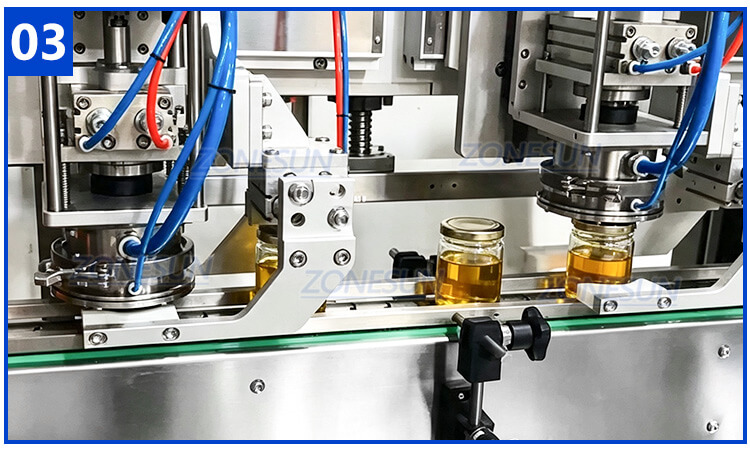

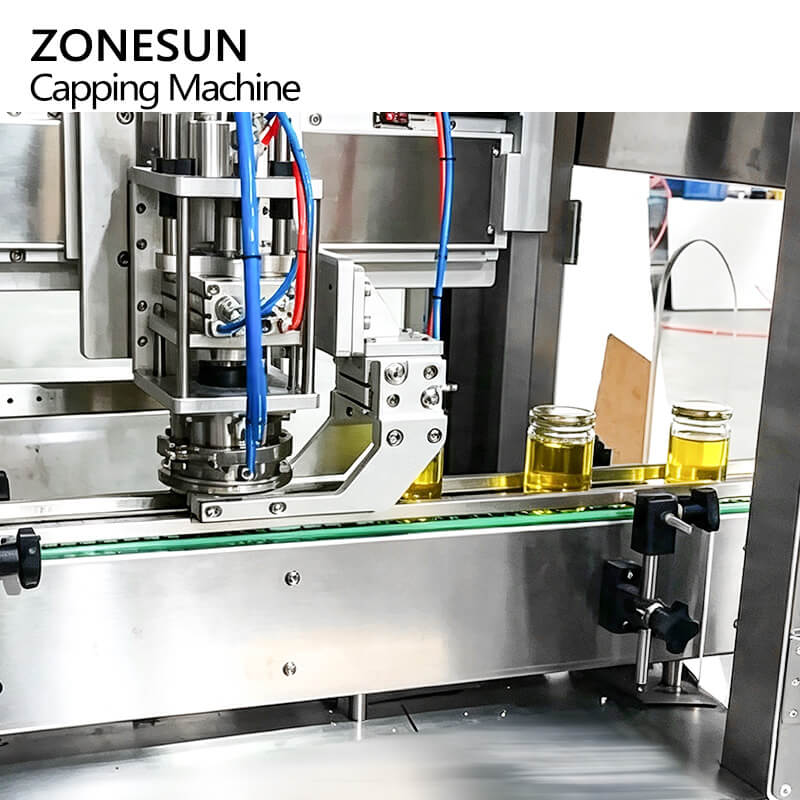

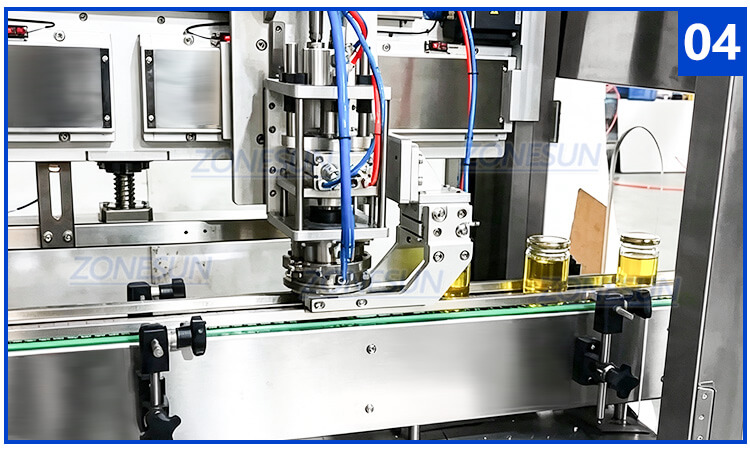

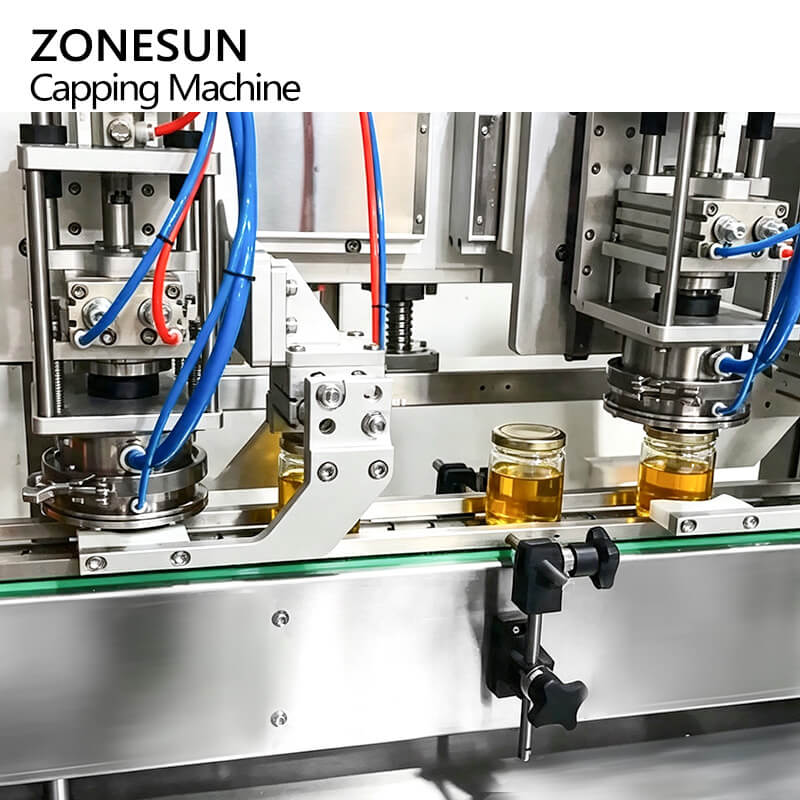

TRACKING CAPPING
Applies controlled torque while tracking bottle movement to tighten caps accurately without damage, ensuring consistent sealing quality.
VACUUM SEALING
Creates a sealed vacuum chamber before capping toevacuate air and achieve the preset vacuum level, ensuringcompliant vacuum-packaging quality.

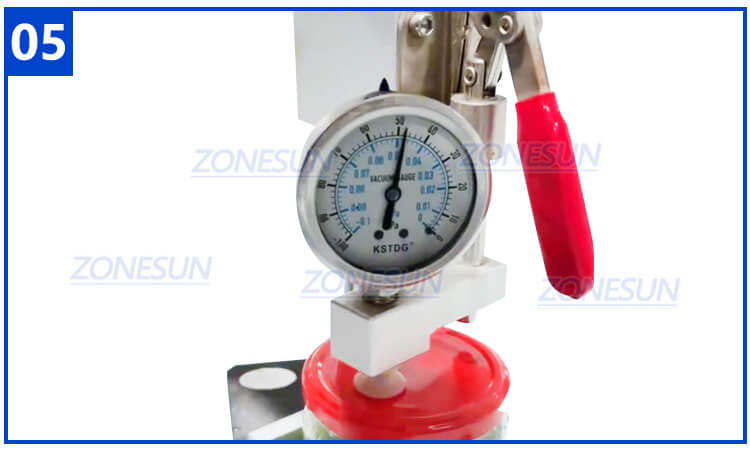

VACUUM INSPECTION
Monitors the vacuum level of each sealed bottle to verify proper air removal and ensure consistent, reliable vacuum-packaging quality.
Product Real Shot
