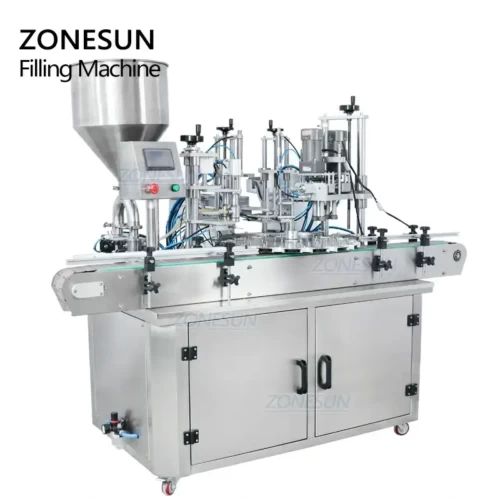

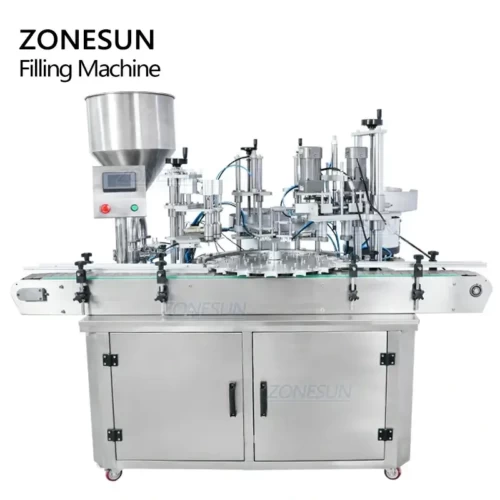

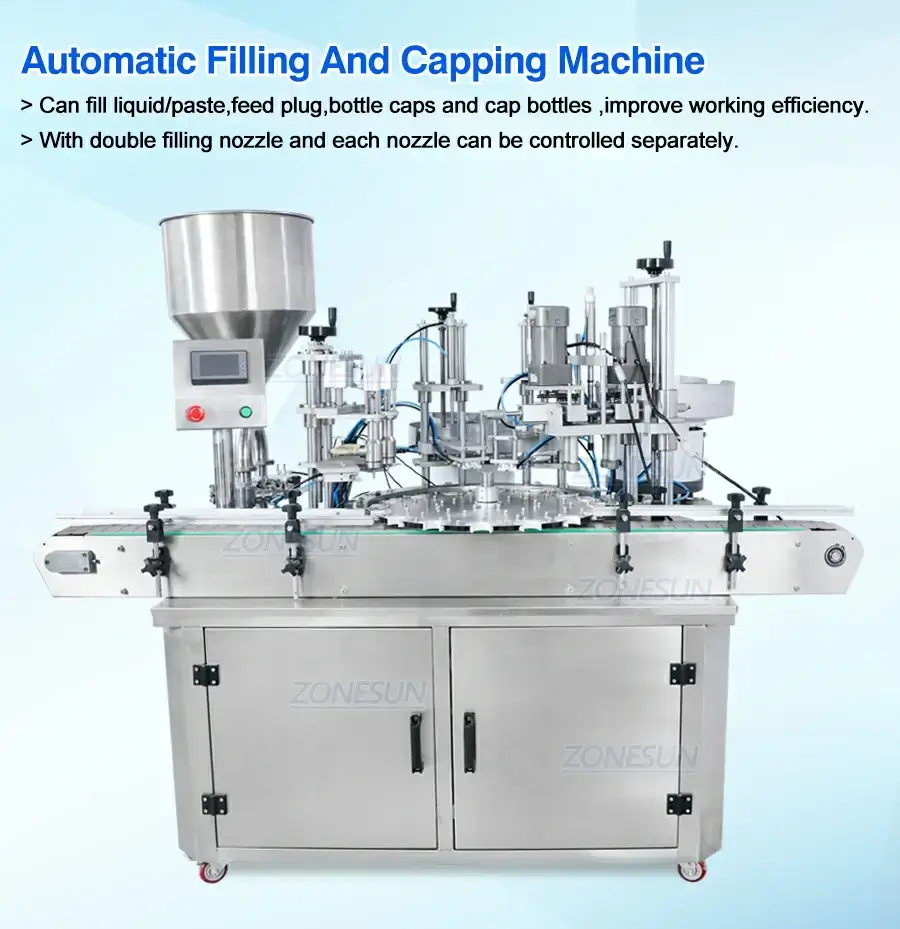

4 In1 Filling And Capping Machine

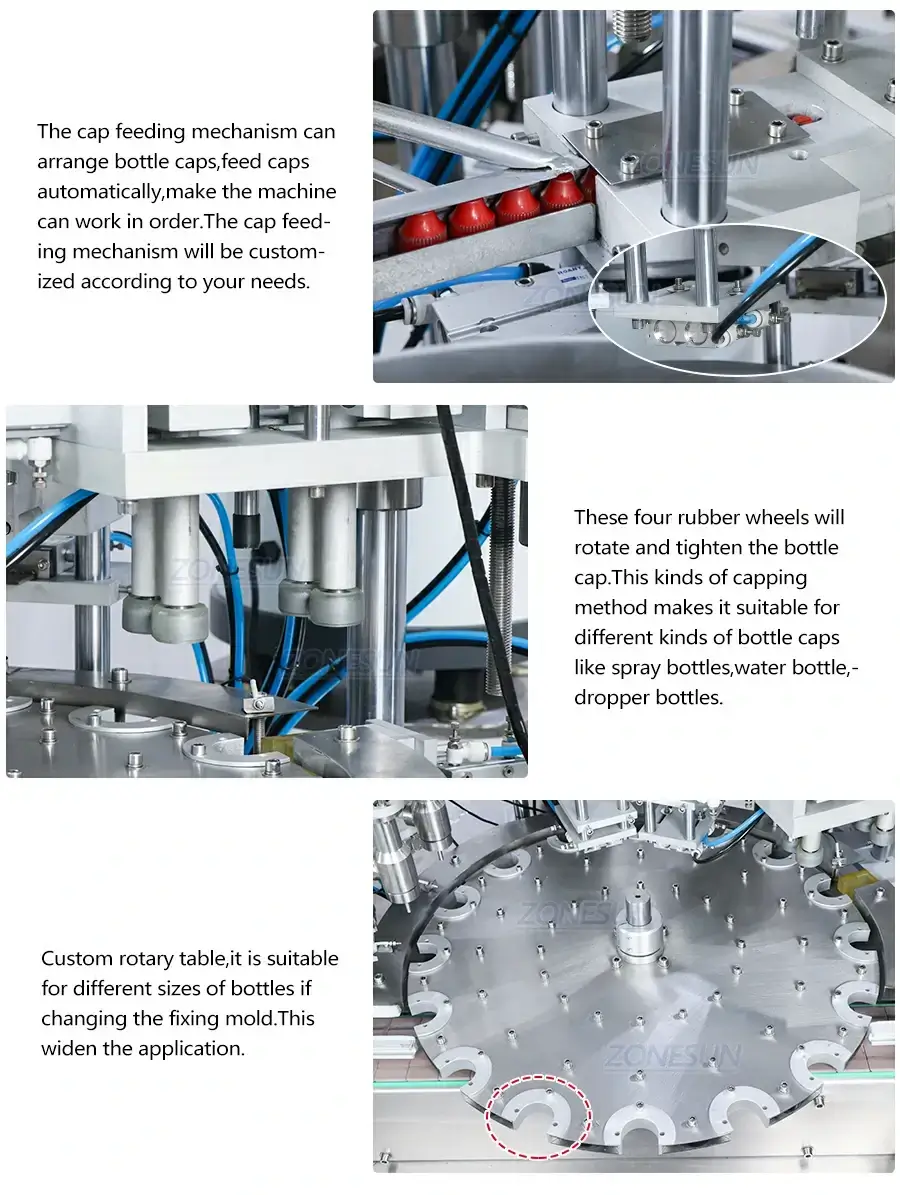

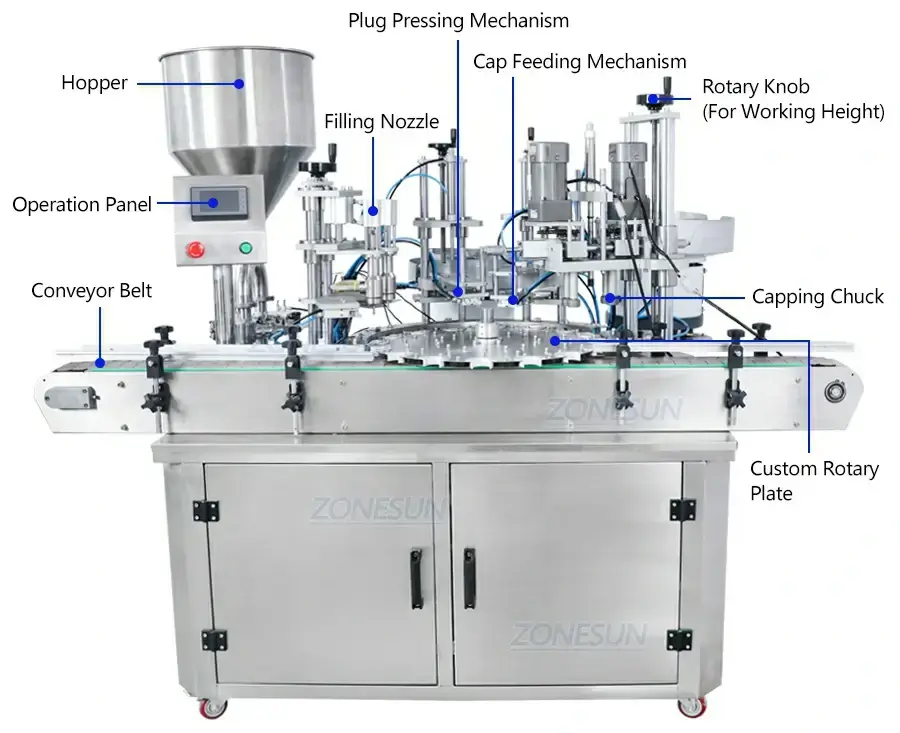

This automatic production line is designed with multiple function,it can arrange bottles, fill liquid or paste,feed bottle plugs and caps , cap bottles and sort finished products automatically.It can help you improve working efficiency.This is suitable for essential oil,water,juice etc.We can customize the machine and make it can work for different sizes of containers at the same time.
Description：
This automatic production line is designed with multiple function,it can arrange bottles, fill liquid or paste,feed bottle plugs and caps , cap bottles and sort finished products automatically.It can help you improve working efficiency.This is suitable for essential oil,water,juice etc.We can customize the machine and make it can work for different sizes of containers at the same time.
Parameter:
| Machine Model | ZS-AFC4 |
| Voltage | 220V/110V 50-60HZ 1.2KW |
| Filling Material | liquid and paste |
| Filling Range | Customize |
| Conveyor Size | 1920mm*100mm(L*W) |
| Bottle Height | Customize |
| Bottle Diameter | Customize |
| Bottle Caps Diameter | Customize |
| Working Speed | About 20-30 bottles/min(according to liquid and filling range) |
| Machine Weight | About 455kg |
| Package Weight | About 576kg |
