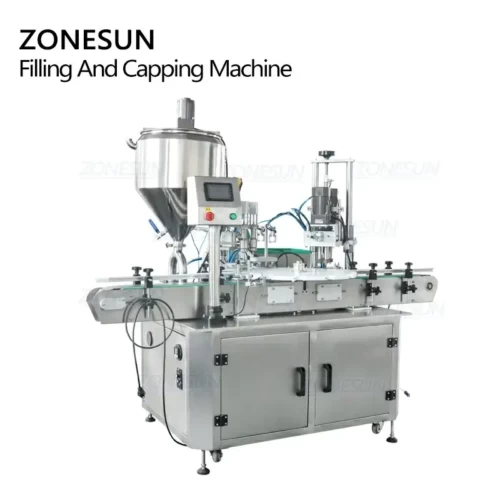

Vial Filling And Cappping Machine
Description:

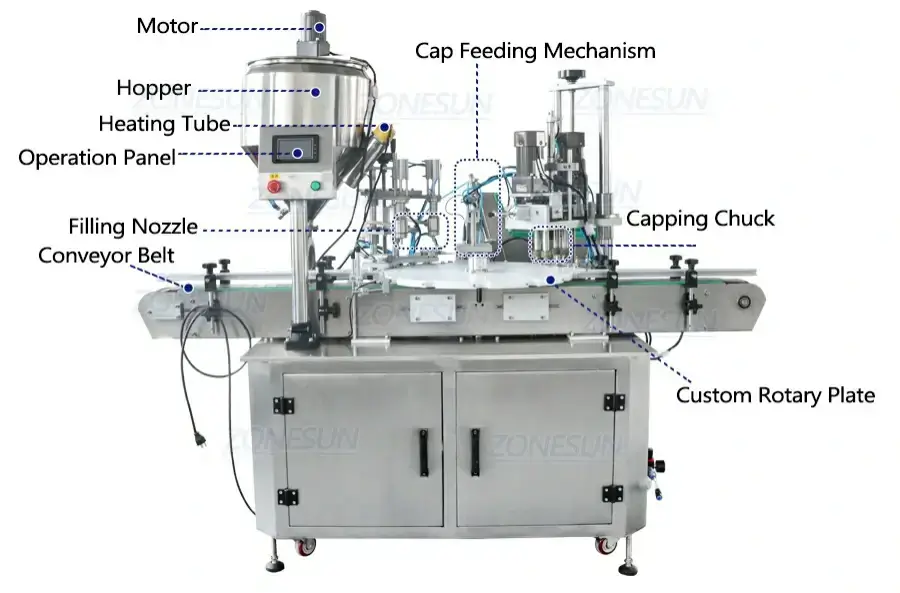

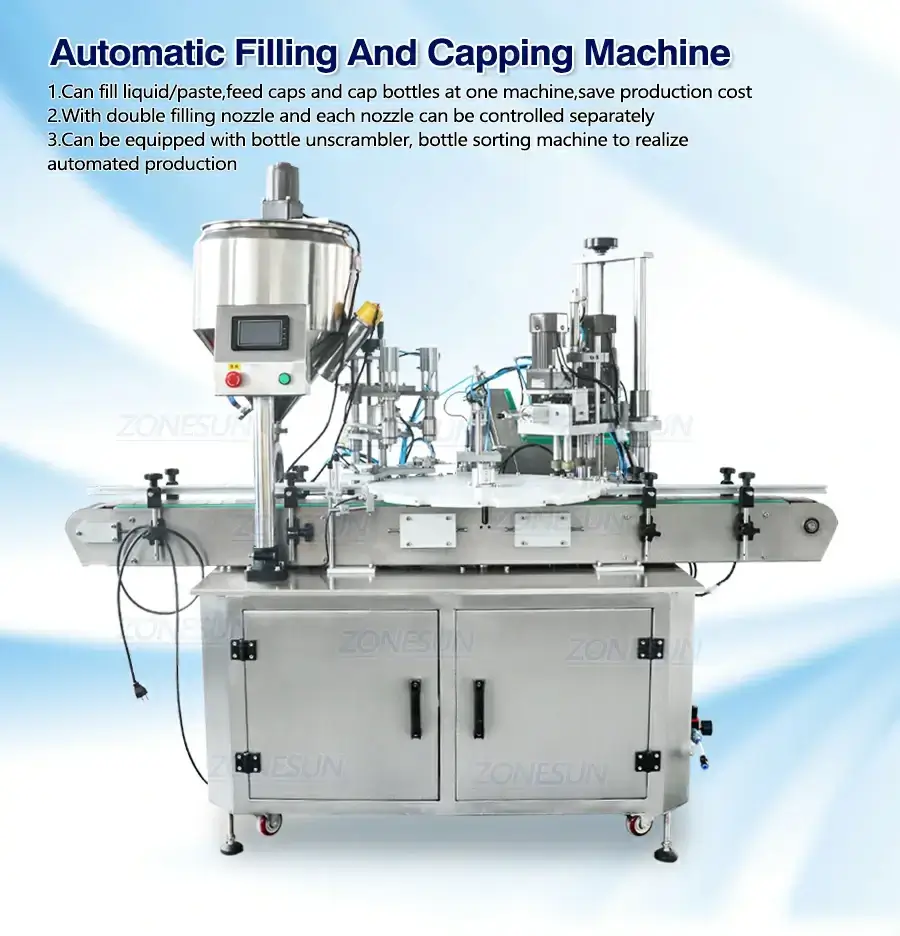

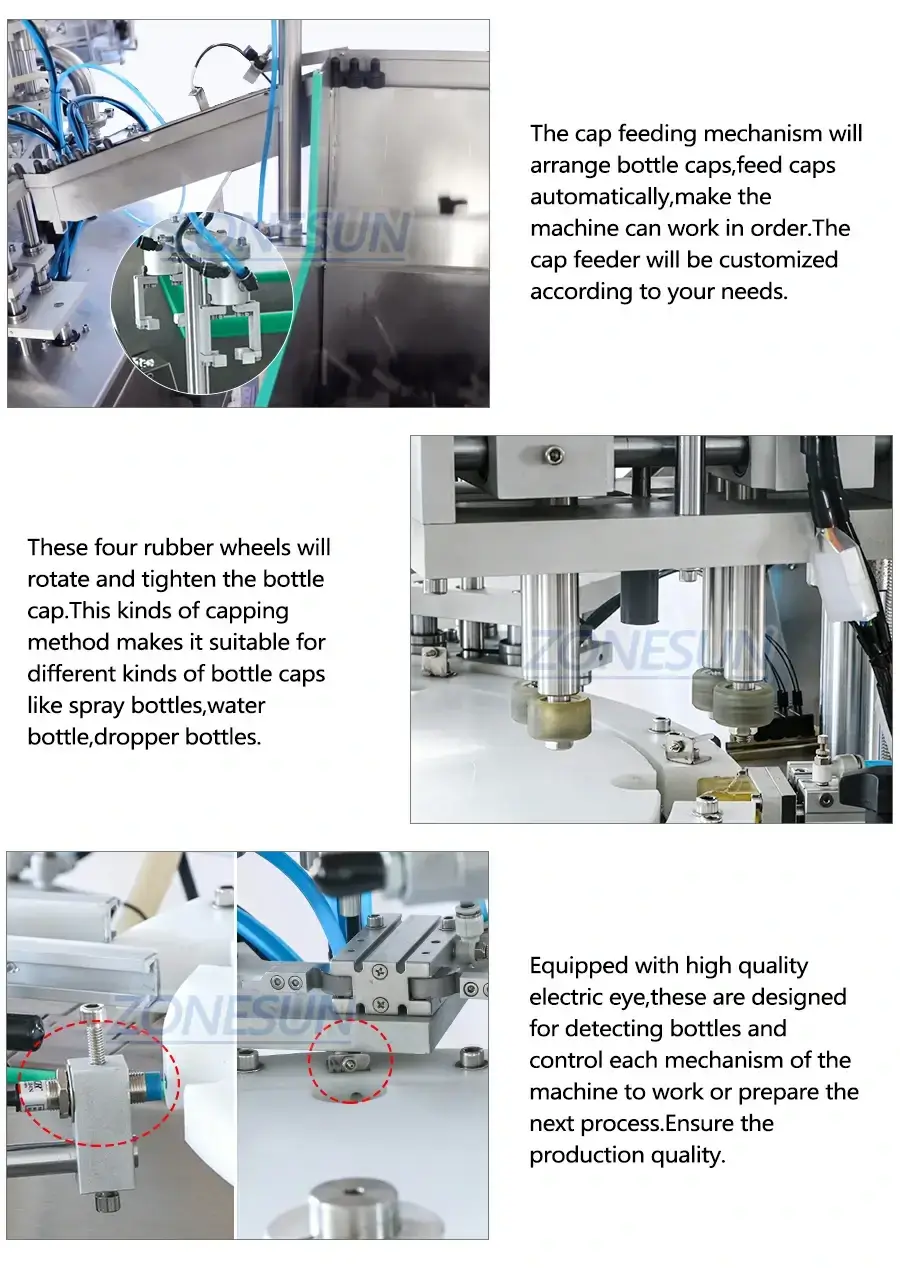

This automatic packaging machine is designed with multiple function,it can fill liquid or paste,feed bottle caps and cap bottles automatically.The multifunctional filling and capping machine can help you save production cost and space.This machine is suitable for essential oil,water,juice etc.This machine is suitable for filling different sizes of containers at the same time.
Parameter:
Machine Model | ZS-AFC3 |
Voltage | 220V/110V 50-60HZ 1.2KW |
Filling Material | liquid and paste |
Filling Range | 5-50ml /10-100ml /50-300ml |
Conveyor Size | 1920mm*100mm(L*W) |
Bottle Height | Customize |
Bottle Diameter | Customize |
Bottle Caps Diameter | ≥15mm |
Temperature Range | 0-180℃(Can be customized) |
Working Speed | About 20-30 bottles/min |
Machine Size | About 1210*910*1590mm |
Package Size | 2070*1040*1700mm(main machine)+845*700*1340mm(cap feeder) |
Machine Weight | About 373.5kg |
Package Weight | About 488kg |
