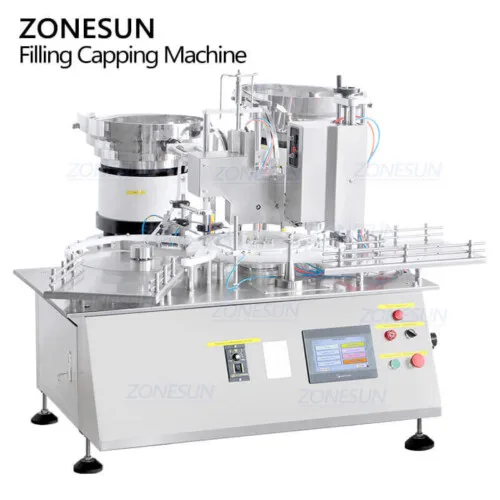

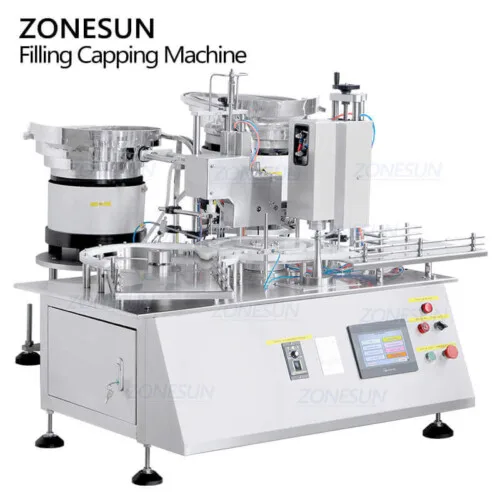

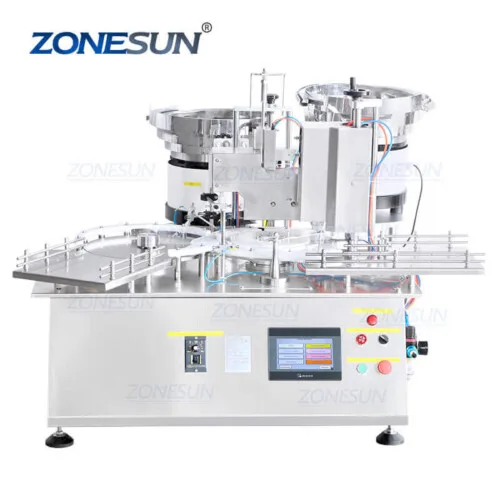

Vial Filling Crimping Capping Machine
Equipped with a peristaltic pump, this monoblock filling crimping system integrates bottle unscrambling, liquid filling, and bottle crimping into one compact unit. As a reliable vial filling capping machine, it ensures high precision and stable operation, making it ideal for pharmaceutical and chemical production lines. Compared with a traditional vial filling machine, this integrated design reduces manual intervention and improves overall efficiency.
$9,499.00
Share to
Recommended Products
ZONESUN Powder Vials Filling Capping Machine
ZONESUN 4 Heads Vial Filling Capping Machine
ZONESUN ZS-YG100 High-Speed Vial Capping Machine
Product Description
This advanced vial filling capping machine is designed to meet the strict requirements of modern production environments. Equipped with a peristaltic pump, the liquid only contacts the hose, ensuring cleanliness and preventing contamination.The machine combines multiple functions such as bottle unscrambling, filling, stopper pressing, and cap crimping, greatly simplifying the workflow compared to a standalone vial filling machine.

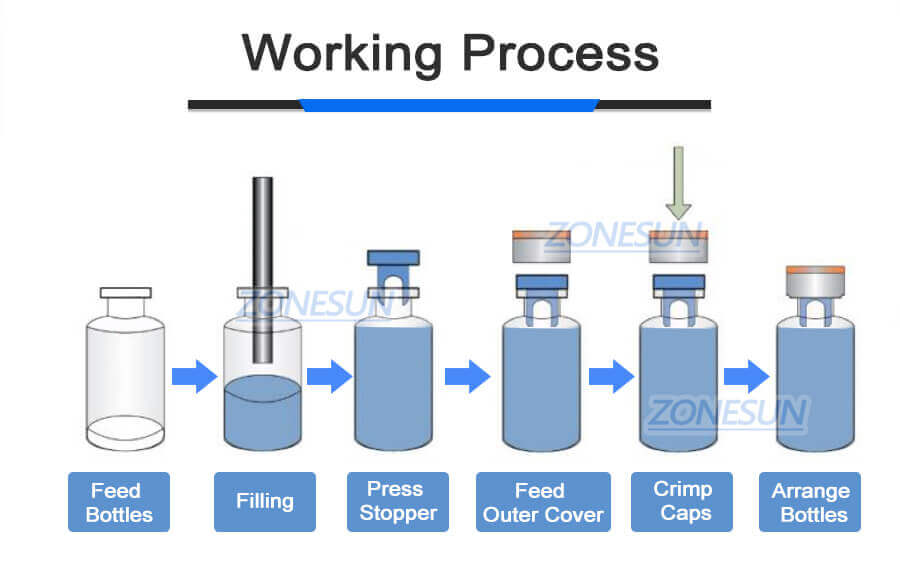

Working Process
This vial filling capping machine operates through a streamlined automated process. Compared to a traditional vial filling machine, this integrated workflow reduces handling time and improves production continuity, ensuring each step is synchronized for higher efficiency
Applications
This equipment is widely used across industries that require precise liquid filling and secure sealing. The combination of automation and accuracy makes it suitable for both small-scale and continuous production environments.
Pharmaceutical Liquids
Ideal for injectable solutions and medical liquids, this vial filling machine ensures sterile and accurate filling.
Chemical Reagents
Suitable for precise dosing of chemical liquids, the vial filling capping machine minimizes contamination risks.
Cosmetic Serums & Essences
Perfect for small-dose cosmetic liquids, offering stable filling performance with a compact vial filling machine setup.
Laboratory Samples
Designed for small-batch, high-precision applications where a vial filling capping machine ensures repeatability and efficiency.
Product Parameters
| Machine model | ZS-AFC20 |
| Machine power | 110/220V 50-60HZ 1kW |
| Filling pump | Peristaltic Pump |
| Max flow rate | 2.5L/min |
| Recommend Filling Volume | 20-50ml(Customized) |
| Working capacity | 20-30bottles/min |
| Suitable bottle height | About 45mm-60mm(Customized) |
| Suitable bottle diameter | About 22mm(Customized) |
| Suitable bottle mouth | About 19.5mm(Customized) |
| Suitable cap size | H=10mm*φ=22mm(Customized) |
| Machine size | About 1450*850*1050mm(L*W*H) |
| Machine weight | About 195kg |
| Package size | About 1190*990*1120mm(Main Machine) About 880*500*570mm(Vibratory Sorter) |
| Package weight | About 196kg(Main Machine) About 124kg(Vibratory Sorter) |
Performance Overview
The ZS-AFC20 vial filling capping machine delivers stable performance with a precise peristaltic pump, supporting a filling range of 20–50ml and a working speed of about 20–30 bottles/min.This vial filling machine is flexible for different bottle sizes and features a compact design, making it easy to install and suitable for efficient, space-saving production.

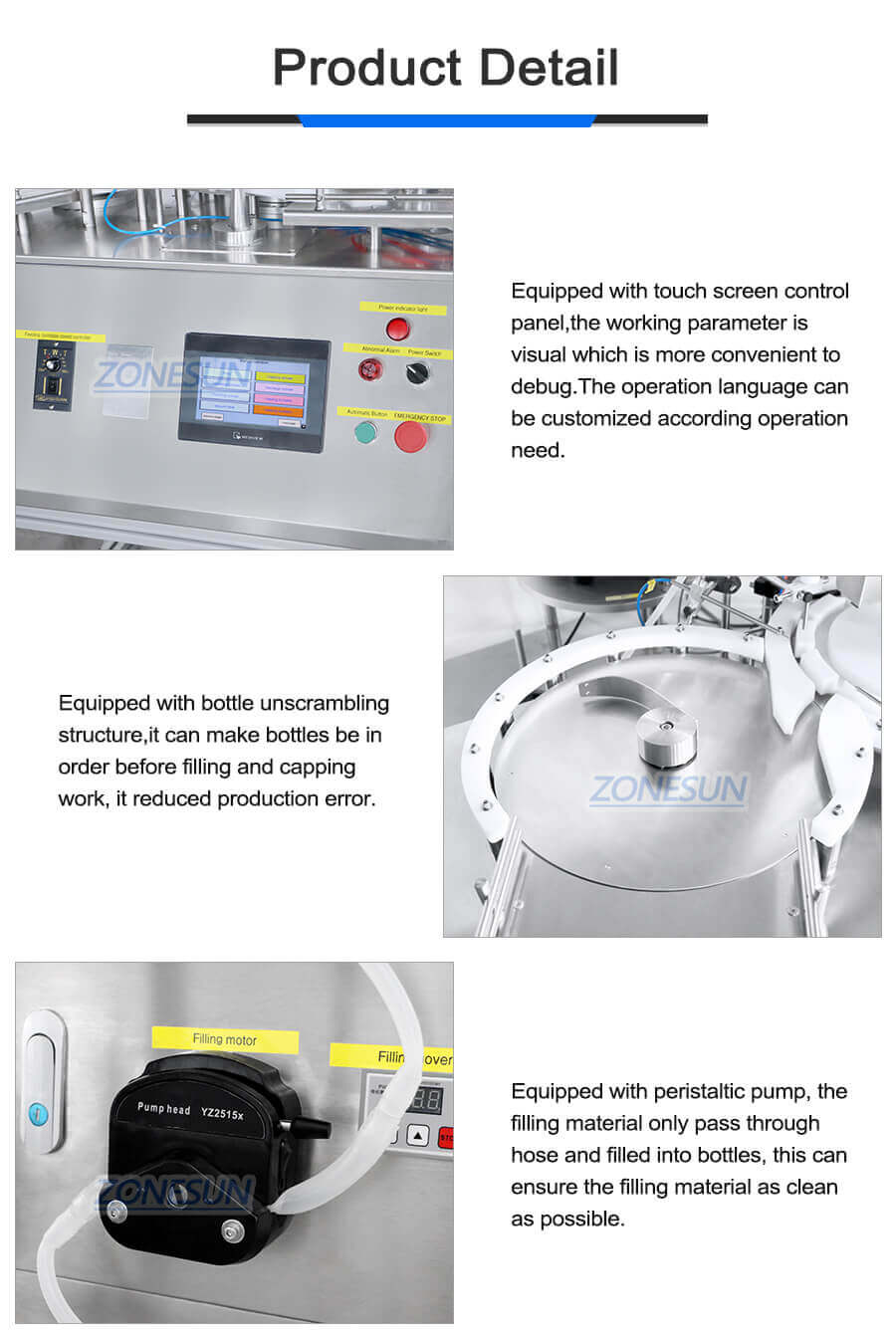

Product Details

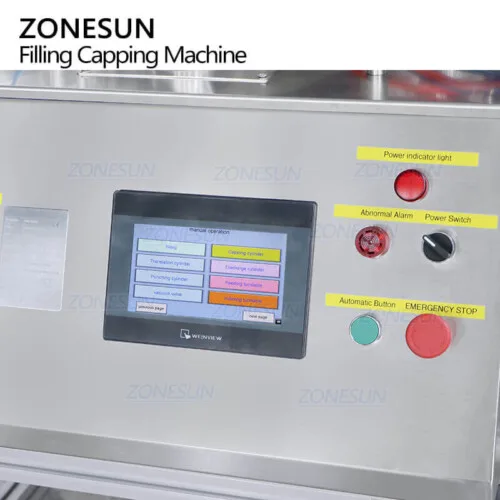

Touch Screen Control System
Equipped with a touch screen control panel, this vial filling capping machine allows visual parameter setting, making debugging more convenient. The operation language can be customized according to needs.

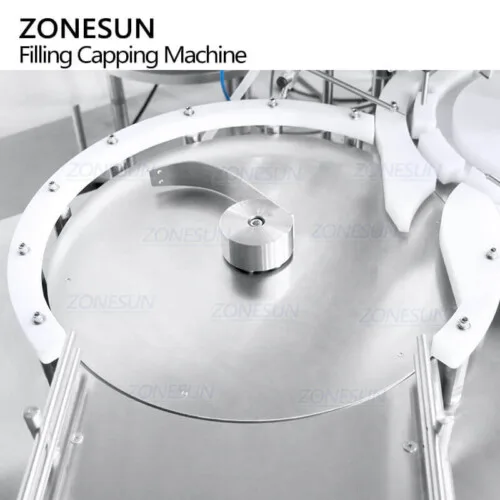

Bottle Unscrambling Structure
Equipped with a bottle unscrambling structure, this vial filling machine ensures bottles are arranged in order before filling and capping, reducing production errors.

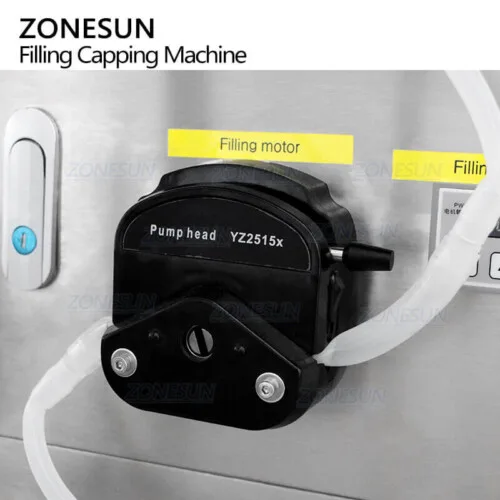

Hygienic Peristaltic Pump
Equipped with a peristaltic pump, the vial filling capping machine ensures materials only pass through hoses, maintaining cleanliness and hygiene.

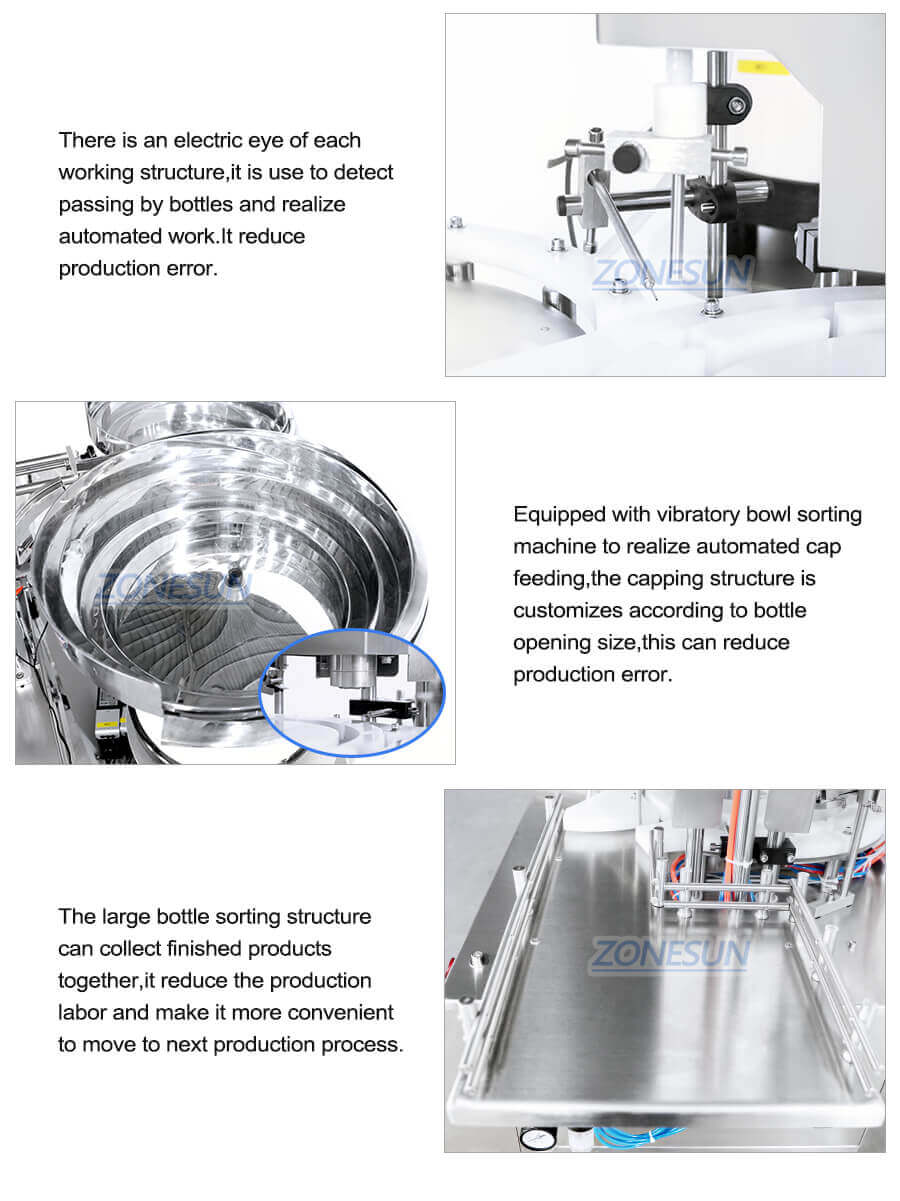

Automatic Detection System
Each station of the vial filling machine is equipped with an electric eye detection, enabling automated operation and reducing errors.

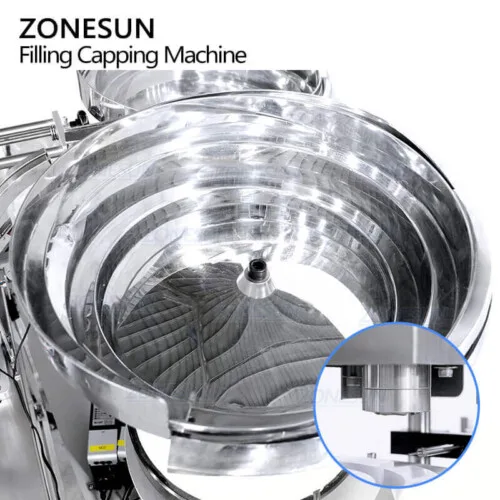

Automatic Cap Feeding System
Equipped with a vibratory bowl sorting system, this vial filling capping machine realizes automatic cap feeding and precise capping performance.

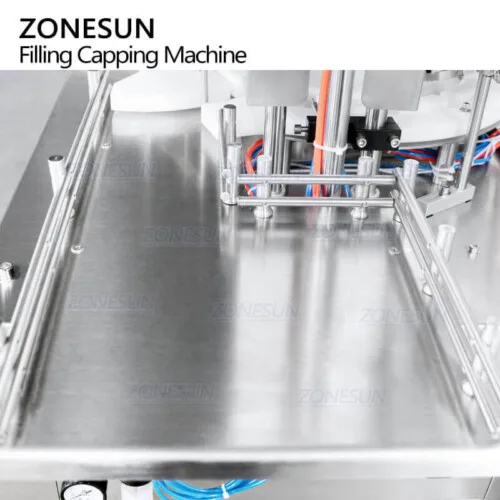

Efficient Bottle Collection
The large bottle collection structure of this vial filling machine gathers finished products efficiently, reducing labor and simplifying the next process.
