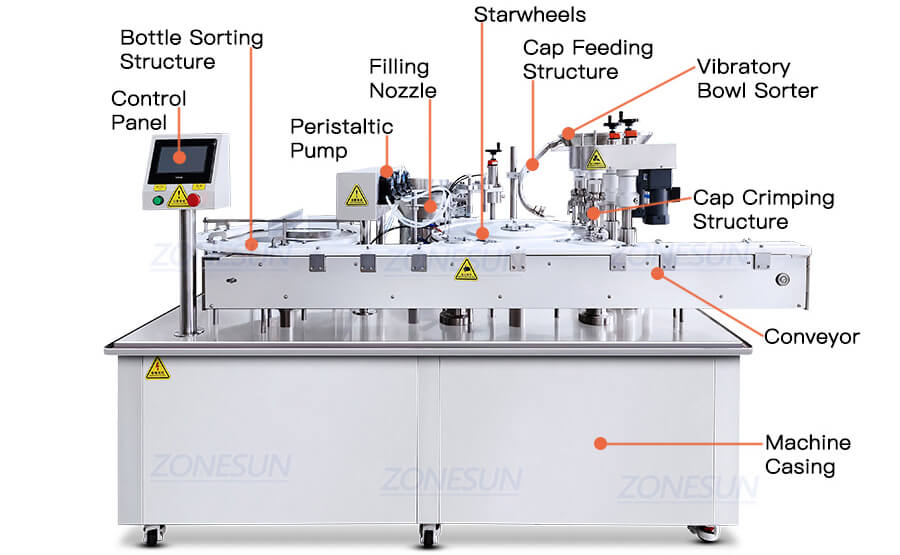

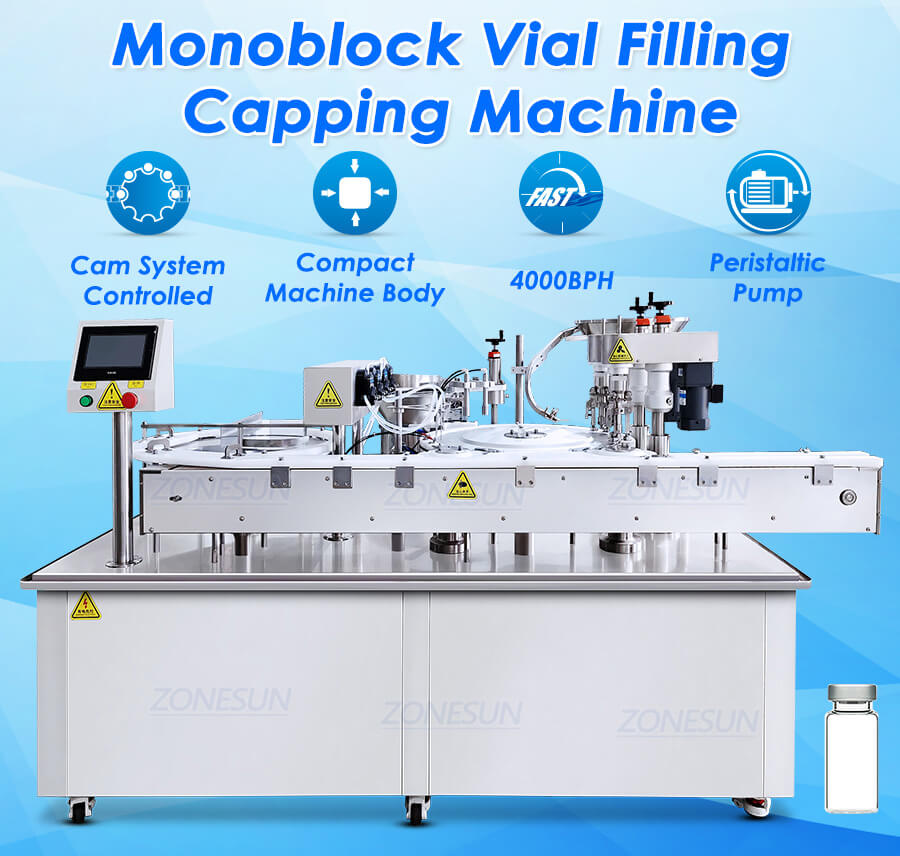

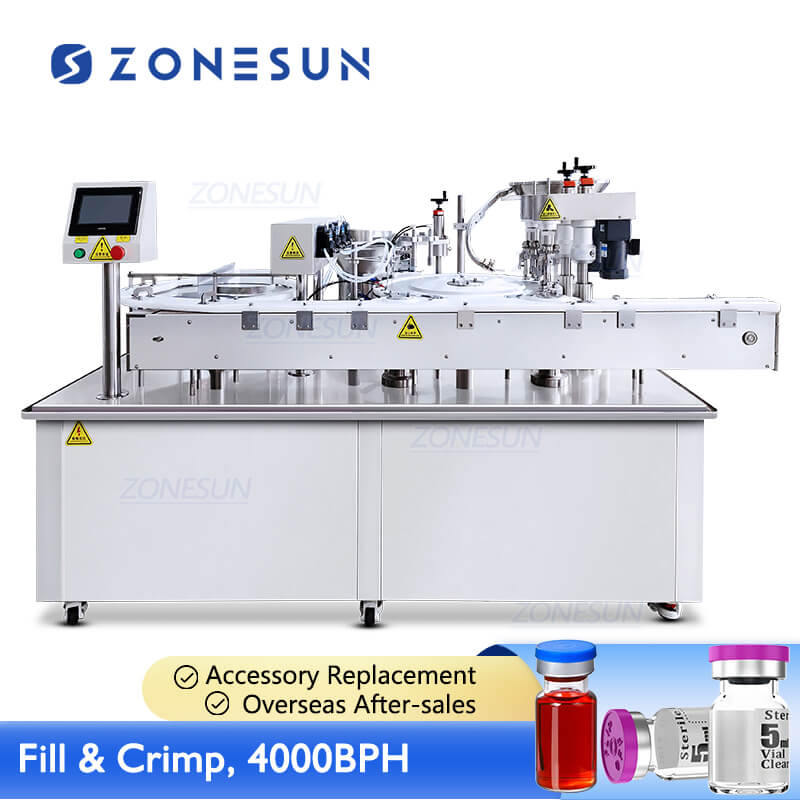

4 Heads Vial Filling Capping Machine
This monoblock machine is designed for packaging vials. It can simultaneously complete liquid filling and vial crimping. Customizable multi-filling heads are available. Peristaltic pump filling ensures packaging quality, making it ideal for small-scale production of care solutions, solvents, etc.
Price range: $25,599.00 through $41,999.00
Share to
Product Description
This monoblock machine is designed for packaging vials. It can simultaneously complete liquid filling and vial crimping. Customizable multi-filling heads are available. Peristaltic pump filling ensures packaging quality, making it ideal for small-scale production of care solutions, solvents, etc.
Product Application

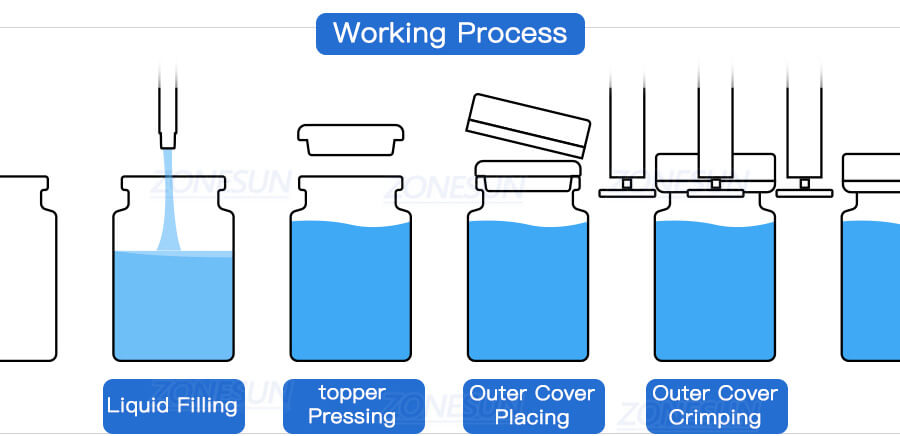

Product Working Process
Product Parameters
| Machine model | ZS-AFC39 |
| Voltage | 110/220V 50-60HZ |
| Filling pump | Servo peristaltic pump |
| Filling nozzle quantity | 4 |
| Filling range | Customized |
| Filling accuracy | ±1% |
| Working capacity | About 4000BPH |
| Material of filling nozzle | SUS304 |
| Material of vibratory bowl sorter | SUS304 |
| Package size | Without Laminar Flow Hood: 2210*1470*1500mm
With Laminar Flow Hood: 2570*1700*1930mm(Main Machine)+ 2200*1270*1680mm(Laminar Flow Hood) |
| Package weight | Without Laminar Flow Hood:1050kg
With Laminar Flow Hood: 1407kg(Main Machine)+419kg(Laminar Flow Hood)=1826kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

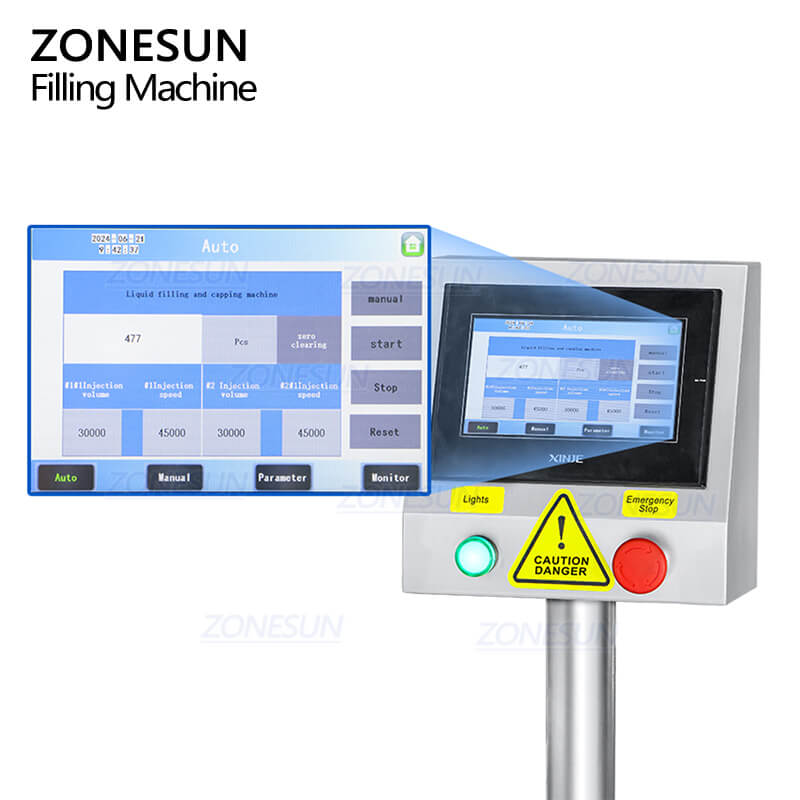

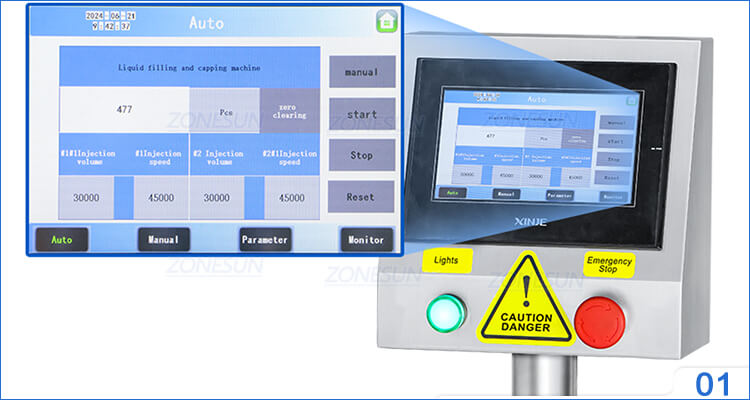

Touchscreen Control Panel
Operators can set filling parameters and production speed from the touchscreen, making recipe adjustment and daily operation more convenient.

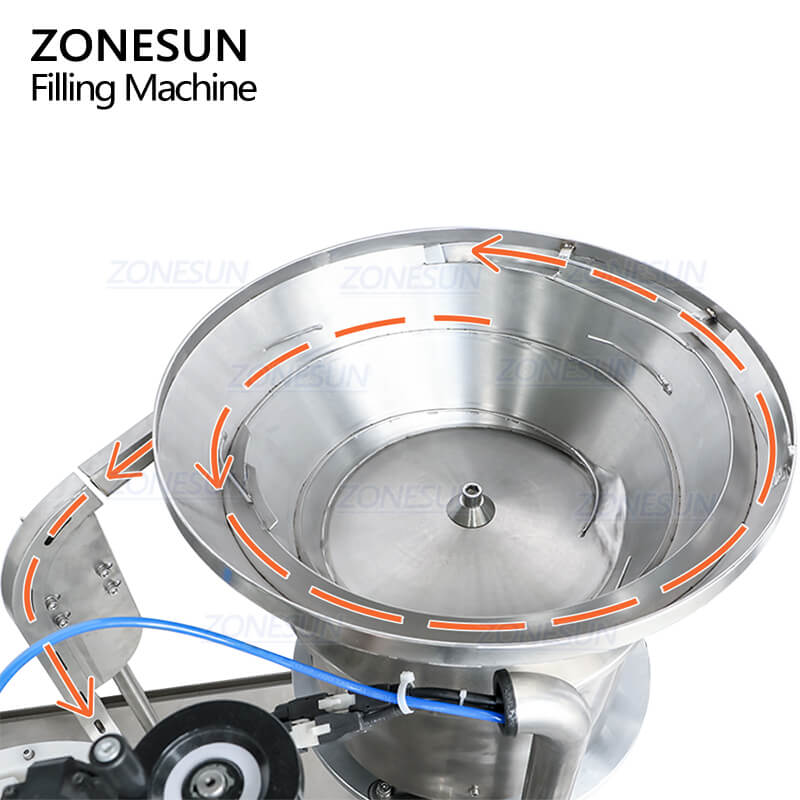

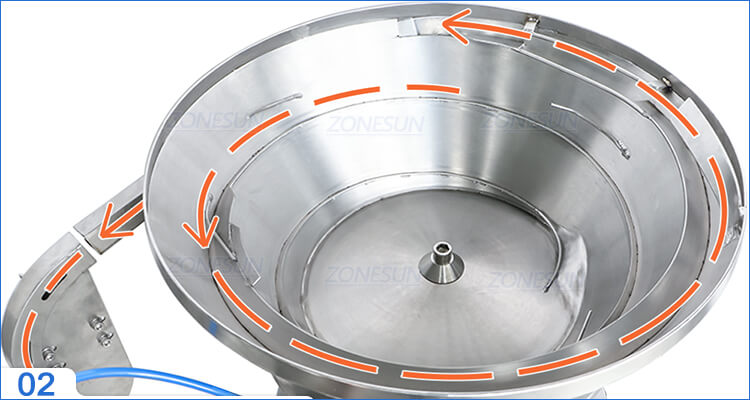

Stopper & Cap Feeding System
Two vibratory bowls separately organize stoppers and aluminum caps, continuously supplying them to the corresponding working stations.

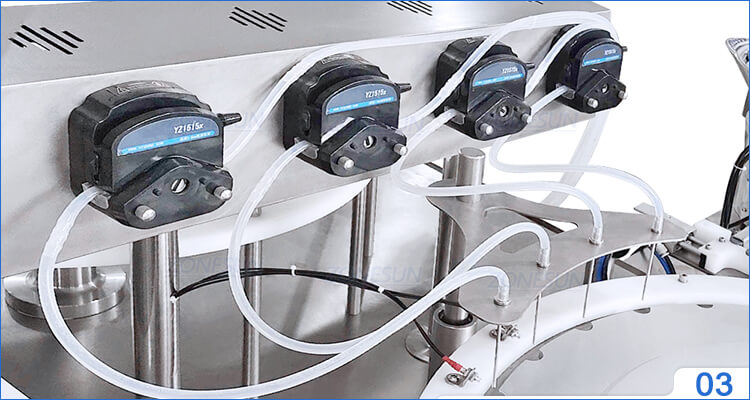

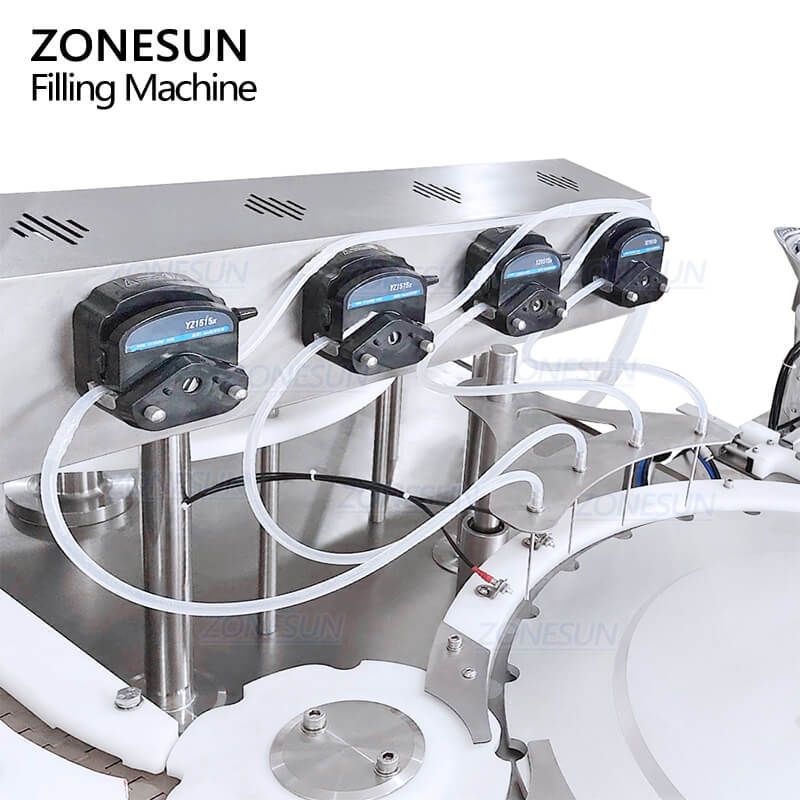

Four-Head Peristaltic Filling System
Four filling channels work simultaneously for higher output. Servo control makes dose adjustment easier, while replaceable tubing is convenient when changing liquids.

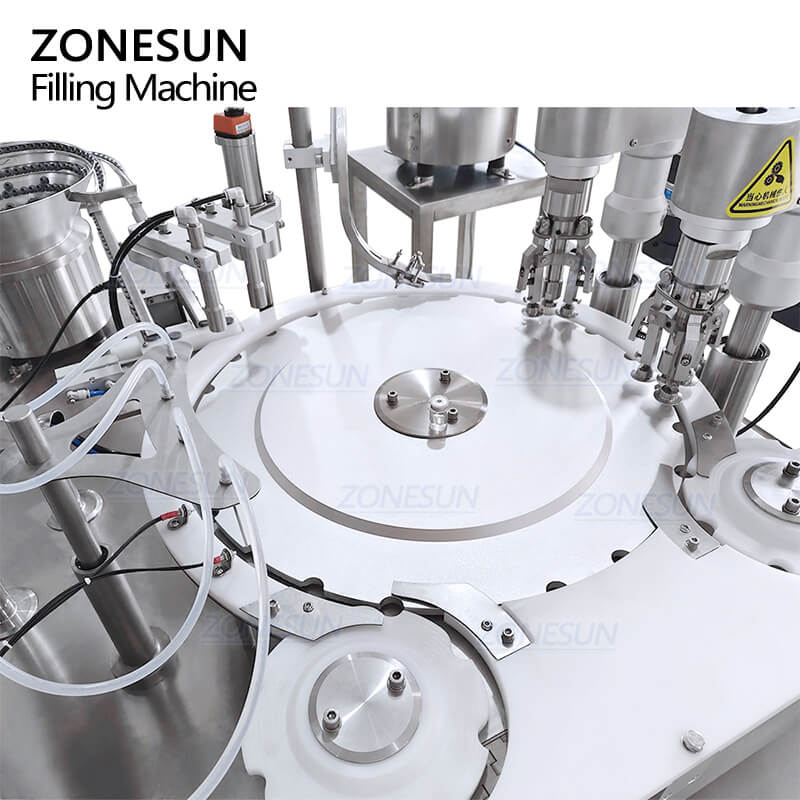

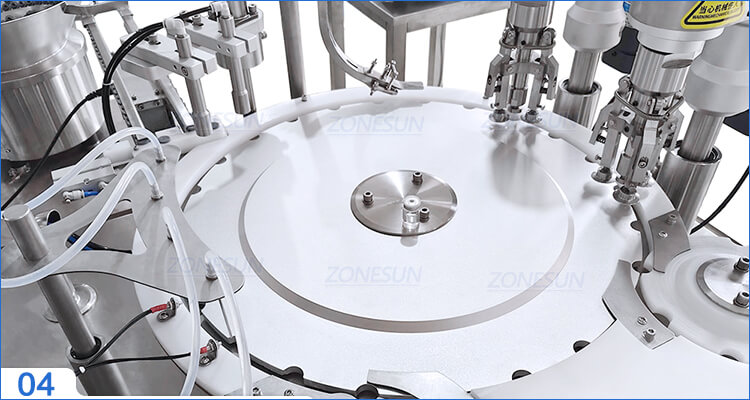

Cam-Driven Rotary Workstation
The cam-driven rotary structure moves vials through each station at a controlled cycle, coordinating filling, stoppering, cap placement and crimping within a compact machine layout.
Laminar Flow Hood
Clean airflow is supplied over critical open-vial processing areas to reduce exposure to airborne contamination during filling and closure. This configuration can be added according to production requirements.
Spinning Head Crimping Unit
Spinning heads form the aluminum cap around the vial neck to complete the final closure, providing consistent crimping during continuous operation.
Product Real Shot
