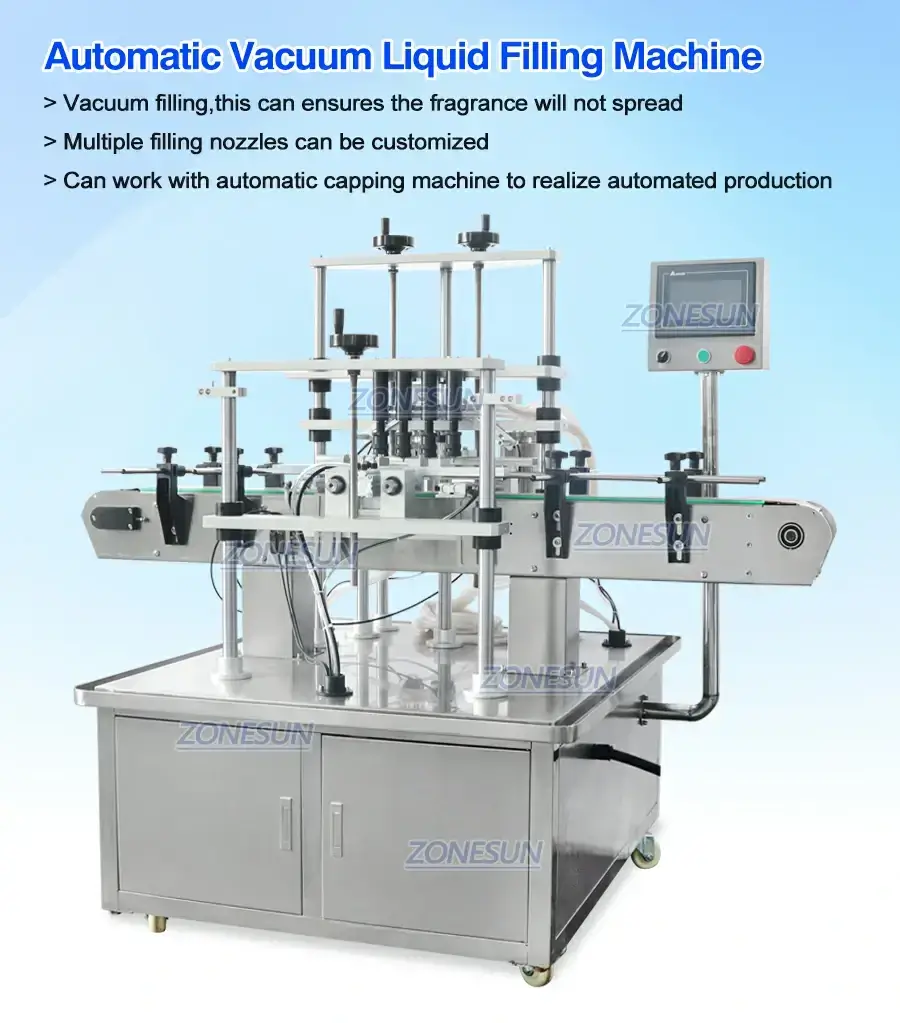

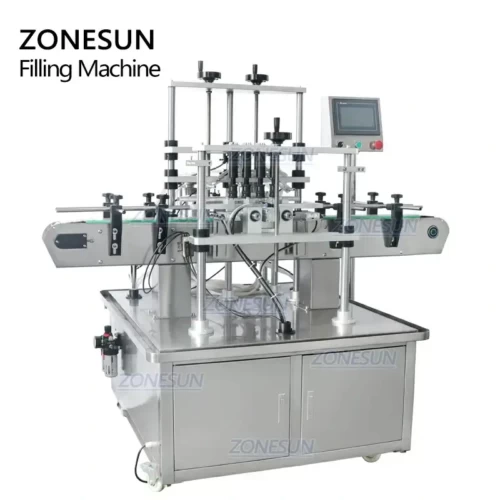

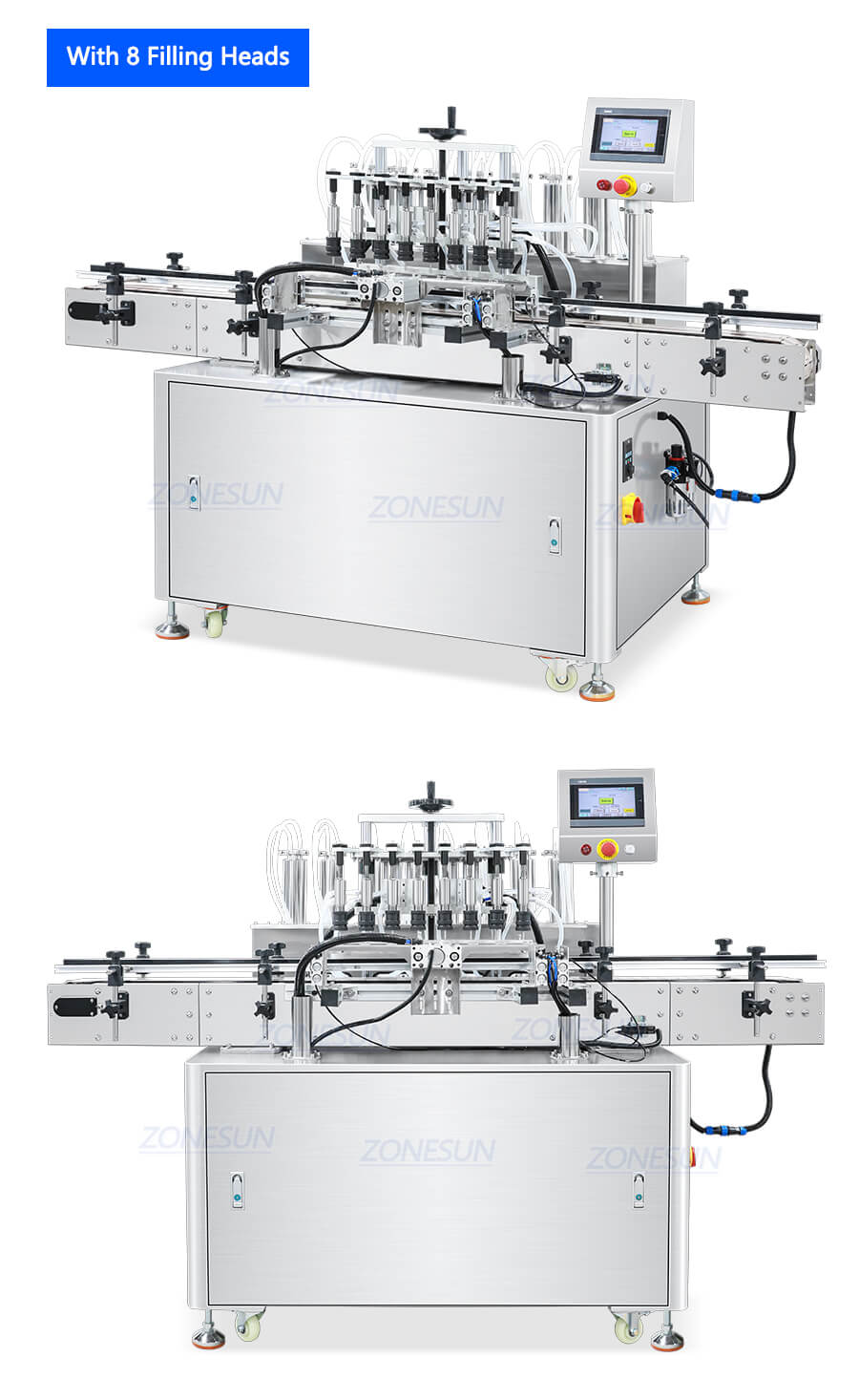

Vacuum Perfume Filling Machine
This liquid filling machine adopts the vacuum negative pressure principle, allowing four bottles to be filled simultaneously.It ensures consistent liquid levels without overflow, extra liquid can flow back to the material tank and can prevent the fragrance of liquid from spreading,this is especially good for perfume filling.It is full automatic and can work with automatic capping machine to realize automated production.Multiple filling nozzles can be customized according to production needs.
Price range: $5,599.00 through $5,699.00
Share to
This liquid filling machine adopts the vacuum negative pressure principle, allowing four bottles to be filled simultaneously.It ensures consistent liquid levels without overflow, extra liquid can flow back to the material tank and can prevent the fragrance of liquid from spreading,this is especially good for perfume filling.It is full automatic and can work with automatic capping machine to realize automated production.Multiple filling nozzles can be customized according to production needs.
| Machine Model | ZS-VTZL4A |
| Filling head | 4 Head |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-30 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle Opening Size | ≤φ8mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | 15-50mm |
| Pumping rate | 5.5L/MIN |
| Machine size | About 2020*800*1410mm |
| Package size | About 1330*2105*1670mm |
| Package weight | About 335kg |

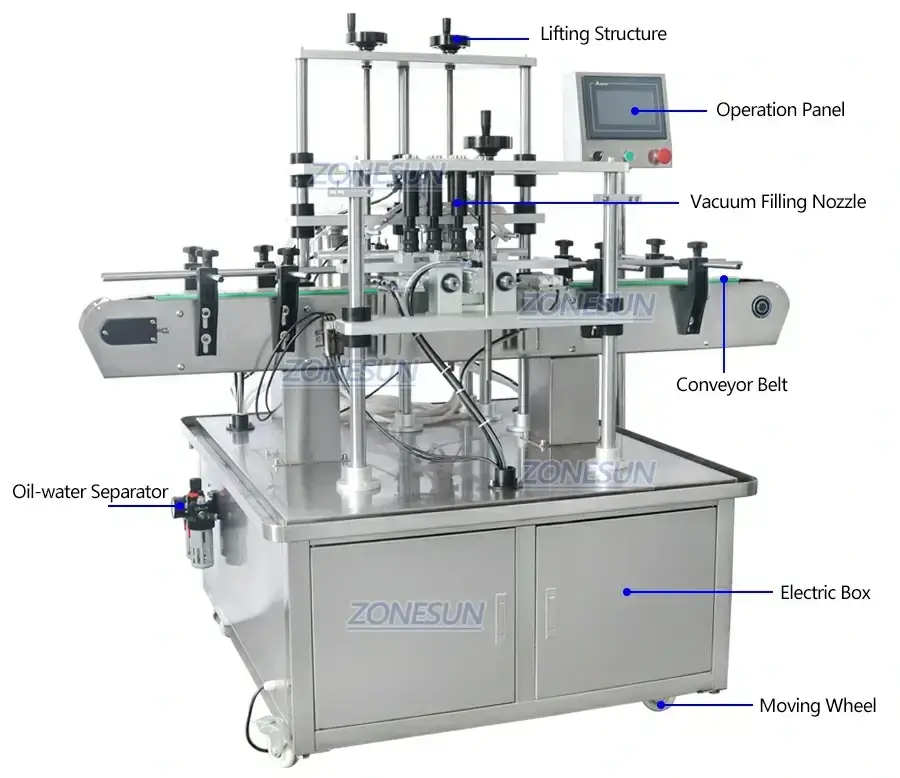

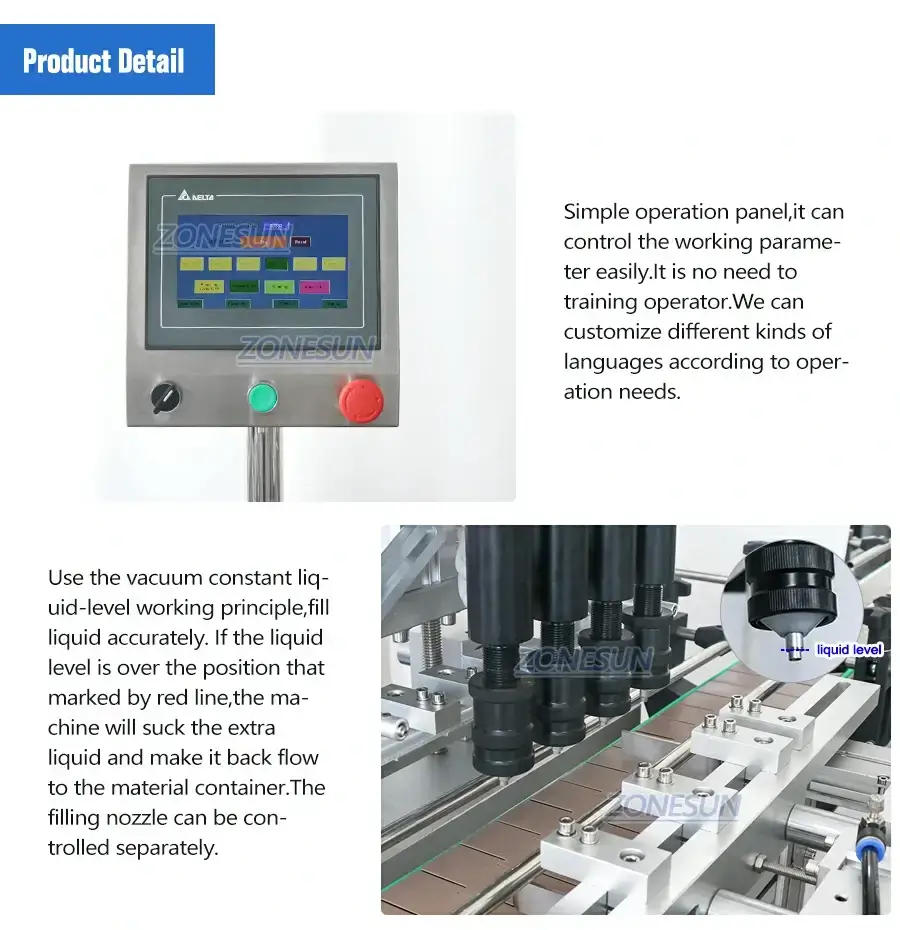

Control Panel
Equipped with Siemens touch screen control panel, operation will be more intuitive and convenient.

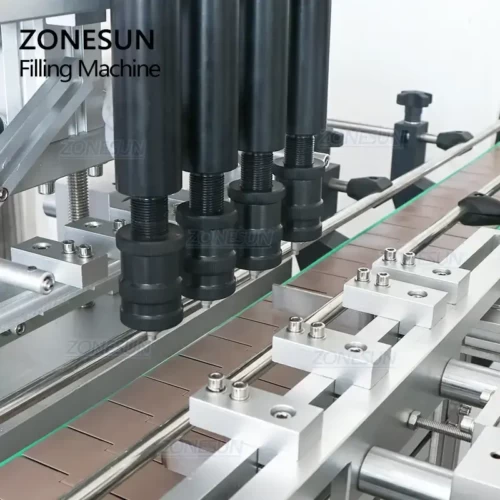

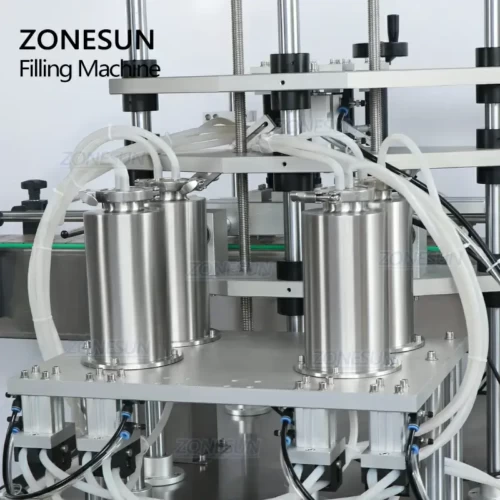

Vacuum Filling Nozzles
Based on equal liquid level filling principle, number of filling heads can be customized.

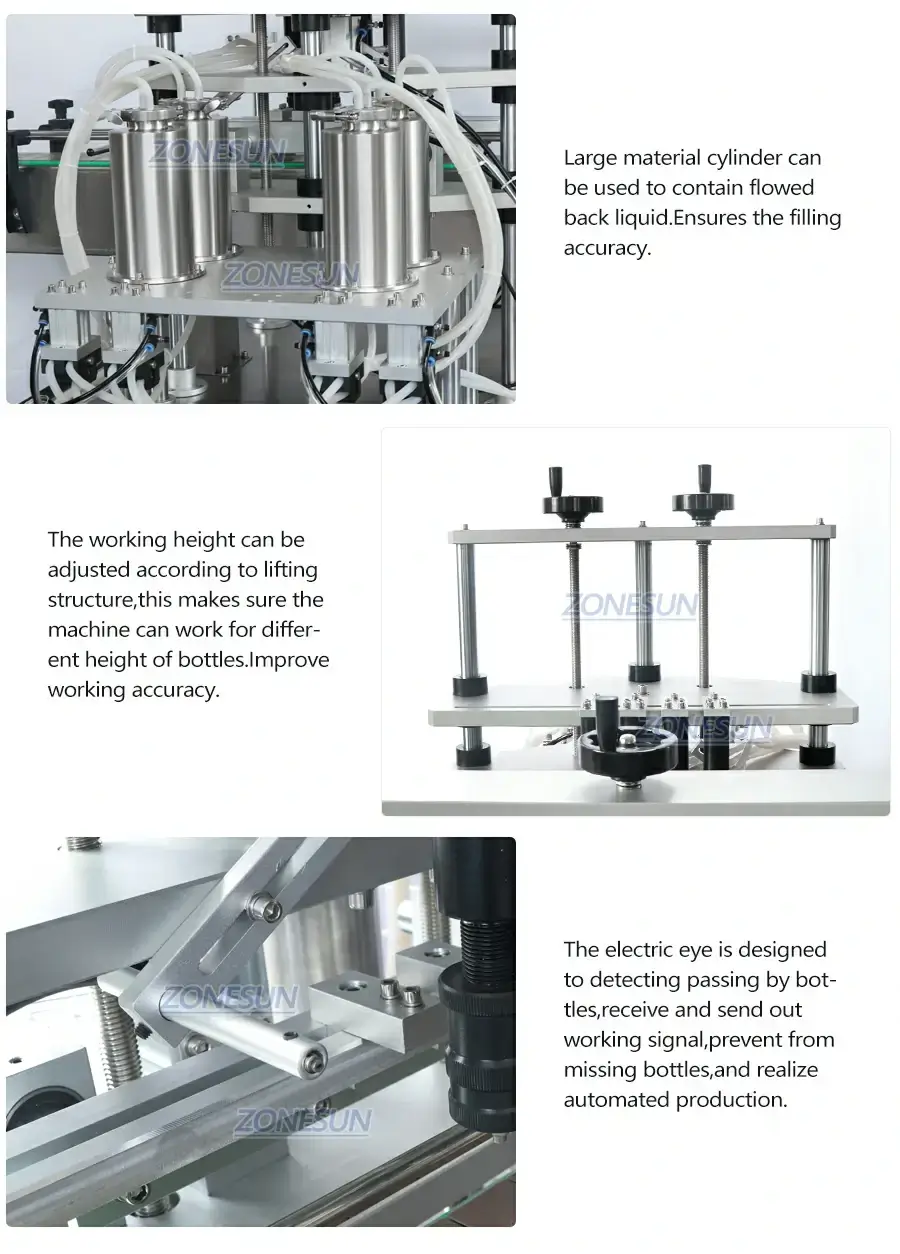

Material Tank
Extra liquid can flow back to the material tank to prevent from material wasting.
Chain Conveyor
Chain conveyor has large weight capacity, length and width are customizable according to bottle specification.
Electric Eye
This is used to detect passing by bottles and send signal to control system, filling work will processed automatically.
