Perfume Production Line

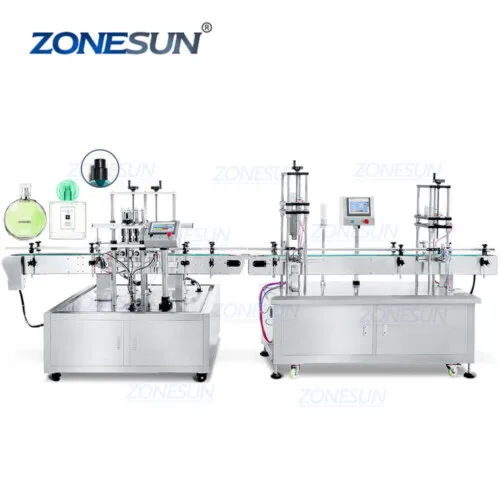

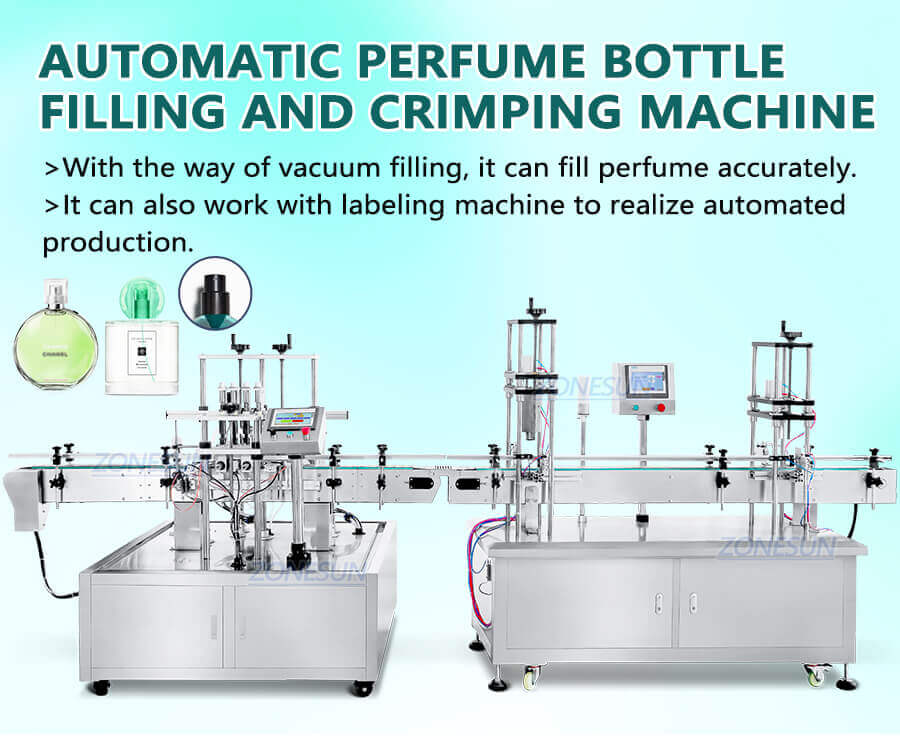

The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.
Price range: $11,399.00 through $19,999.00
Share to
The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.

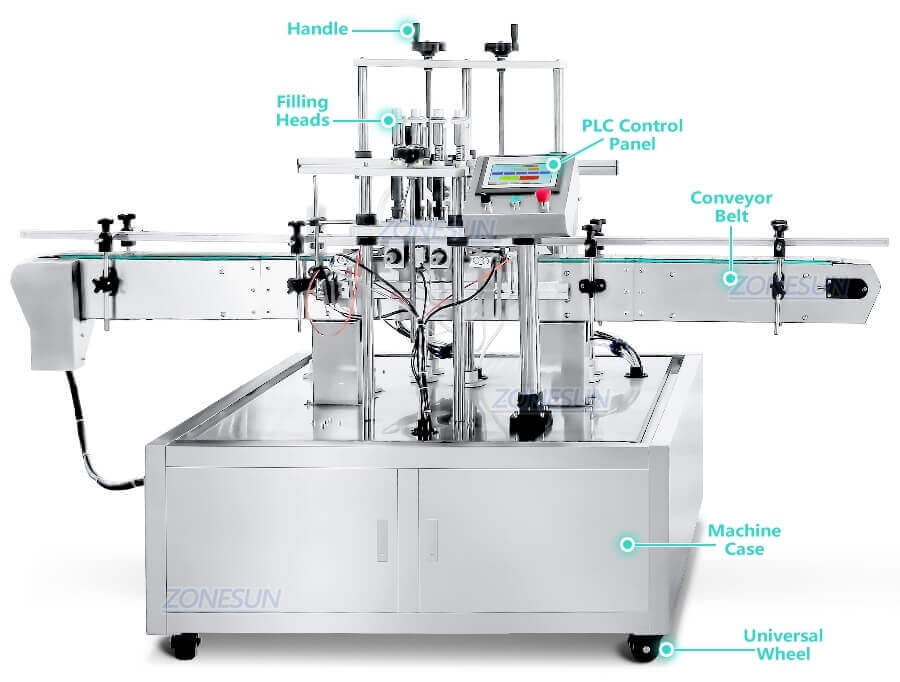

| Machine model | ZS-VTZL4A |
| Filling head | 4 Heads |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working speed | 20-30 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle opening size | ≤φ8mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | 15-50mm |
| Pumping rate | 5.5L/MIN |
| Machine size | About 2020*800*1410mm |
| Package size | About 1330*2105*1670mm |
| Package weight | About 335kg |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
| Machine model | ZS-YG11U |
| Power supply | 220V/110V 50-60Hz 500W |
| Working speed | About 15-25BPM |
| Suitable bottle height | 50-150mm(can be customized) |
| Bottle mouth size | 13/15/18/20mm |
| Air pressure | 0.5-0.8Mpa |
| Machine weight | About 300kg |
| Machine size | About 2600*620*1500mm |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |

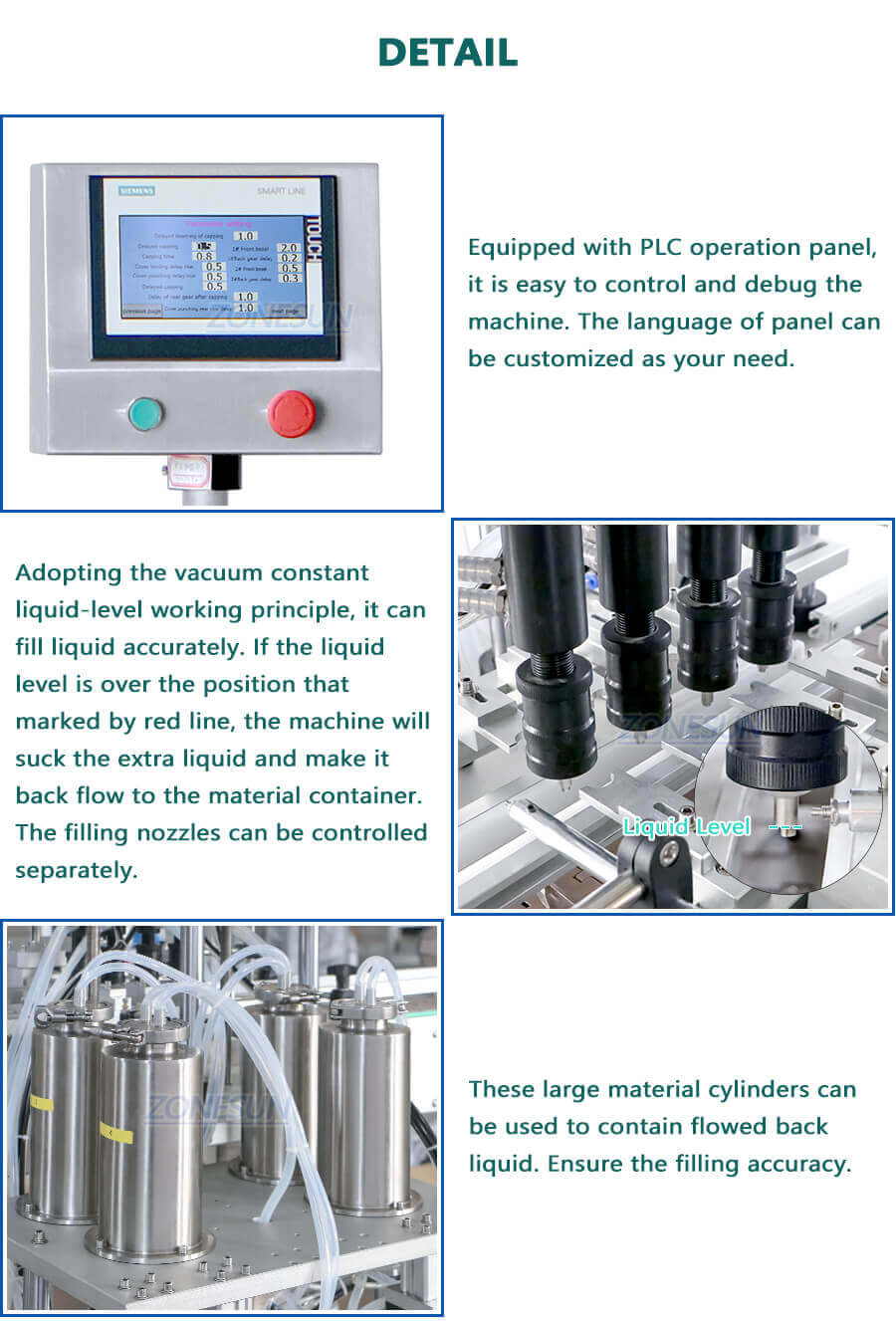

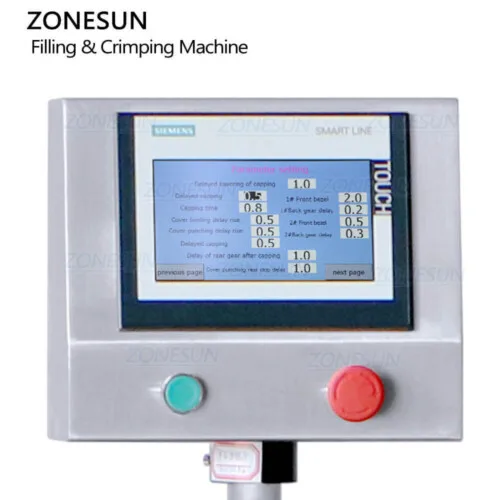

Control Panel
Equipped with Siemens touch screen control panel, operation will be more intuitive and convenient.

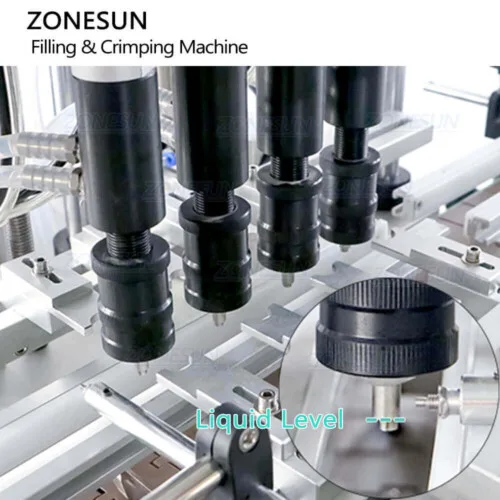

Vacuum Filling Nozzles
Based on equal liquid level filling principle, number of filling heads can be customized.

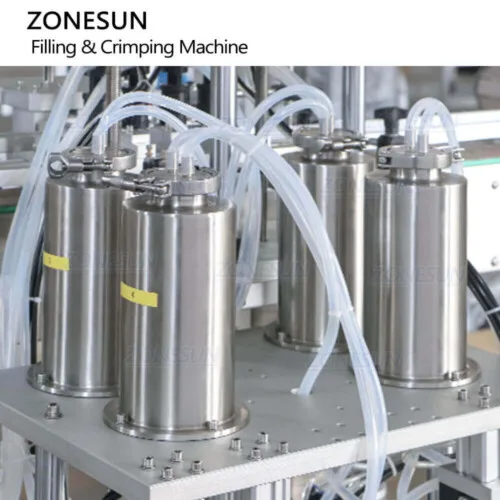

Material Tank
Extra liquid can flow back to the material tank to prevent from material wasting.

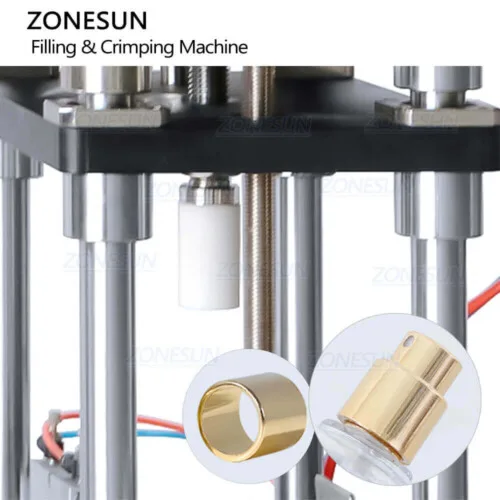

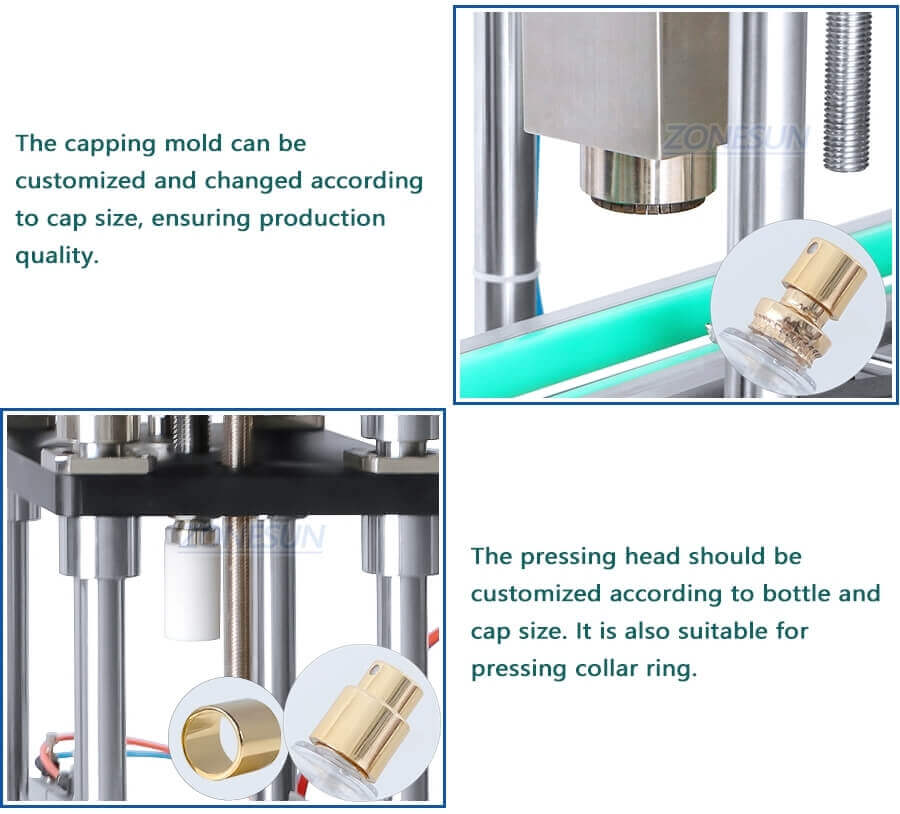

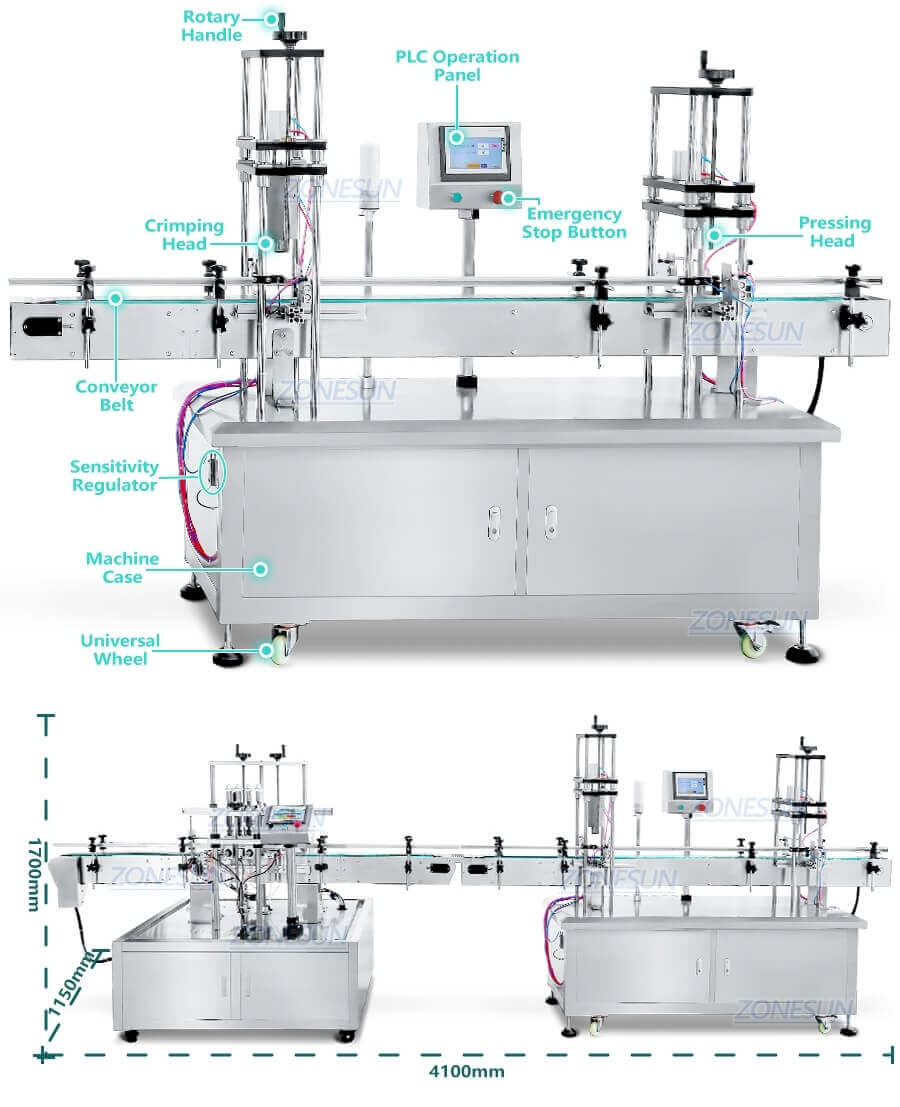

Crimping & Pressing Structures
Suit for crimp-type and press-type perfume caps. The structures are customized as cap size.
Conveyor Belt
Chain conveyor has large weight capacity, length and width are customizable according to bottle specification.
Electric Wiring
Electric wiring is arranged orderly, ensuring smooth production.
