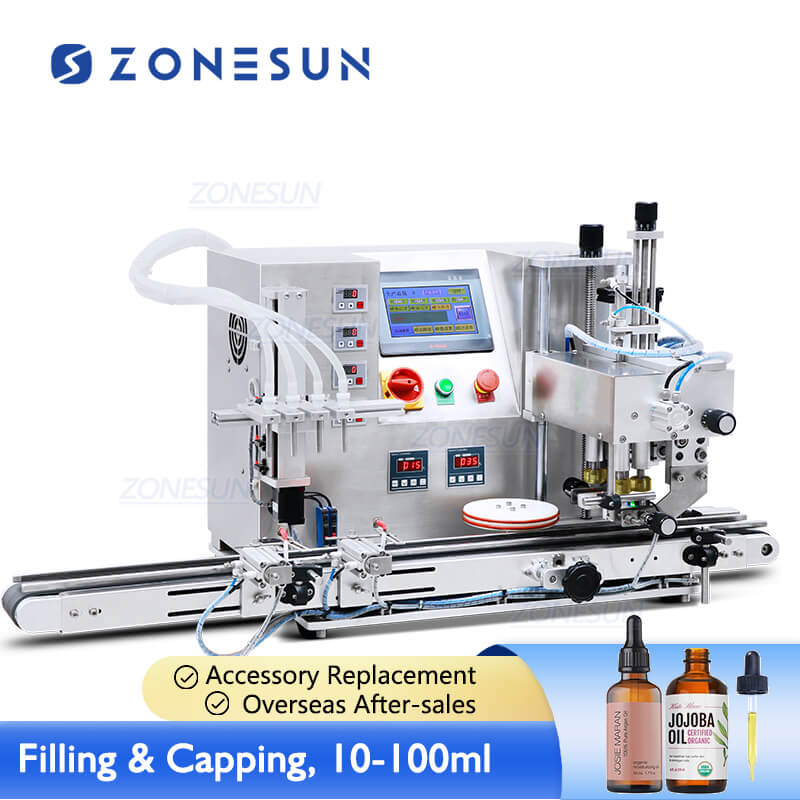

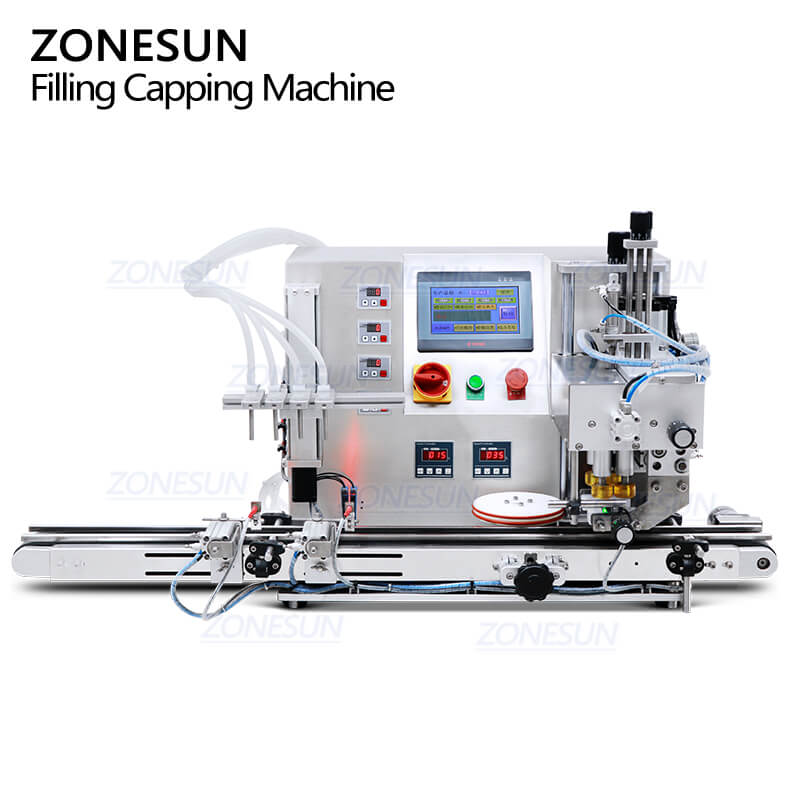

Product Description:

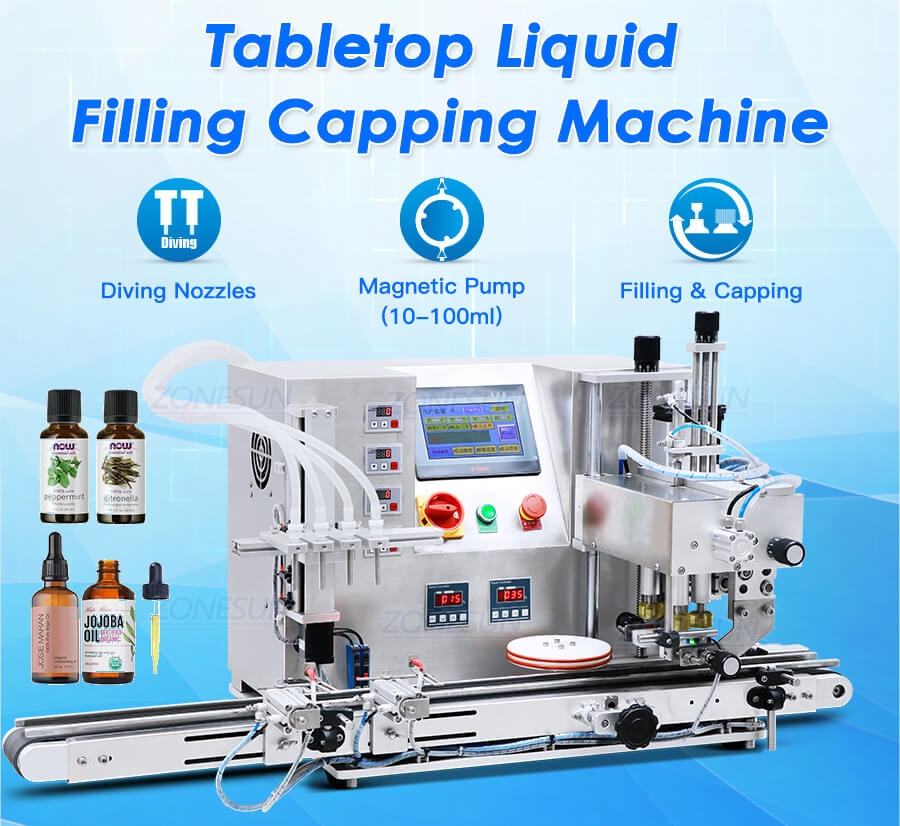

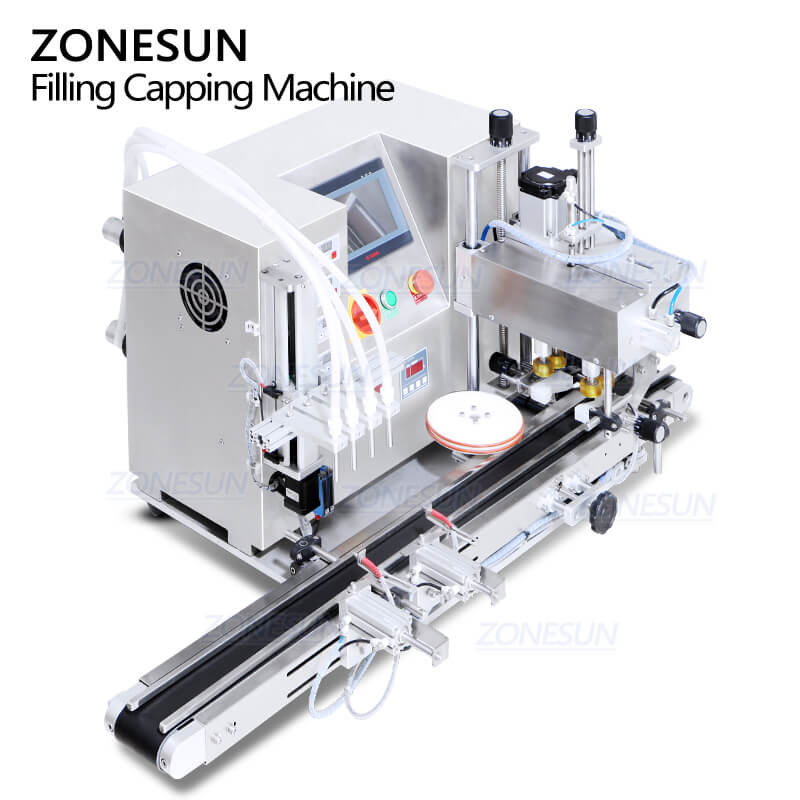

This compact machine is designed for liquid filling and bottle capping, making it ideal for small-scale production of essential oils, cosmetics, and other sample products in small bottles.

Product Parameters:

Machine model	ZS-DTFC4Y
Machine voltage	110/220V 50-60HZ 2KW
Filling range	10-100ml (Customzable for＜10ml)
Air pressure	0.6-0.8MPa
Working capacity	1500-1800BPH(based on 100ml)
Suitable bottle size	Φ=30-70mm H=50-200mm
Suitable cap size	Φ=30-65mm
Filling nozzle quantity	4
Filling pump	Magnetic Pump
Machine size	About 1200*720*620mm(L*W*H)

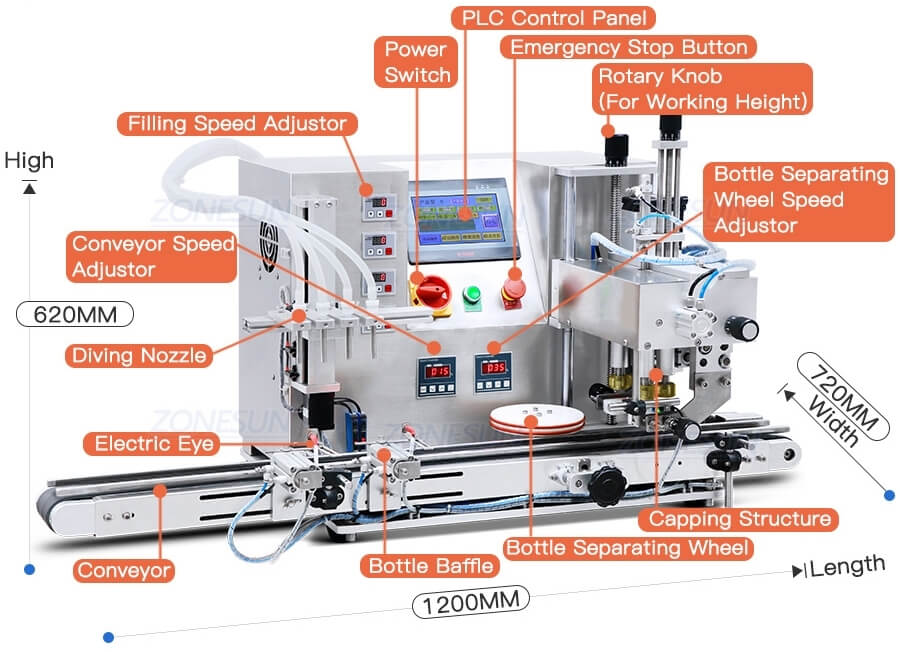

Product Details:

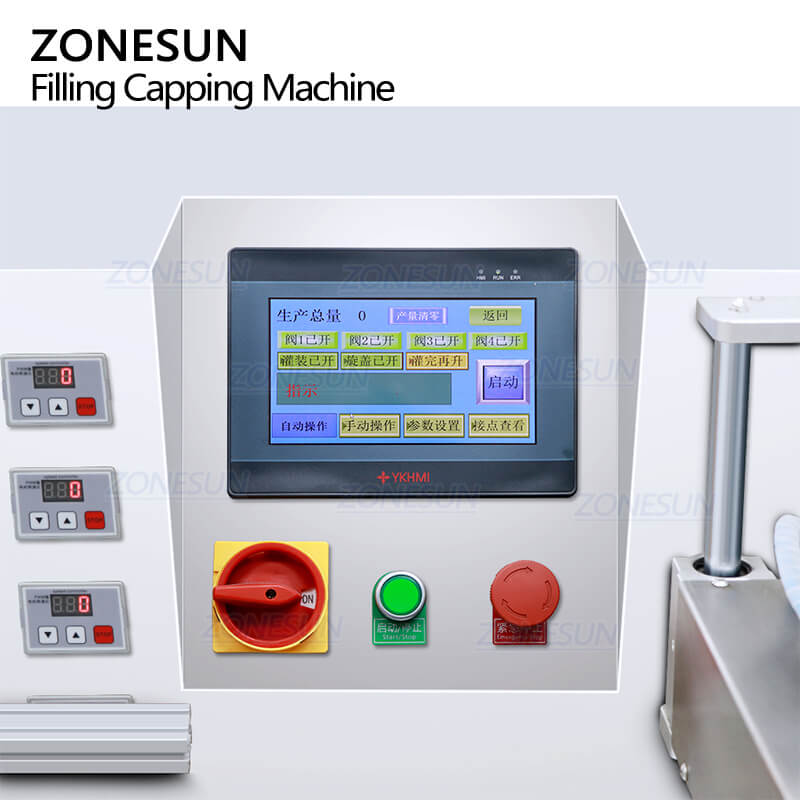

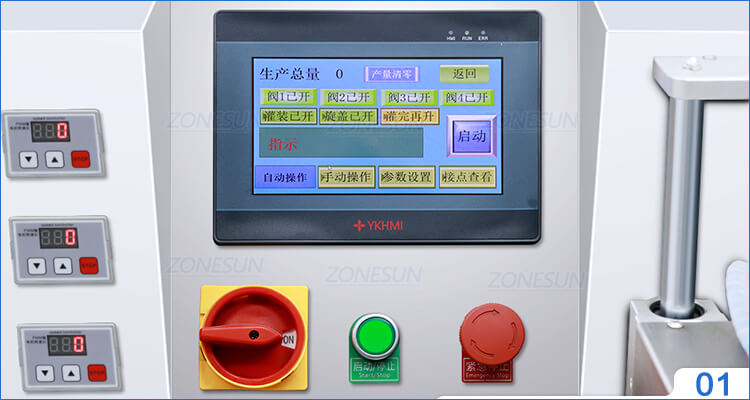

PLC Control Panel
Customizable interface simplies machine operation,filling time and capping time can be set more conveniently

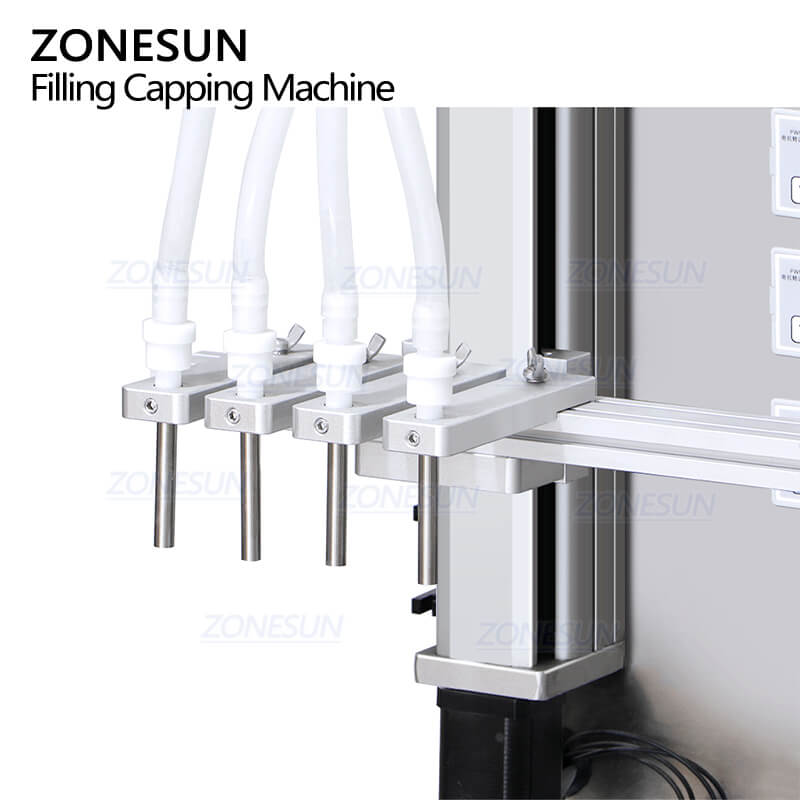

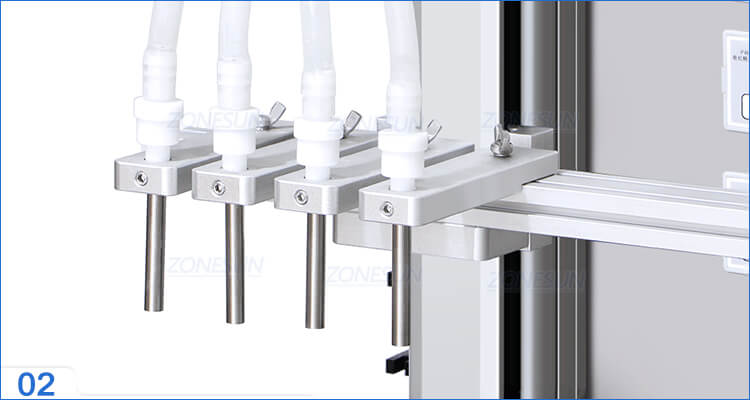

Diving Filling Nozzle
4 filling nozzles can automatically rise and descend during filling work,multi filling nozzles can be customized

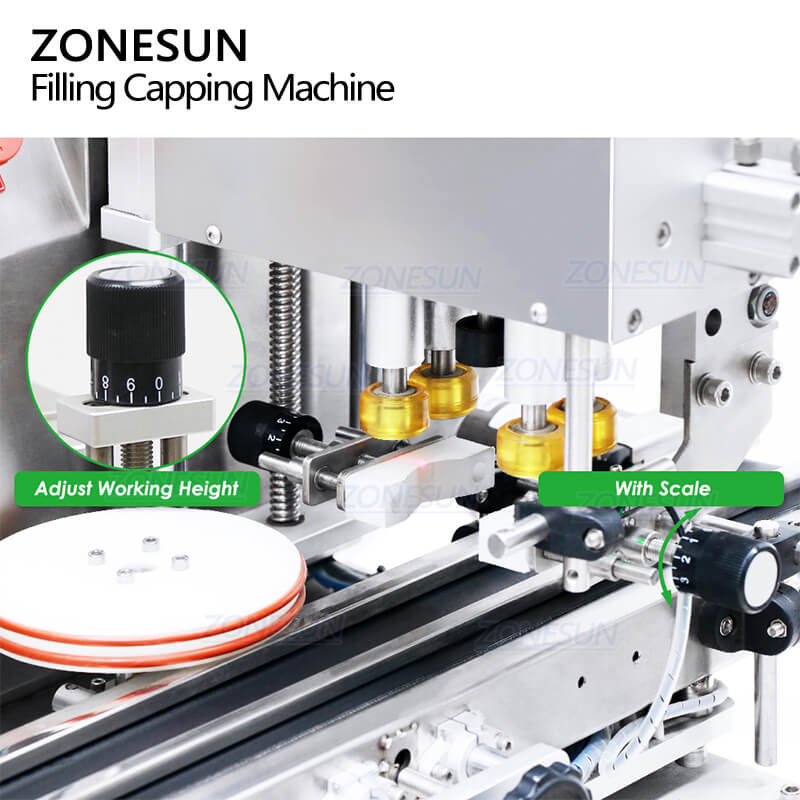

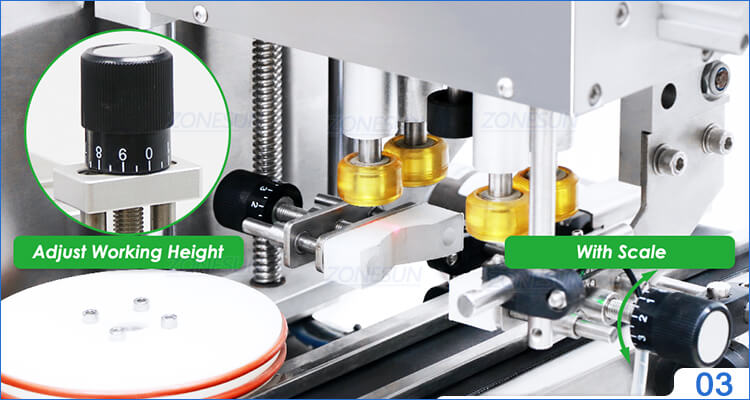

Capping Structure
Capping work is controlled by servo motor,suitable for screw-on types caps,easier to adjust

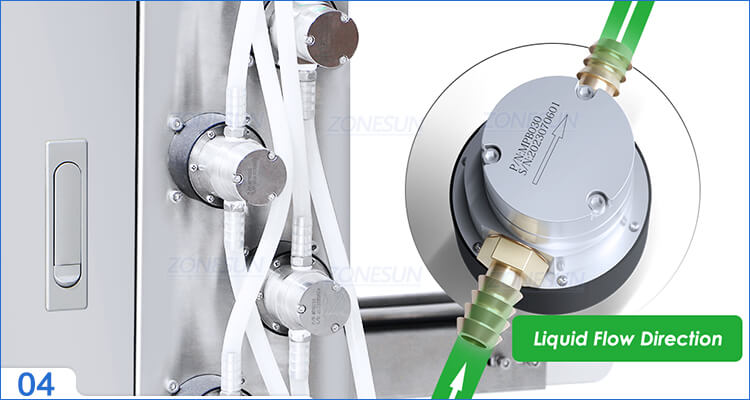

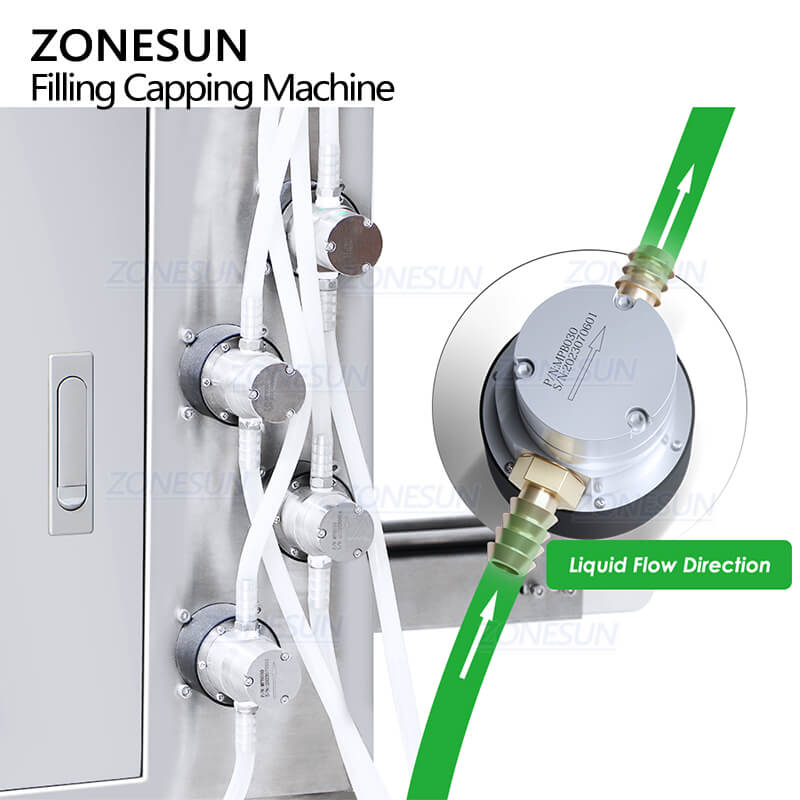

Magnetic Pump
Equipped with magnetic pump,this machine has high filling accuracy

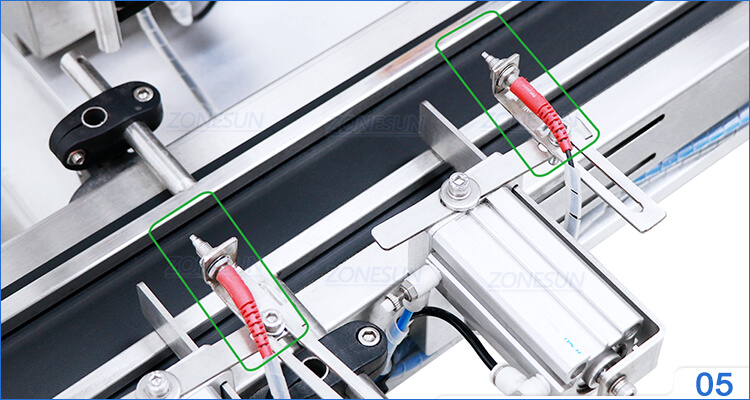

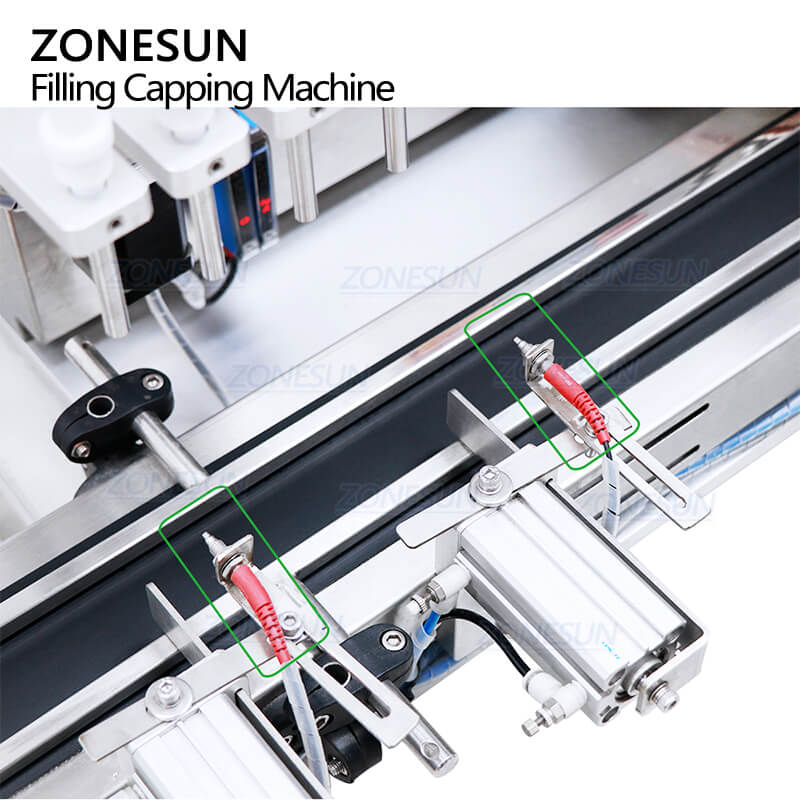

Electric Eye
The electric eye can detect passing by bottles and control the machine to work automatically
