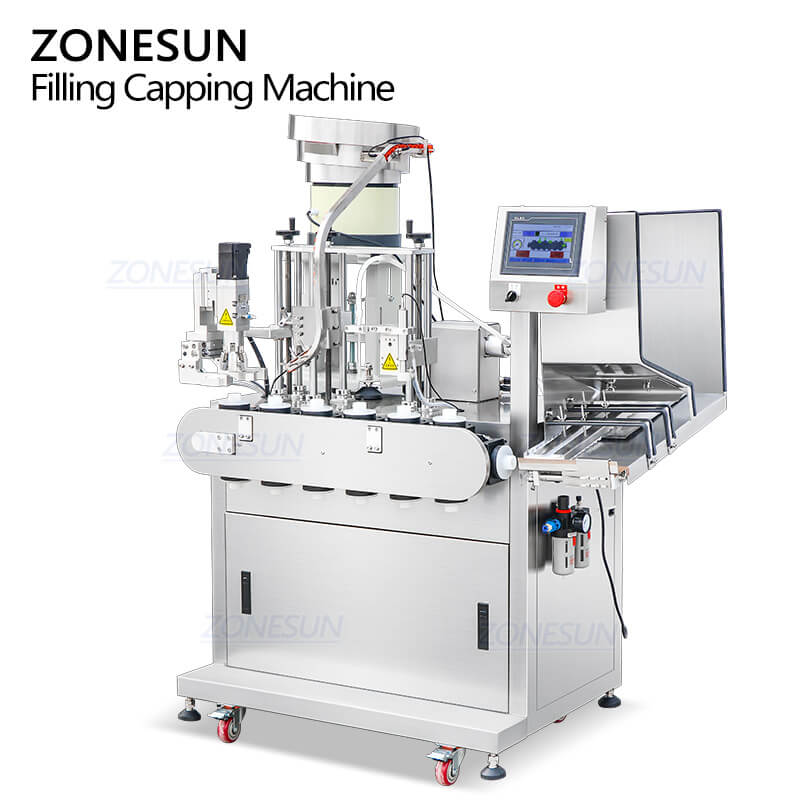

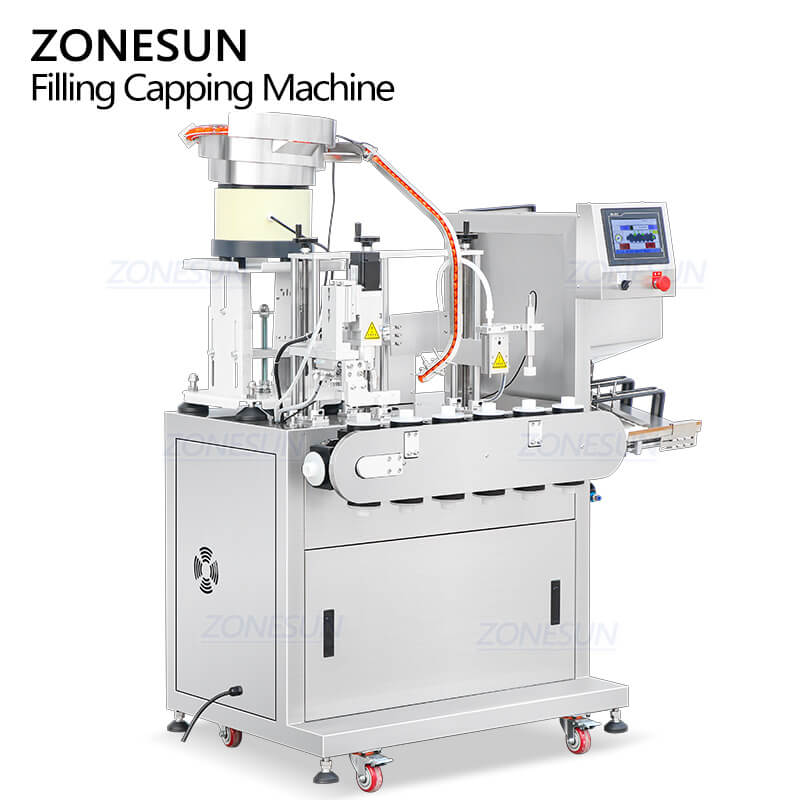

Small Bottles Liquid Filling Capping Machine

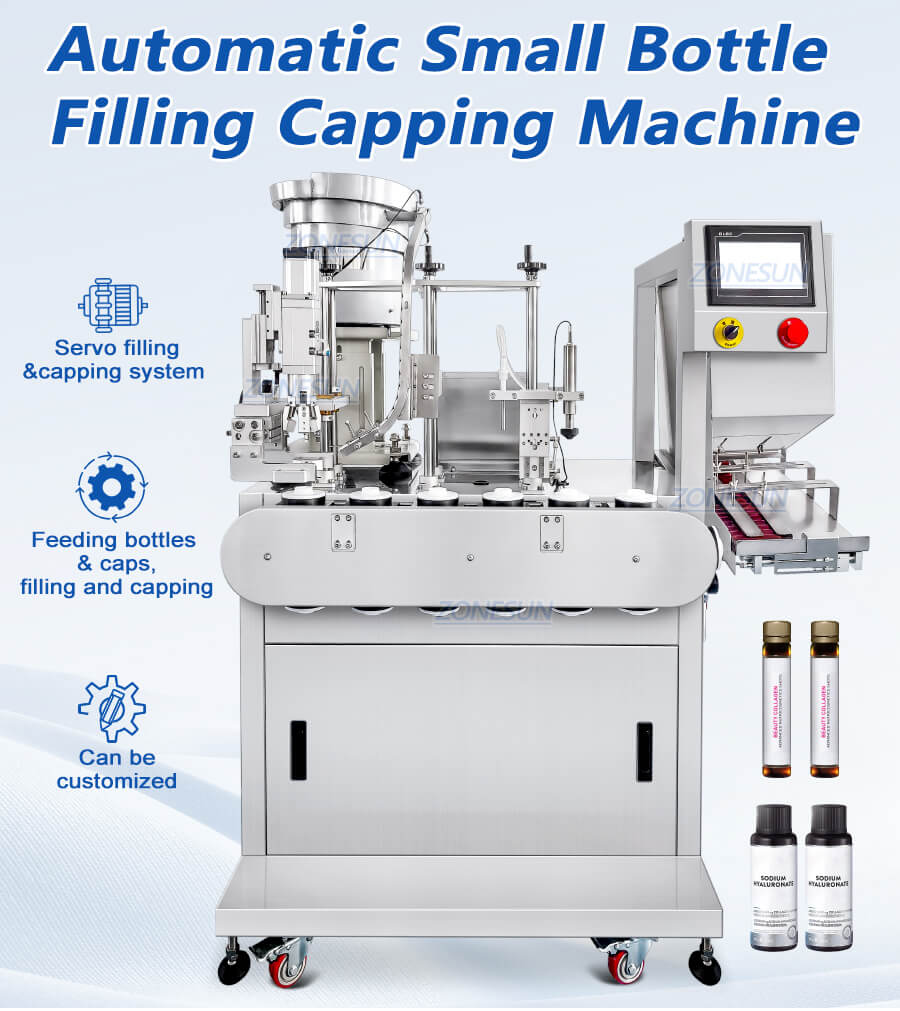

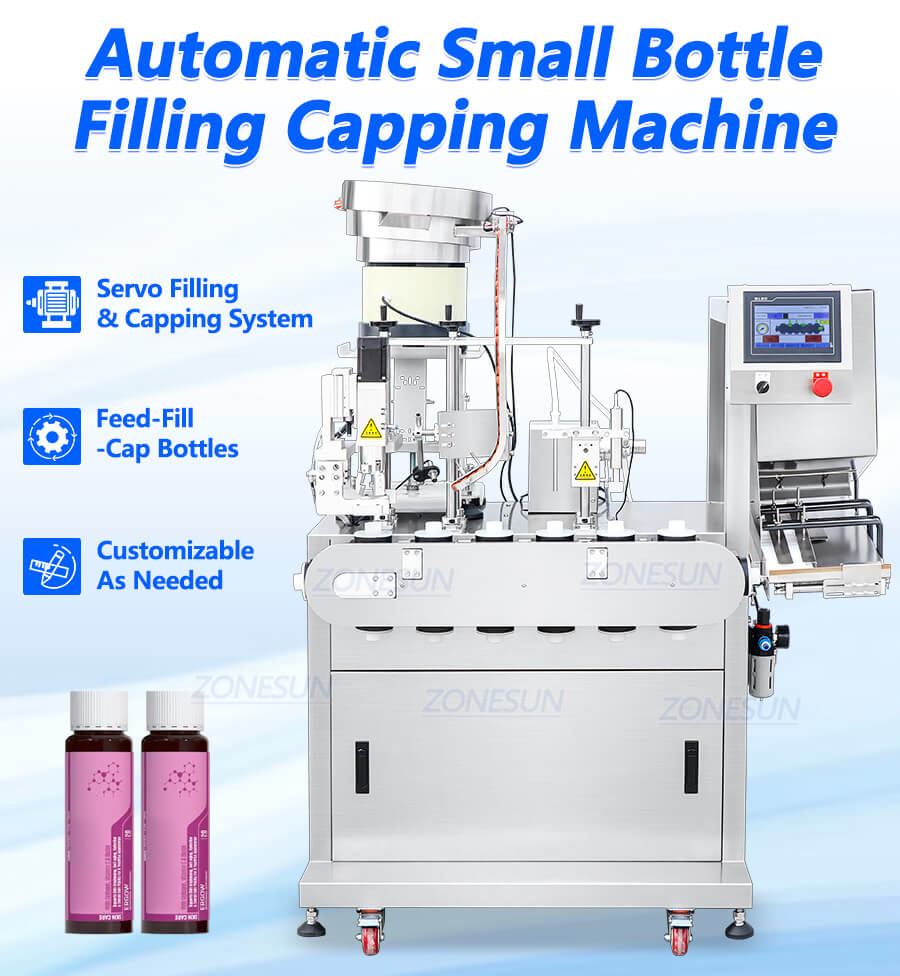

This automatic small bottle filling capping machine runs the full cycle on one frame: bottles are fed in, filled, capped and discharged. The filling station and the capping station are both servo driven, so dosing and cap tightening repeat from bottle to bottle, and feed, fill and cap run as one continuous cycle. Bottle handling parts are customizable as needed, so the machine is set to your bottle and cap.
$9,854.99
Share to
Product Description
This automatic small bottle filling capping machine runs the full cycle on one frame: bottles are fed in, filled, capped and discharged. The filling station and the capping station are both servo driven, so dosing and cap tightening repeat from bottle to bottle, and feed, fill and cap run as one continuous cycle. Bottle handling parts are customizable as needed, so the machine is set to your bottle and cap.
Product Applications
This machine suits small rigid bottles with a screw cap, filled with liquid products for supplements, skincare and beverages. The applications shown are a nutritional oral liquid bottle, two serum and essence oil bottles, and a row of slim beverage bottles. All three groups sit in the same small bottle range, so the machine handles products that differ by label and content rather than by bottle shape.
Product Production Process

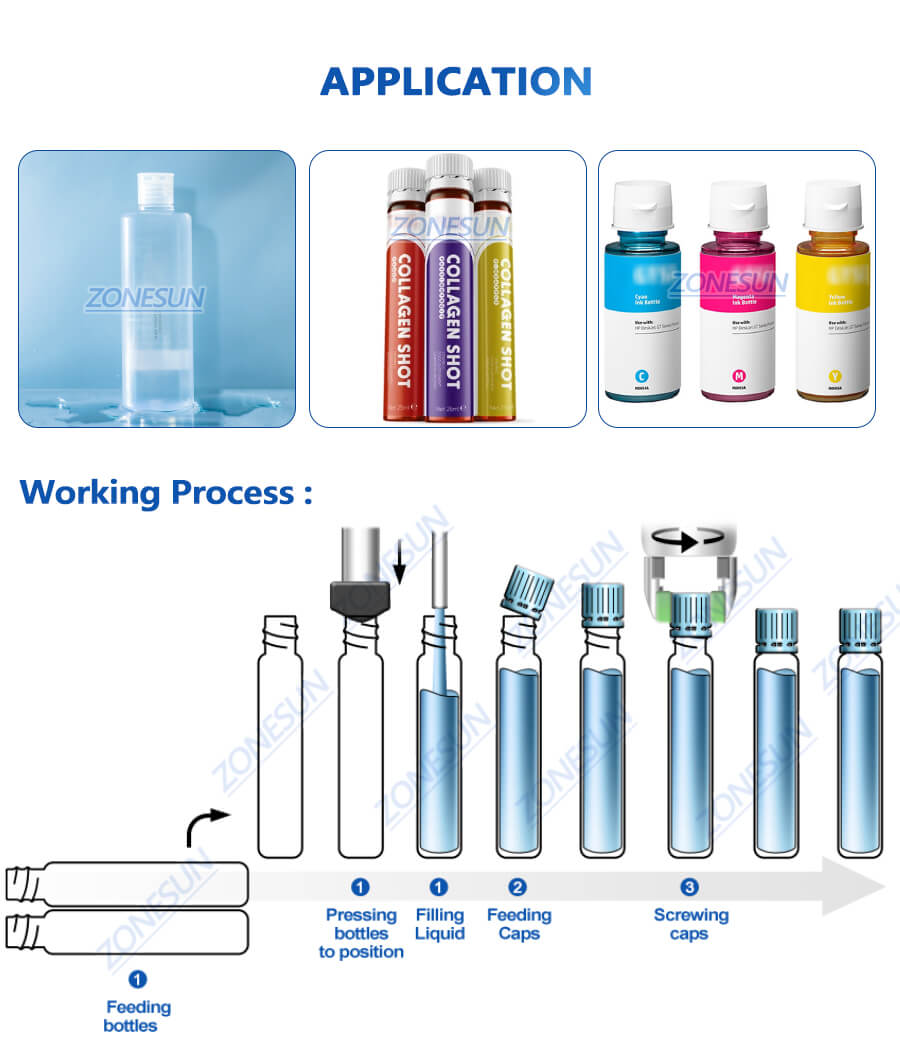

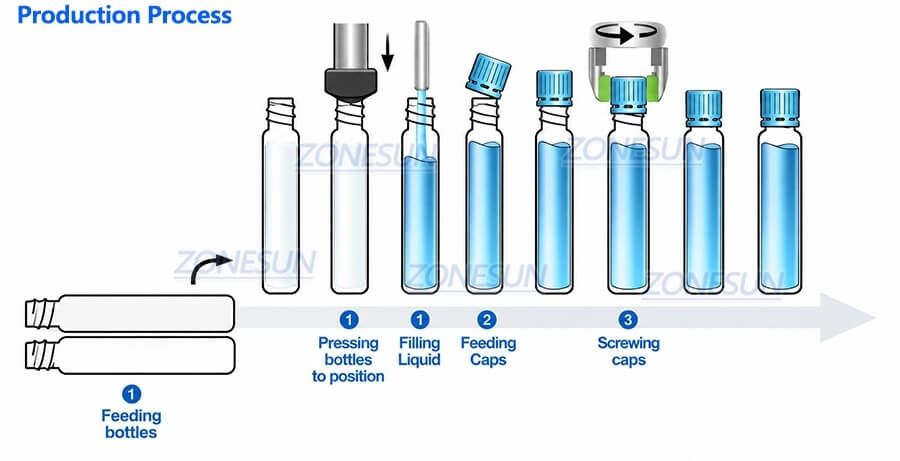

How the machine runs: bottles are fed in and pressed down into position on the plate, the liquid is filled into each bottle, caps are fed one by one, and the caps are screwed on. Filled and capped bottles then leave the machine. Feed, fill and cap run as one cycle on a single frame, and both the filling and the capping stations are servo driven.
Product Parameter

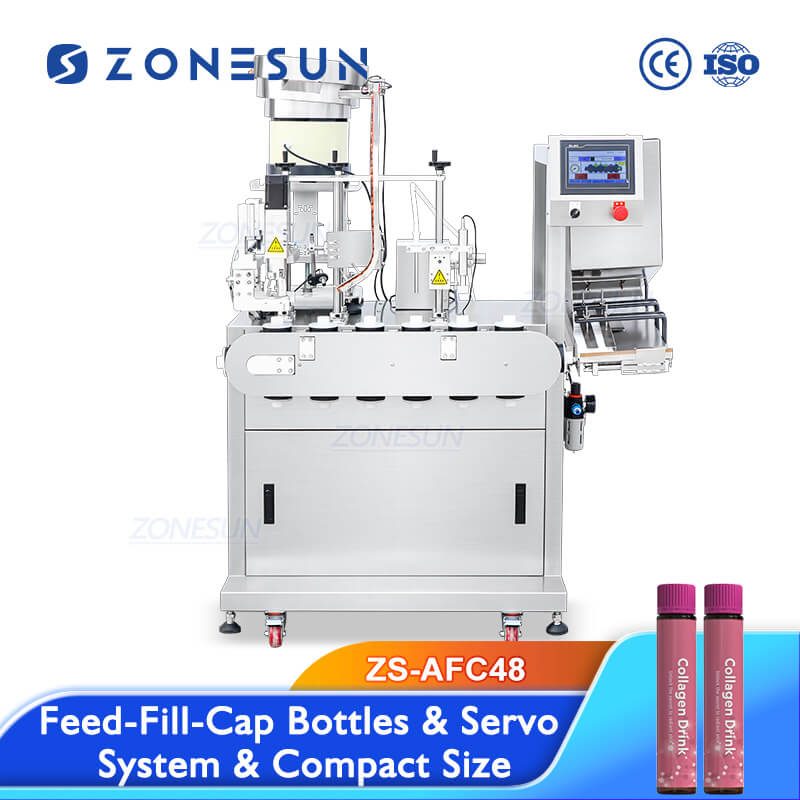

| Machine Model | ZS-AFC48 |
| Power Supply | 110/220V 50Hz 3kW |
| Filling Pump | Servo Magnetic Gear Pump |
| Minimum Filling Volume | 3ml |
| Filling Accuracy | ±1% |
| Working Speed | About 15-30pcs/min(depending on filling range and materials) |
| Bottle Diameter | Φ15mm-Φ50mm |
| Bottle Height | 50mm-250mm(Customizable) |
| Bottle Cap Size | Customizable |
| Air Pressure | 0.6-0.7MPa |
| Machine Size | About 1250*800*1640mm(L*W*H) |
| Package Size | About 1470*820*1550mm |
| Package Weight | About 320kg |

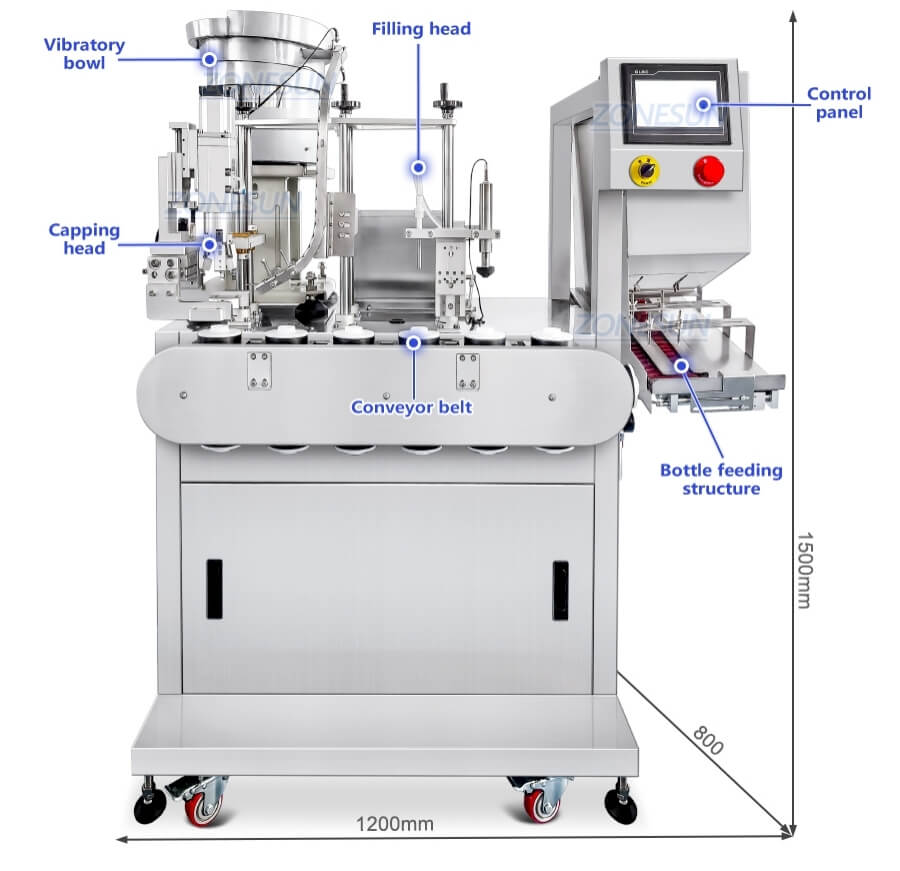

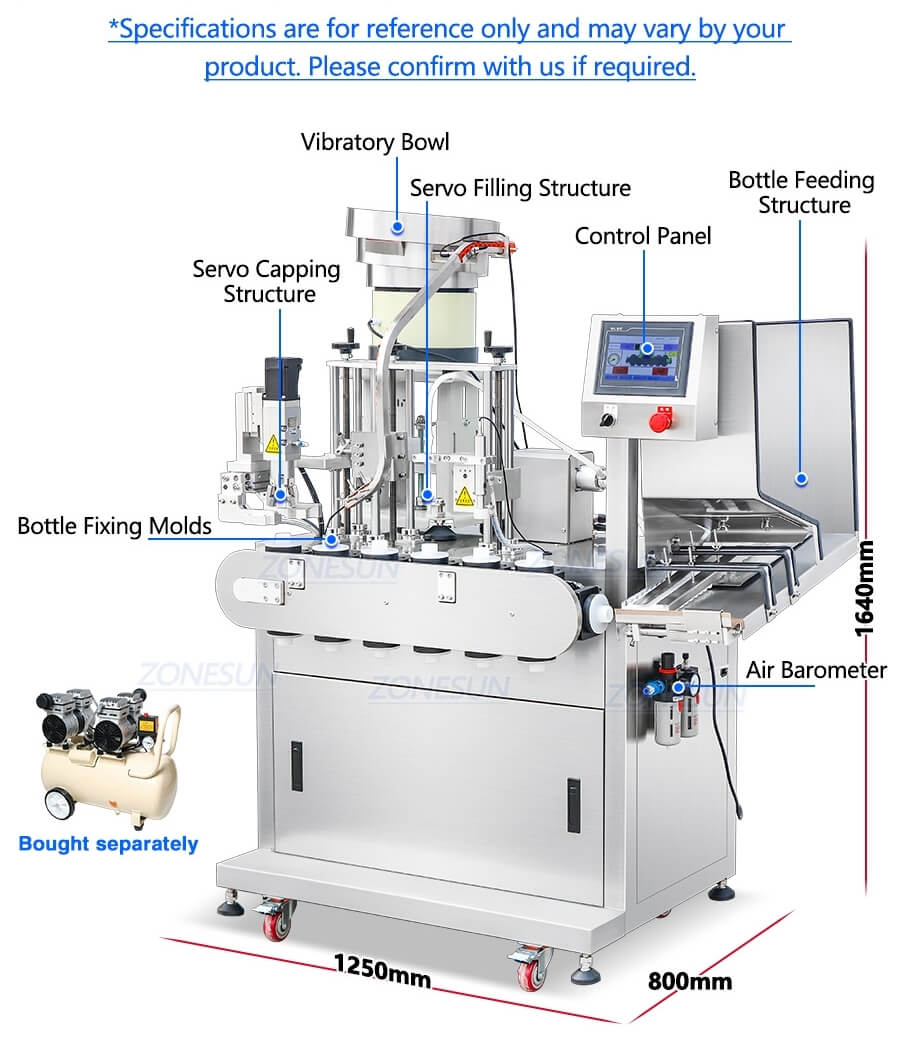

Product Details

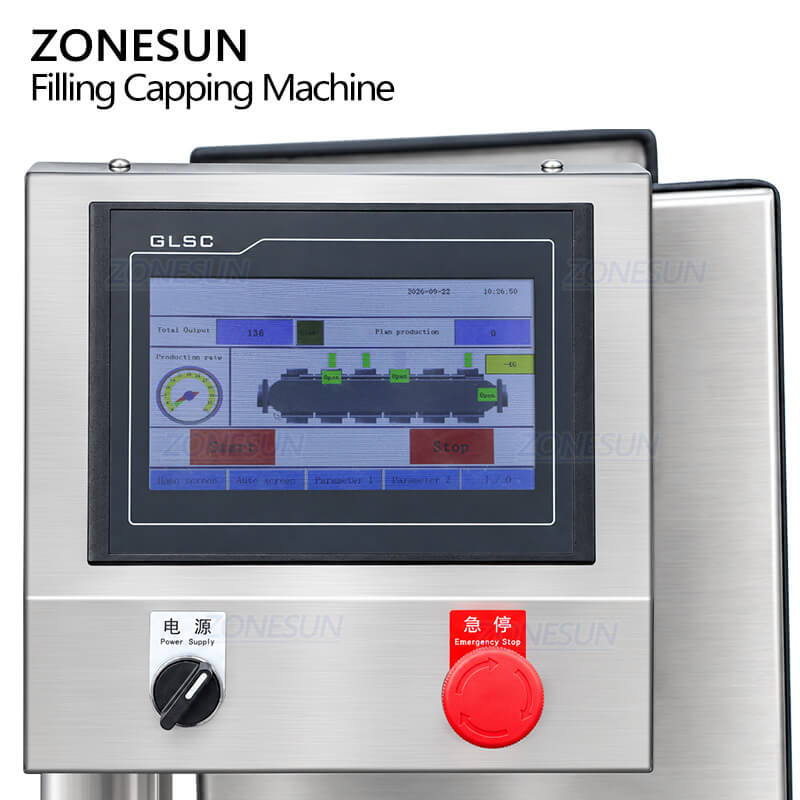

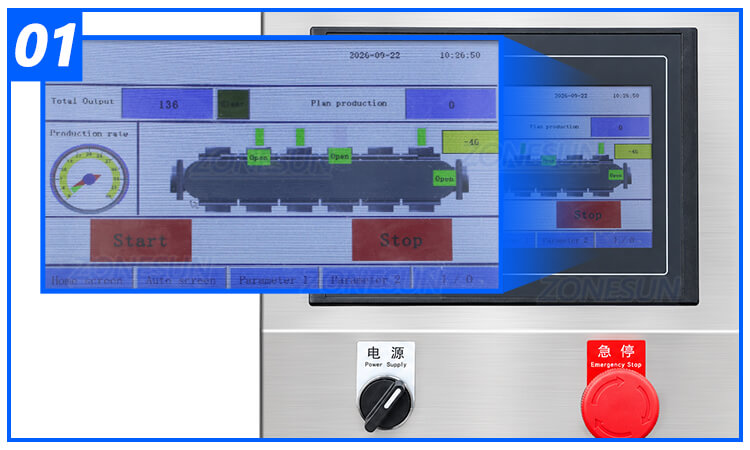

Touchscreen Control Panel
Allows for real-time operation monitoring, parameter setting and machine debugging.

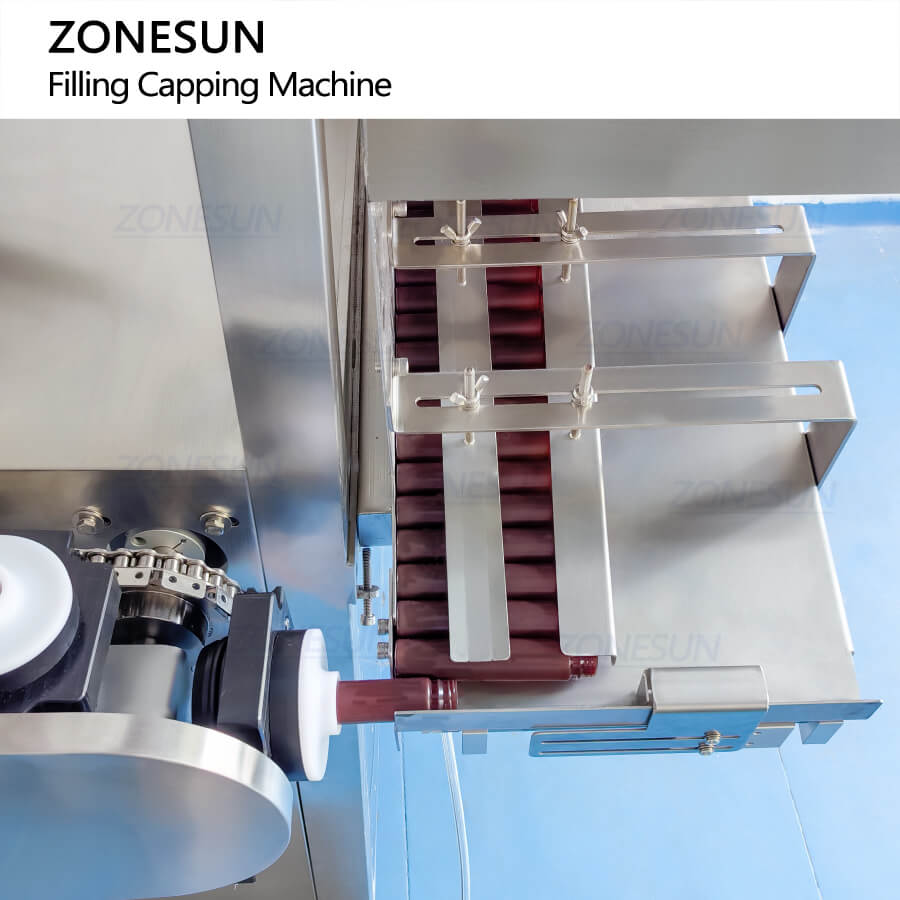

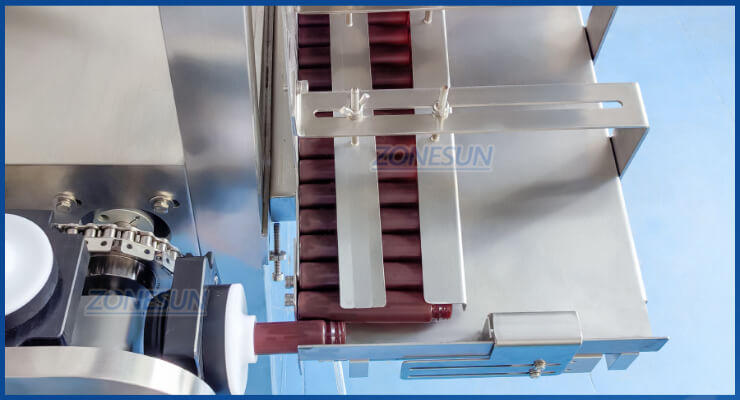

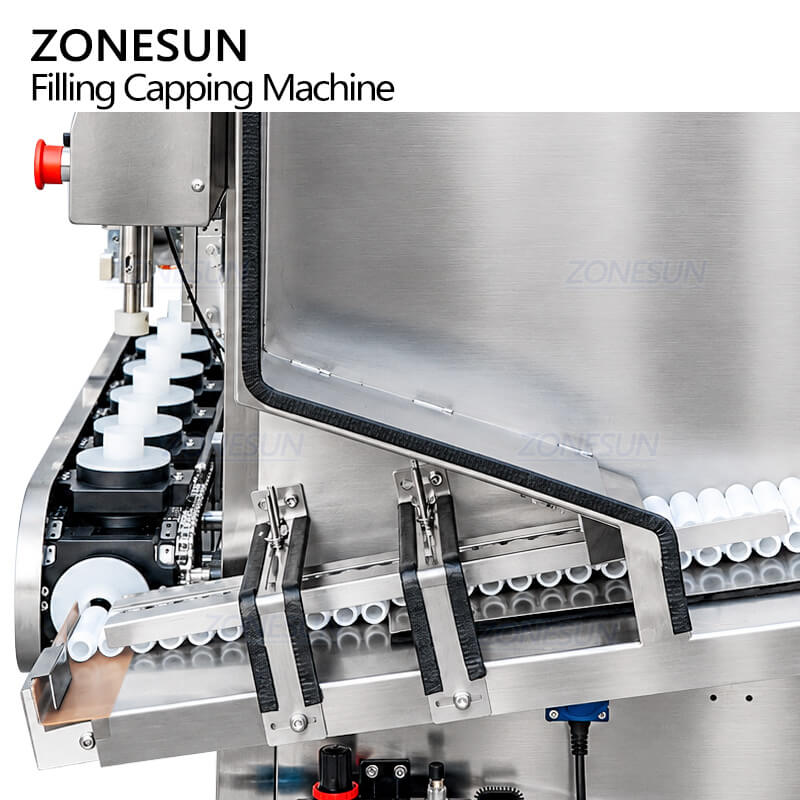

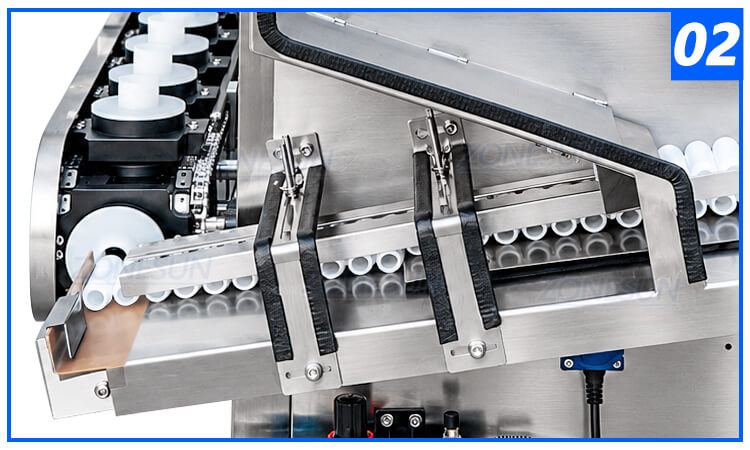

Bottle Feeding Structure
Automatically feeds bottles into fixing molds, saving labor cost.

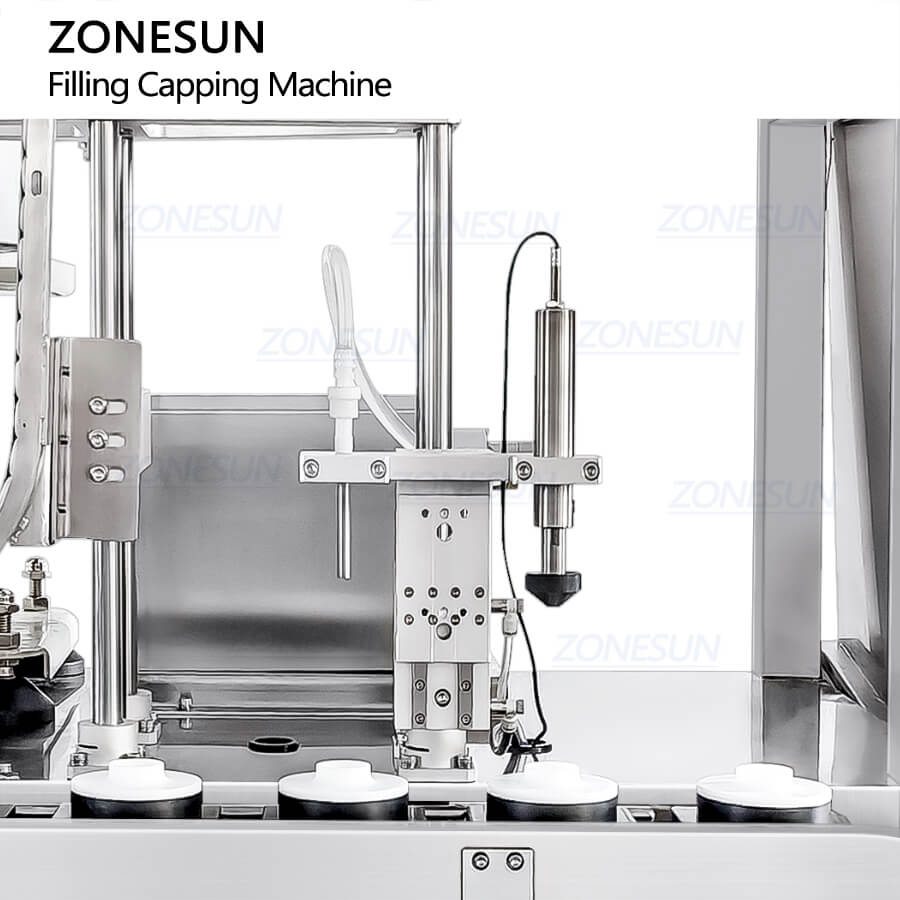

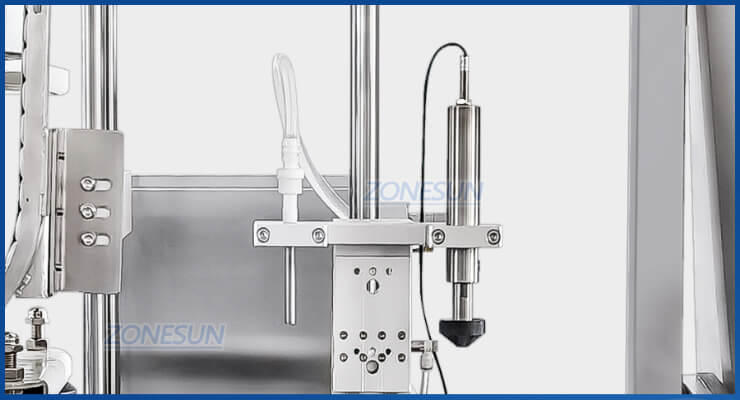

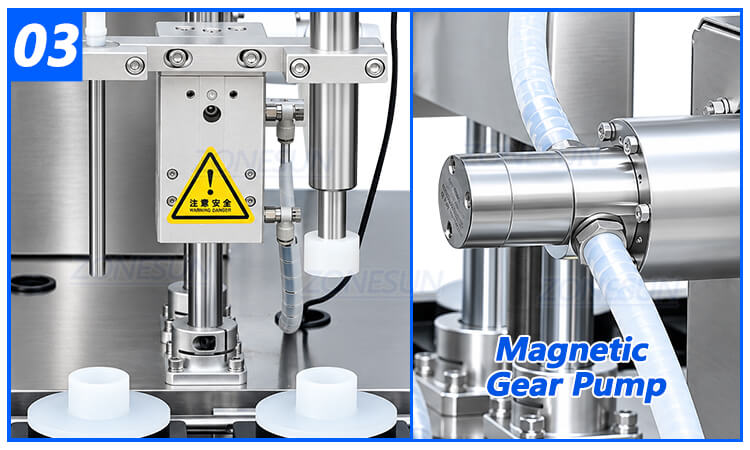

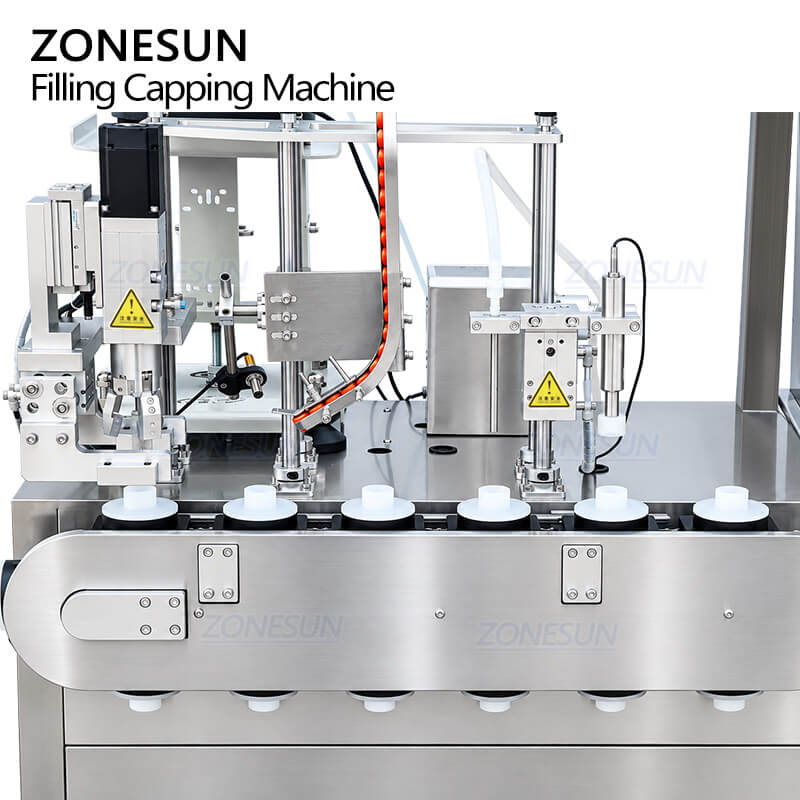

Servo Filling Structure
Servo magnetic gear pump can fill non-viscous liquids accurately. Filling volume can be set directly on panel.

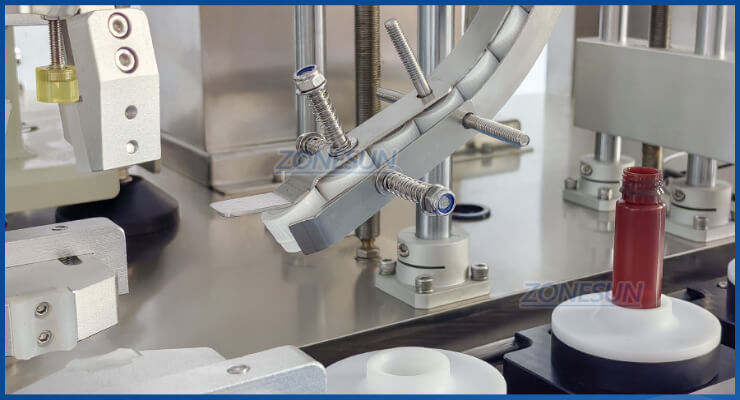

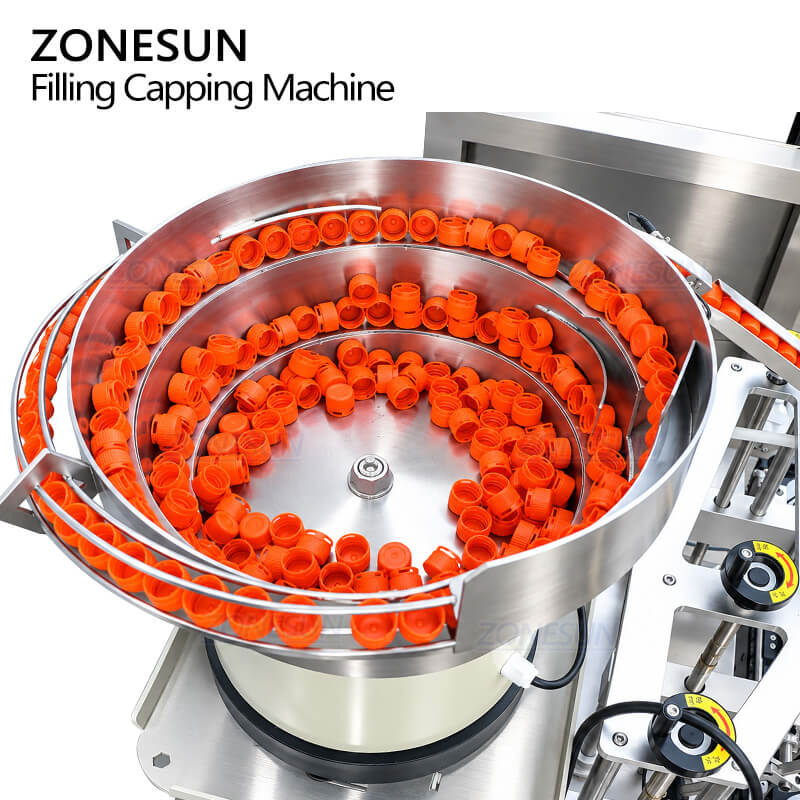

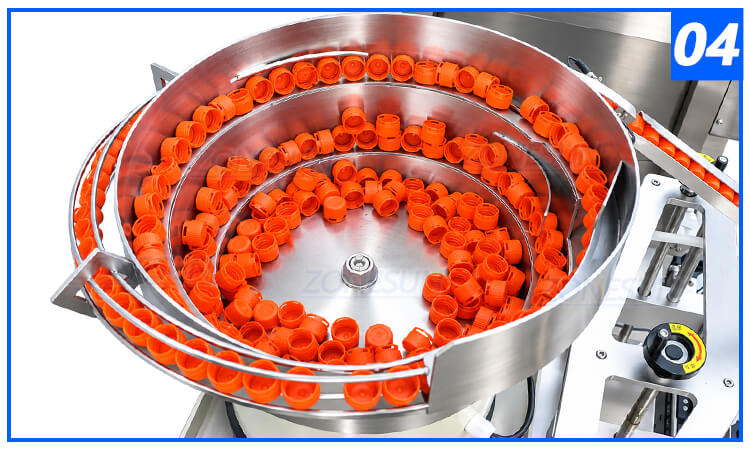

Vibratory Bowl
Automatically orients and feeds caps for continuous production. The vibratory bowl is customizable as cap size.

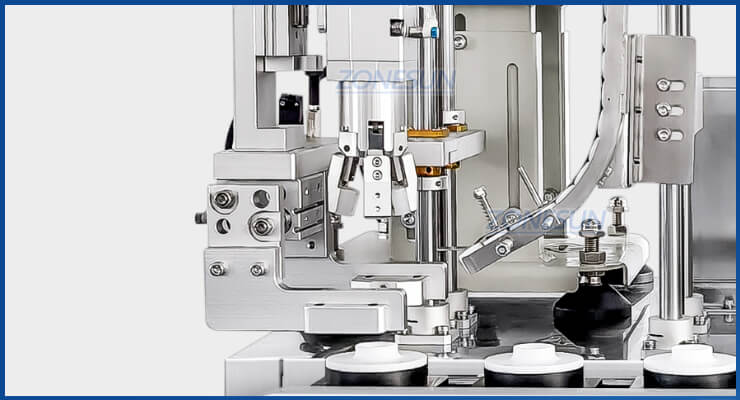

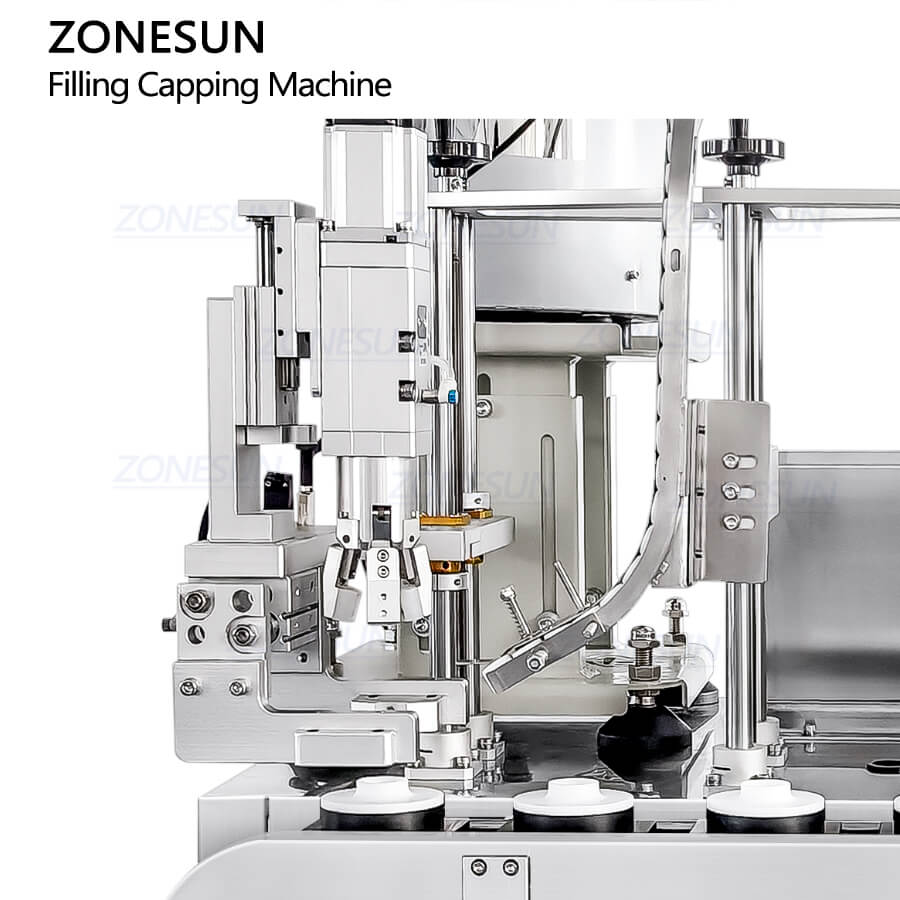

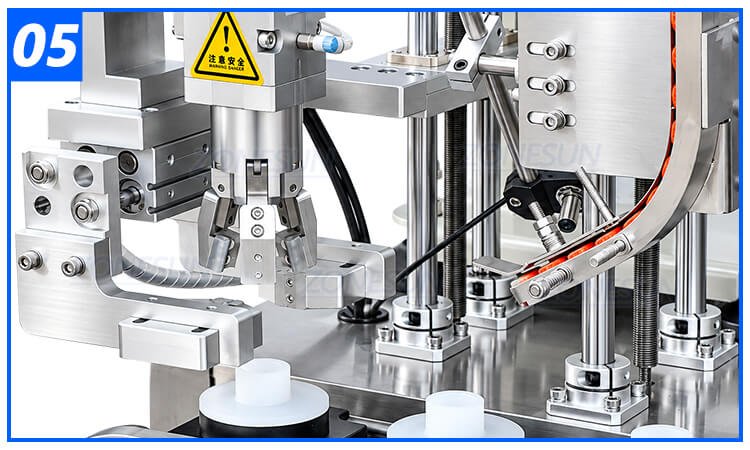

Servo Capping Structure
Can apply consistent capping torque to ensure secure capping quality.

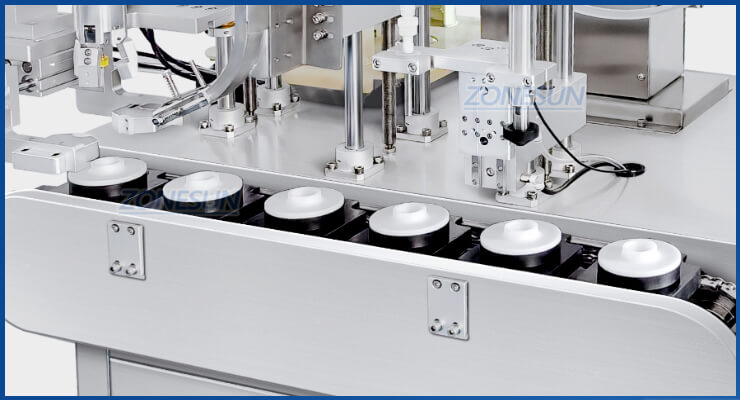

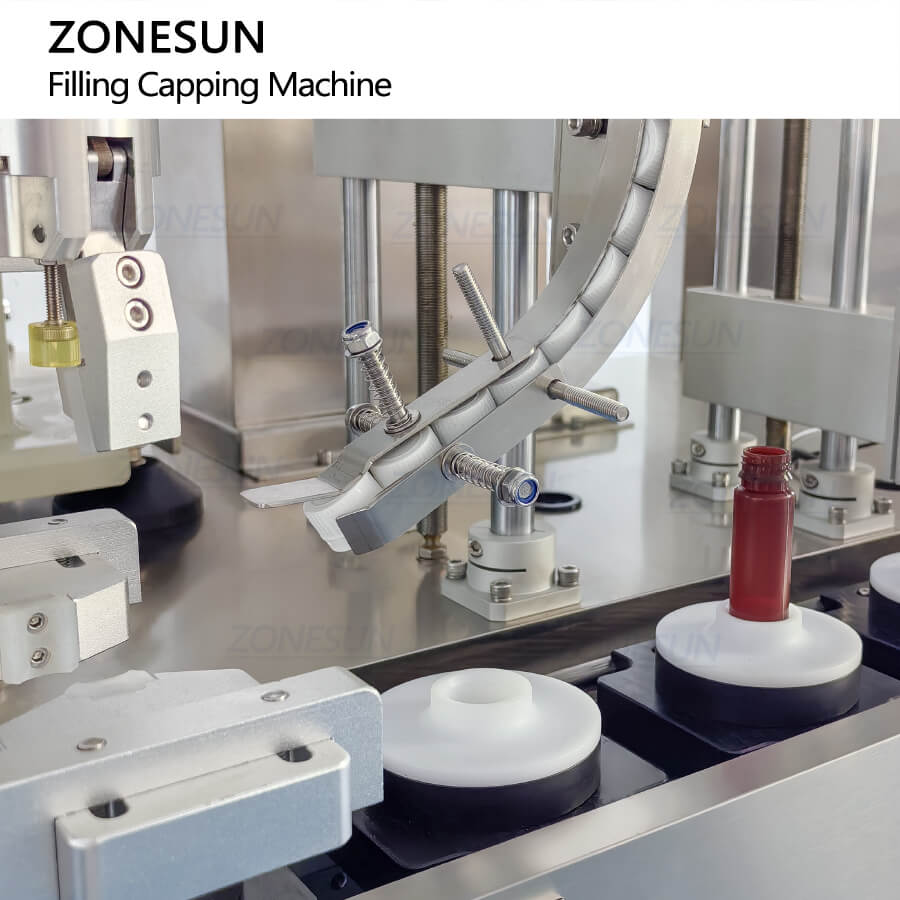

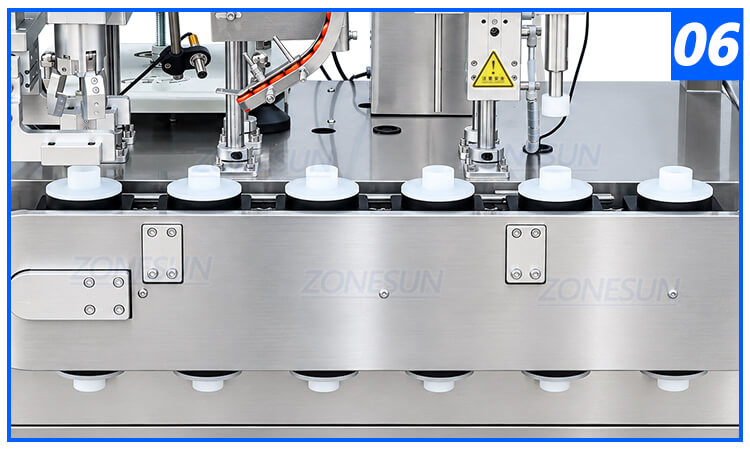

Bottle Fixing Molds
Fixing molds ensure accurate bottle positioning, and they are customizable as production need.

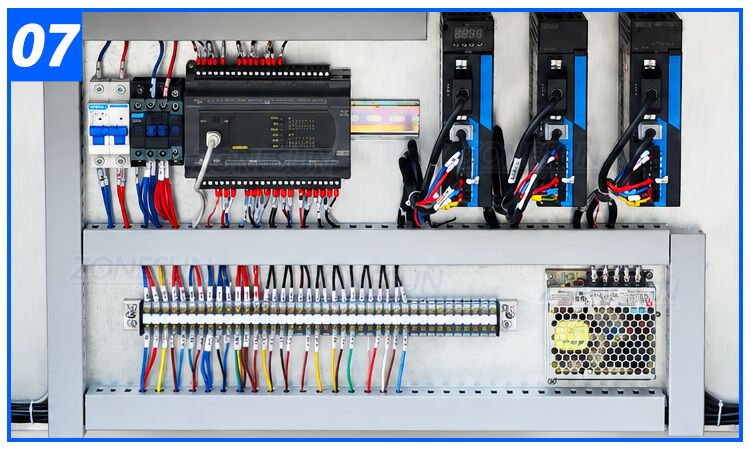

Electrical Control Components
Organized electrical components support stable production and easy maintenance.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.

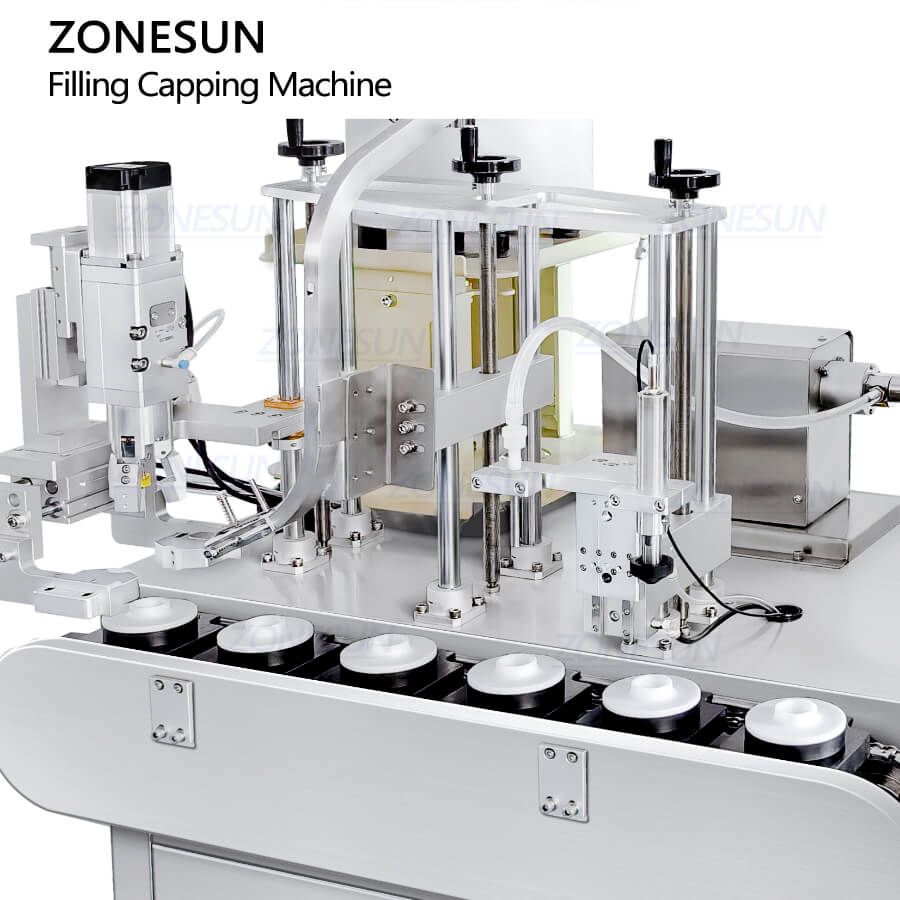

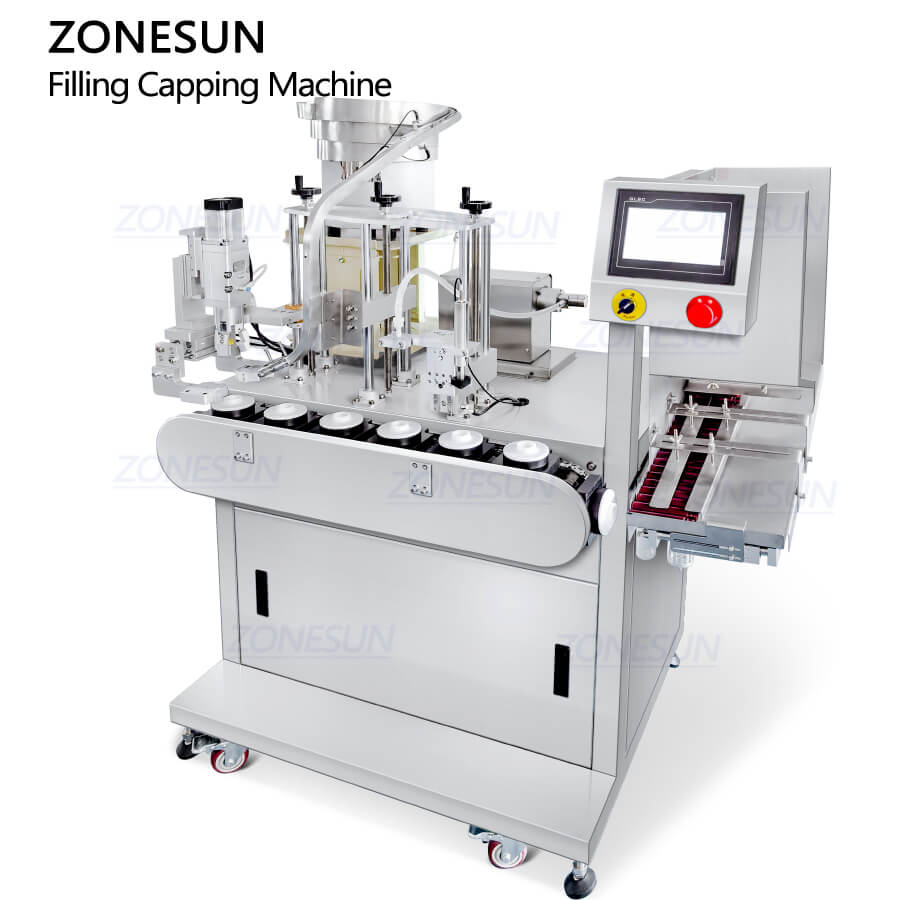

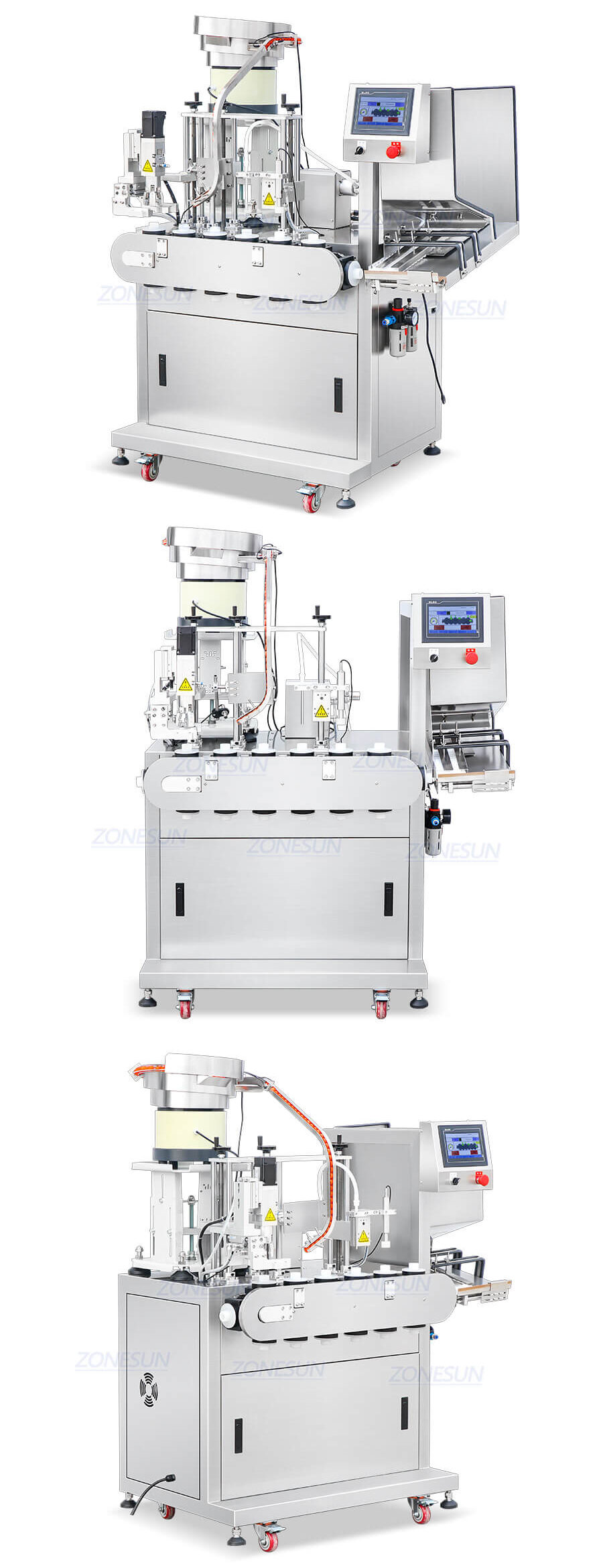

Product Real Shot
