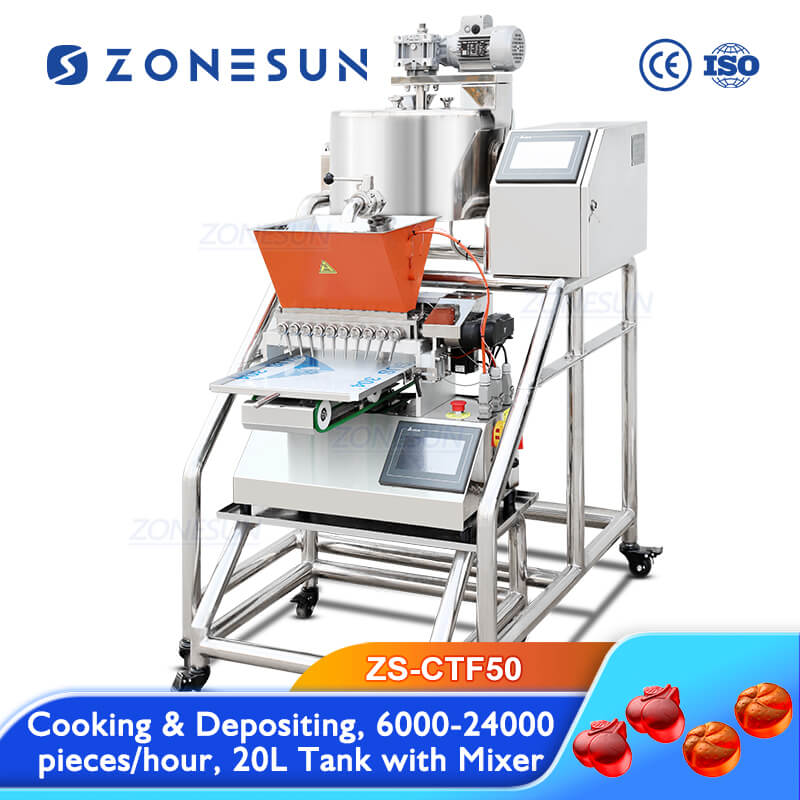

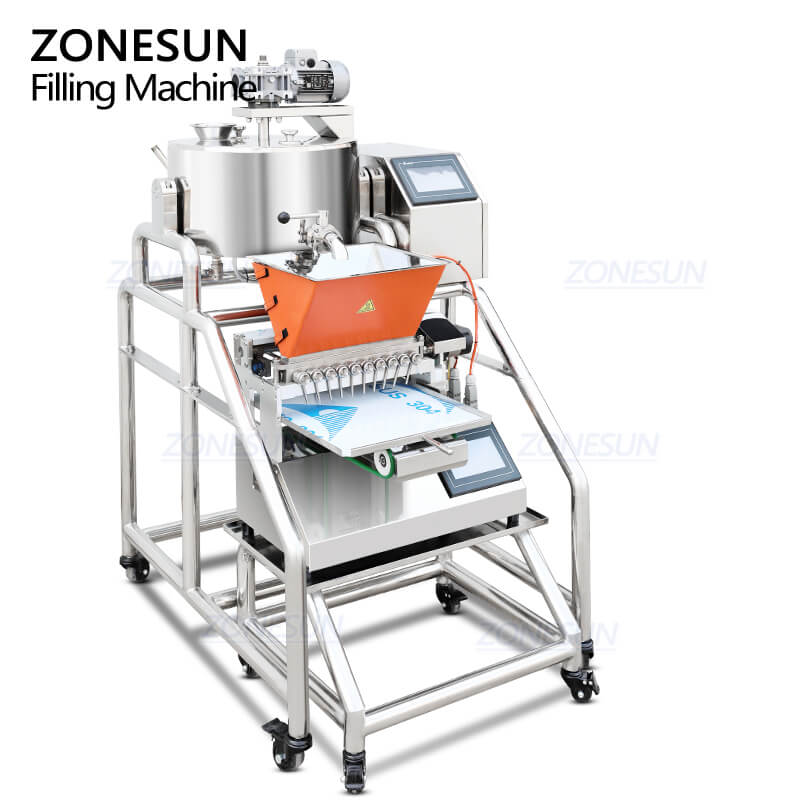

Jelly Gummy Sugar Pouring Make Machine

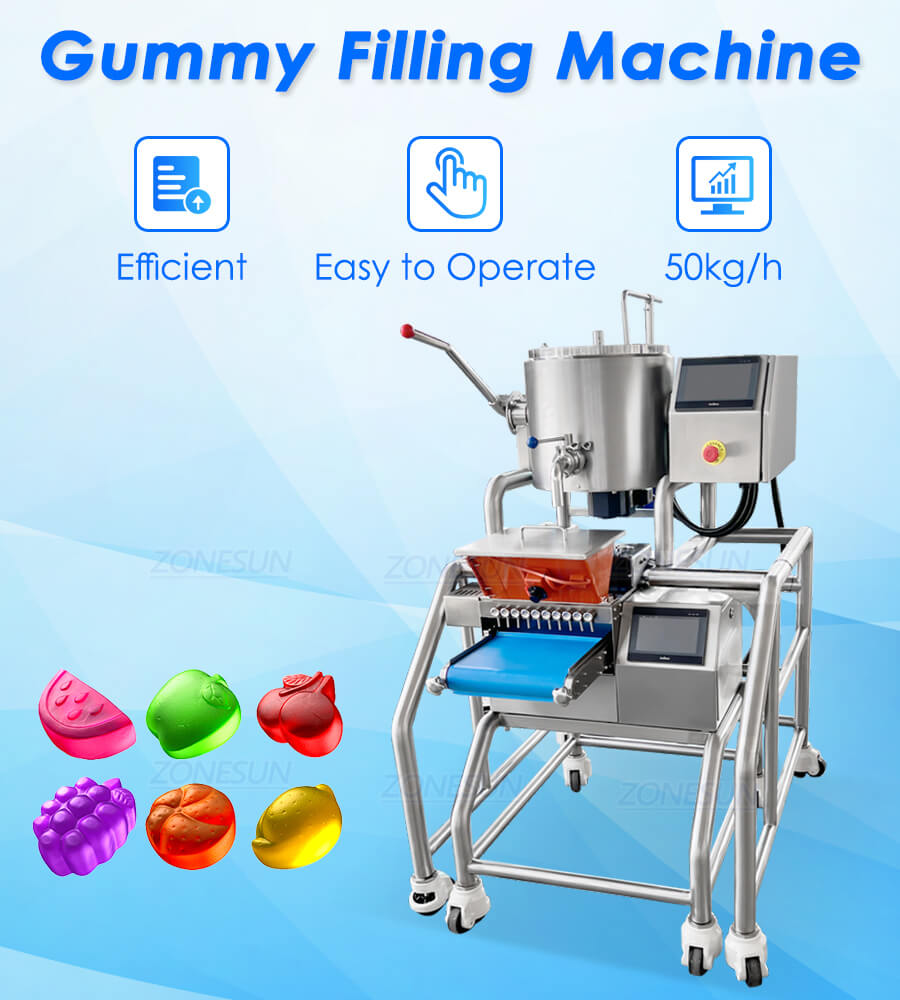

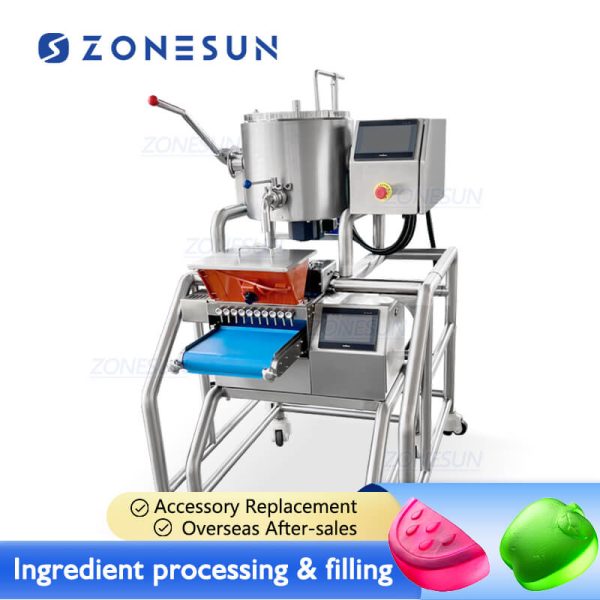

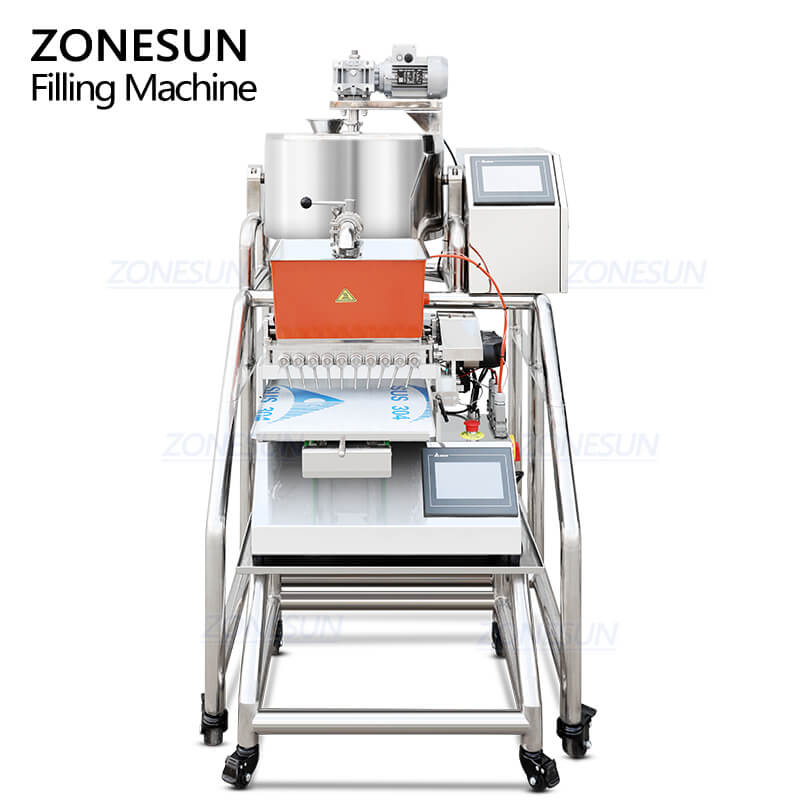

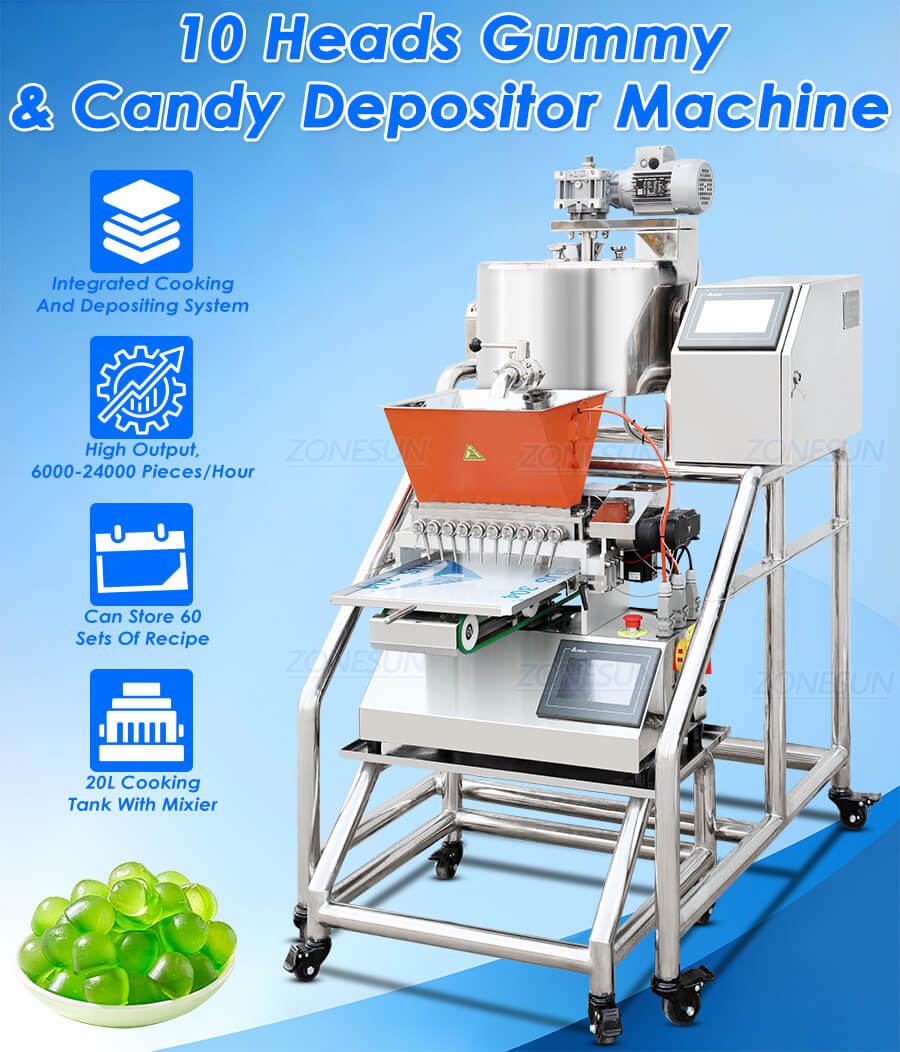

This semi-automatic gummy and candy depositing machine integrates cooking, depositing, and forming into one compact unit. It is designed for precise filling of liquid candy mixtures such as gelatin, pectin, and chocolate into molds. Equipped with a 25L cooking tank for melting and mixing, a heated storage hopper, and 10 depositing nozzles, it delivers stable output from 6,000 to 24,000 pieces per hour. 60 sets of recipe can be stored for flexible operation and food-grade silicone molds (sold separately) can be customized as needed.
$20,499.00
Share to
Product Description:
This semi-automatic gummy and candy depositing machine integrates cooking, depositing, and forming into one compact unit. It is designed for precise filling of liquid candy mixtures such as gelatin, pectin, and chocolate into molds. Equipped with a 25L cooking tank for melting and mixing, a heated storage hopper, and 10 depositing nozzles, it delivers stable output from 6,000 to 24,000 pieces per hour. 60 sets of recipe can be stored for flexible operation and food-grade silicone molds (sold separately) can be customized as needed.
Product Parameters:
| Machine Model | ZS-CTF50 |
| Voltage | 380V 50Hz |
| Heating Tubes | 2 × 3 kW |
| Stirring Motor | 0.37/0.55 kW |
| Heating Power | 6.5 kW / 380V |
| Depositing Nozzle | 10 Nozzles (Can be customized) |
| Depositing Times | About 6000-24000 pieces/hour |
| Depositing Weight | 1-4.5 g for each time |
| Hopper Capacity | About 10 L |
| Cooking Tank | 20L (With Mixer) |
| Heating Temperature | Max 130℃ |
| Machine Material | 304 Stainless Steel |
| Recipes Quantity | 60 |
| Filling Type | Piston Rod (Non-Pump Type) |
| Sample Mold Size | 291.5 × 291.5 × 11.3 mm (Customizable, sold separately) |
| Sample Cavity Size | 15.5 × 15.5 × 10 mm(Customizable) |
| Sample Cavity Volume | 2.4 ml (Gummy 3.2 g, Chocolate 2.8 g)(Customizable) |

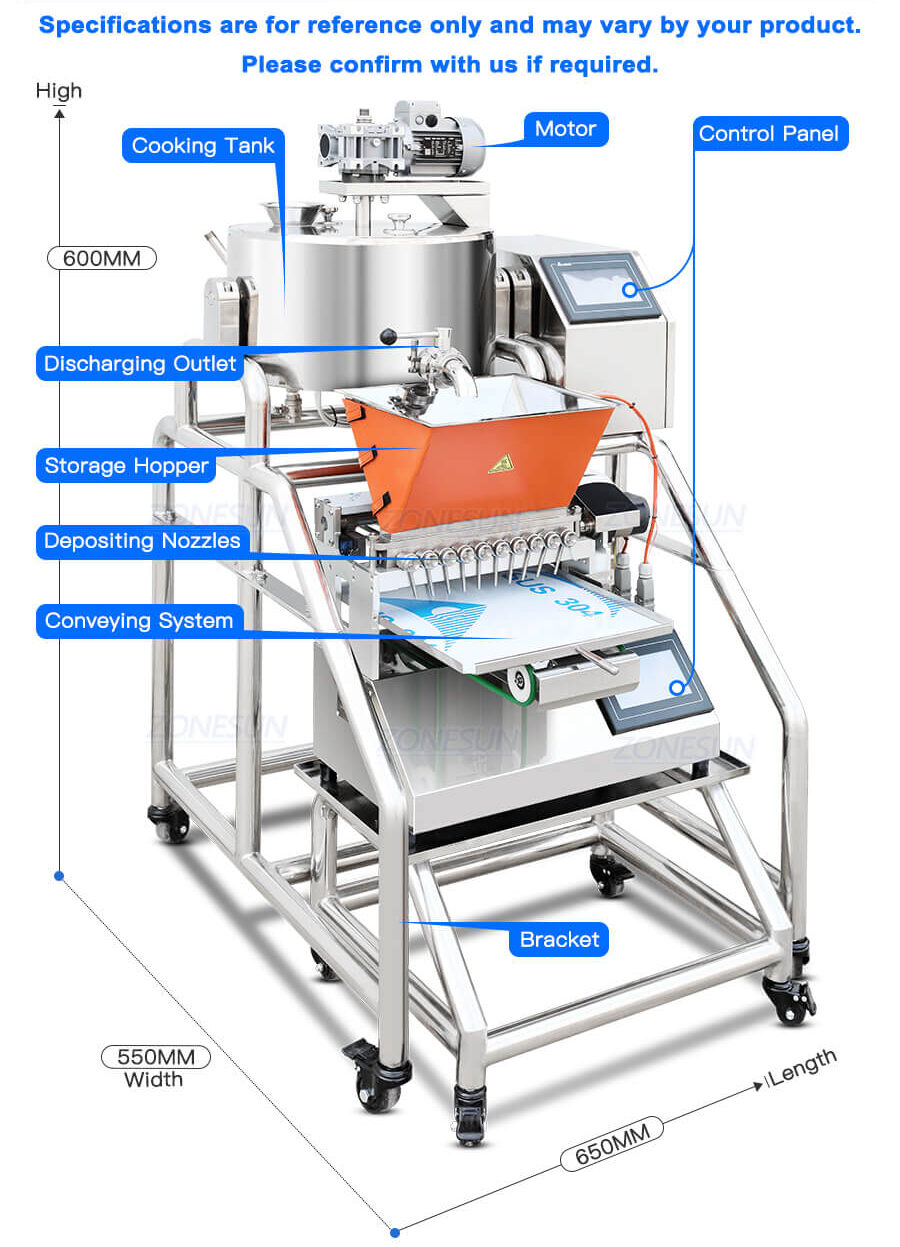

| Machine Size | About 650*550*600 mm |
| Machine Weight | About 65 kg |
| Package Size | About 750*740*900mm |
| Package Weight | About 76kg |

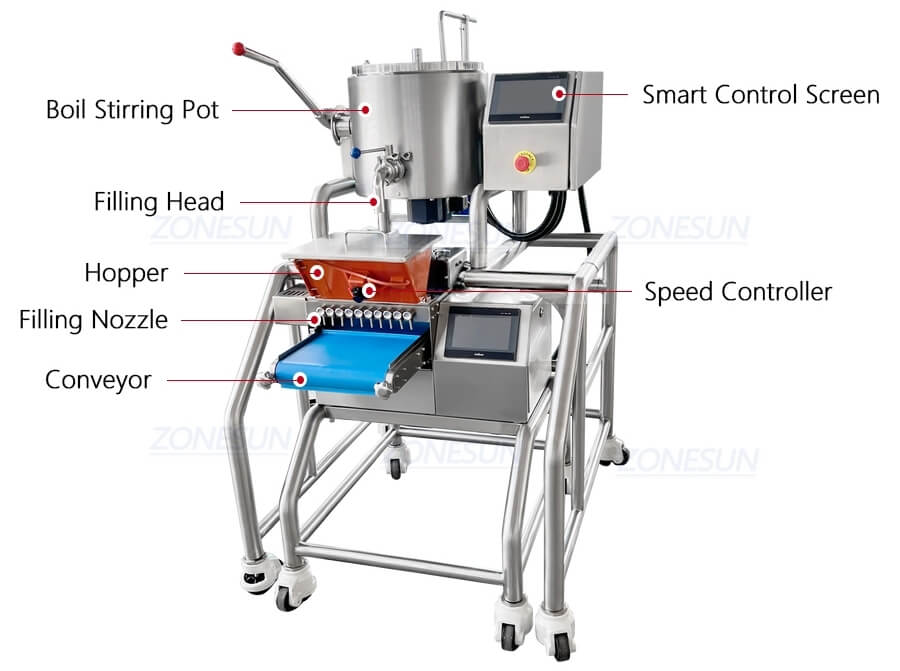

Product Details:

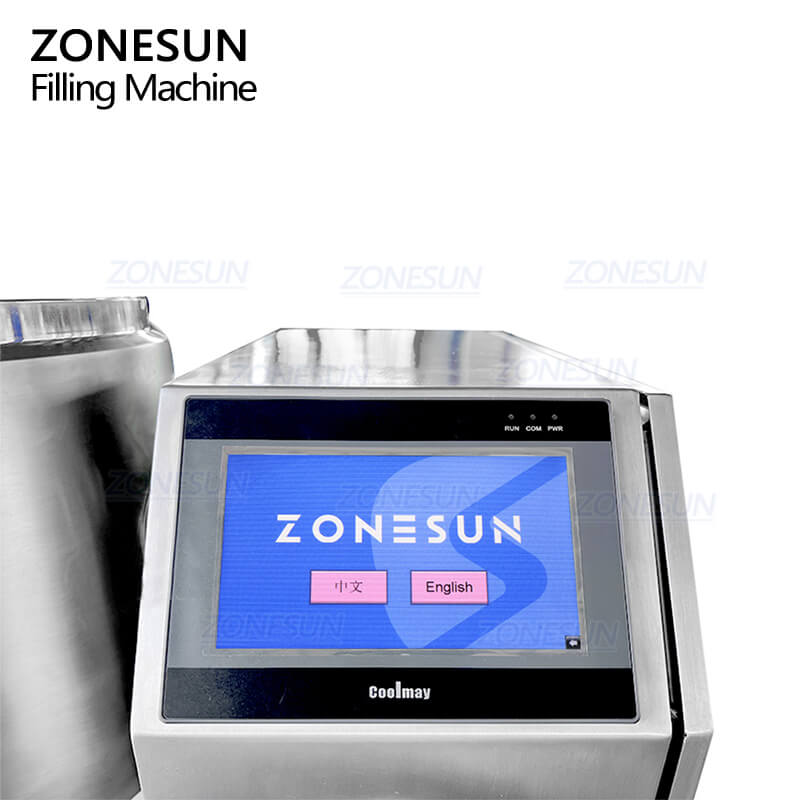

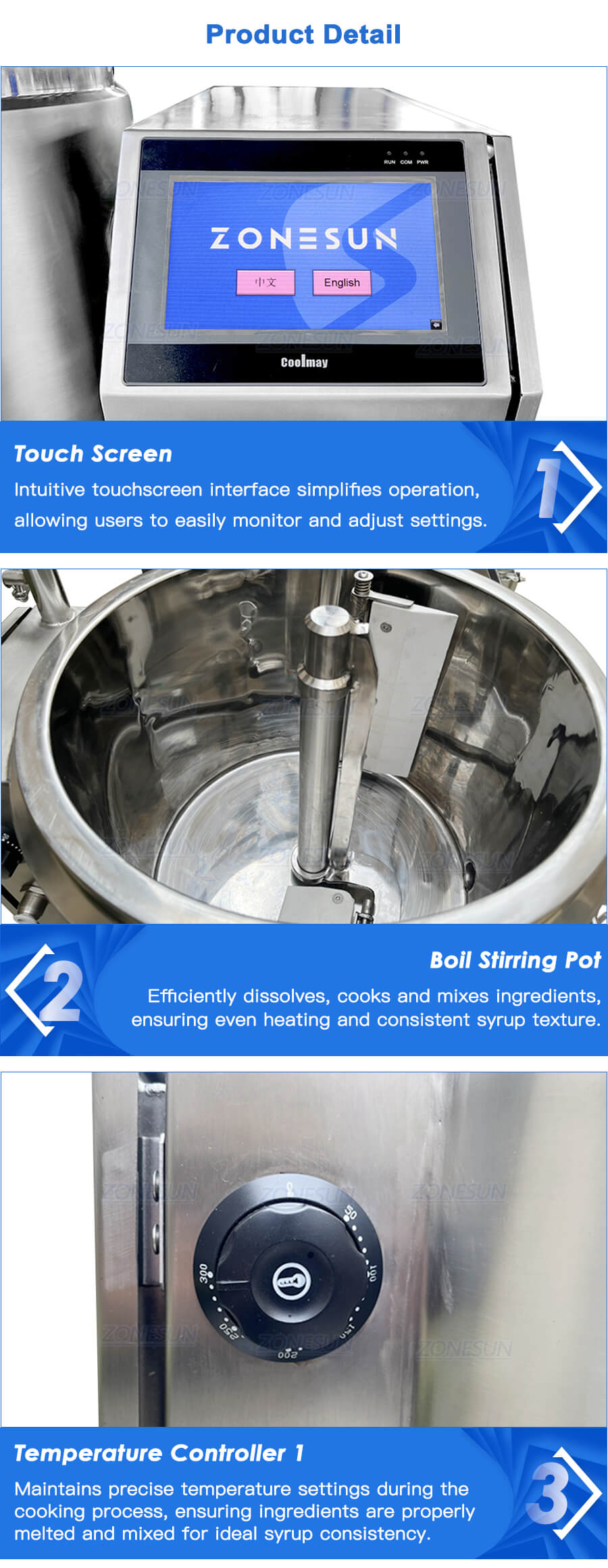

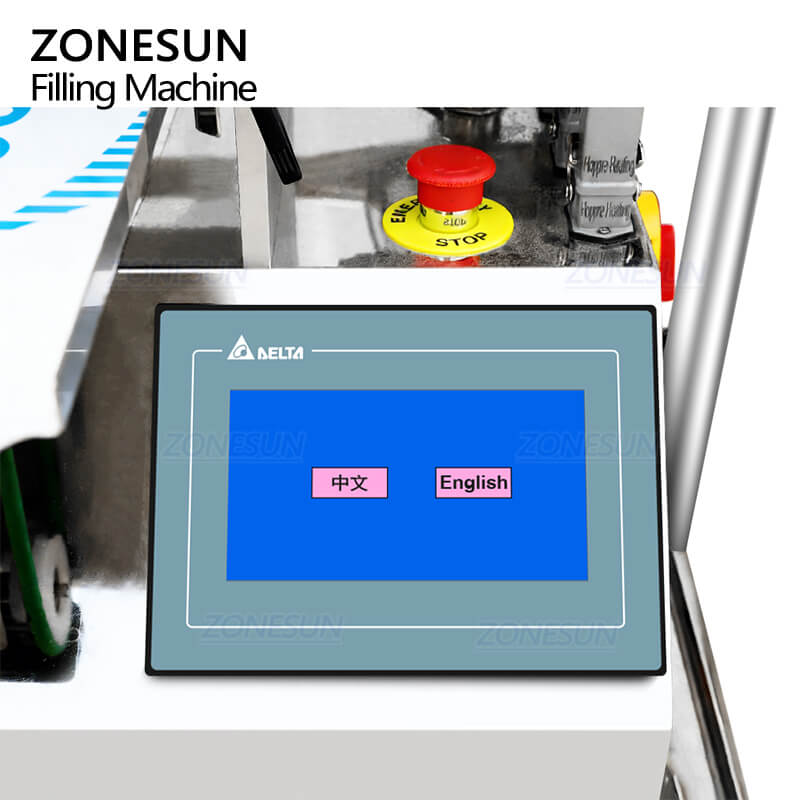

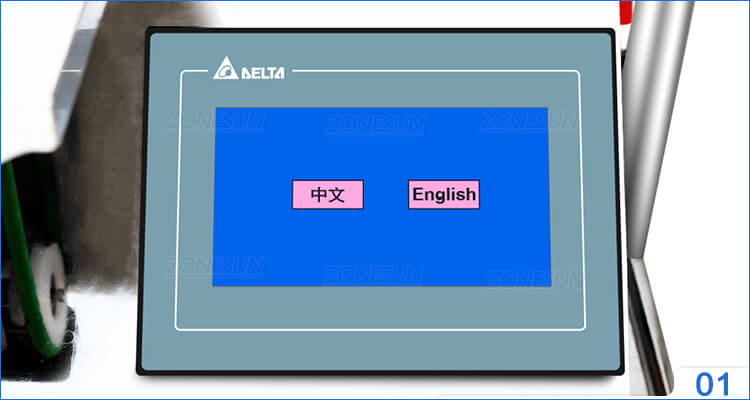

Touchscreen Control Panel
Provides easy operation with parameter setting and up to 60 recipe memory storage.

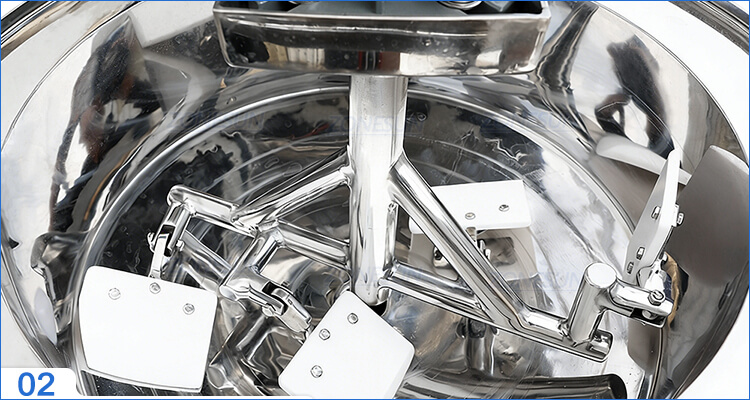

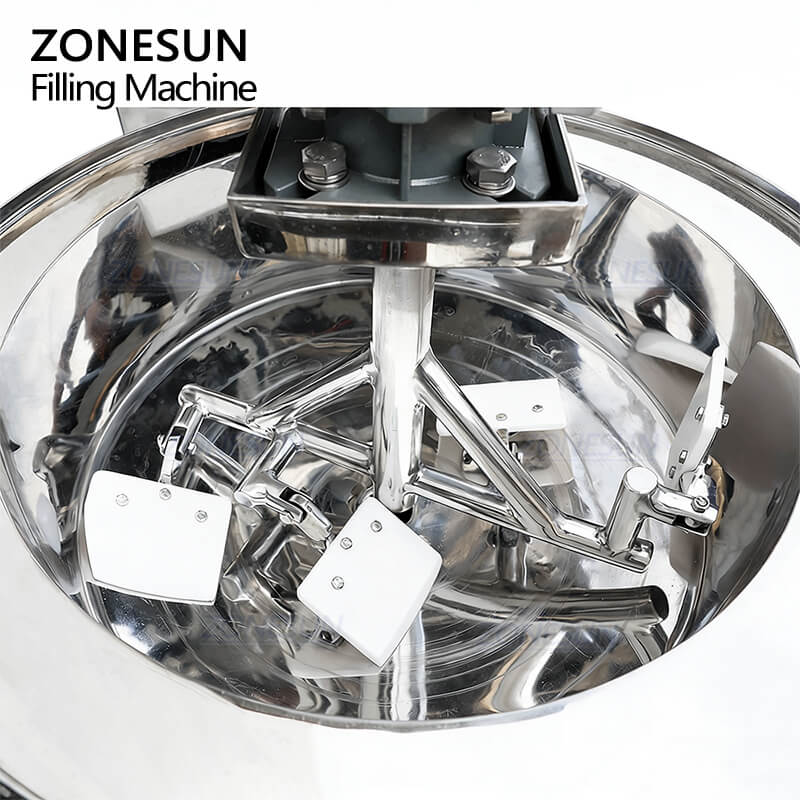

Cooking Tank
20L tank used for melting and mixing raw materials with smooth discharge via butterfly valve.

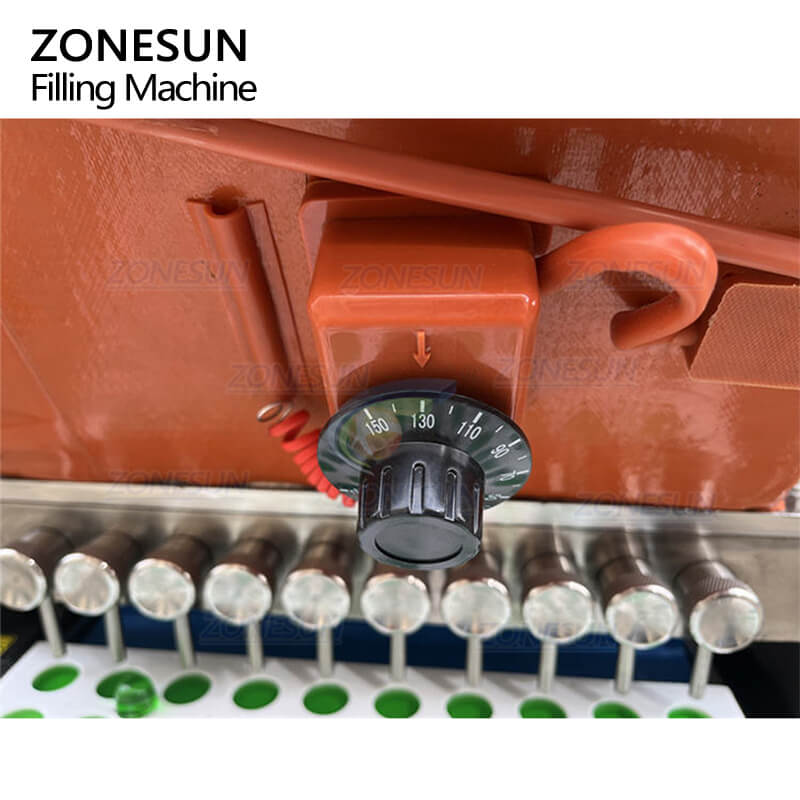

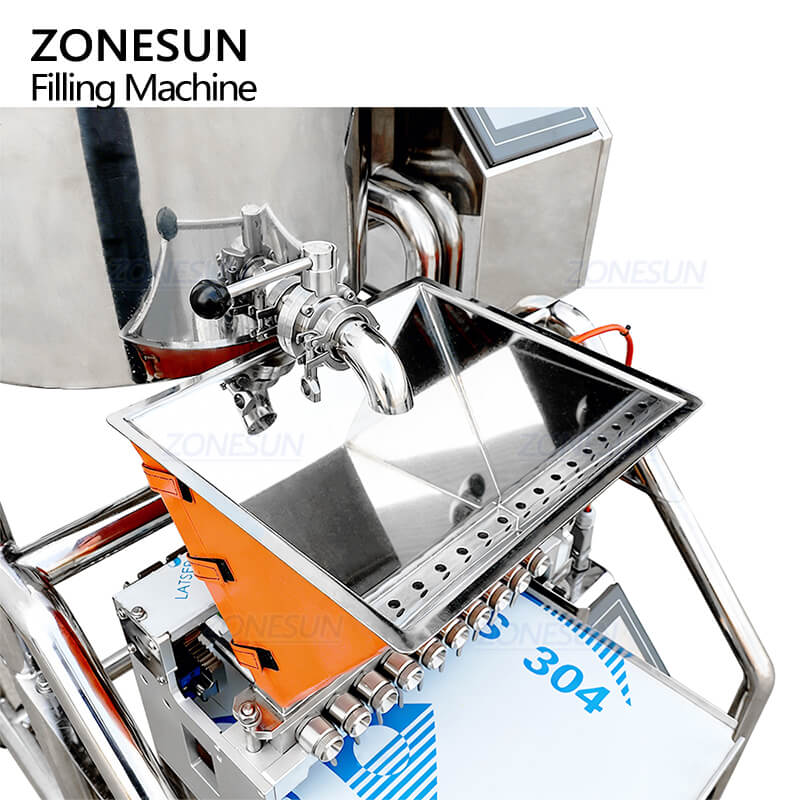

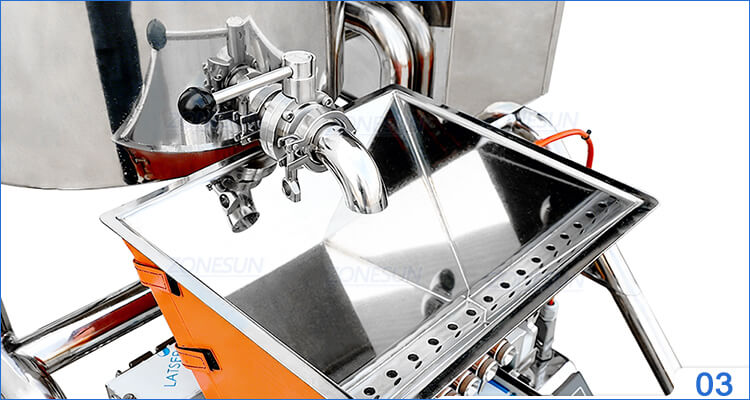

Heated Hopper
Maintains material temperature for consistent depositing, 10L Large capacity for smooth filling.

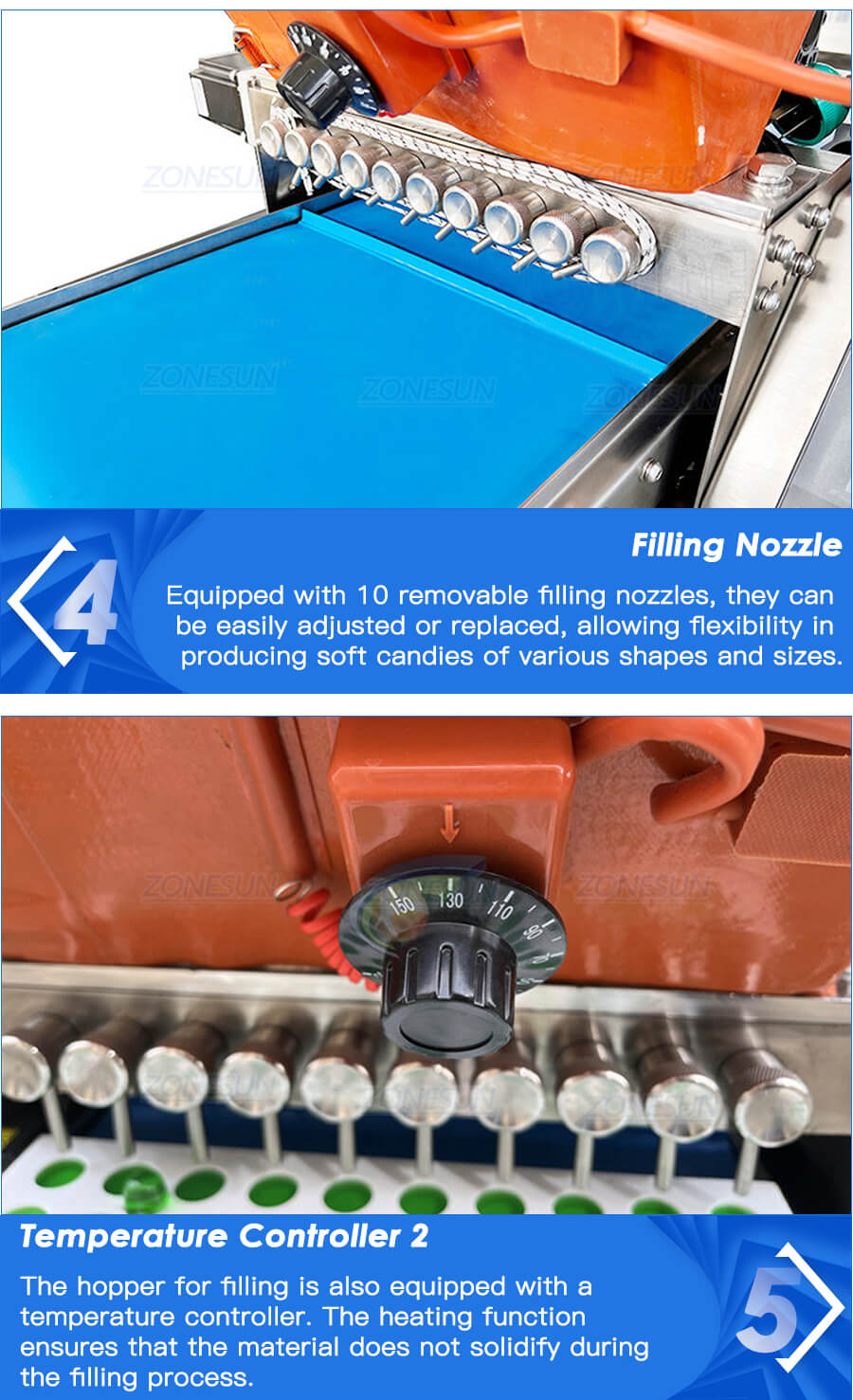

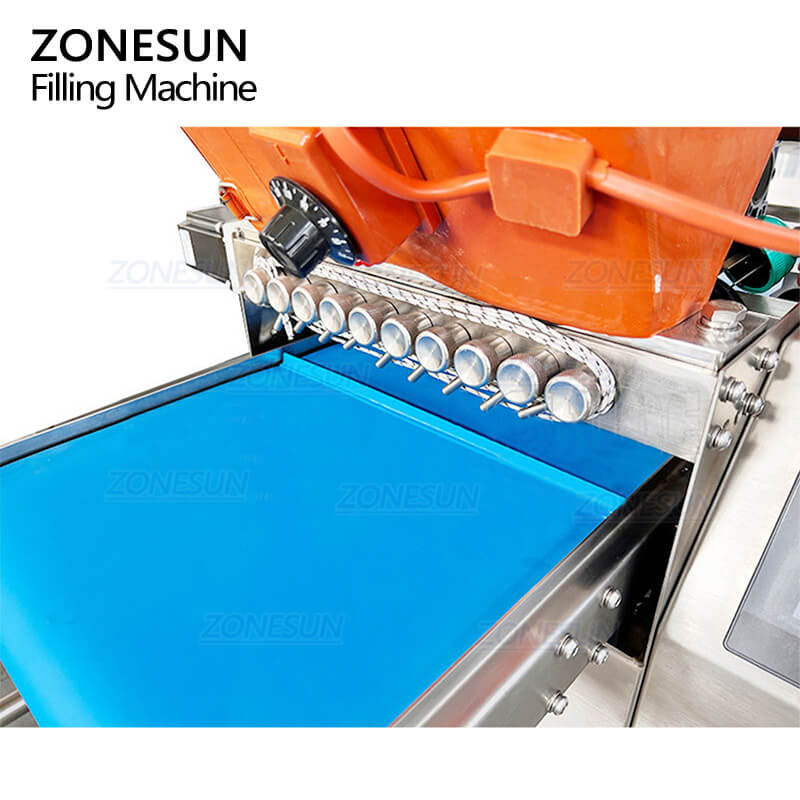

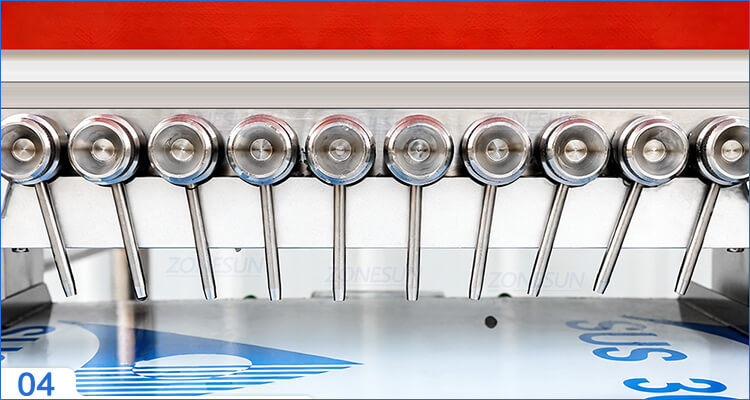

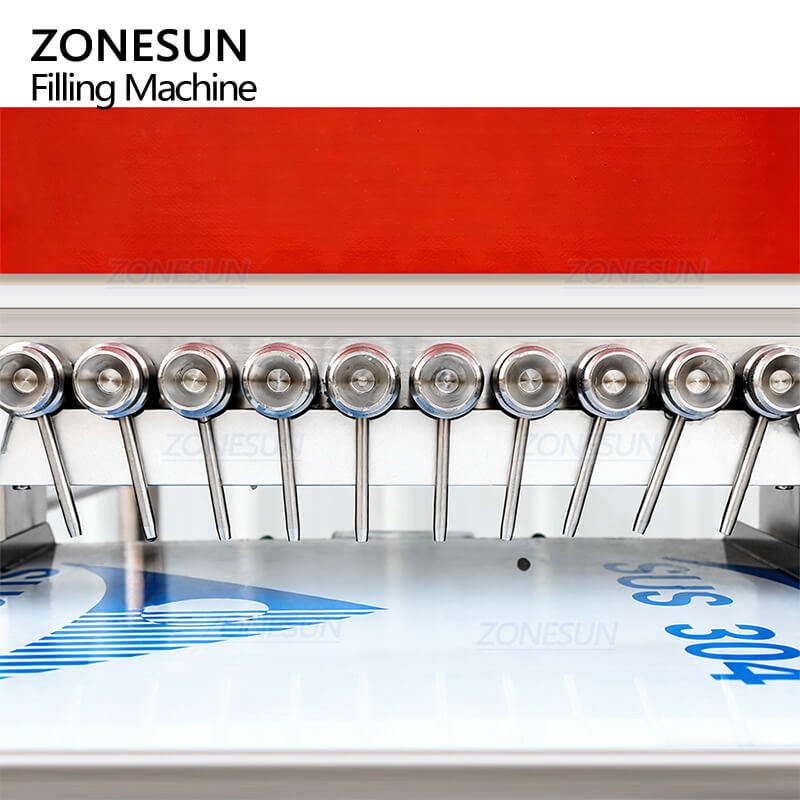

10-Nozzle Depositing Head
Ensures accurate and uniform filling across multiple cavities simultaneously.

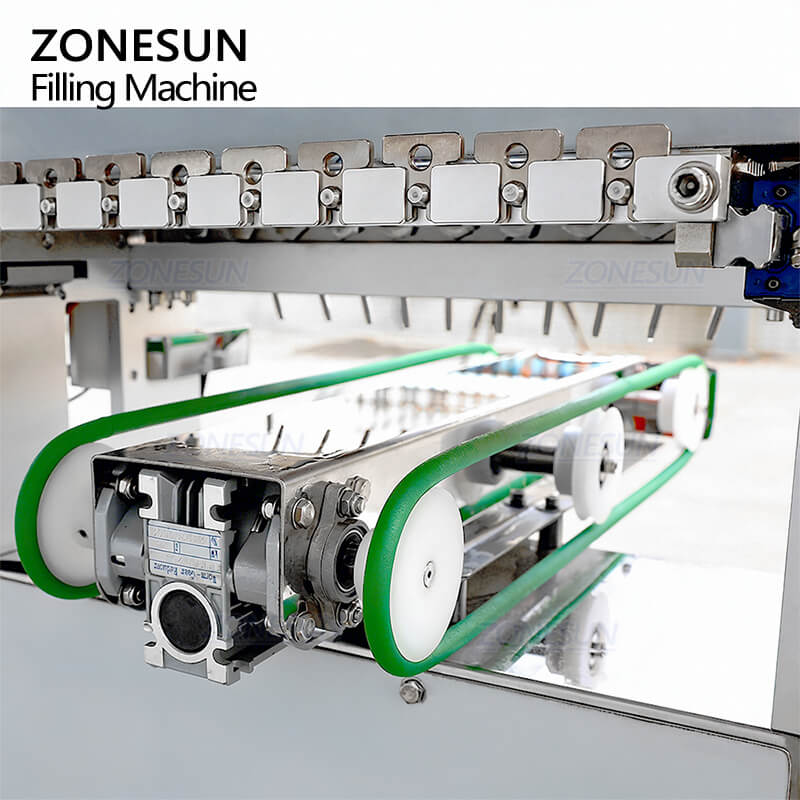

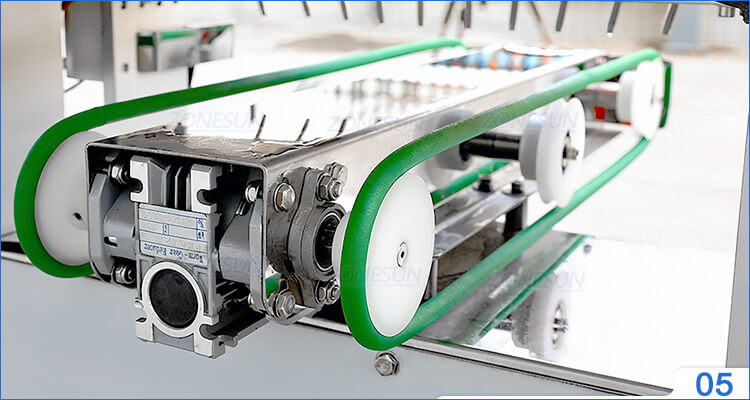

Conveyor System
Transports molds smoothly to ensure stable and continuous depositing operation.

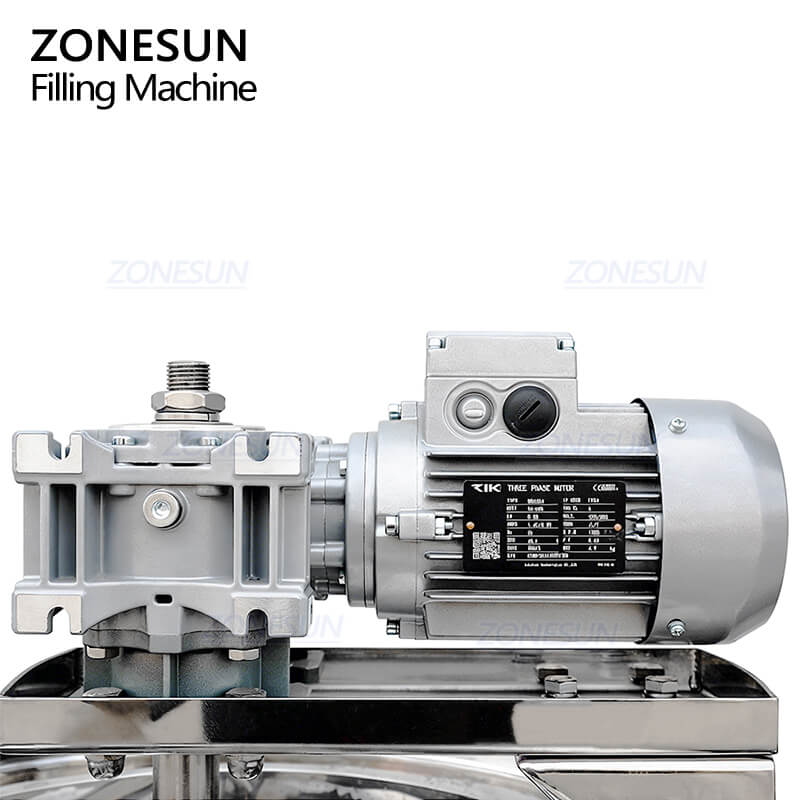

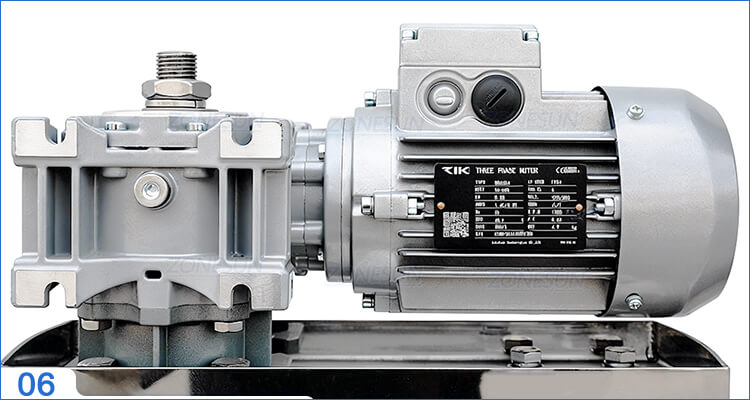

Motor System
Drives the machine steadily to ensure reliable and consistent performance.
