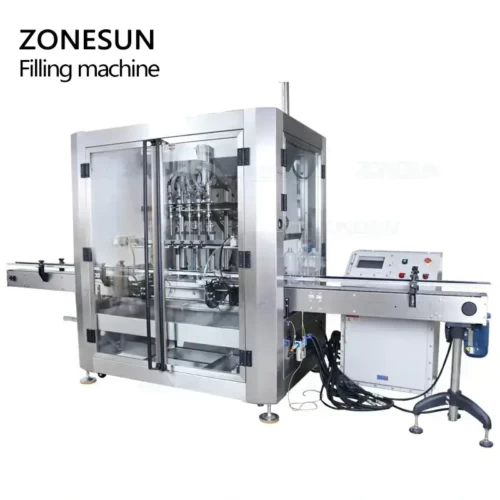

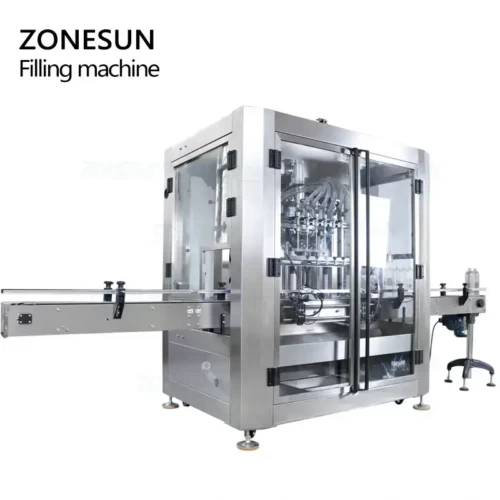

Automatic Six-head Explosion-proof Servo Filling Machine

The main advantage of the ex-proof filling machine is that this machine can fill liquid accurately by entering certain number,this makes it save time on adjusting filling time.It is suitable for filling Inflammable liquids and paste like alcohol,it is widely used in food,beverage,cosmetics and daily chemical industries.

Product Detail

Product Tags

Description:
The main advantage of the ex-proof filling machine is that this machine can fill liquid accurately by entering certain number,this makes it save time on adjusting filling time.It is suitable for filling Inflammable liquids and paste like alcohol,it is widely used in food,beverage,cosmetics and daily chemical industries.
Machine Model
ZS-VTFM1
Machine Power
3KW
Filling Range
100-1000ml(can be customized)
Working Speed
20-40bottles/min(based on 500ml )
Filling Accuracy
±1%
Air Pressure
0.8Mpa

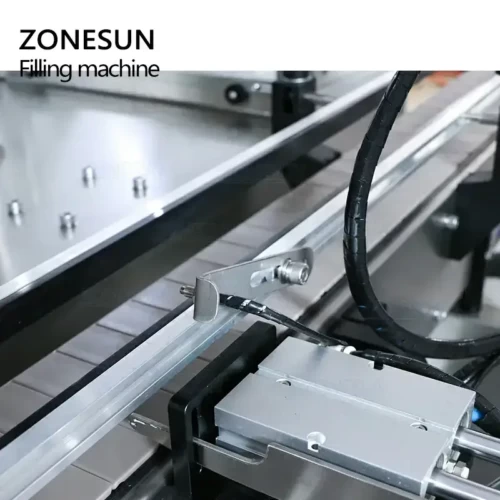

Conveyor Size
1140mm*100mm(L*W)
Filling Nozzle Diameter
OD 8mm
Package Size

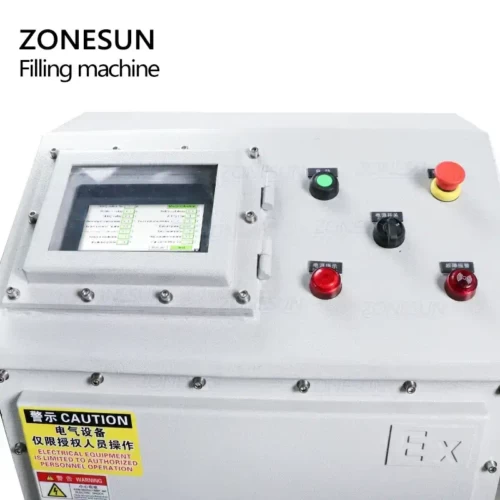

2140*2110*1250mm+950*630*1200mm(machine+electric control box)
Package Weight
About 550kg+100kg(machine+electric control box)
