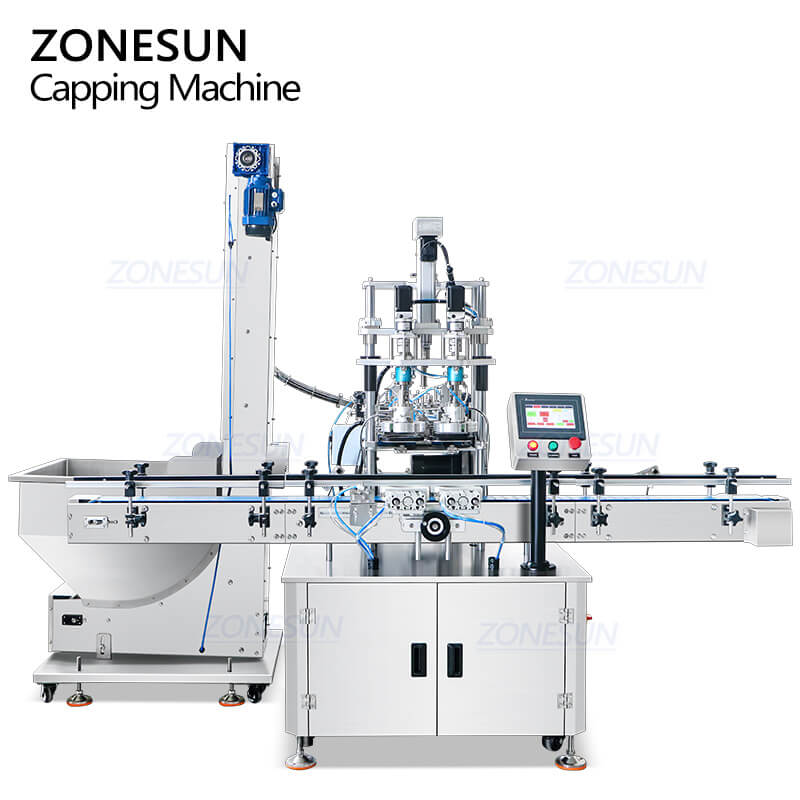

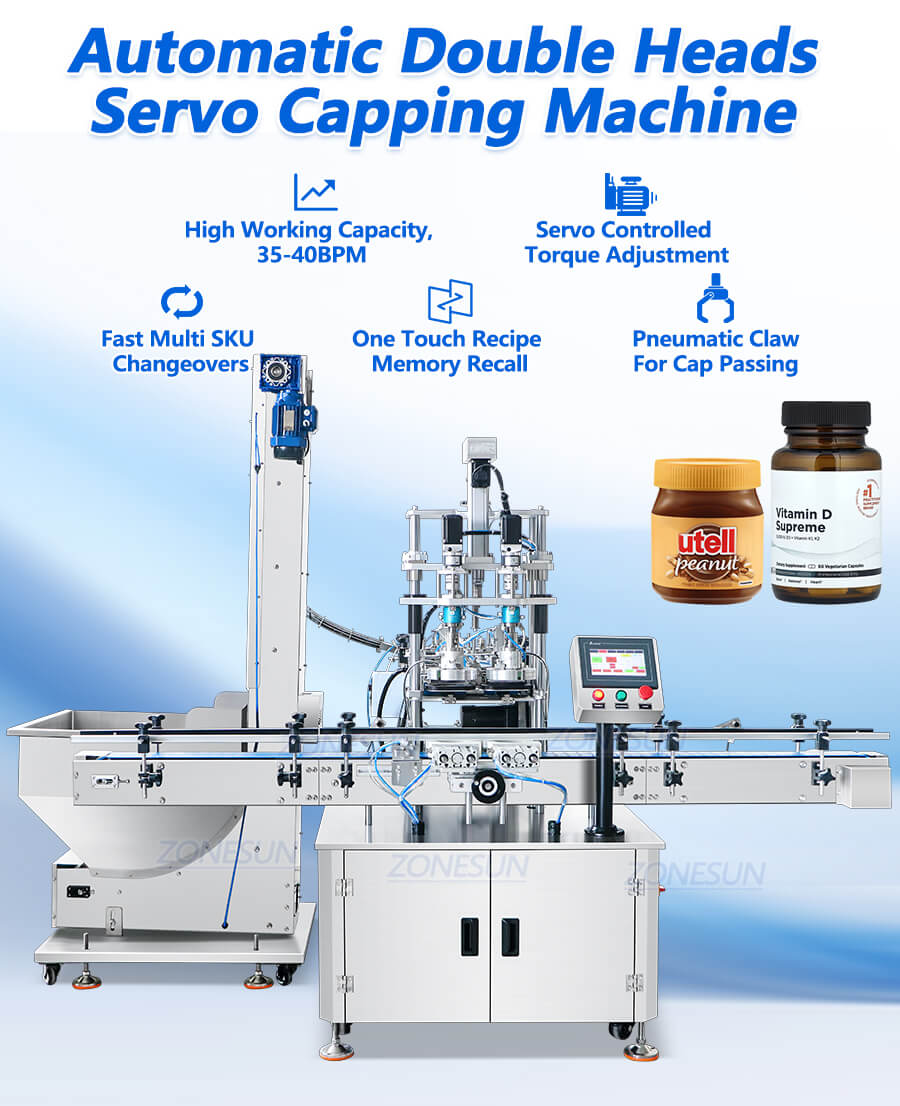

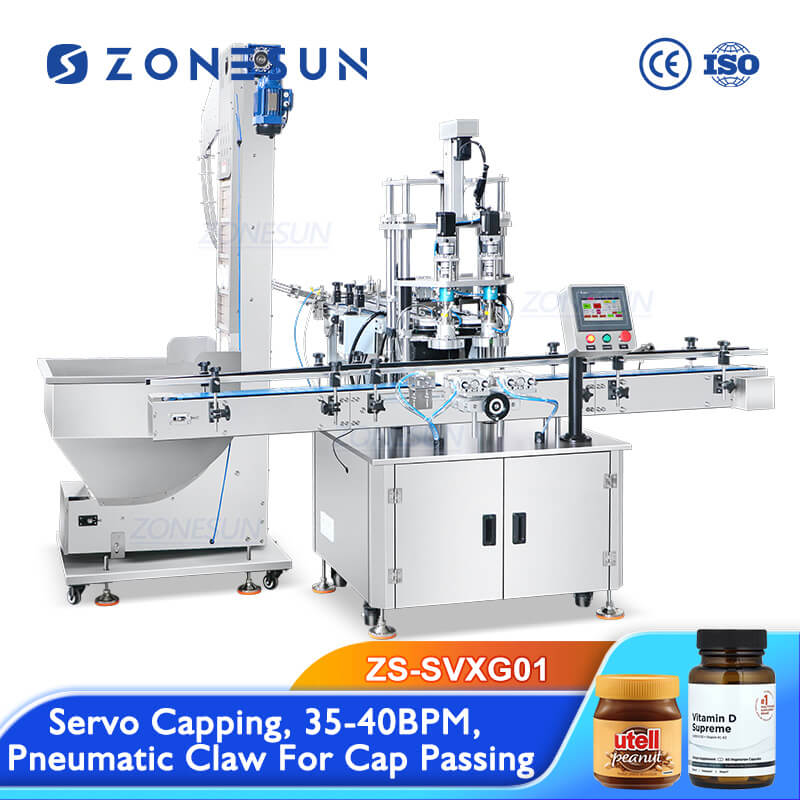

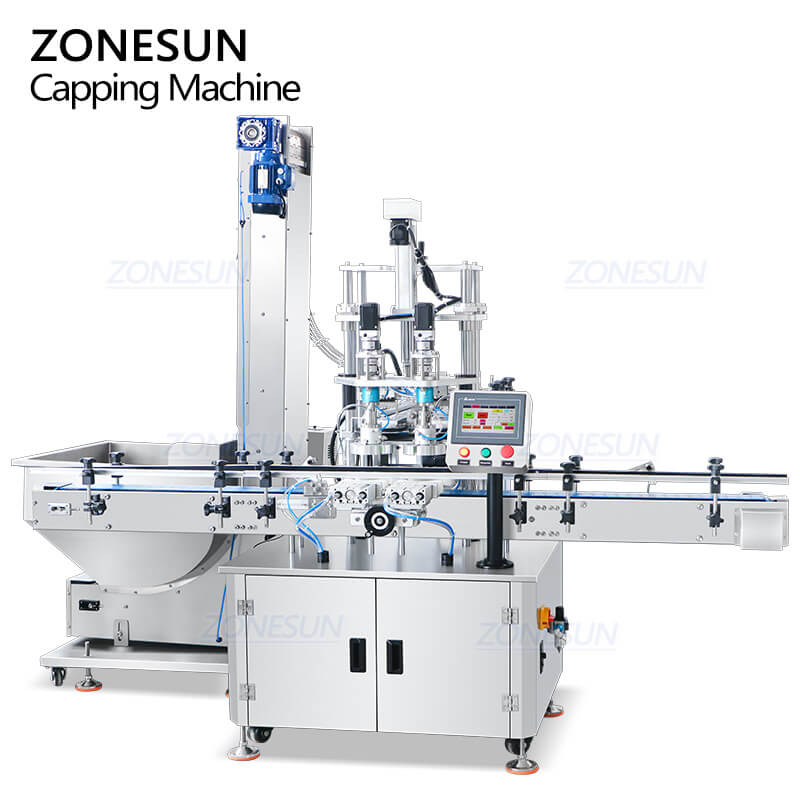

Automatic Double Head Servo Capping Machine
This automatic double head servo capping machine is suitable for packaging seasoning, food, daily chemical, and cosmetics products, it can realize automated cap feeding, bottle clamping, conveying, and capping. This capping machine suits various bottle shapes, height, and cap size.Capping torsion is adjustable while the pneumatic cap passing structure ensures stable and accurate capping.
$13,999.00
Share to
Product Description
This equipment is suitable for packaging seasoning, food, daily chemical, and cosmetics products, it can realize automated cap feeding, bottle clamping, conveying, and capping. This capping machine suits various bottle shapes, height, and cap size.Capping torsion is adjustable while the pneumatic cap passing structure ensures stable and accurate capping.
Product Applications
Product Parameters
| Machine model | ZS-SVXG01 |
| Machine voltage | 110/220V 50-60HZ 1.5KW |
| Suitable bottle size | φ=20-150mm H=20-220mm |
| Suitable cap size | customizable |
| Working capacity | 2100-2300BPH |
| Conveyor size | 2000*114mm(L*W)
Working Height=850mm |
| Machine casing material | SUS304 |
| Air consumption | 0.4-0.6MPa |

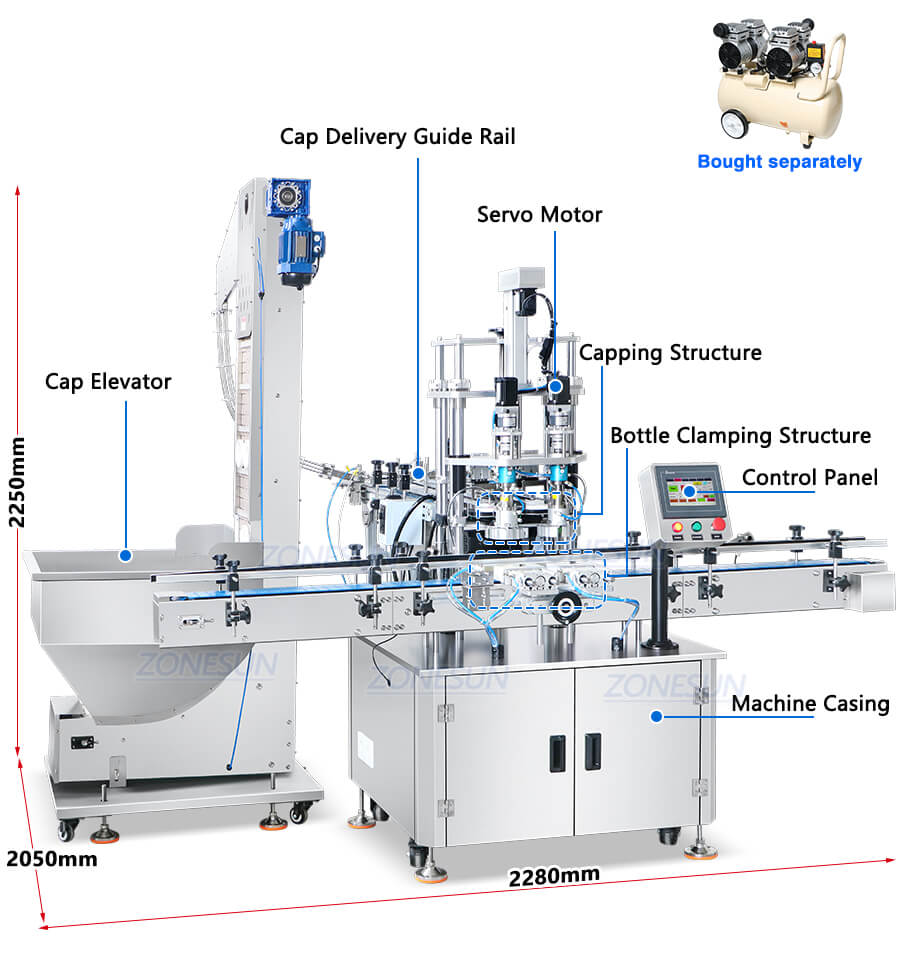

| Machine size | About 2280*2050*2250mm |
| Machine weight | About 260kg |
| Package size | About 2290*1340*1420(Cap Elevator
)+1150*1050*1200mm(Capping Machine) |
| Package weight | About 270(Cap Elevator)+314(Capping Machine) |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
| Machine Components | Country/Region | Brand |
| Servo Motor | Taiwan | Delta |
| Servo Drive | Taiwan | Delta |
| Human Machine Interface | Taiwan | Delta |
| Programmable Logic Controller (PLC) | Taiwan | Delta |
| Pneumatic Components | Taiwan | Airtac |
| Photoelectric Sensor | South Korea | Autonics |
| Relay | China | Chint |
| Conveyor Belt Motor | China | Tianli |
| Air Switch | China | Chint |
| Proximity Sensor | South Korea | Autonics |
Product Details

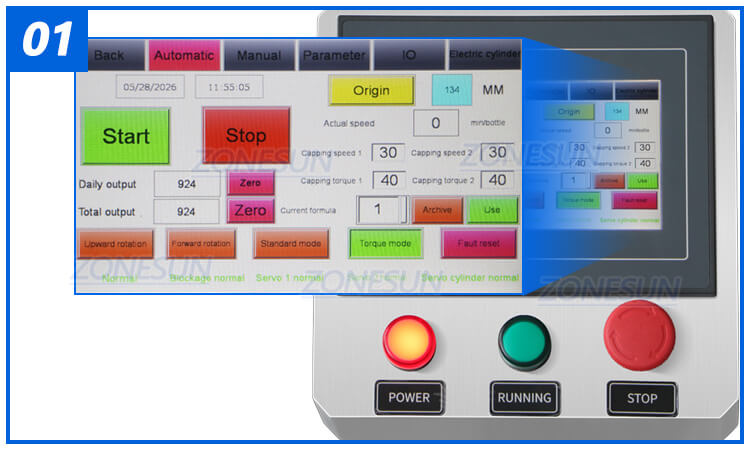

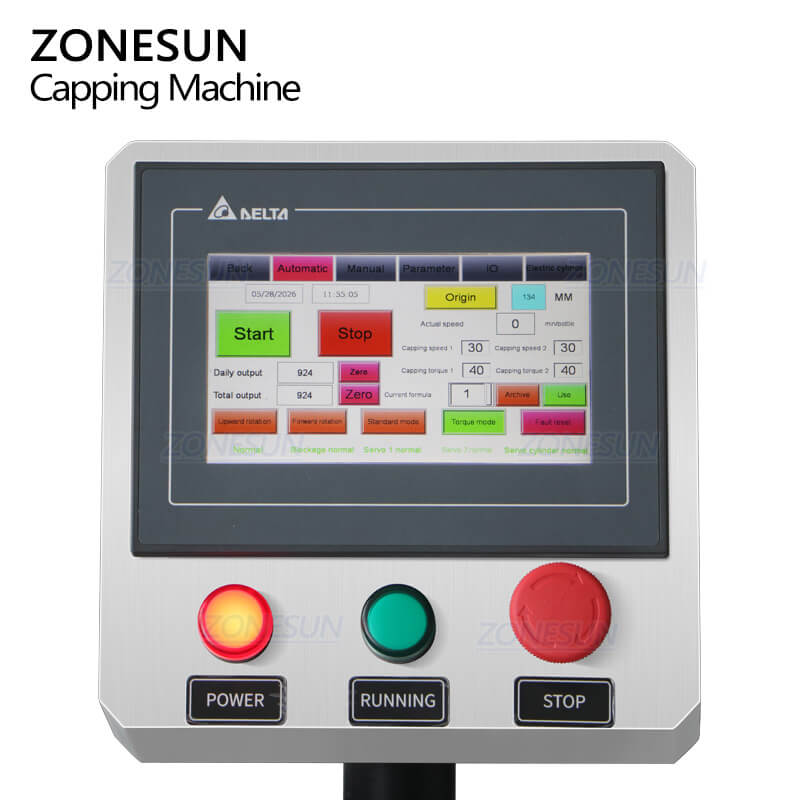

Touchscreen Control Panel
The HMI supports recipe storage and recall, allowing operators to switch between different bottle and cap specifications without repeated parameter adjustments.

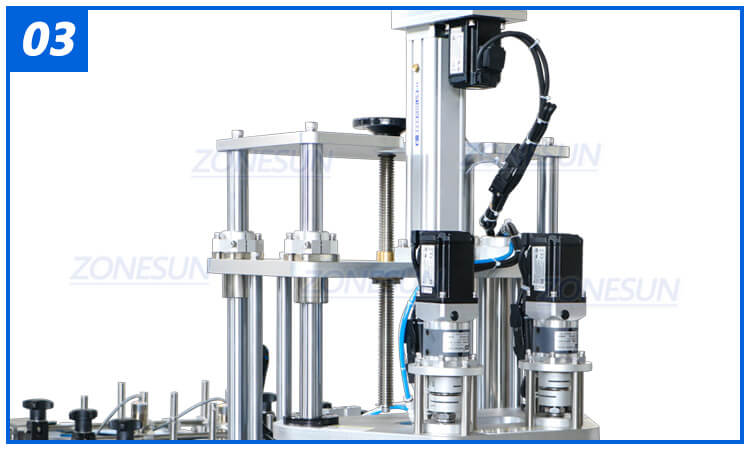

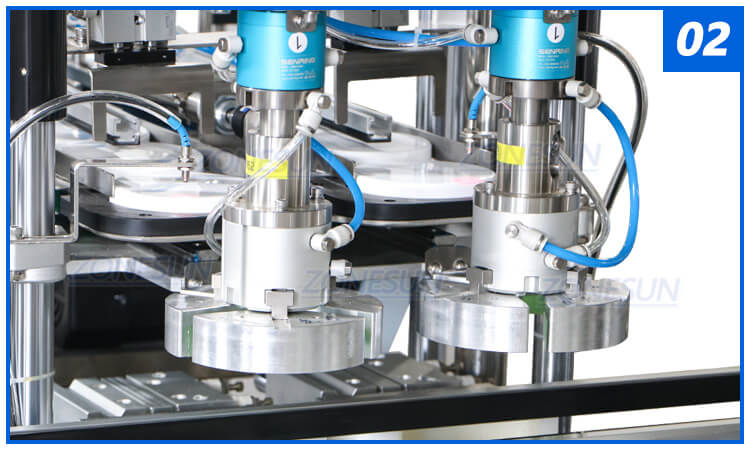

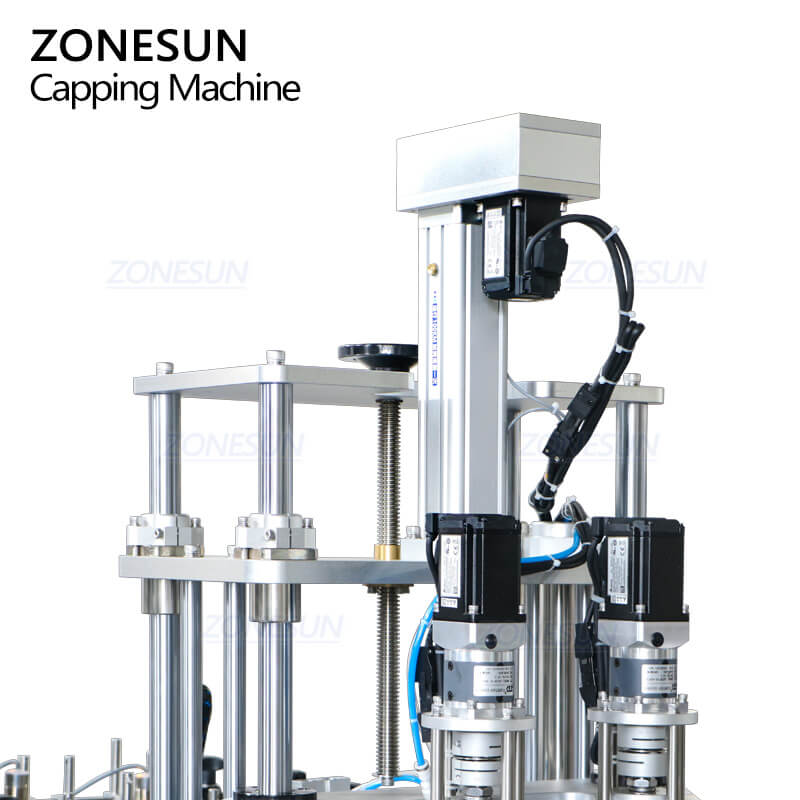

Dual Servo Capping Heads
Two servo-driven capping stations provide precise torque control and stable sealing performance at speeds of up to 2,100-2,300 bottles per hour.

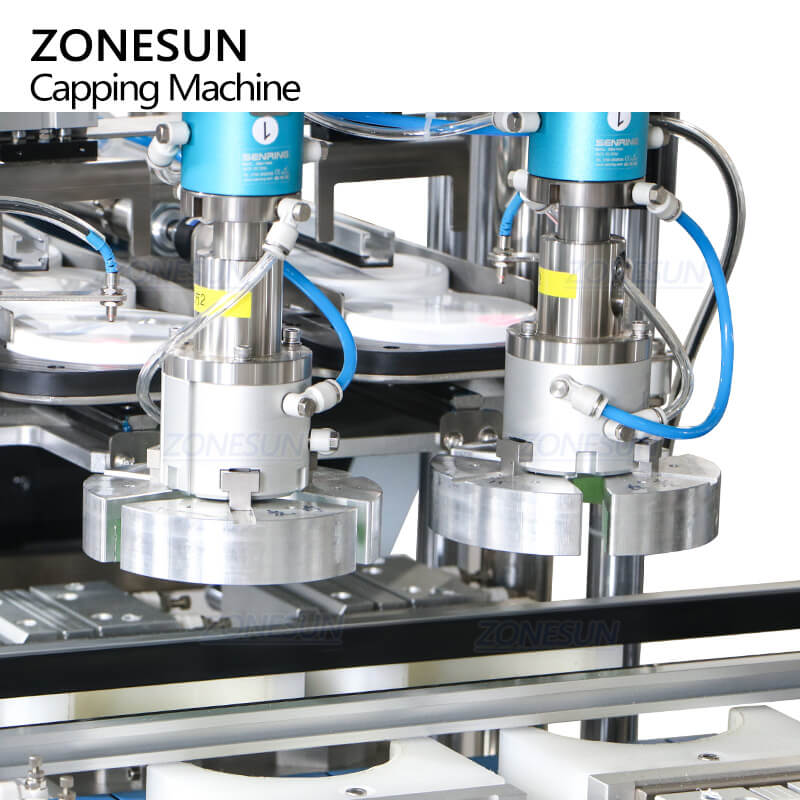

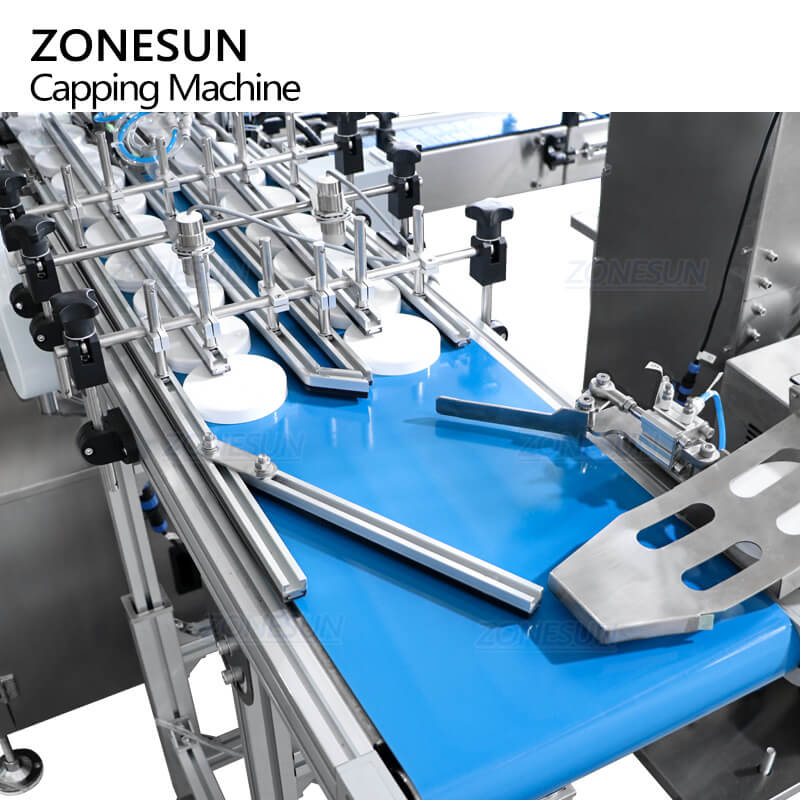

Pneumatic Cap Gripper System
The cap placement mechanism uses pneumatic grippers for smooth and reliable handling while reducing changeover time during multi-SKU production.

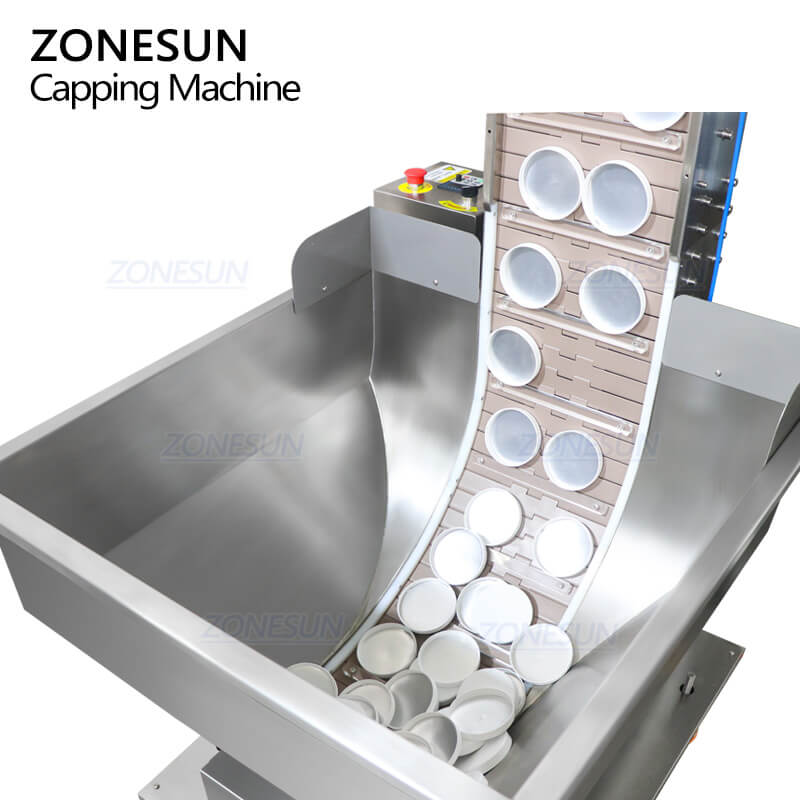

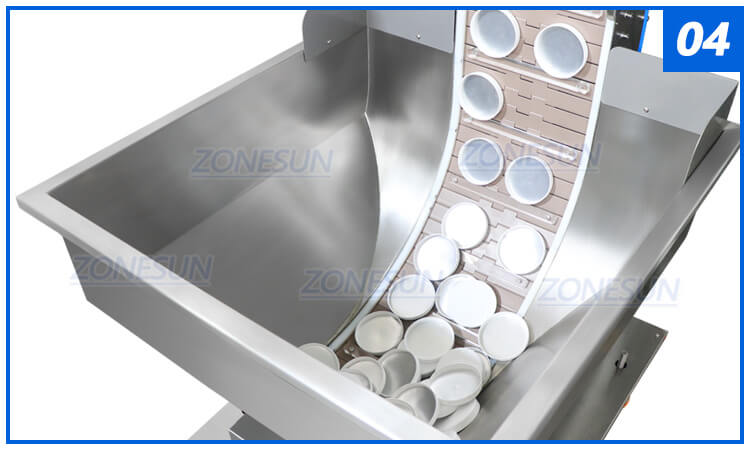

Automatic Cap Elevator
The cap elevator continuously supplies caps to the machine, ensuring stable operation and minimizing manual intervention during production.

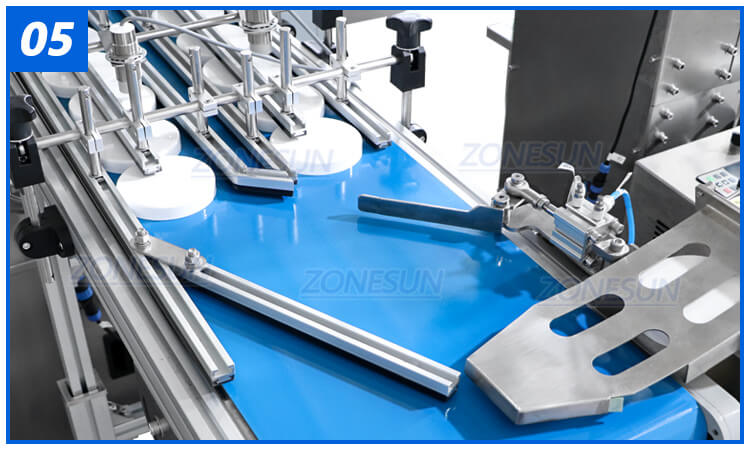

Adjustable Caps Handling Structure
Selected change parts can be replaced to accommodate different cap sizes, providing greater production flexibility.

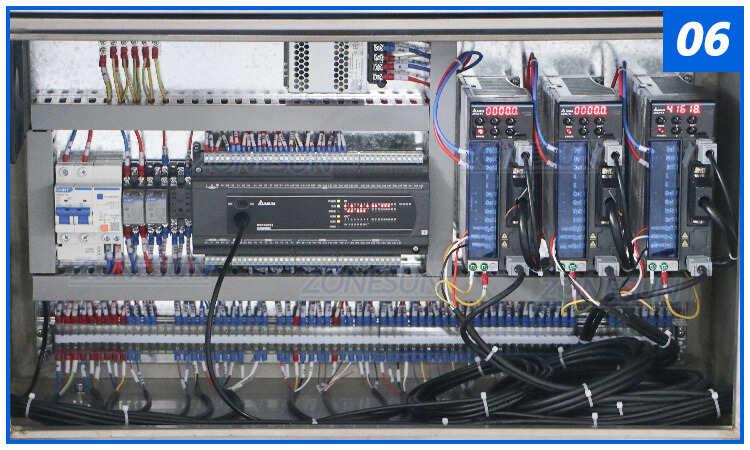

Electrical Control Cabinet
The machine adopts organized electrical layouts and supports future upgrades according to specific production requirements.

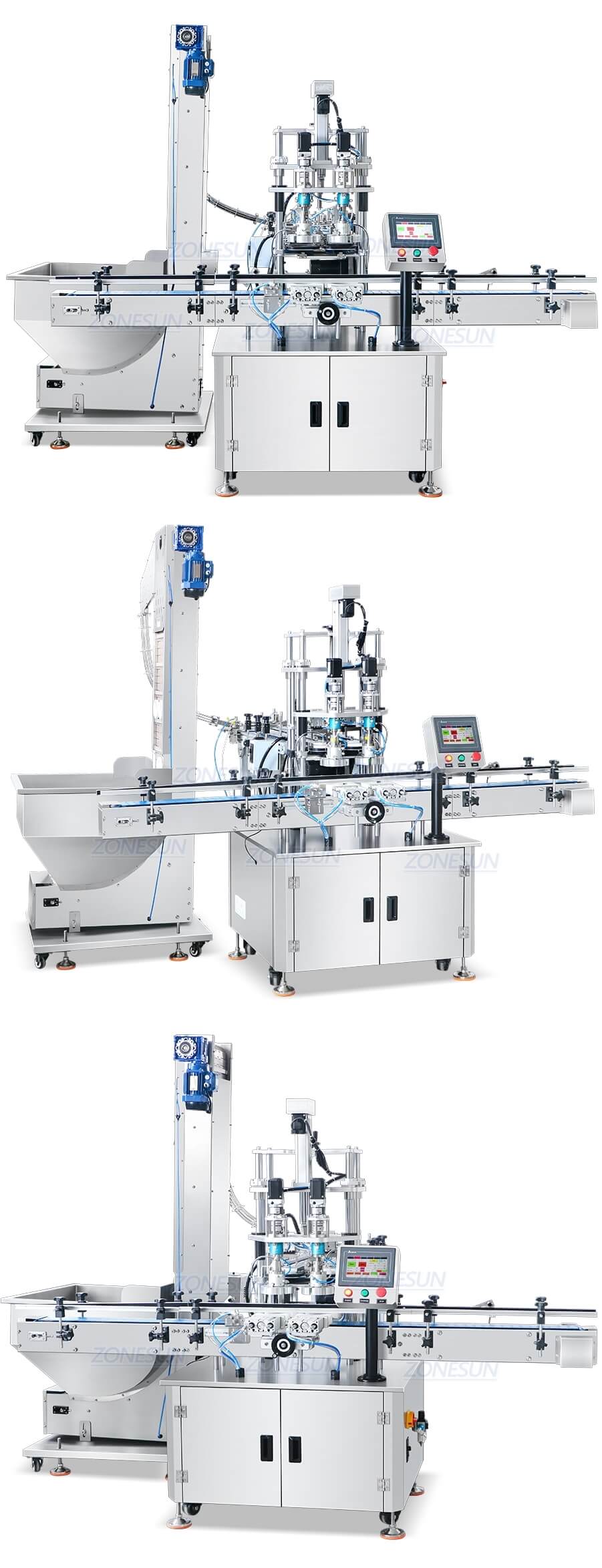

Product Real Shot
