6 Diving Nozzles Liquid Filling Machine

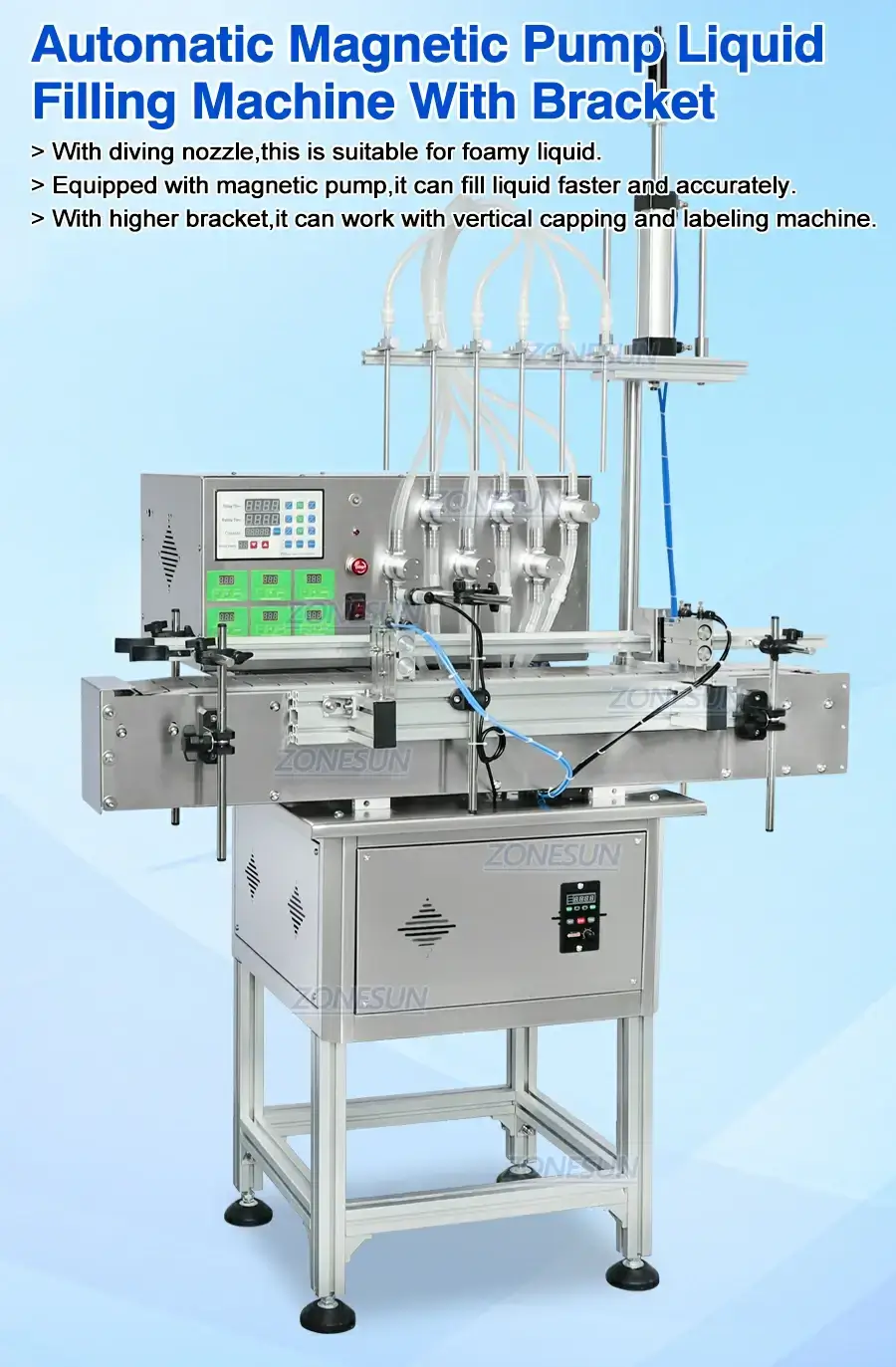

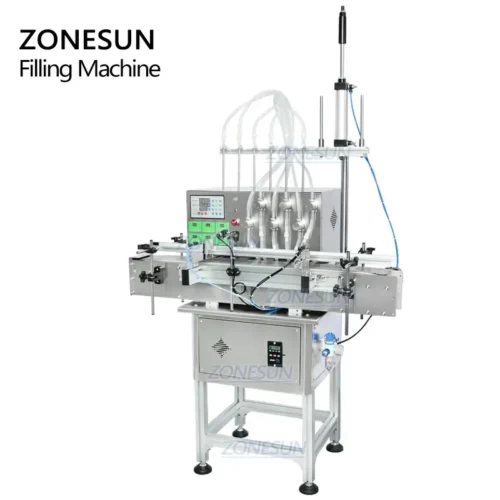

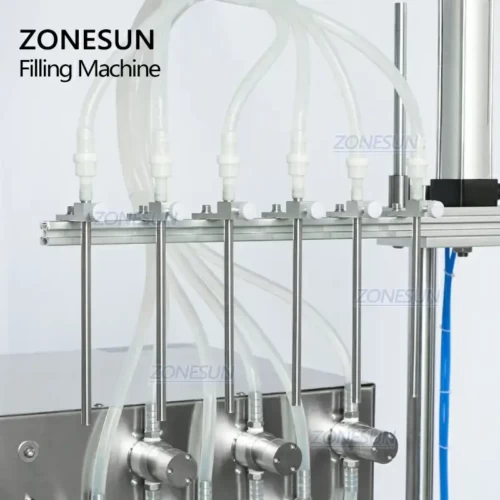

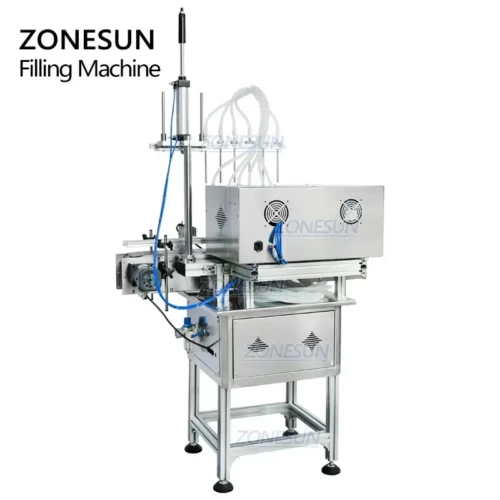

This machine is equipped with 316 stainless steel magnetic pump,the bracket makes it can work with vertical automatic capping and labeling machine.There are 6 filling nozzles and each one of them can be controlled separately.The larger flow rate ensures the working speed and help you improve working efficiency.The magnetic pump filling machine has the advantage of high filling accuracy,this machine is widely used in beverage,drinks,cosmetics and daily chemical industries.

Product Detail

Product Tags

Description:

This machine is equipped with 316 stainless steel magnetic pump,the bracket makes it can work with vertical automatic capping and labeling machine.There are 6 filling nozzles and each one of them can be controlled separately.The larger flow rate ensures the working speed and help you improve working efficiency.The magnetic pump filling machine has the advantage of high filling accuracy,this machine is widely used in beverage,drinks,cosmetics and daily chemical industries.
Parameter:
Machine Model ZS-DTMP4M
Power Supply 110/220V 50-60HZ 300W
Maximum flow velocity 7500ml/min (Each nozzle and base on 250ml water)
Air pressure 0.3-0.4MPa
Working speed 40-50 bottles/min (base on 250ml water)
Filling volume 3-1000ml
Size of air compressor connector OD8mm
Count range 1-99999 Times
Delay range 0.01-999.9s
Filling Accuracy ≤±1% (For water)
Diameter of filling nozzle 6/8mm
Package size About 860*720*1330mm
Package weight About 118kg
