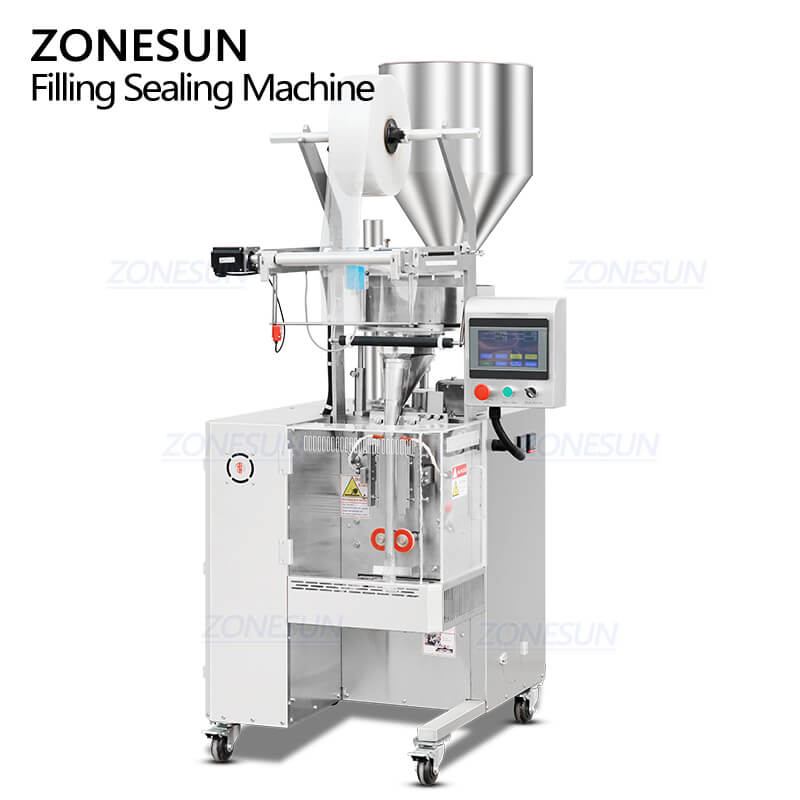

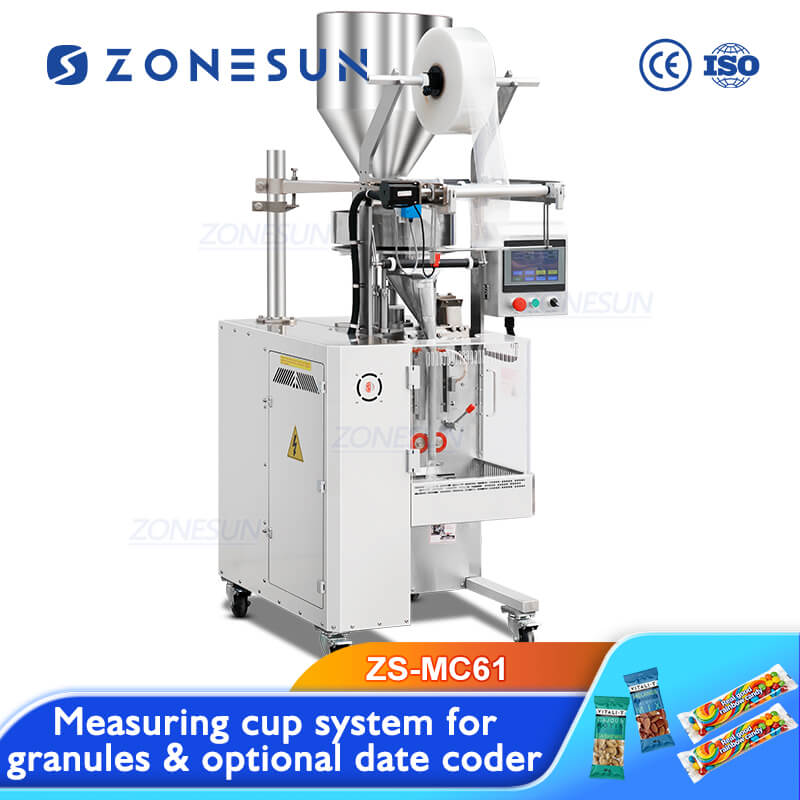

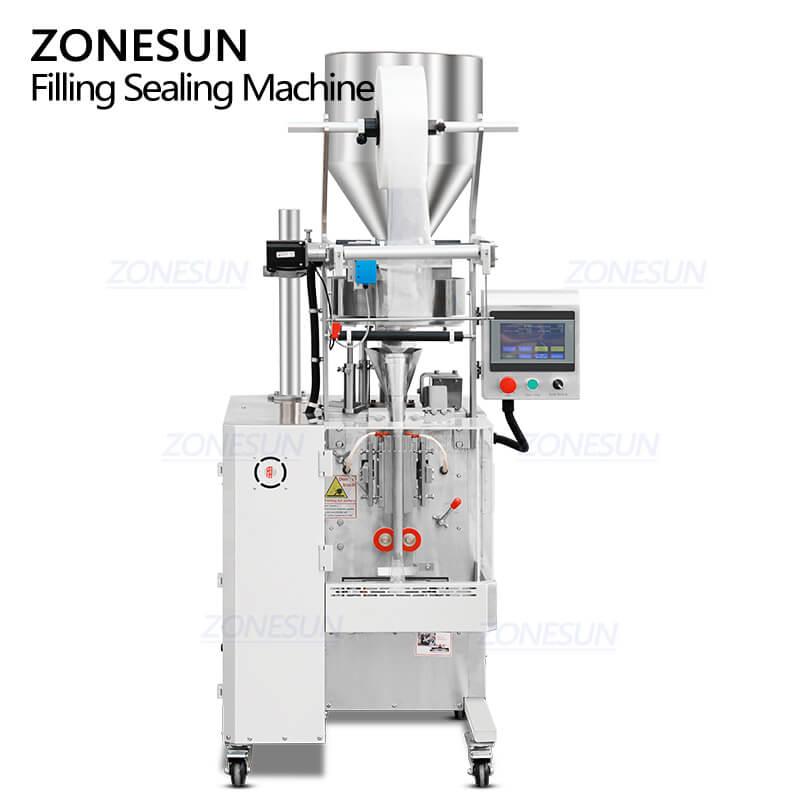

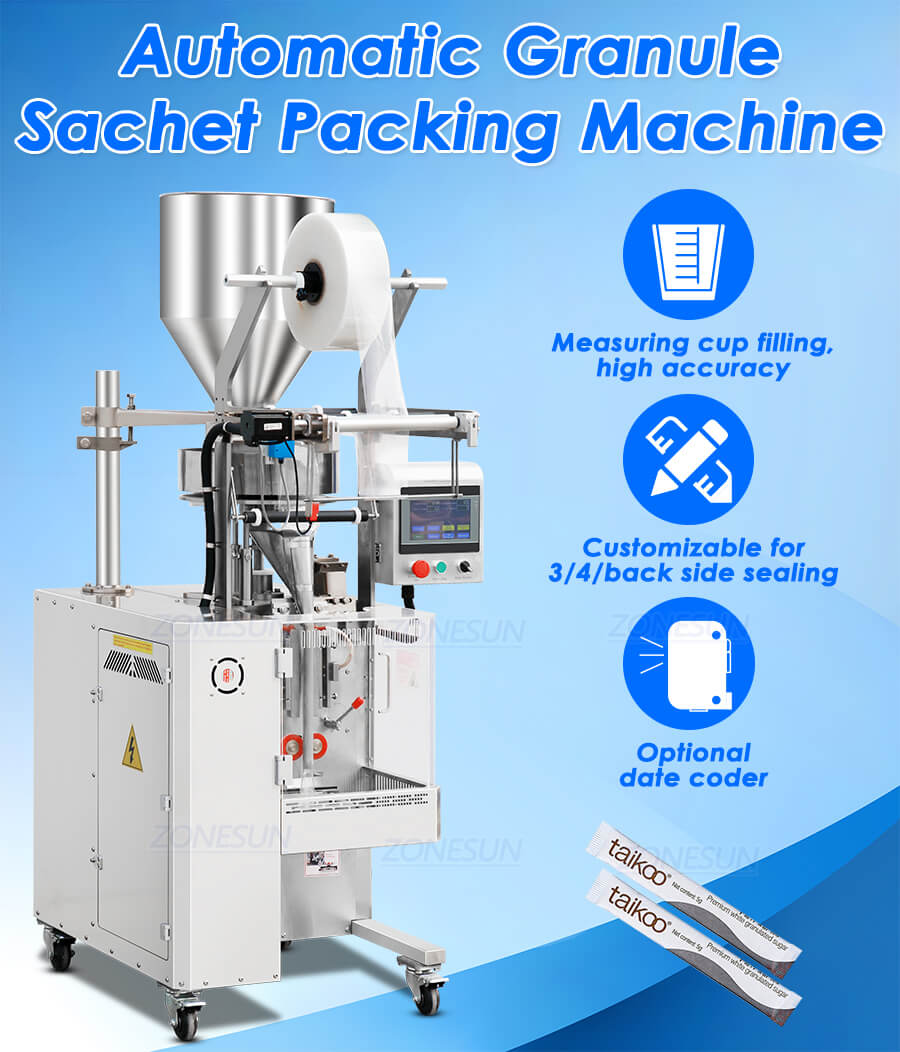

ZONESUN ZS-MC61 Granule Sachet Vertical Form Filling Sealing Machine
Designed for packing small sachet granule products, different kinds of sealing type (back sides sealing, three sides sealing and four sides sealing) can be customized as needed.The working capacity can reach 30-70 bags/min.
Price range: $3,399.00 through $3,699.00
Share to
Product Description:
Designed for packing small sachet granule products, different kinds of sealing type (back sides sealing, three sides sealing and four sides sealing) can be customized as needed.The working capacity can reach 30-70 bags/min.
Product Parameters:
| Machine Model | ZS-MC61 |
| Power Supply | 110/220V 50-60Hz 1.4kW |
| Packaging Speed | About 30-70bags/min(depending on bag size) |
| Measuring Method | Measuring Cups |
| Measuring Range | 1-100g(Customizable) |
| Bag Size | 30-170mm(L)*30-130mm(W) |
| Sealing Method | 3 sides/4 sides/back side sealing |
| Packaging Materials | BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, etc. |

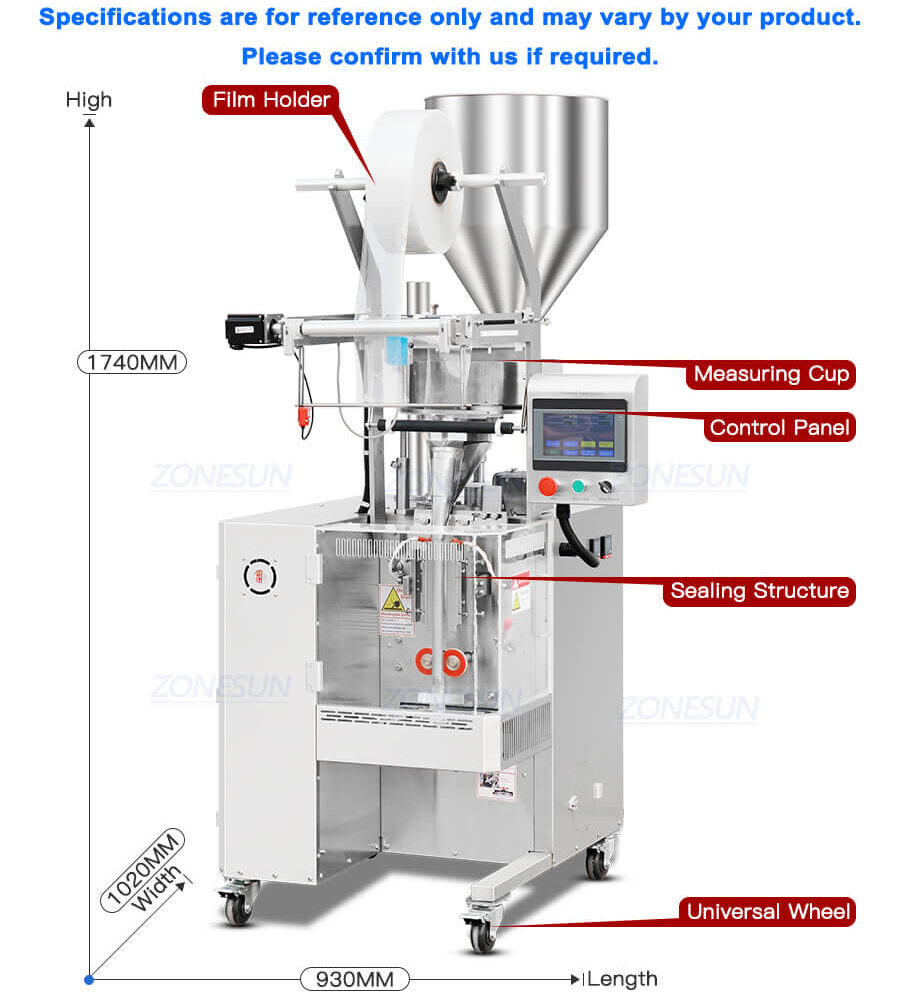

| Machine Size | About 930*1020*1740mm(L*W*H) |
| Package Size | About 1160*970*1930mm |
| Package Weight | About 290kg |
Product Details:

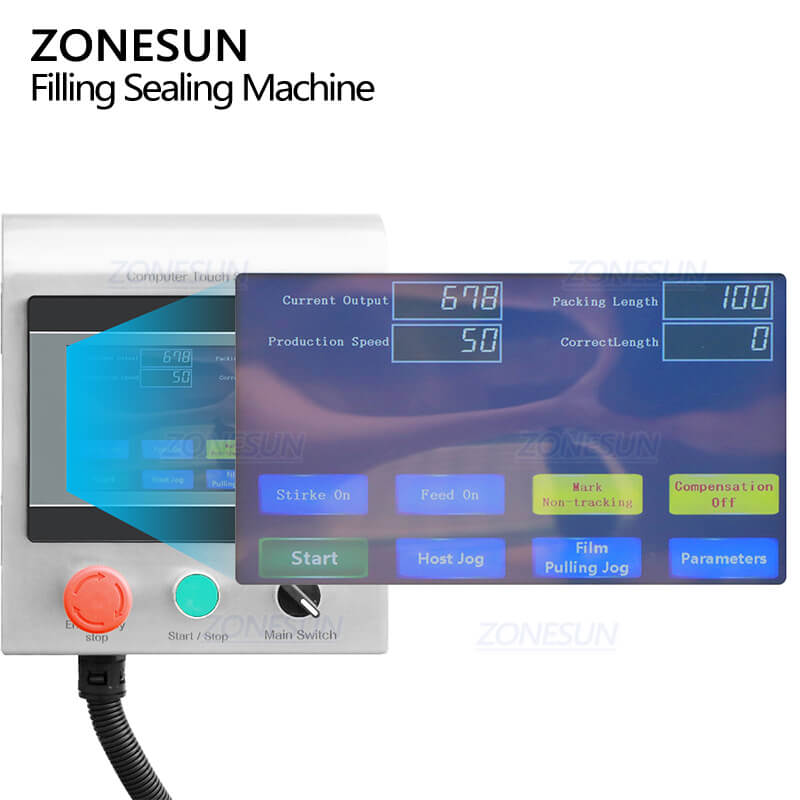

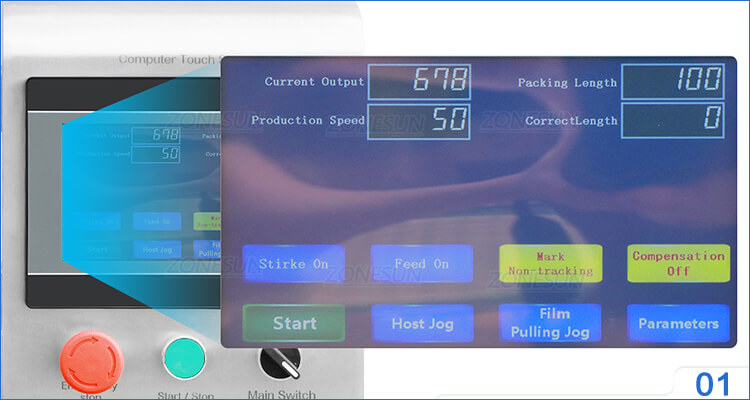

Control Panel
Touch screen control panel simplifies machine operation. Different languages are customizable.

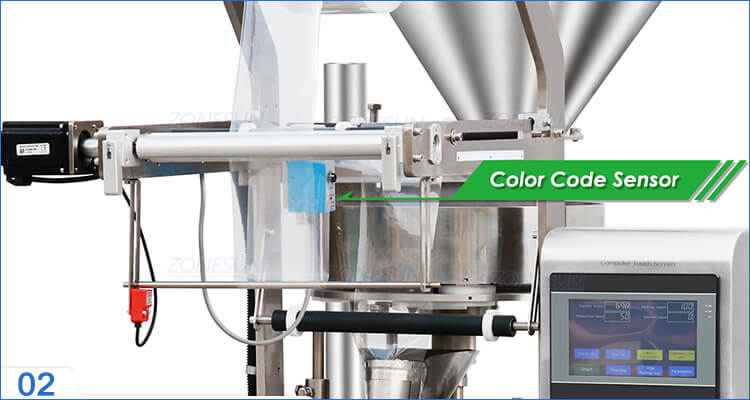

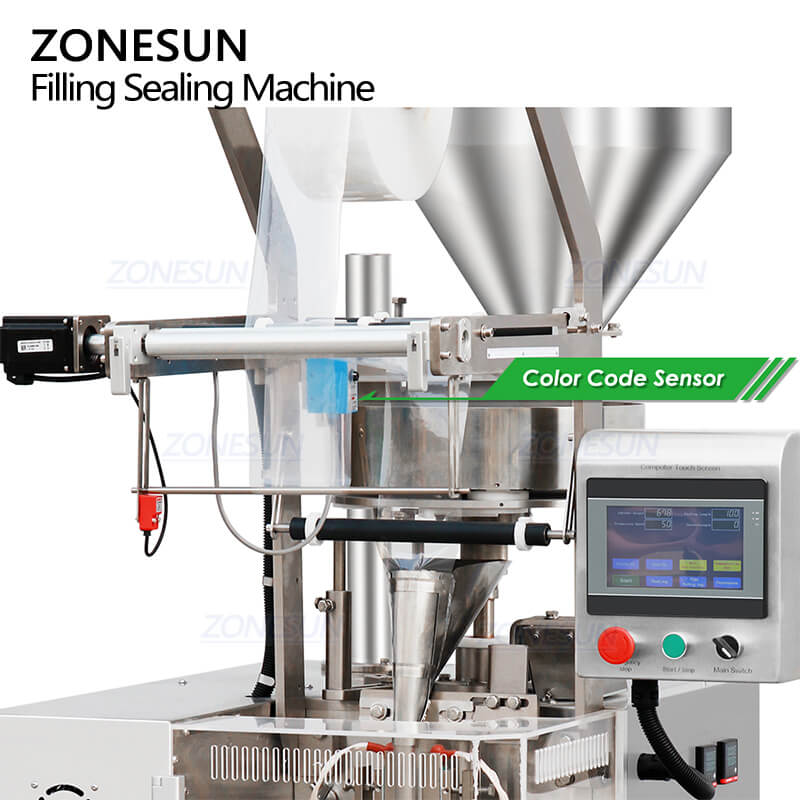

Film Feeding Mechanism
The sensor can detect the color codes and control the machine to feed films accurately.

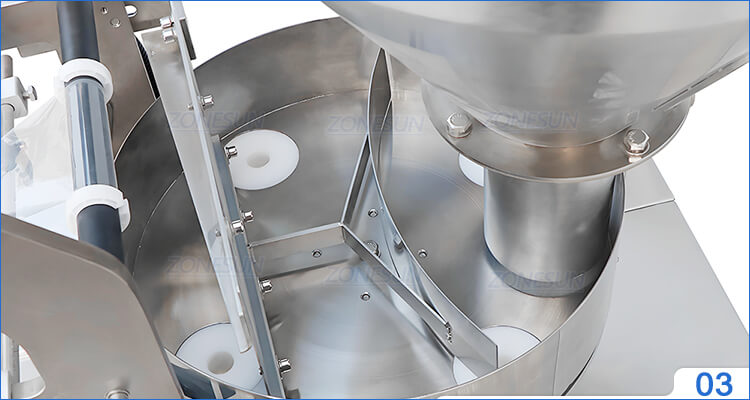

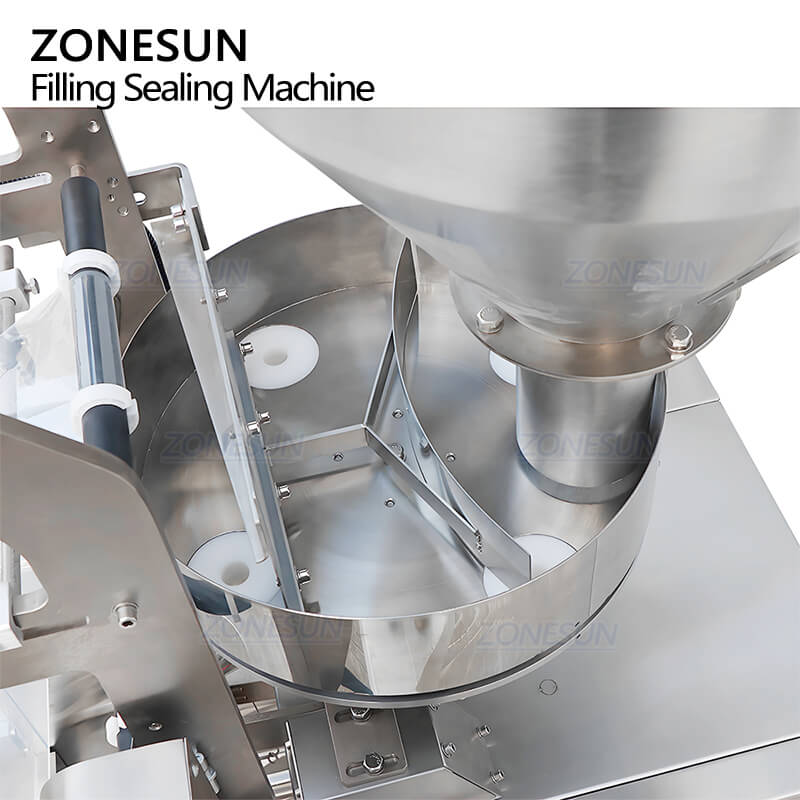

Measuring Cup
Allow for quantitative filling of granule products. Measuring cup size can be customized as production need.

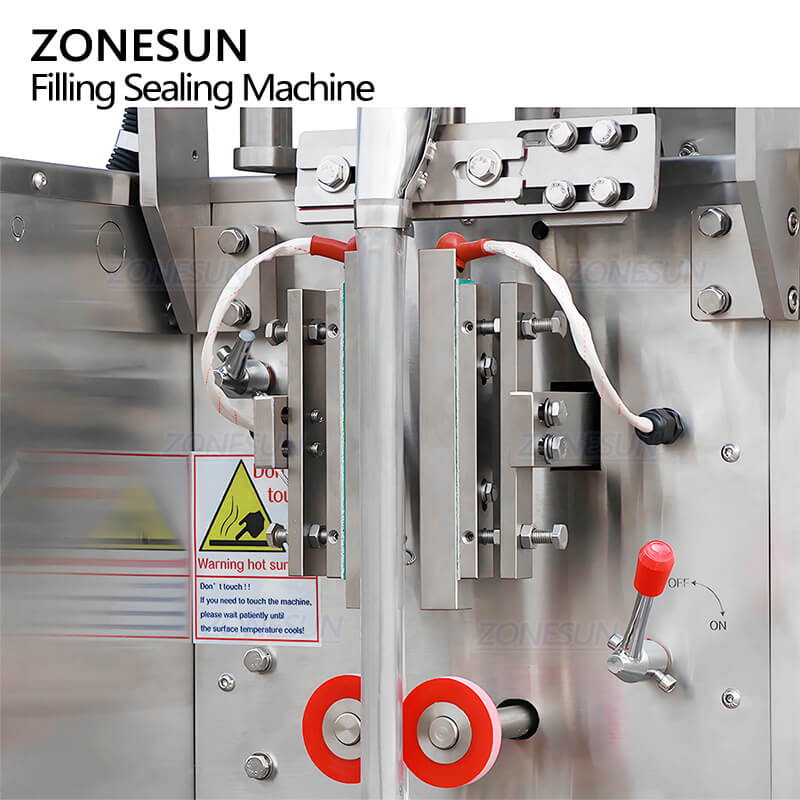

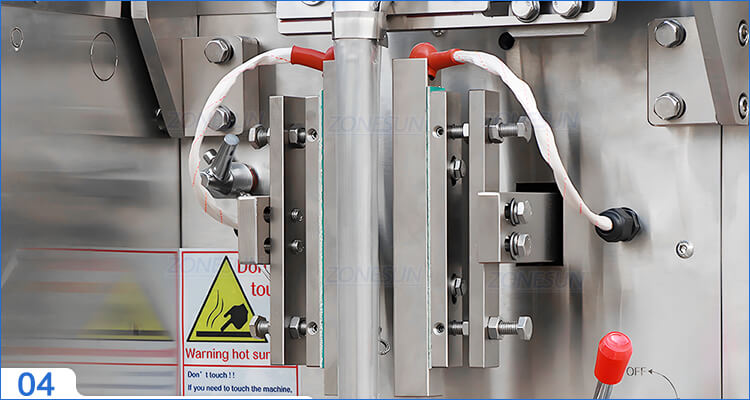

Sealing Structure
Sealing temperature is adjustable according to different film materials.

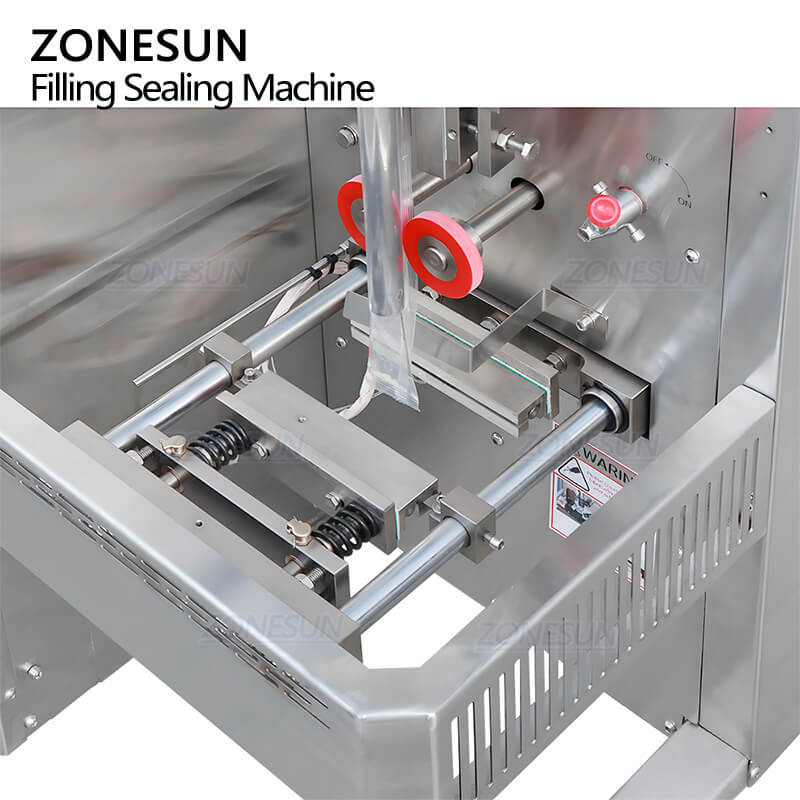

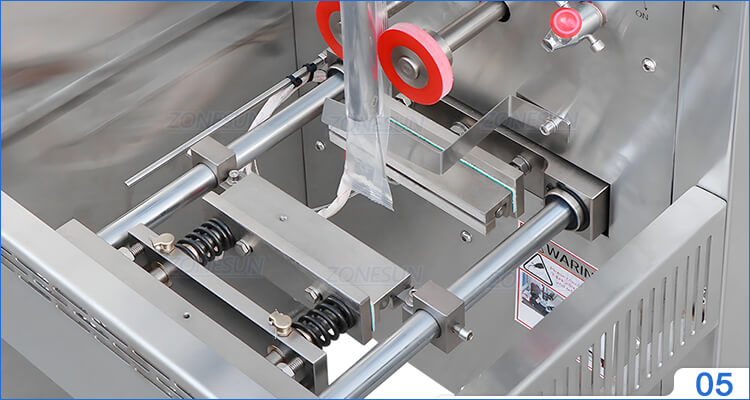

Sealing&Cutting Structure
It is customizable for different shapes of sachets. Cutting length is adjustable.
