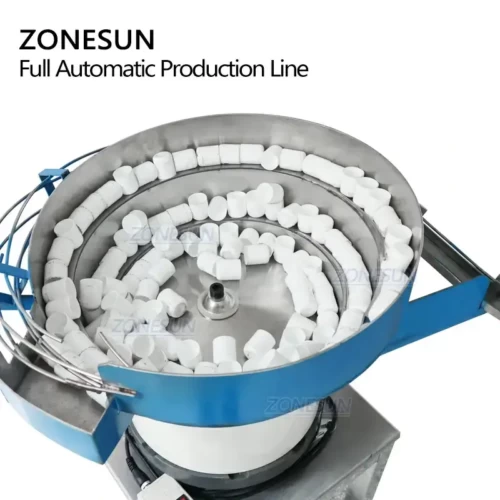

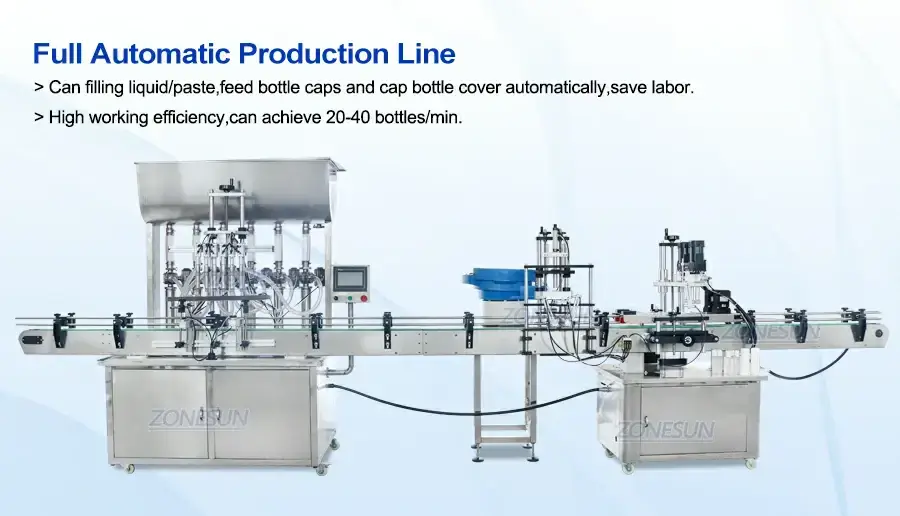

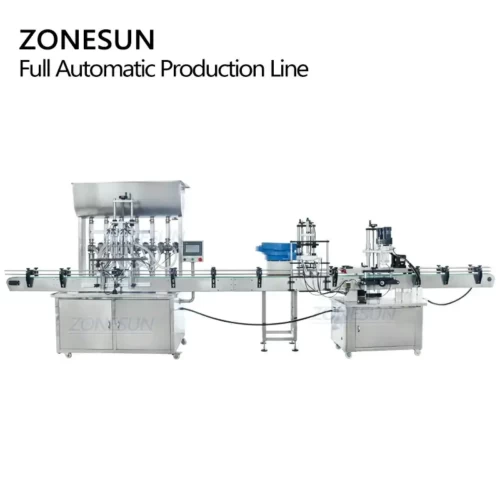

Automatic 6-head Filling And Capping Machine With Cap Vibratory Feeder
Description:

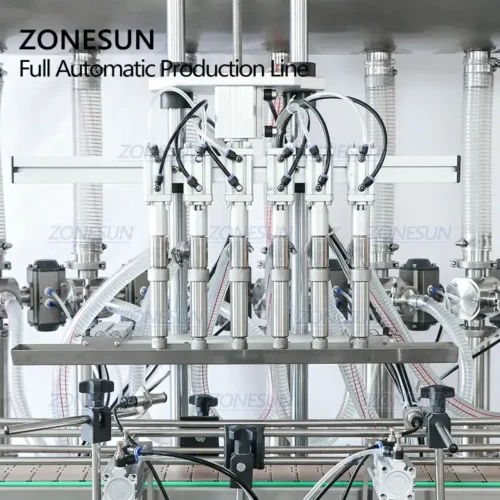

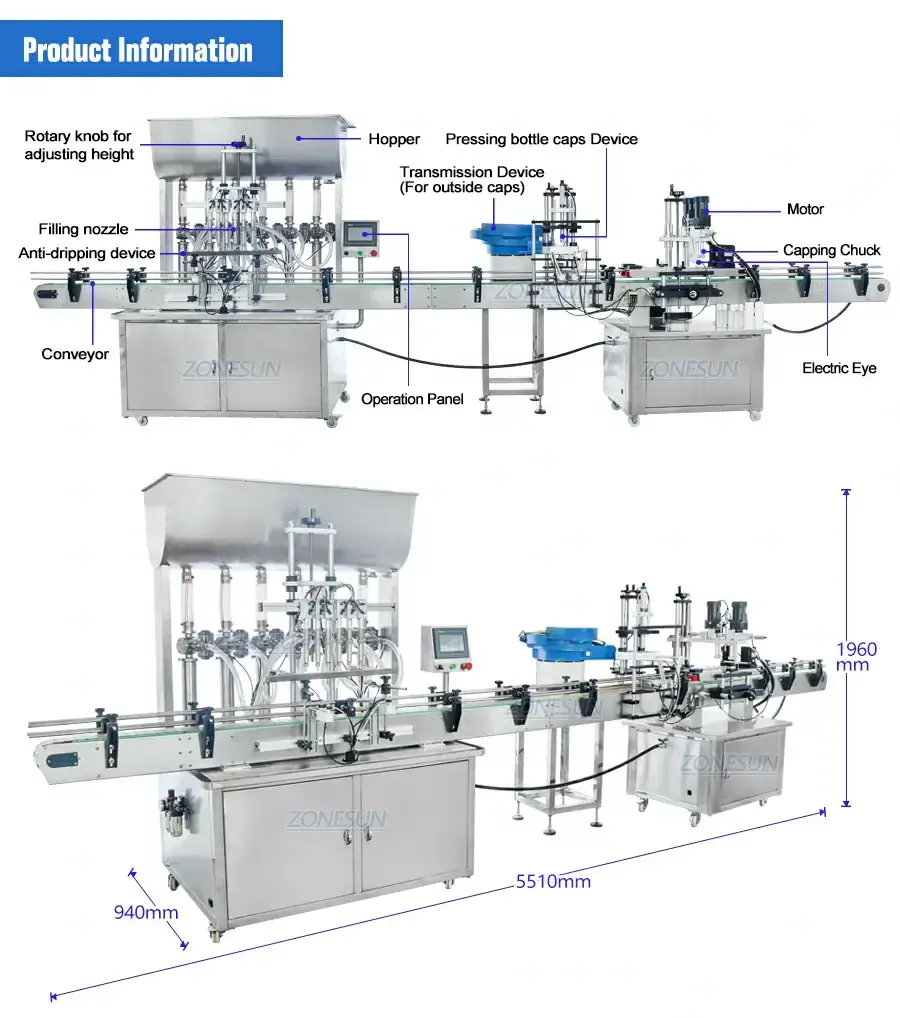

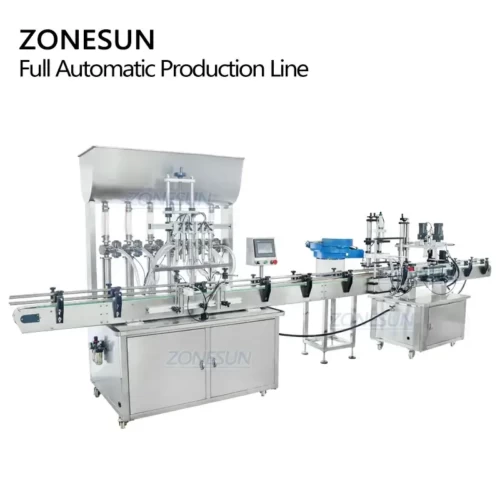

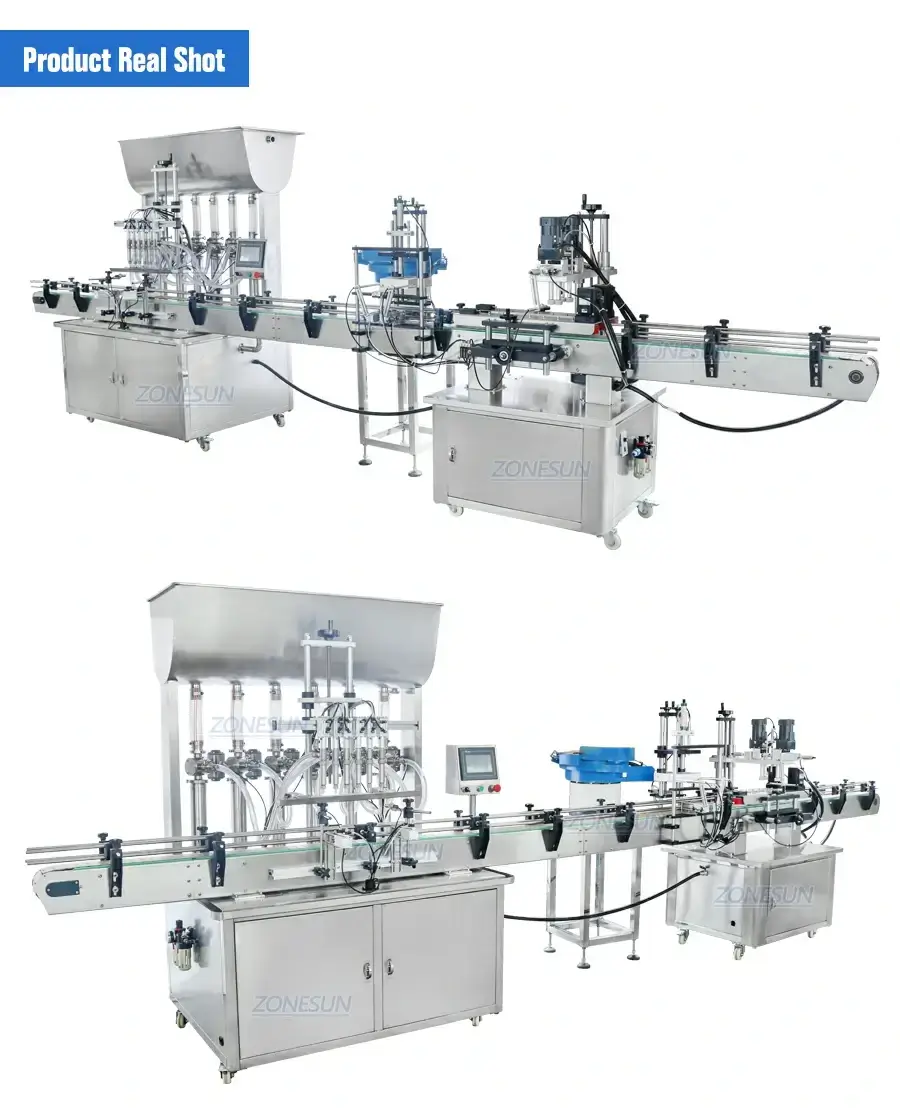

This automatic production is designed for filling paste or thicker liquid,like honey, hand sanitizer, laundry detergent,machine oil.It can automatically fill paste,feed bottle caps and cap bottles.Equipped with a labeling machine,it can be a complete production line for production process.Each machine of this production line can work separately.

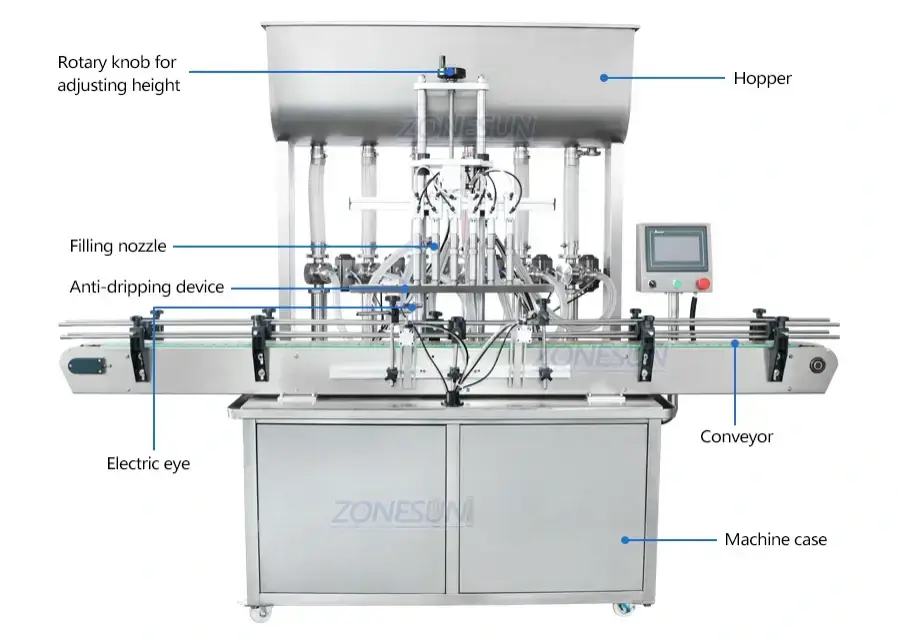

Model | ZS-YT2T-2P | ZS-YT4T-4P | ZS-YT6T-6P | ZS-YT8T-8P |
Voltage | 110/220V 50-60HZ 800W | |||
Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml | |||
Working Speed (base on water) | 10-40bottles/min | 20-50bottles/min | 30-70bottles/min | 40-80bottles/min |
Filling Accuracy | ≤+1% | |||
Conveyor Size | About 1990*100mm(L*W) | |||
Size of filling nozzle | φ10mm | |||
Size of air compressor connector | φ10mm | |||
Package weight | 220kg | 260kg | 300kg | 600kg |
Package size | 200*120*230cm | 200*120*230cm | 250*130*230cm | 280*130*250cm |

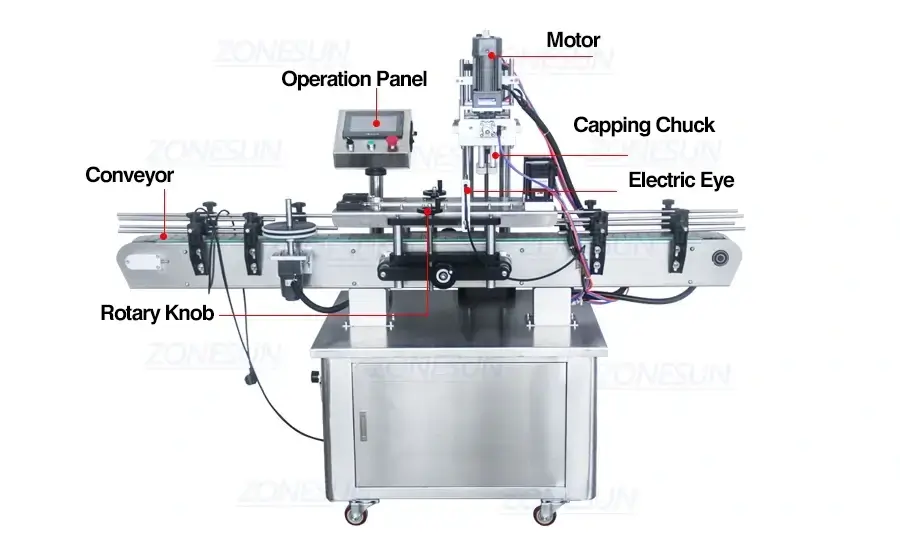

Machine Model | ZS-XG440 |
Working voltage | AC220V/110V 50-60HZ |
Bottle height | 50-350mm |
Bottle caps diameter | 20-50mm |
Working speed | 0-40 bottles/minute (depending on bottle and caps |
Working pressure | 0.4-0.6 MPa |
Conveyor size | 100mm(W)*1950mm(L) |
Package size | 2000*820*1800mm |
Package weight | 380kg |
