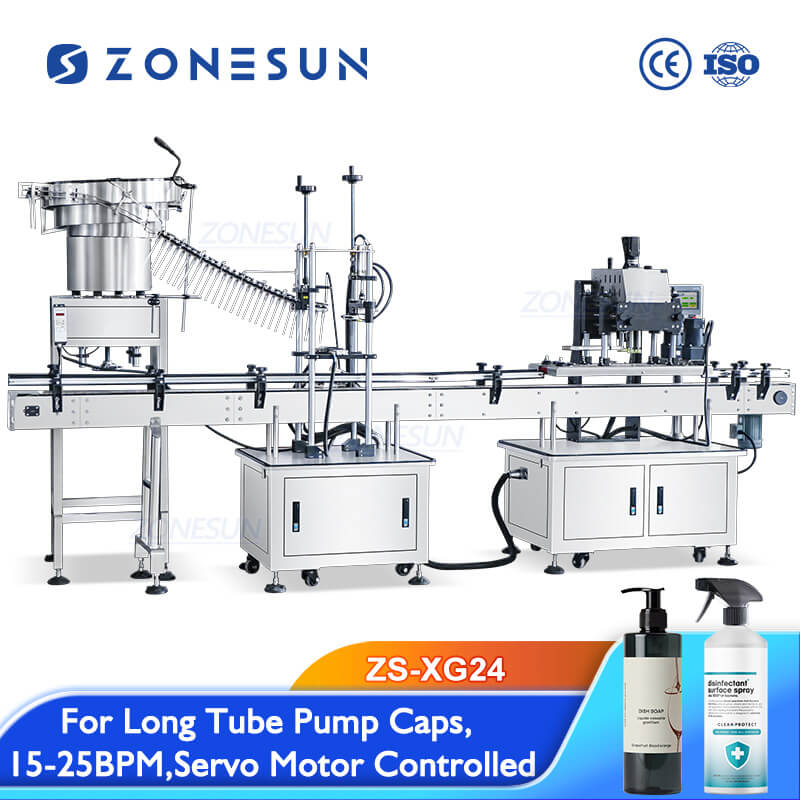

ZONESUN ZS-XG24 Trigger Pump Spray Bottle Capping Machine

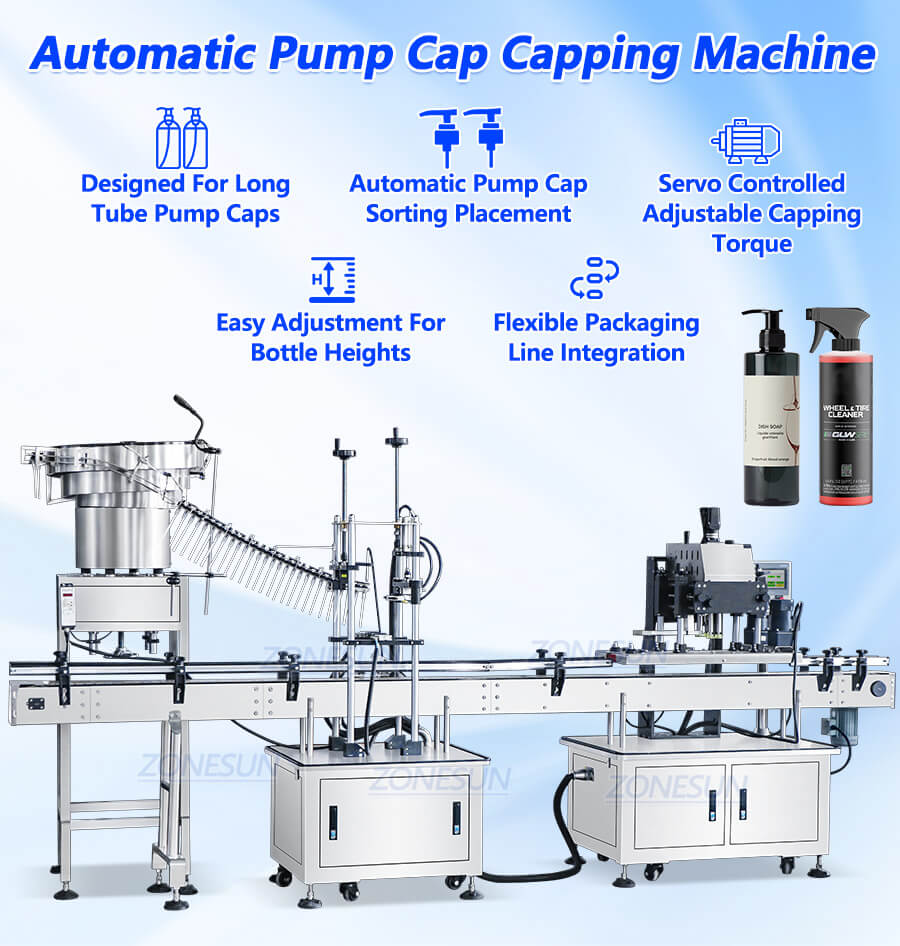

The trigger pump spray bottle capping machine is built for long tube pump caps, the kind used on lotion and serum bottles. It sorts and places each cap automatically, then tightens with servo-controlled, adjustable torque for a consistent, secure seal on every bottle. Switching bottle heights is quick, and the machine integrates flexibly into existing filling and packaging lines. A dependable capping upgrade for cosmetic and personal care plants that want steady output and fewer rejects.
Original price was: $12,499.00.$12,099.00Current price is: $12,099.00.
Share to
Product Description
The trigger pump spray bottle capping machine is built for long tube pump caps, the kind used on lotion and serum bottles. It sorts and places each cap automatically, then tightens with servo-controlled, adjustable torque for a consistent, secure seal on every bottle. Switching bottle heights is quick, and the machine integrates flexibly into existing filling and packaging lines. A dependable capping upgrade for cosmetic and personal care plants that want steady output and fewer rejects.
Product Applications
Product Parameter
| Machine Model | ZS-XG24 |
| Power Supply Voltage | AC 110/220V 50-60HZ (Customizable) |
| Power | 2KW |
| Suitable Bottle Diameter | 35-80mm |
| Working Pressure | 0.5-0.7 MPa |
| Working Speed | 15-25 BPM |

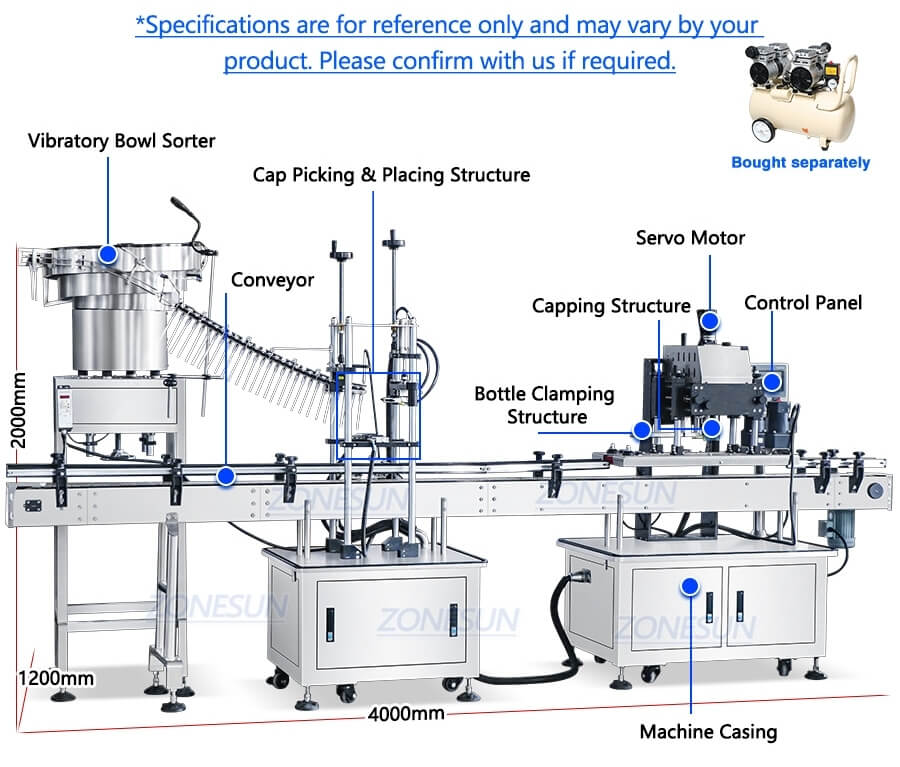

| Machine Size | About 4000*1200*2000mm |
| Package Size | About 2070*870*780mm(Vibratory bowl) + 2070*890*1560mm(Capping machine) + 1090*840*2170mm(Cap placing machine) |
| Package Weight | About 190kg(Vibratory bowl)+264kg(Capping machine)+174kg(Cap placing machine) |
Product Details

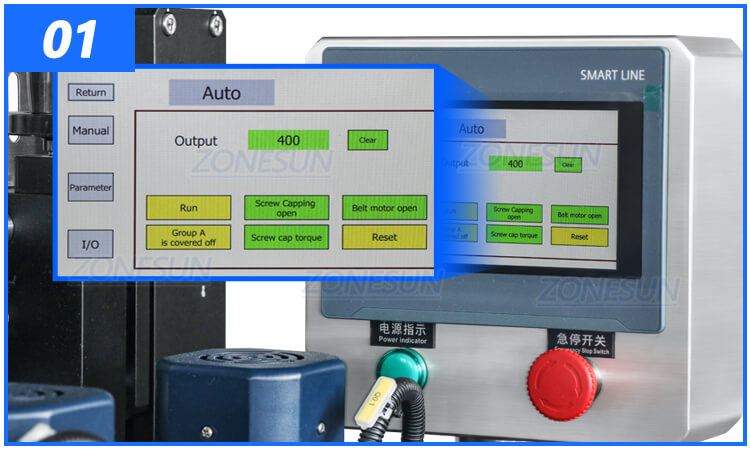

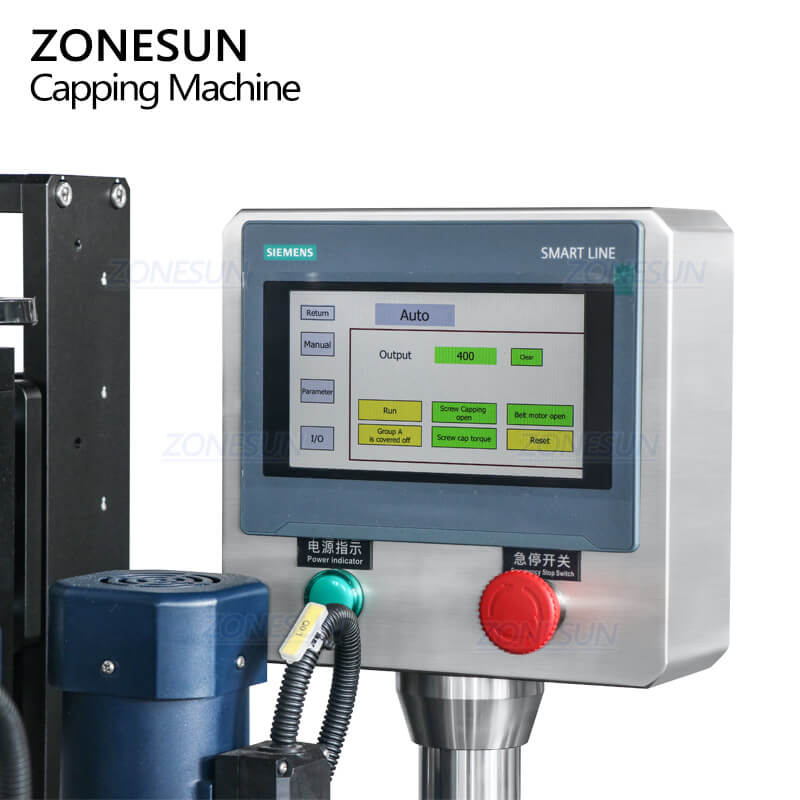

Touchscreen Control Panel
Operators can set capping parameters and check machine status directly from the touchscreen, making adjustment easier during production.

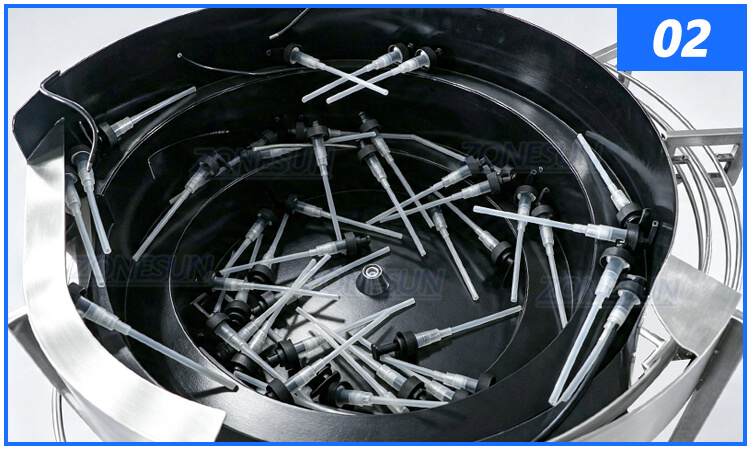

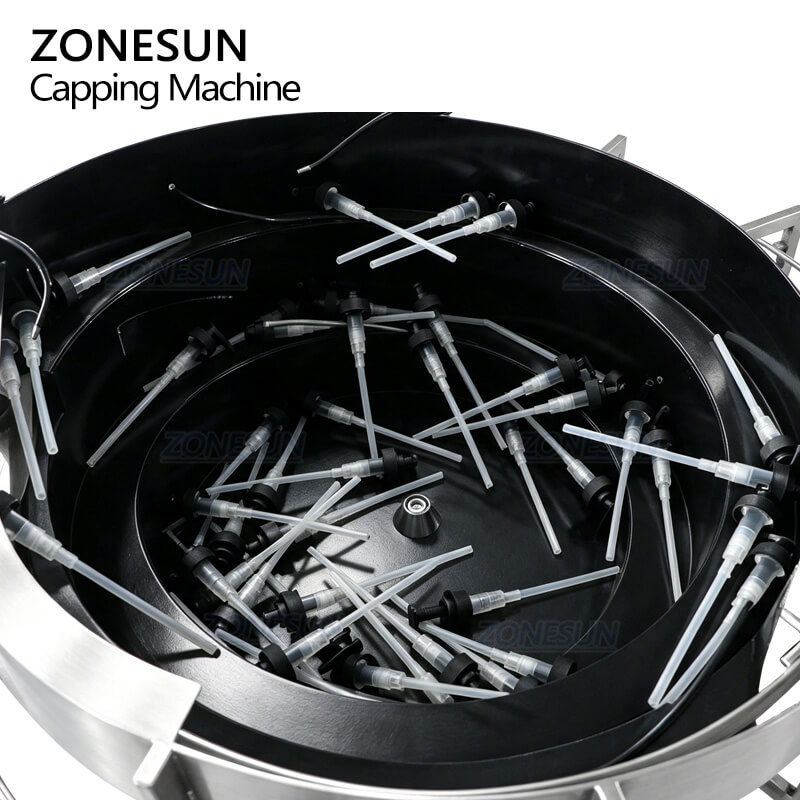

Customized Vibratory Bowl
The vibratory bowl is designed according to the actual pump cap size and dip tube length, helping sort and feed long-tube pump caps smoothly.

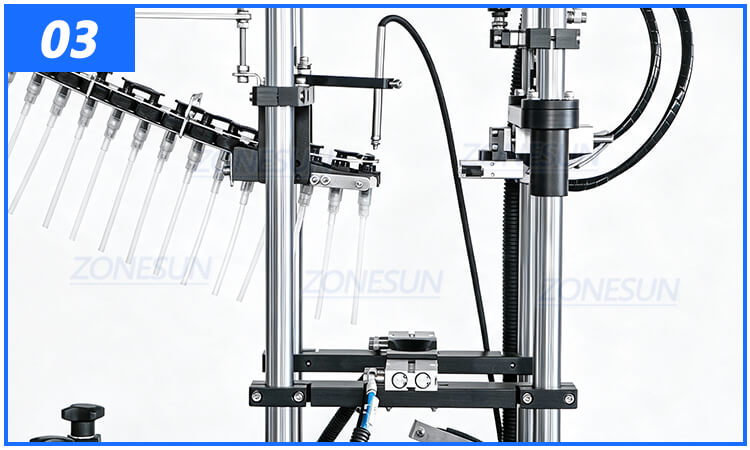

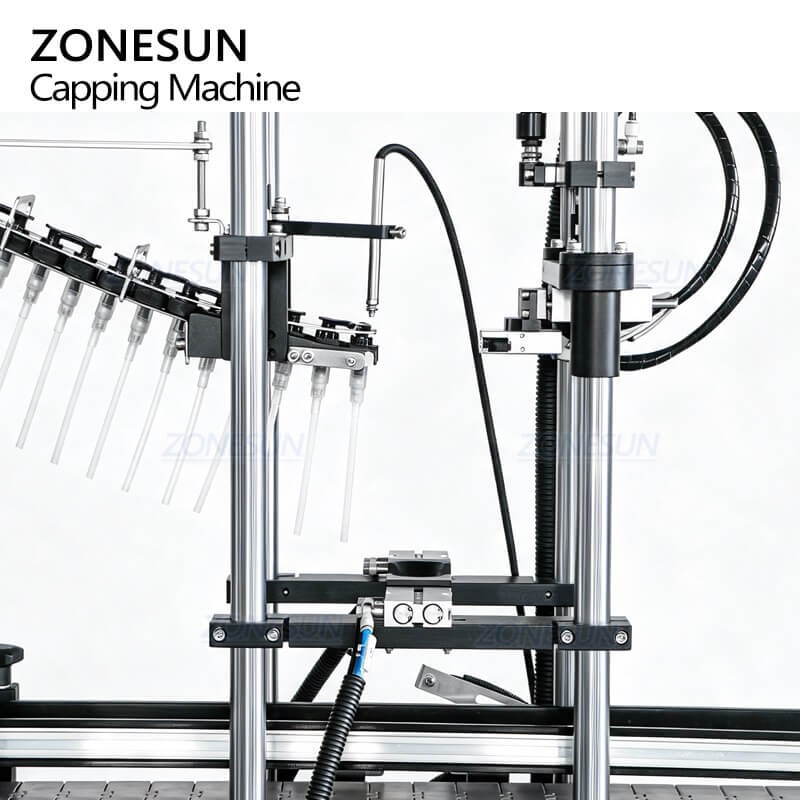

Cap Picking & Placing Structure
The cap placing unit simulates manual cap picking and placement, putting the pump cap steadily onto the bottle before it enters the capping station.

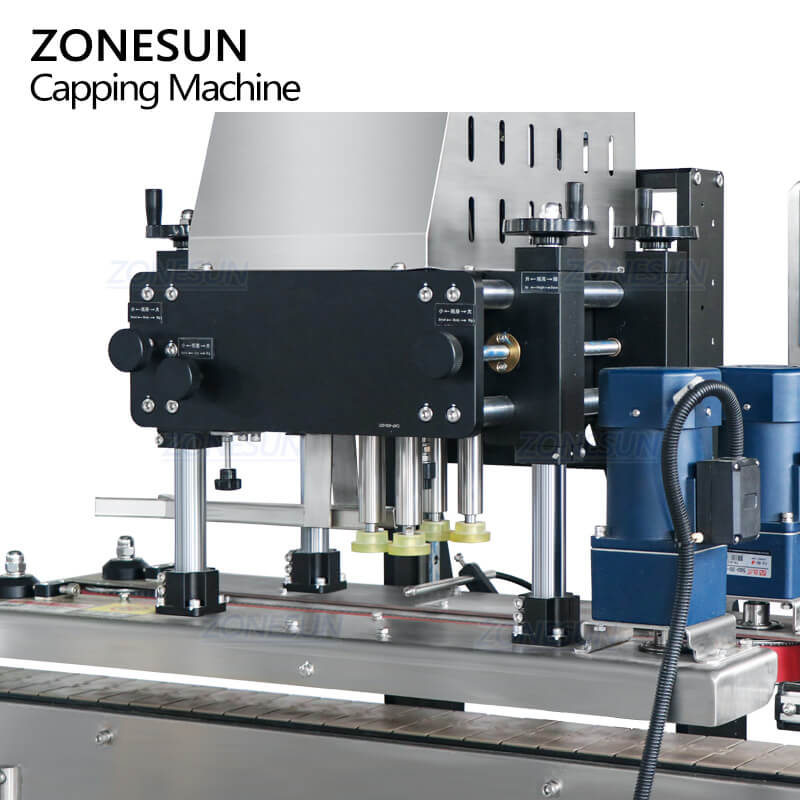

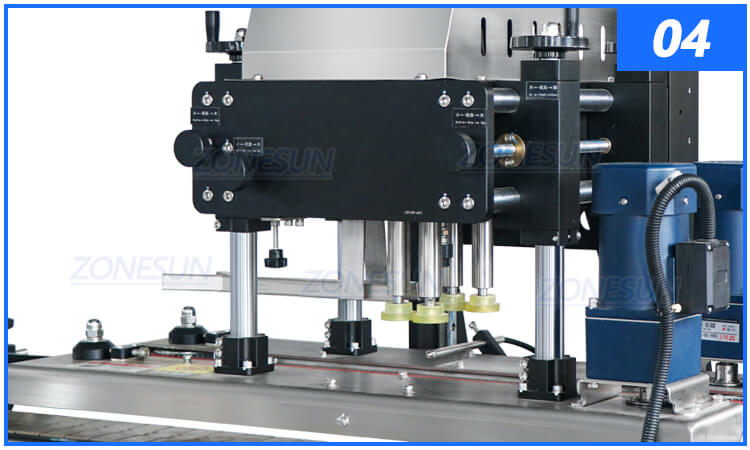

Servo Capping Structure
The servo-controlled capping unit works with bottle clamping belts to hold bottles steadily, while adjustable torque helps prevent loose caps or cap damage.

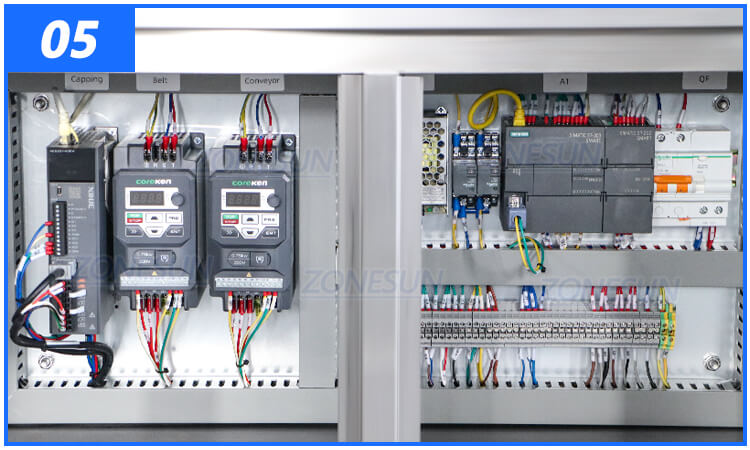

Electrical Components
Electrical components are arranged clearly inside the cabinet for easier inspection and maintenance, and the configuration can be upgraded according to production requirements.

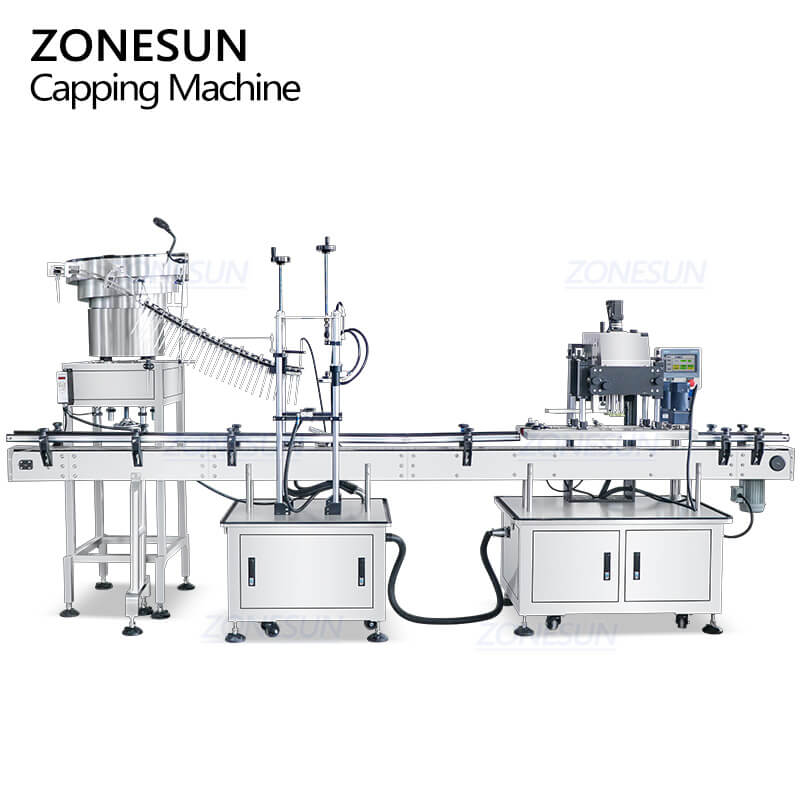

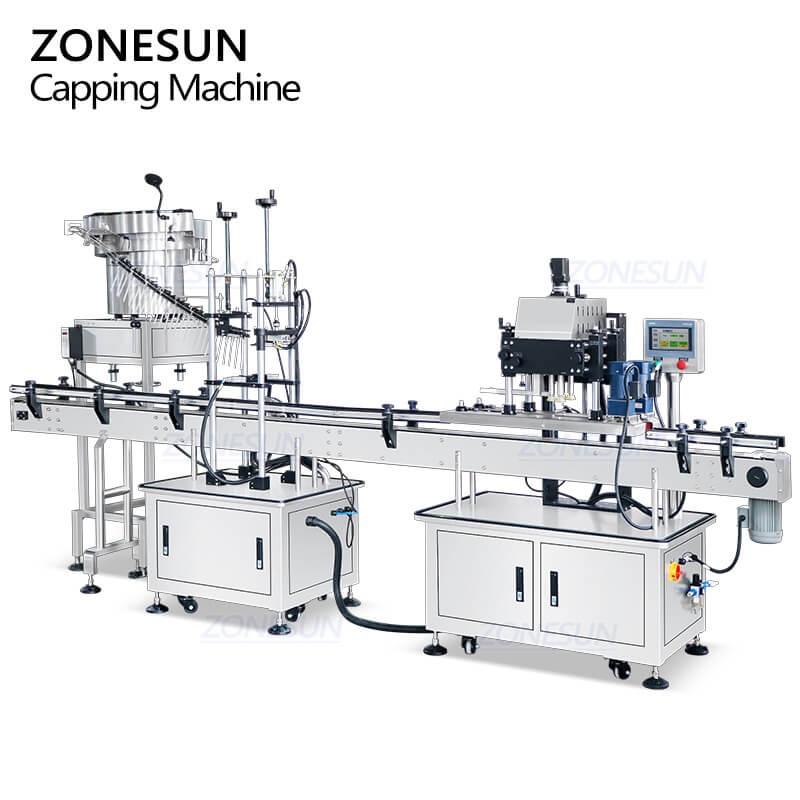

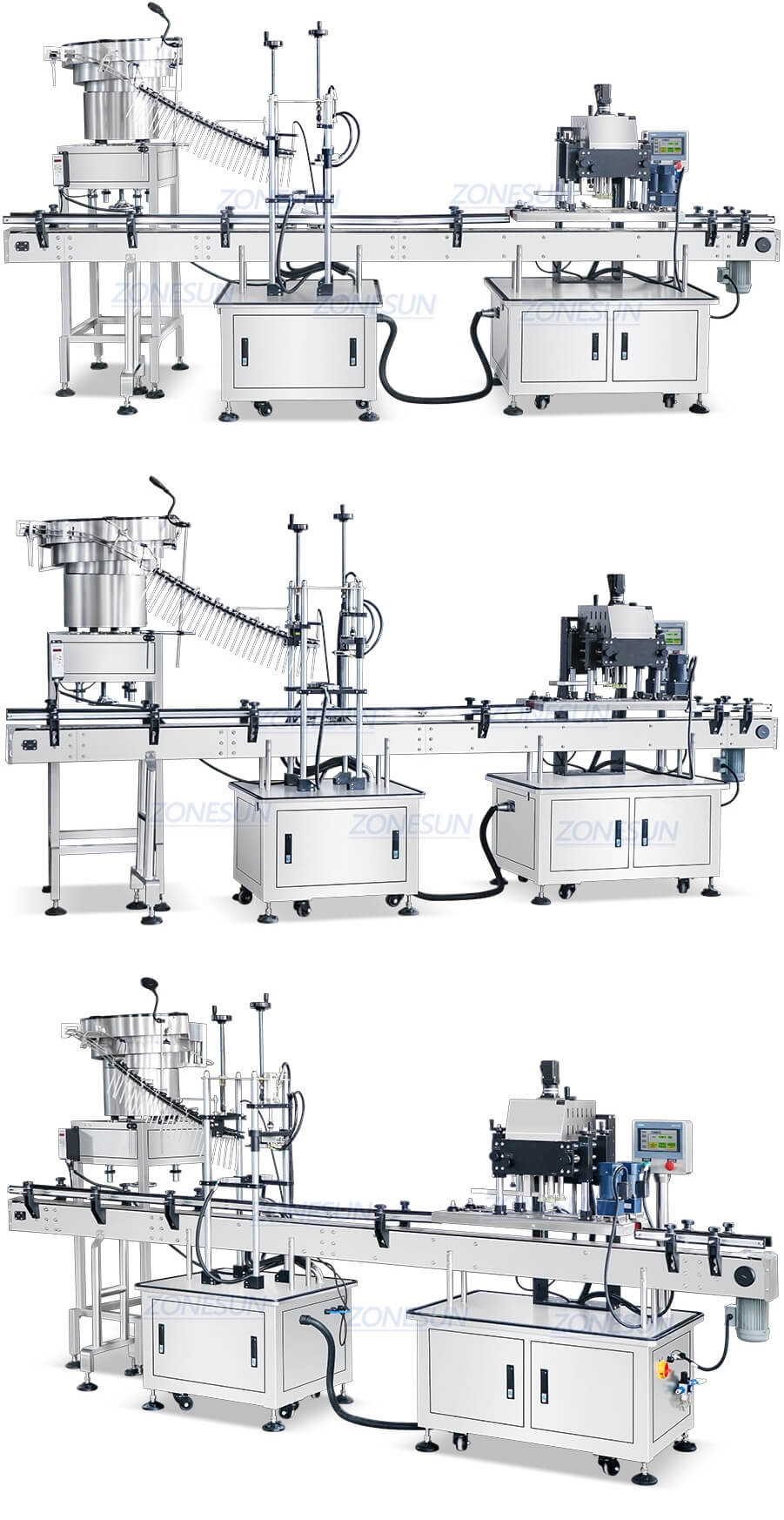

Product Real Shot
