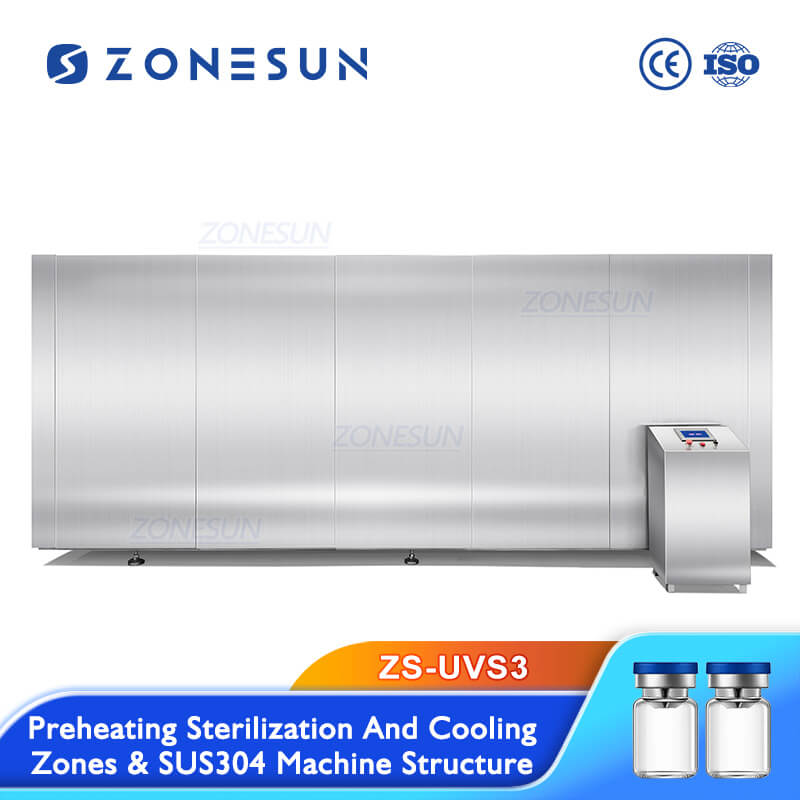

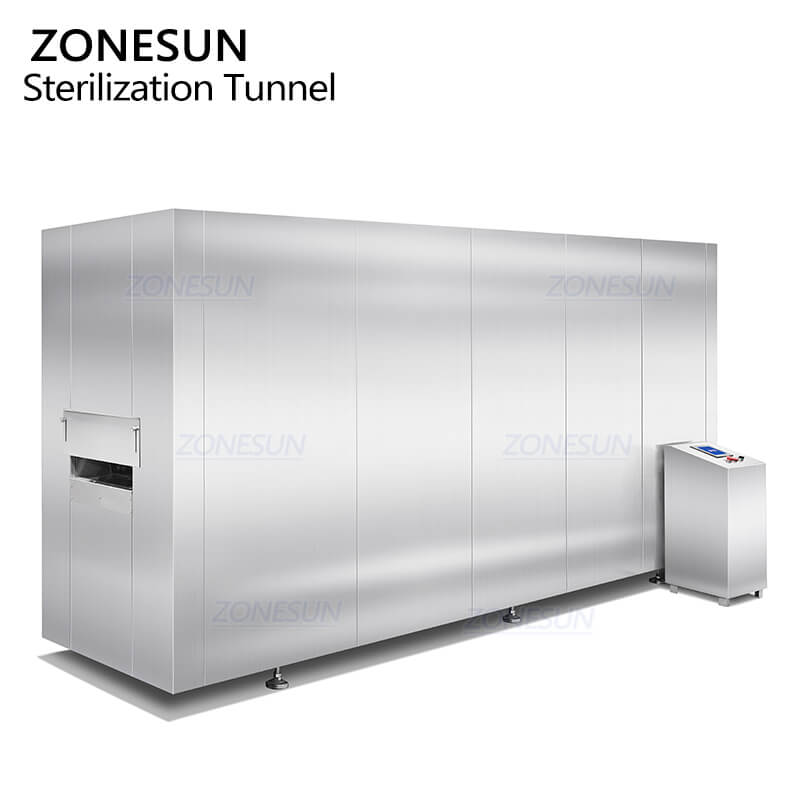

ZONESUN ZS-UVS3 Vial Sterilization Drying Tunnel

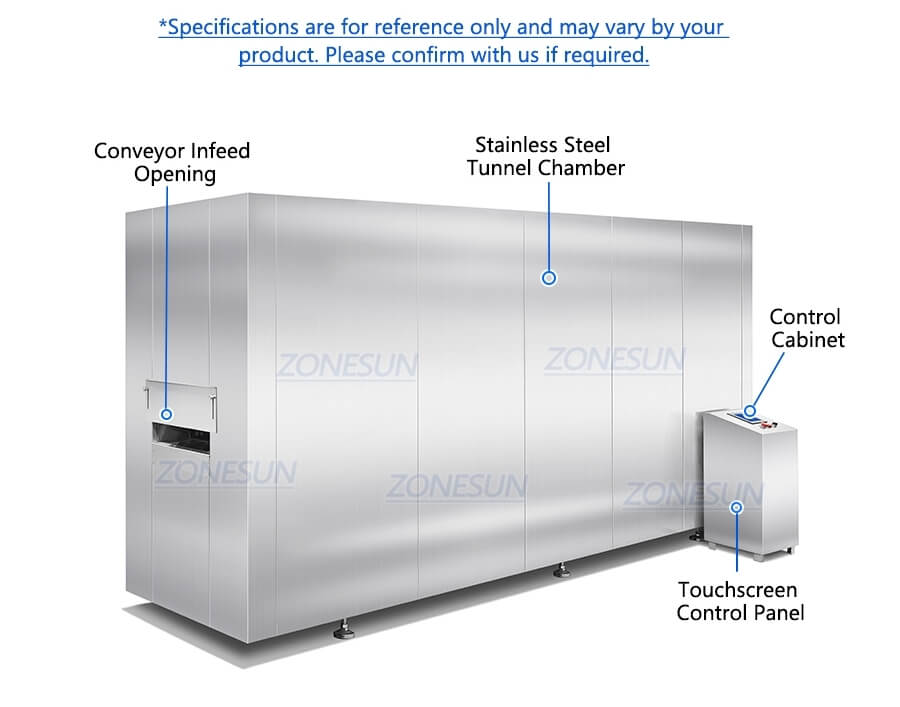

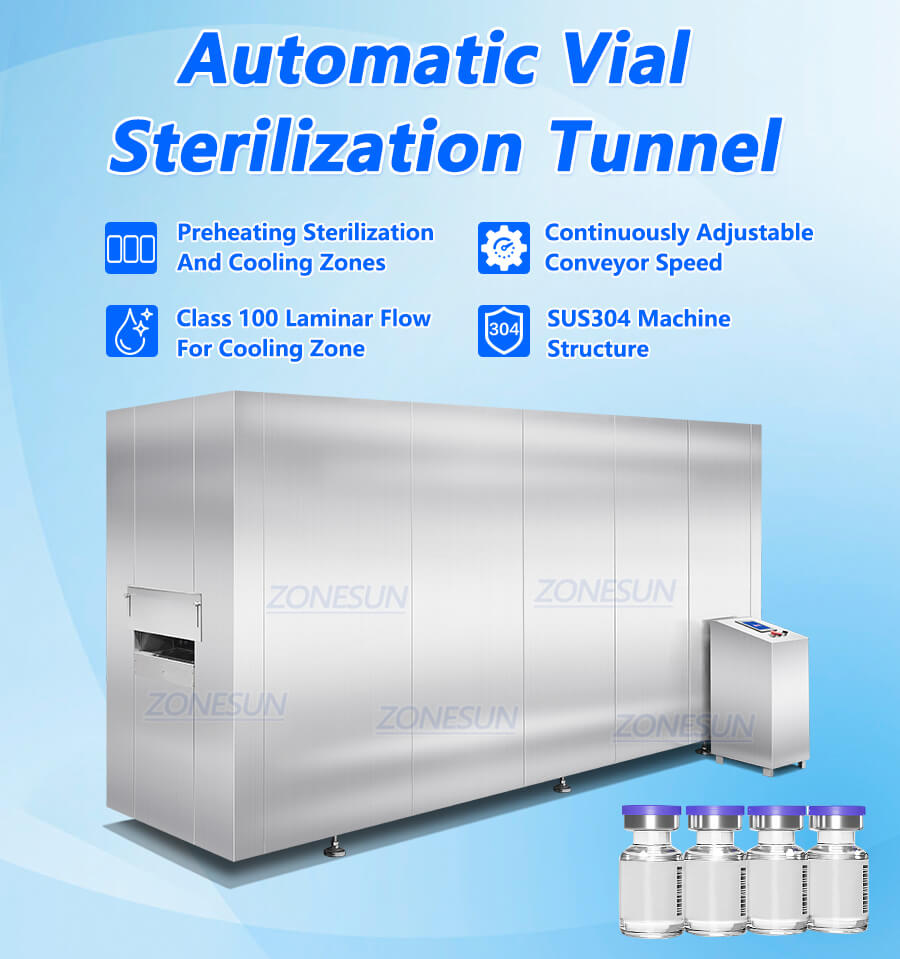

This vial sterilization tunnel moves vials through preheating, sterilization and cooling zones on one conveyor, so the whole heat cycle runs in a single pass. Conveyor speed is continuously adjustable, which lets you match the tunnel to your filling line rather than the other way round. The cooling zone uses Class 100 laminar flow to protect vials as they come down in temperature, and the machine structure is built in SUS304 stainless steel.
Original price was: $24,999.00.$24,199.00Current price is: $24,199.00.
Share to
Product Description
This vial sterilization tunnel moves vials through preheating, sterilization and cooling zones on one conveyor, so the whole heat cycle runs in a single pass. Conveyor speed is continuously adjustable, which lets you match the tunnel to your filling line rather than the other way round. The cooling zone uses Class 100 laminar flow to protect vials as they come down in temperature, and the machine structure is built in SUS304 stainless steel.
Product Applications
Product Parameter
| Model | ZS-UVS3 |
| Voltage | 380 V |
| Total Power | 25 kW |
| Heating Section Length | 1900 mm |
| Heating Method | Electric Heating |
| Operating Temperature | Room Temperature to 260°C |
| Cooling Section Length | 1650 mm |
| Total Length | 4500 mm |
| Conveyor Belt Width | 400 mm |
| Working Speed | 2600–3600 bottles/hour |
| Machine Size | About 4500*960*2000 mm (L × W × H) |
| Machine Weight | About 2 tons |
Product Details

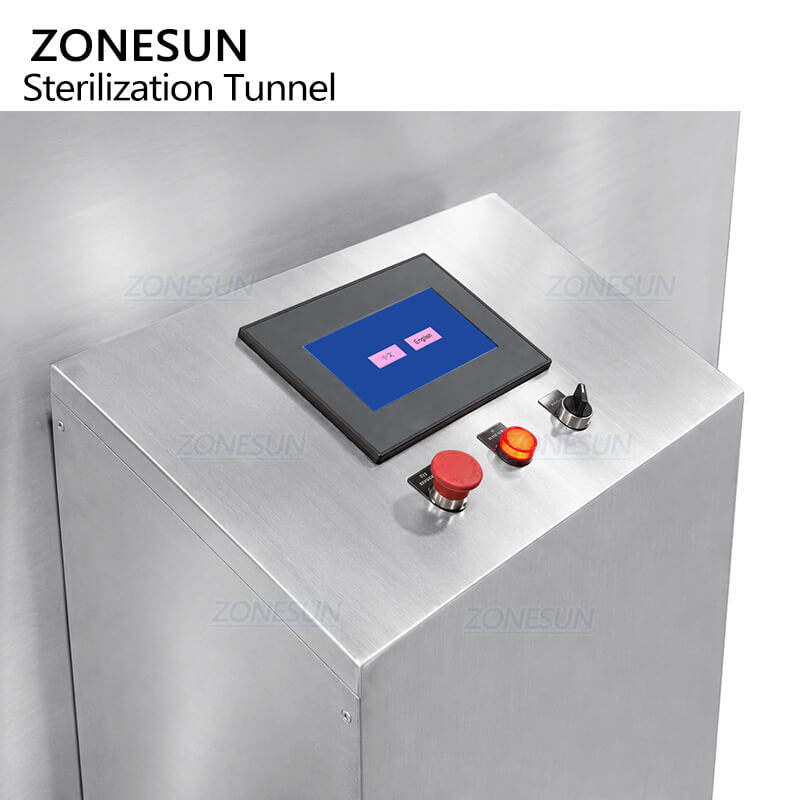

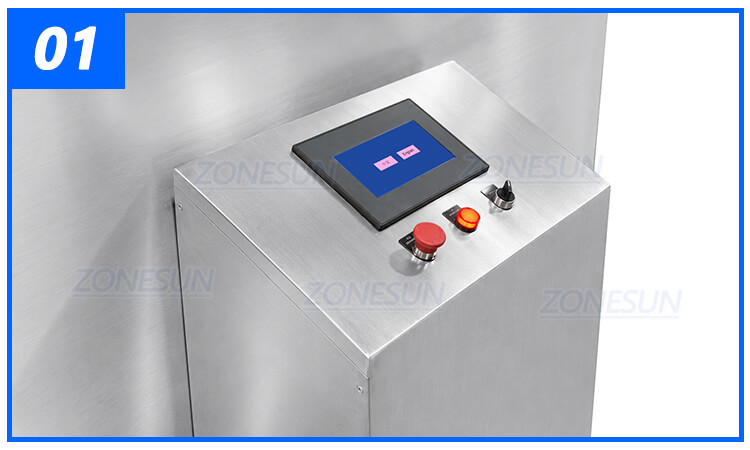

Temperature Control Panel
The control system allows operators to set and monitor the working temperature, with automatic temperature recording for later production checking.

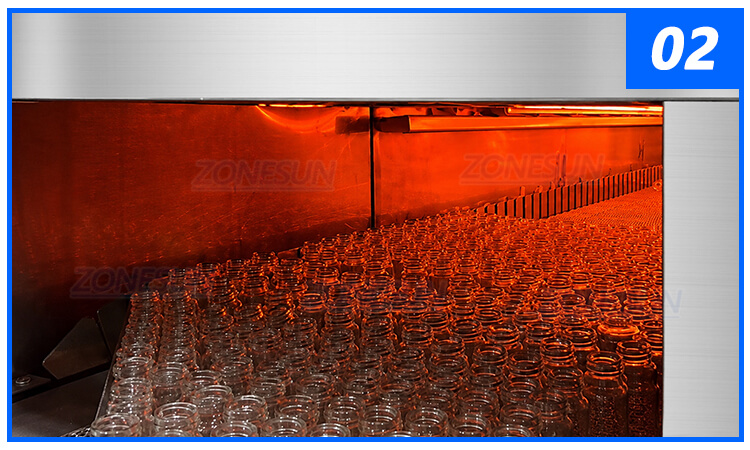

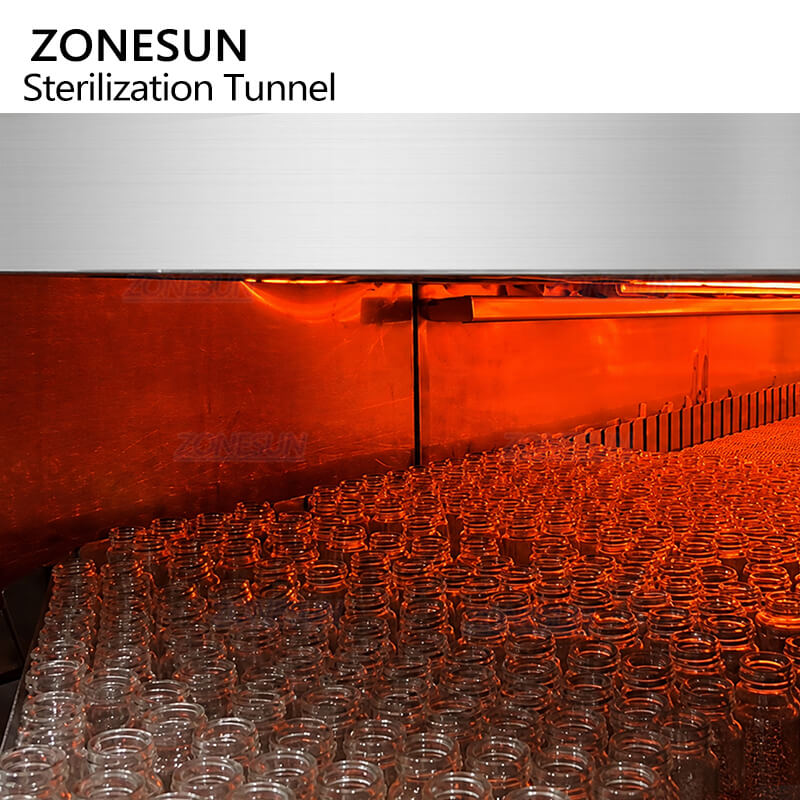

Metal Mesh Conveyor
Glass bottles travel continuously through the tunnel on a metal mesh conveyor, and the conveyor speed can be adjusted continuously within the set range instead of using only fixed speed levels.

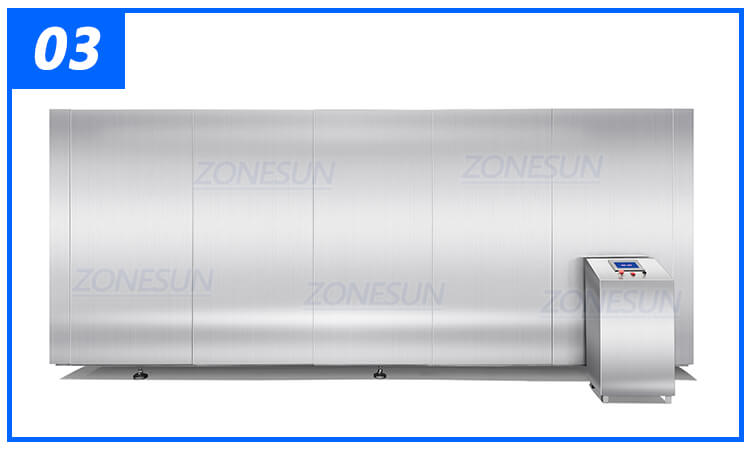

Three-Zone Tunnel Structure
The tunnel includes preheating, high-temperature sterilization and Class 100 laminar flow cooling for continuous vial processing.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year

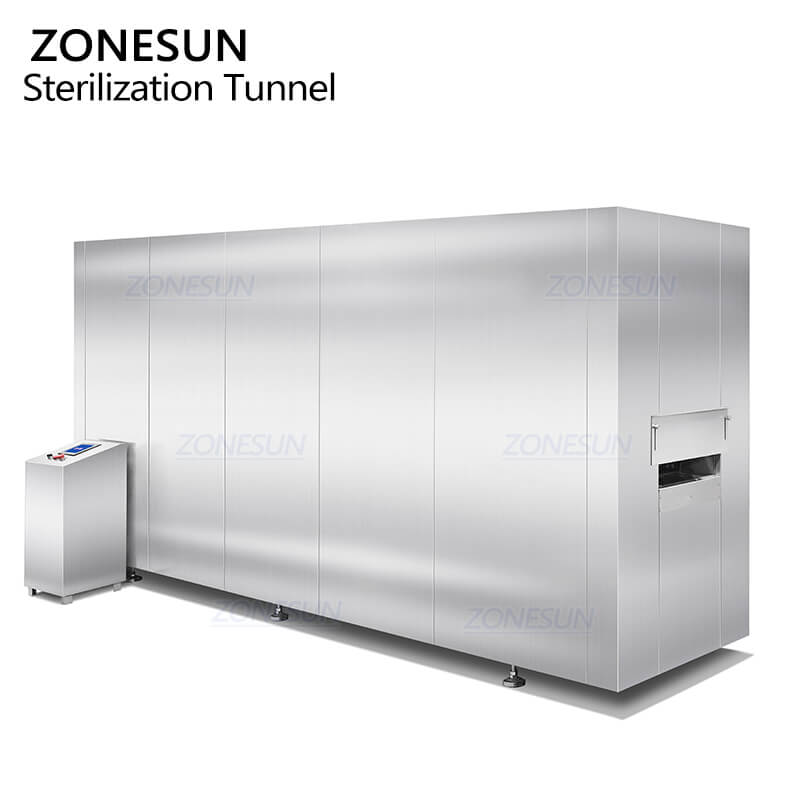

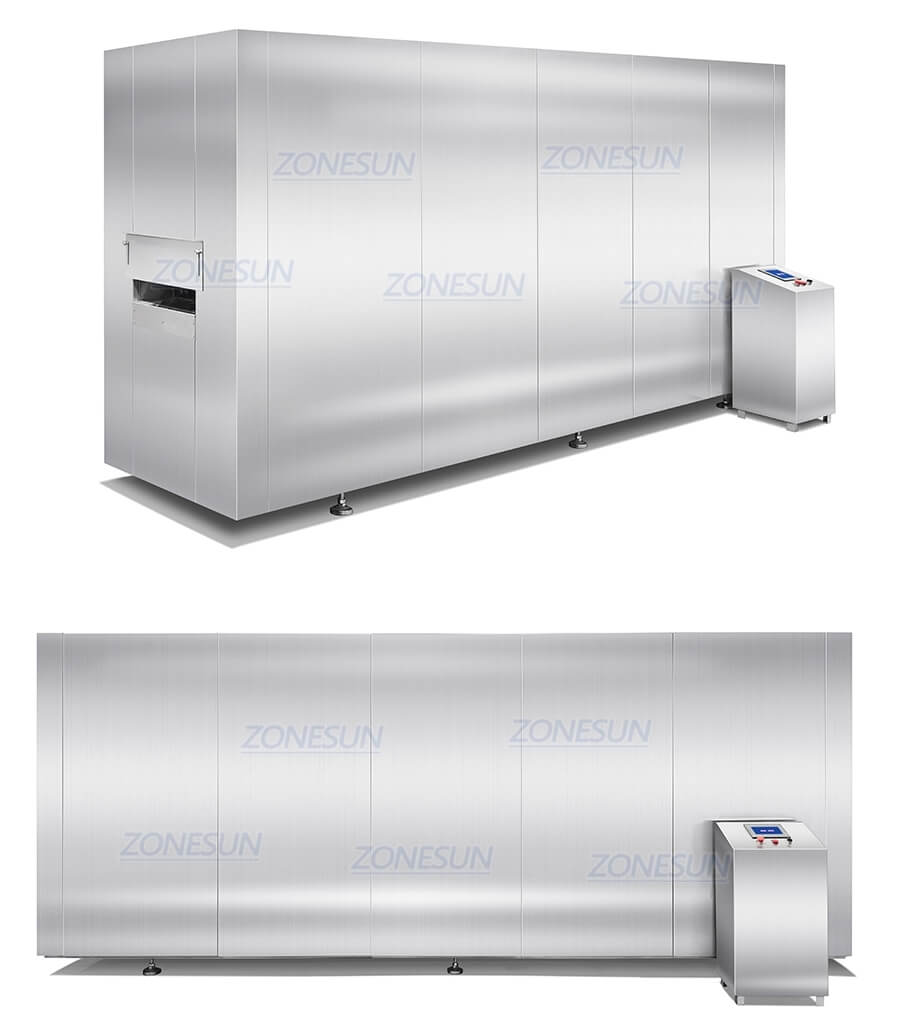

Product Real Shot
