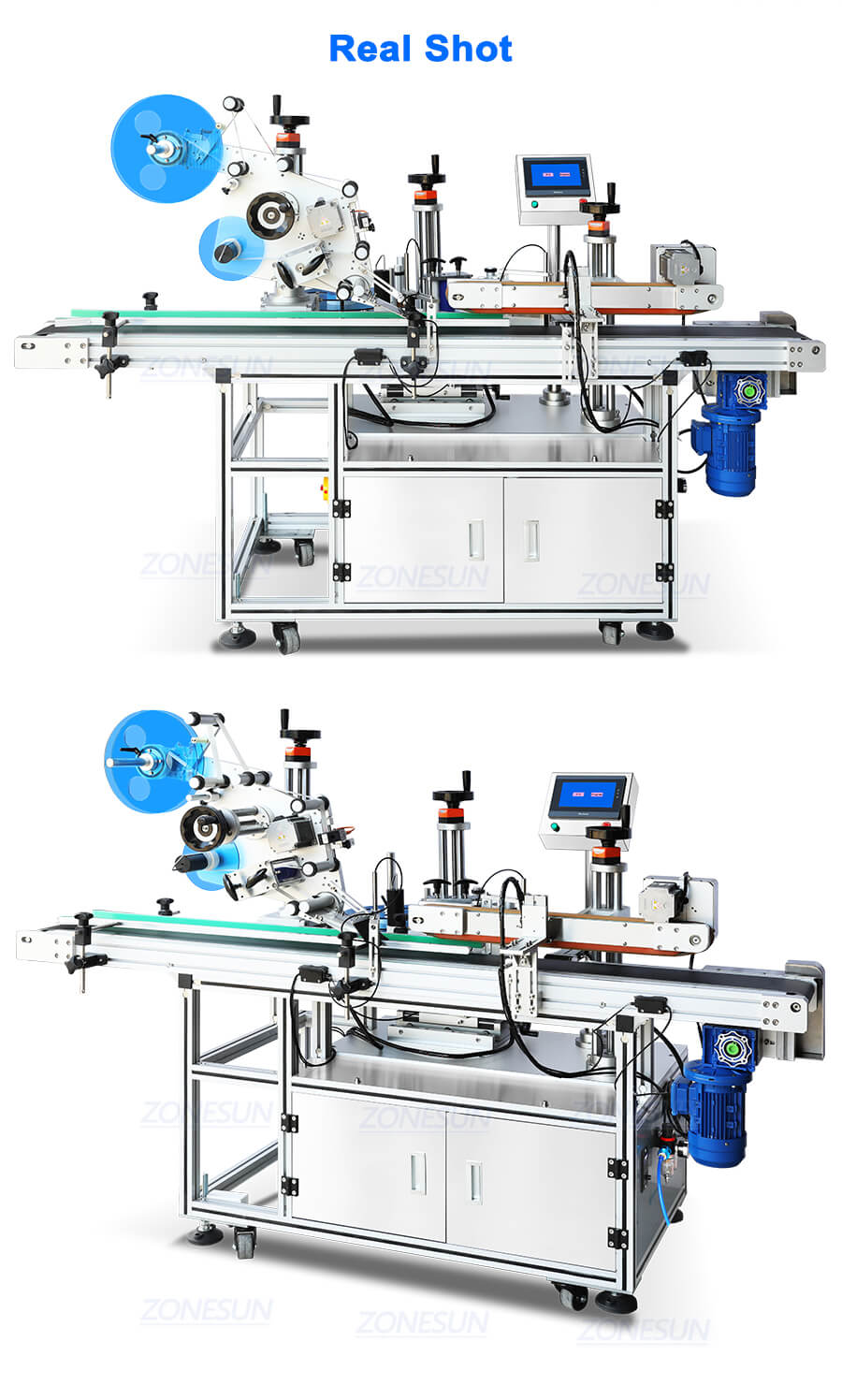

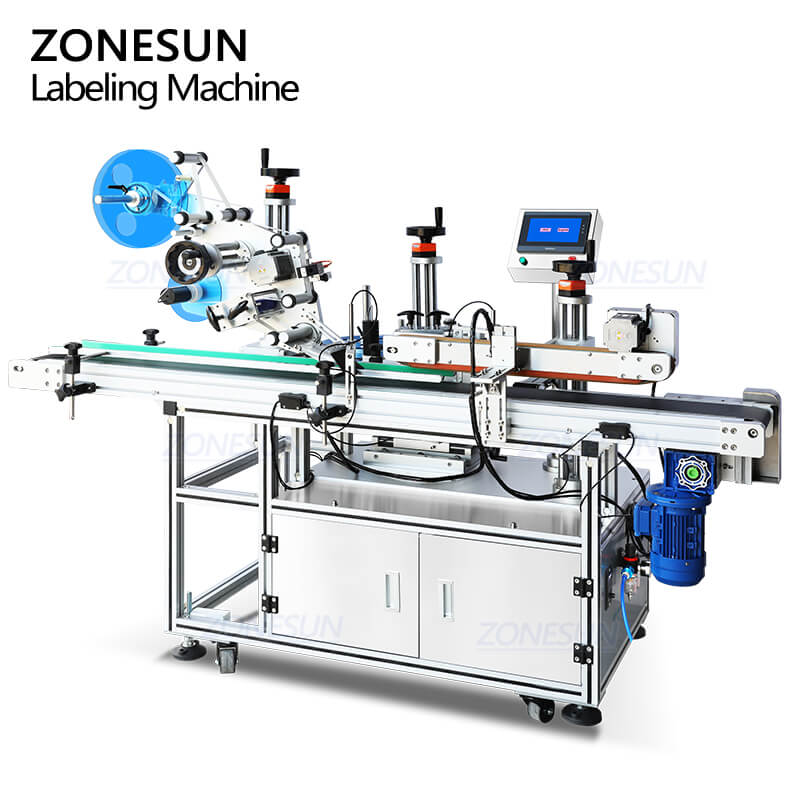

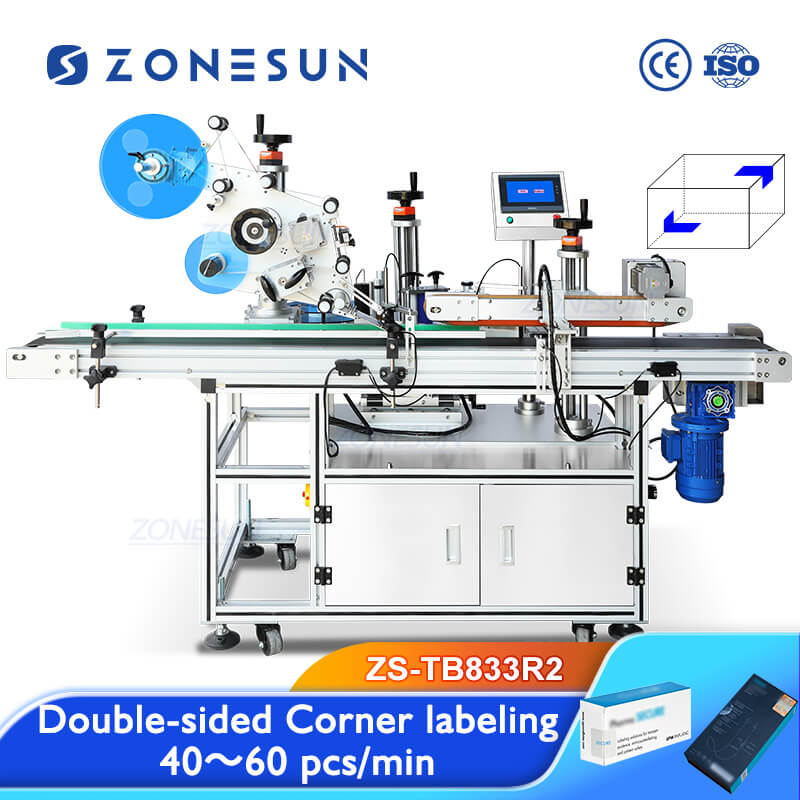

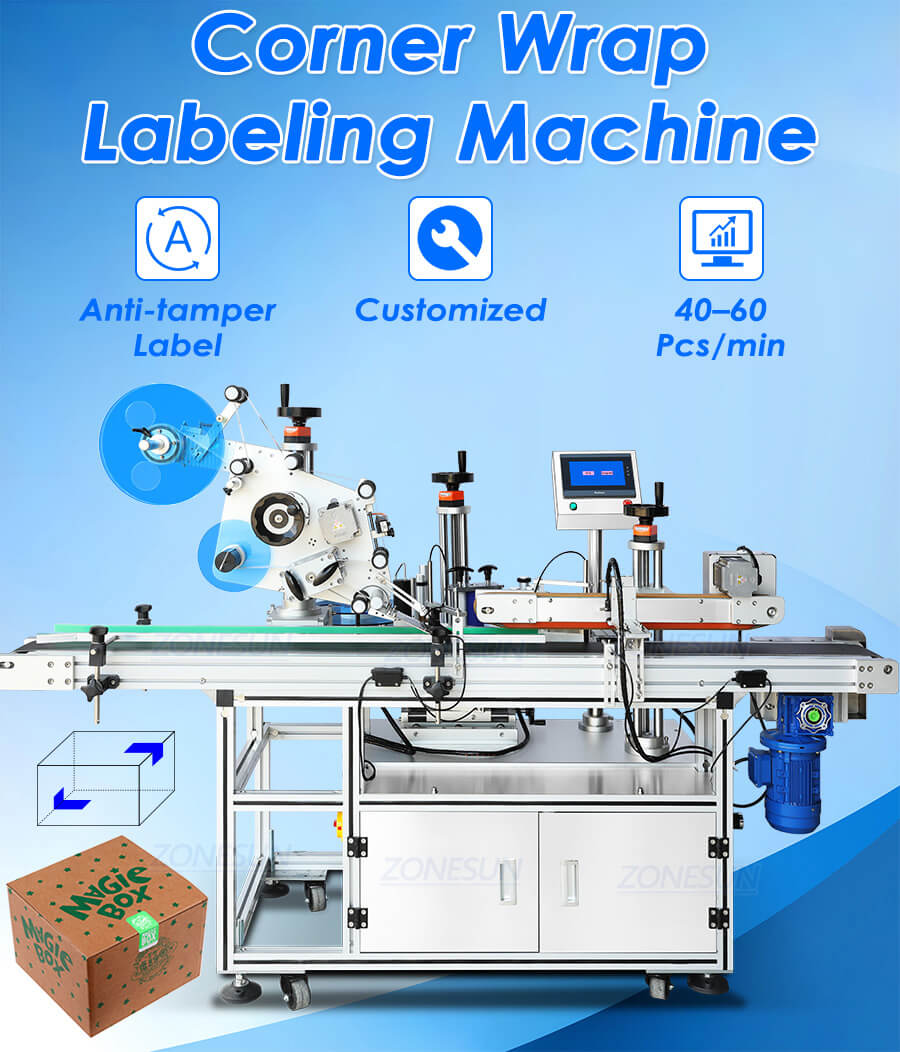

ZONESUN ZS-TB833R2 Anti Tamper Adhesive Sticker Corner Labeling Machine
The is a high‑speed automatic corner labeling machine engineered for tamper‑evident applications on boxed products such as electronics, cosmetics, food packaging. Supporting up to 60 pcs per minute, it enables double‑sided labeling including hanging cartons with exceptional precision and stability.
$10,499.00
Share to
Product Description:
The is a high‑speed automatic corner labeling machine engineered for tamper‑evident applications on boxed products such as electronics, cosmetics, food packaging. Supporting up to 60 pcs per minute, it enables double‑sided labeling including hanging cartons with exceptional precision and stability.
Product Parameters:
| Machine Model | ZS-TB833R2 |
| Machine Power | 220V,50Hz/60Hz |
| Labeling Speed | 40-60 pcs/min (depends on product size) |
| Labeling Accuracy | ±lmm |
| Suitable Product Size | Length: 40-280mm; Width: 40-200mm; Height: 0.2-150mm |
| Suitable Label Size | Length: 10-250mm Height: 10-150mm |
| Roll Inside Diameter | 76mm |
| Roll Outside Diameter | 350mm |
| Air Pressure | 0.4-0.6Mpa |
| Conveyor Size | 112*2000mm (W) |
| Machine Size | About 2200*980*1400mm |
| Machine Weight | About 200kg |

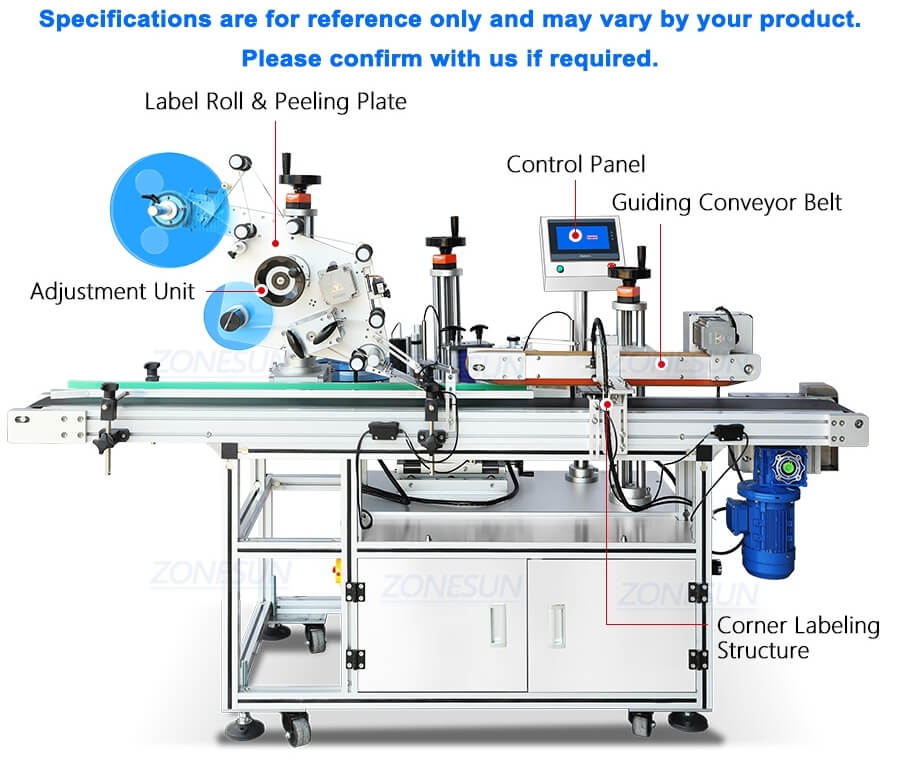

Product Details:

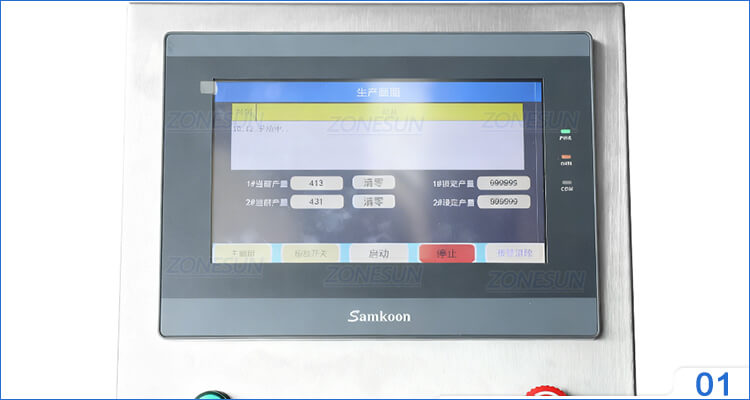

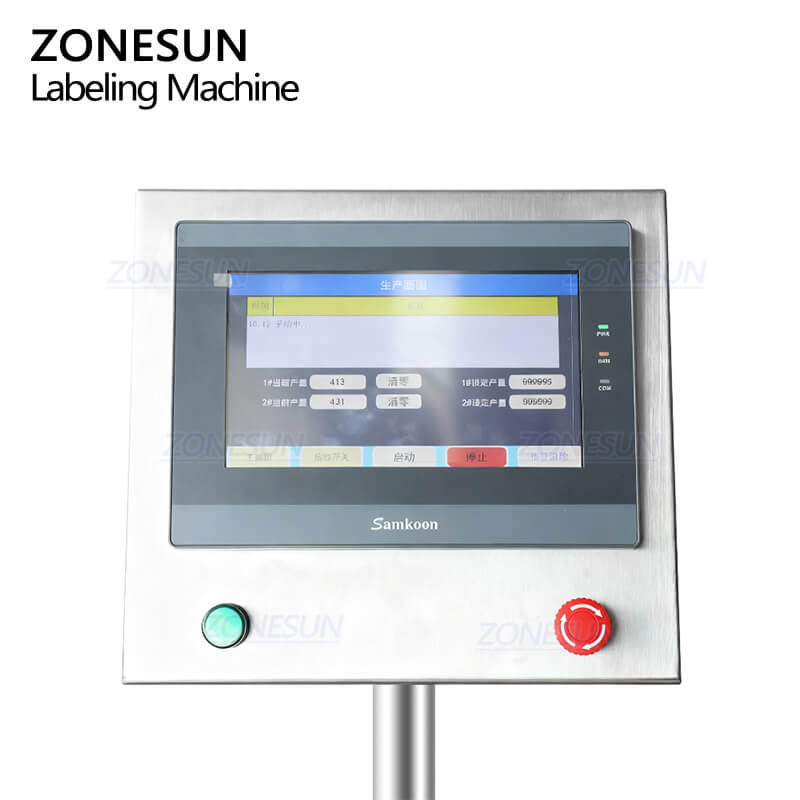

Control Panel
Controls labeling parameters, monitors production quantity, and manages recipe settings with fault alerts.

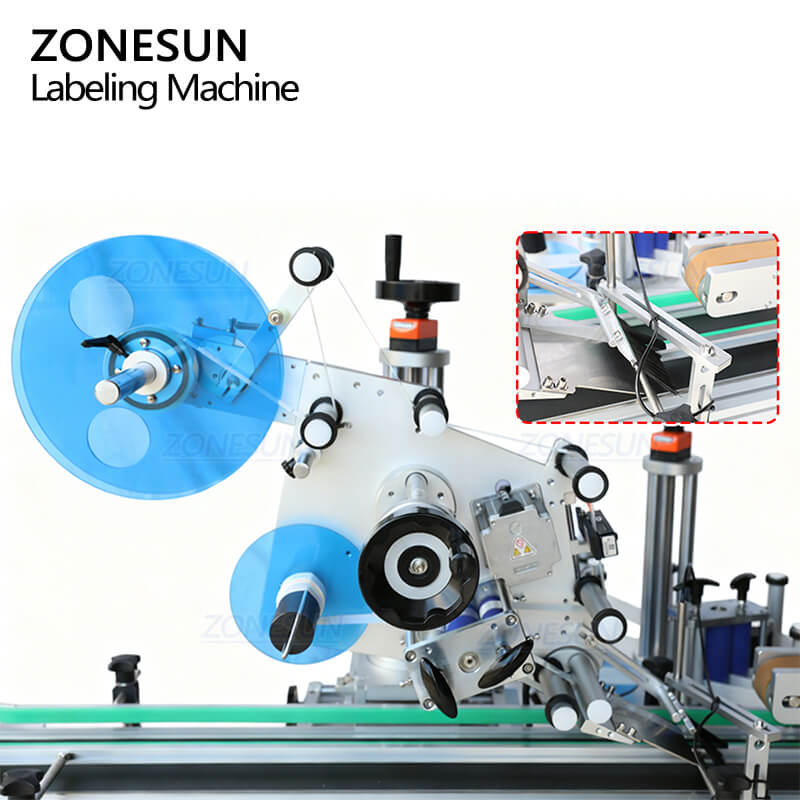

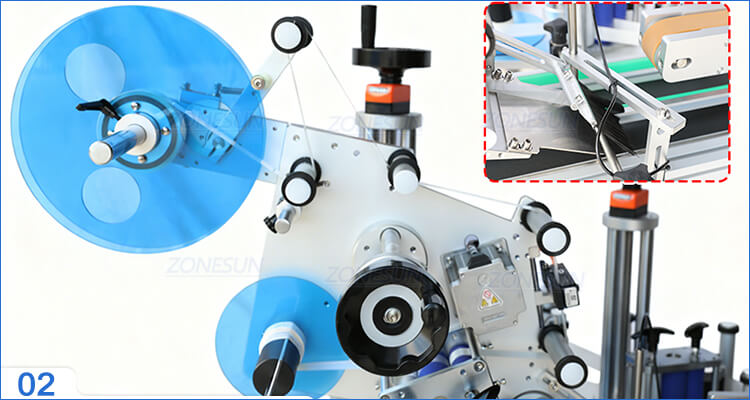

Label Roll & Peeling Plate
Feeds label material from the roll, peels labels from the backing paper, and delivers them to the labeling head for precise corner application.

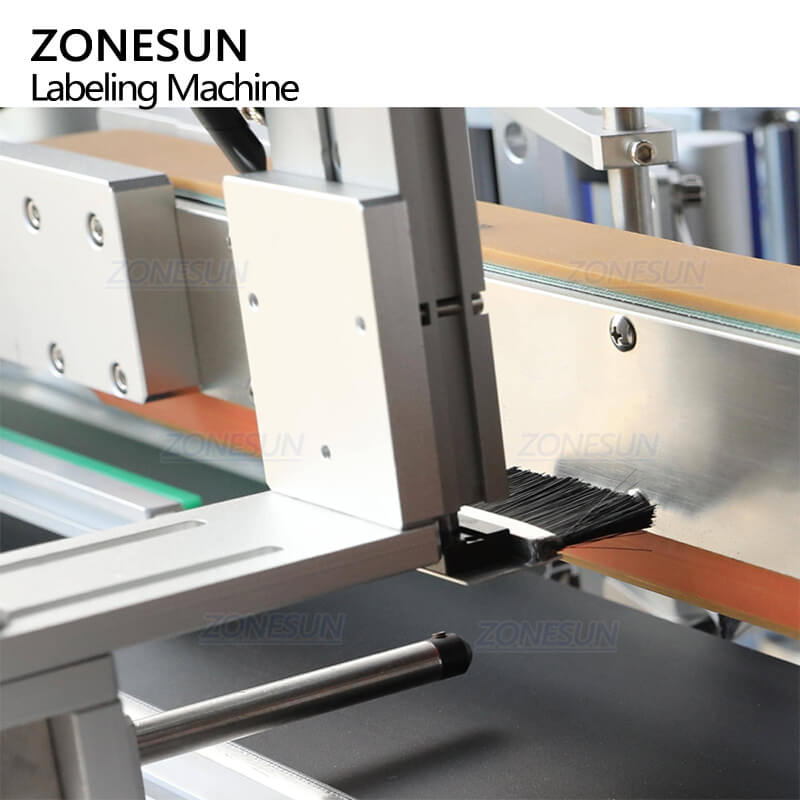

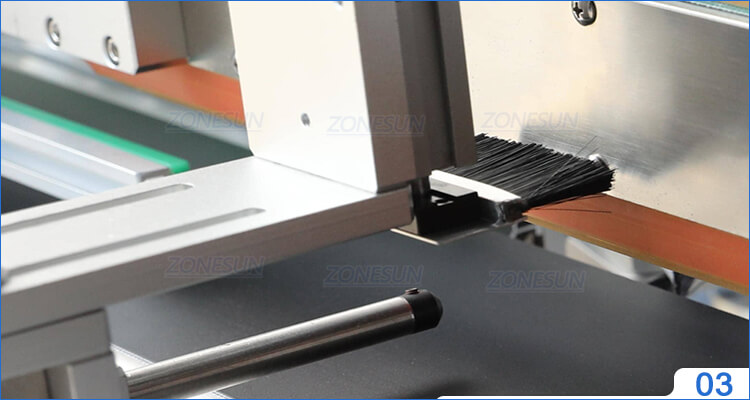

Corner Labeling
Applies labels across adjacent surfaces with frm corner adhesion for anti-tamper stickers, integrated brush ensures bubble-free application.

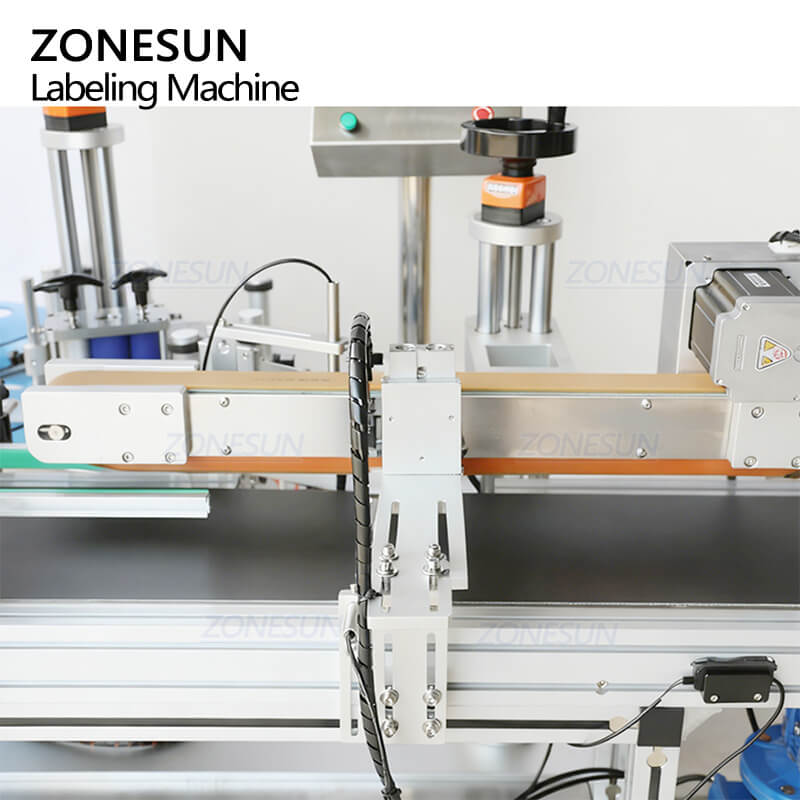

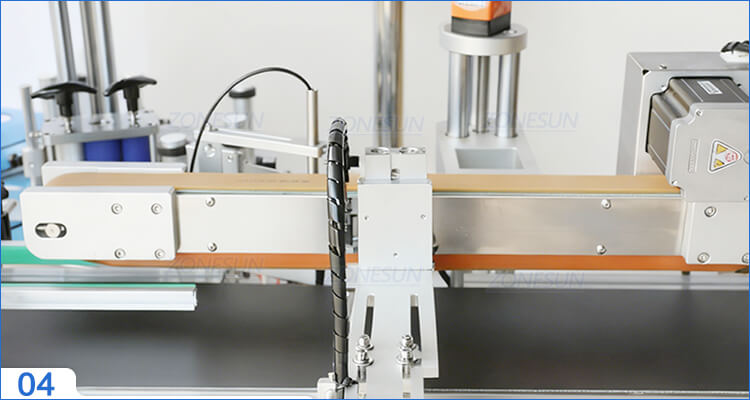

Guiding Conveyor
Guides products smoothly into the labeling area,ensuring accurate positioning and stable corner label application.

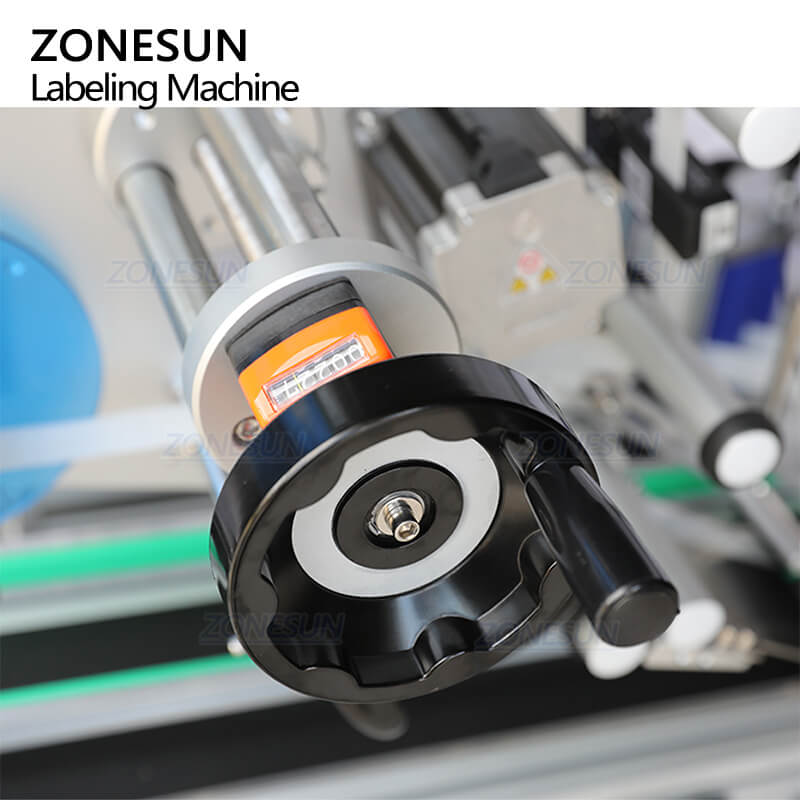

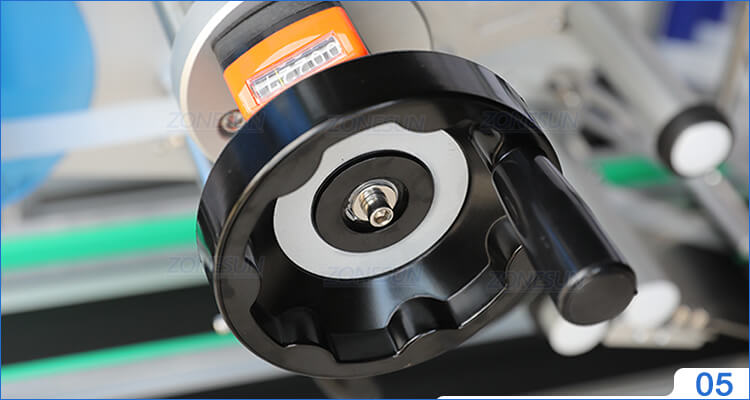

Adjustment Unit
Manually adjusts the position or angle of labeling components to ensure precise alignment and application.

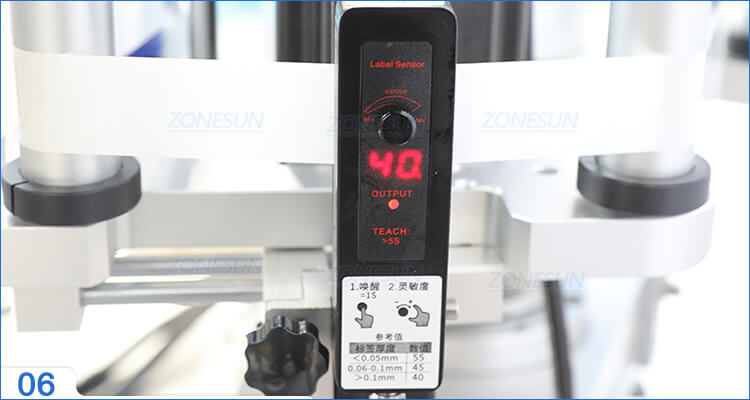

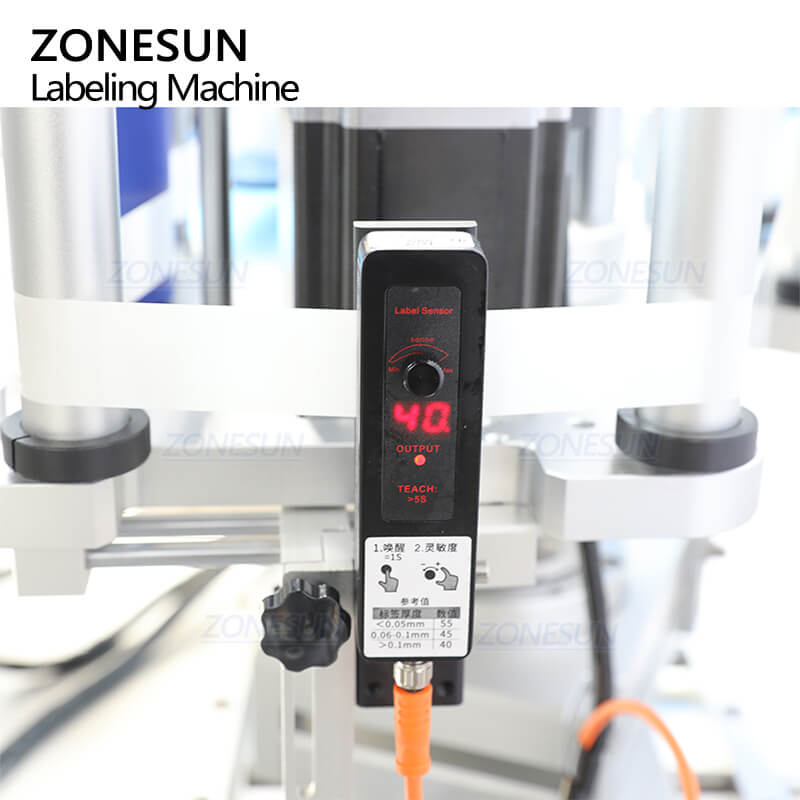

Label Sensor
Receives and transmits signals to control label dispensing, preventing missed or skipped labels during operation.

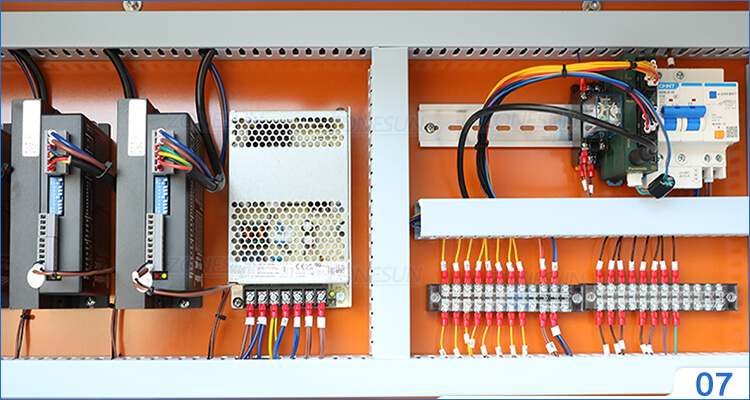

Electrical Cabinet
Houses and organizes electrical components for power distribution, motor control, and signal coordination.
