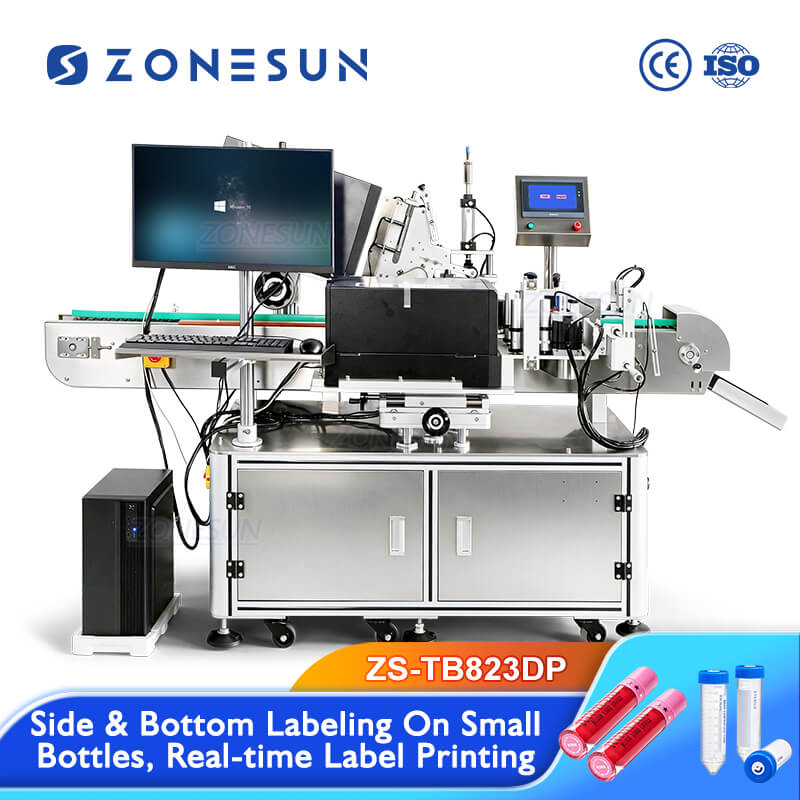

ZONESUN ZS-TB823DP Thermal Transfer Labeling Machine

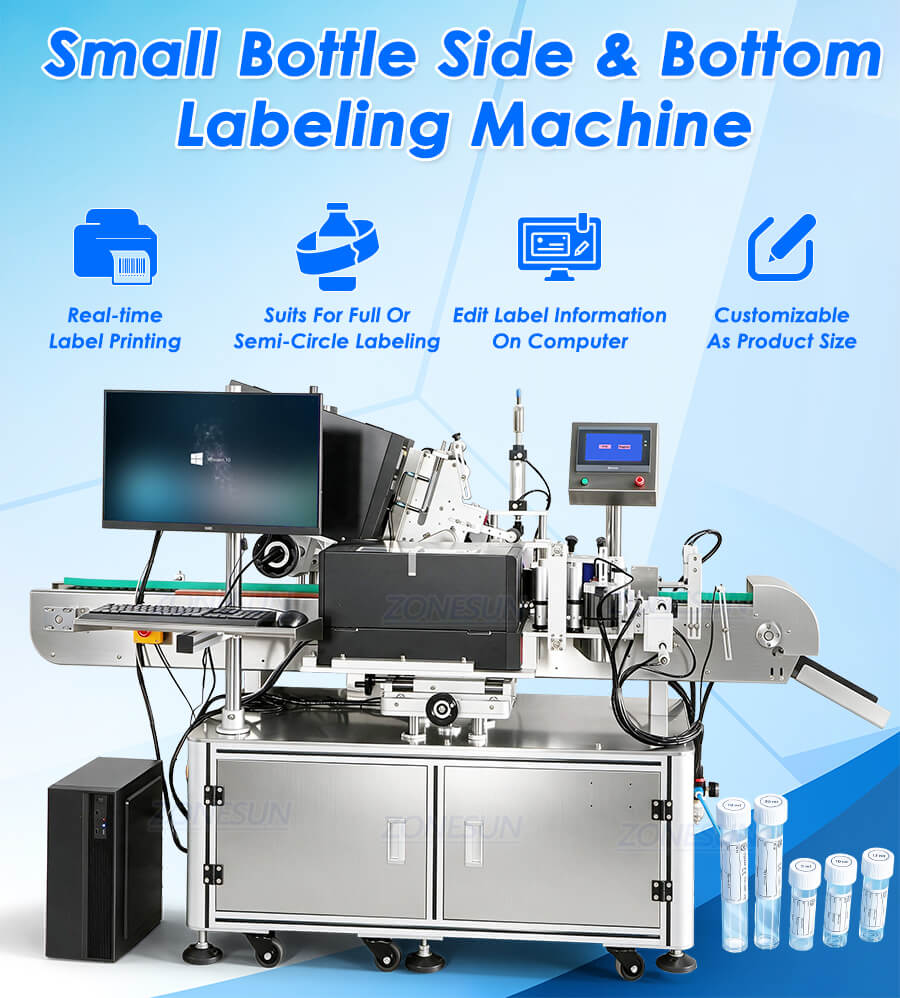

This small bottle thermal transfer labeling machine handles both side and bottom labeling, so narrow vials, tubes and dropper bottles are labeled on one unit instead of two. It suits full wrap or semi-circle labeling, and label information can be edited on a computer and printed in real time, which means label text changes without waiting on a pre-printed label order. The labeling setup is customizable to your product size.
$99,999.00
Share to
Product Description
This small bottle thermal transfer labeling machine handles both side and bottom labeling, so narrow vials, tubes and dropper bottles are labeled on one unit instead of two. It suits full wrap or semi-circle labeling, and label information can be edited on a computer and printed in real time, which means label text changes without waiting on a pre-printed label order. The labeling setup is customizable to your product size.

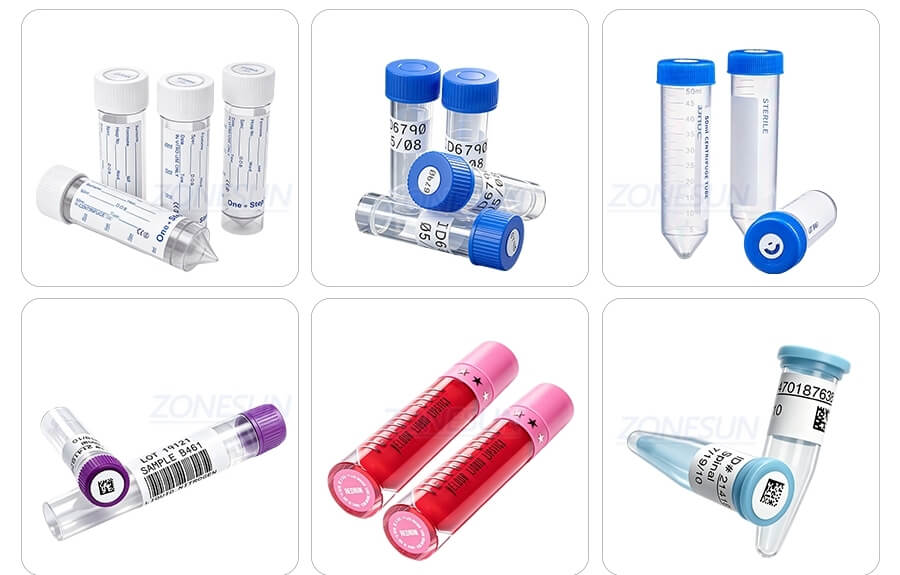

Product Applications

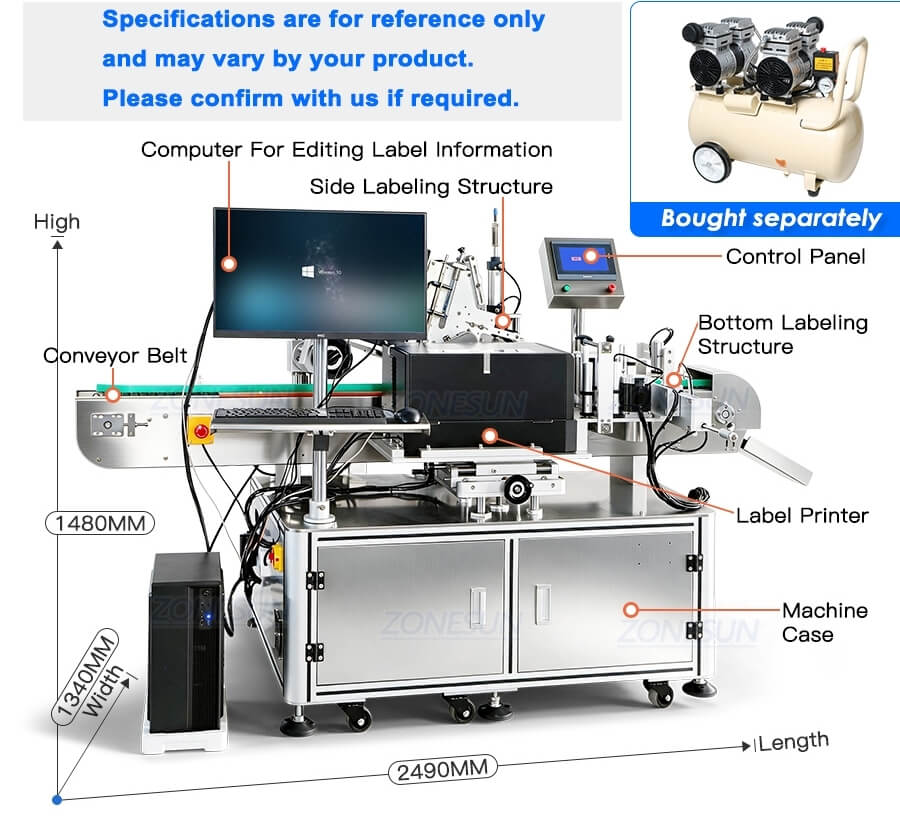

Product Parameter
| Machine Model | ZS-TB823DP |
| Power Supply | 110/220V 50-60Hz 2.8kW |
| Working Speed | About 30pcs/min(depending on product size) |
| Labeling Accuracy | ±1mm(excluding product and label error) |
| Label Size | Customizable |
| Labeling Object Size | Customizable |
| Label Roll OD | Φ280mm |
| Label Roll ID | Φ76mm |
| Machine Dimension | About 2490*1340*1480mm(L*W*H) |
| Package Size | About 2320*1320*1650mm |
| Package Weight | About 580kg |
Product Details

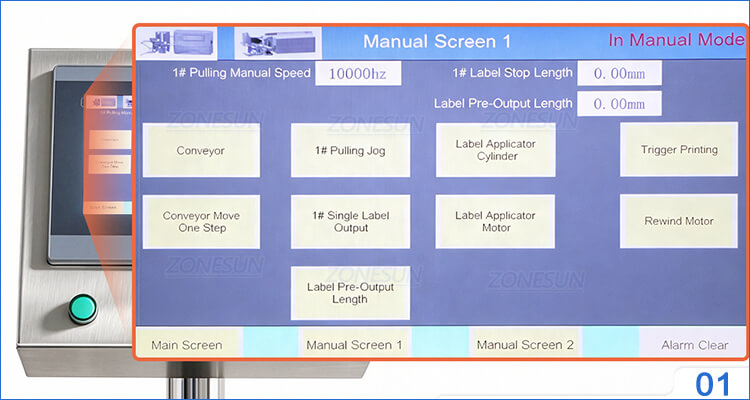

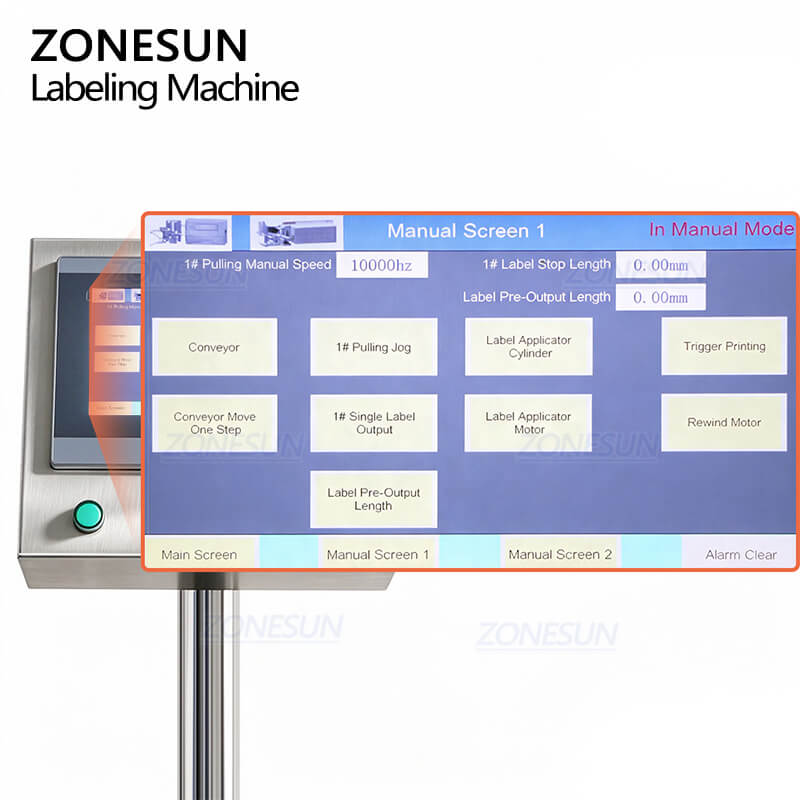

Touchscreen Control Panel
Allows operators to set working parameters, monitor operation status and debug the machine.

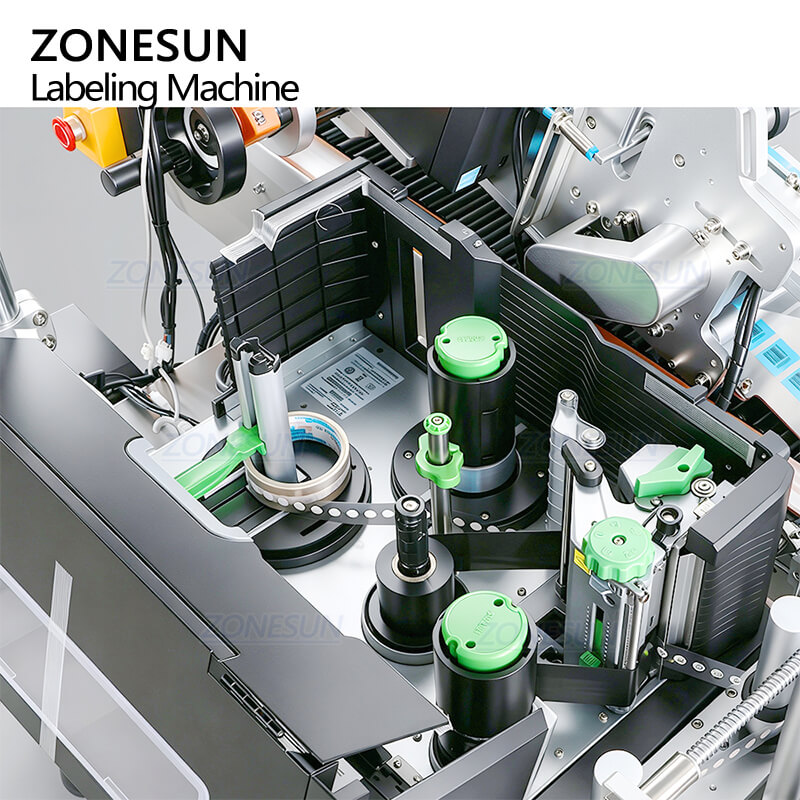

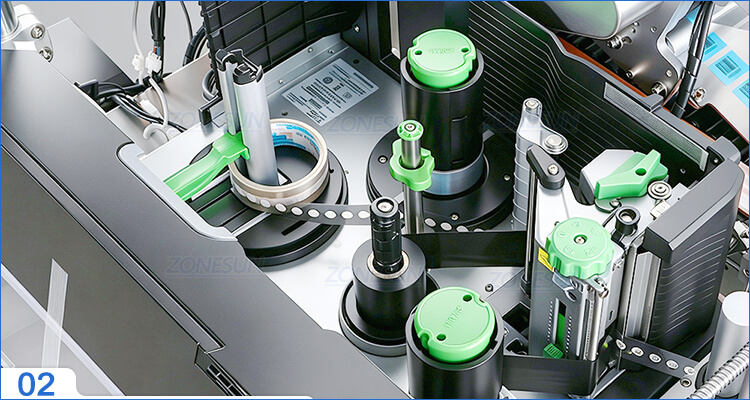

Real-Time Label Printer
Can print QR codes, barcodes, logos, patterns, numbers on labels.

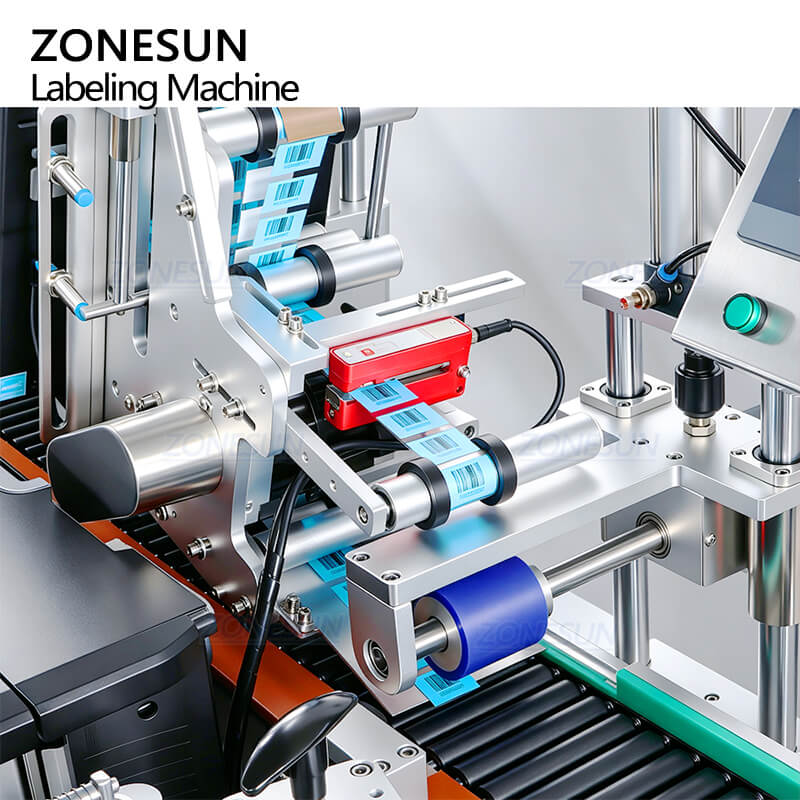

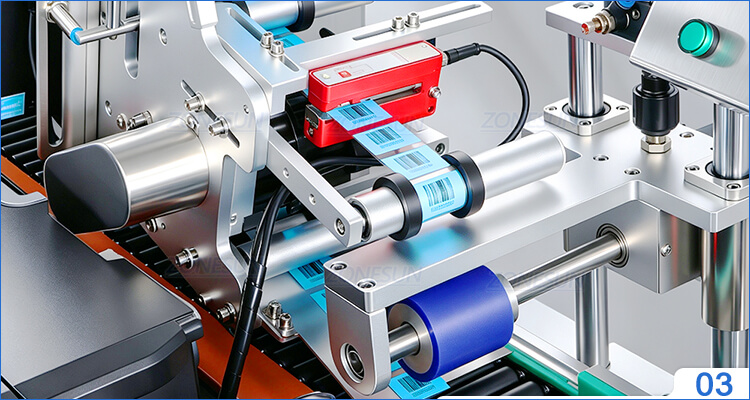

Side Labeling Structure
Intelligent sensor can detect labels and ensure accurate label attaching onto bottle sides. Suits for semi or full-circle labeling.

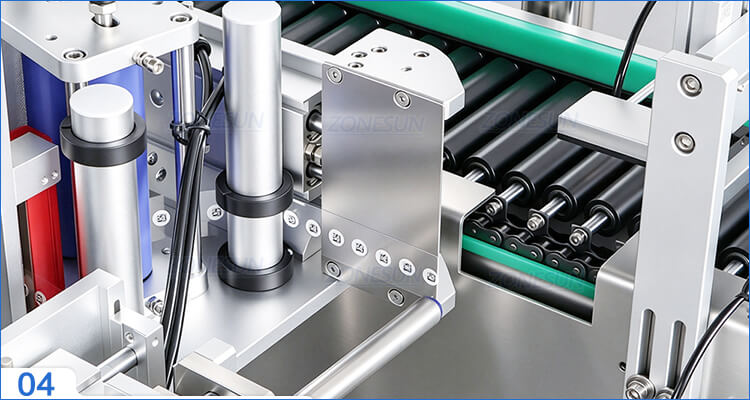

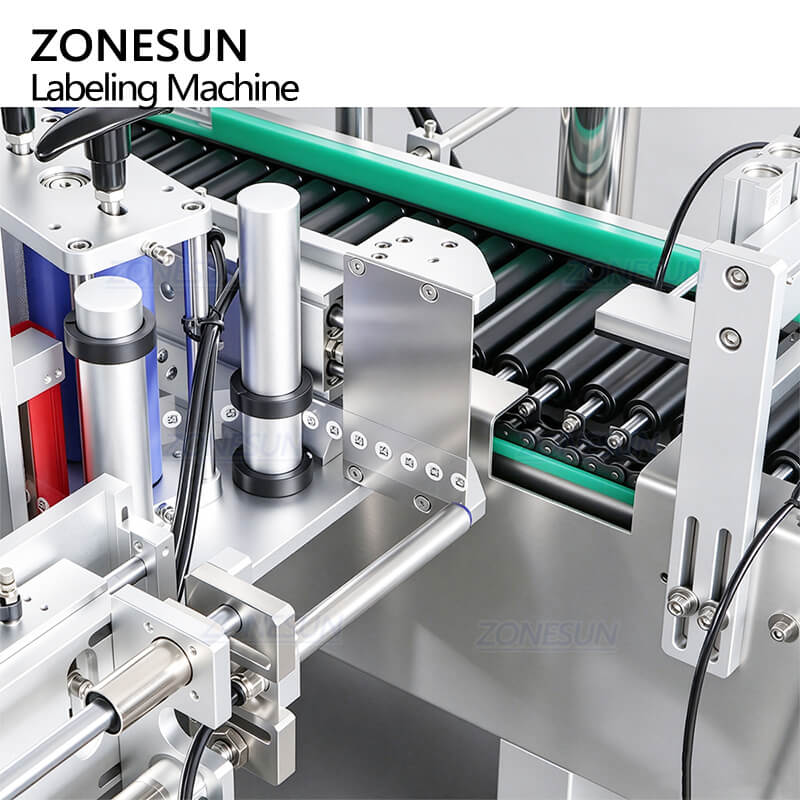

Bottom Labeling Structure
Pneumatic mechanism can accurately pick and attach labels to the flat surface of products.

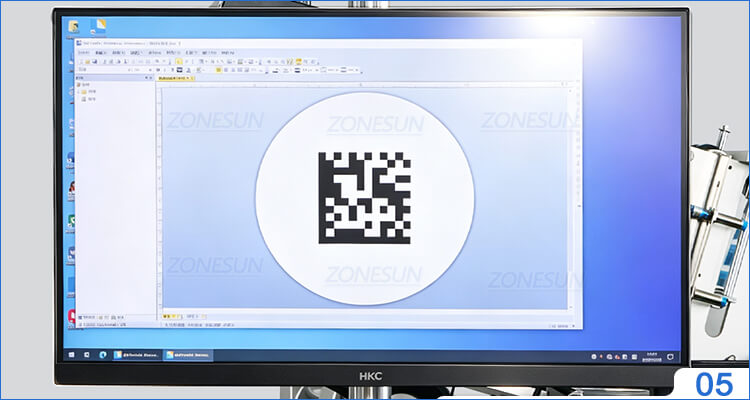

Computer Editing
The label information can be edited through computer easily.

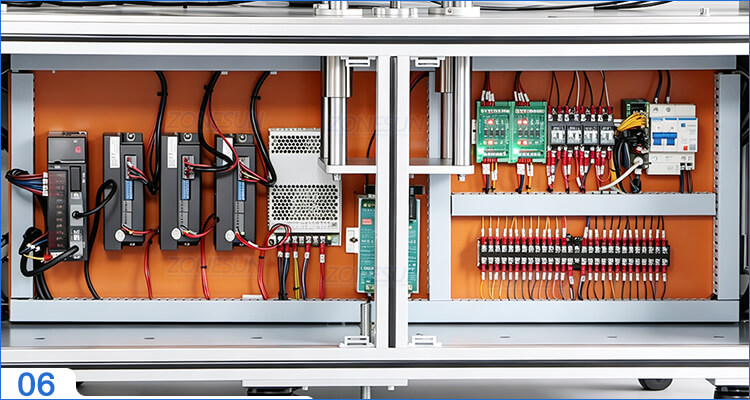

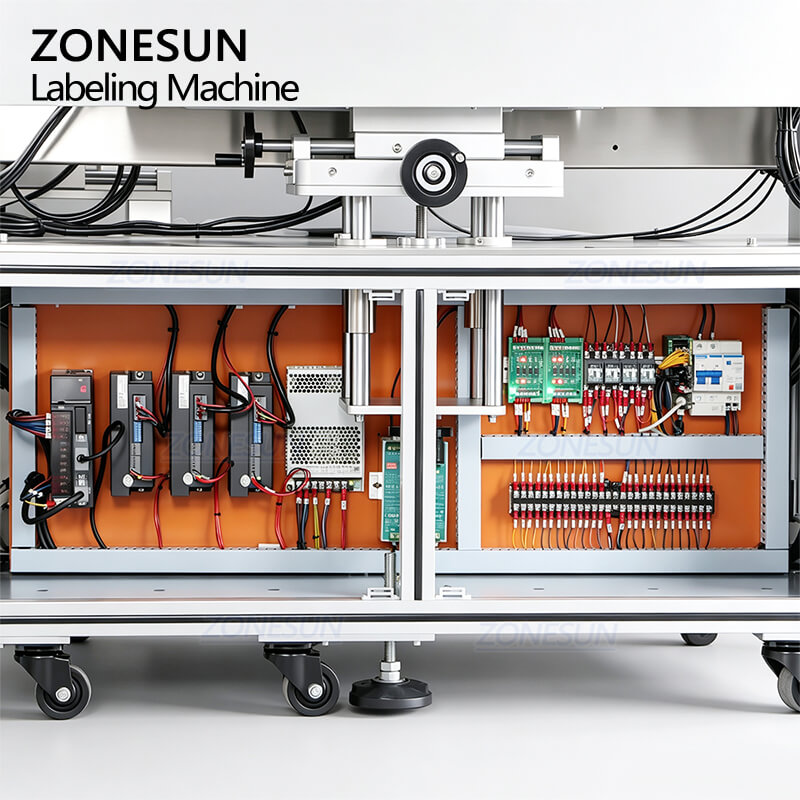

Electric Circuits
Electric circuits are arranged orderly for smooth and reliable operation.

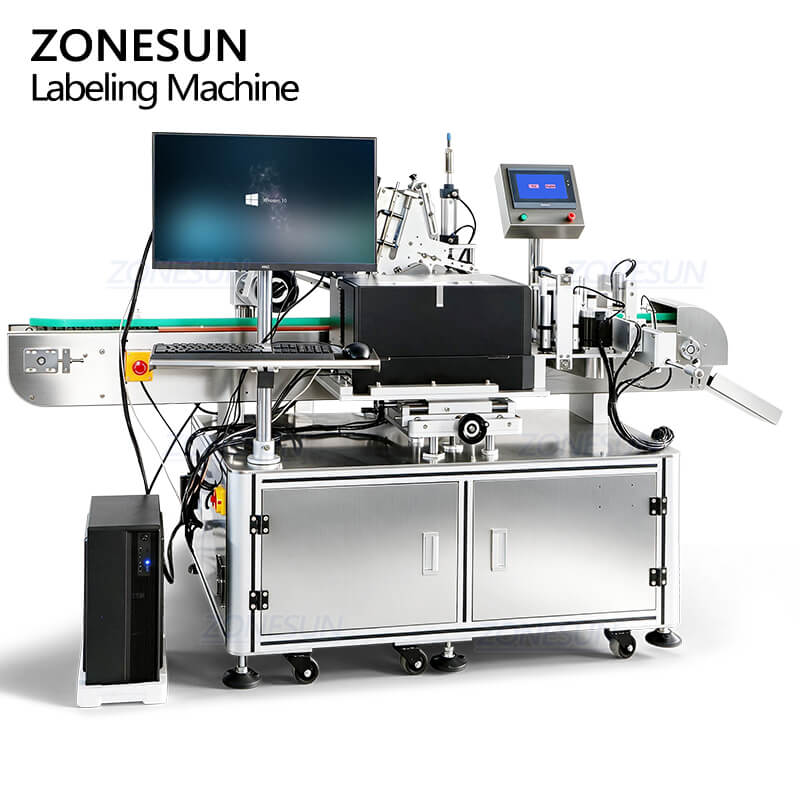

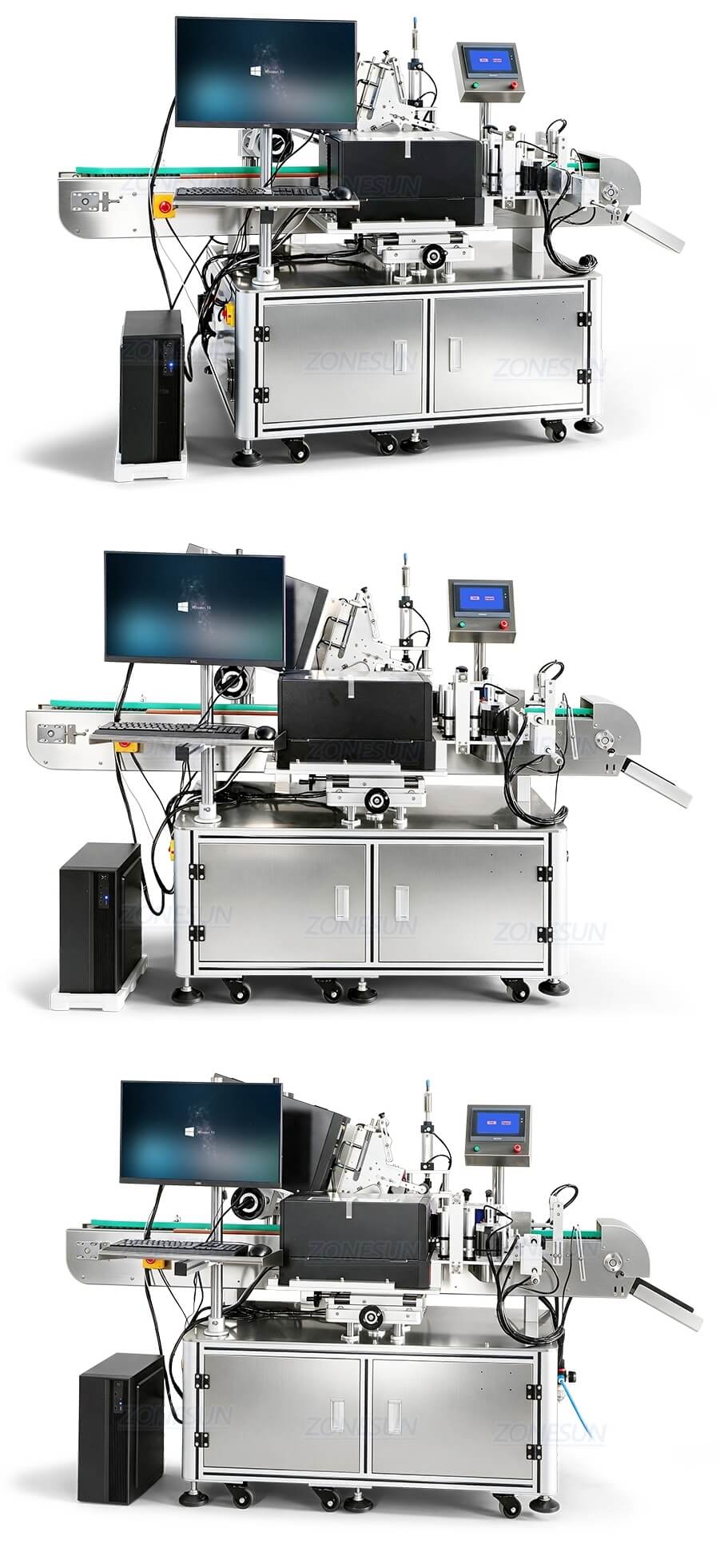

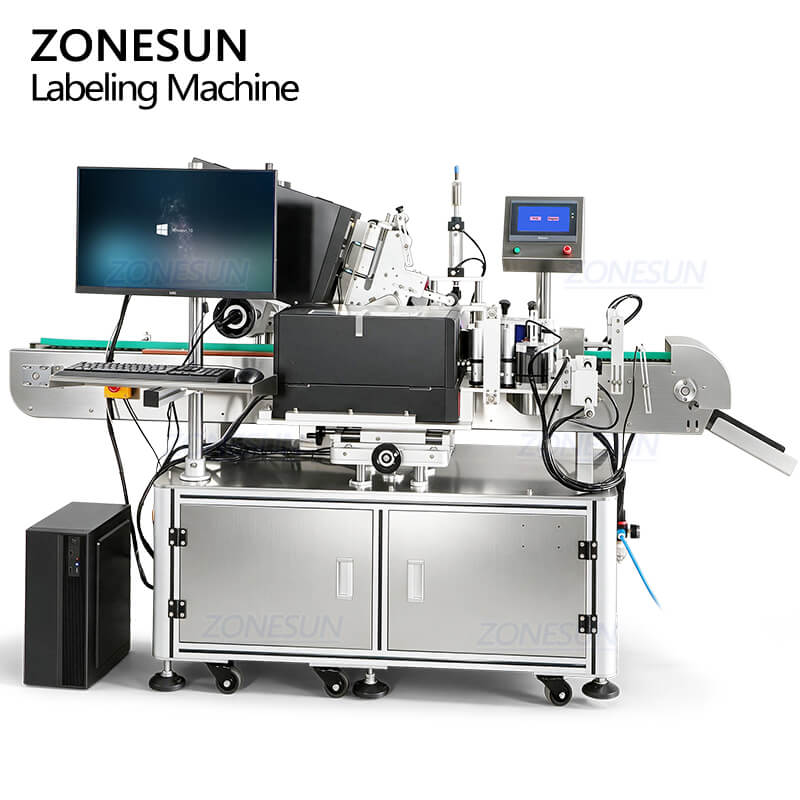

Product Real Shot
