ZONESUN ZS-TB70DM Labeling Machine With Palletizing Machine
Upgrade your wipes production with ZONESUN’s all-in-one labeling and stacking solution. This high-performance machine delivers precision double-sided labeling while its innovative dual-channel stacker ensures neat, high-speed organization. Designed for seamless production line integration, it features intuitive PLC touch-screen controls and optional date coding. Minimize manual labor and maximize throughput with this durable, industrial-grade automation system.
$61,999.00
Share to
Product Description
Upgrade your wipes production with ZONESUN’s all-in-one labeling and stacking solution. This high-performance machine delivers precision double-sided labeling while its innovative dual-channel stacker ensures neat, high-speed organization. Designed for seamless production line integration, it features intuitive PLC touch-screen controls and optional date coding. Minimize manual labor and maximize throughput with this durable, industrial-grade automation system.
Product Applications
Product Parameter
| Machine model | ZS-TB70DM |
| Power supply | 110/220V 50-60Hz 3.5kW |
| Working speed | About 20-28pcs/min(based on 3 packs per bundle) |
| Suitable product size | 180*110*65mm(Customizable) |
| Labeling accuracy | ±2mm |
| Label width | ≤150mm(Customizable) |
| Roll inner diameter | φ75mm |
| Roll outer diameter | Max 320mm |

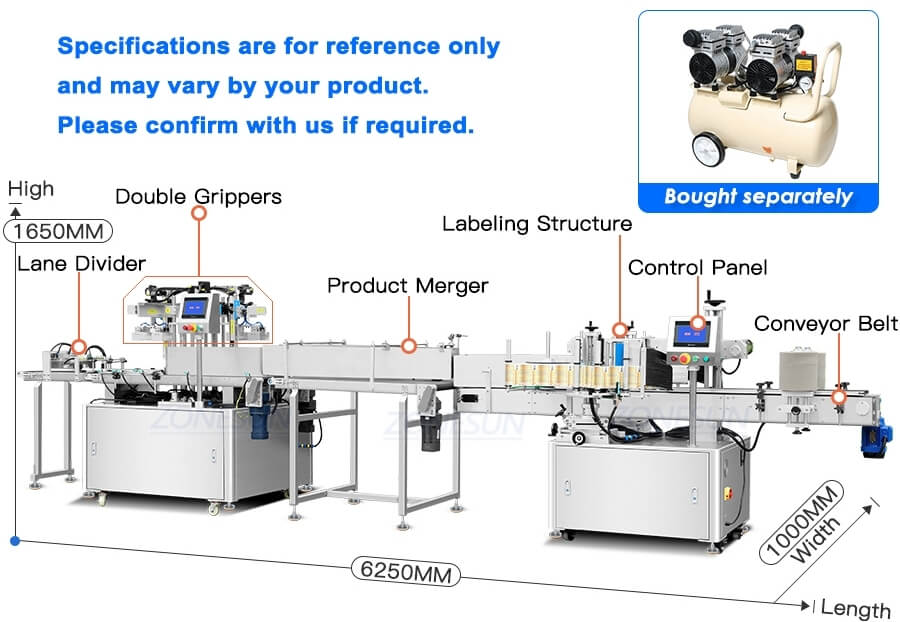

| Machine size | About 6250*1000*1650mm(L*W*H) |
| Machine weight | About 750kg |
| Package size | About 2520*1080*1760mm+
1400*910*1350mm(Stacker) 1110*1420*1690mm(Labeling machine) |
| Package weight | About 530+118+380kg=1028kg |
Product Details

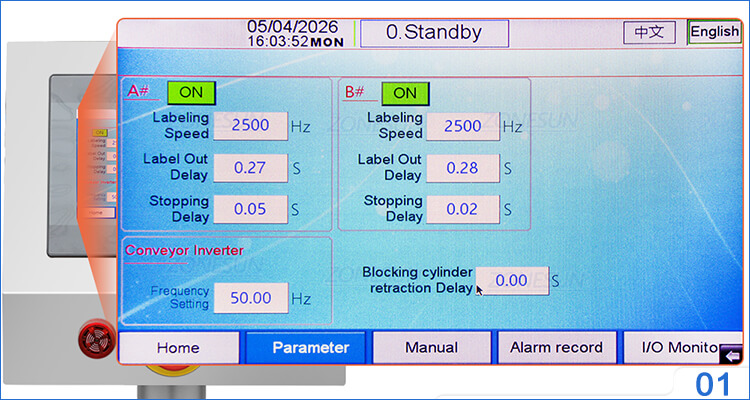

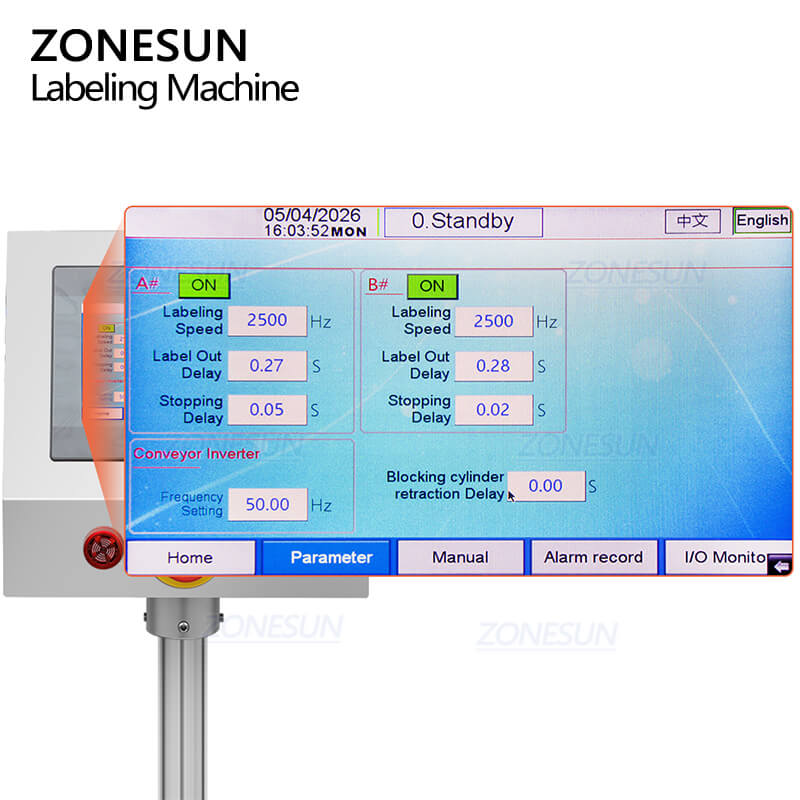

Control Panel
Allows for intuitive data monitoring and quick parameter adjustment.

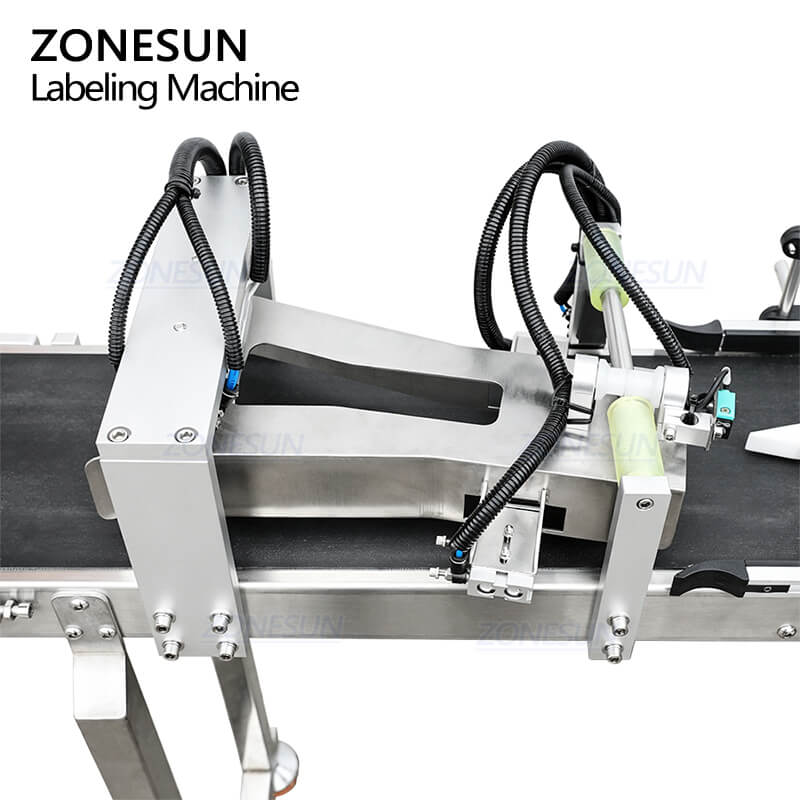

Lane Divider
Separates and organizes product flow into two lanes for smooth stacking.

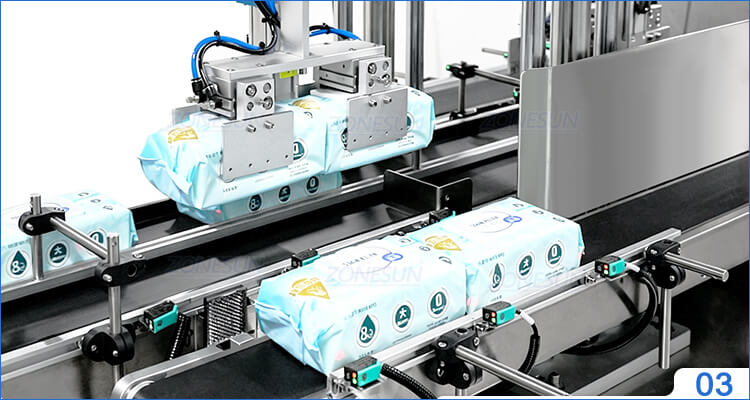

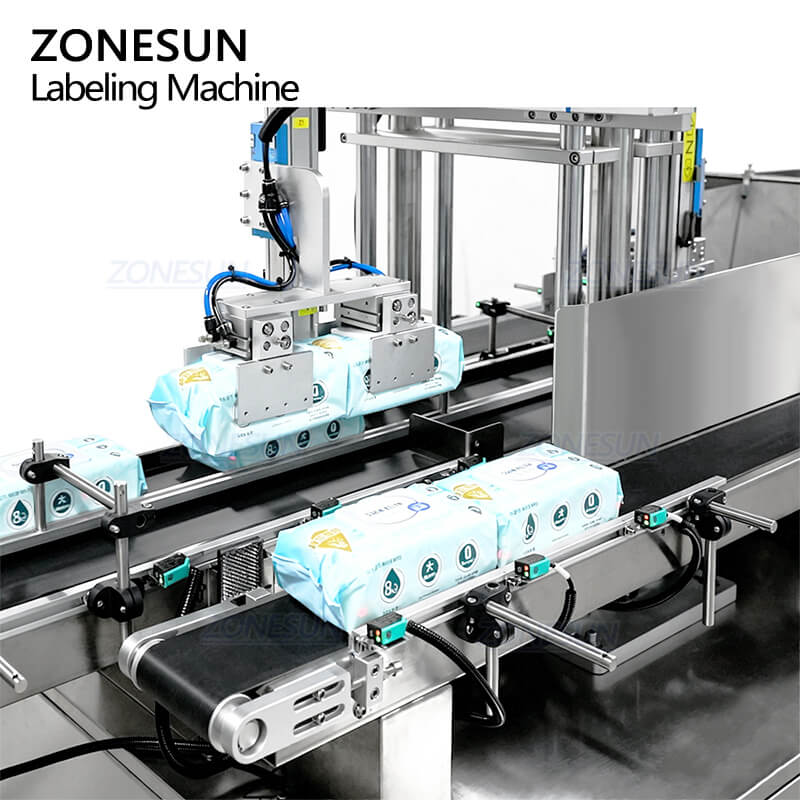

Stacking Structure
Uses two grippers to pick and stack products automatically.

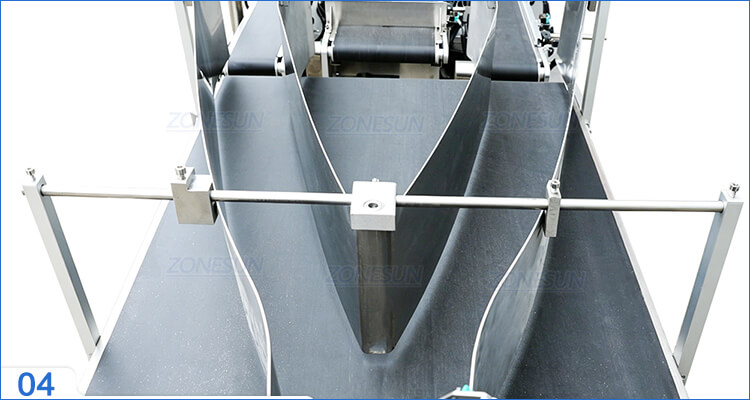

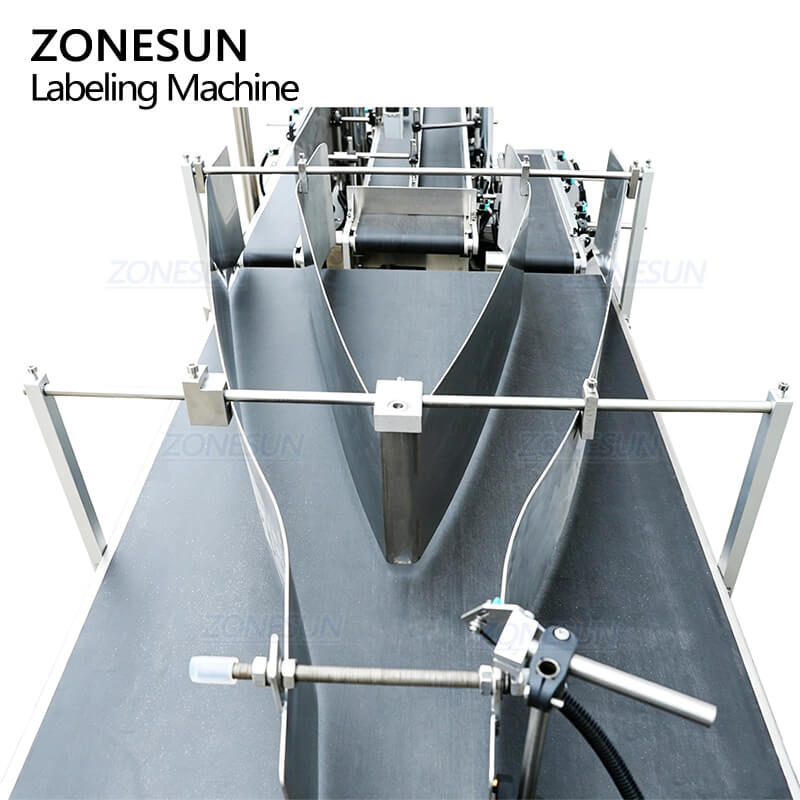

Product Merger
Makes two flows of stacked products into one lane, ensuring smooth labeling.

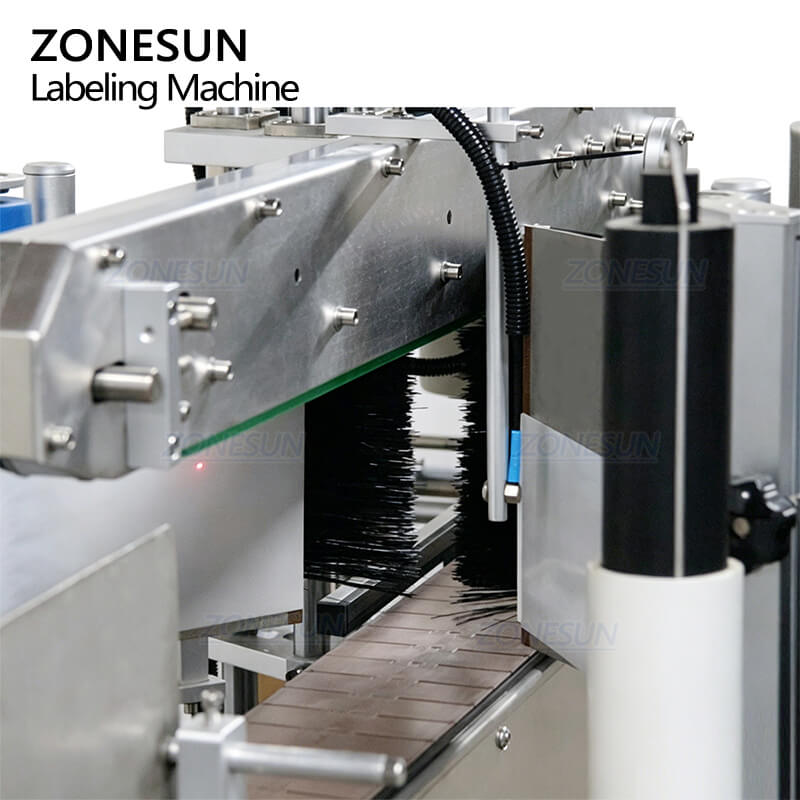

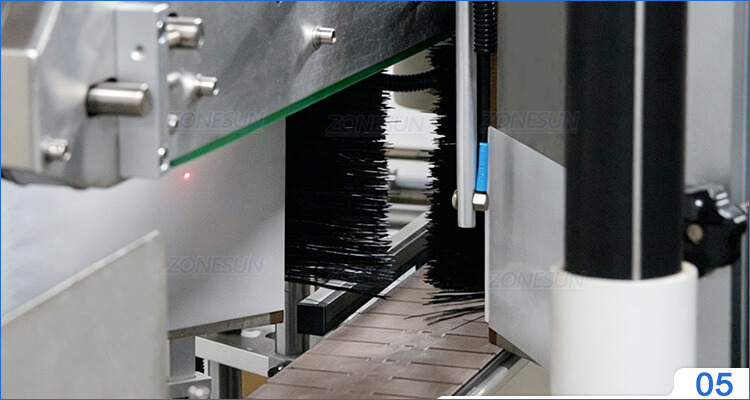

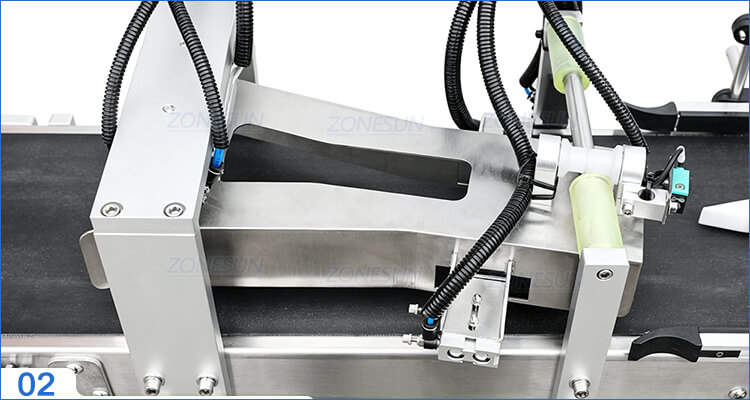

Labeling Structure
Applies labels to double sides of products. Brush ensures there are no bubbles under labels.

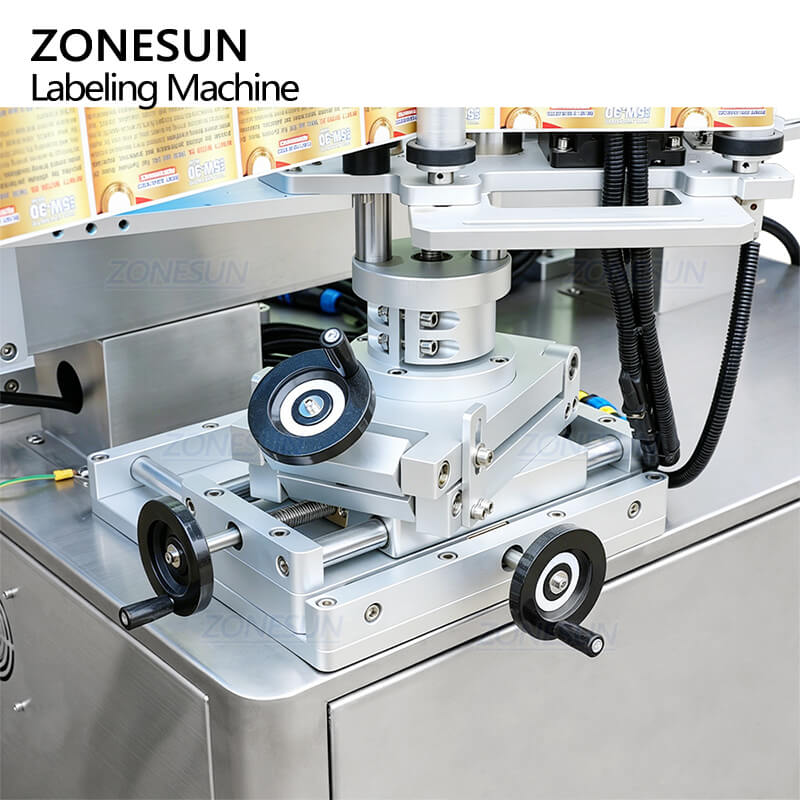

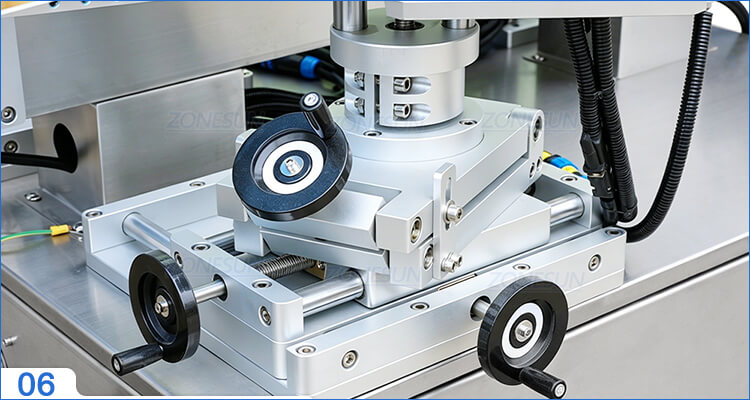

Adjustment Hand Wheel
Allows for fine-tuning of label dispensing heads, ensuring consistent accuracy.

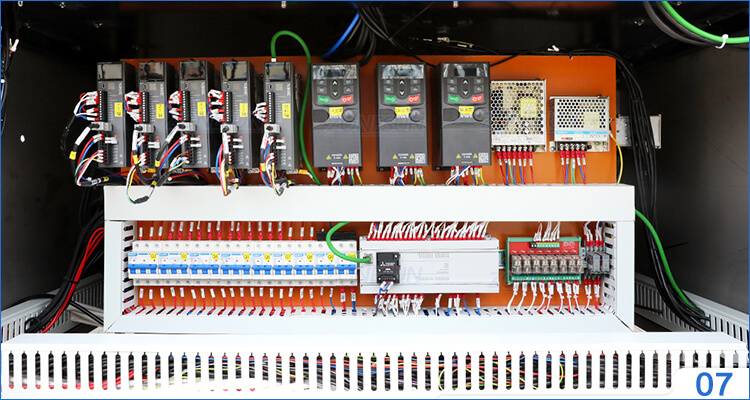

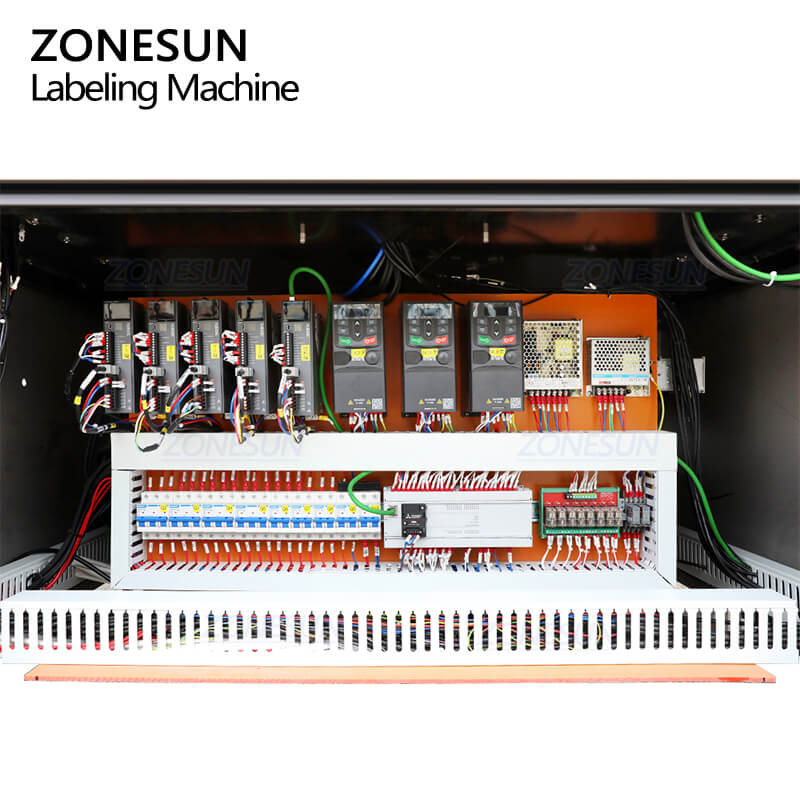

Electrical Control Components
Neat wiring and components ensure stable machine performance and easier maintenance.

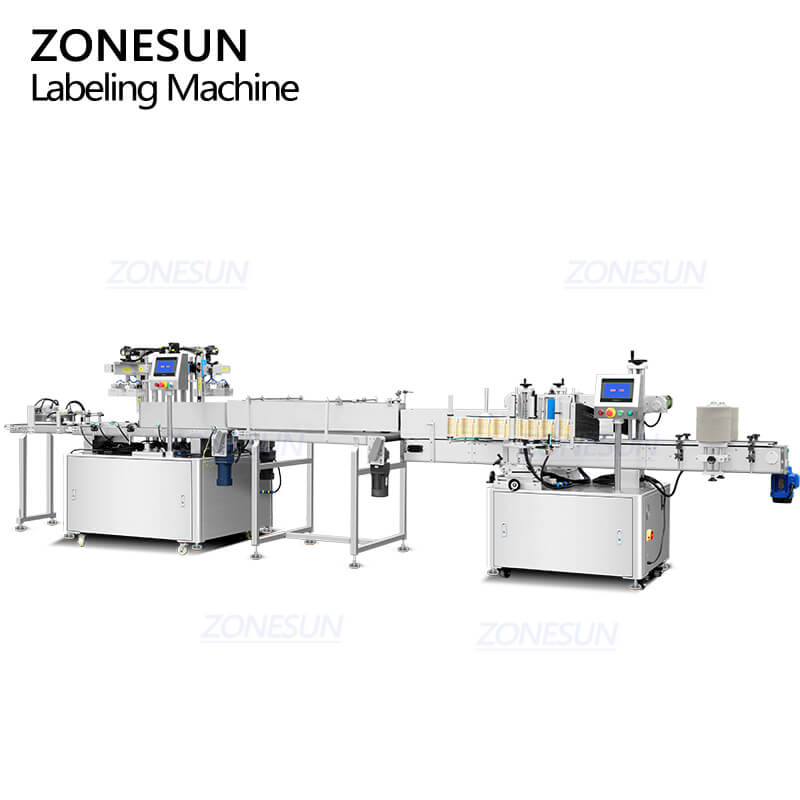

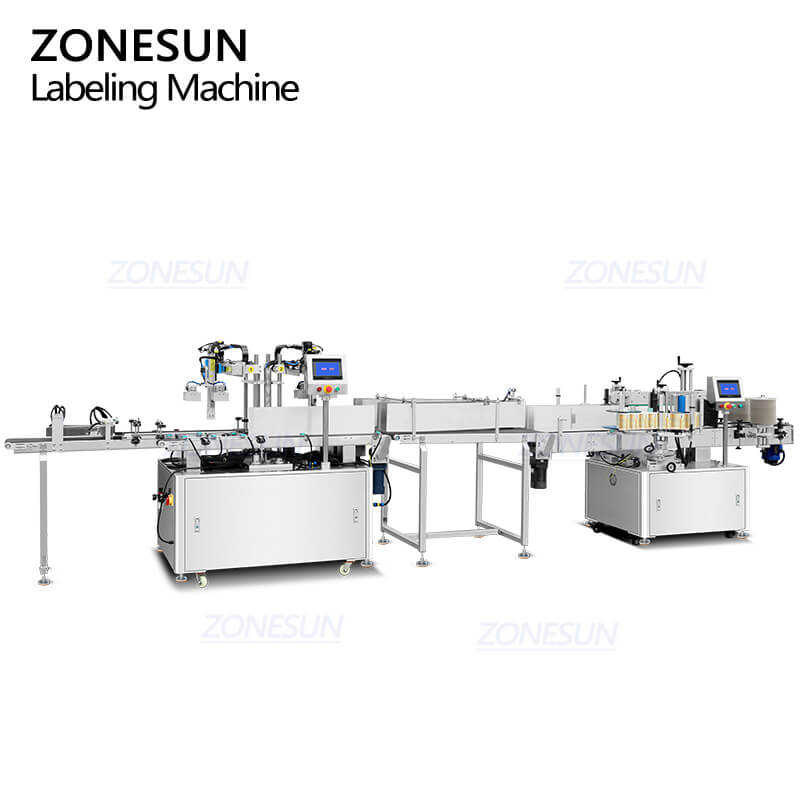

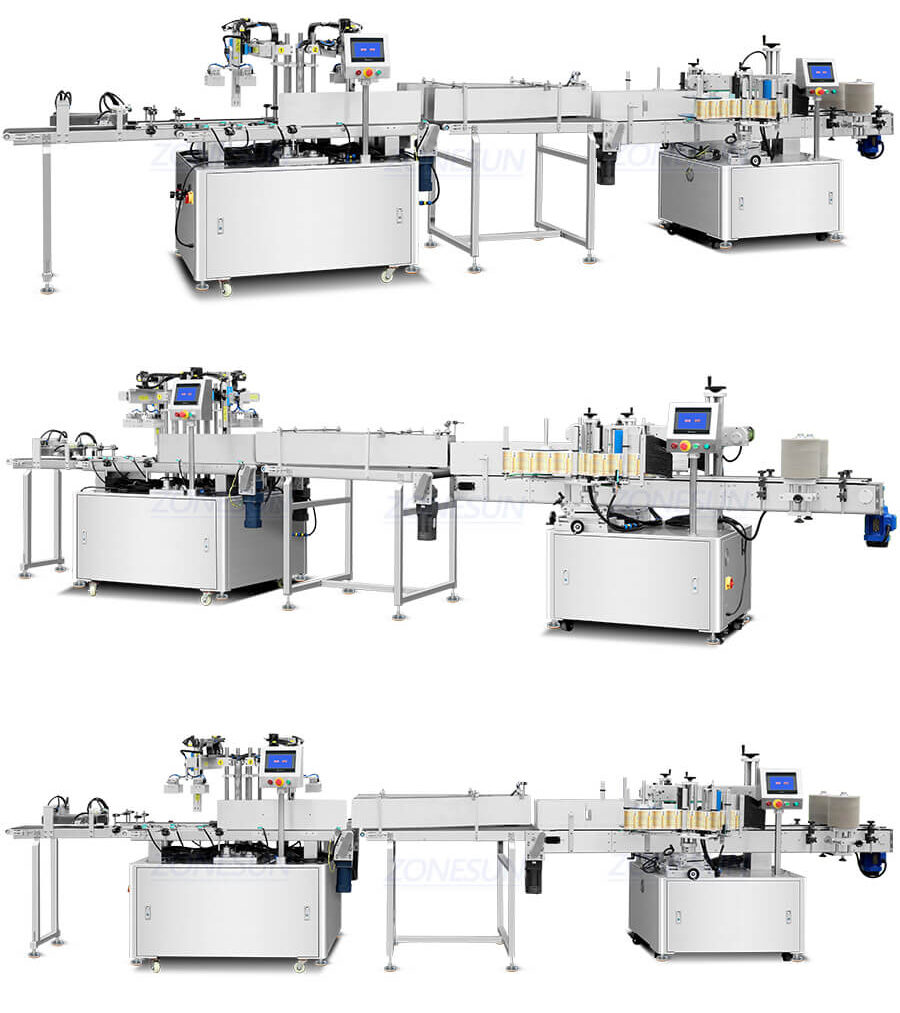

Product Real Shot
