ZONESUN ZS-TB501R Round Square Bottle Labeling Machine

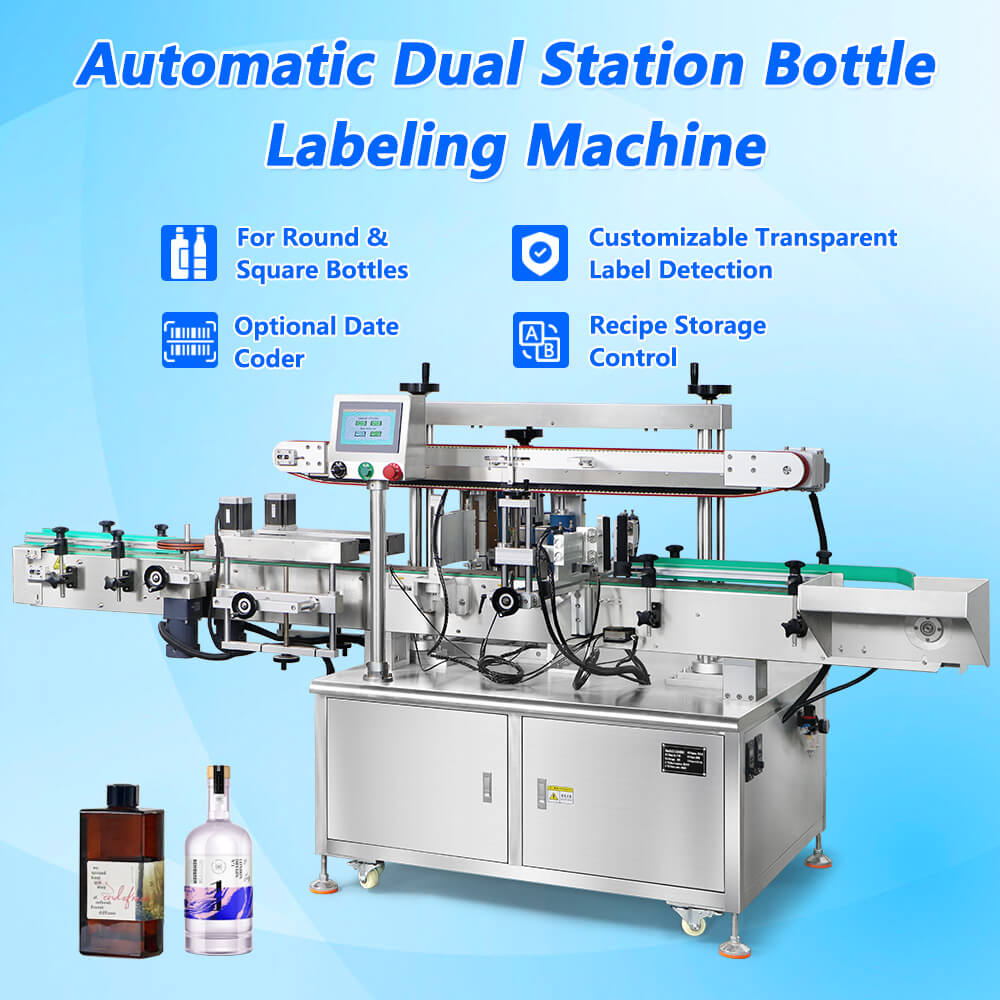

This bottle labeling machine has two labeling stations set along one conveyor. It is built for round and square bottles, with the stations spaced to suit each body shape, and the control keeps recipes, so a saved bottle and label setting can be recalled by product. A date coder can be added as an option, and the label sensor can be set to read transparent film labels.
Original price was: $11,299.00.$10,899.00Current price is: $10,899.00.
Share to
Product Description
This bottle labeling machine has two labeling stations set along one conveyor. It is built for round and square bottles, with the stations spaced to suit each body shape, and the control keeps recipes, so a saved bottle and label setting can be recalled by product. A date coder can be added as an option, and the label sensor can be set to read transparent film labels.
Product Applications
This machine labels round and square bottles, and the panels show what that covers. Square amber perfume bottles carry a flat front label, square liquor style bottles carry a body label, while round wine bottles, pump bottles, plastic bottles and glass tonic style bottles take the label around the curve. One unit therefore covers a range that mixes flat sided and cylindrical bodies, with the label set to the panel or to the circumference as the bottle requires.
Product Parameter
| Machine Model | ZS-TB501R |
| Voltage | 110/220V, 50-60HZ |
| Label Width | 20-120 mm |
| Label Height | 15-150 mm |
| Suitable Bottle Size | (L)20-100 mm*(W)30-100 mm*(H)60-280 mm (Customizable) |
| Outside Diameter of Standard Roll | φ300 mm |
| Inside Diameter of Standard Roll | φ76 mm |
| Labeling Accuracy | ±1.0 mm |
| Labeling Speed | 20-40 bottles/min |
| Machine Size | About 3040*1365*1660mm(L*W*H) |
| Packaging Size | About 3270*1570*1750 mm(L*W*H) |
| Package Weight | About 850 kg |
Product Details
Touchscreen Control Panel
The touchscreen control panel stores labeling recipes and recalls format parameters for different products.
Bottle Clamping Conveyor
The clamping conveyor holds bottles in position during transport and labeling. It works with the top hold-down conveyor to stabilize square bottles.
Square Bottle Labeling Station
The square-bottle station applies one label across three adjacent sides of compatible square bottles.
Round Bottle Labeling Station
The three-roller positioning station supports single-side, double-side, and wrap-around labeling for round bottles.
Collection Tray
The collection tray receives labeled bottles after they leave the labeling stations.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.
Product Real Shot
