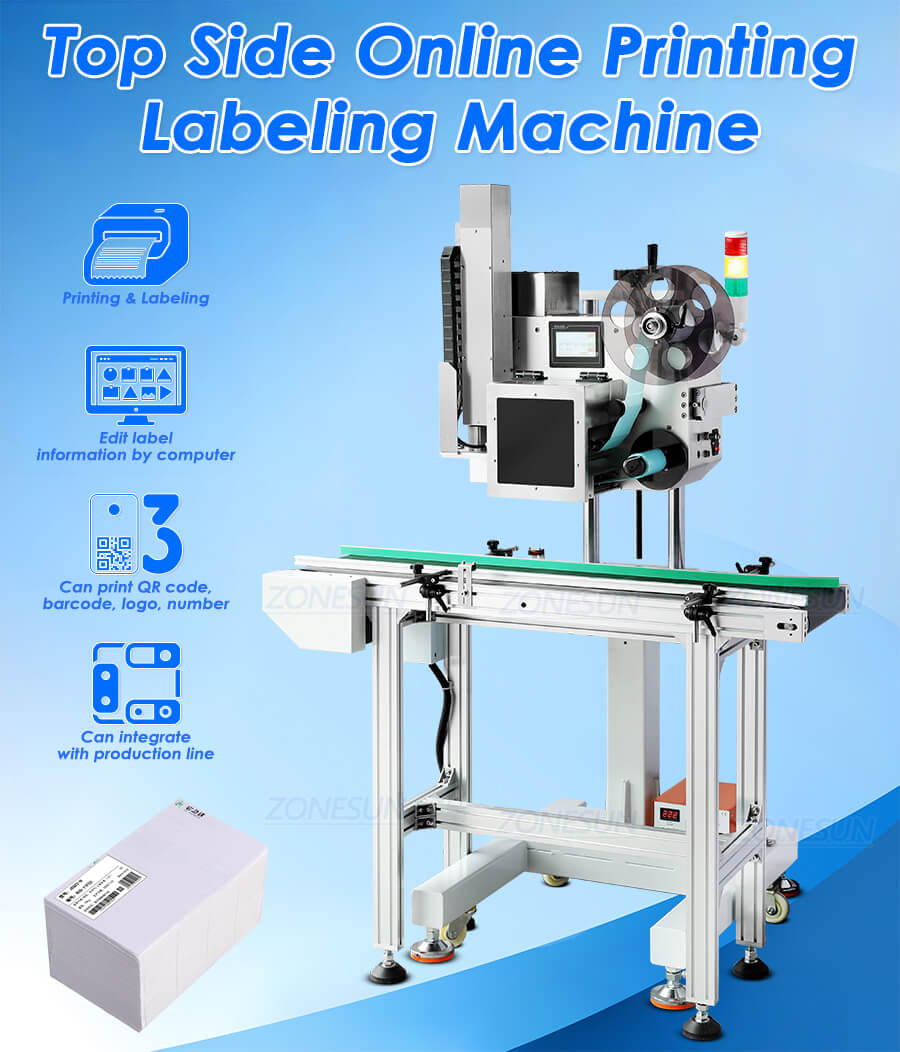

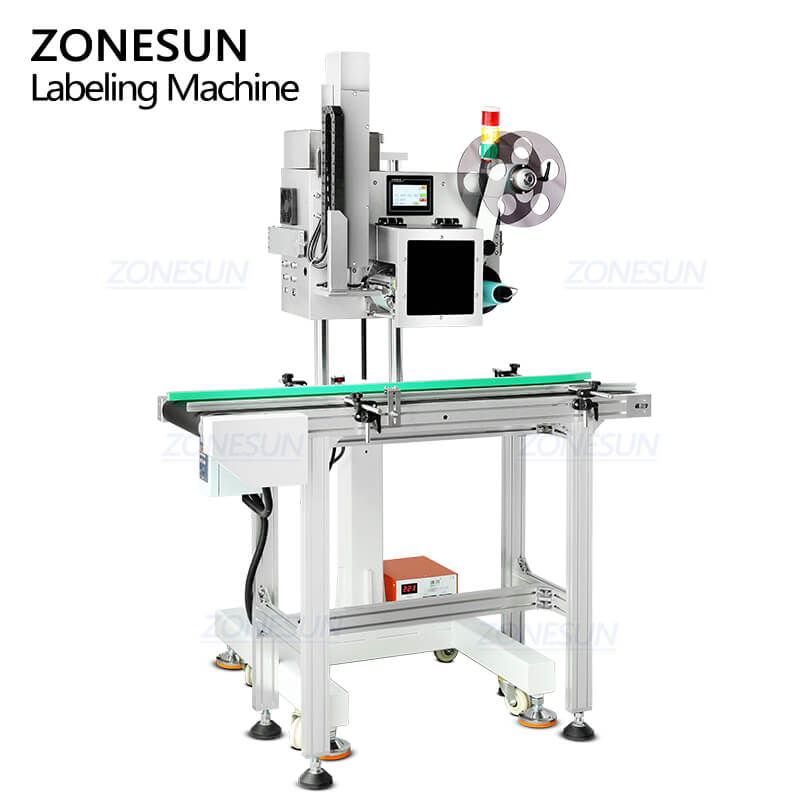

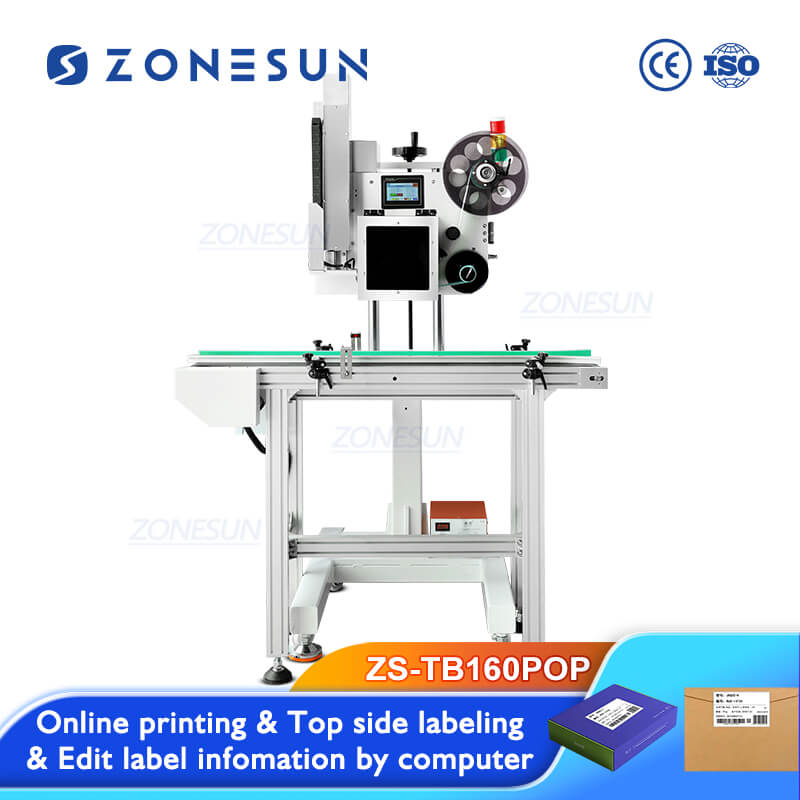

ZONESUN ZS-TB160POP Flat Surface Online Printing Labeling Machine
This is an advanced online printing labeling machine on the top sides of products. The speed of this printer ranges from 10 to 25 pcs/min. This type of printer uses thermal printing technology without any inks or toners.
$9,699.00
Share to

Product Description
This is an advanced online printing labeling machine on the top sides of products. The speed of this printer ranges from 10 to 25 pcs/min. This type of printer uses thermal printing technology without any inks or toners.
Product Application

Product Parameters
| Machine model | ZS-TB160POP |
| Power supply | 110/220V 50-60HZ 600W |
| Printing method | Thermal transfer/thermal sensitive |
| Printing resolution | 200dpi / 300dpi |
| Printing speed | 2-10 inches/S / 2-7 inches/S |
| Printing range | 25-180mm(L)*25-104mm(W) |
| Paper roll size | ID= Φ76mm OD=250mm |
| Backing paper size | 25.4-106mm(W) *0.06-0.30mm(thickness) |
| Ribbon | 450m(L)* 25-110mm(W), Max OD=90mm
(when winding the ribbon, the coated side faces outward) |
| Connection size | USB2.0 / network port |
| Labeling speed | 10-25pcs/min |
| Labeling accuracy | ±1-3mm (excluding product and label errors) |

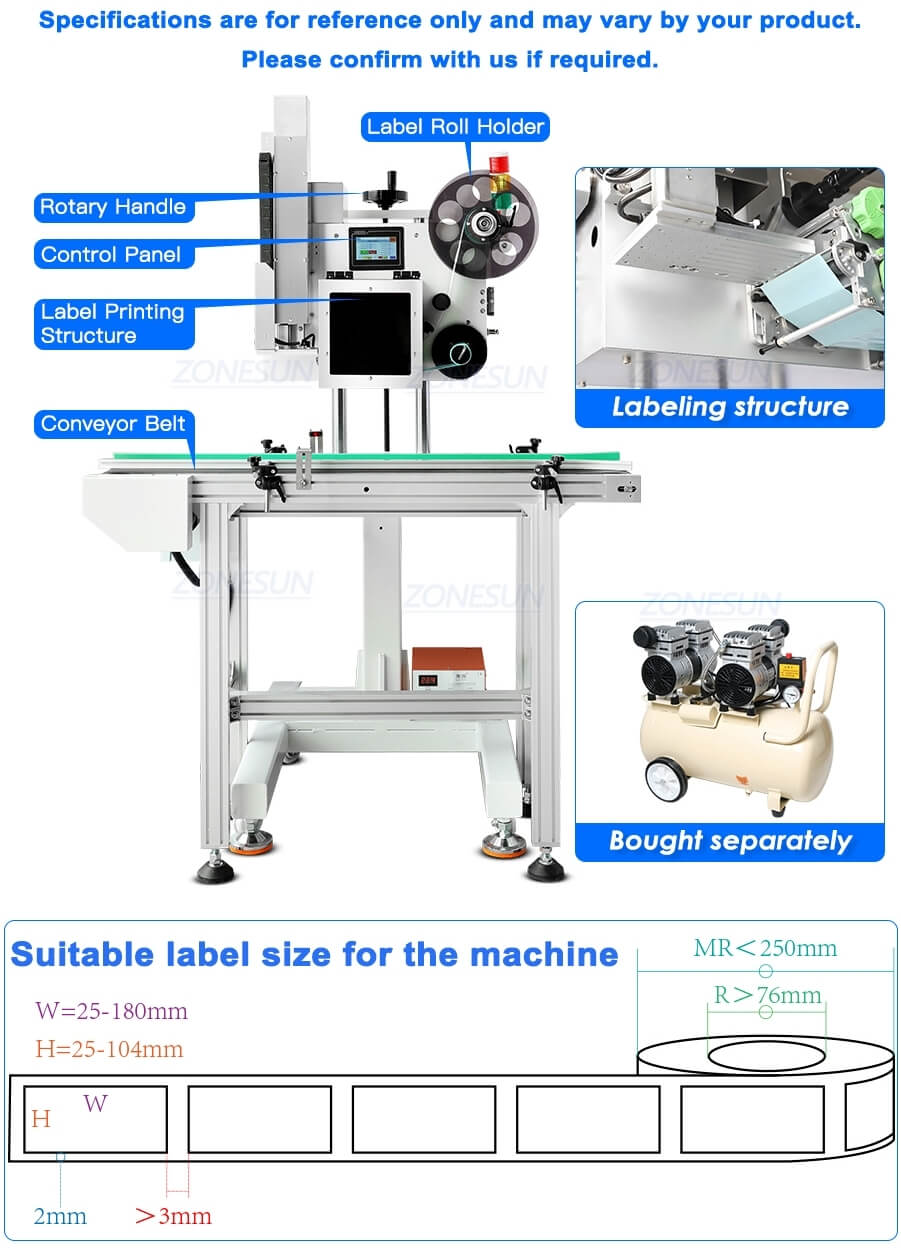

| Label size | 25-180mm(W)*25-104mm(H) |
| Print content | Text, serial number, date, pattern, one (two-dimensional) barcode and other identifications |
| Compressed air supply | 0.5MPa; 200L/min |

Product Details

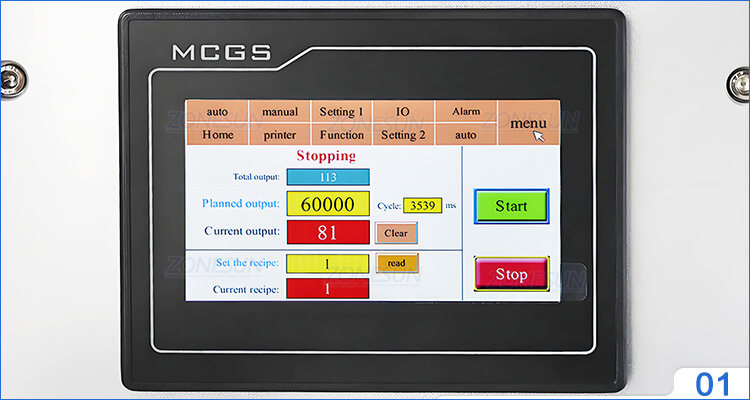

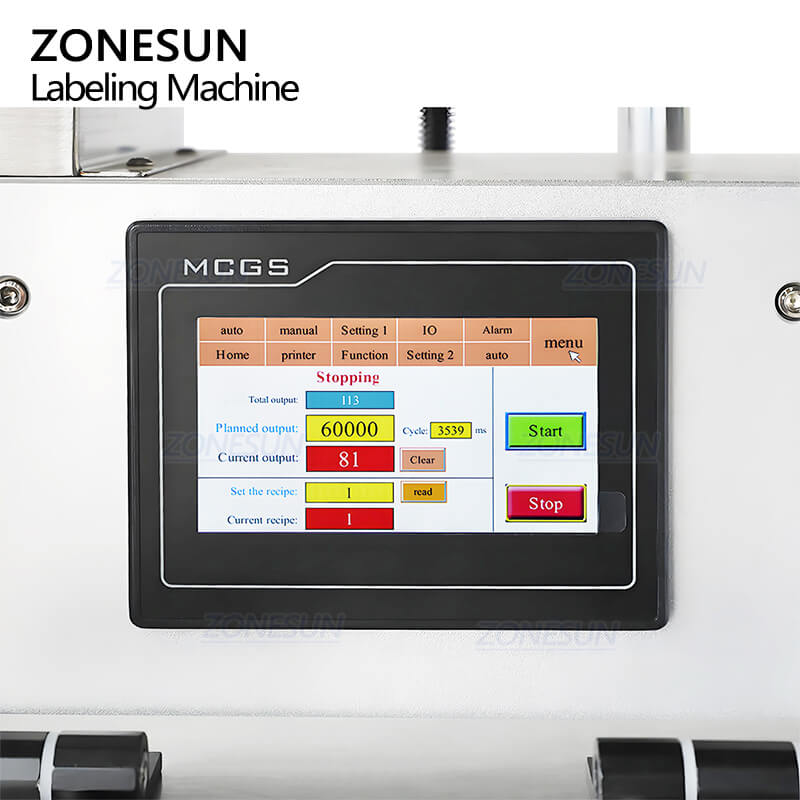

Control Panel
Operation language can be customized according to your needs.

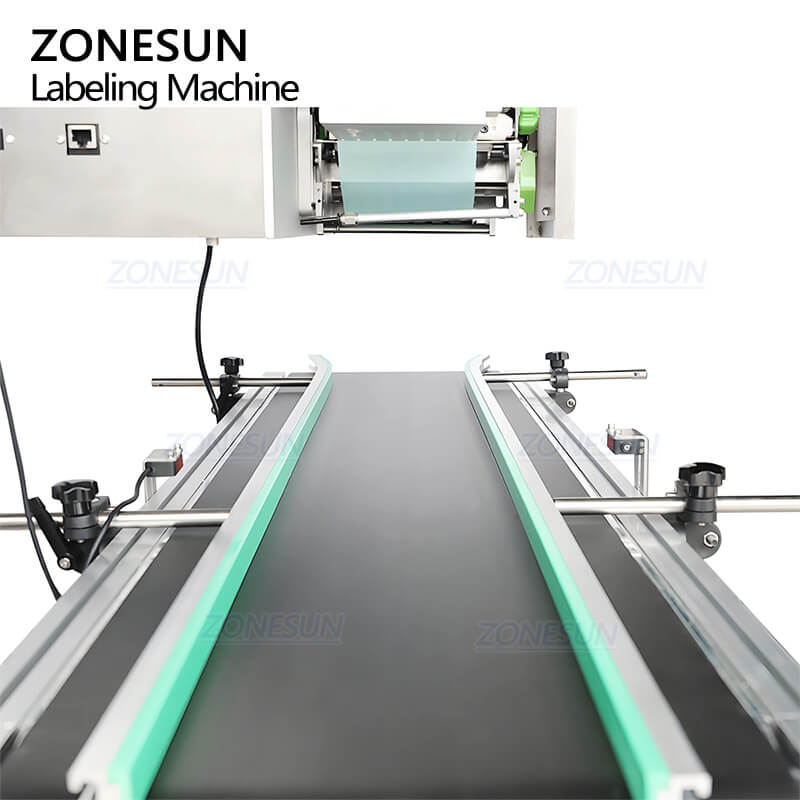

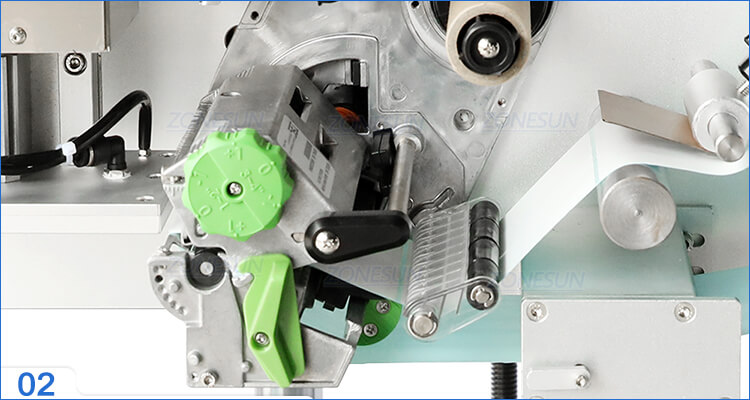

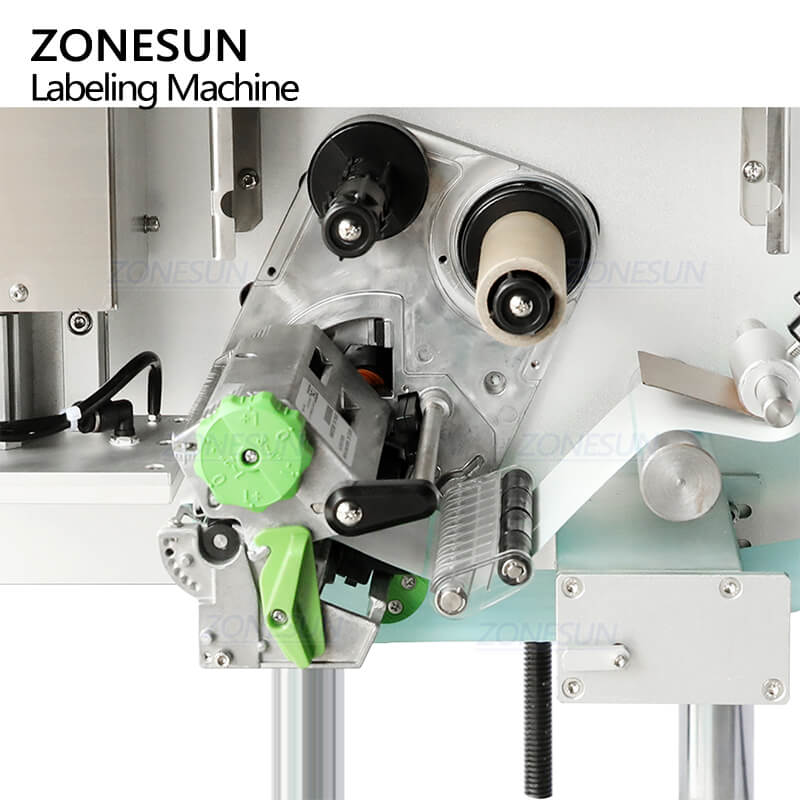

Label Printing Structure
Label information is edited by computer. It can print QR code, barcode, production date, logo.

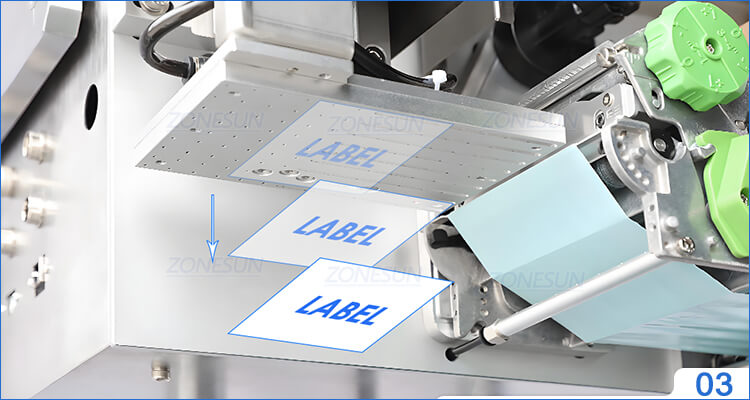

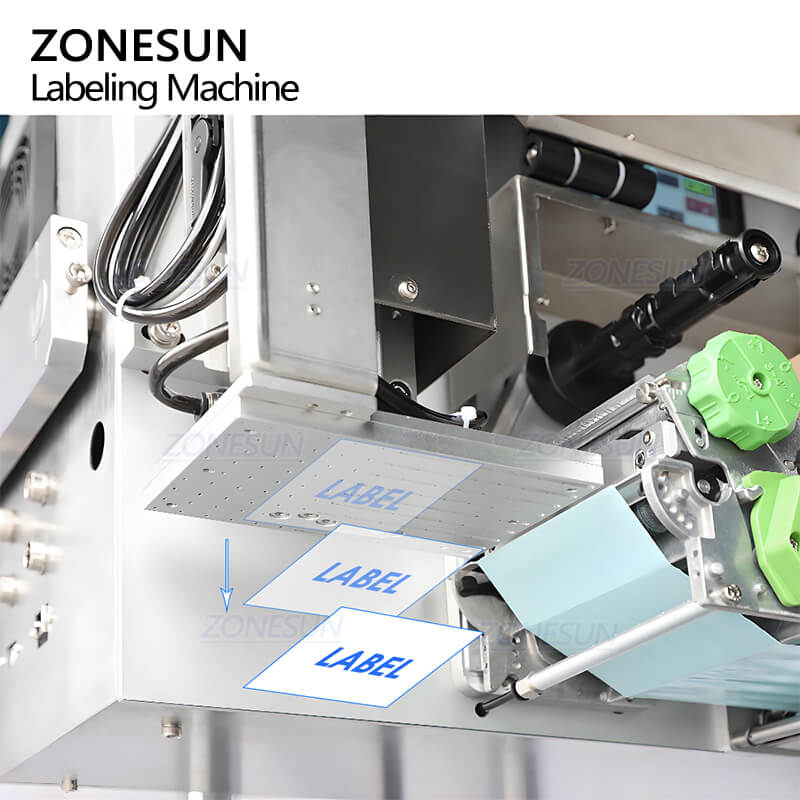

Labeling Structure
Can suck labels, push down and attach labels onto uneven products.

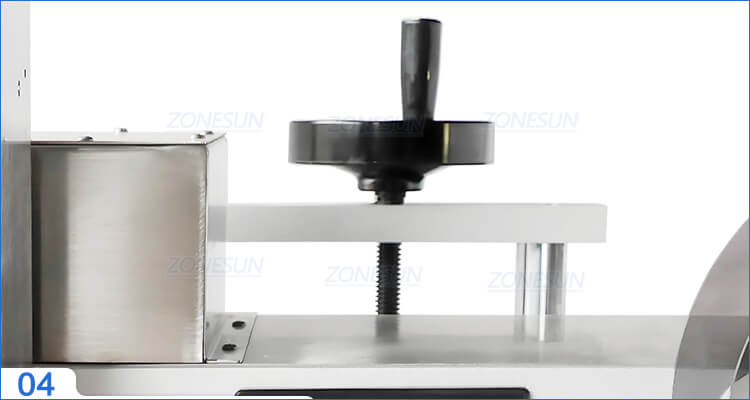

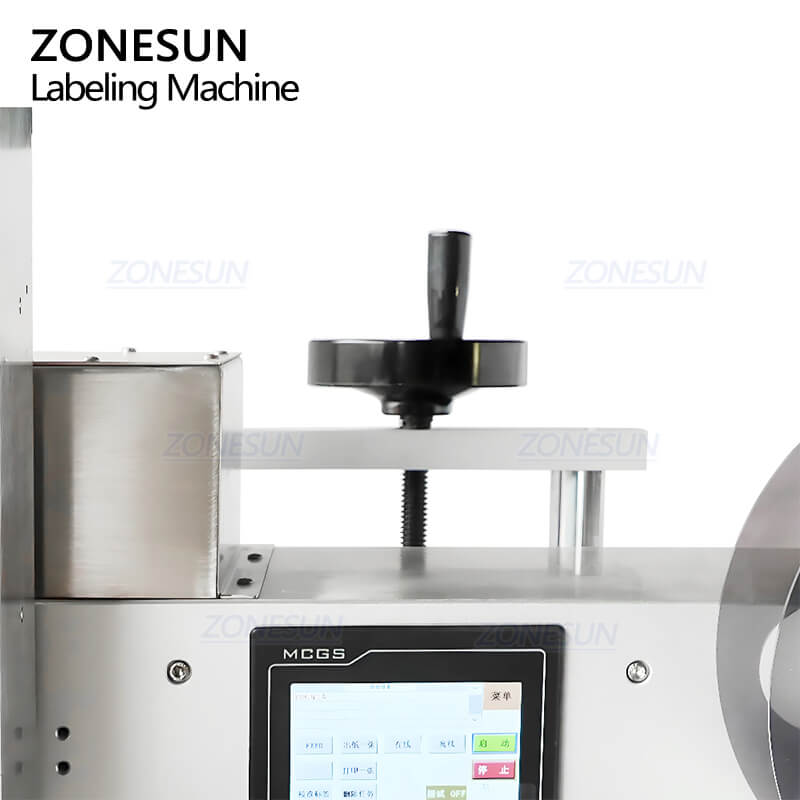

Adjustment Unit
Labeling structure position can be adjusted to ensure precise alignment and application.

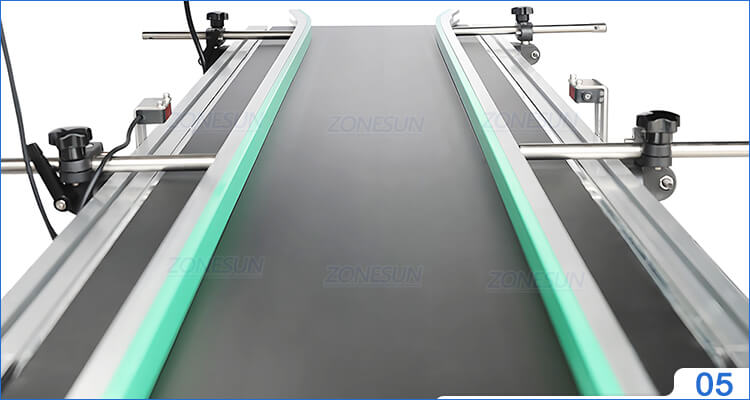

Conveyor Belt
Conveyor size can be customized as your production need.

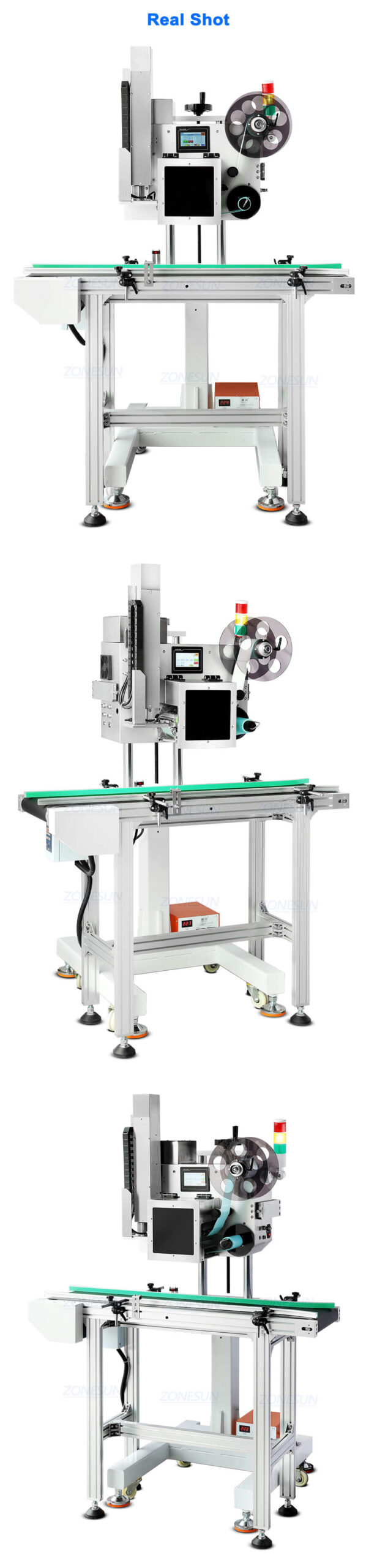

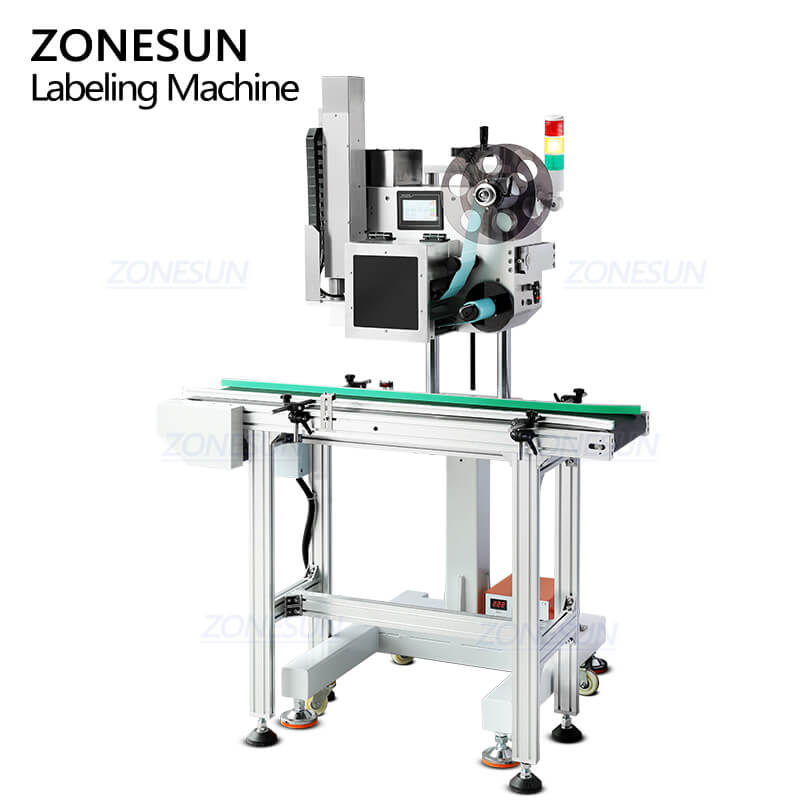

Product Real Shot
