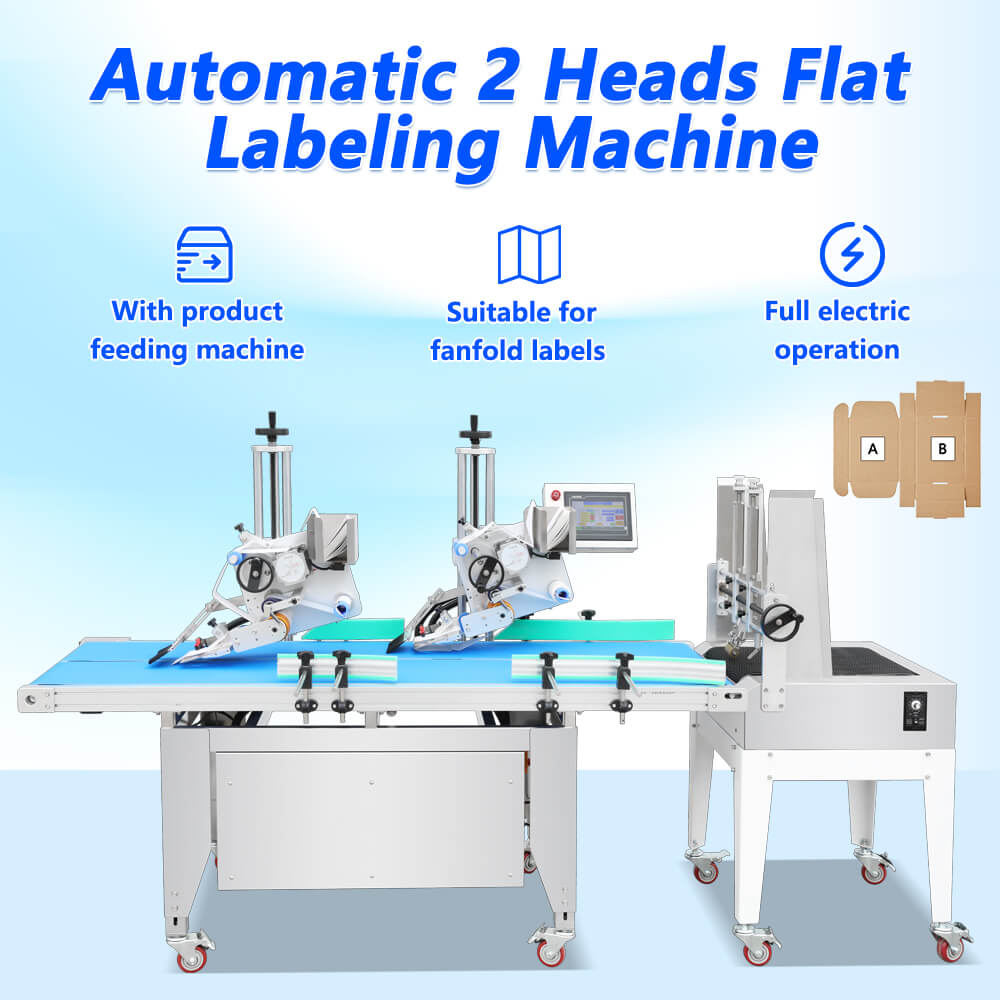

ZONESUN ZS-TB160P2 Double Head Cardboard Flat Surface Labeling Machine
This label applicator is equipped with stack feeder, which can separate stacked flat carton box and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
Price range: $6,599.00 through $6,949.00
Share to
Product Description:
This label applicator is equipped with stack feeder, which can separate stacked flat carton box and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
Product Parameters:
| Machine model | ZS-TB160P2 |
| Power supply | 110V/220V 50-60Hz 1kW |
| Labeling speed | 50-100pcs/min(depending on product size) |
| Labeling accuracy | ±3mm(excluding product and label error) |
| Label dispensing speed | 37m/min |
| Conveying speed | 37m/min |
| Labeling object size | (L)160-420mm*(W)160-420mm*(Thickness)2-20mm |
| Label size | W≥40mm, H<120mm |
| Package size | About 2410*900*1530mm |
| Package weight | About 323kg |
Product Details:
Touchscreen Control Panel
Allows for easy parameter setting and real-time monitoring. Multiple languages are customizable.
Stack Feeder
Allows for separating and feeding stacked cardboard automatically.
Labeling Structures
For labeling two stickers on flat surfaces. Position of labeling structures can be adjusted as needed.
Conveyor System
The conveyor system is customizable in width and length for easy integration.It can also be optionally equipped with adjustable speed control to match production needs.
Intelligent Sensor
Can detect fanfold labels and ensure labeling accuracy.
