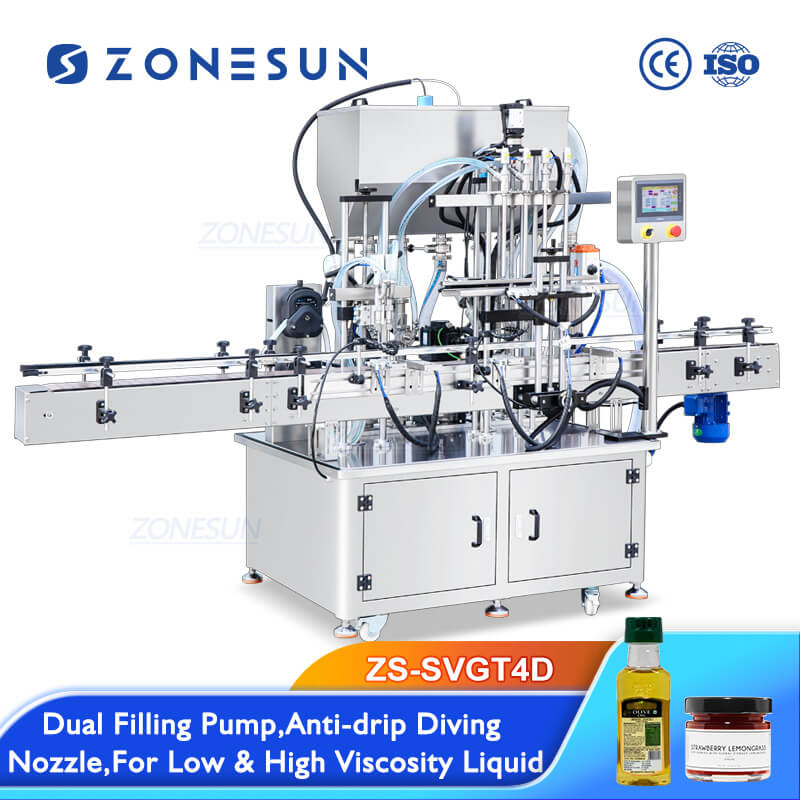

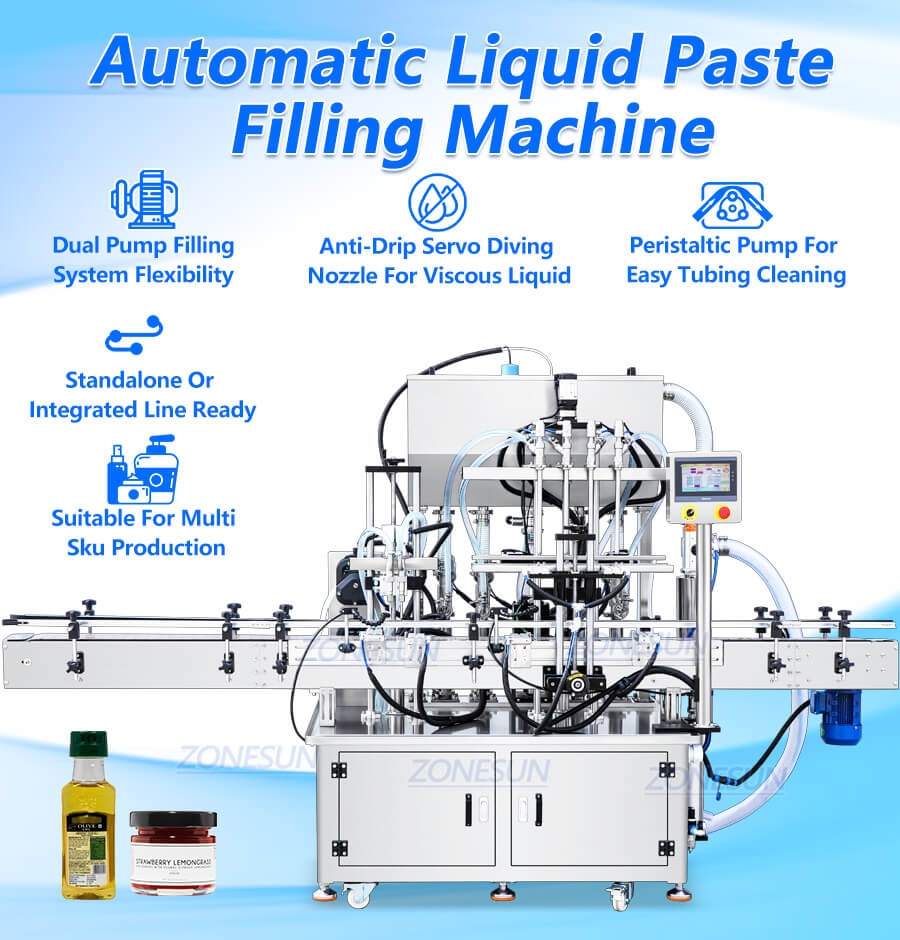

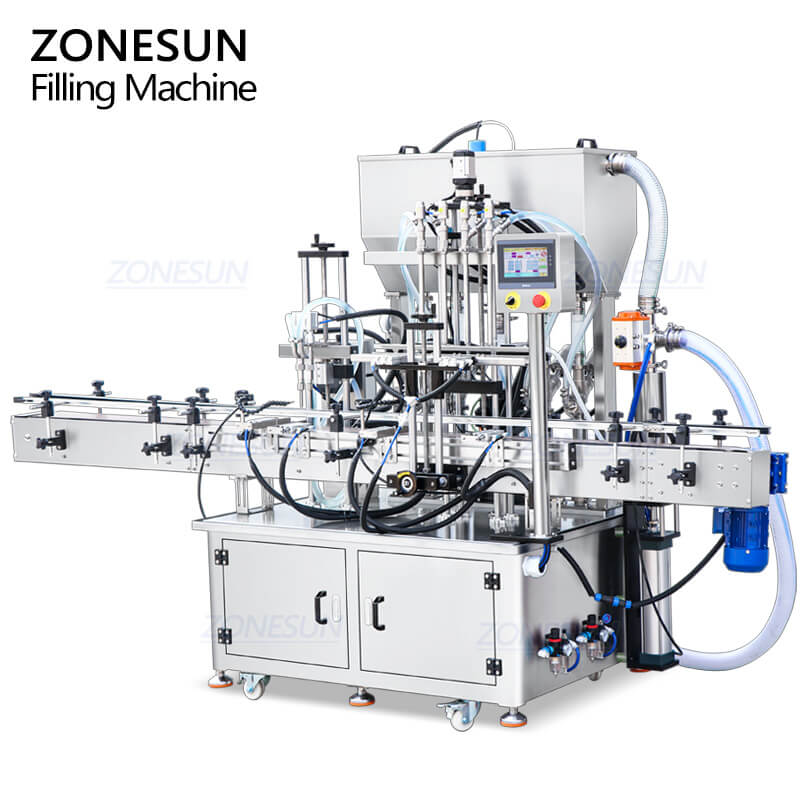

ZONESUN ZS-SVGT4D Liquid Paste Filling Machine
The automatic liquid paste filling machine offers flexible dual pump filling and anti-drip servo diving nozzles, making it ideal for both thin liquids and thick pastes. With easy-to-clean peristaltic pumps and support for standalone or integrated production lines, it delivers reliable performance for multi sku manufacturing.
Original price was: $13,799.00.$13,299.00Current price is: $13,299.00.
Share to
Product Description
The automatic liquid paste filling machine offers flexible dual pump filling and anti-drip servo diving nozzles, making it ideal for both thin liquids and thick pastes. With easy-to-clean peristaltic pumps and support for standalone or integrated production lines, it delivers reliable performance for multi sku manufacturing.
Product Applications
Product Parameter
| Machine Model | ZS-SVGT4D |
| Machine Voltage | 110/220V 50-60HZ 4KW |
| Filling Pump | Peristaltic Pump / Piston Pump |
| Recommend Filling Range | 30-300 ml(can be customized) |
| Max Flow Rate of Peristaltic Pump | 12L/min |
| Hopper Size | 90L |
| Filling Nozzle quantity | 2 / 4 |
| Working Capacity | About 20-70 BPM |
| Filling Accuracy | ±1% |
| Air Pressure | 0.5-0.8 Mpa |

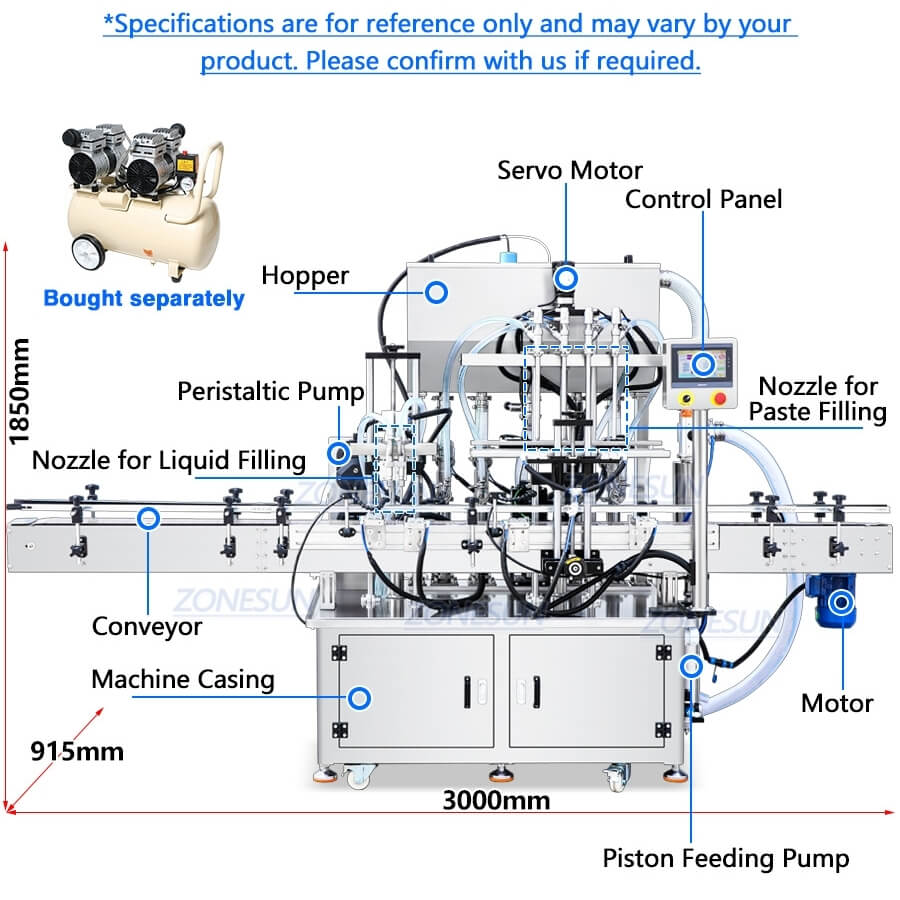

| Machine Size | About 3000*915*1850mm(L*W*H) |
| Package Size | About 1880*1070*2000mm(L*W*H) |
| Package Weight | About 496kg |
Product Details

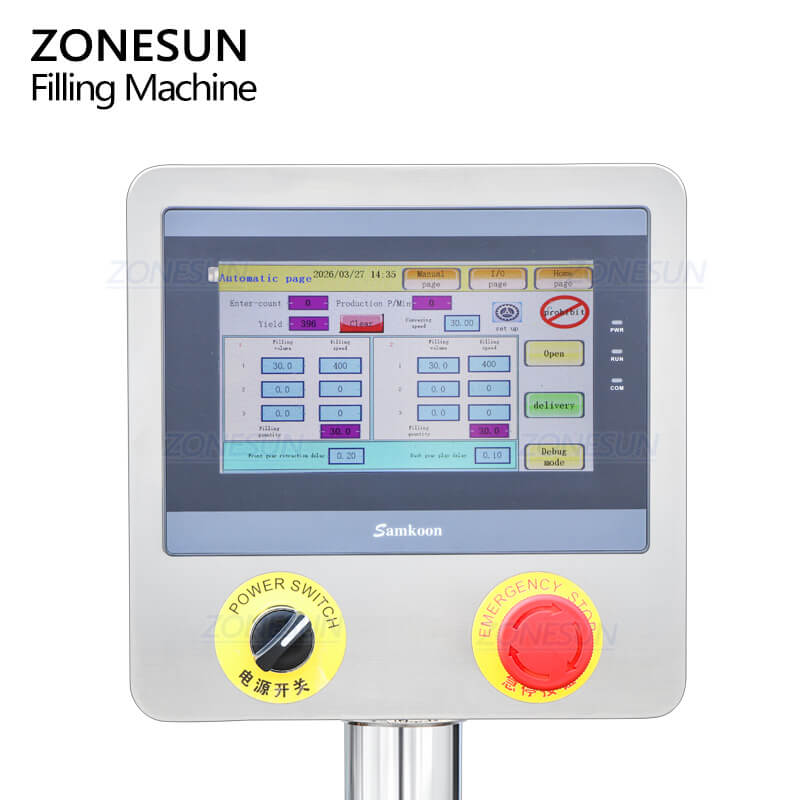

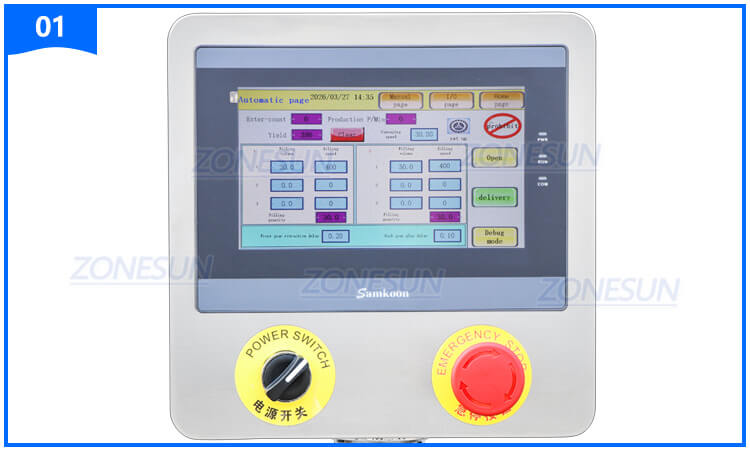

Touchscreen Control Panel
Customizable for quick adjustment of filling parameters for different lotion and cosmetic products.

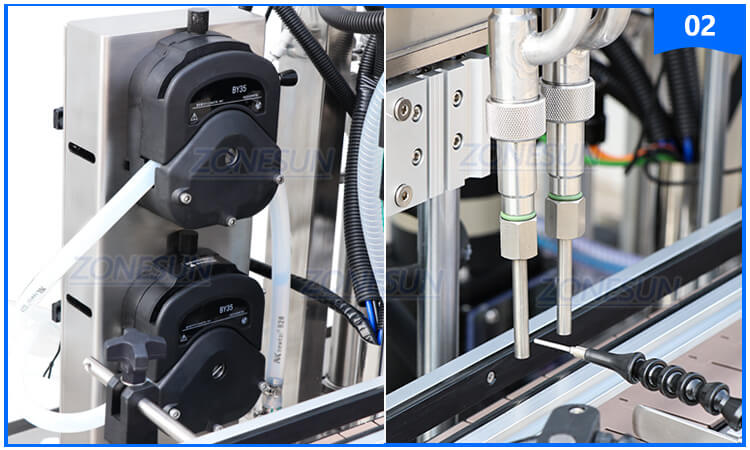

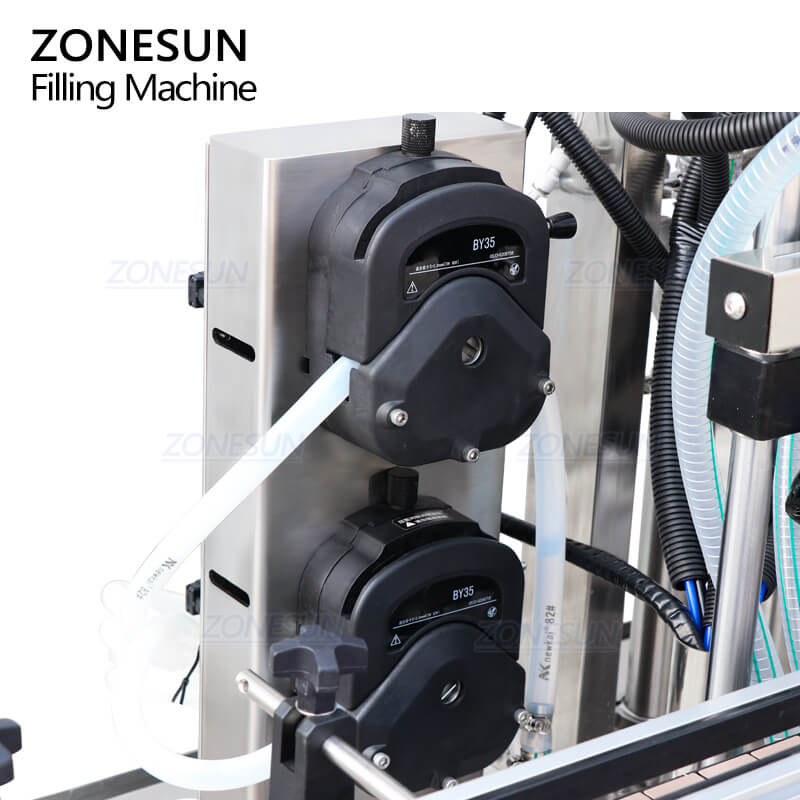

Peristaltic Pump Filling System
Handles low-viscosity liquids with easy tube replacement to reduce cross-contamination.
Servo Piston Pump Filling System
Different filling range are optional, set filling volume directly for high-viscosity materials.

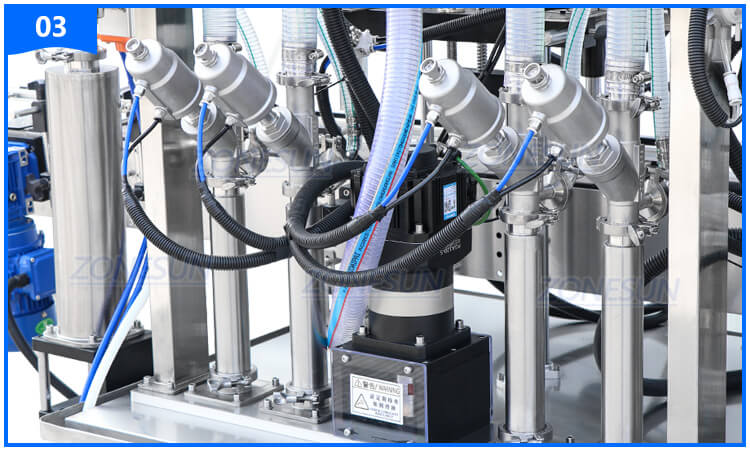

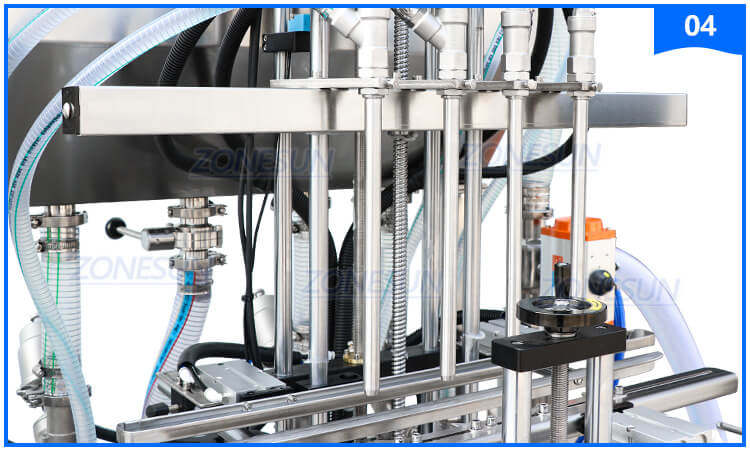

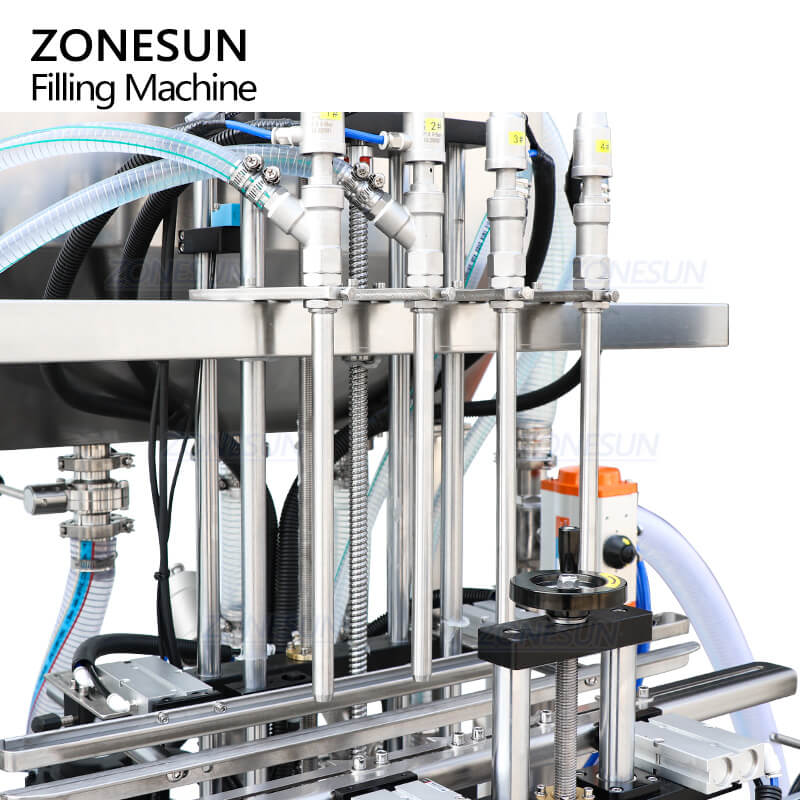

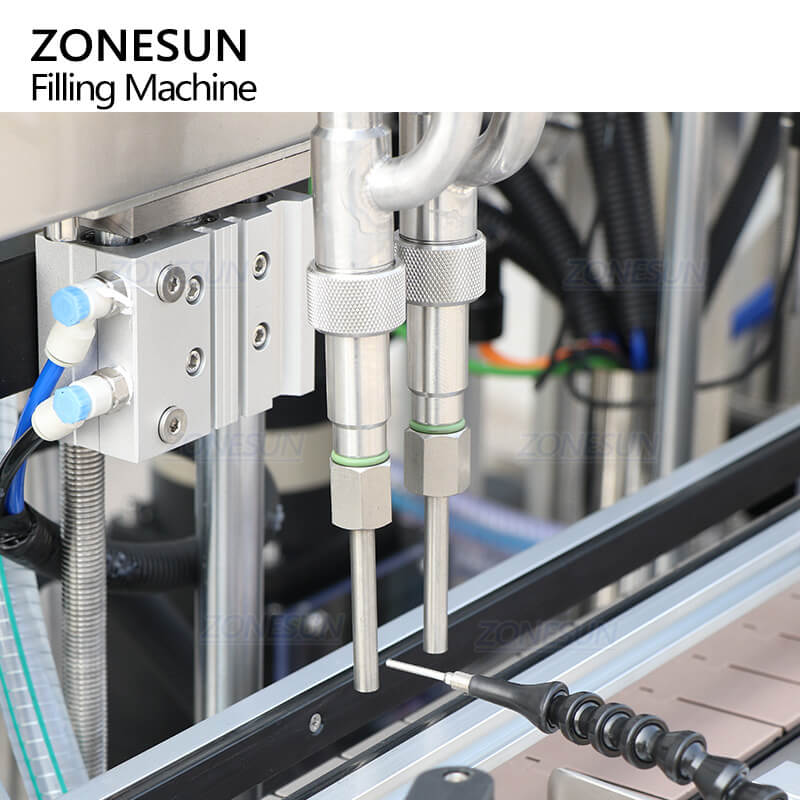

Anti-drip Servo Diving Nozzles
Bottom-up filling process to ensure evenly filling and prevent material dripping.

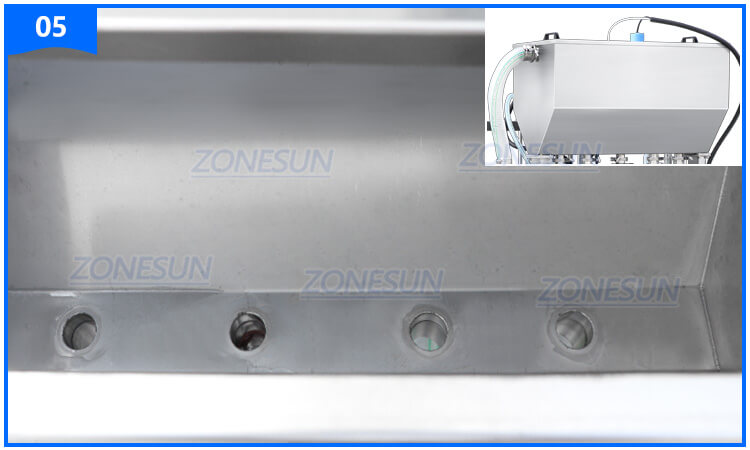

90 L Hopper with Optional Mixing
Supports continuous filling with optional heating and stirring for thick cosmetic materials.

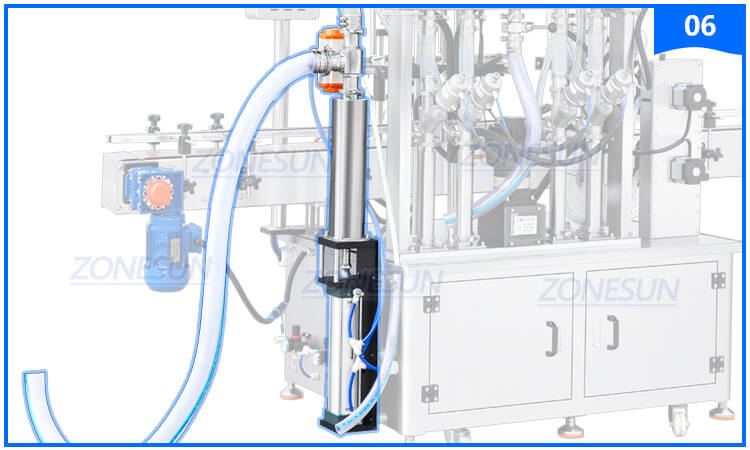

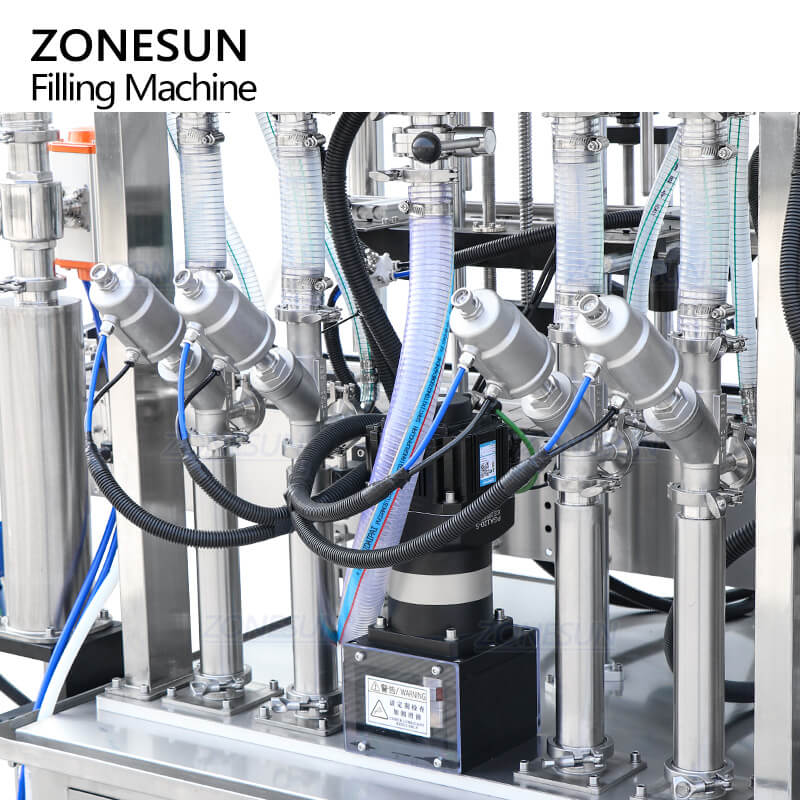

Material Feeding Piston Pump
Transfers viscous products continuously into the hopper to maintain smooth production.

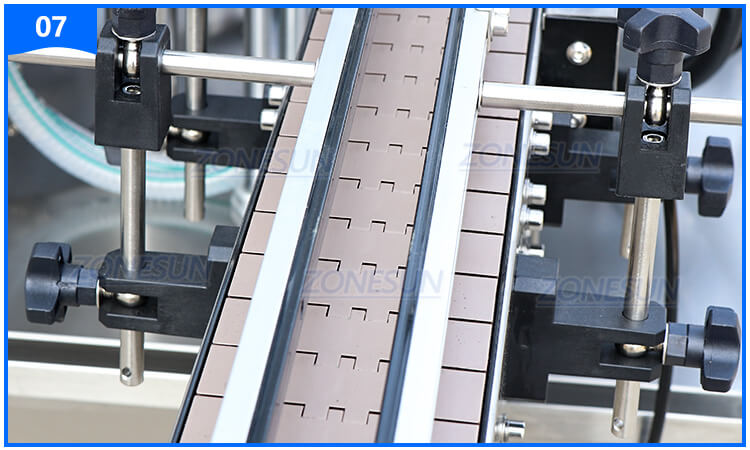

Customizable Chain Conveyor
Conveyor length and width can be customized for different bottle sizes and layouts.

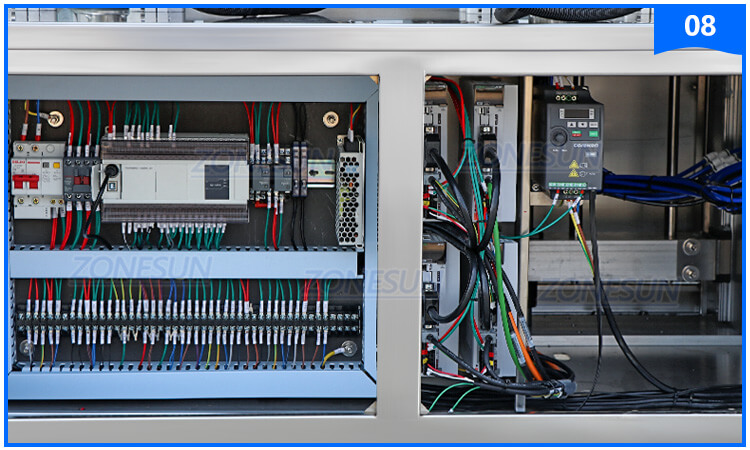

Electrical Control Components
Coordinate dual filling systems and conveyor movement for stable operation.

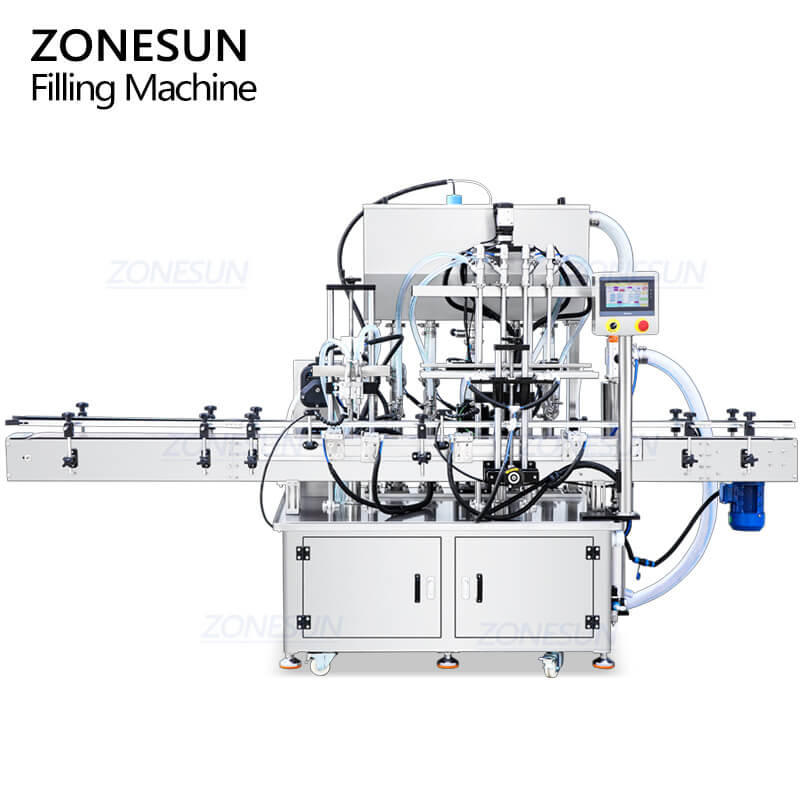

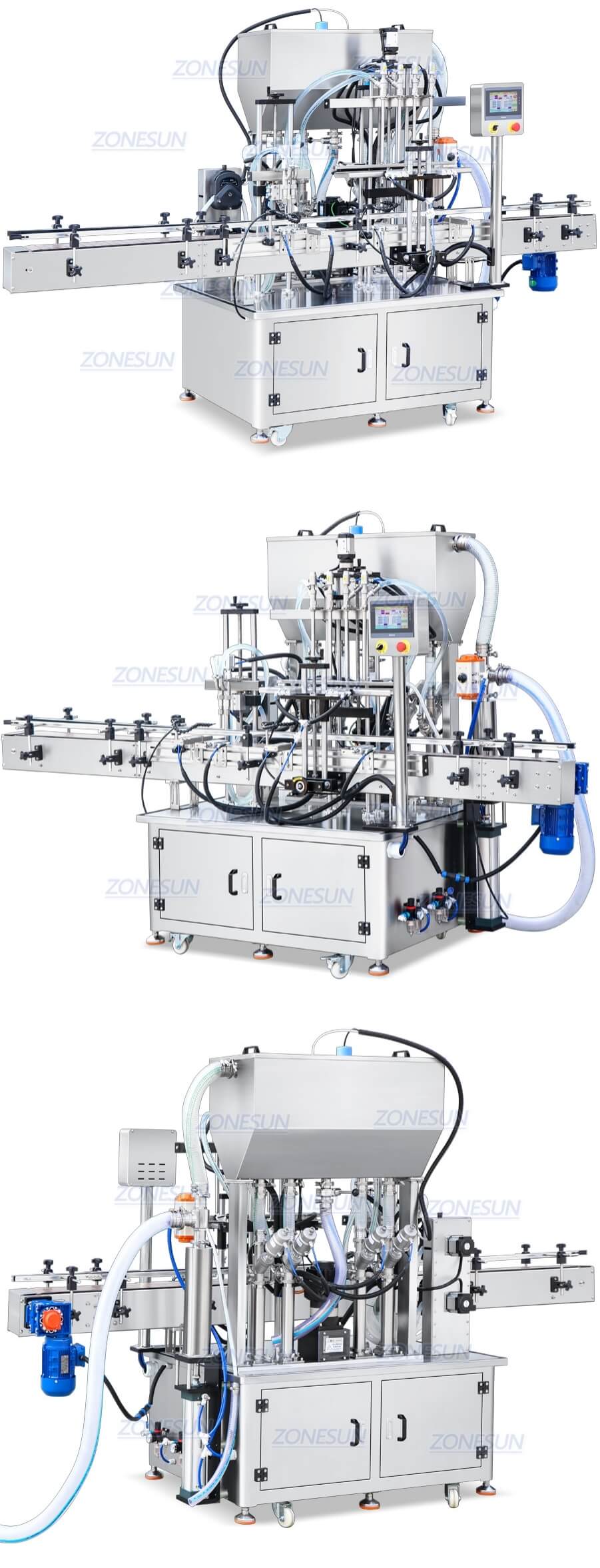

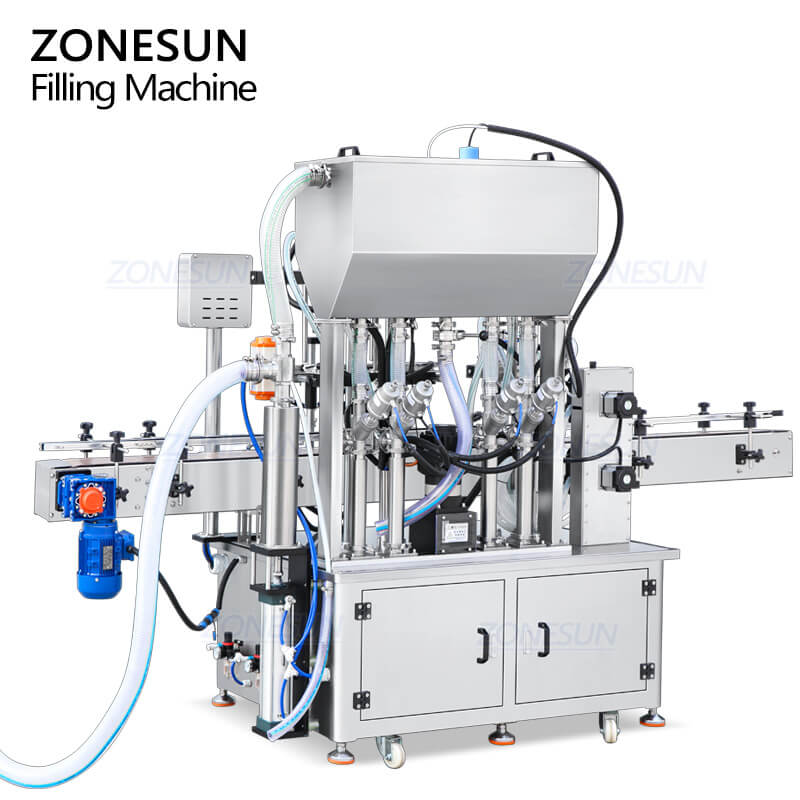

Product Real Shot
