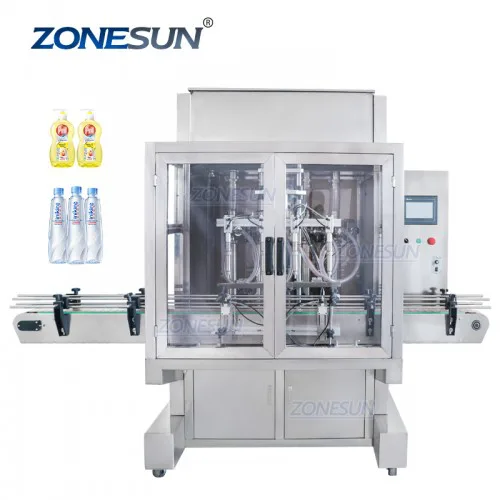

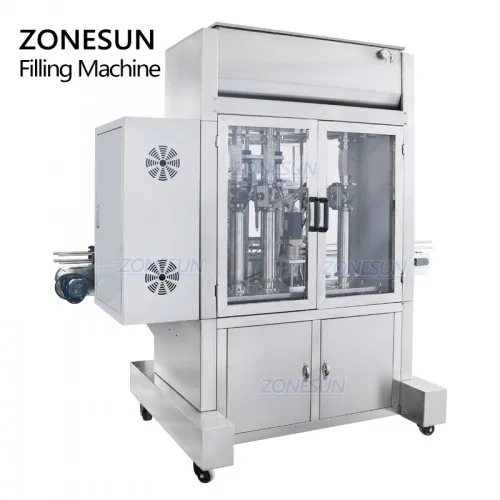

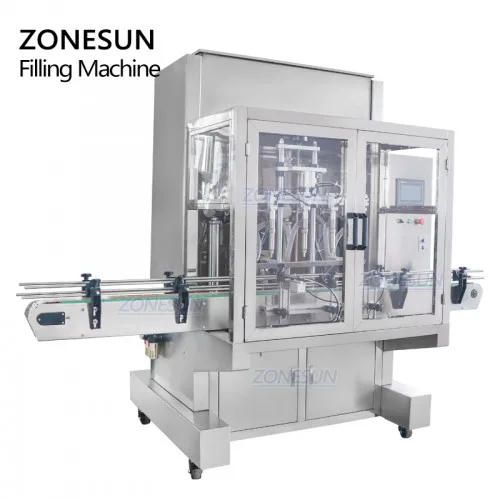

ZONESUN ZS-SV4G Automatic Paste Servo Filling Machine

The servo filling machine can be used to fill liquid or paste by entering certain filling range.It will be more accurate and easier to operate,it will not fill liquid if no bottle pass through.This machine is widely used in various industries such as daily chemical, food, medicine, cosmetics and so on.

Product Detail

Product Tags

Description:

The servo filling machine can be used to fill liquid or paste by entering certain filling range.It will be more accurate and easier to operate,it will not fill liquid if no bottle pass through.This machine is widely used in various industries such as daily chemical, food, medicine, cosmetics and so on.
Machine model
ZS-SV4G
Voltage
110-60HZ 220V-50HZ
Power
1500W
Air consumption
0.4-0.6MPa
Filling accuracy
±1%
Working speed
20-50 bttles/min(based on material)
Size of filing nozzle
φ10mm
Size of air compressor connector
φ10mm
Filling range
10-100ml/30-300ml/50-500ml/100-1000ml/500-3000m/1000-5000ml
Machine size
About 2470*1590*2030mm
