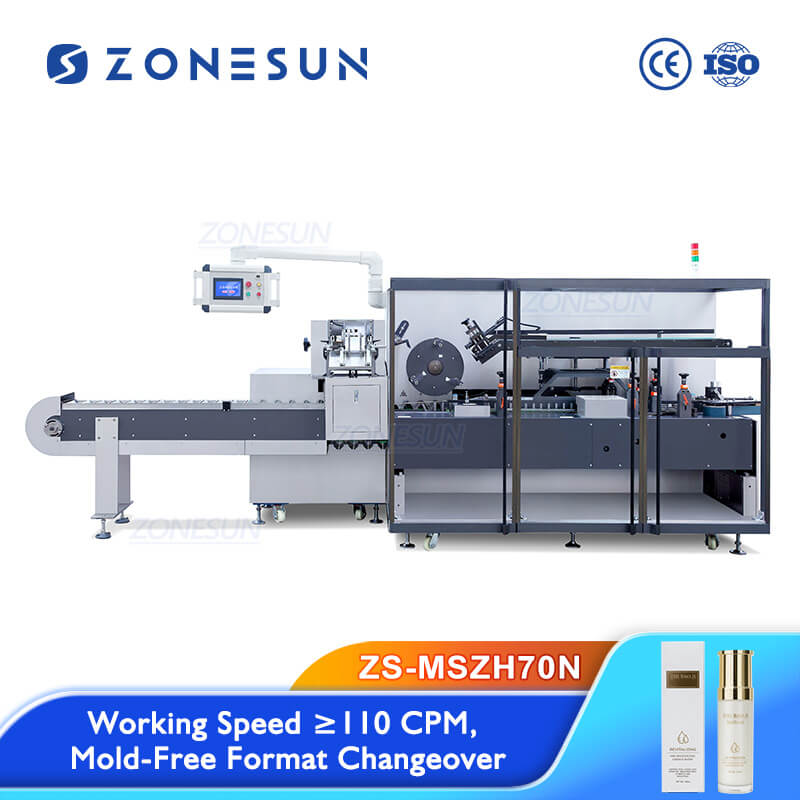

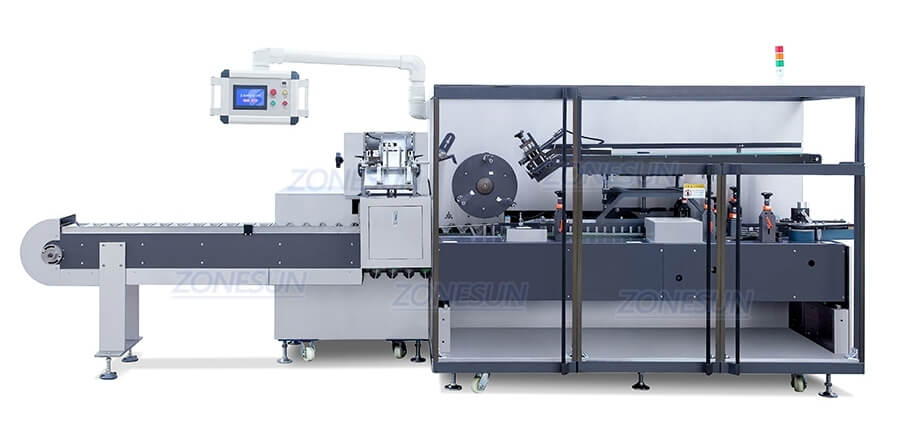

ZONESUN ZS-MSZH70N High Speed Horizontal Cartoning Machine

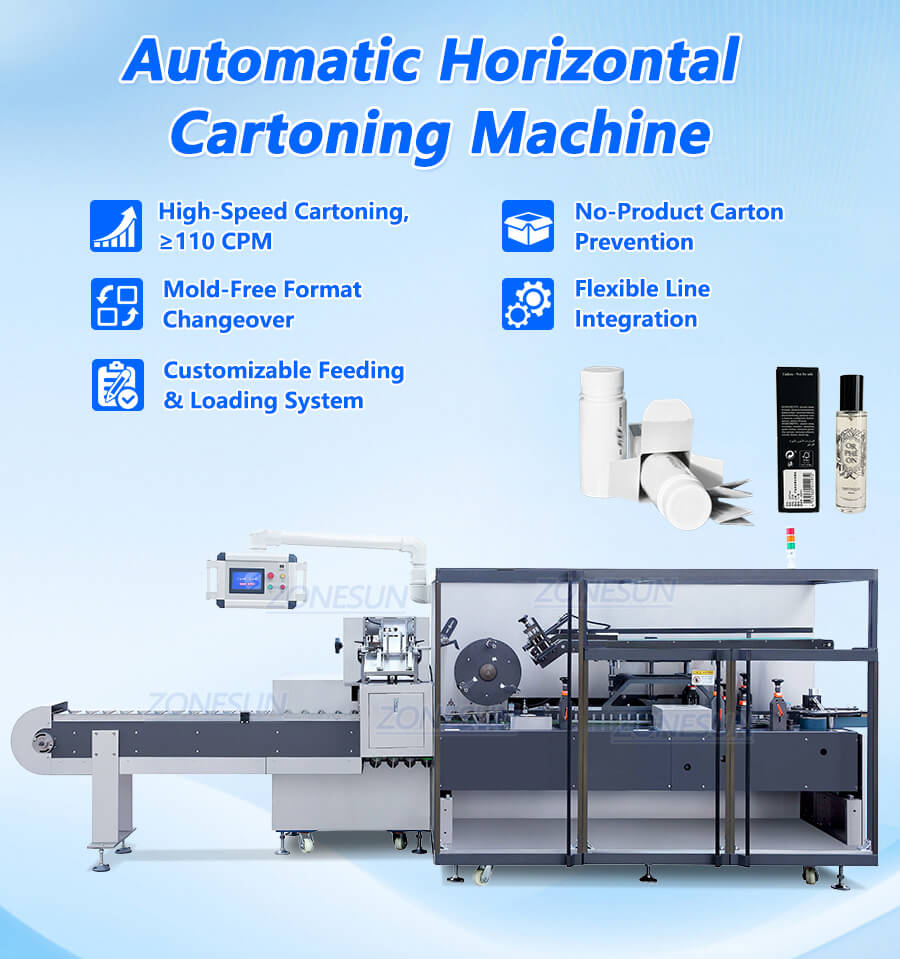

This automatic horizontal cartoning machine packs small bottles into flat cartons at high speed, with a cartoning rate of 110 CPM or more. A no product carton prevention function stops an empty carton from being closed when no product is detected in the pocket. Format changeover is mold free, so switching to another carton size needs no new tooling. The feeding and loading system is customizable to your product, and the machine can be integrated into a flexible production line.
Original price was: $79,999.00.$76,999.00Current price is: $76,999.00.
Share to
Product Description
This automatic horizontal cartoning machine packs small bottles into flat cartons at high speed, with a cartoning rate of 110 CPM or more. A no product carton prevention function stops an empty carton from being closed when no product is detected in the pocket. Format changeover is mold free, so switching to another carton size needs no new tooling. The feeding and loading system is customizable to your product, and the machine can be integrated into a flexible production line.
Product Applications
This cartoning machine suits small containers that are packed together with a printed carton. The applications shown are a serum tube, a dropper bottle, a face serum bottle, a perfume spray bottle and two supplement bottles, each with its own folded carton. Containers of this size and shape share one cartoning format, so several products in the same range can be run on one machine after the feeding and loading parts are set to the new container and carton.
Product Parameter
| Machine Model | ZS-MSZH70N |
| Power Supply | 220–380 V, 50 Hz |
| Rated Power | 3 kW |
| Cartoning Speed | ≥110 cartons/min, continuous operation |
| Carton Paper Weight | 250–400 g/m² |
| Carton Size Range | Customized; L × W × H to be confirmed |
| Compressed Air Pressure | ≥0.6 MPa |
| Air Consumption | 20 m³/h |
| Machine Dimensions | About 4800 × 1500 × 1700 mm |
| Machine Net Weight | About 3000 kg |

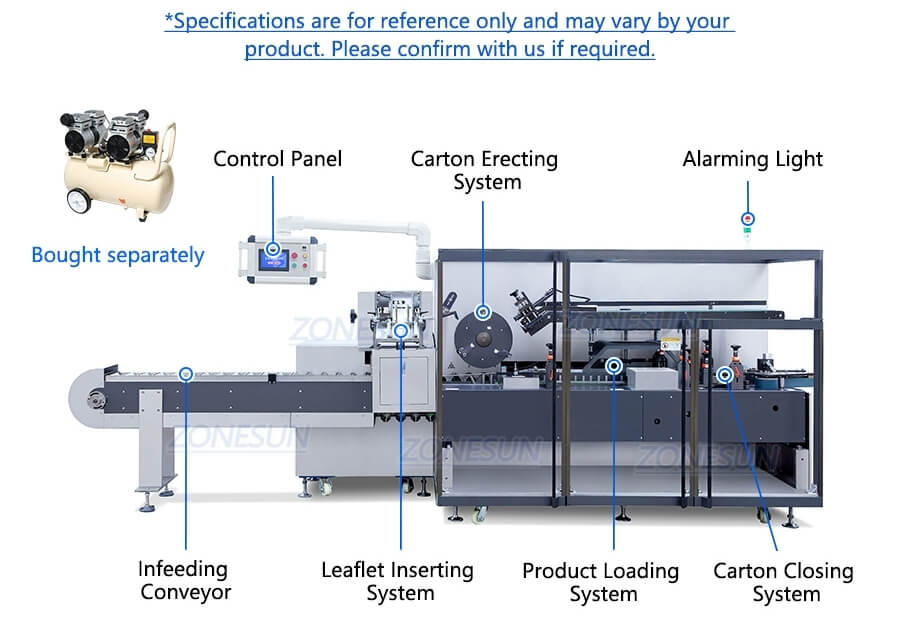

Product Details

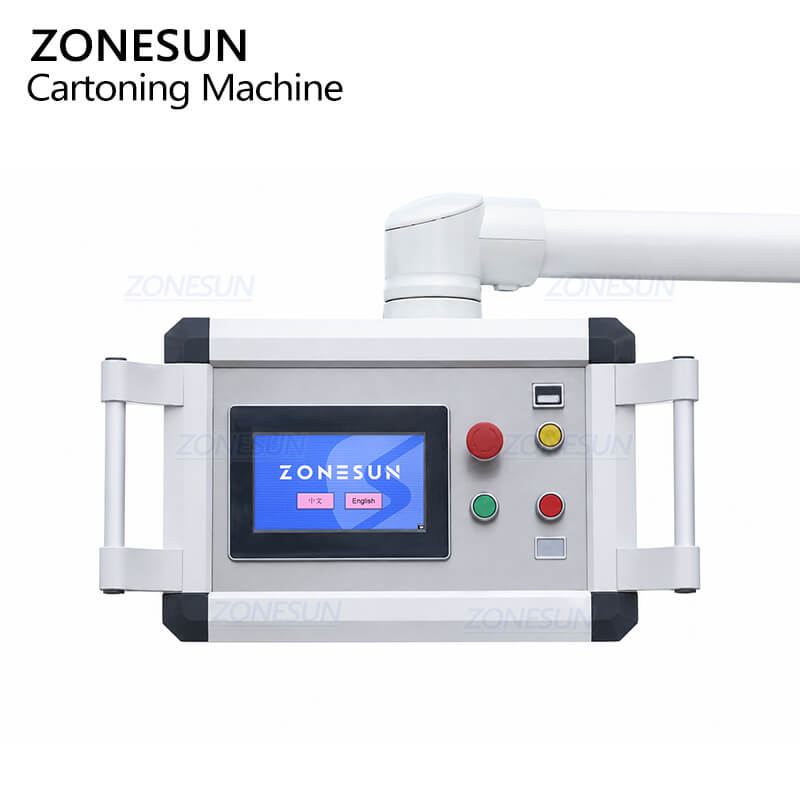

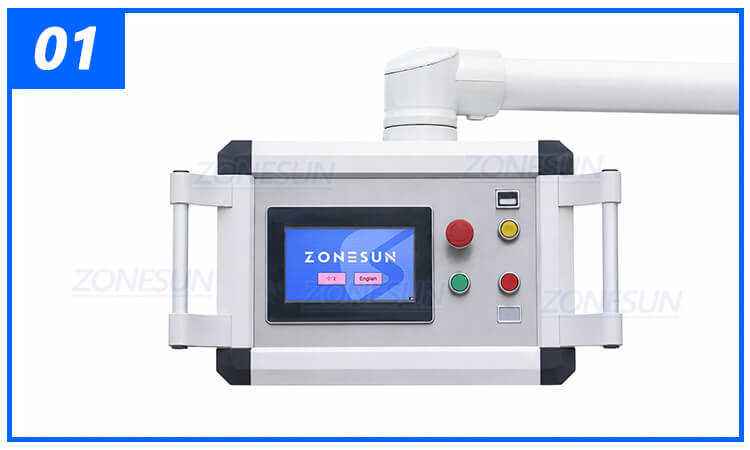

PLC Control Panel
The automatic horizontal cartoning machine uses PLC control and a touchscreen HMI for operation, speed display, counting, and status monitoring.

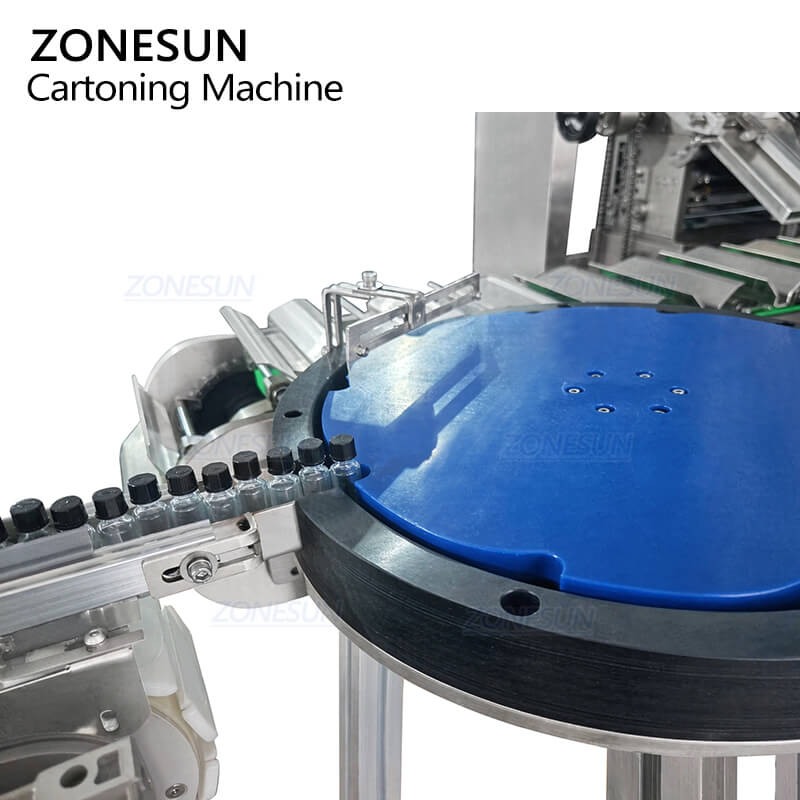

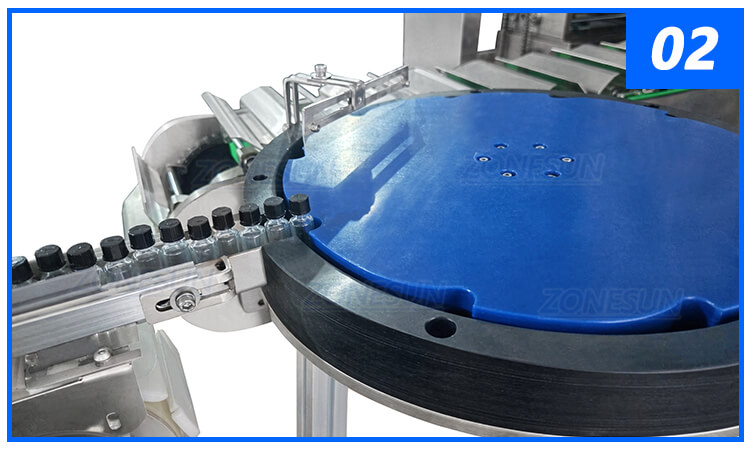

Automatic Feeding System
Transfers products toward the loading station. The feeding and loading arrangement can be customized to suit the approved product and pack format.

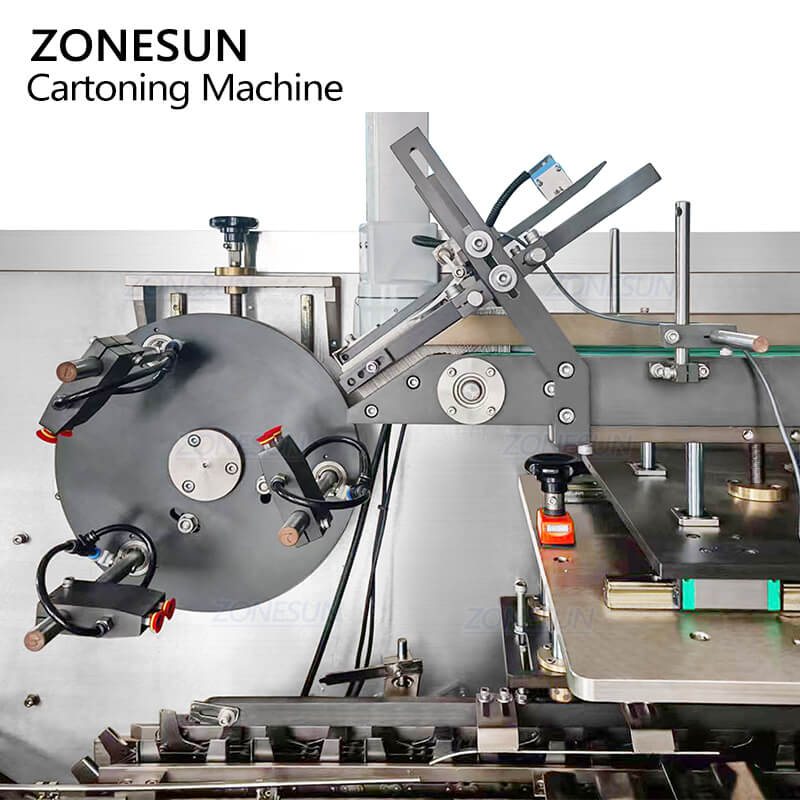

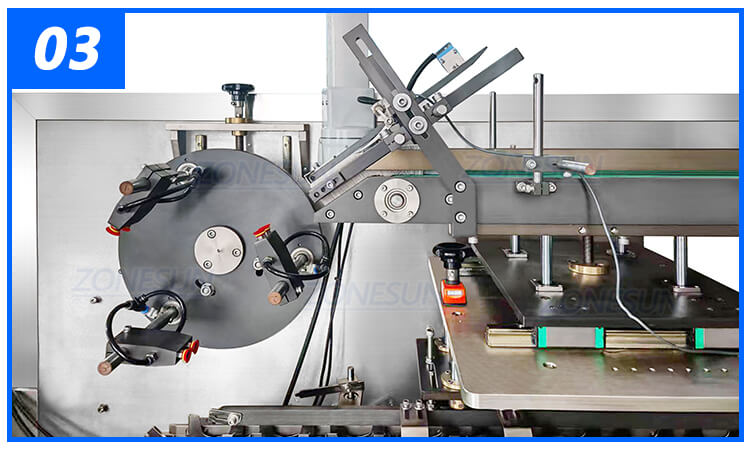

Carton Erecting System
Picks, opens, and transfers flat cartons in sequence. Photoelectric tracking prevents carton pickup when no product is detected.

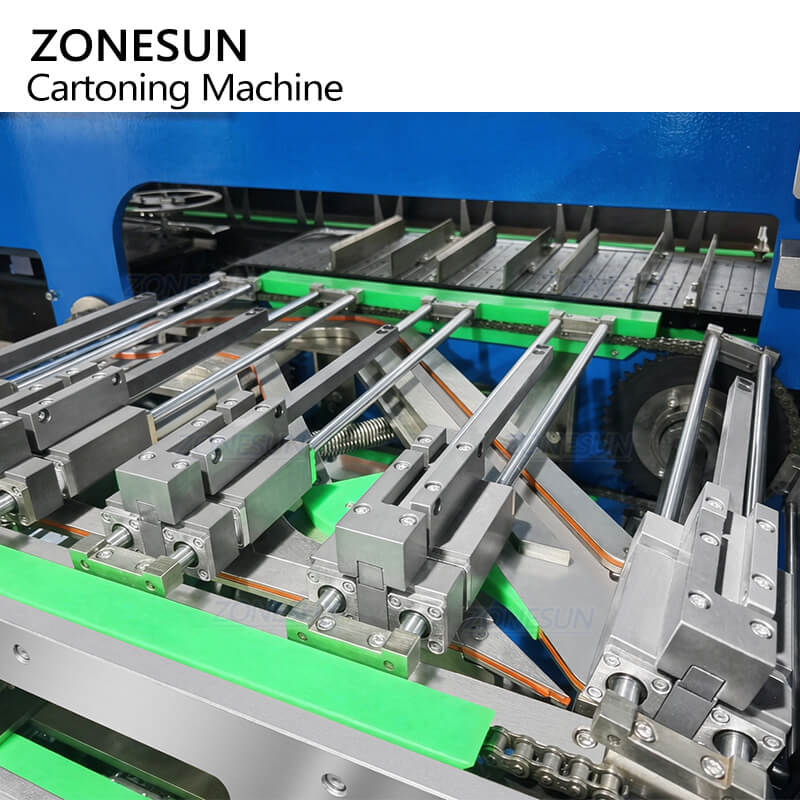

Product Loading Mechanism
Coordinates product insertion with carton movement. The machine stops if the product is not loaded correctly.

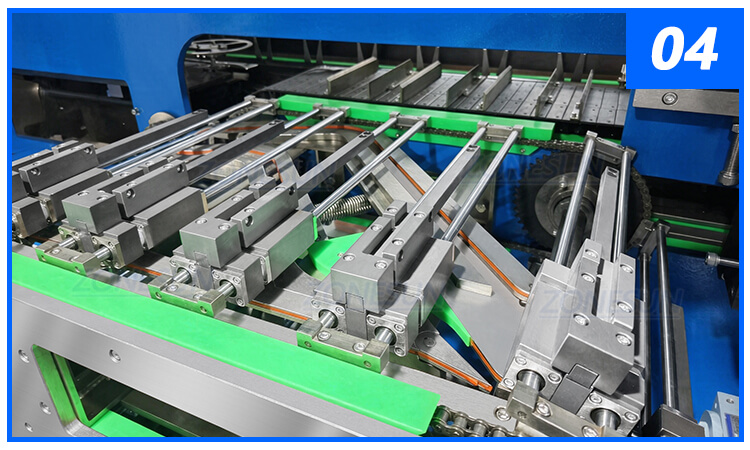

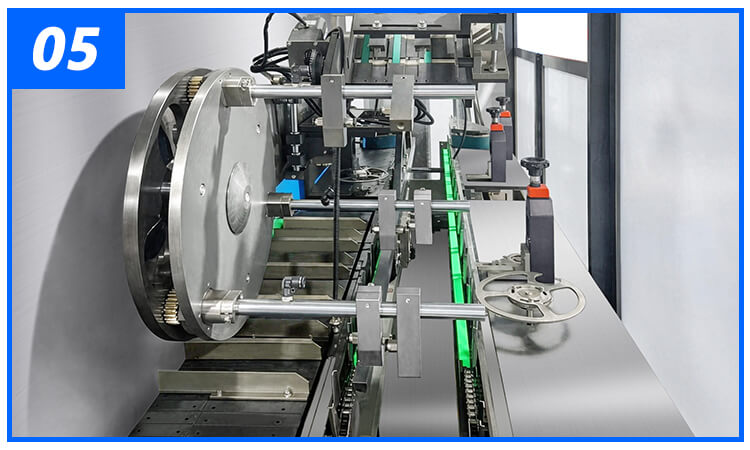

Adjustable Box Holding System
Allows changeover between approved carton specifications through adjustment rather than dedicated mold replacement.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
