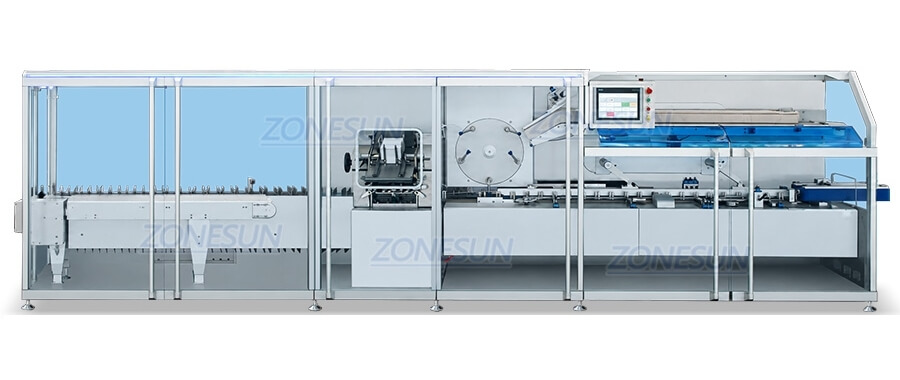

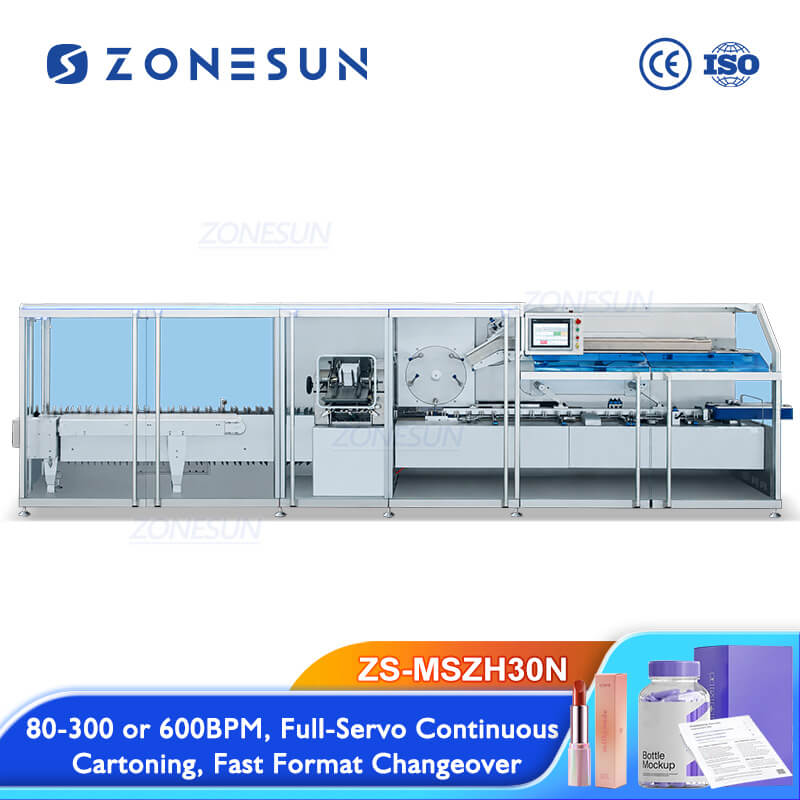

ZONESUN ZS-MSZH30N Servo High Speed Cartoning Machine

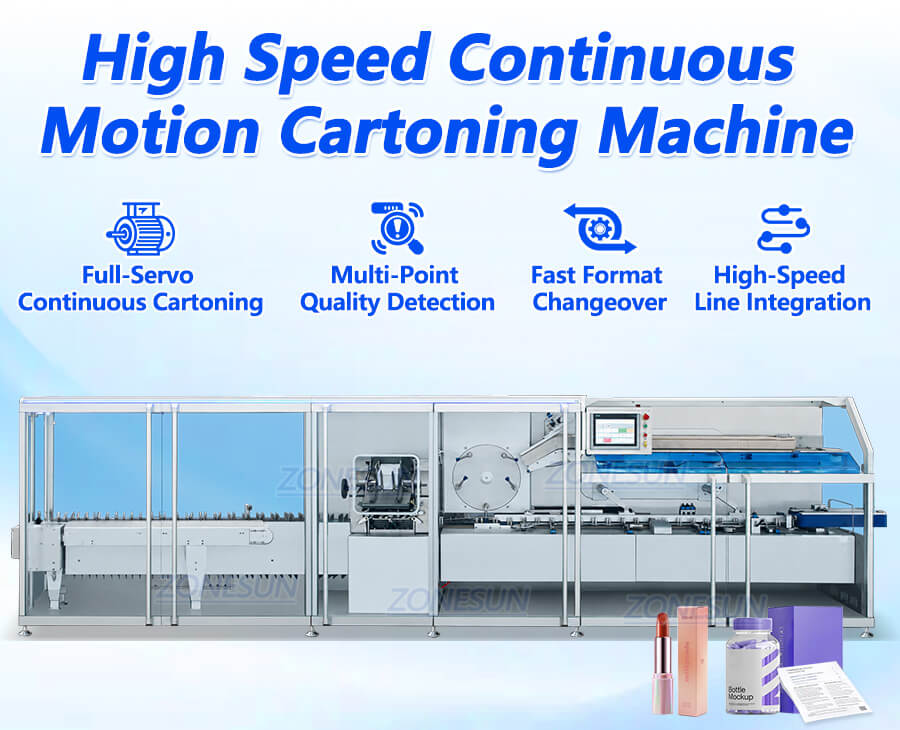

This high speed continuous motion cartoning machine runs the cartons in continuous motion instead of indexing stop and start, and its main motions are full servo driven. Multi point quality detection checks the carton at several points, so a fault is caught before the carton leaves the machine. Format changeover is fast, and the machine is built to integrate into a high speed line.
Original price was: $351,999.00.$346,999.00Current price is: $346,999.00.
Share to
Product Description
This high speed continuous motion cartoning machine runs the cartons in continuous motion instead of indexing stop and start, and its main motions are full servo driven. Multi point quality detection checks the carton at several points, so a fault is caught before the carton leaves the machine. Format changeover is fast, and the machine is built to integrate into a high speed line.
Product Applications

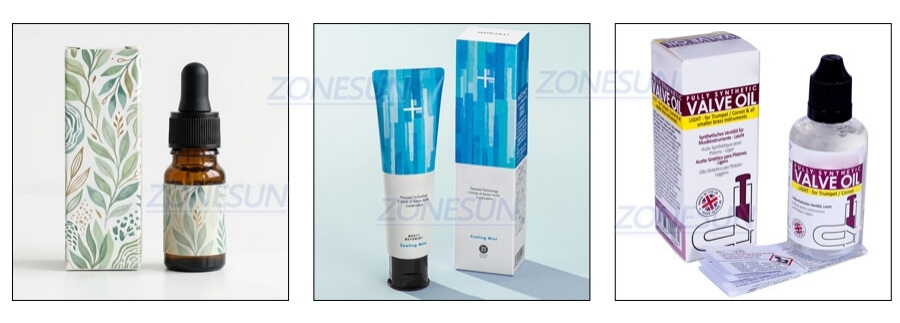

This high speed continuous motion cartoning machine is built for small containers packed together with a leaflet in the same carton, the usual format for cosmetics, skincare, personal care and small liquid products.
Product Production Process

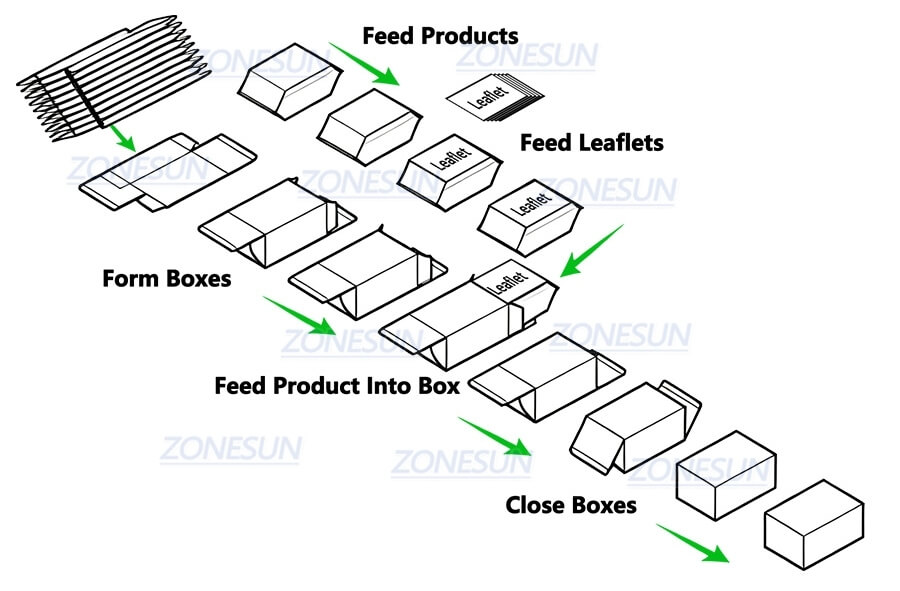

How the machine runs: flat carton blanks are formed into boxes, products are fed in, leaflets are fed, the product is loaded into the formed box, and the boxes are closed at the end of the machine. The cartons move continuously instead of indexing stop and start, and multi point quality detection checks the carton before it leaves.
Product Parameter
| Machine Model | ZS-MSZH30N |
| Drive System | Full-servo transmission |
| Power Supply | AC 380 V, 50 Hz |
| Total Power | 5.5 kW |
| Working Capacity | Up to 600 cartons/min for blister packs
Up to 300 cartons/min for bottles (depending on the product). |
| Working Air Pressure | ≥0.6 MPa |
| Air Consumption | 12 m³/h |
| Carton Material | 250–350 g/m² |
| Standard Carton Size | (70–200) × (35–85) × (15–60) mm |
| Wide Carton Size | (70–200) × (70–120) × (15–60) mm |
| Leaflet Material | 50–70 g/m², 60 g/m² recommended |
| Leaflet Unfolded Size | (80–260) × (90–190) mm |
| Leaflet Fold Range | 1–4 folds |
| Operating Temperature | 20 ±10°C |
| Working Noise | ≤75 dB |
| Carton Closing | Standard carton closing; optional hot-melt glue sealing |

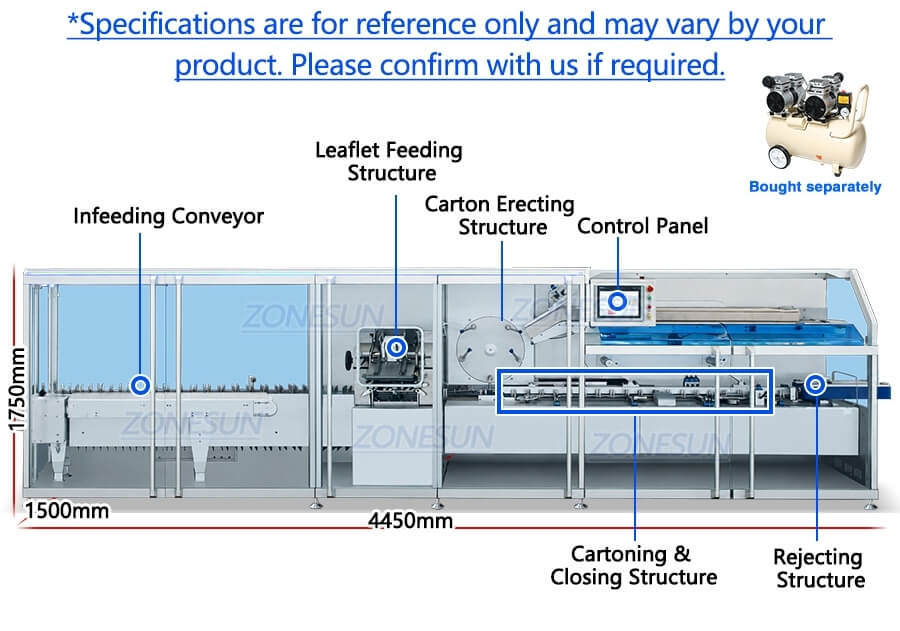

| Machine Dimensions | About 4450 × 1500 × 1750 mm |
| Machine Weight | About 4200 kg |
Product Details

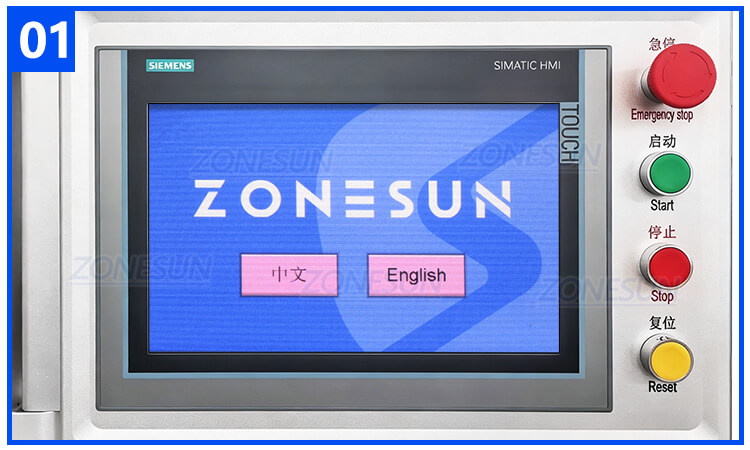

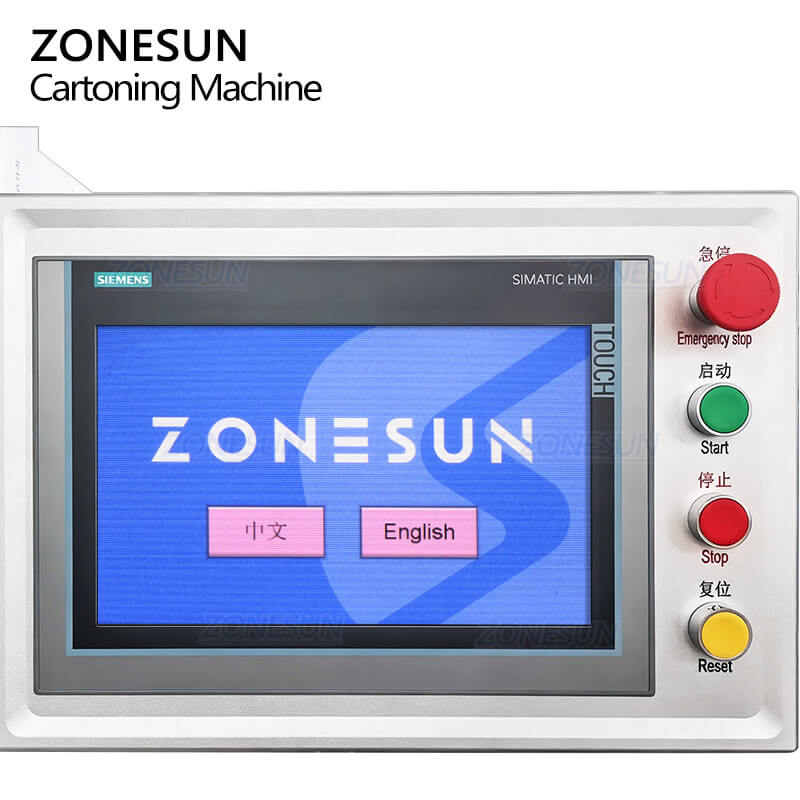

Touchscreen Control Panel
The large touchscreen displays settings for each station and identifies fault locations for faster setup, operation, and maintenance. The Win CE-based system supports electronic records and electronic signatures.

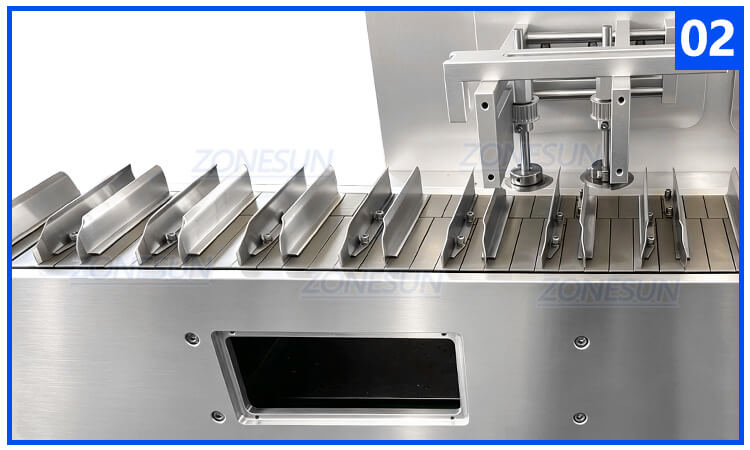

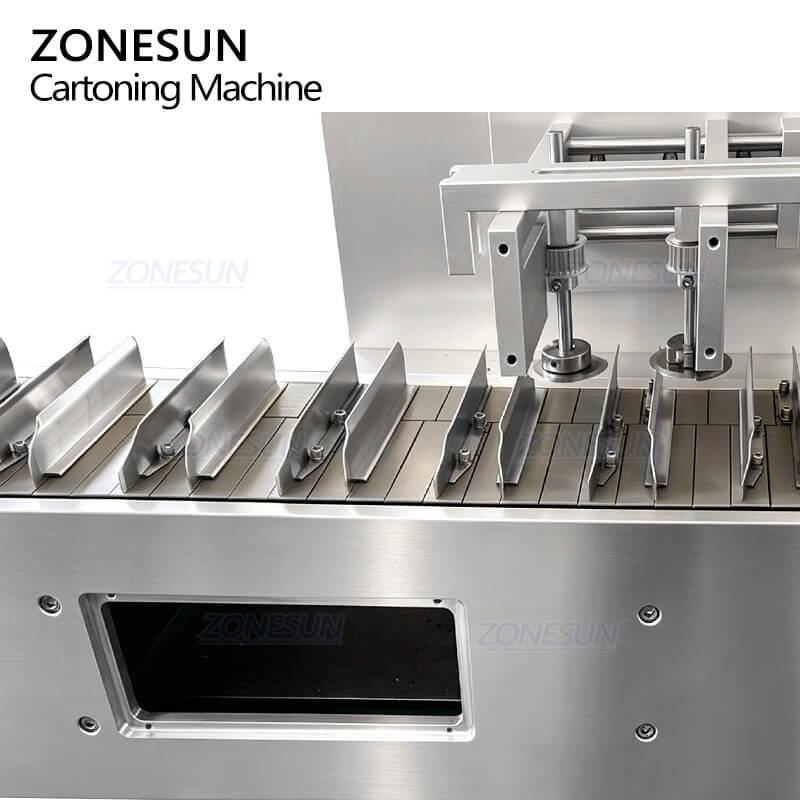

Pocket Conveyor System
An independent servo motor drives the pocket conveyor in synchronization with the machine. Conveyor width can be manually adjusted or servo-adjusted as an option for fast format changeover.

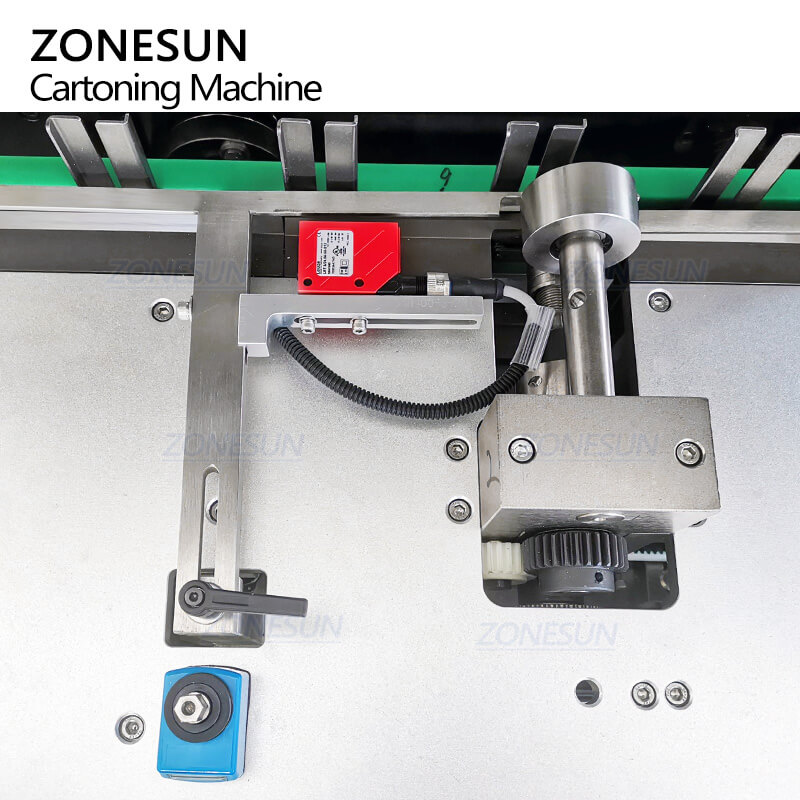

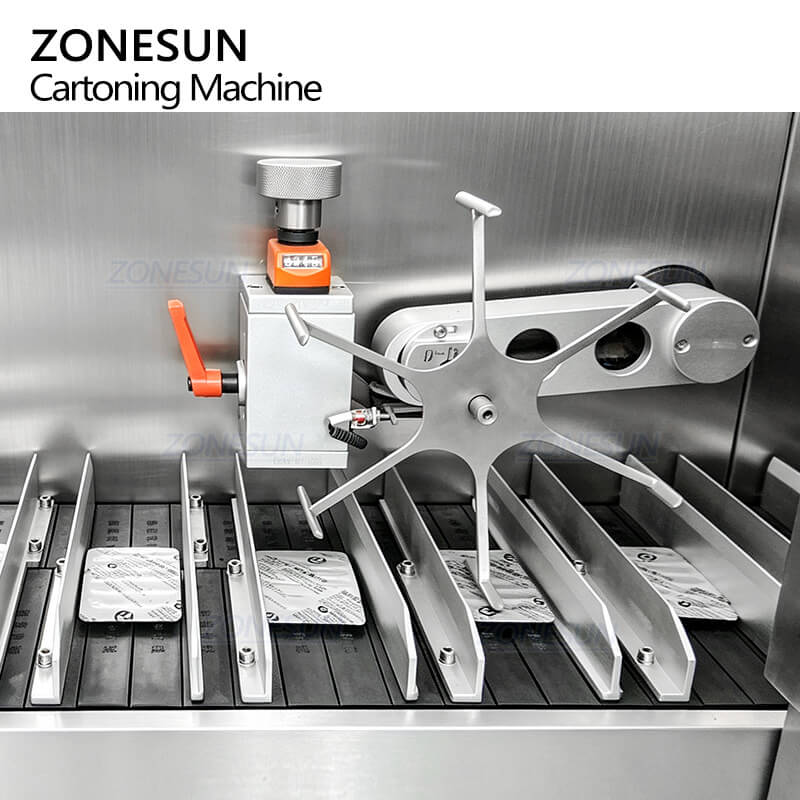

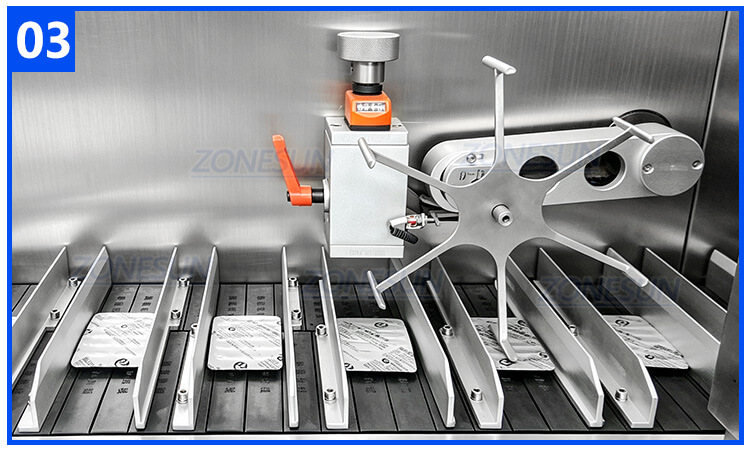

Product Detection System
Six-zone pressure-wheel detection identifies missing or multiple packs, including slightly bent or air-filled flow packs. The machine stops leaflet feeding, carton feeding, and pushing when an abnormal product condition is detected.

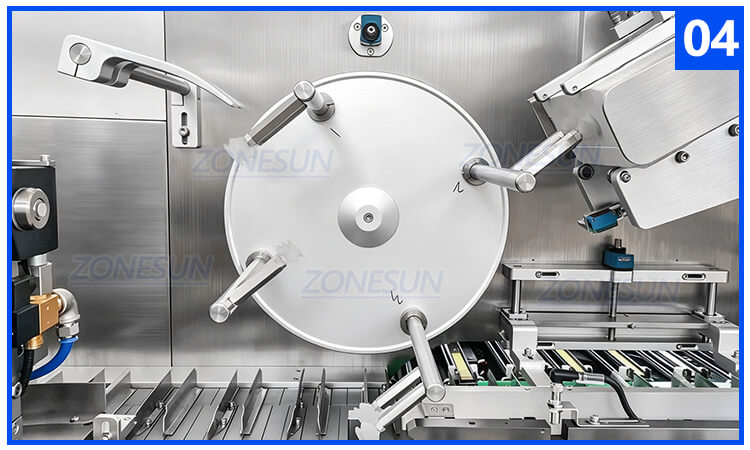

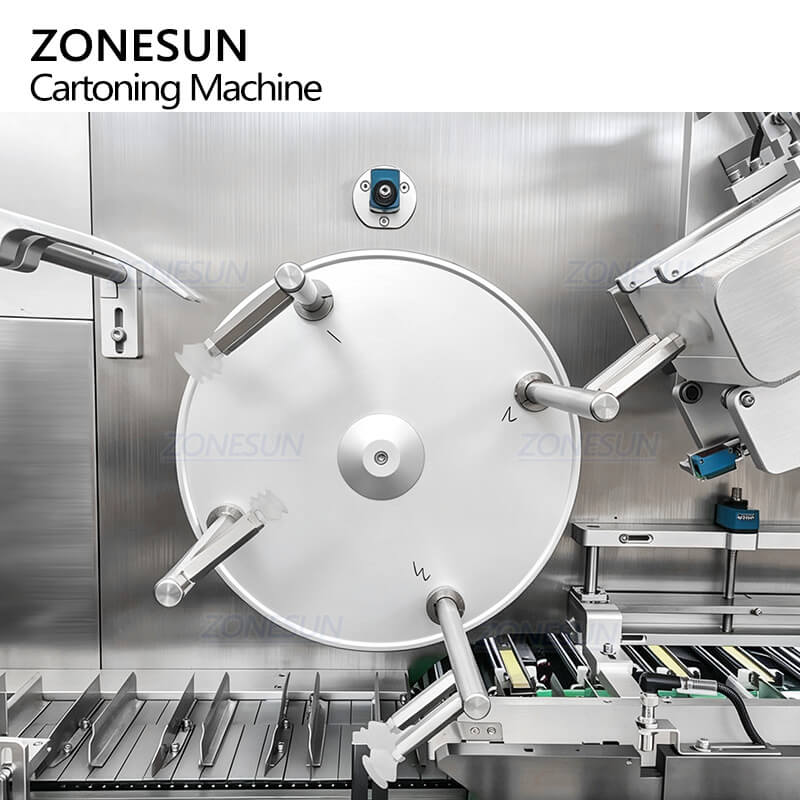

Rotary Carton Picking and Opening System
Four independent suction heads pick, open, and erect cartons . Detection functions stop operation if a carton is not picked or opened correctly.
Leaflet Folding and Detection System
The system folds leaflets and monitors leaflet feeding and insertion. It detects multiple-leaflet pickup, missing leaflets, and leaflet-in-carton conditions.
Reject System
Rejects cartons with missing leaflets, missing products, poor carton closure, or empty cartons. Reject confirmation helps verify that defective packs are removed.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Product Real Shot
