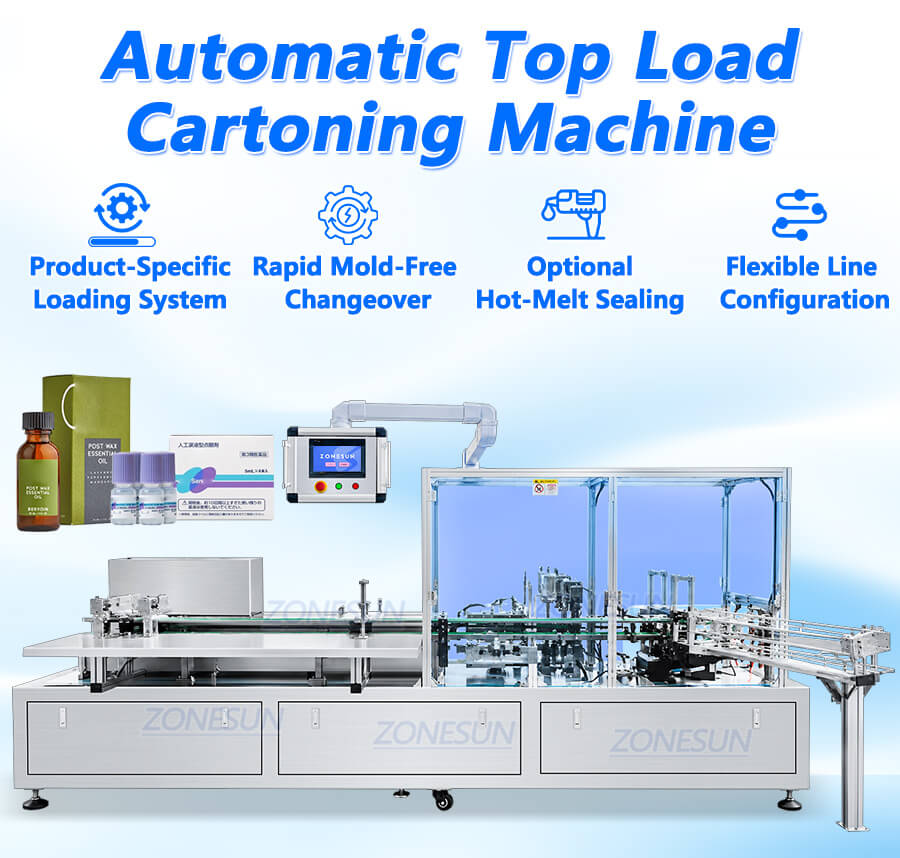

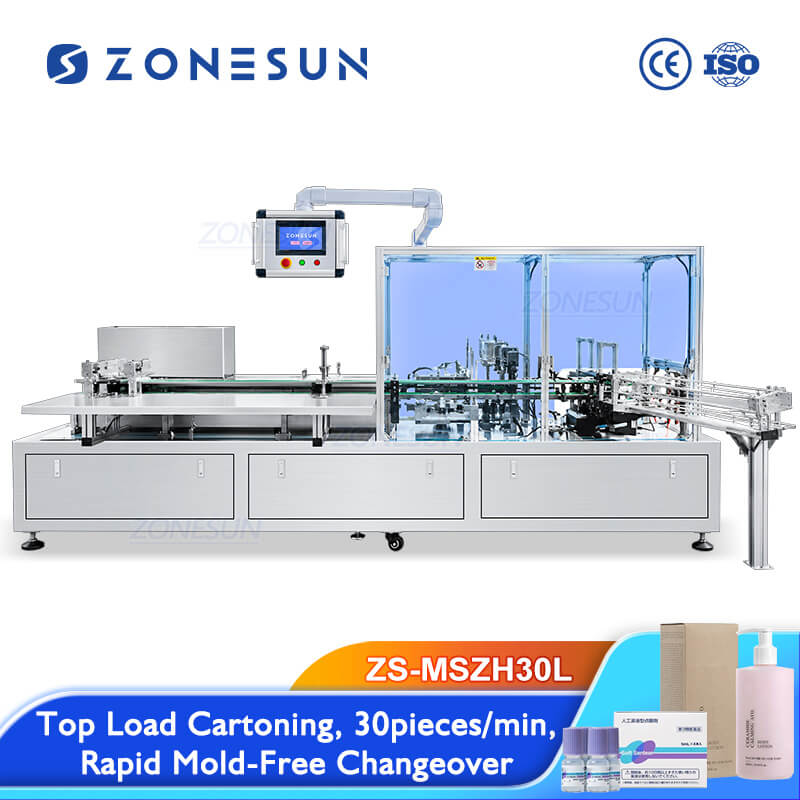

ZONESUN ZS-MSZH30L Granule Top Load Cartoning Machine
This automatic top load cartoning machine erects the carton, loads the product from the top and closes the carton on one machine. The loading system is built around the product being packed, so the machine is set up for a specific product family. Format changeover is mold free and quick, hot melt sealing is available as an option, and the machine can be configured flexibly within a production line.
Original price was: $57,999.00.$56,199.00Current price is: $56,199.00.
Share to
Product Description
This automatic top load cartoning machine erects the carton, loads the product from the top and closes the carton on one machine. The loading system is built around the product being packed, so the machine is set up for a specific product family. Format changeover is mold free and quick, hot melt sealing is available as an option, and the machine can be configured flexibly within a production line.
Product Applications

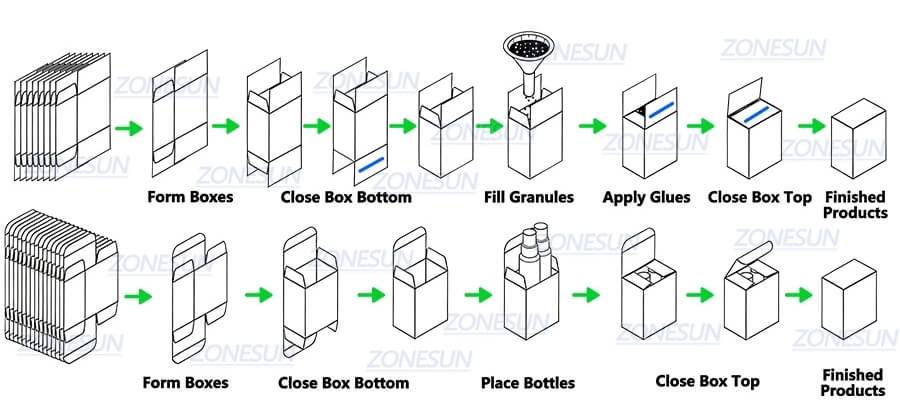

Product Production Process
Product Parameter
| Machine Model | ZS-MSZH30L |
| Power Supply | 220 V / 380 V, 50 Hz |
| Rated Power | 1.5 kW |
| Line Speed | 30 cartons/min (actual speed depends on products per carton) |
| Carton Material | 250-400 g/m² paperboard |
| Carton Loading | Customized by product type |
| Carton Closure | Tuck-in closure (optional hot-melt glue sealing) |
| Air Pressure | ≥0.6 MPa |
| Air Consumption | 20 m³/h |
| Format Changeover | Rapid adjustment without mold replacement |

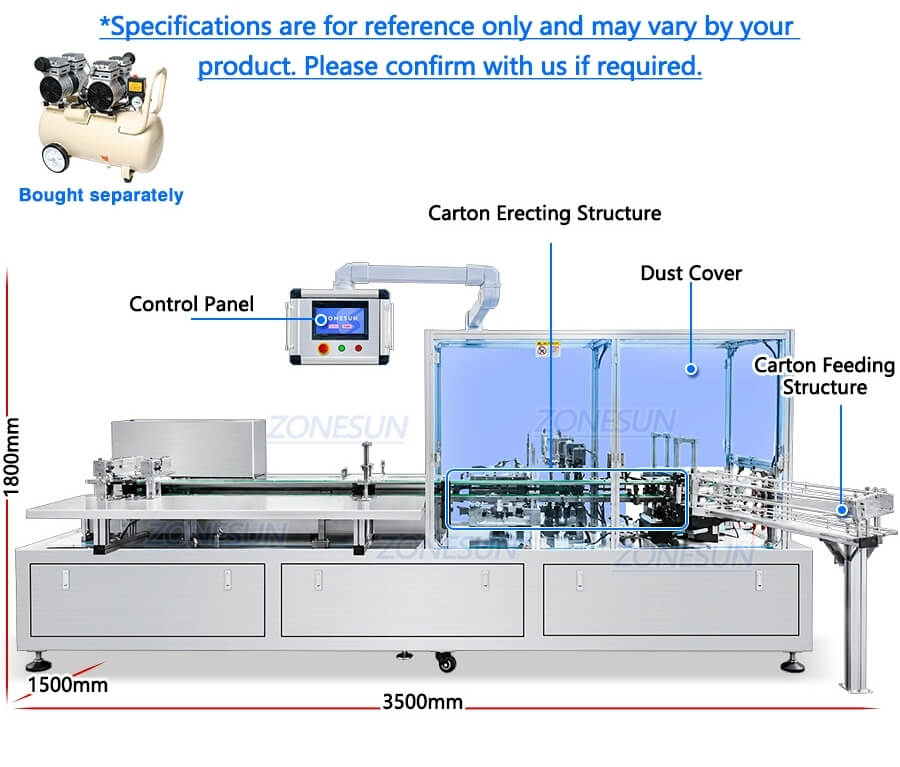

| Machine Dimensions | About 3500*1500*1800 mm |
| Machine Weight | About 200 kg |
Product Details

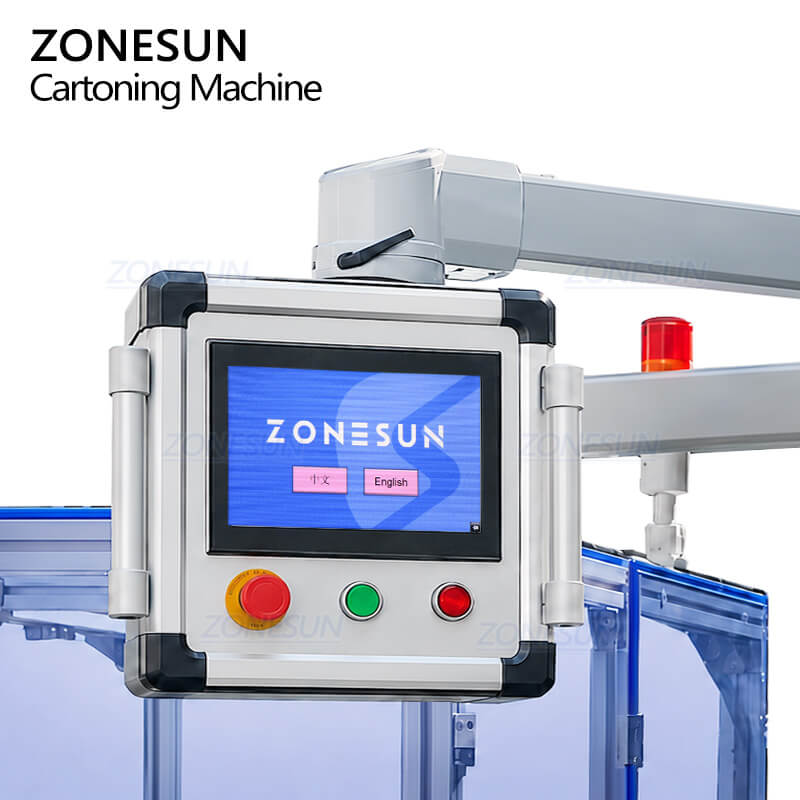

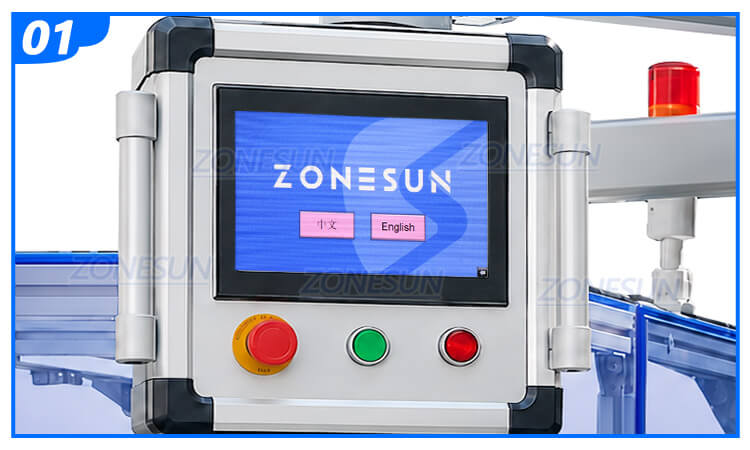

Swing-Arm Touchscreen Control Panel
The swing-arm touchscreen provides convenient access for machine operation, parameter adjustment, and status monitoring.

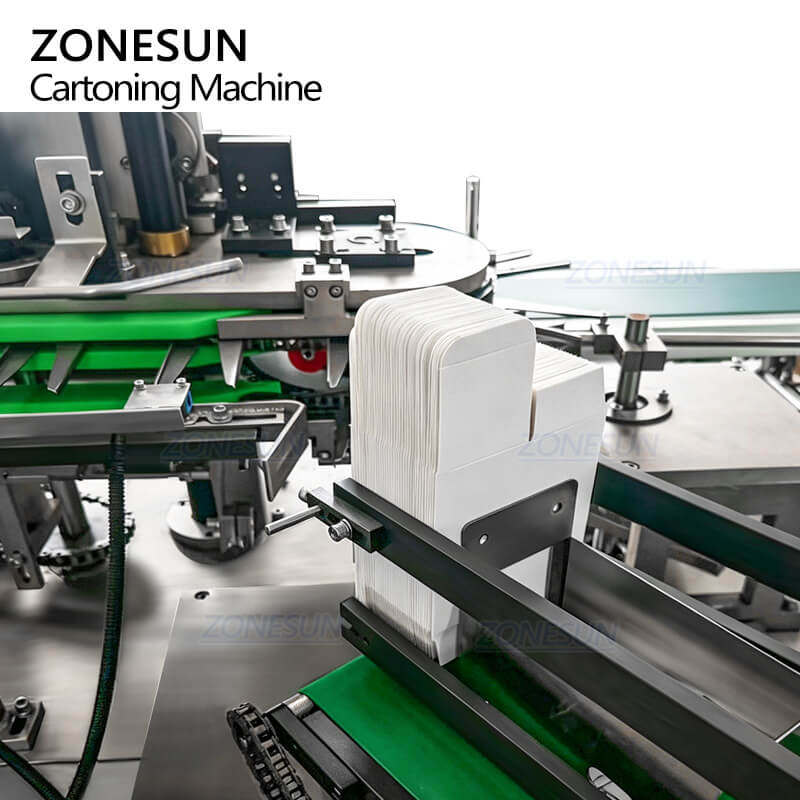

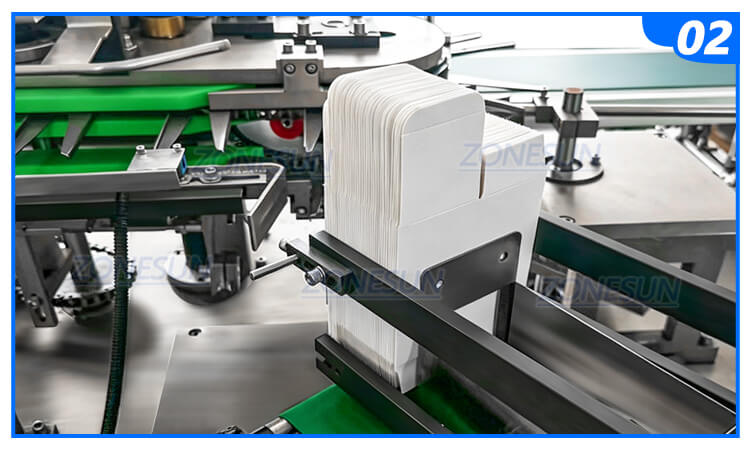

Carton Picking and Opening Unit
Automatically picks flat cartons, opens them, and prepares them for bottom sealing and product loading.

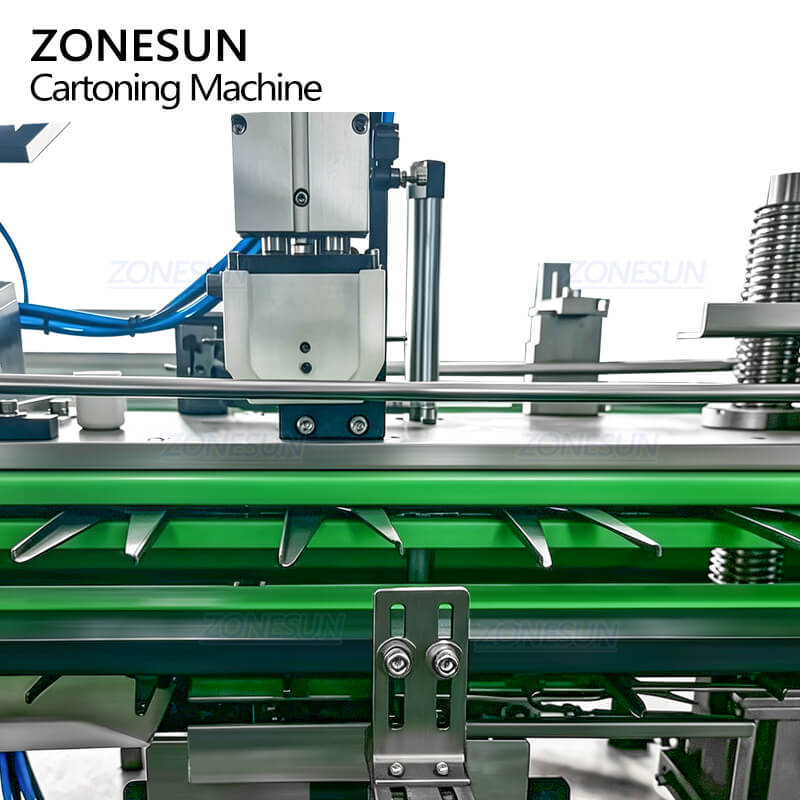

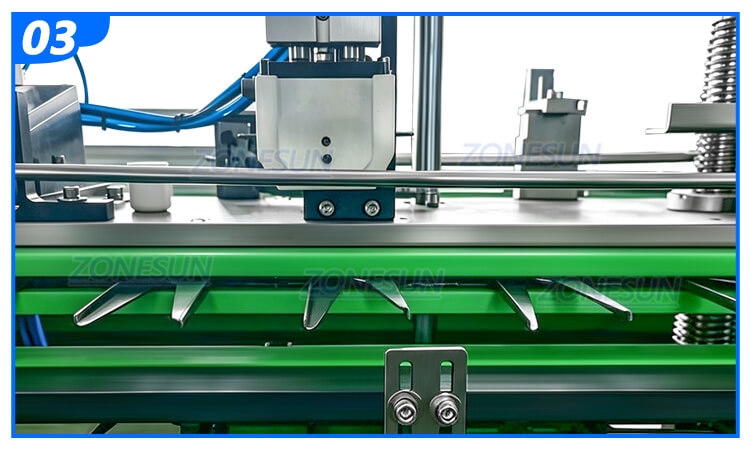

Adjustable Carton Holding Structure
Adjustable guides and holding components help position cartons during operation and support mold-free carton size changeover.

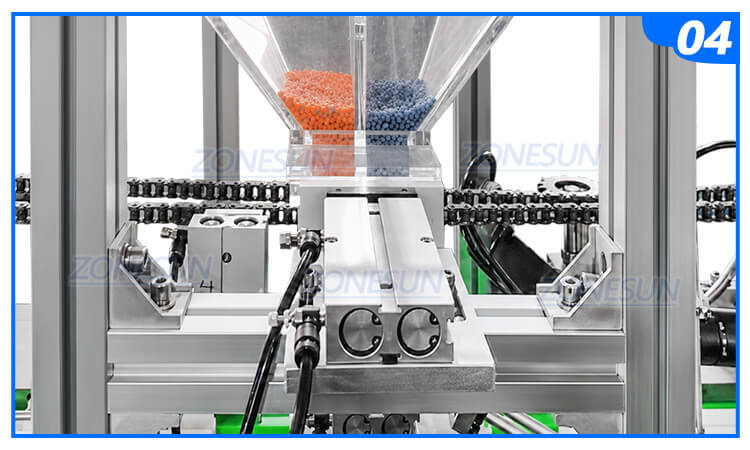

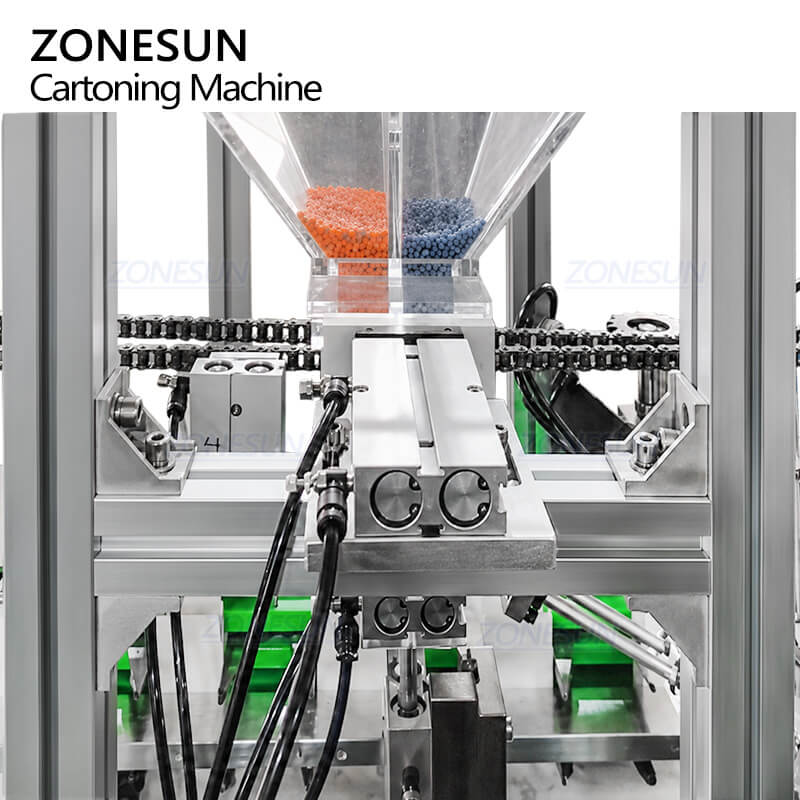

Customized Product Loading System
The feeding and loading structure is customized according to the product. It can be configured for granule feeding from an external multihead weigher or gripping loading for bottles.

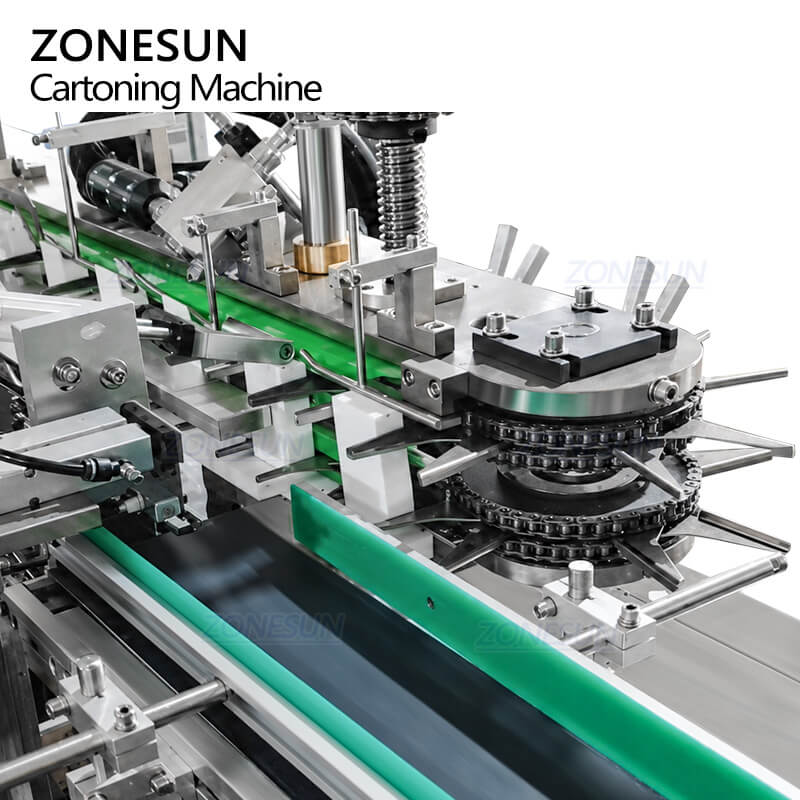

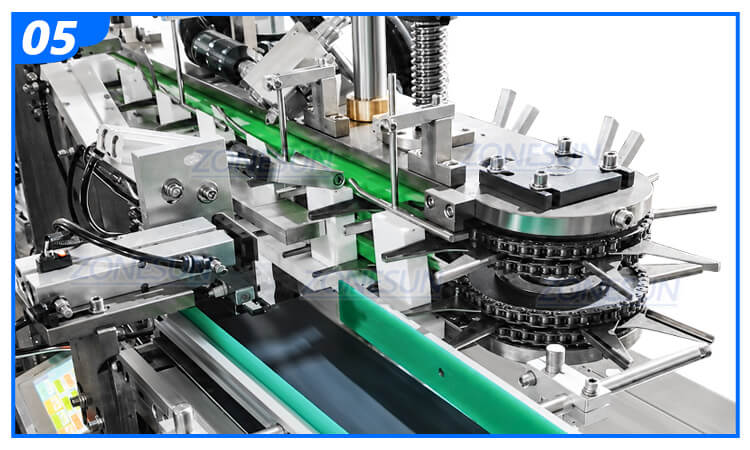

Carton Closing System
Uses standard tuck-in carton closure. A hot-melt glue sealing system can be customized according to packaging requirements.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year

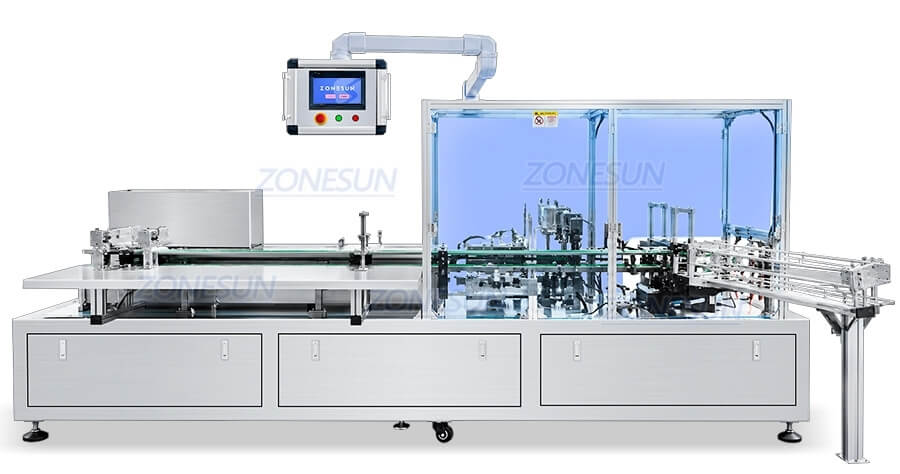

Product Real Shot
