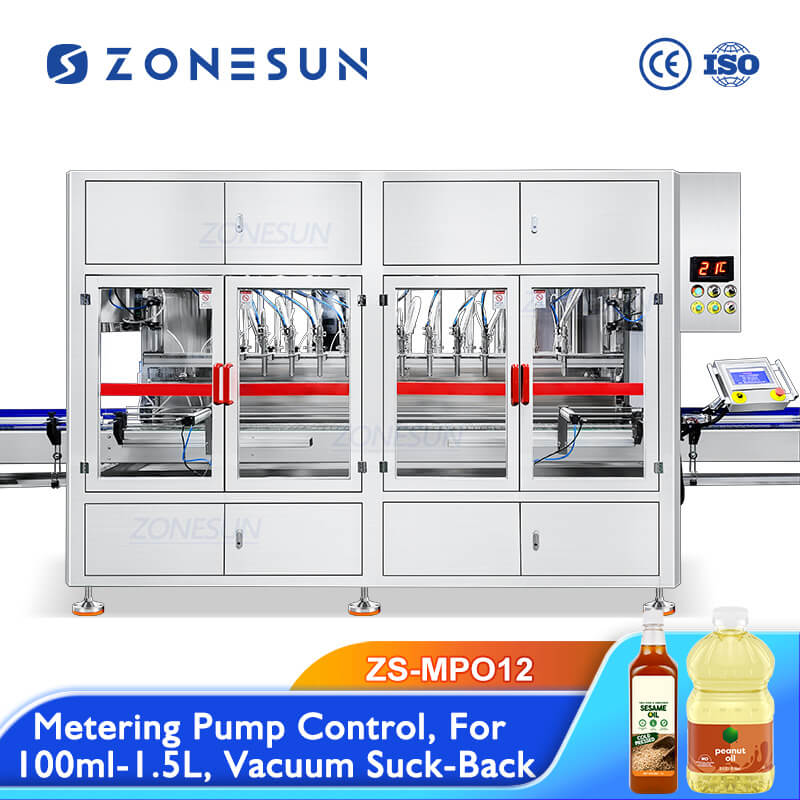

ZONESUN ZS-MPO12 Automatic Edible Oil Filling Machine

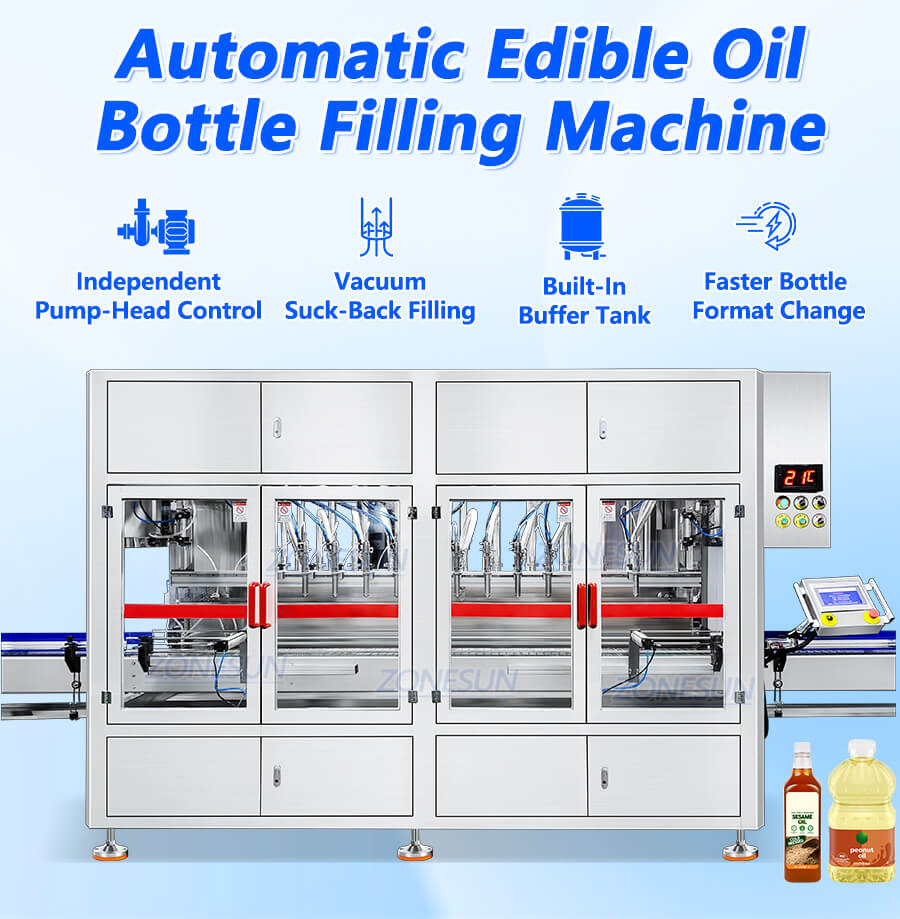

This edible oil bottle filling machine fills oil into bottles with independent pump head control, so each filling head can be set on its own instead of sharing one setting across the machine. Vacuum suck back filling draws the oil back at the end of the fill to help reduce drips, a built in buffer tank steadies the supply to the heads, and bottle format changes are faster.
$36,999.00 Original price was: $36,999.00.$35,899.00Current price is: $35,899.00.
Share to
Product Description
This edible oil bottle filling machine fills oil into bottles with independent pump head control, so each filling head can be set on its own instead of sharing one setting across the machine. Vacuum suck back filling draws the oil back at the end of the fill to help reduce drips, a built in buffer tank steadies the supply to the heads, and bottle format changes are faster.
Product Applications

Product Parameter
| Machine Model | ZS-MPO12 |
| Power Supply | 380 V ±10% |
| Filling Range | 100 mL–1.5 L |
| Filling Method | Volumetric or Mass-Converted Filling |
| Production Capacity | 1200–1400 BPH( based on 1 L bottles) |
| Filling Accuracy | ≤0.2% |
| Air Pressure | 1.0–1.6 MPa |

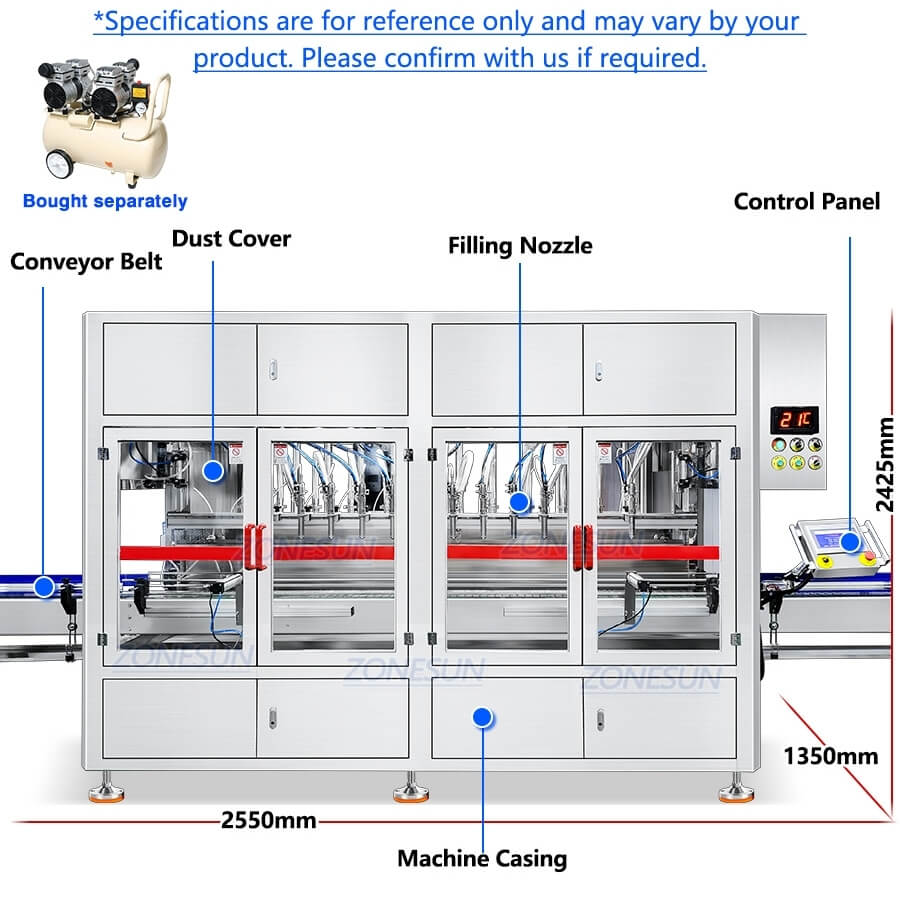

| Machine Dimensions | About 2550*1350*2425 mm |

Product Details

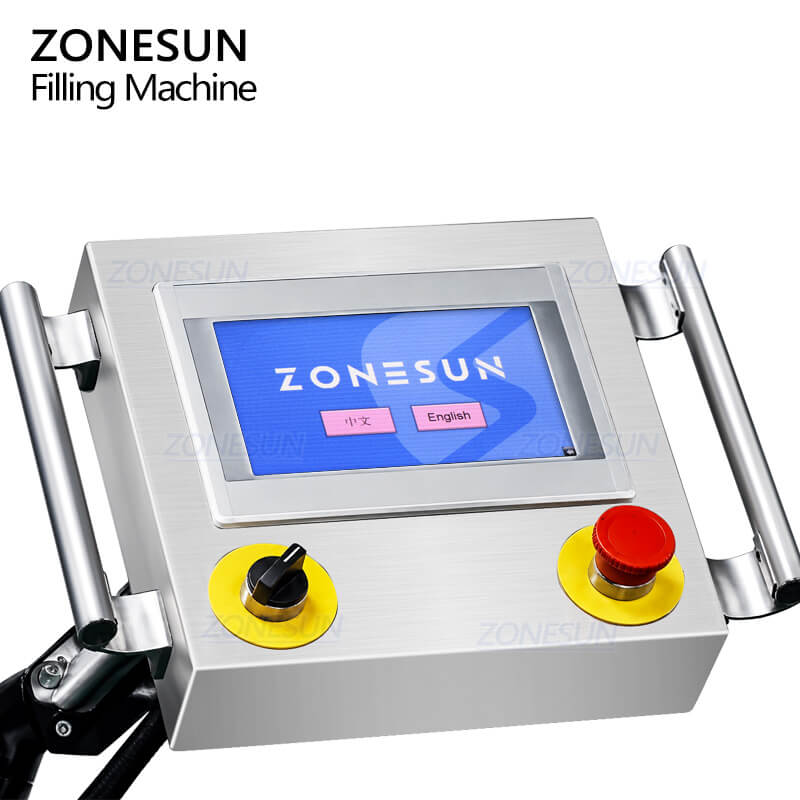

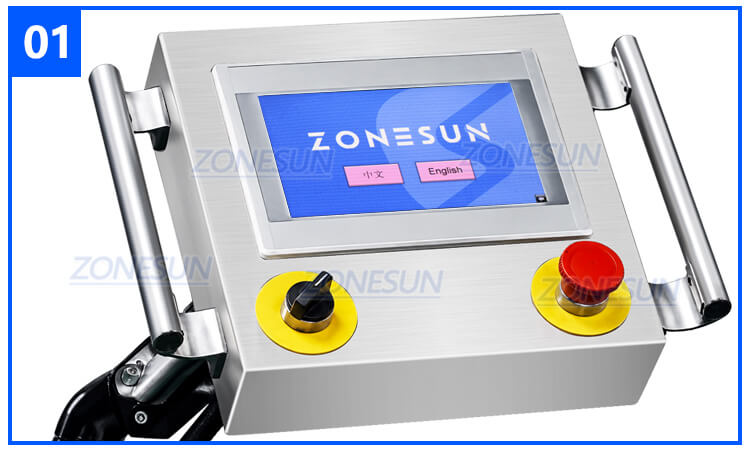

PLC Control Panel
The Siemens PLC works with a 360-degree rotating touchscreen for parameter setting, recipe storage, operation, and monitoring.

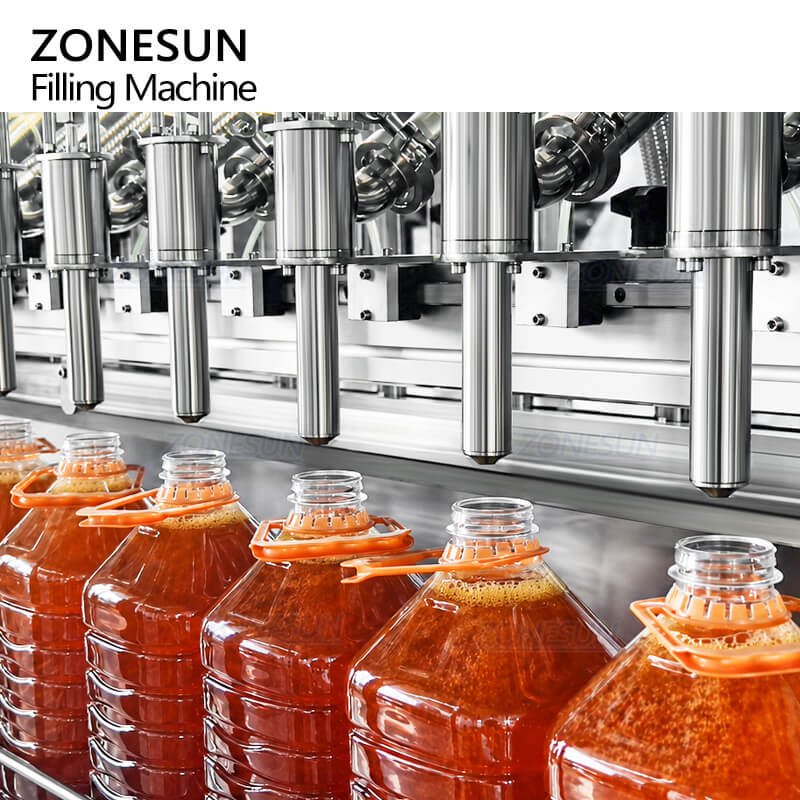

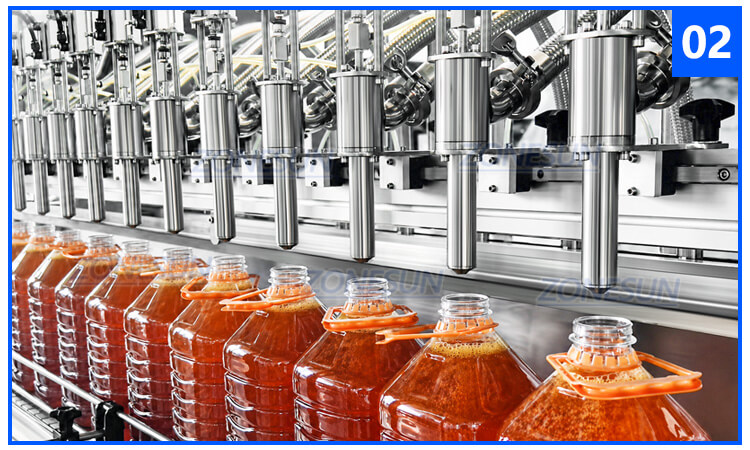

Vacuum Suck-Back Filling Head
Uses vacuum suck-back after filling to help reduce oil dripping. The split filling-head structure allows separate removal for maintenance.

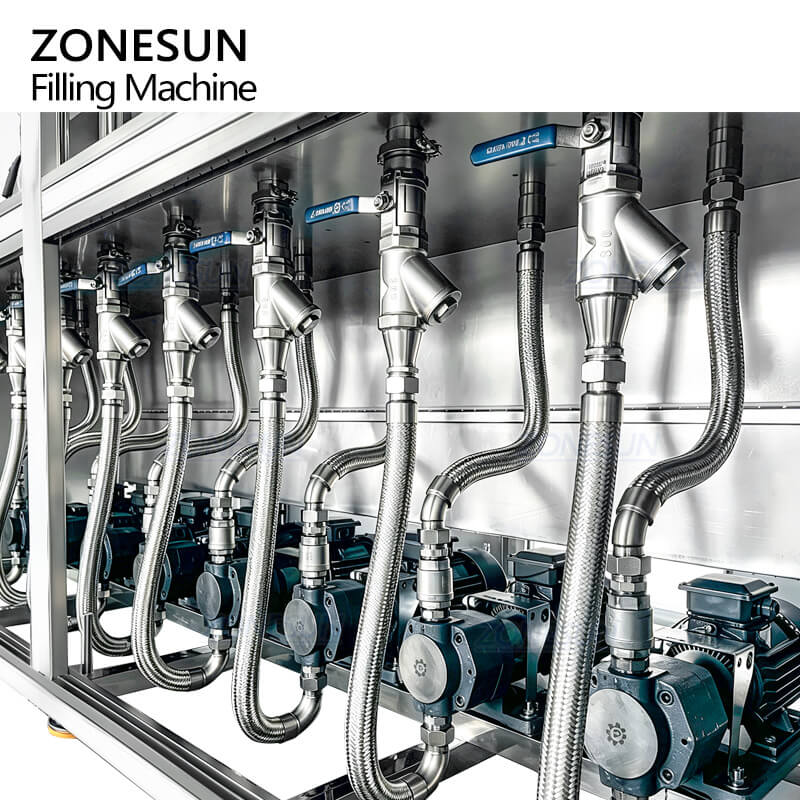

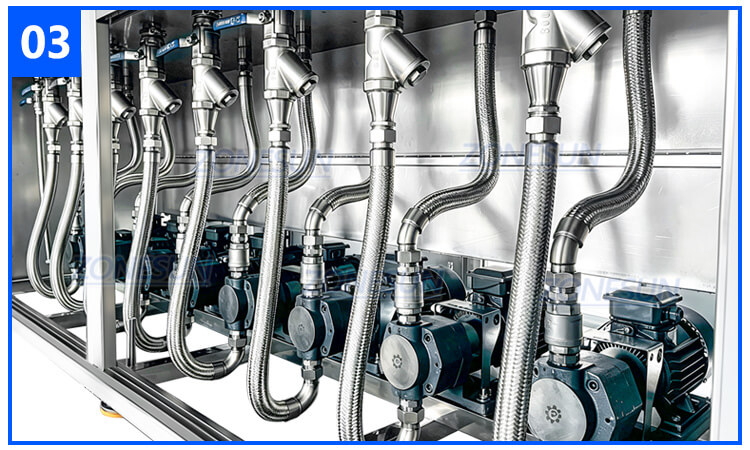

One-Head-One-Pump System
Each filling head operates independently. A faulty head can be switched off without stopping the remaining heads.

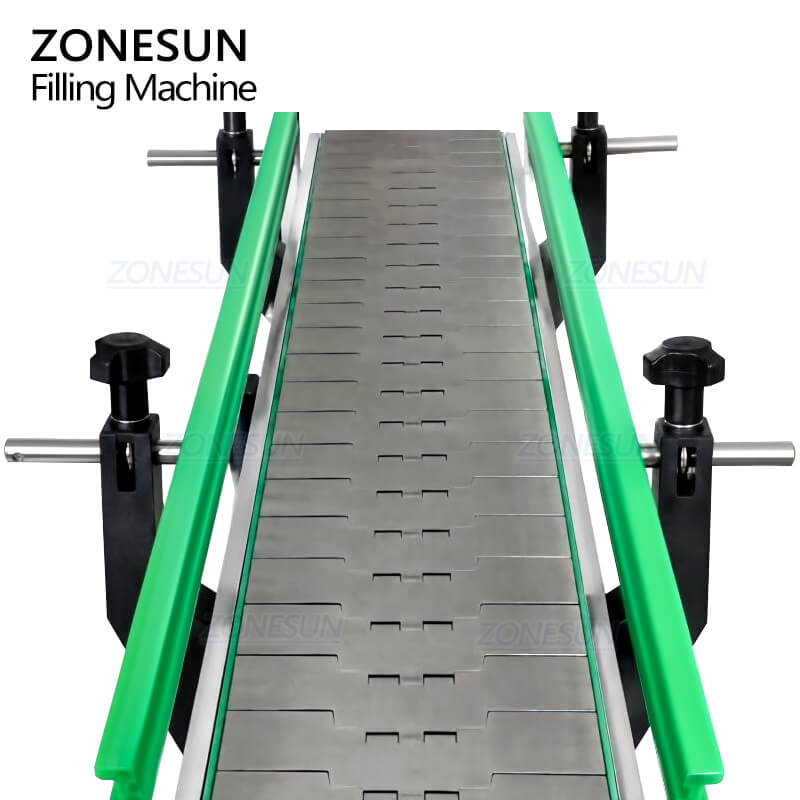

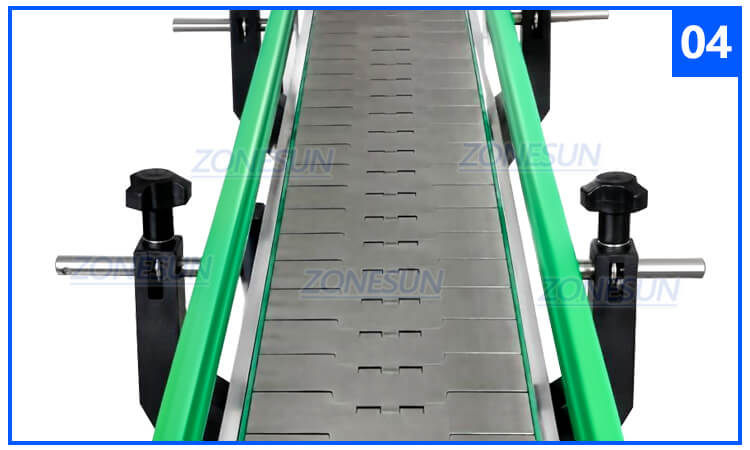

Variable-Frequency Conveyor
Uses variable-frequency speed control and buffered start/stop operation to support stable bottle transfer.

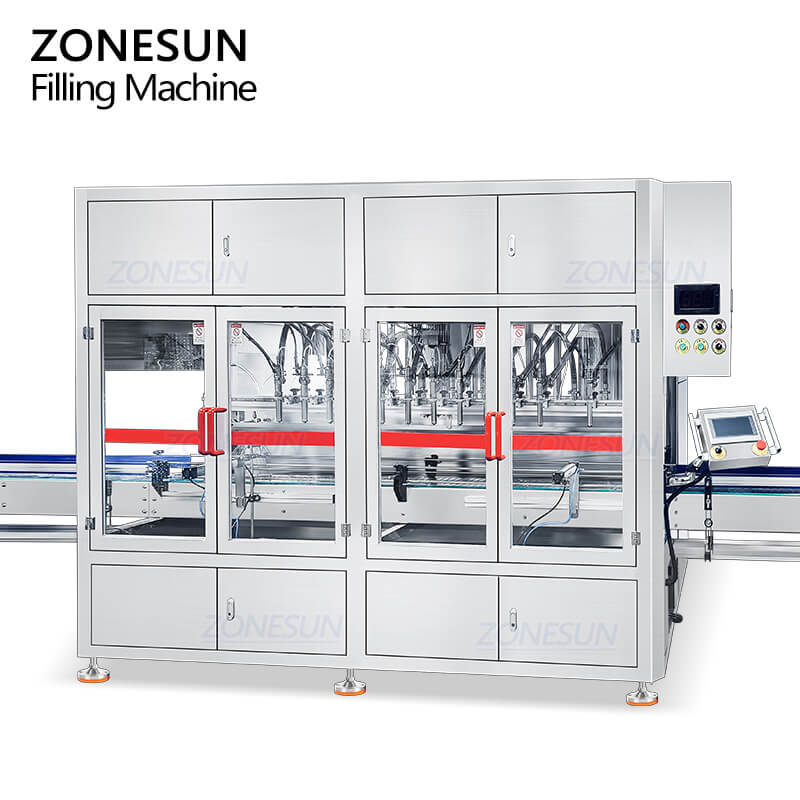

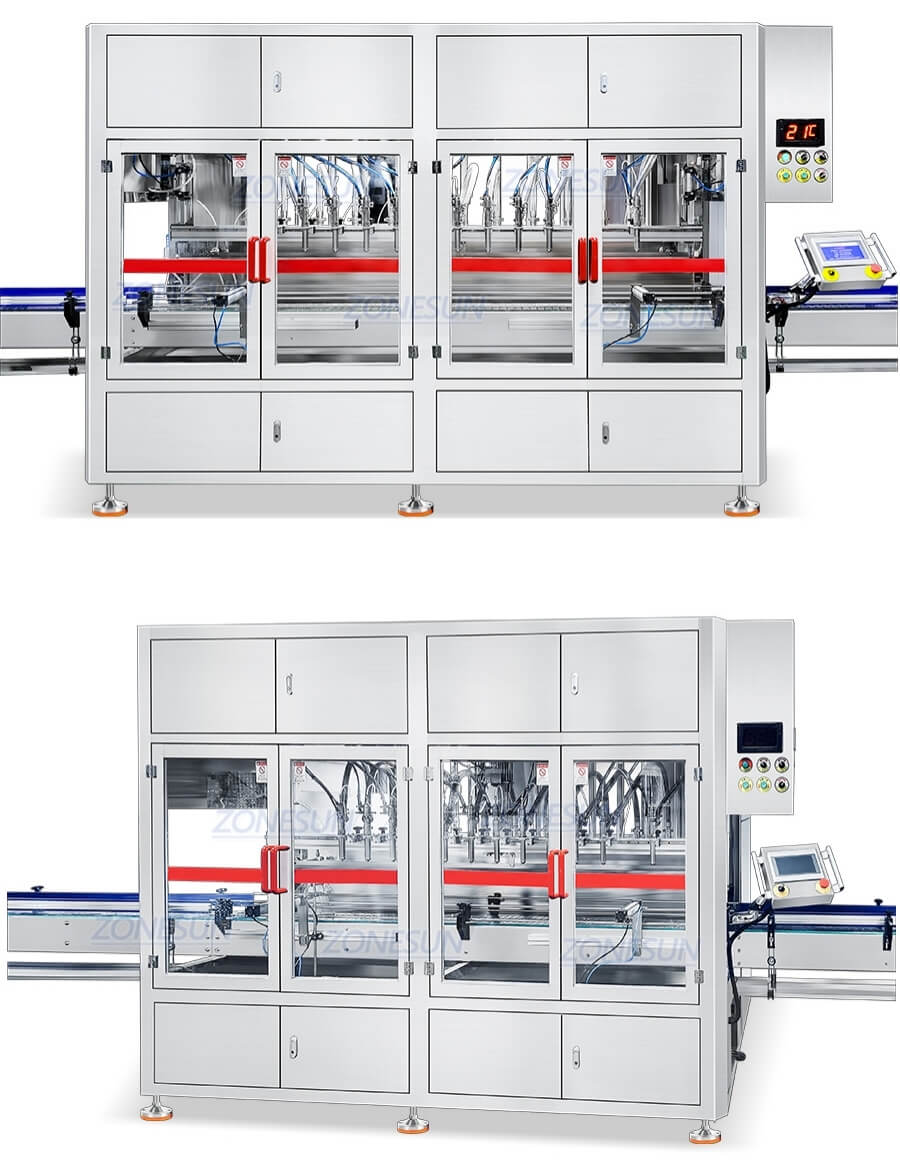

Product Real Shot
