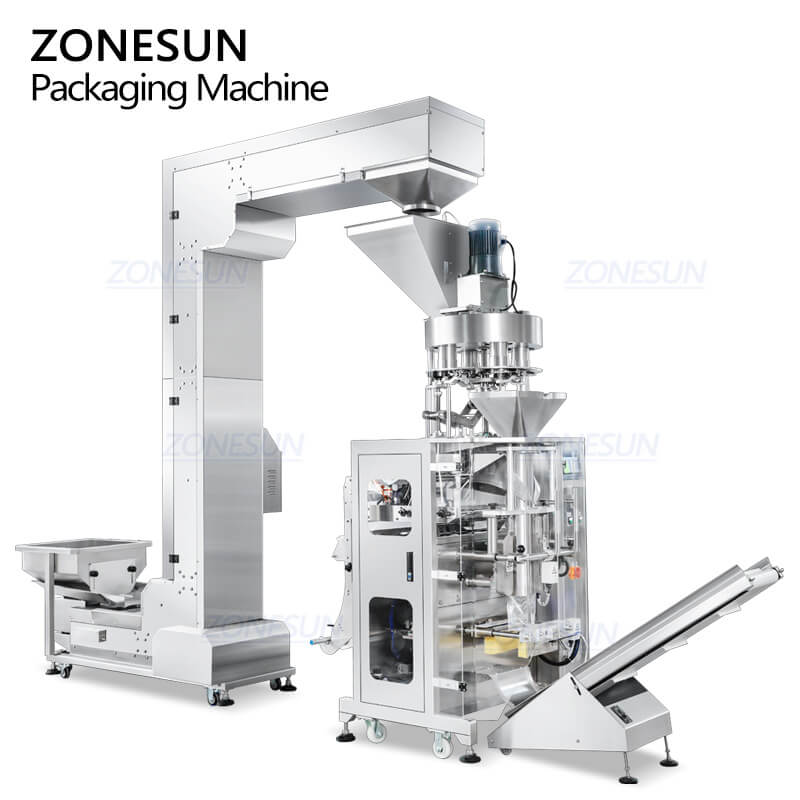

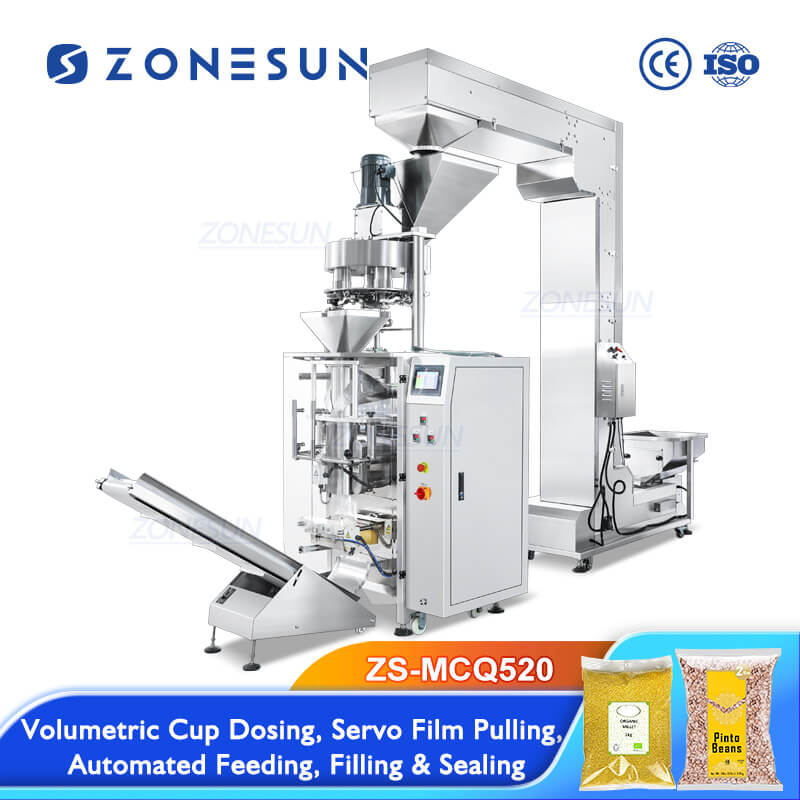

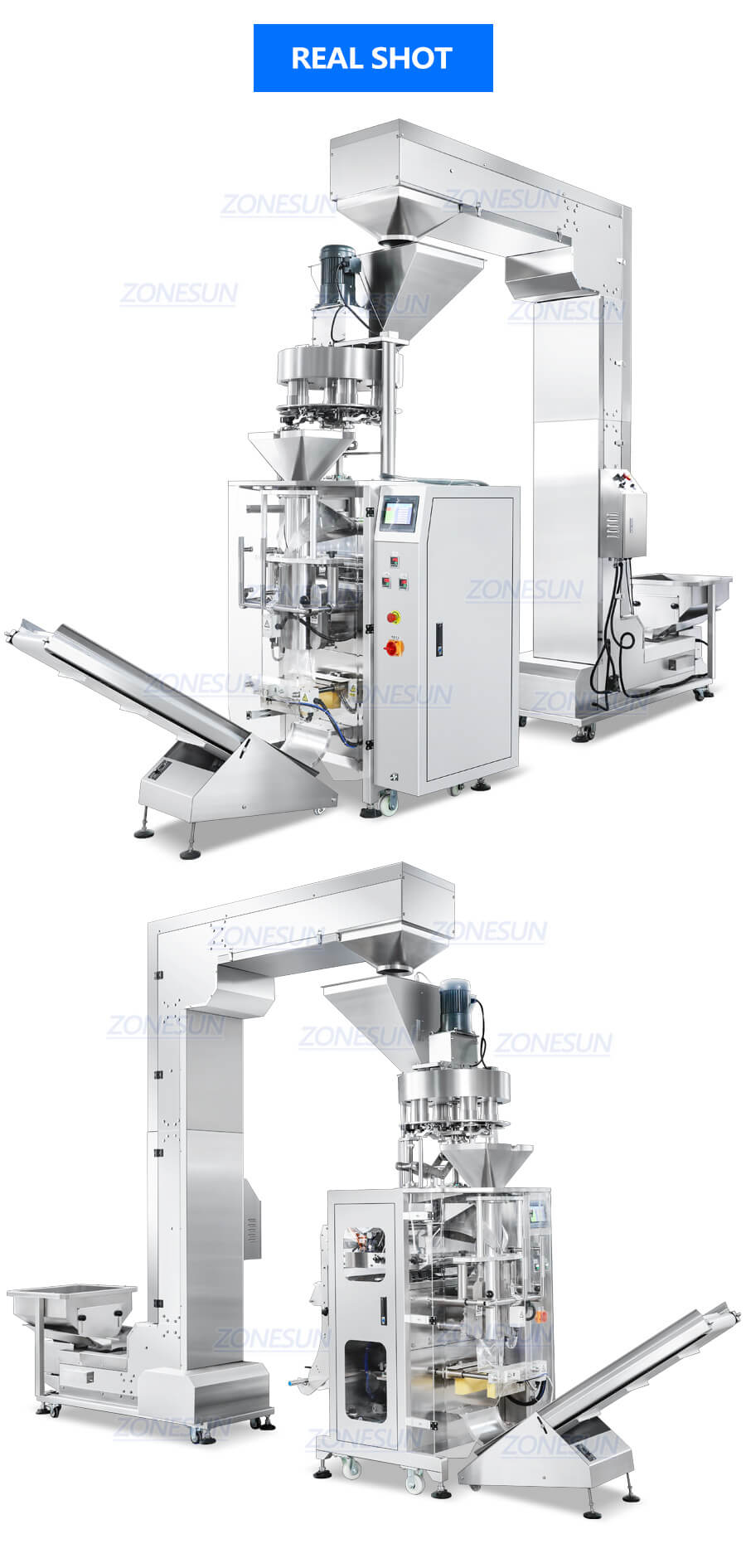

ZONESUN ZS-MCQ520 Granule Sachet Vertical Form Filling Sealing Machine

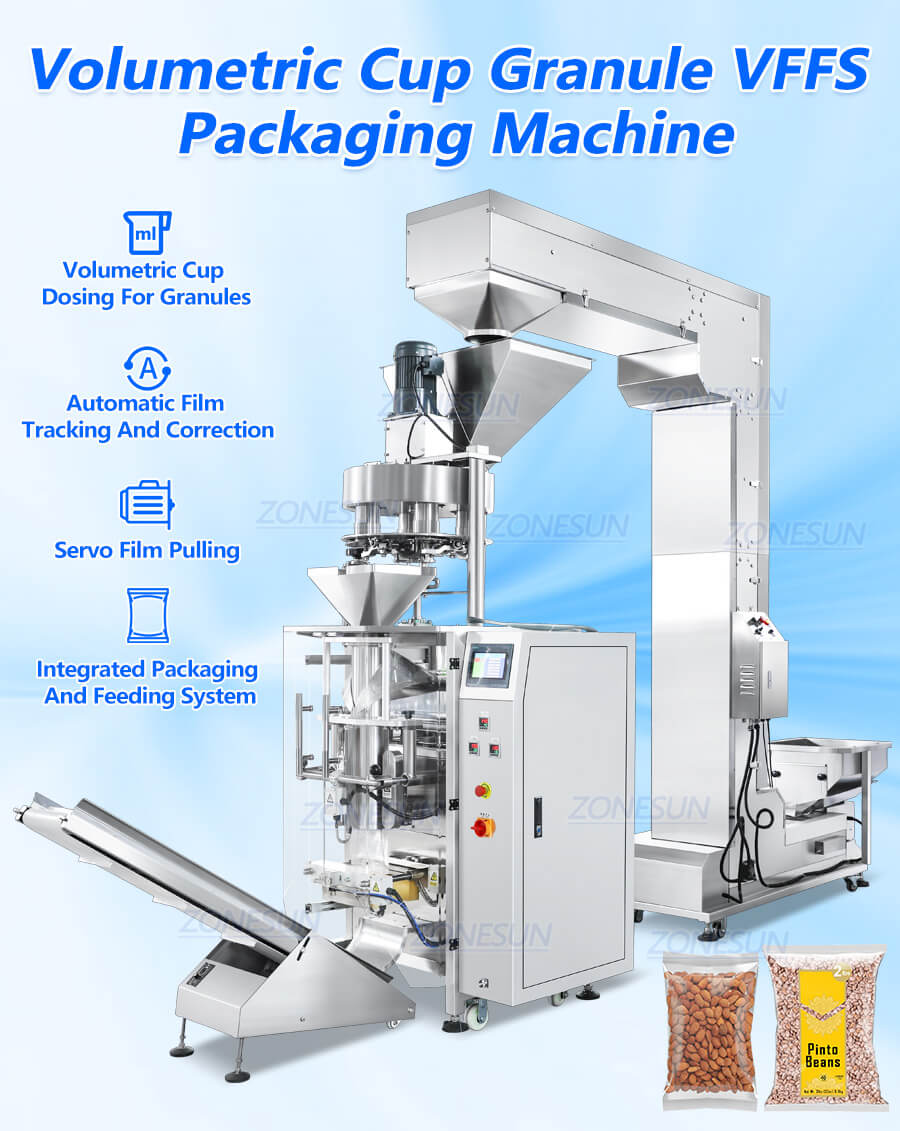

This volumetric cup type VFFS packaging machine is designed for automatic packaging of granular products. Equipped with a volumetric cup dosing system and a Z type feeding elevator, it completes feeding, measuring, bag forming, filling, sealing, coding, and output in one process. The servo film pulling system ensures stable operation, and accurate positioning of grain, or nuts.
Price range: $13,099.00 through $17,199.00
Share to
Product Description:
This volumetric cup type VFFS packaging machine is designed for automatic packaging of granular products. Equipped with a volumetric cup dosing system and a Z type feeding elevator, it completes feeding, measuring, bag forming, filling, sealing, coding, and output in one process. The servo film pulling system ensures stable operation, and accurate positioning of grain, or nuts.
Product Parameters:
| Model | ZS-MCQ520 |
| Power Supply | 220/380V 50-60HZ |
| Power | 3 kW |
| Air consumption | 0.8ps 0.3m³/min |
| Sealing Method | Back side sealing |
| Measurement Range | Customizable |
| Bag Size | 80-350mm(L)*70-250mm(W) |
| Roll Film Width | 160*520mm |
| Film Thickness | 0.04-0.09mm |
| Packing Speed | 30-60 packs/min |

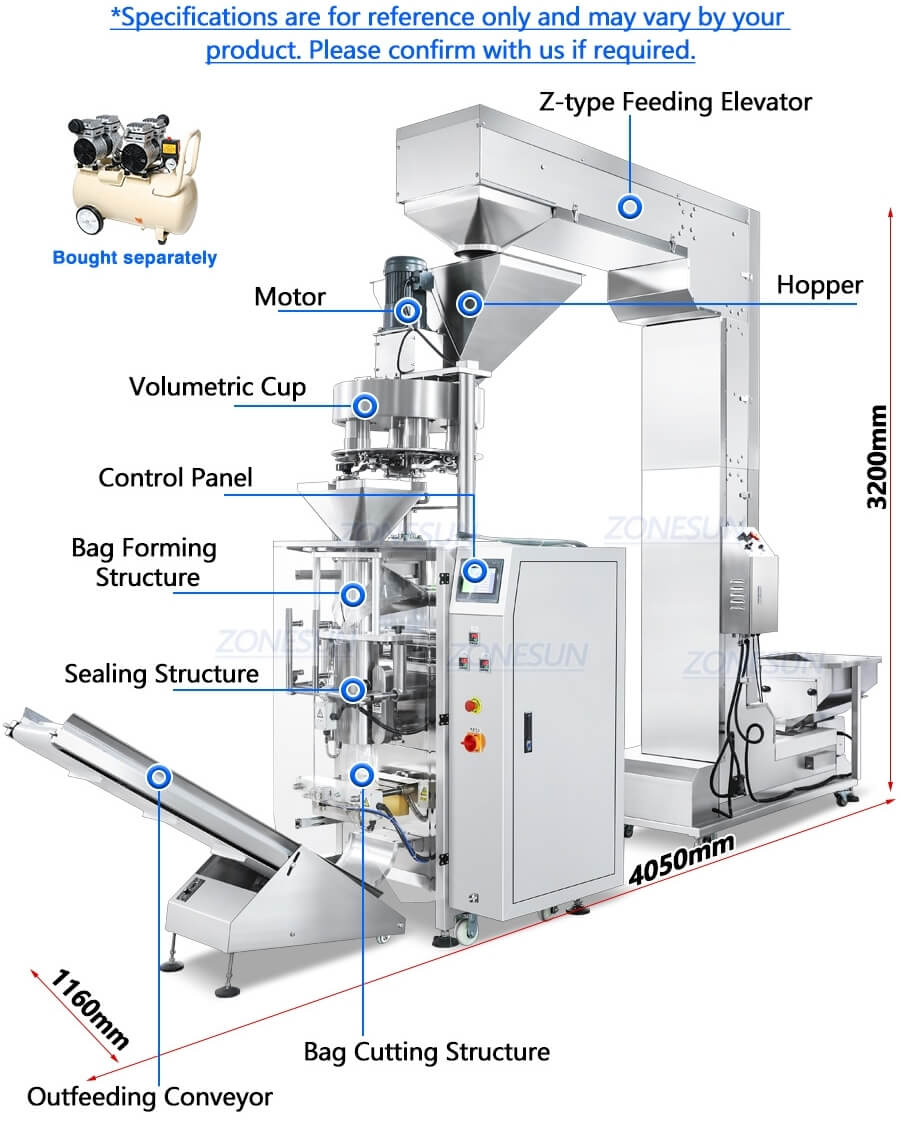

| Machine Size | About 1160*4050(3000+1050)mm*3200mm(L*W*H) |
| Packing Weight | About 480 kg |
Product Details:

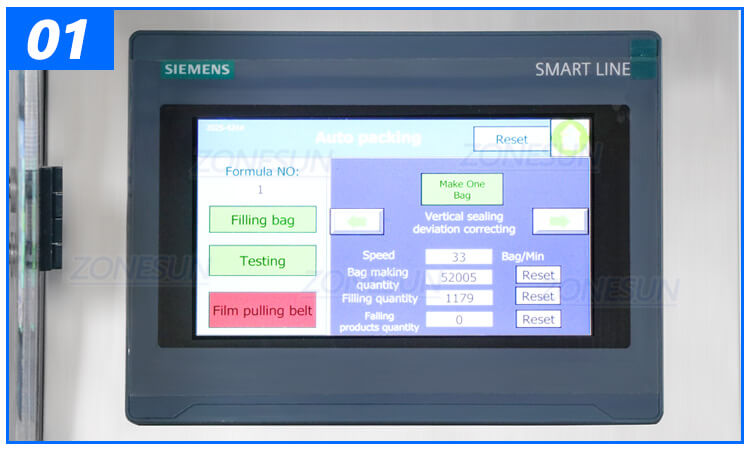

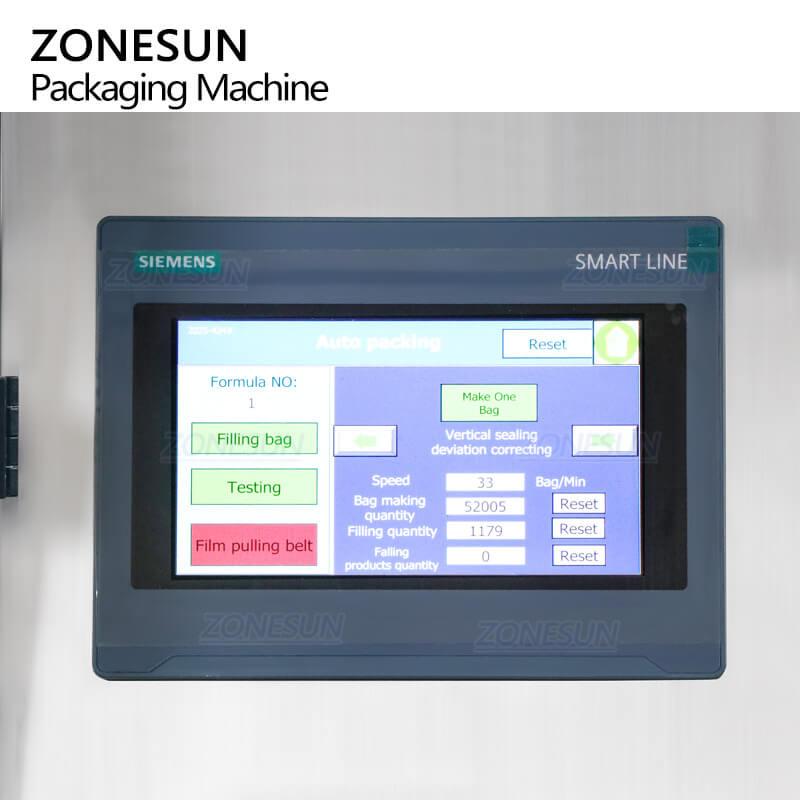

Touchscreen Control Panel
Enables easy parameter setting, operation control, and real-time monitoring.

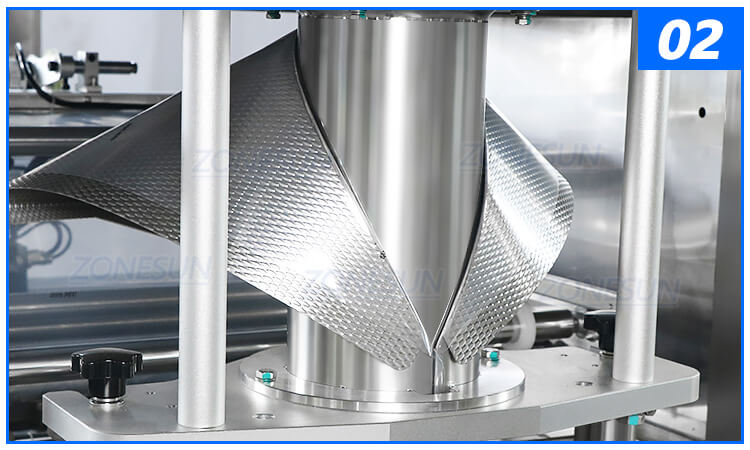

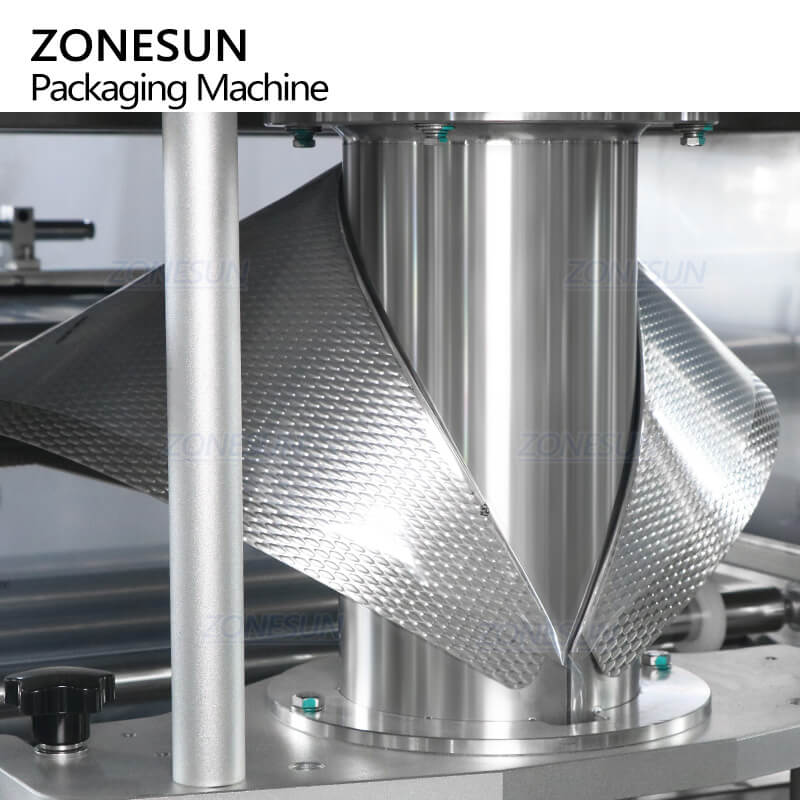

Bag Forming Structure
Shapes the film into bags with consistent size and stable forming performance.

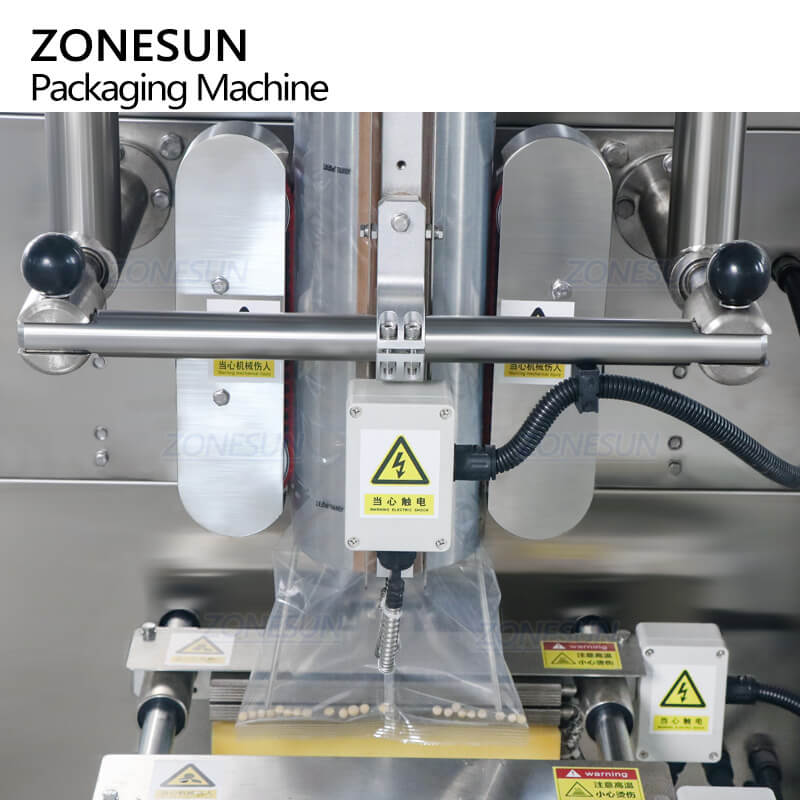

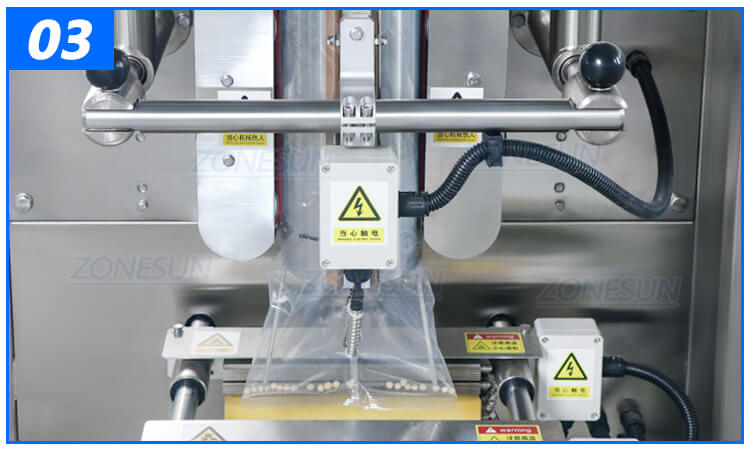

Vertical And Horizontal Sealing Structure
Provides strong and reliable seals with independent temperature control.

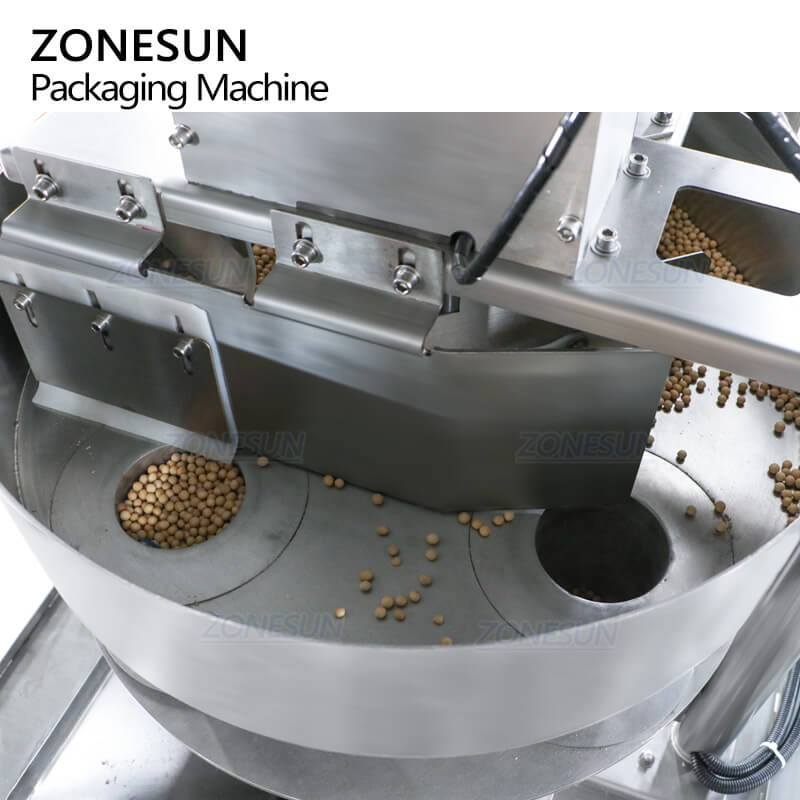

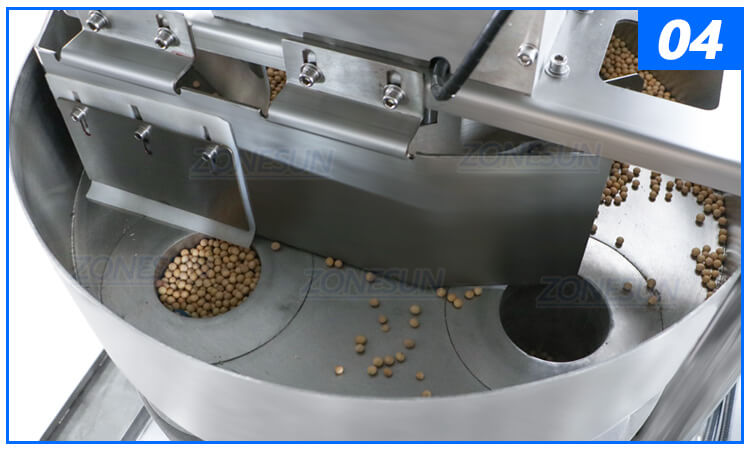

Volumetric Cup
Measures granular products accurately using adjustable cup volumes.

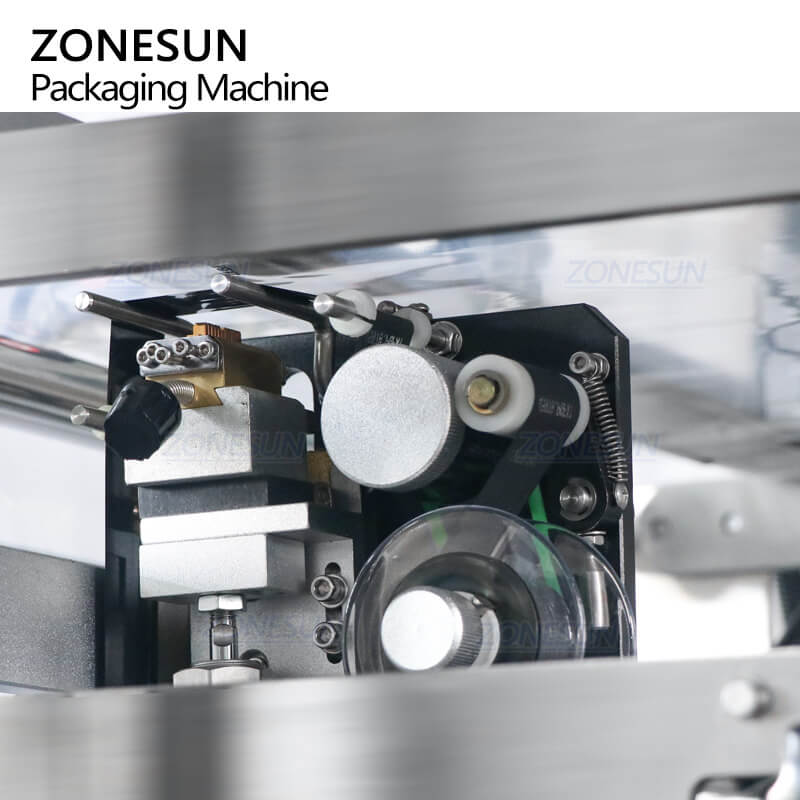

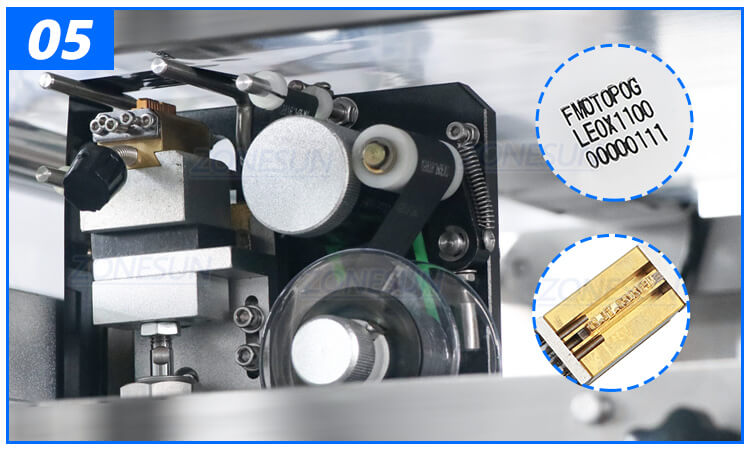

Ribbon Coding Printer (Optional)
Prints production date and batch information during packaging.

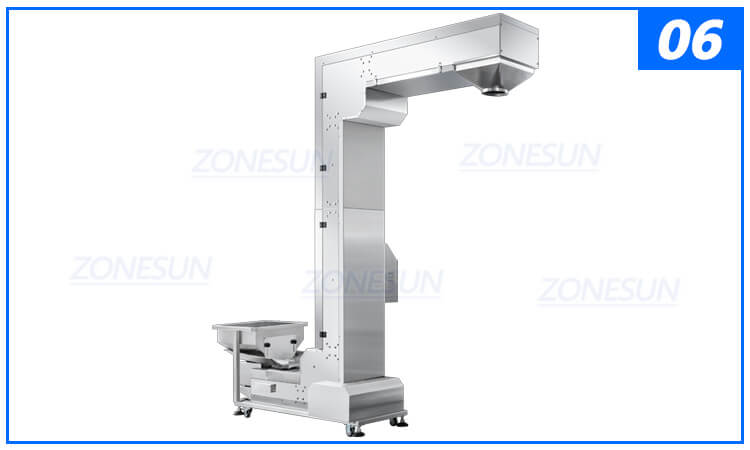

Z-Type Bucket Elevator
Transports materials smoothly to the filling system for continuous feeding.

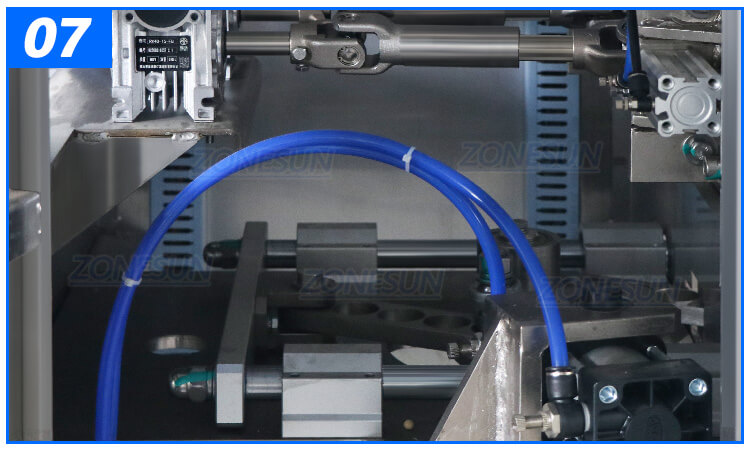

Electrical Control System
Well-organized internal components ensure stable operation and easy maintenance.
