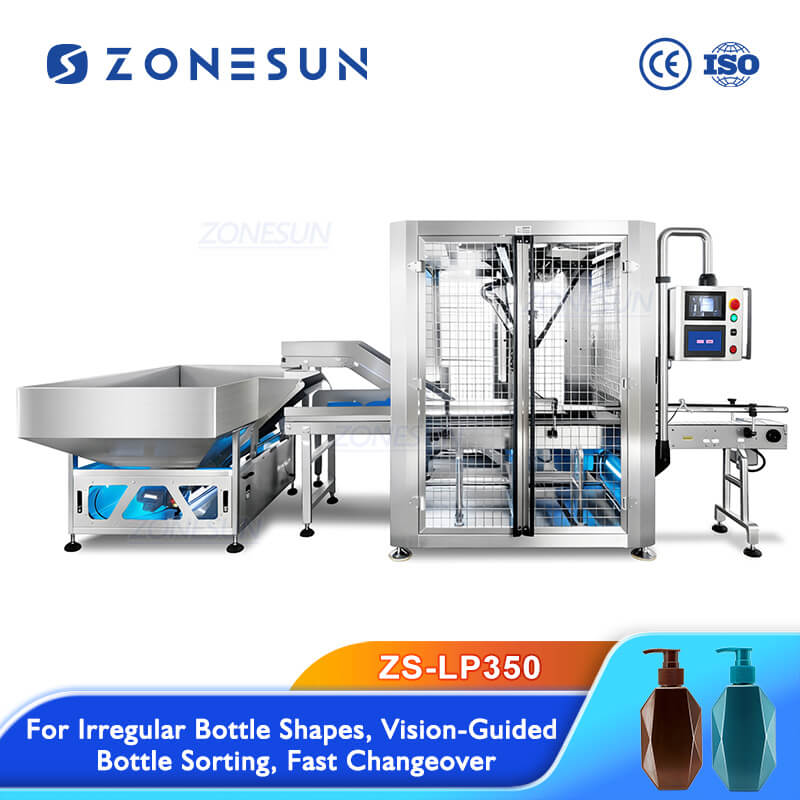

ZONESUN ZS-LP350 Vision-guided Robotic Bottle Unscrambler
This automatic robotic bottle unscrambler uses vision guided robotic sorting to feed bottles into the line the right way round, so bottles reach the next station facing the same direction instead of being turned into place by hand. A multi point vision correction system checks and corrects the bottle position, which is what allows irregular bottle shapes to be handled. Recipes can be stored so switching to a different bottle format is quicker.
Original price was: $24,599.00.$23,799.00Current price is: $23,799.00.
Share to
Product Description
This automatic robotic bottle unscrambler uses vision guided robotic sorting to feed bottles into the line the right way round, so bottles reach the next station facing the same direction instead of being turned into place by hand. A multi point vision correction system checks and corrects the bottle position, which is what allows irregular bottle shapes to be handled. Recipes can be stored so switching to a different bottle format is quicker.
Product Applications
Product Parameter
| Machine Model | ZS-LP350 |
| Power Supply | AC 220V, 50Hz (Customizable) |
| Machine Power | 6200W |
| Suitable Products | Plastic Bottles |
| Air Pressure | 0.5–0.8 kPa |
| Working Capacity | 30–50 cycles/min (depending on the product) |
| Working Environment | -10–60°C, RH ≤80% |
| Machine Size (L×W×H) | About 2200 × 1750 × 2100 mm |
| Machine Net Weight | About 780 kg |

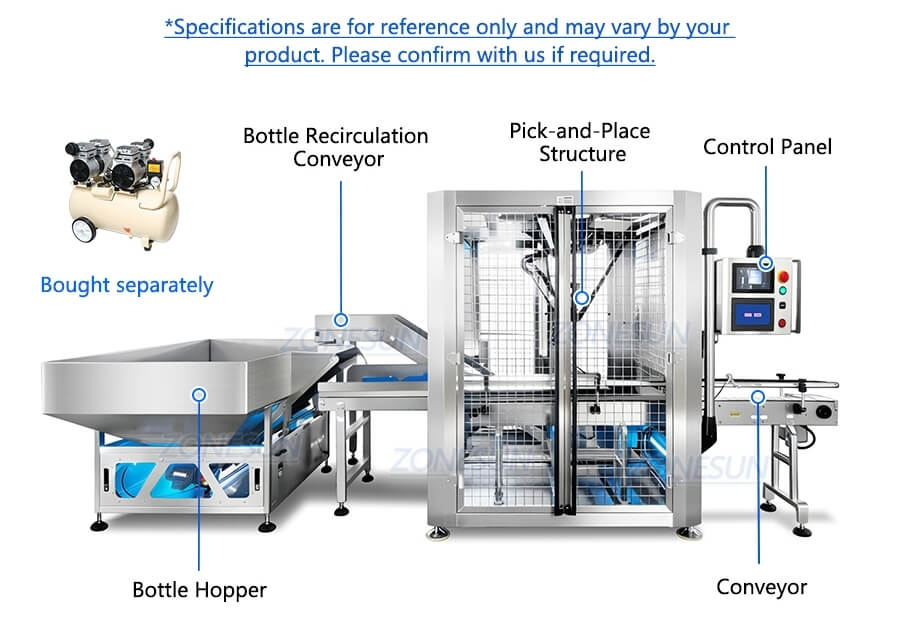

Product Details

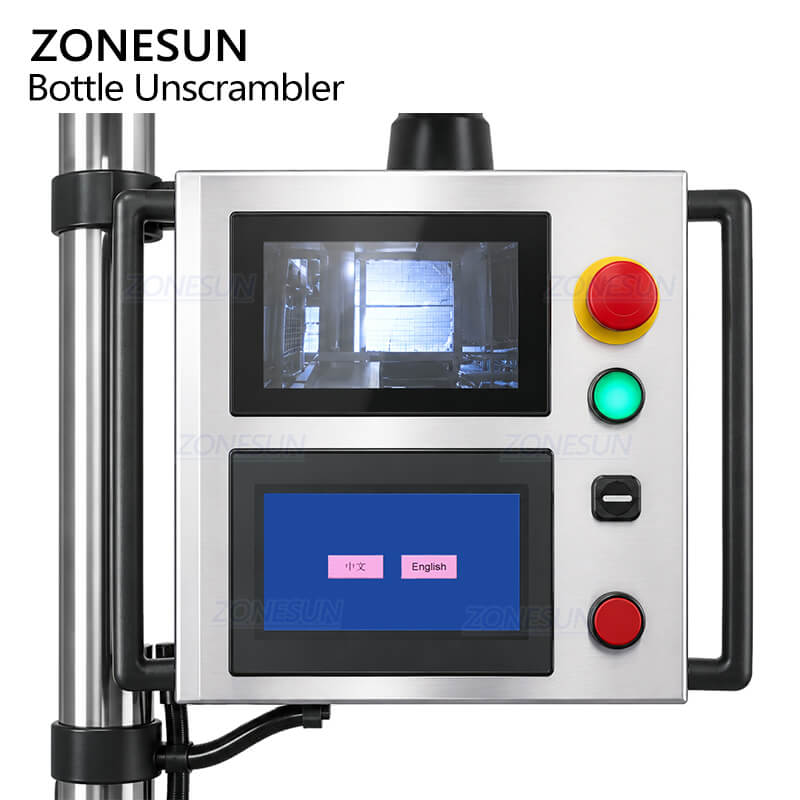

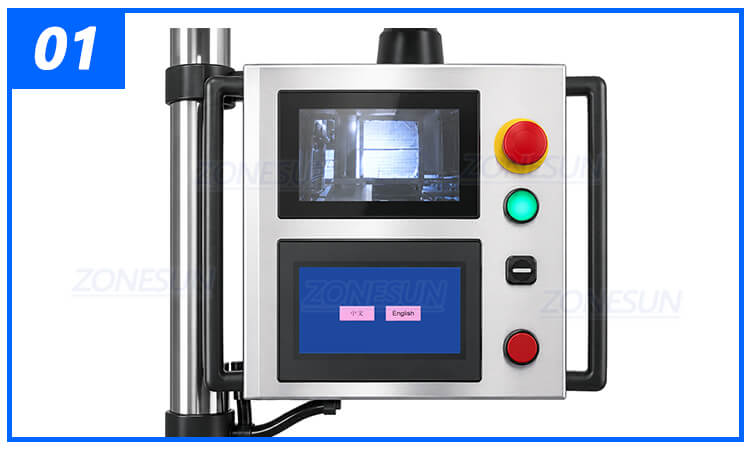

Touchscreen Control Panel
The control panel allows operators to set production parameters, save bottle recipes and quickly recall settings when changing between different container formats.

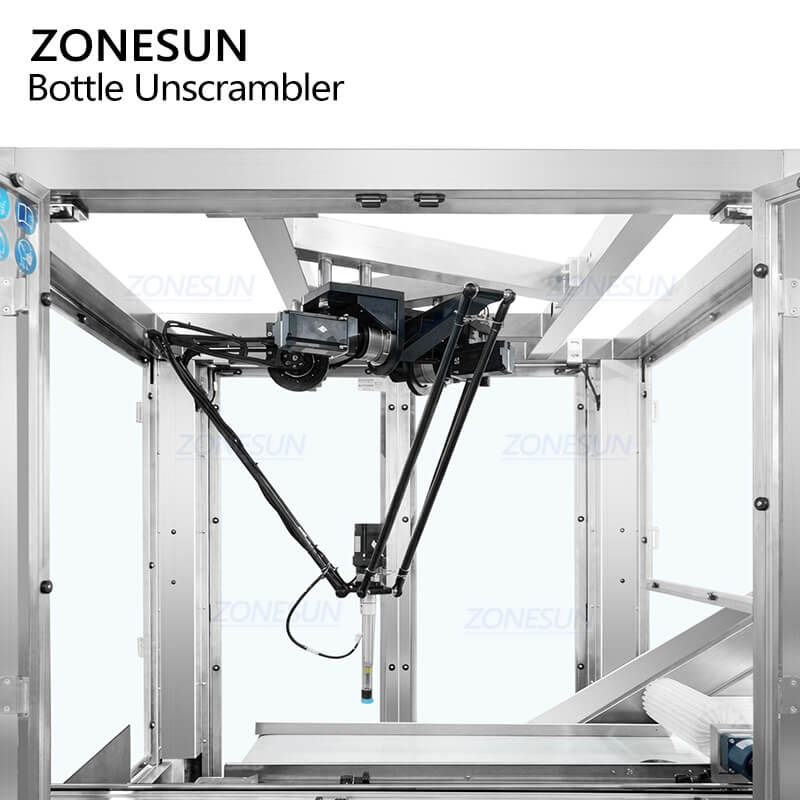

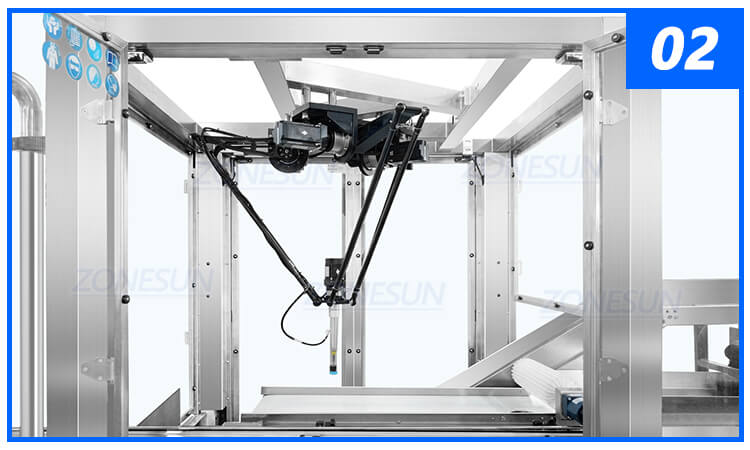

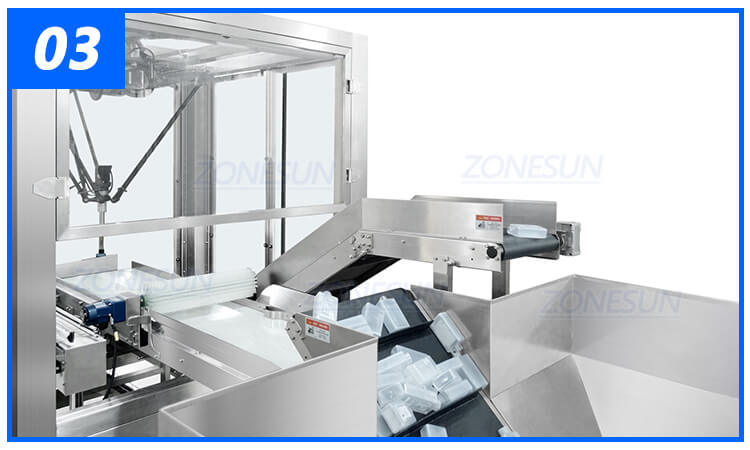

Vision-Guided Pick-and-Place Robot
The robot automatically picks and places bottles according to the recognition results, working with the flipping system to orient bottles for continuous feeding.

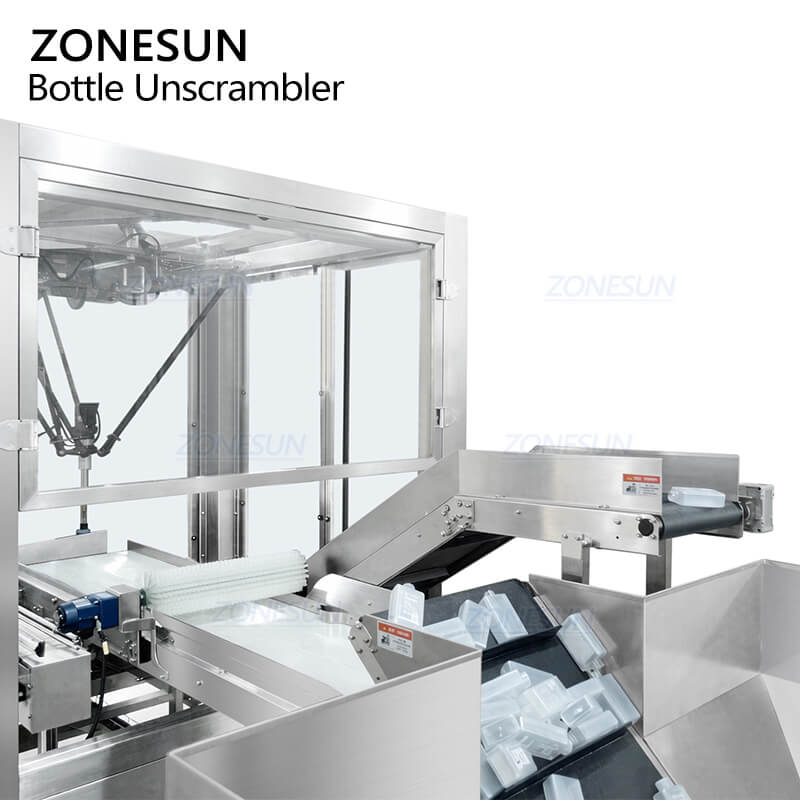

Large-Capacity Bottle Hopper
The hopper stores a larger quantity of empty bottles for continuous feeding, helping reduce manual loading frequency during production.

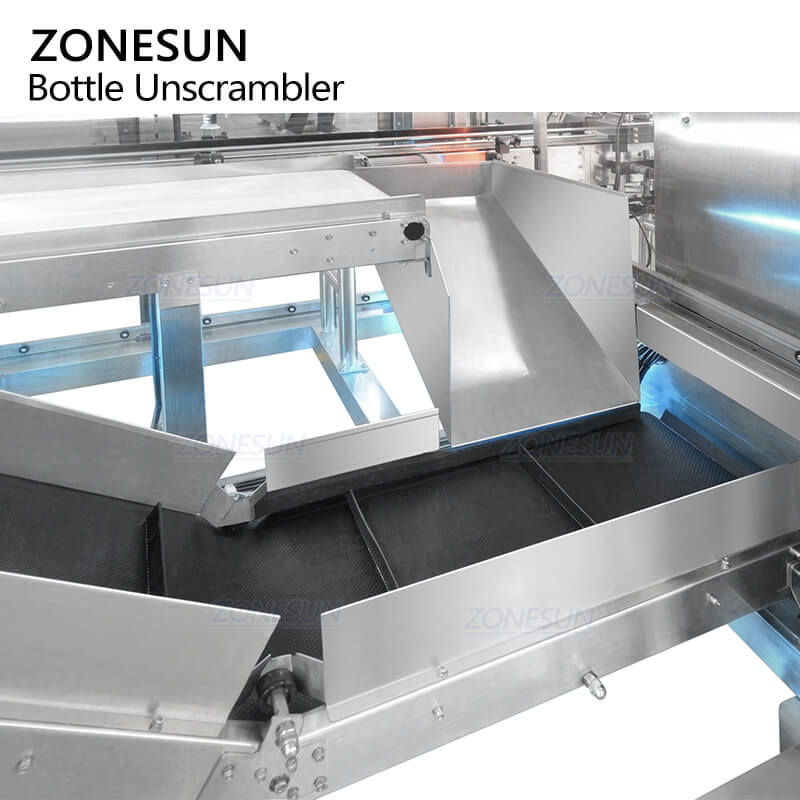

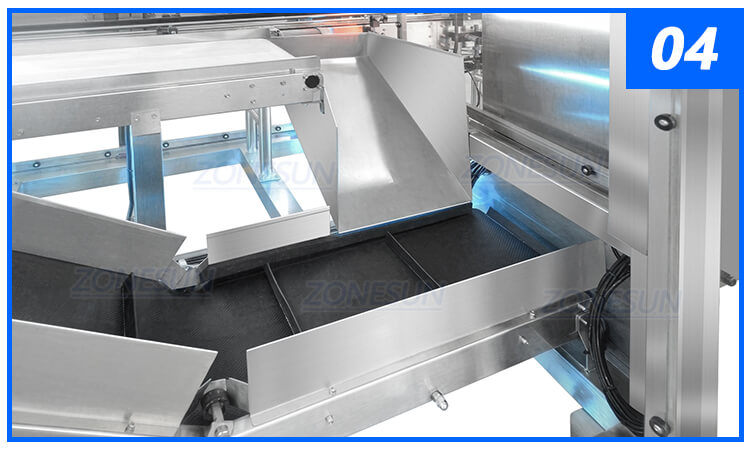

Bottle Recirculation Conveyor
Bottles that are not successfully picked or oriented are returned to the feeding area for another sorting cycle, reducing manual intervention and keeping the system running continuously.

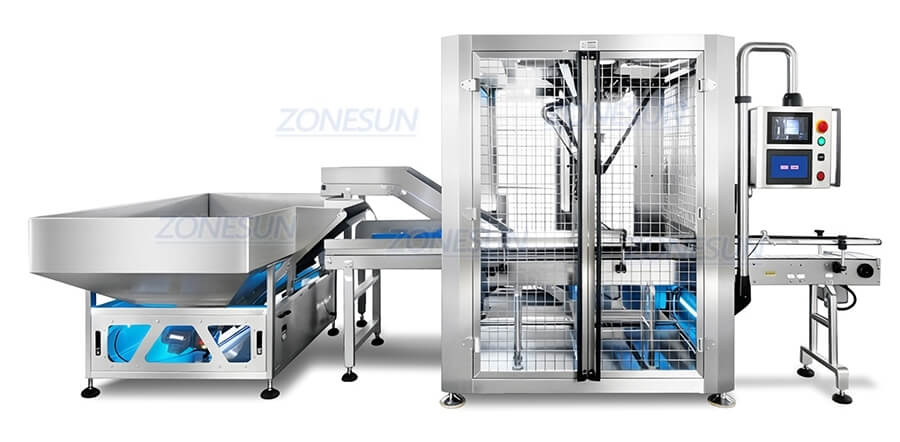

Product Real Shot
