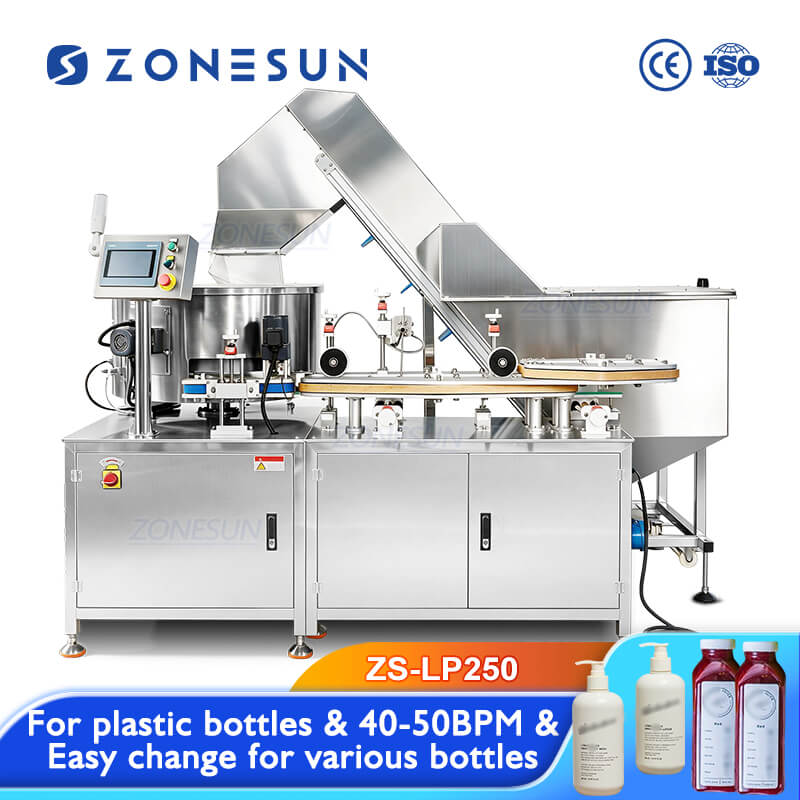

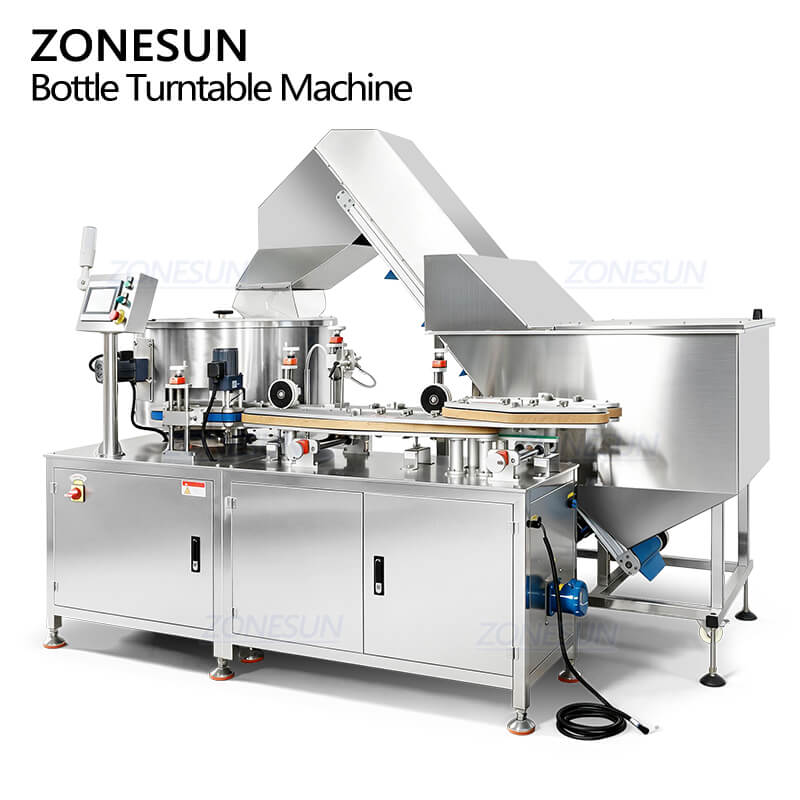

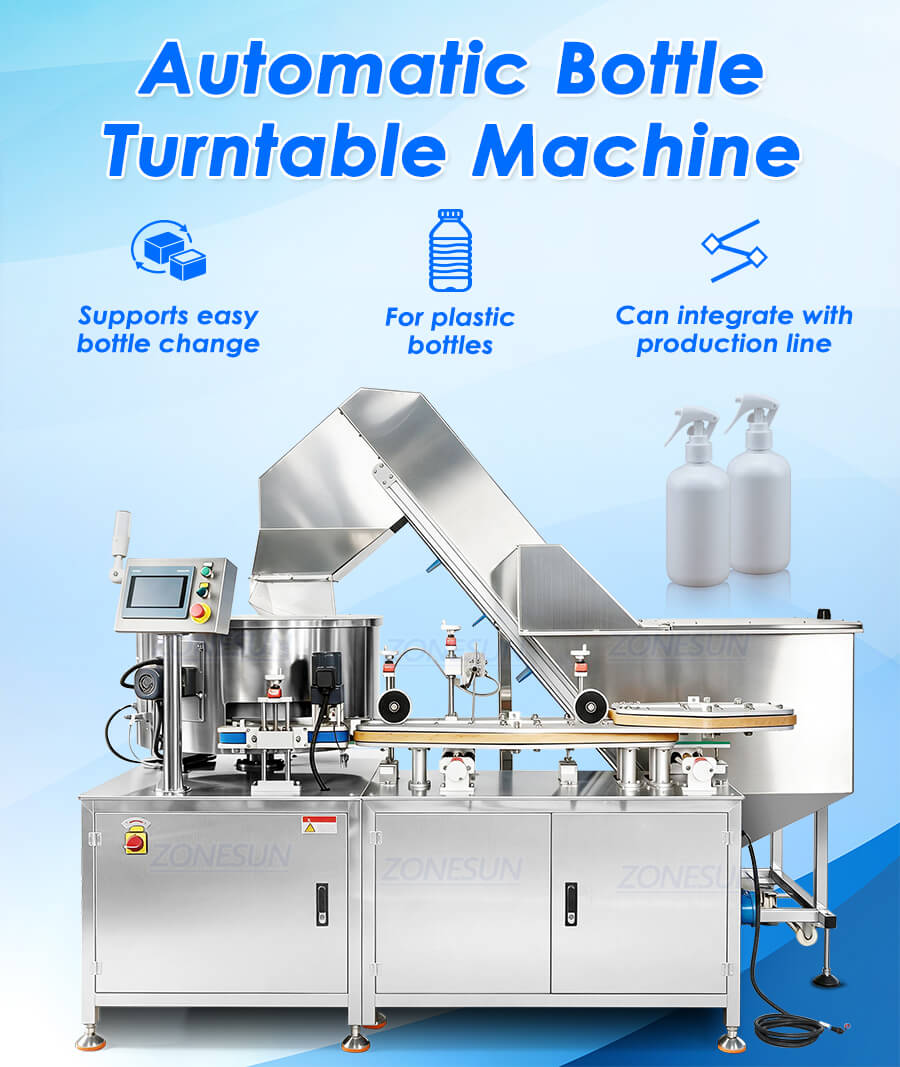

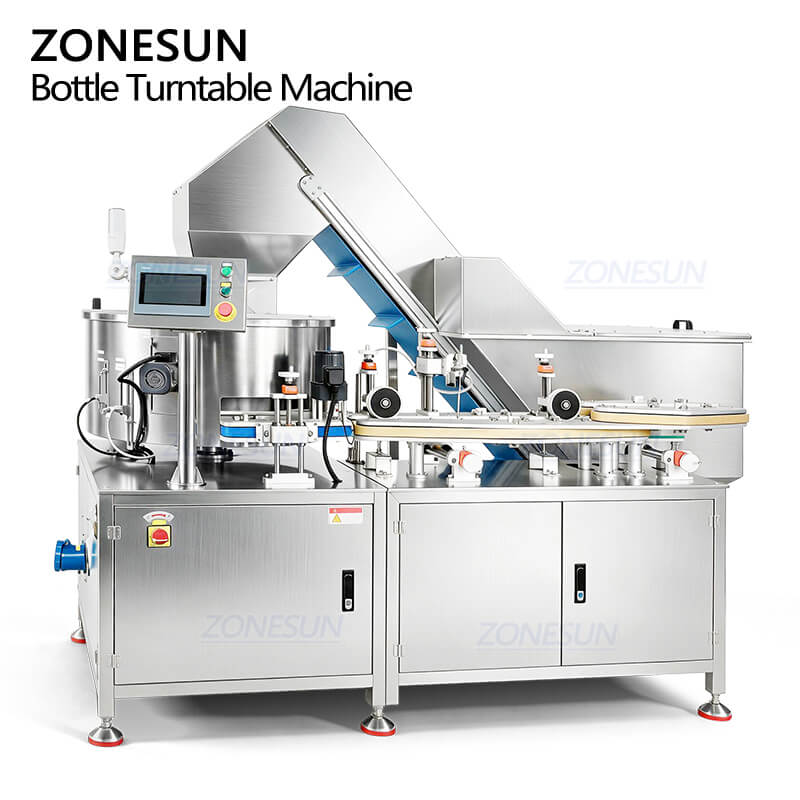

ZONESUN ZS-LP250 Bottle Unscrambler Machine
This bottle turntable machine is suitable for round & square plastic bottles.Bottle feeder will supply bottles in time to the rotating bottle unscrambling structure,bottles will fall into the wheel groove under the action of centrifugal force and transport to the conveyor.Under the action of the bottle holding device and the bottle hook bar,the bottle will be straightened and transported to the next production process.
$15,999.00
Share to
Product Description
This bottle turntable machine is suitable for round & square plastic bottles.Bottle feeder will supply bottles in time to the rotating bottle unscrambling structure,bottles will fall into the wheel groove under the action of centrifugal force and transport to the conveyor.Under the action of the bottle holding device and the bottle hook bar,the bottle will be straightened and transported to the next production process.

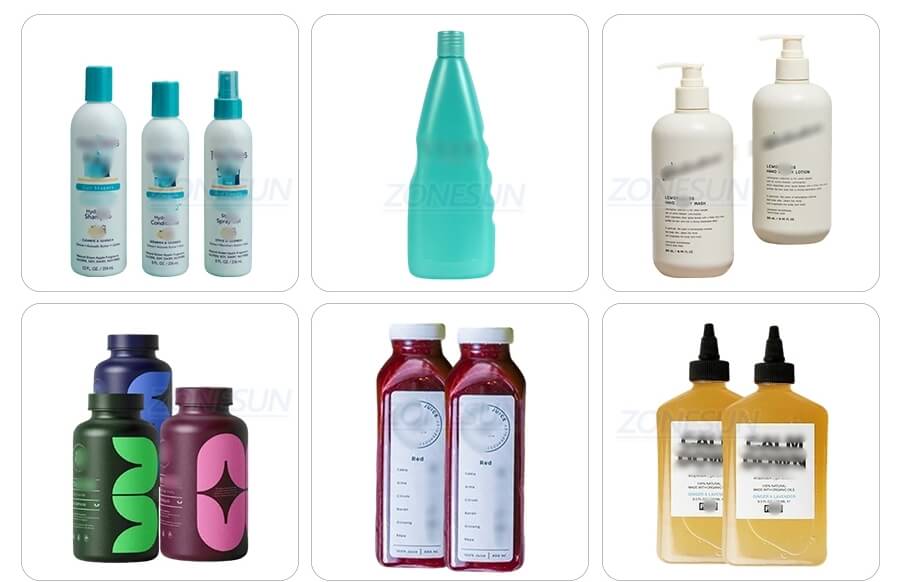

Product Applications
Product Parameter
| Machine model | ZS-LP250 |
| Machine voltage | 110/220V 50HZ |
| Machine power | 1500W |
| Working speed | 40-50 bottles/minute (according to the bottles) |
| Suitable bottle size | Customized |
| Bottle material | Plastic (not suitable for glass bottles) |
| Air consumption | 2.5m³/h |

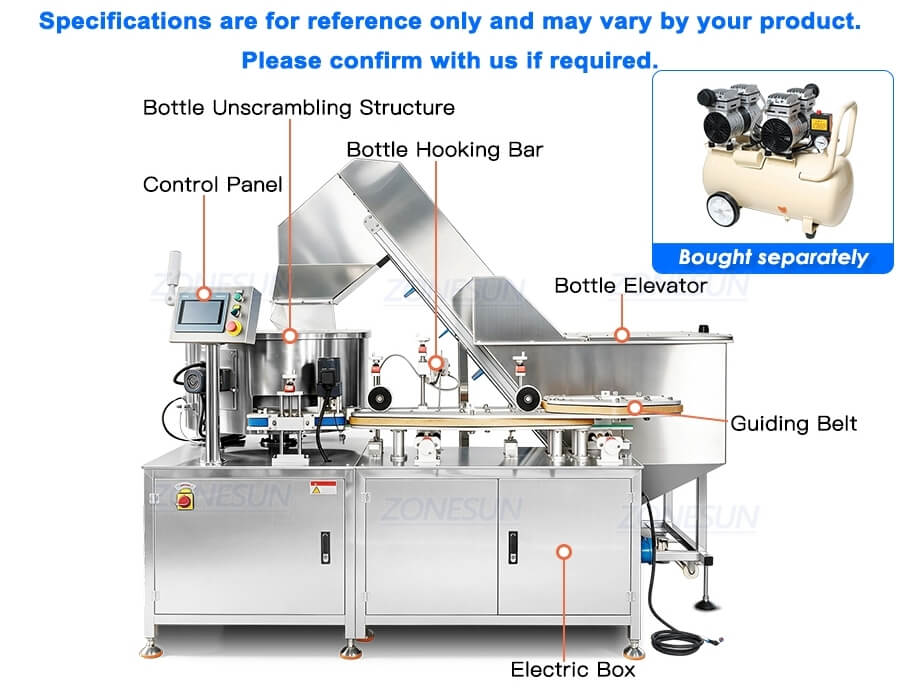

Product Details

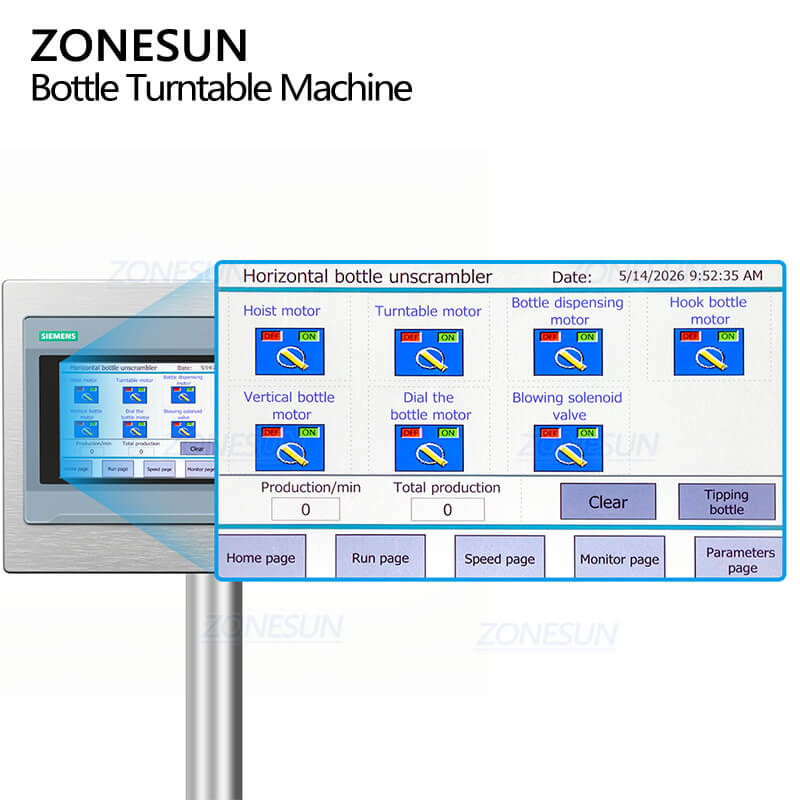

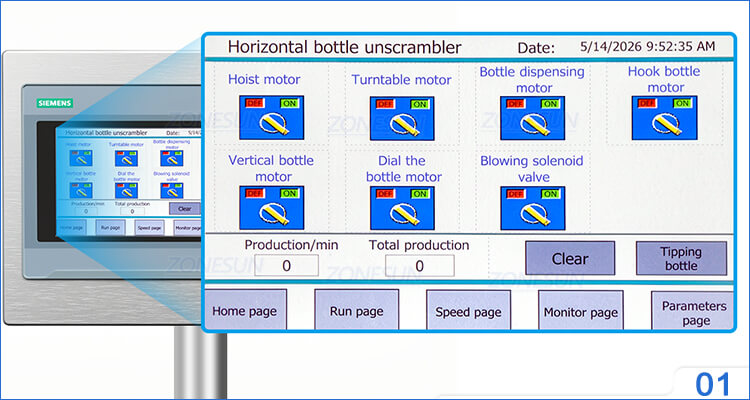

Control Panel
Allows operators to set working parameters and operate the machine easily.

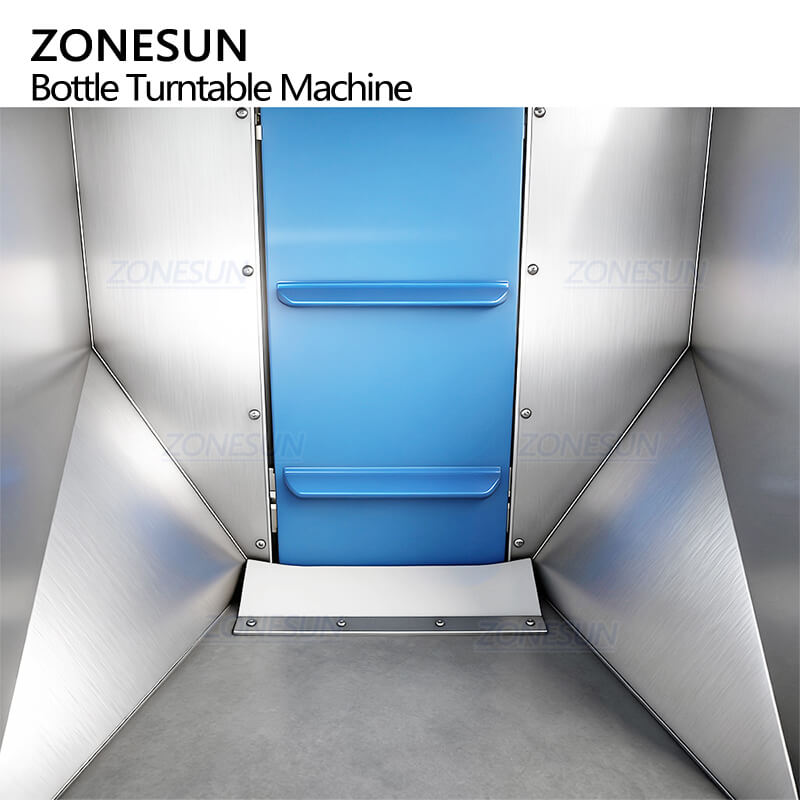

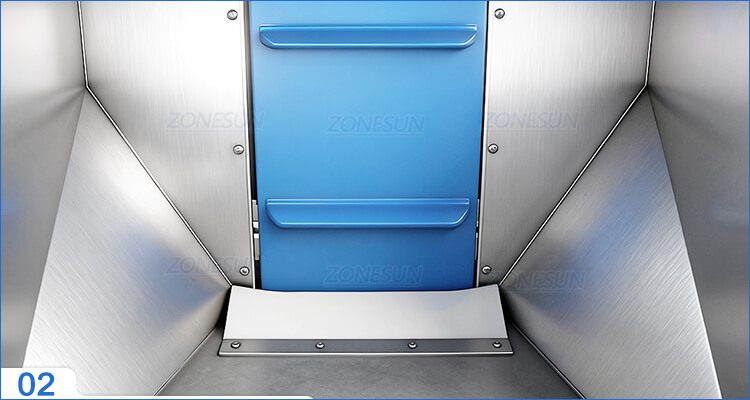

Bottle Feeding Elevator
Supply bottles into the unscrambling structure in time and save working labor.

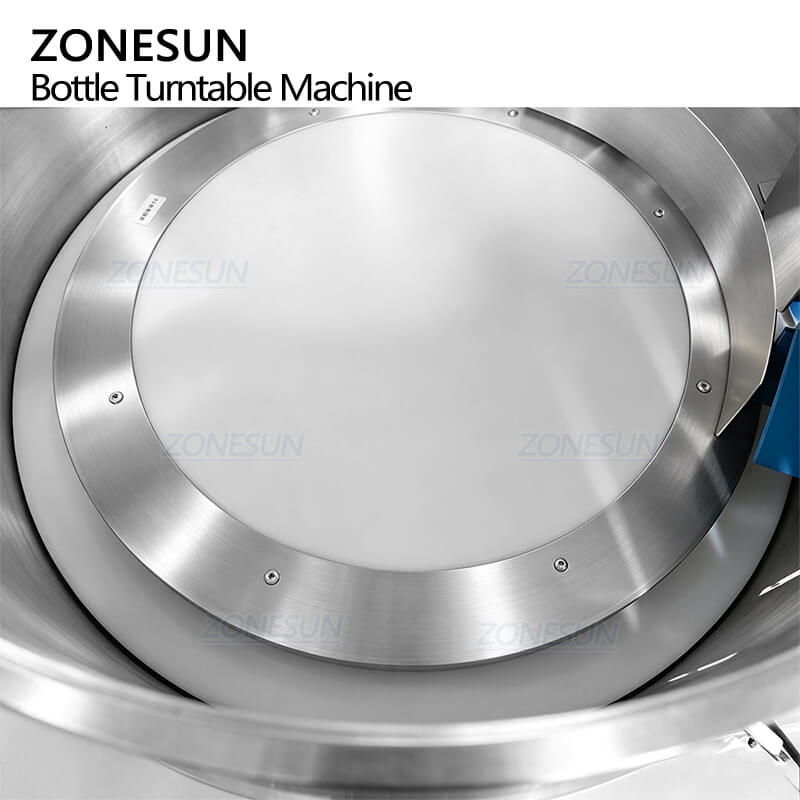

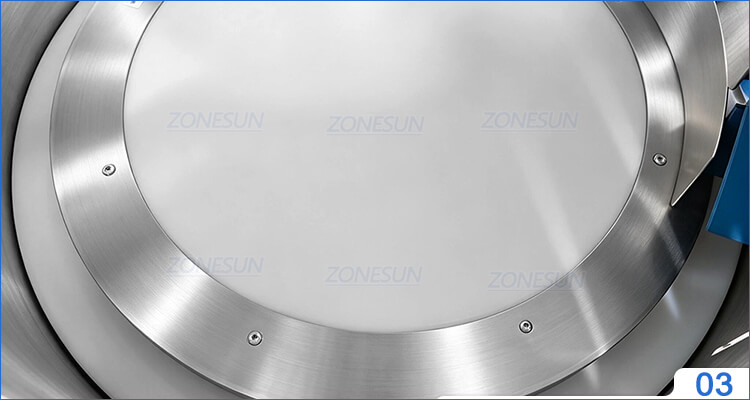

Unscrambling Structure
Uses centrifugal force to orient and transport bottles to the conveyor.

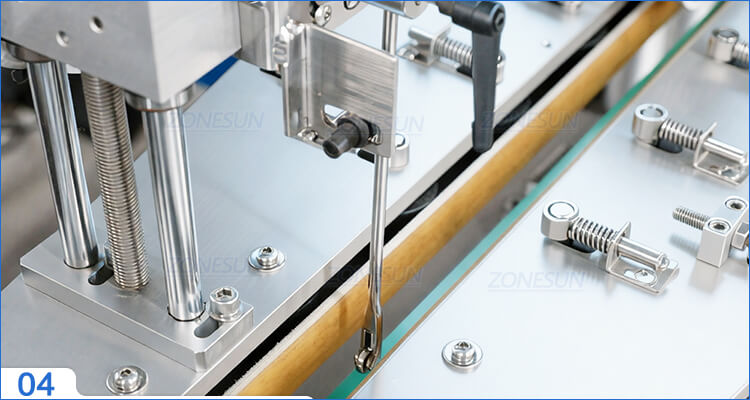

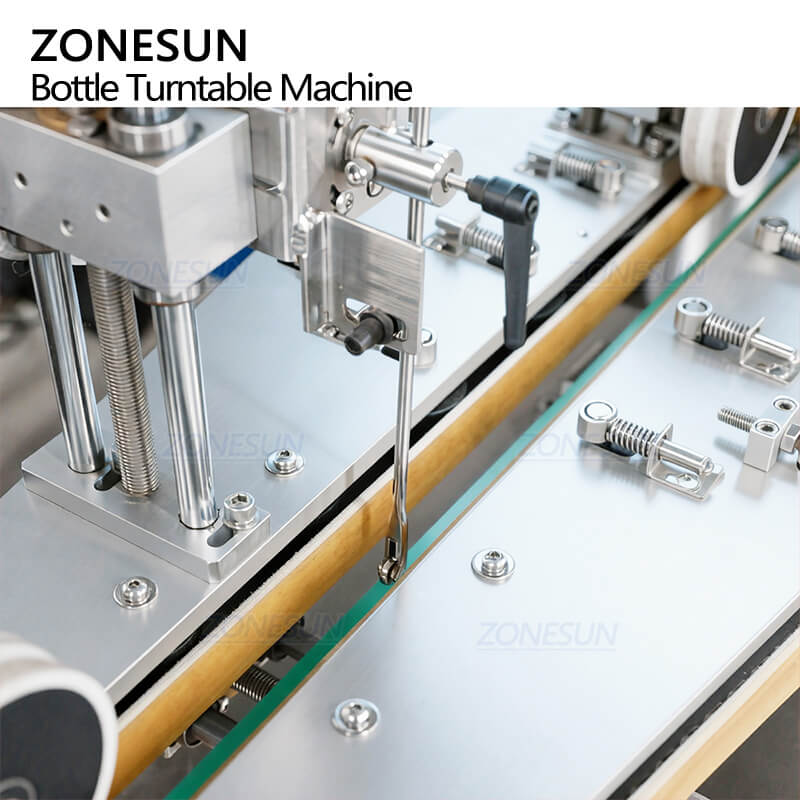

Bottle Hooking Bar
Puts the bottles upright and mouth-up. It suits plastic bottles.

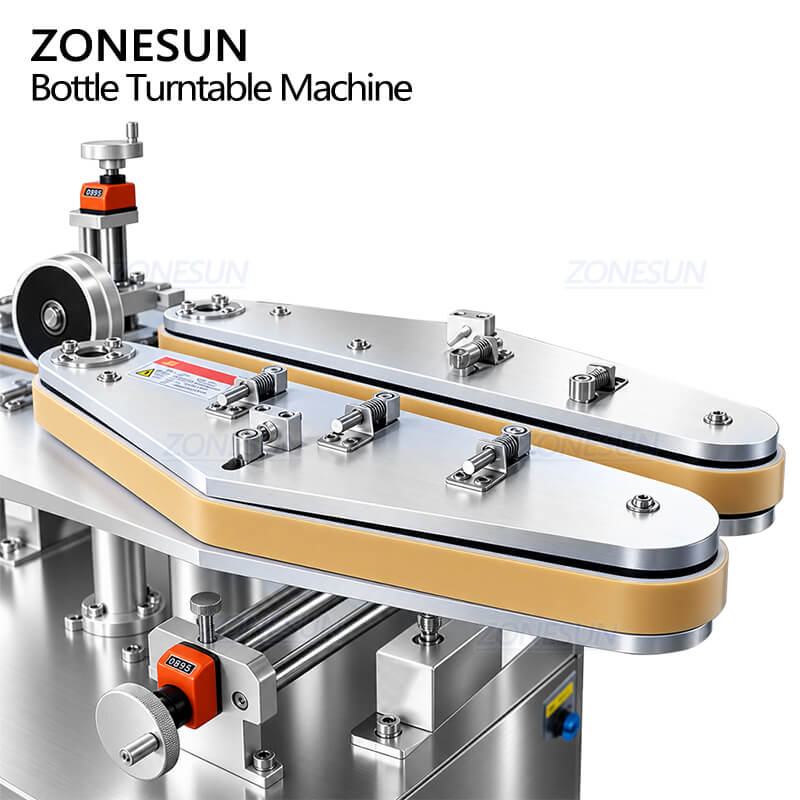

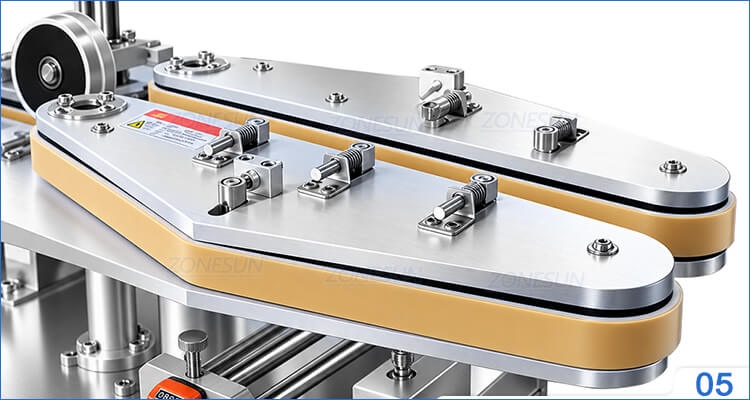

Guiding Belt
Clamp and transport bottles to next working process for automated production.

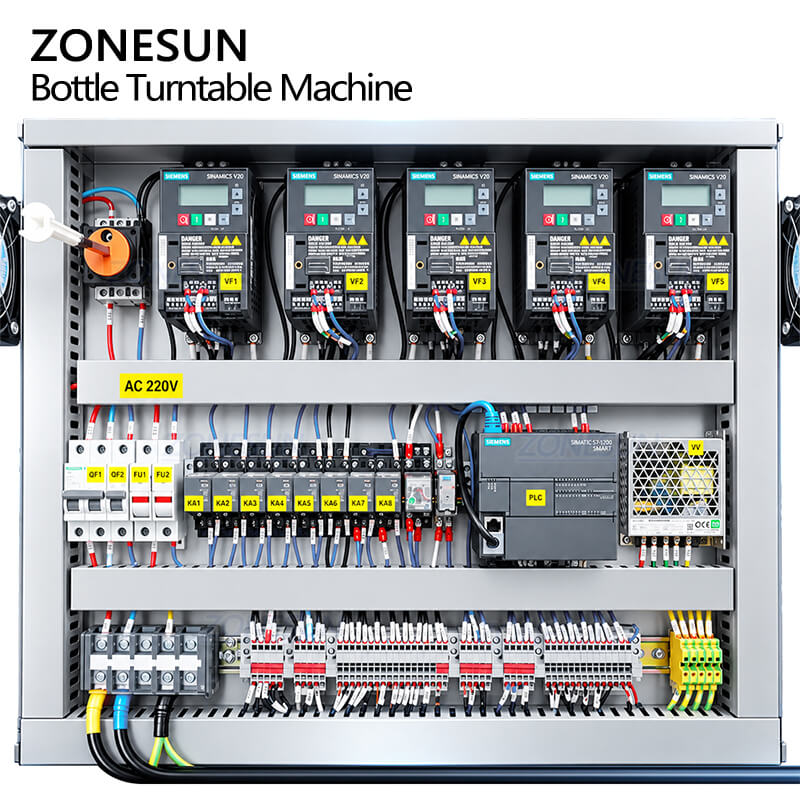

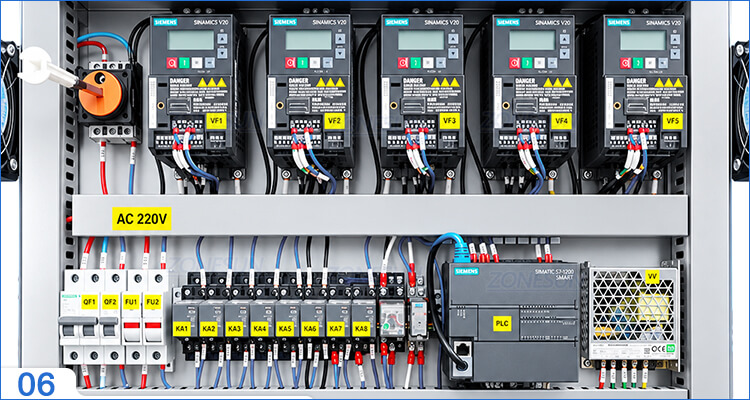

Organized Electric Components
Ensures stable production and easy troubleshooting.

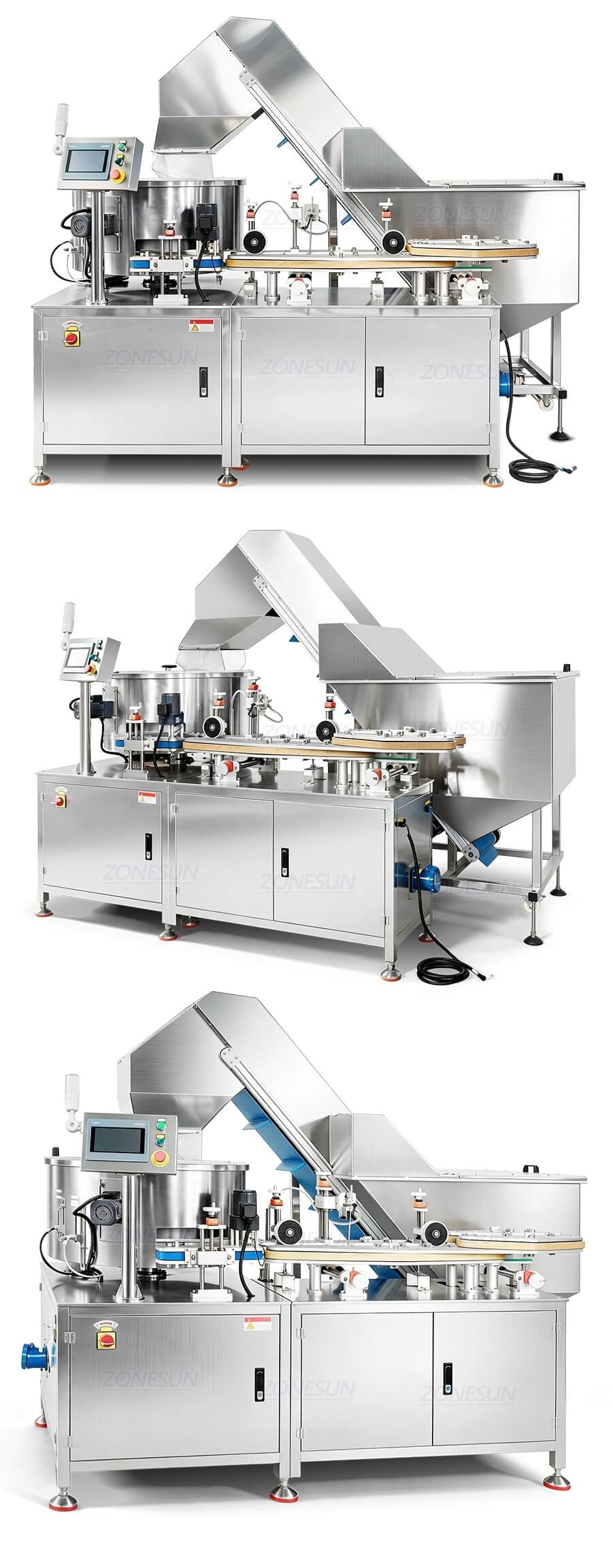

Product Real Shot
