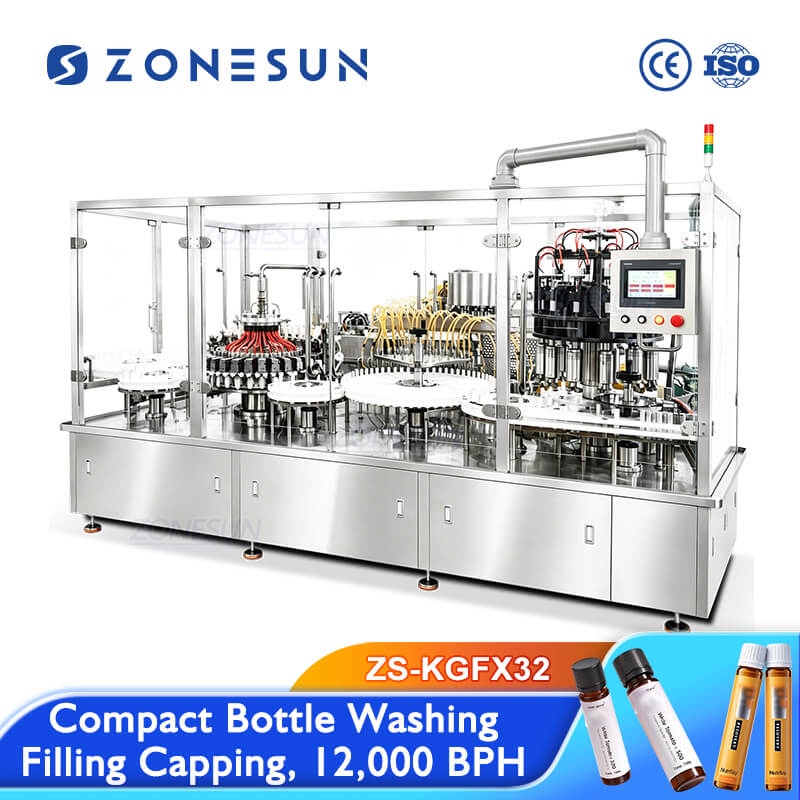

ZONESUN ZS-KGFX32 Bottle Washing Filling Capping Machine

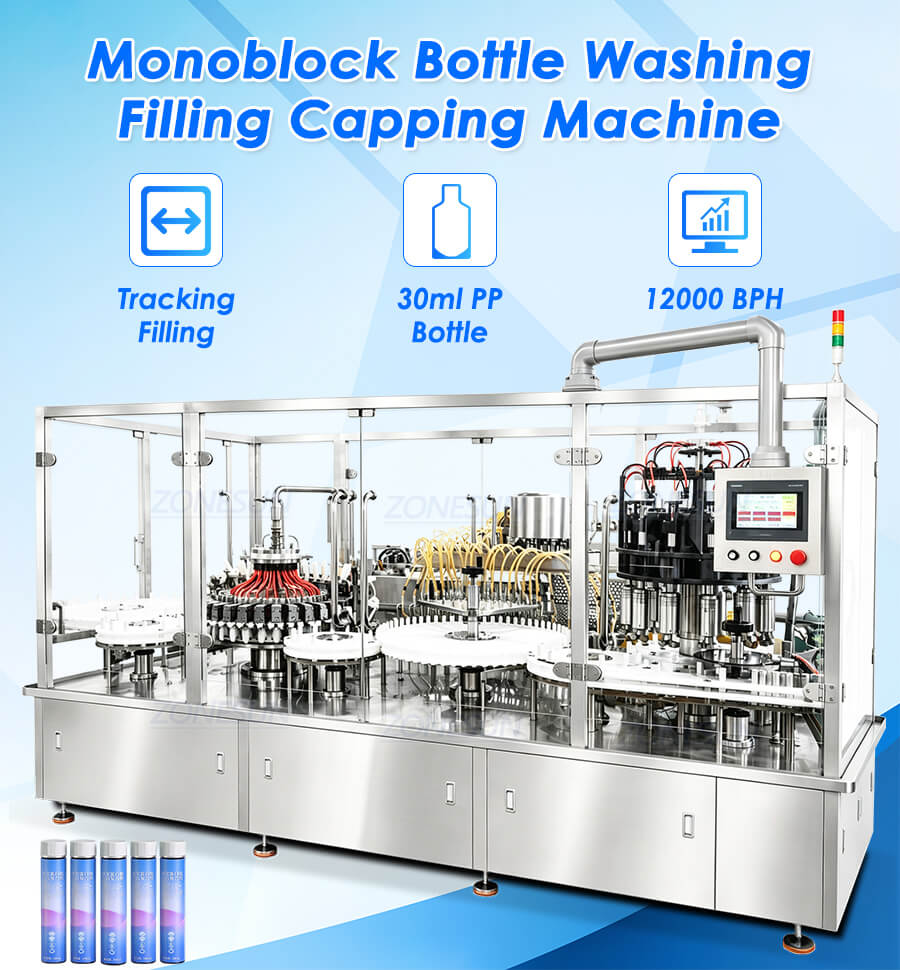

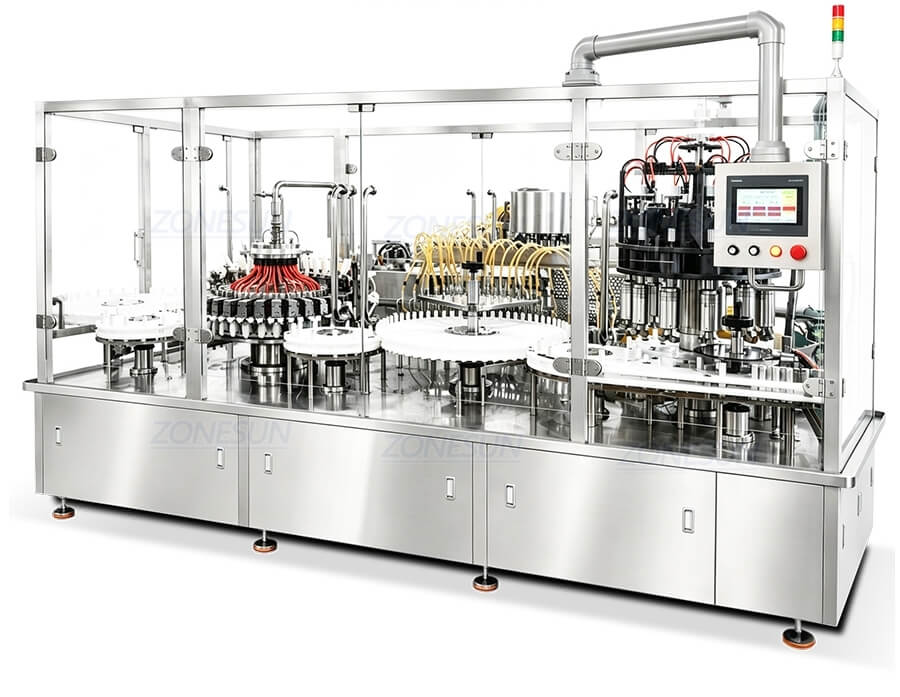

This is a monoblock machine that washes, fills and caps bottles on a single frame. Filling is tracking type, so the nozzles follow the bottles as they pass the filling station instead of stopping the line for each dose. The configuration shown is for 30 ml PP bottles, with the washing, filling and capping stations arranged around one continuous bottle path, and the output shown is 12000 BPH.
$61,999.00
Share to
Product Description
This is a monoblock machine that washes, fills and caps bottles on a single frame. Filling is tracking type, so the nozzles follow the bottles as they pass the filling station instead of stopping the line for each dose. The configuration shown is for 30 ml PP bottles, with the washing, filling and capping stations arranged around one continuous bottle path, and the output shown is 12000 BPH.

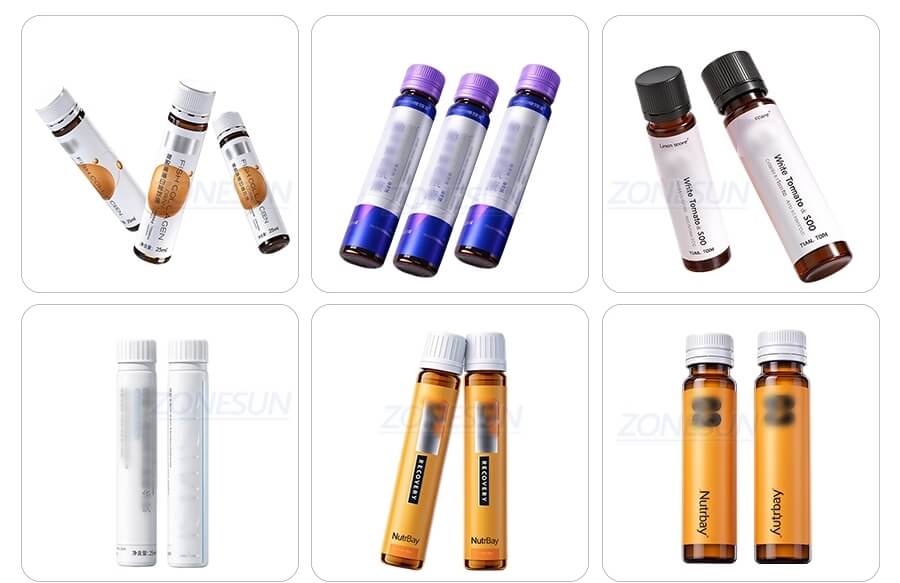

Product Applications
Product Parameter
| Machine Model | ZS-KGFX32 |
| Production Capacity | 12,000 bottles/hour |
| Suitable Bottle | 30ml PP bottle |
| Air Washing Heads | 32 heads |
| Filling Heads | 16-head tracking filling |
| Capping Heads | 12-head planetary capping |
| Filling Accuracy | +1% |
| Sealing Rate | 99% |
| Power Supply | 380V, 50Hz, three-phase four-wire |
| Power | 5.5KW |
| Machine Size | About 3800*1380*1750 mm |

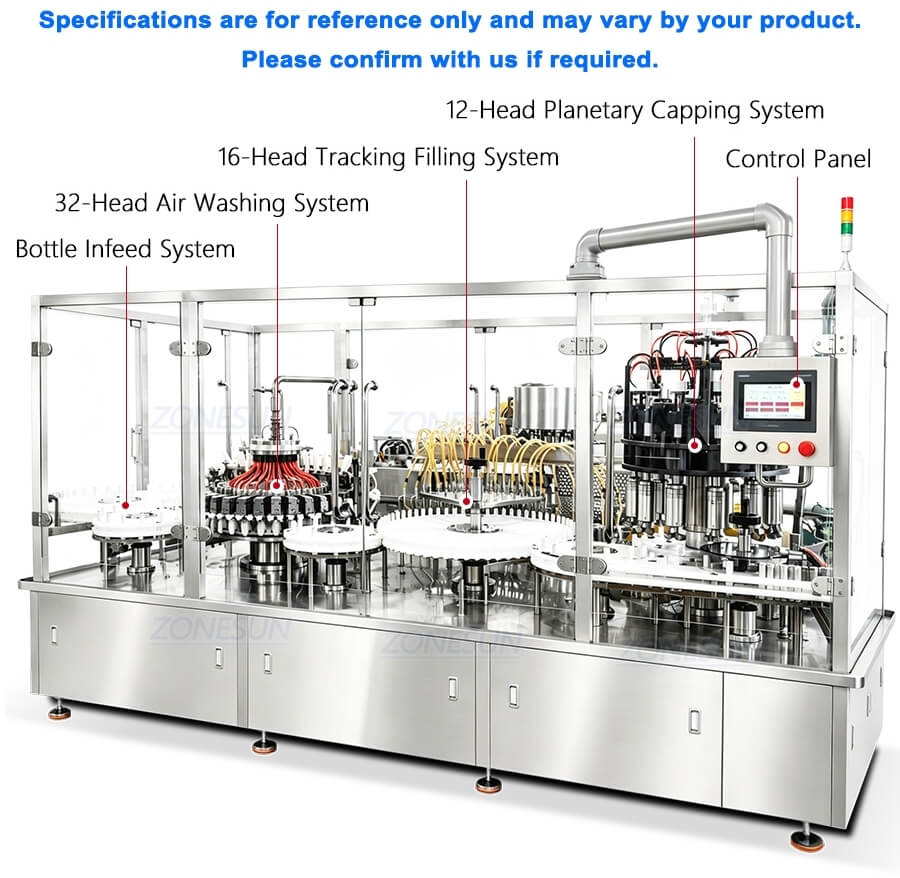

Product Details

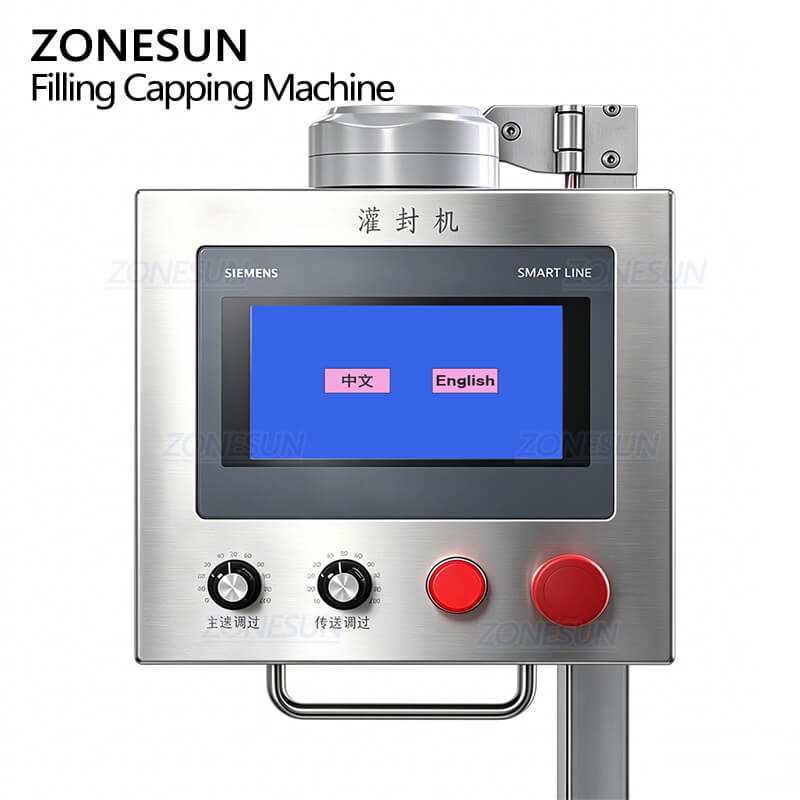

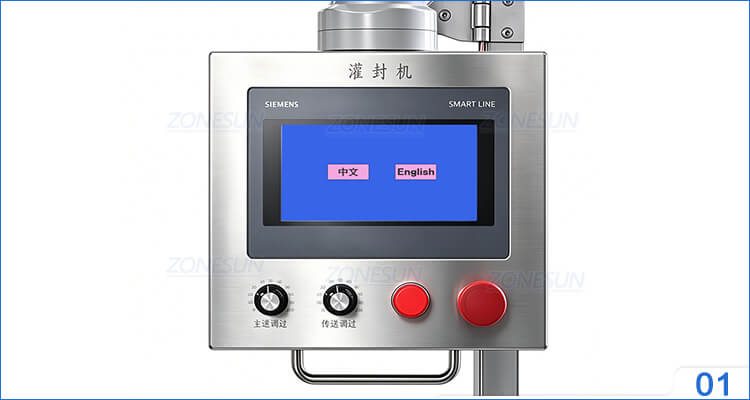

Control Panel
Centralized Siemens PLC and touchscreen control allows convenient parameter adjustment, operation,and production monitoring.

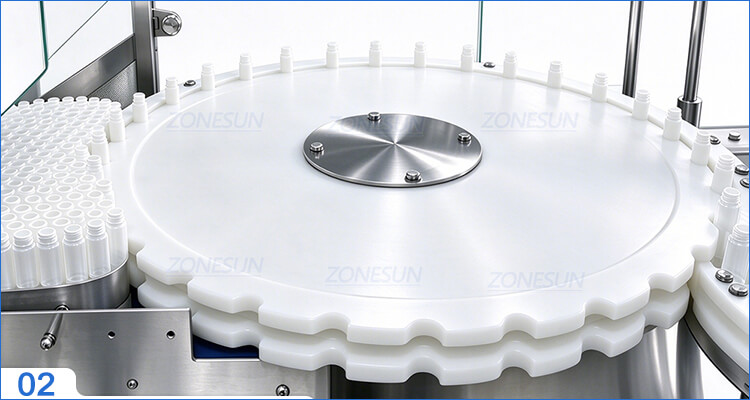

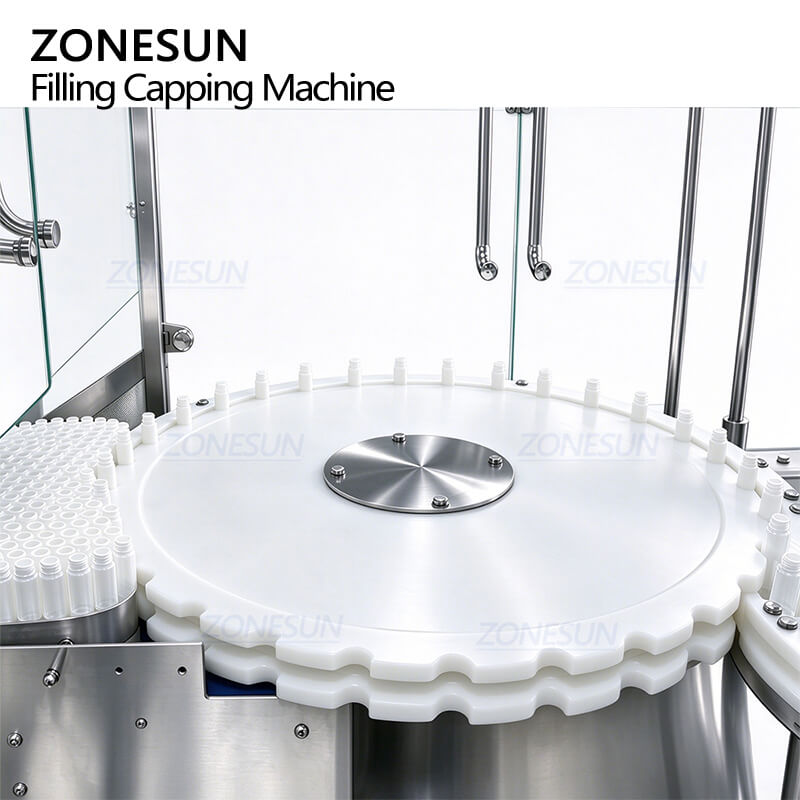

Infeed System
The mesh conveyor and screw feeder guide PP bottles smoothly into the rotary processing sectionfor continuous production.

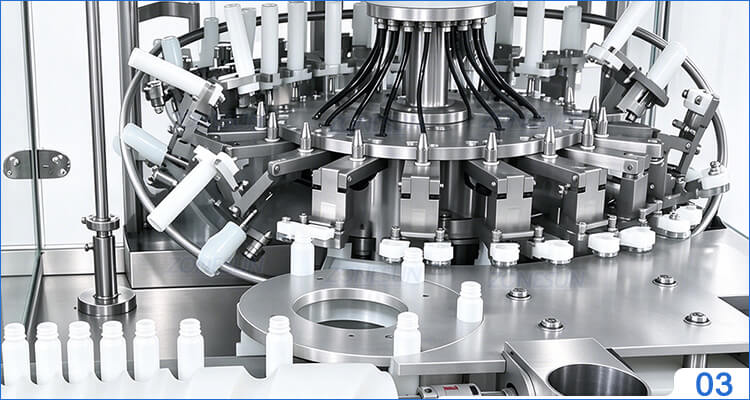

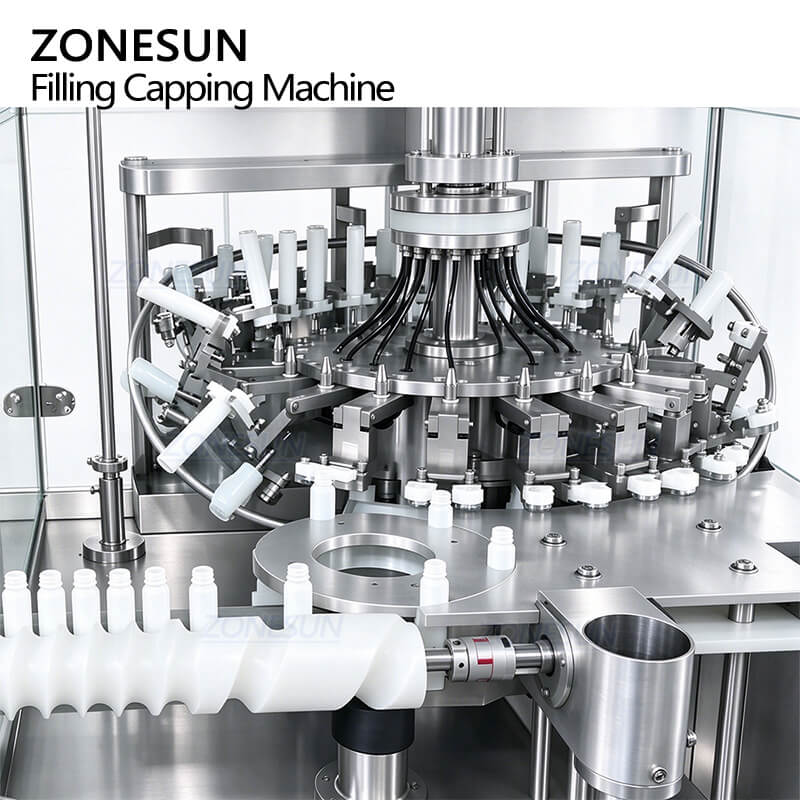

32-Head Air Washing
Thirty-two air-washing heads clean bottles before filling, preparing them for the following high-speed filling process.

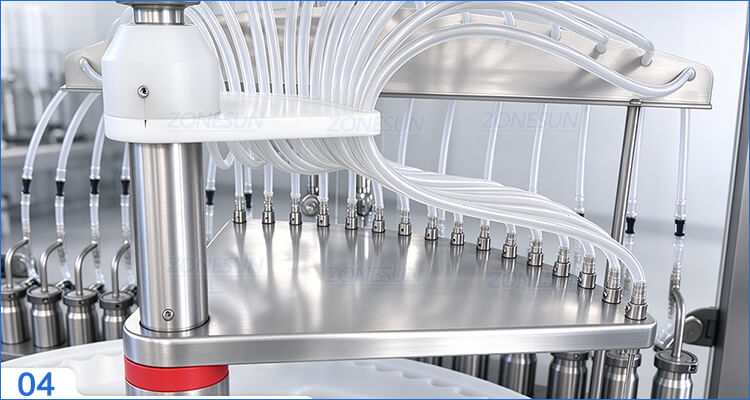

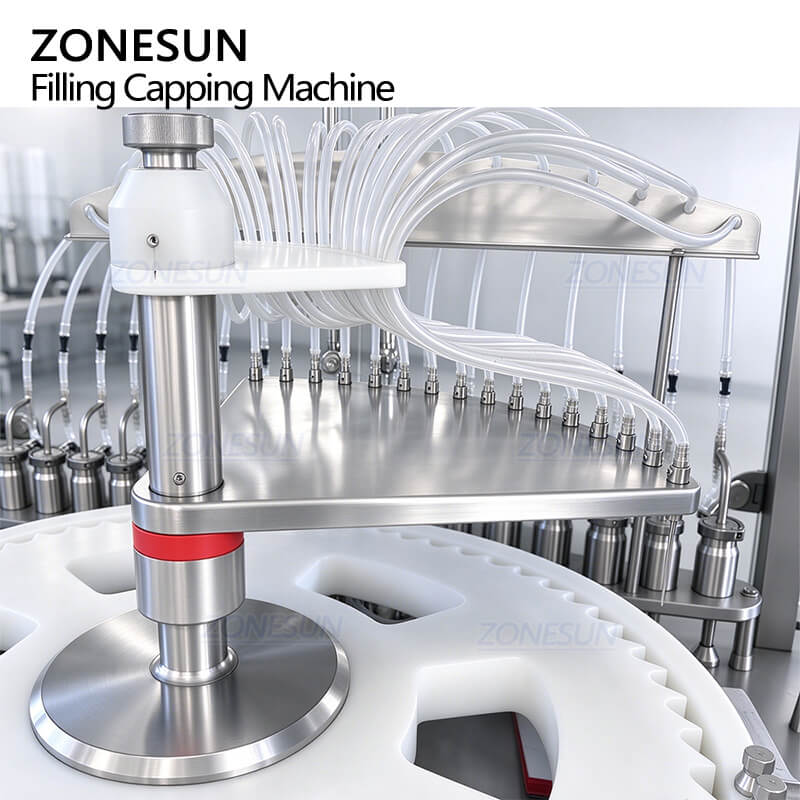

Tracking Filling
Sixteen filling heads track bottles during rotary conveying for fast and consistent filling while helping reduce foaming.

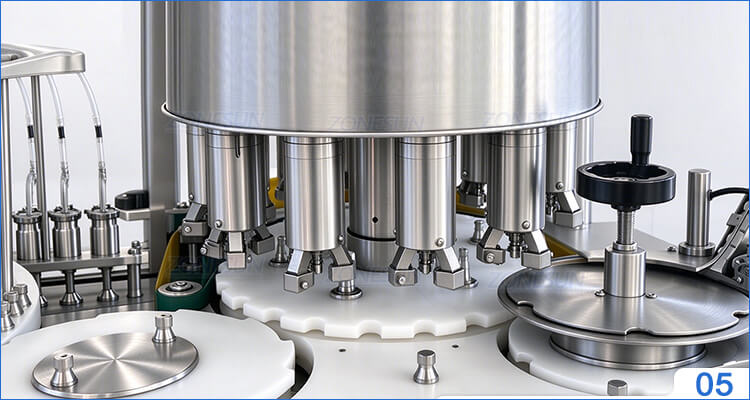

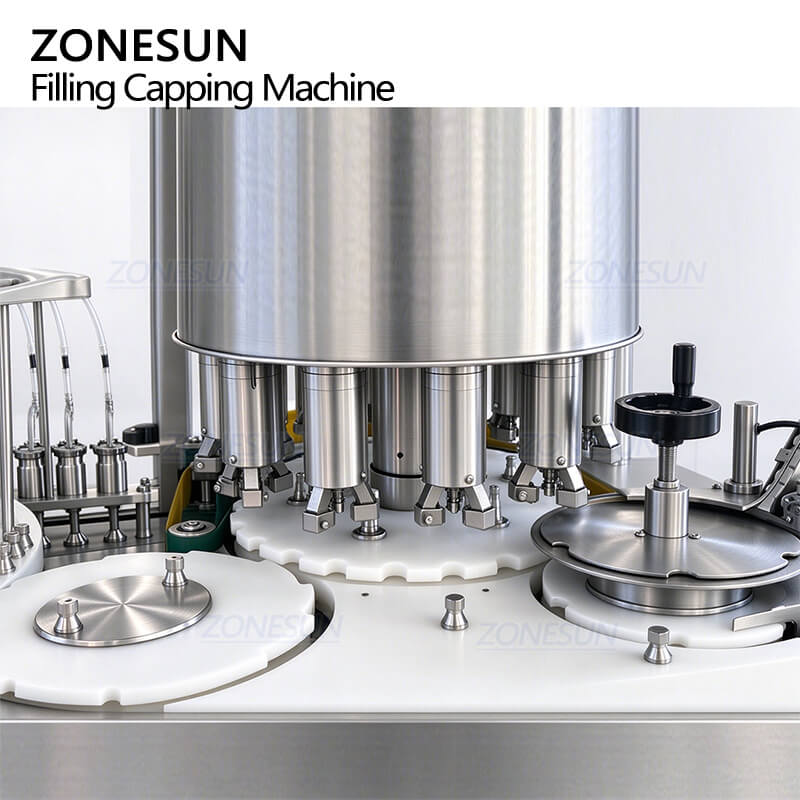

Planetary Capping
Twelve capping heads work continuously with automatic cap feeding and positioning for stable,high-speed cap tightening.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.
Product Real Shot
