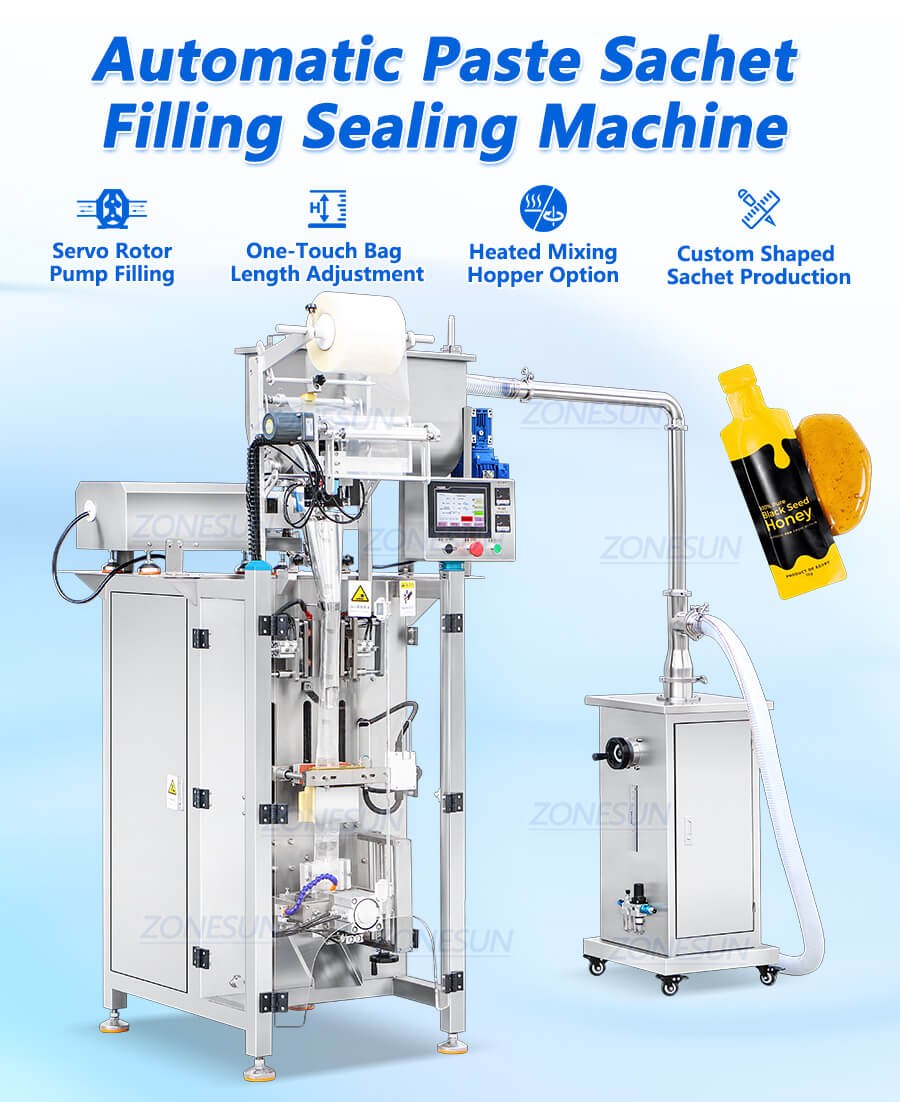

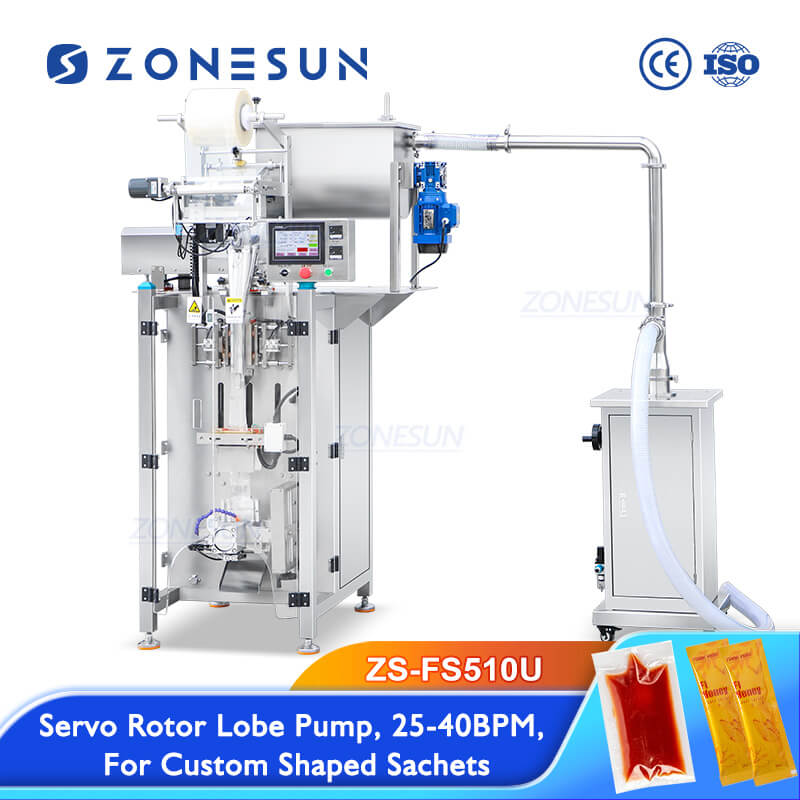

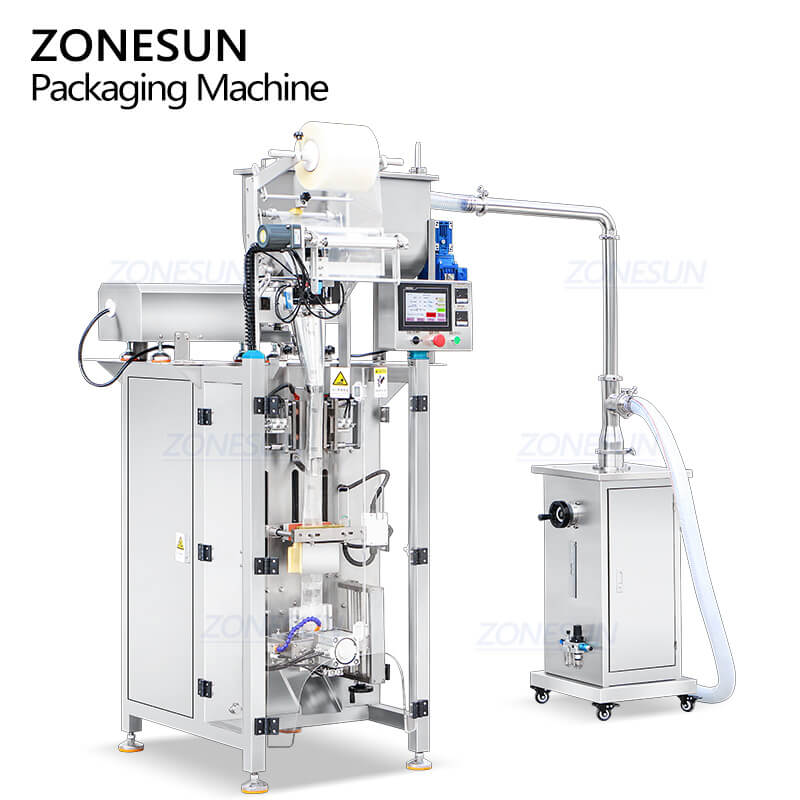

ZONESUN ZS-FS510U Sauce Paste Sachet Vertical Form Filling Sealing Machine
The automatic sauce paste sachet vertical form filling sealing machine is purpose-built for high-viscosity products like honey, jams, chocolate spreads, cosmetic creams, and sauces. Powered by a precision servo rotor pump, it handles thick pastes effortlessly without clogging or dripping. The optional heated mixing hopper keeps temperature-sensitive products fluid and consistent. With one-touch bag length adjustment and support for custom sachet shapes.
Original price was: $15,822.99.$15,399.00Current price is: $15,399.00.
Share to
Product Description
The automatic sauce paste sachet vertical form filling sealing machine is purpose-built for high-viscosity products like honey, jams, chocolate spreads, cosmetic creams, and sauces. Powered by a precision servo rotor pump, it handles thick pastes effortlessly without clogging or dripping. The optional heated mixing hopper keeps temperature-sensitive products fluid and consistent. With one-touch bag length adjustment and support for custom sachet shapes.
Product Applications
Product Parameter
| Machine Model | ZS-FS510U |
| Power | 110/220V 50-60HZ 2.5KW |
| Capacity | 25-40 bags/min |
| Filling Range | 5-100 g (Customizable) |
| Bag Size | Width 20-110 mm, Length 40-200 mm |
| Bagging Pattern | Back Side (Customizable for 3-Sided and 4-Sided) |
| Filling Pump | Servo Rotor Lobe Pump |
| Hopper Size | 50L(Optional Mixing & Heating Function) |
| Optional Functions | Date Coder |

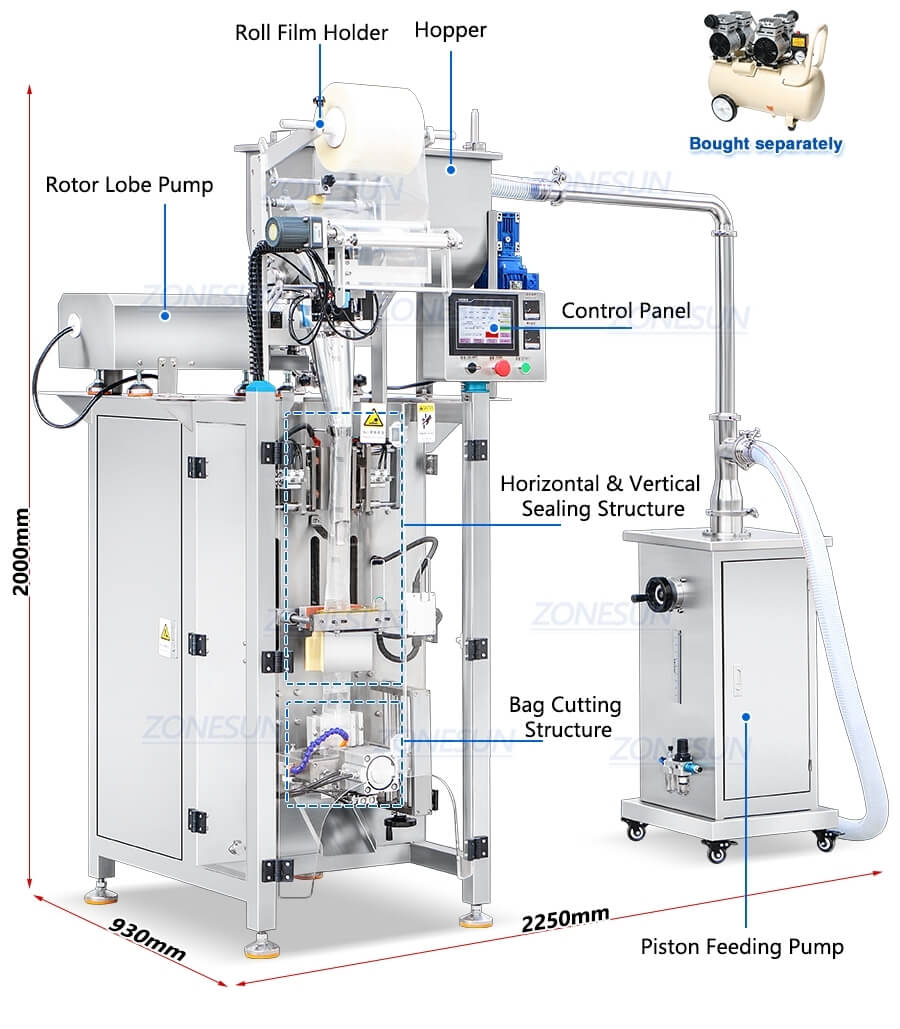

| Machine Size | About 2250*930*2000mm |
| Machine Weight | About 300 kg |
| Package Size | About 510*520*1120mm(Feeding Pump)
About 1380*1090*2110mm(Main Machine) |
| Package Weight | About 435kg+61=496kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

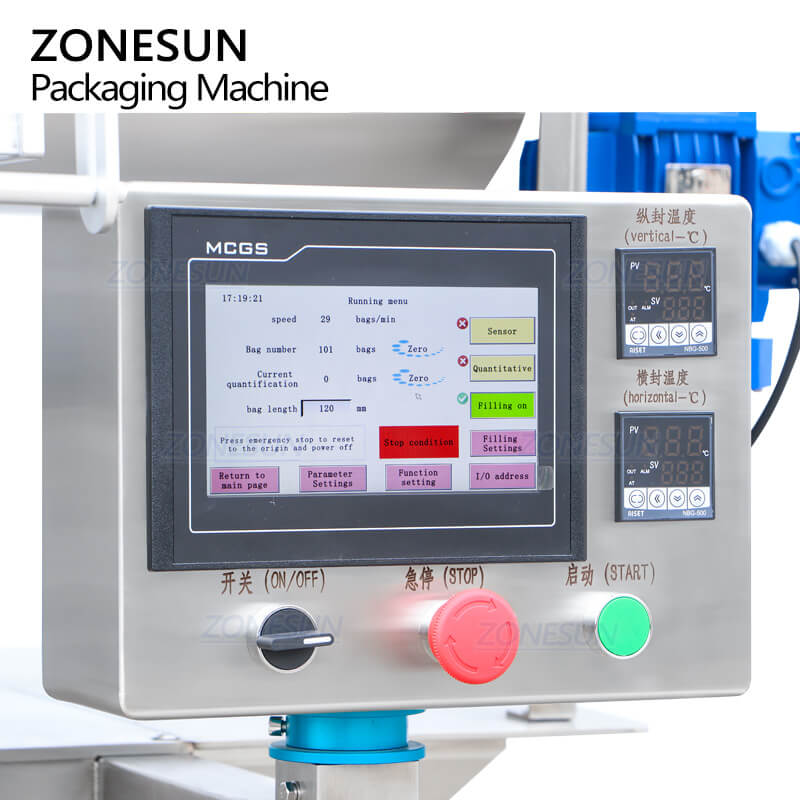

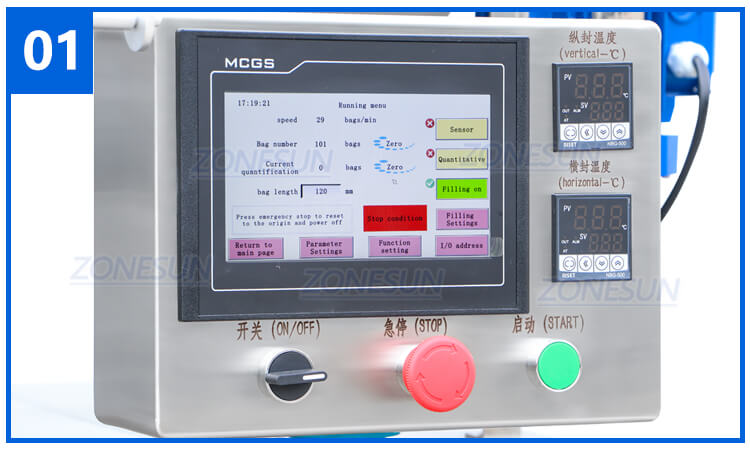

PLC Touchscreen Control
Operators can directly set filling volume, pouch length and production parameters through the touchscreen interface for easier operation.

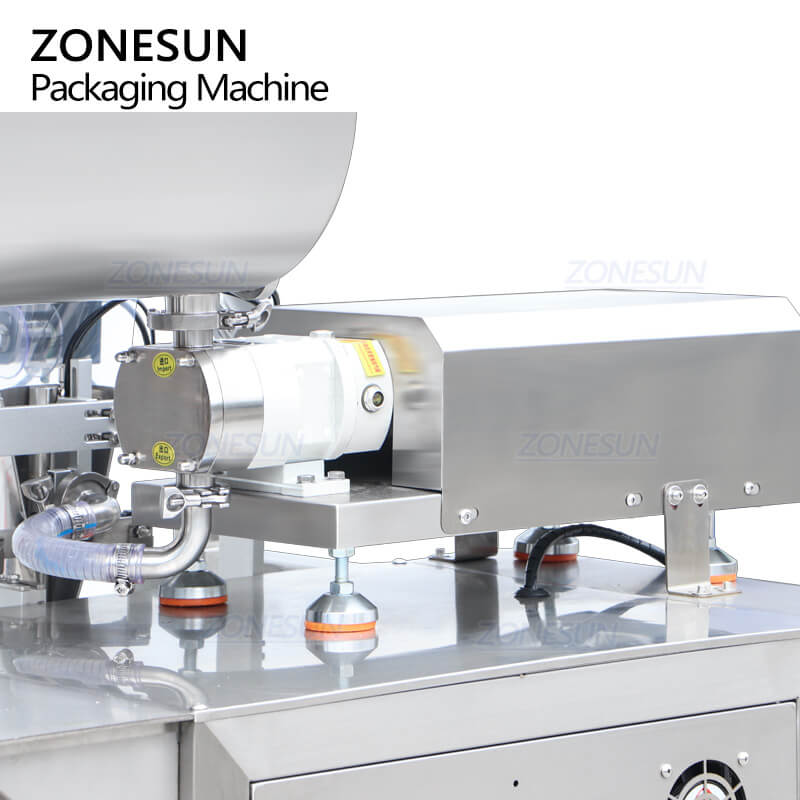

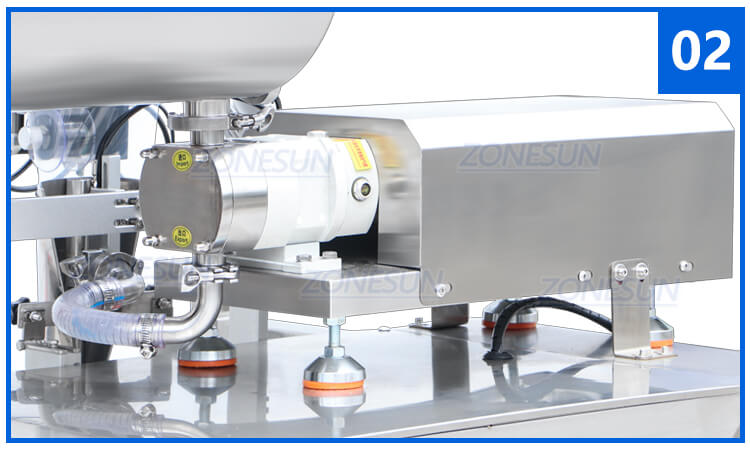

Servo Rotor Pump Filling
The servo-controlled rotor pump provides stable filling performance for viscous products such as mayonnaise, ketchup and jam.

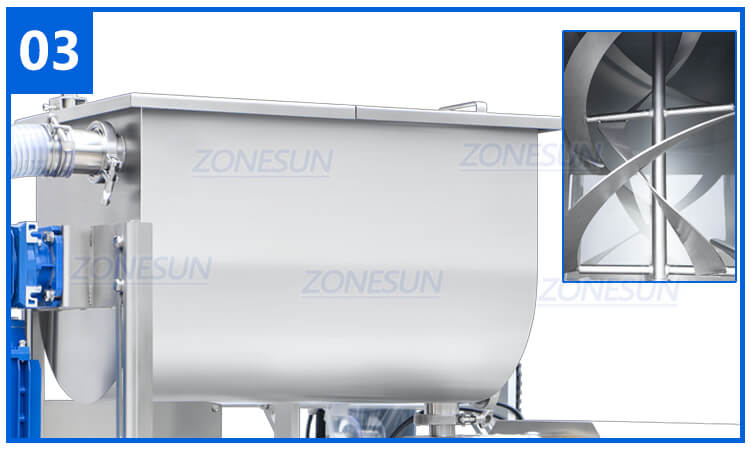

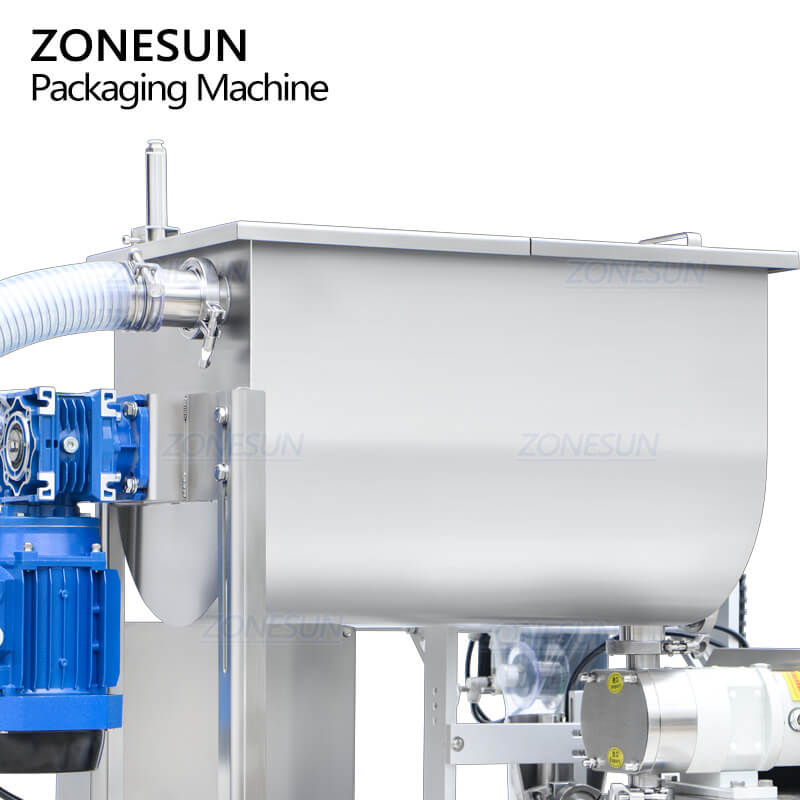

50L U-Shaped Hopper
The U-shaped hopper with mixing function (optional heating) reduces material buildup in corners and helps maintain consistent product flow.

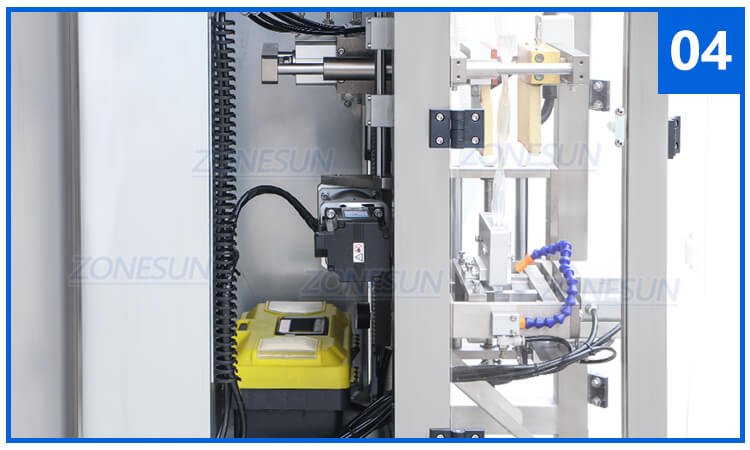

Servo Film Feeding System
The servo motor precisely controls film transport speed and length, allowing one-touch automatic pouch length adjustment through the control panel.

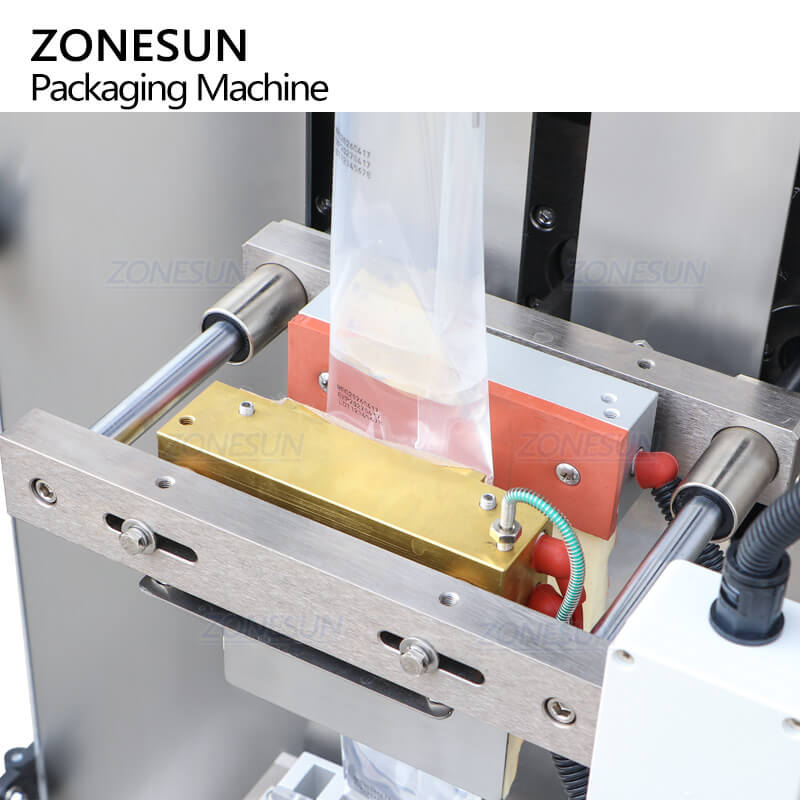

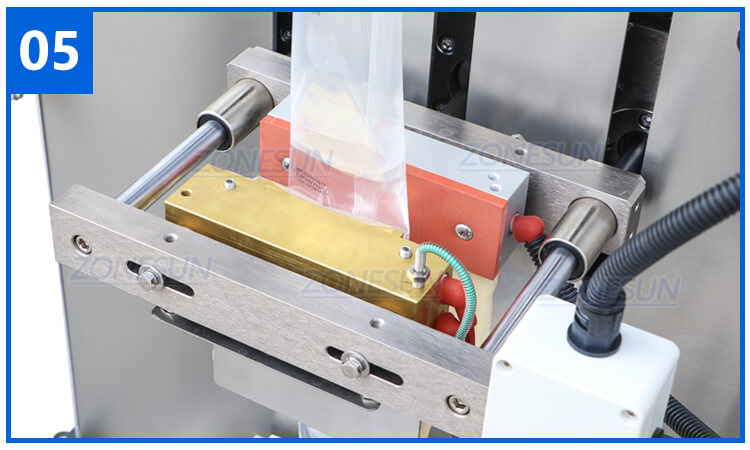

Heat Sealing Structure
Independent temperature control for upper and lower sealing bars ensures uniform sealing performance for different packaging films.

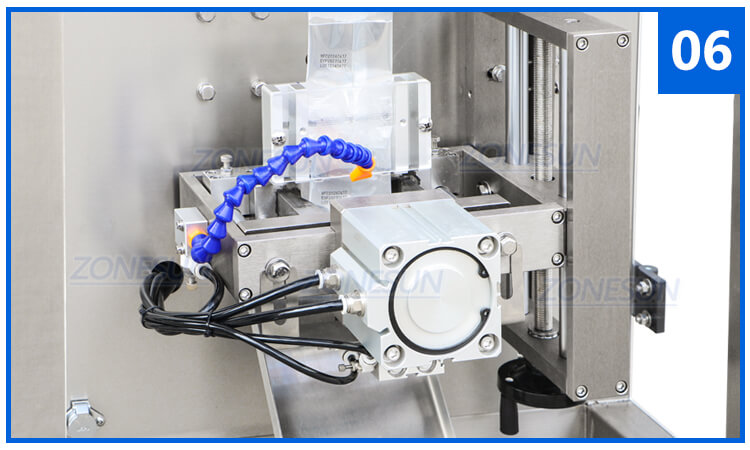

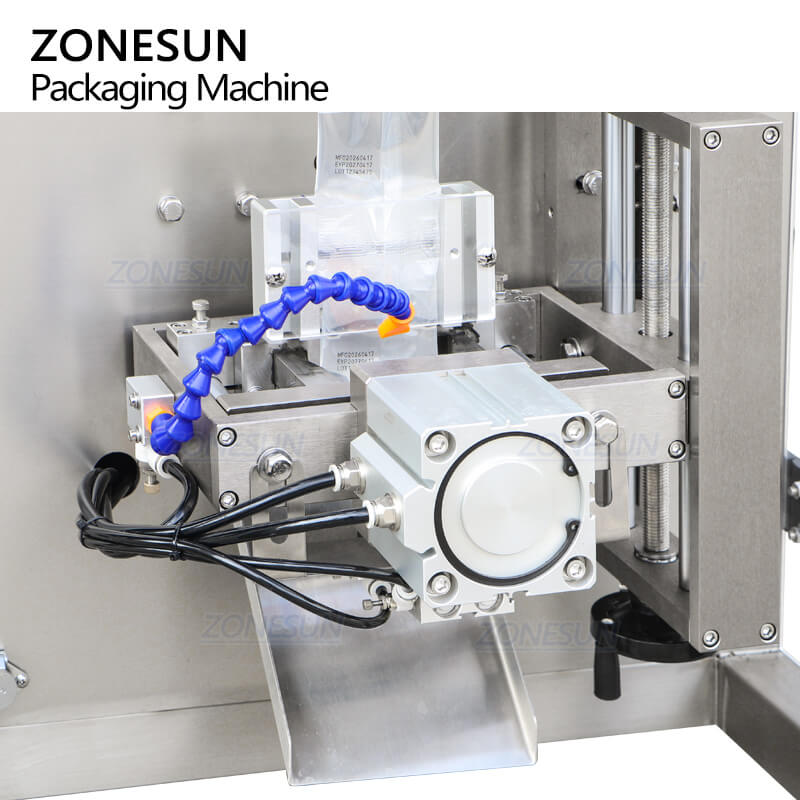

Customized Cutting Structure
The cutting system can be customized according to pouch shapes, supporting standard sachets and special-shaped pouch designs.

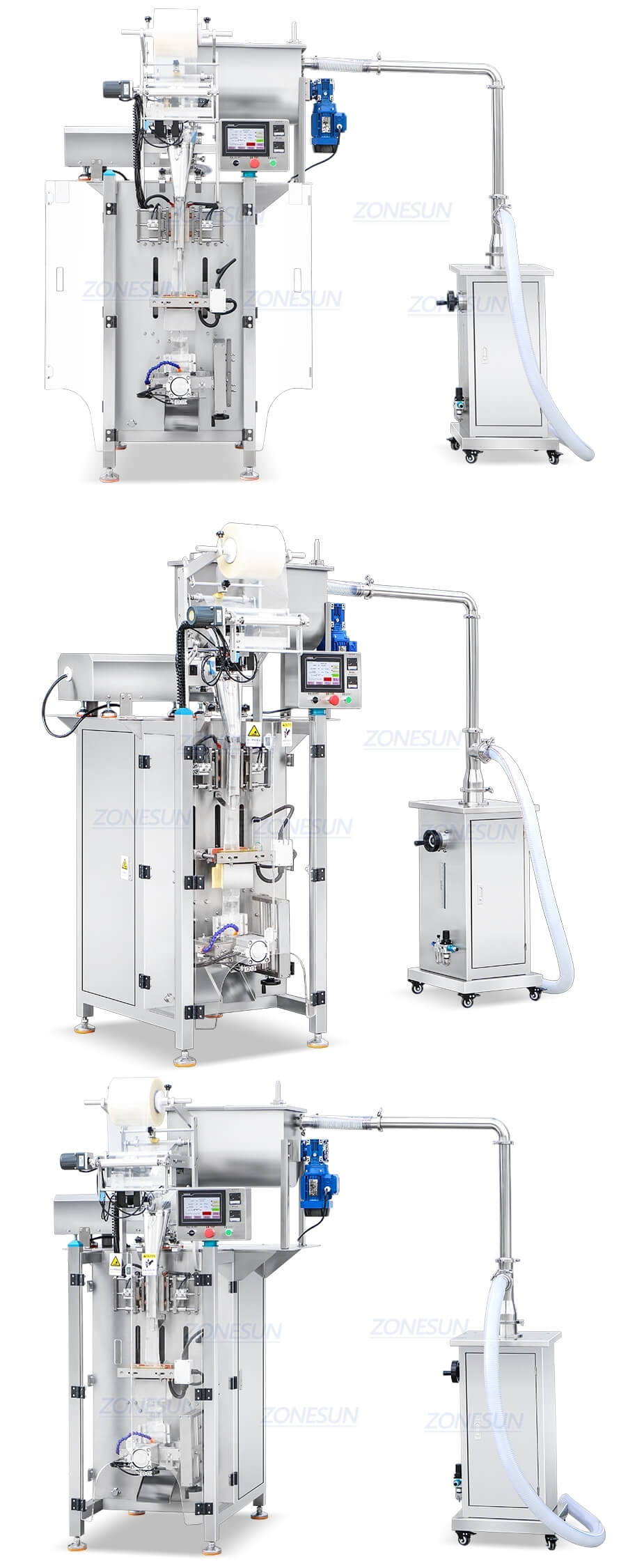

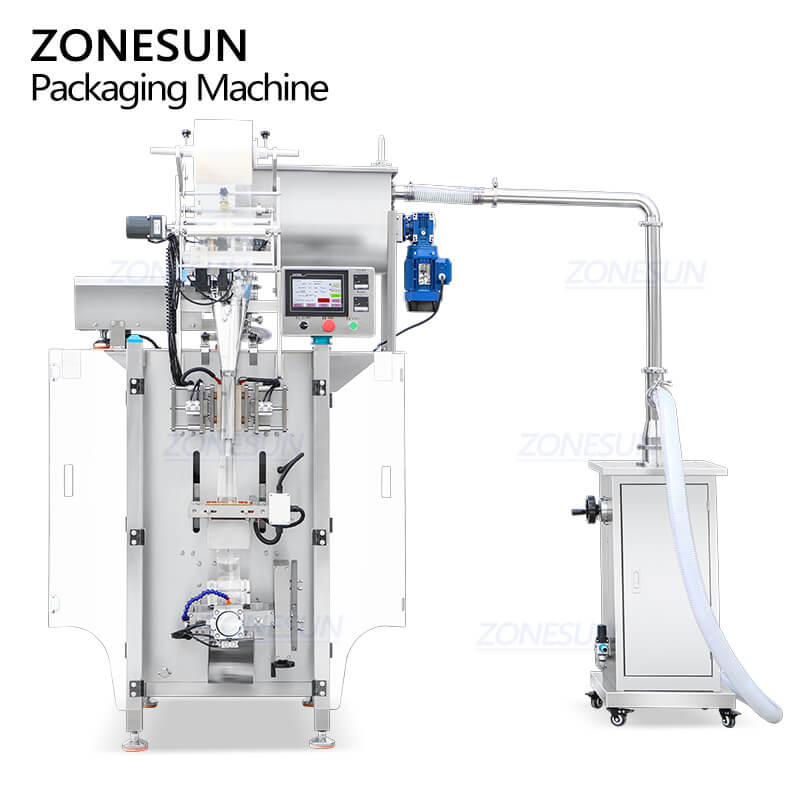

Product Real Shot
