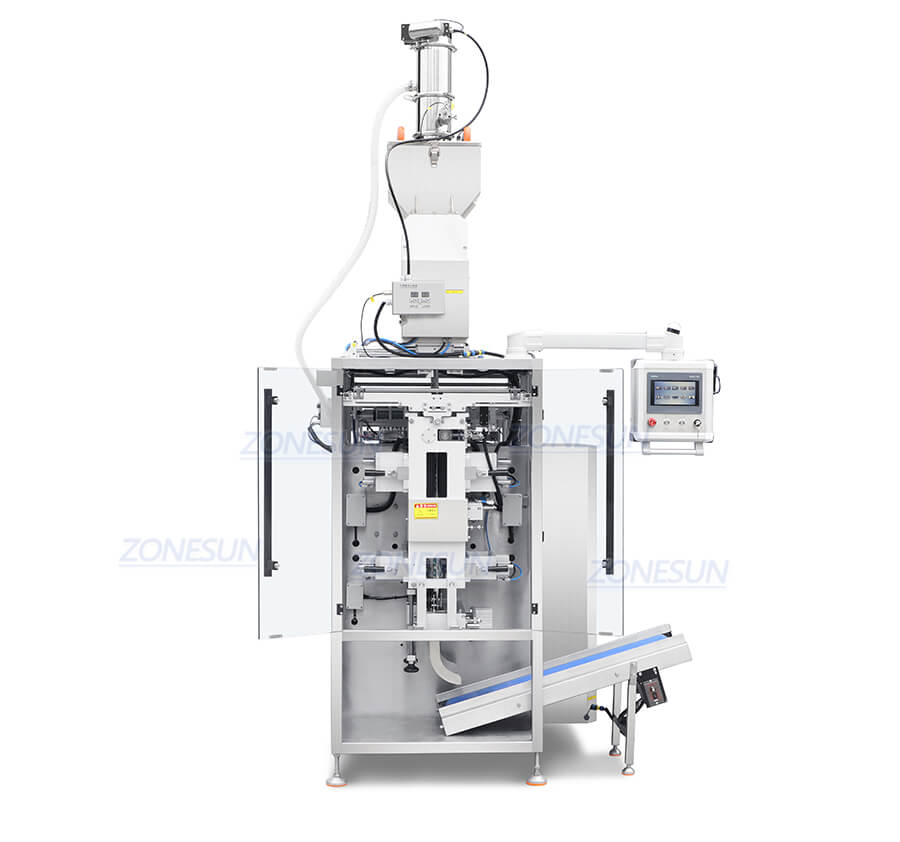

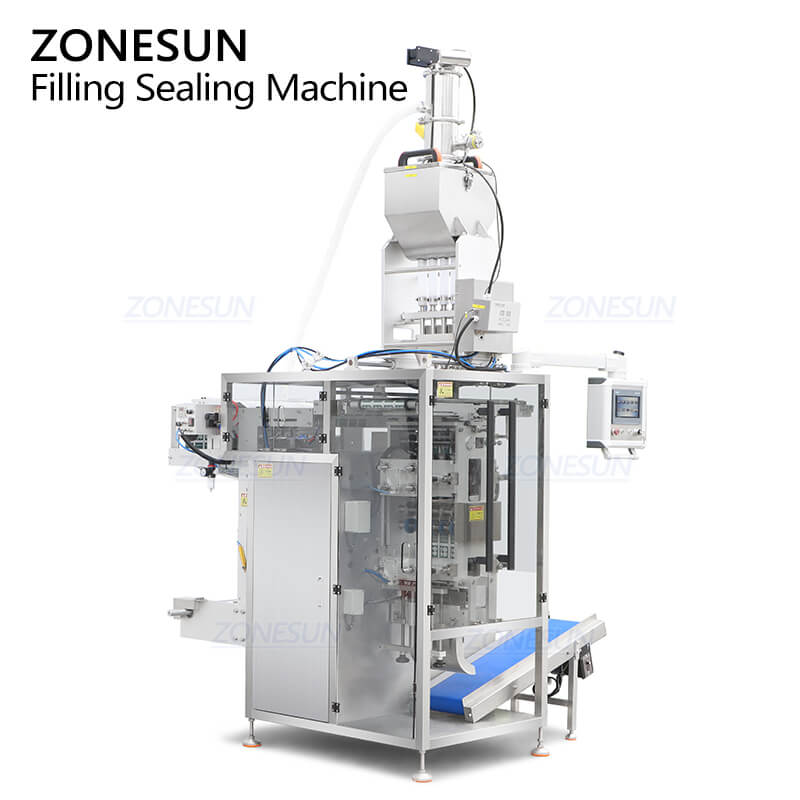

ZONESUN ZS-FS500K4 Granule Sachet Vertical Filling Sealing Machine
Engineered for granules, it combines swinging cup dosing with servo film pulling for precision and rock-solid sealing. The built-in vacuum feeder ensures seamless automation, while optional coding and easy-tear notch functions add versatility. Durable, efficient, and designed for high-volume production.
Original price was: $36,499.00.$35,399.00Current price is: $35,399.00.
Share to
Product Description
Engineered for granules, it combines swinging cup dosing with servo film pulling for precision and rock-solid sealing. The built-in vacuum feeder ensures seamless automation, while optional coding and easy-tear notch functions add versatility. Durable, efficient, and designed for high-volume production.
Product Applications
Product Parameter
| Machine Model | ZS-FS500K4 |
| Power Supply | 1N+PE/50HZ/AC220V/4.5KW |
| Number of Lanes | 4 Lanes |
| Measuring Method | Volumetric Cup |
| Filling Volume | 6.5g(Customized As Needed) |
| Packing Speed | Around 120 Bags/min |
| Bag Size | L 50-160 mm*W 65 mm (Customizable) |
| Film Width Range | Max. 500 mm |
| Film Thickness | 0.05-0.1 mm |
| Hopper Size | About 30L |
| Optional Function | Date Coding, Easy-tear Notch & Vacuum Feeding |

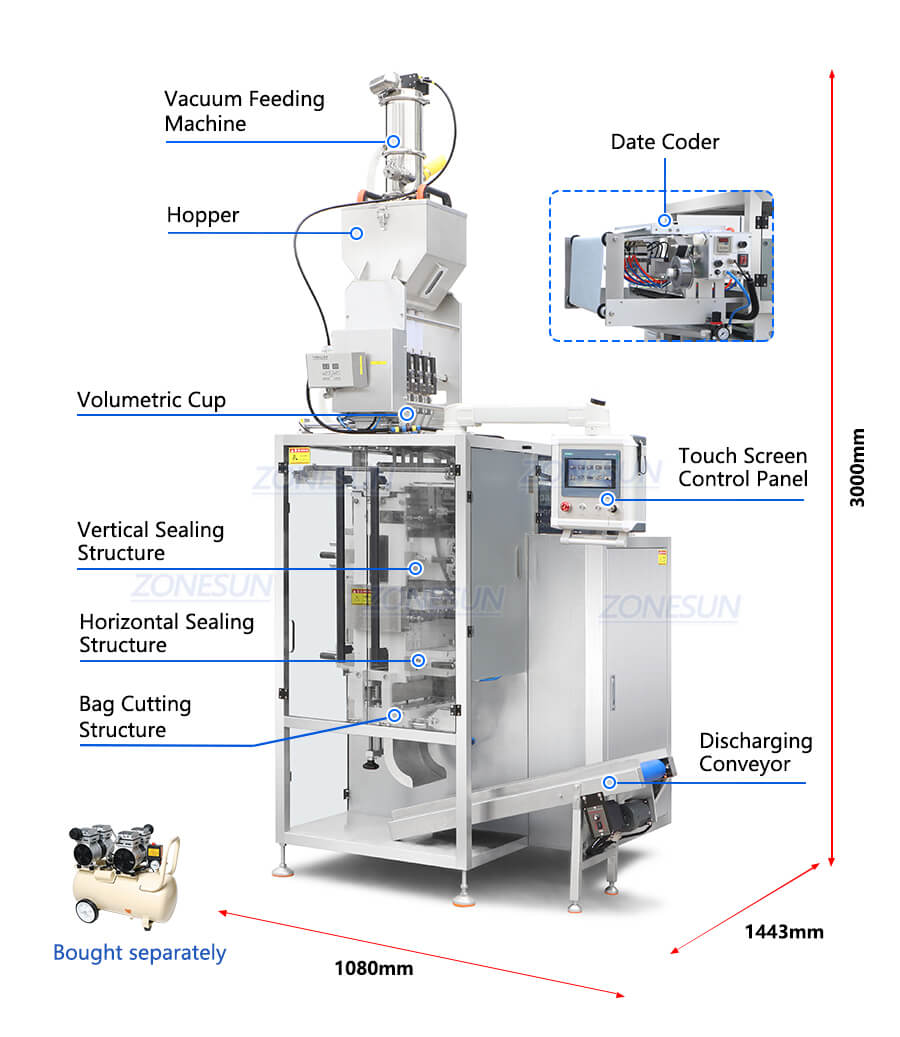

| Machine Size | About 1080*1443*1750 mm (Total height including hopper approx. 3000 mm) |
| Machine Weight | About 600 kg |
| Package Size | About 1880*1680*1980mm(L*W*H) |
| Package Weight | About 680kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

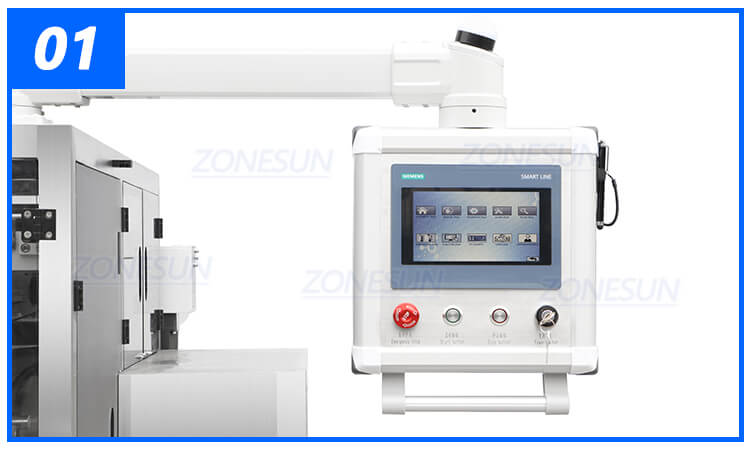

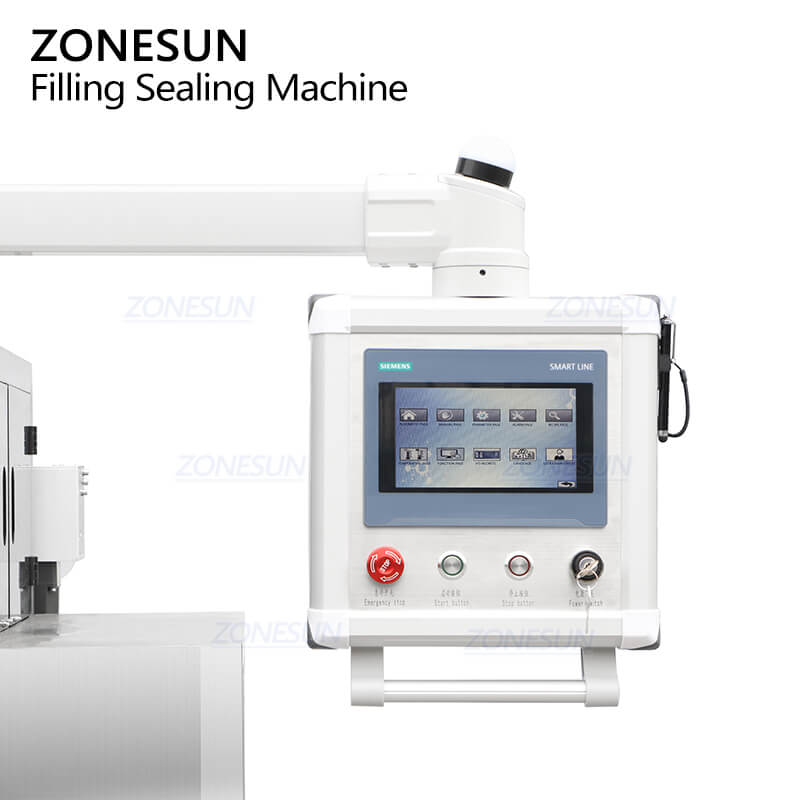

Touchscreen Control Panel
Allows operators to manage lane packaging parameters intuitively, multiple language can be customized as needed.

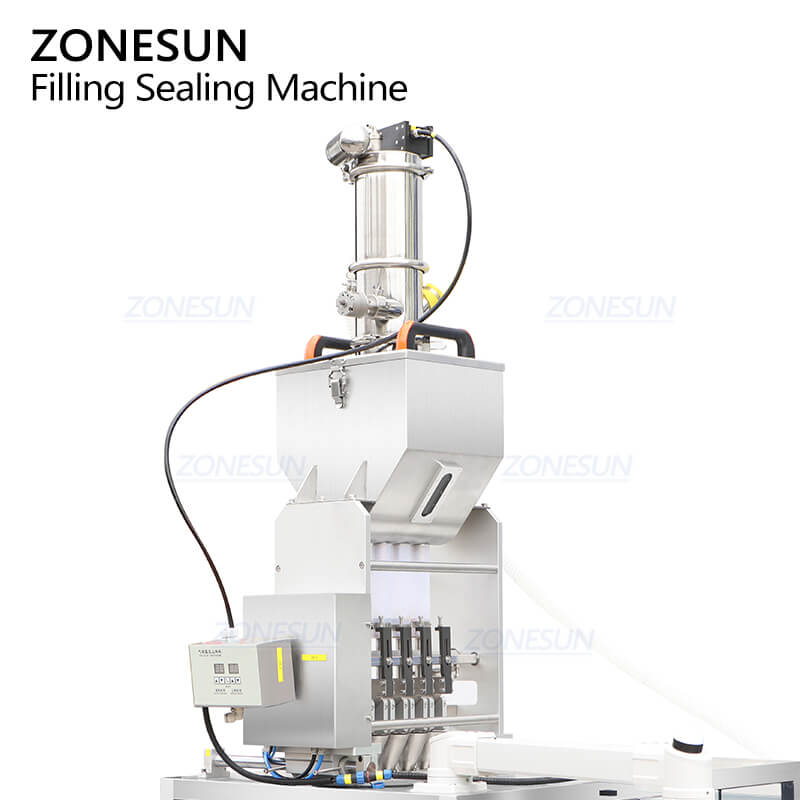

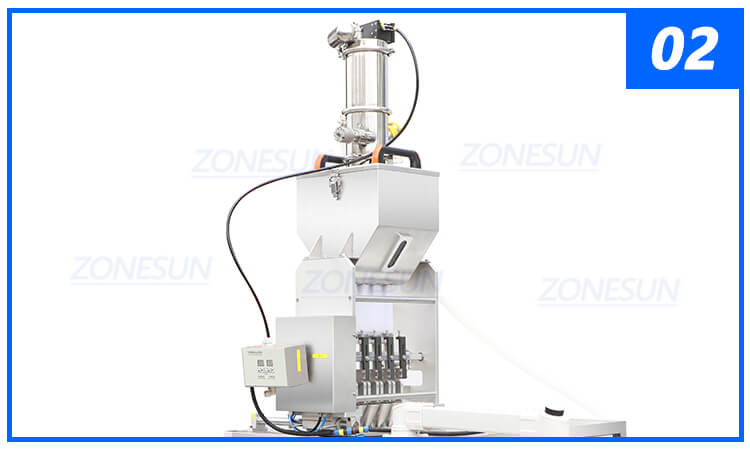

30L Hopper with Vacuum Feeding System
The level sensor automatically triggers the optional vacuum loader for continuous material replenishment.

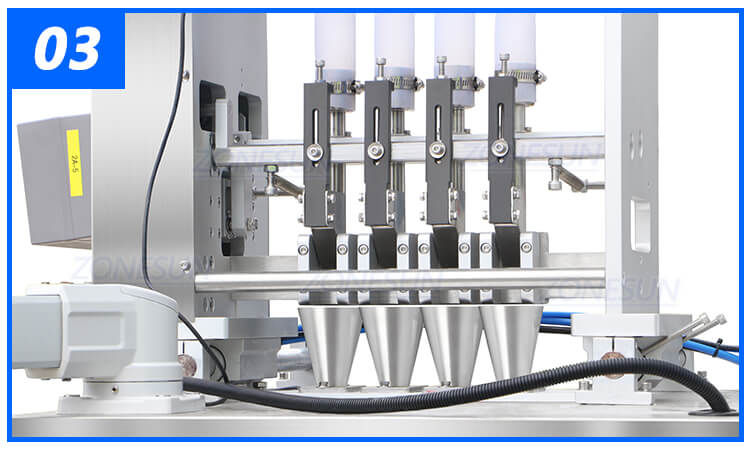

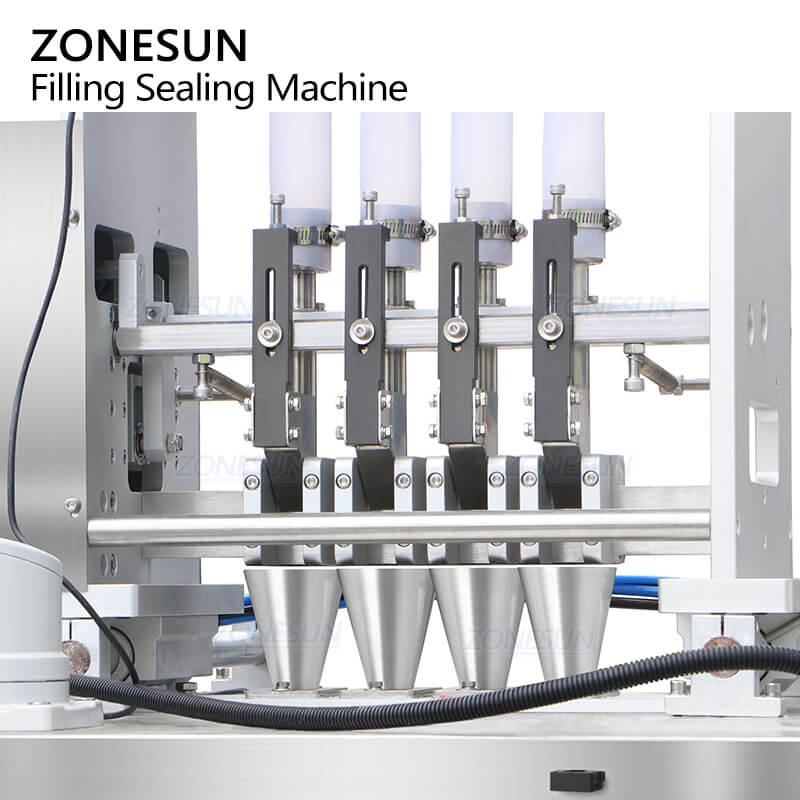

Swinging Cup Dosing Structure
Designed for free-flowing granules such as salt and sugar, ensuring smooth and consistent dispensing.

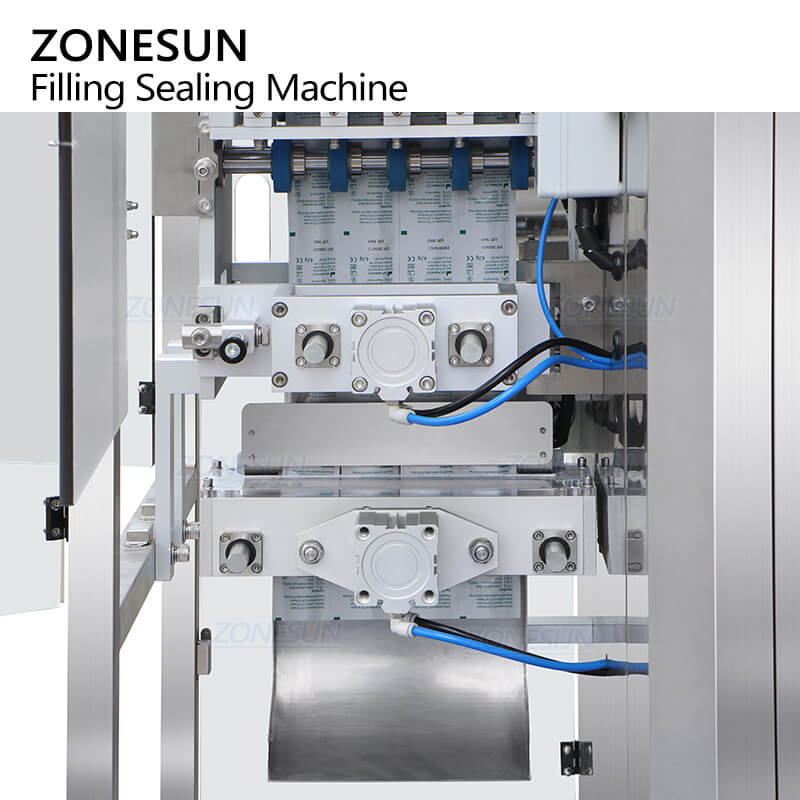

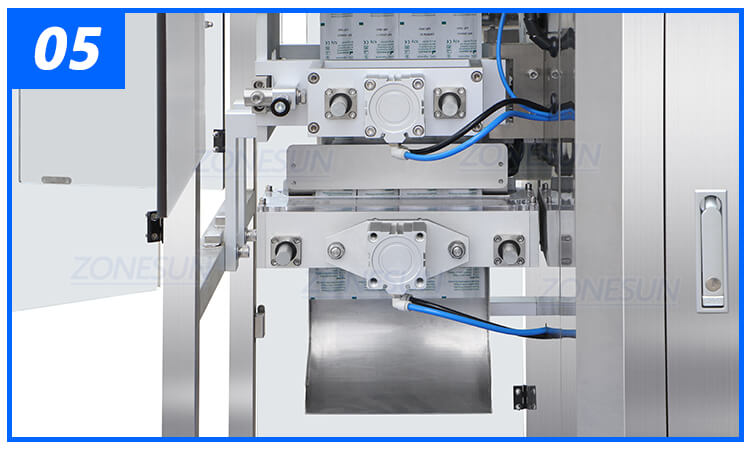

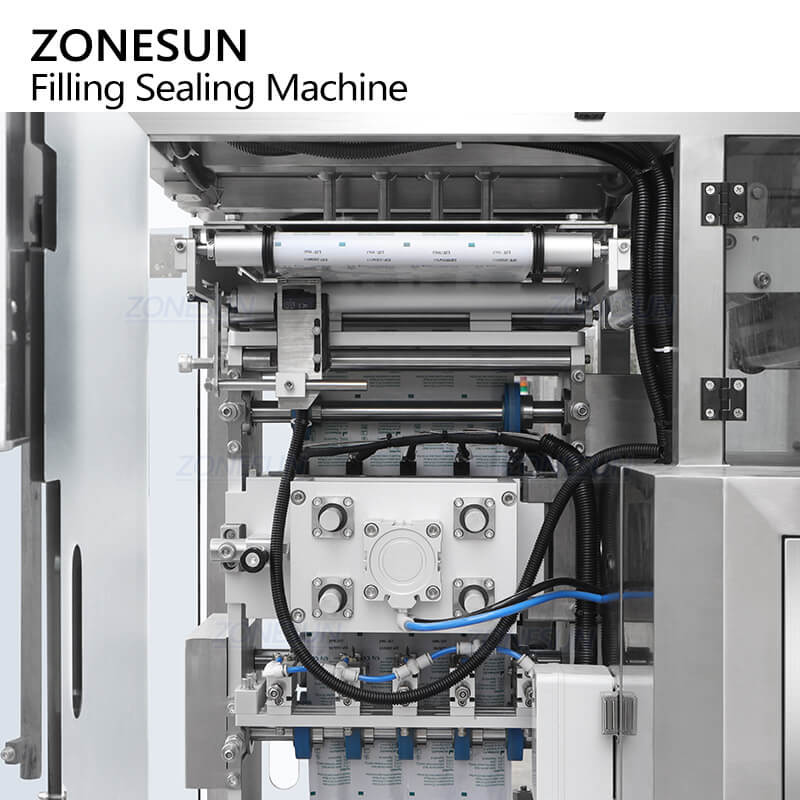

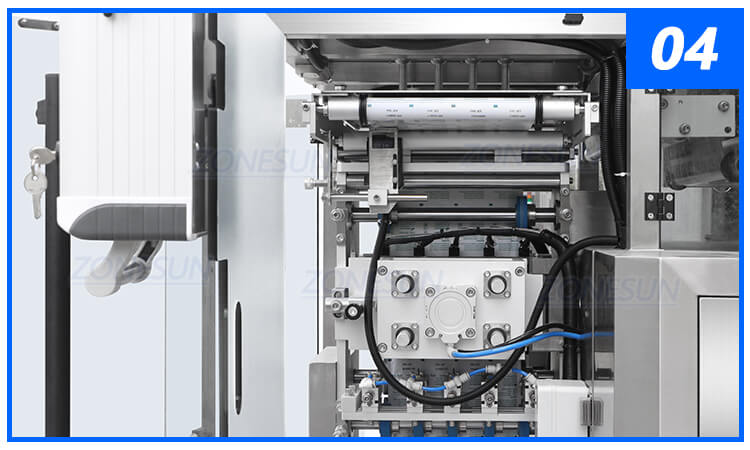

Vertical and Horizontal Sealing Structure
Teflon-coated rollers create clean, reliable seals while reducing material buildup and wear.
Rotary Cutting and Easy-tear System
Produces individual or connected sachets with optional tear notches and uniform perforation lines.

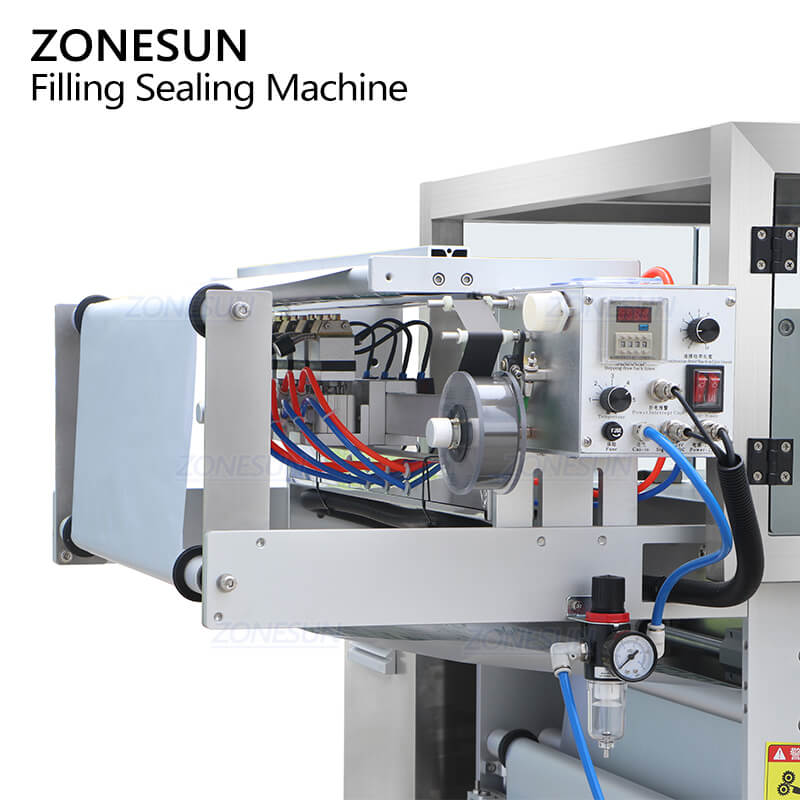

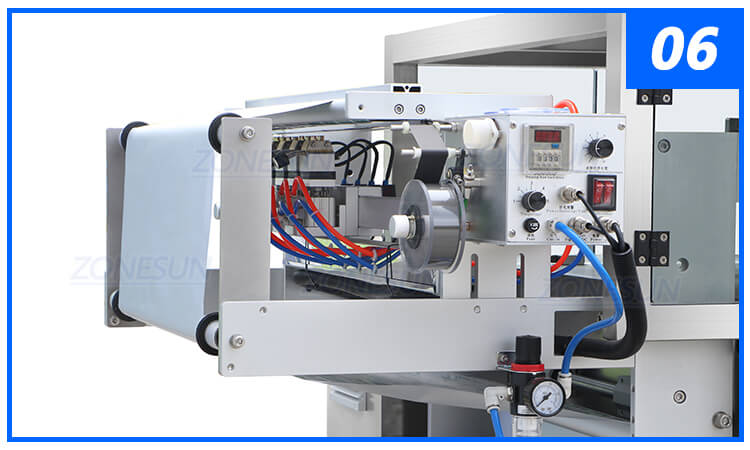

Date Coding Structure
Prints production dates or batch information directly onto sachets during packaging.

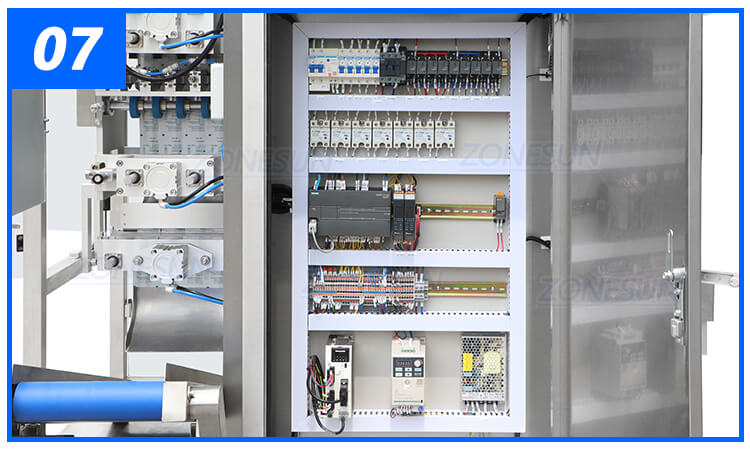

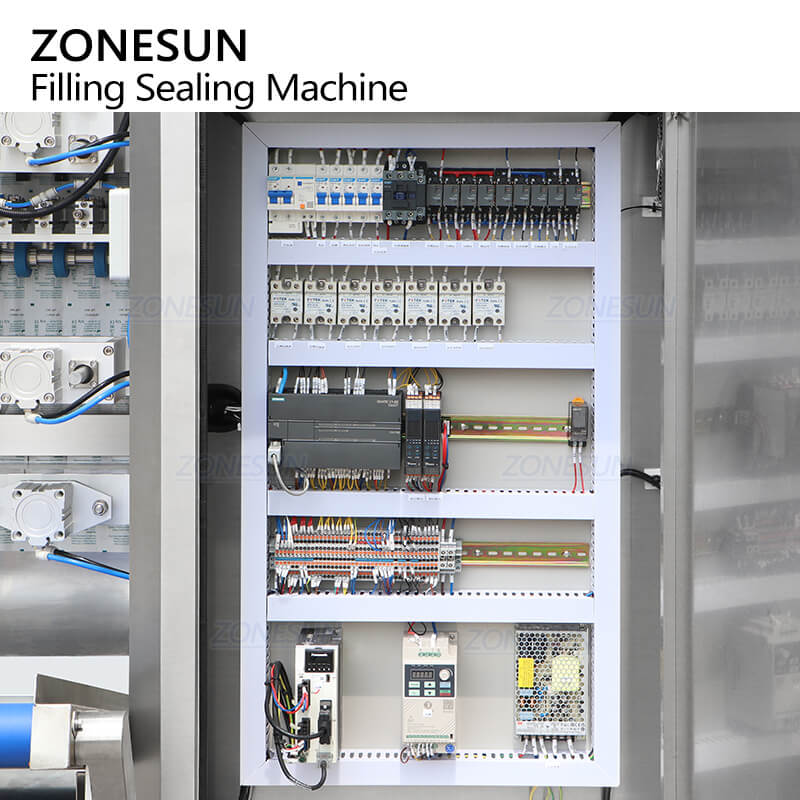

Electrical Control Components
Coordinate multi-lane operation, film feeding, and sealing actions for stable high-speed production.

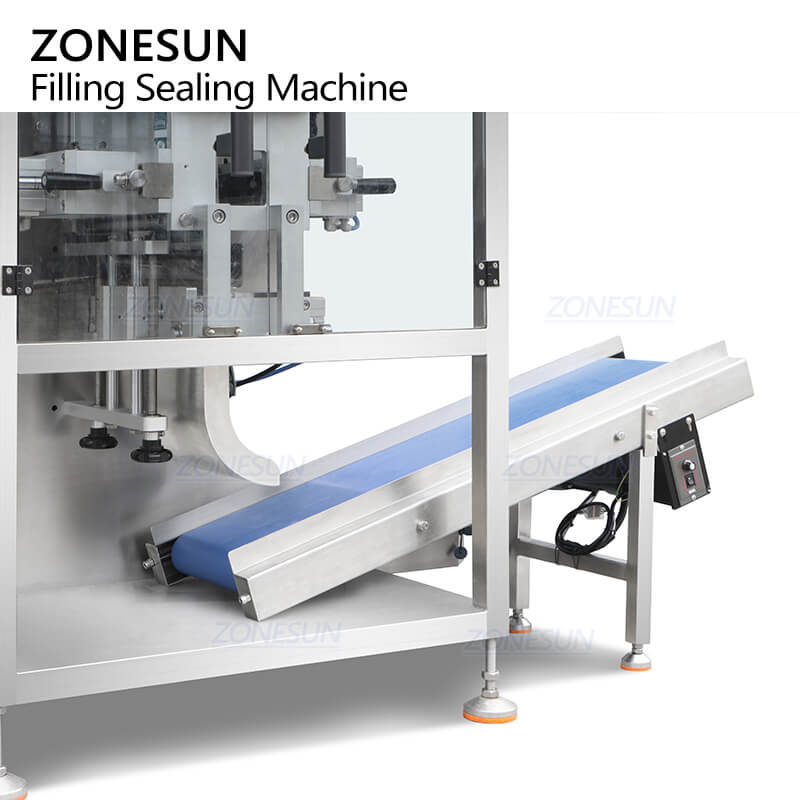

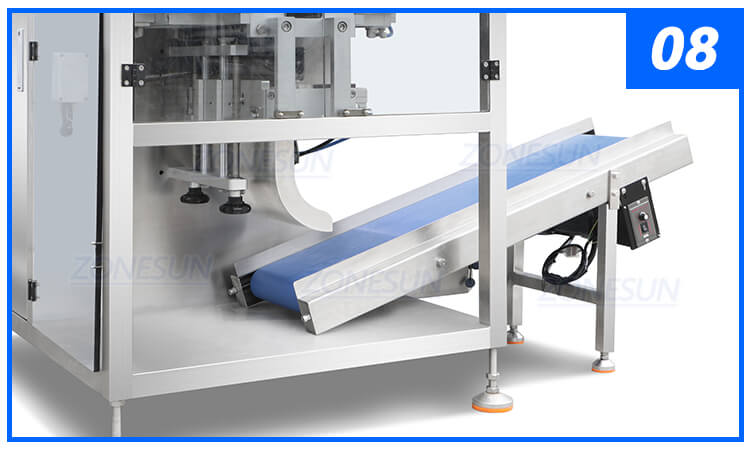

Finished Product Discharge Conveyor
Collects and transfers completed sachets efficiently for downstream handling or cartoning.

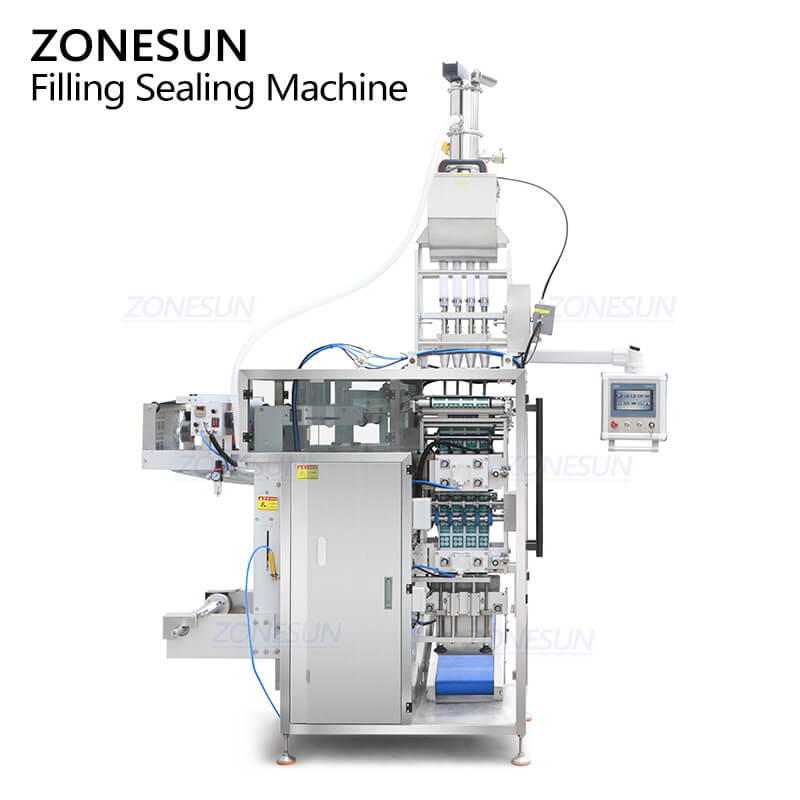

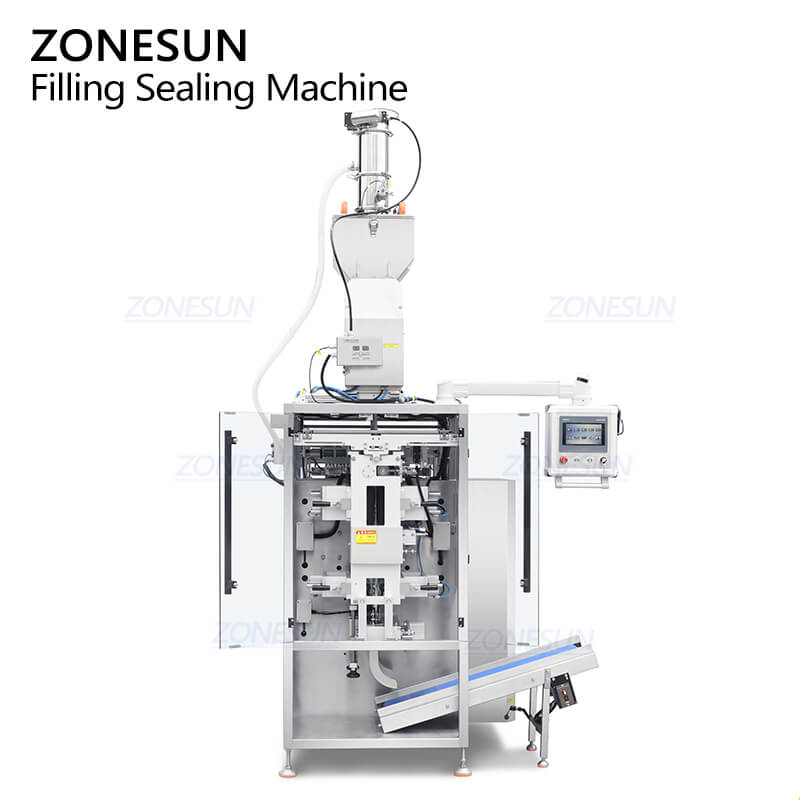

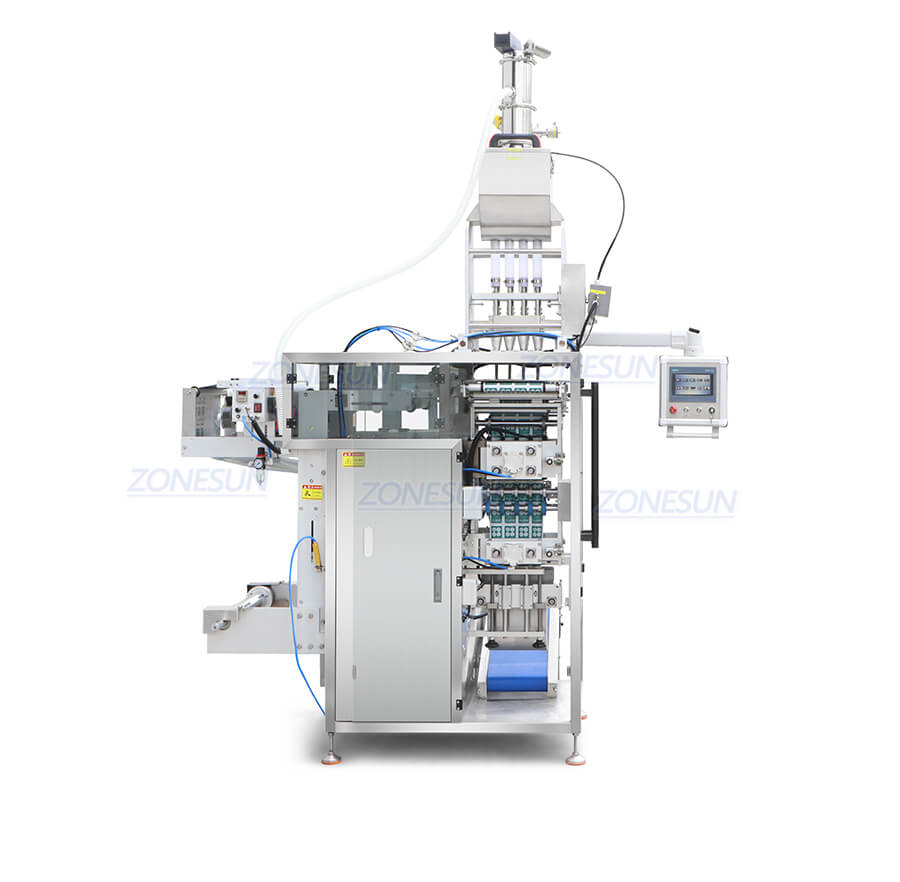

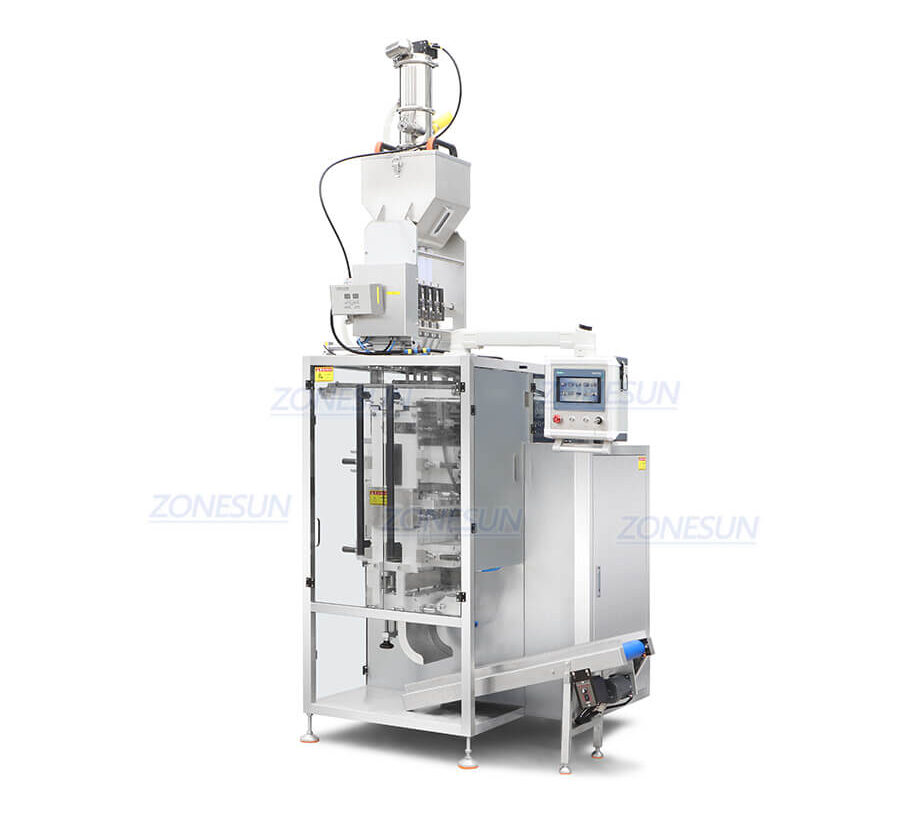

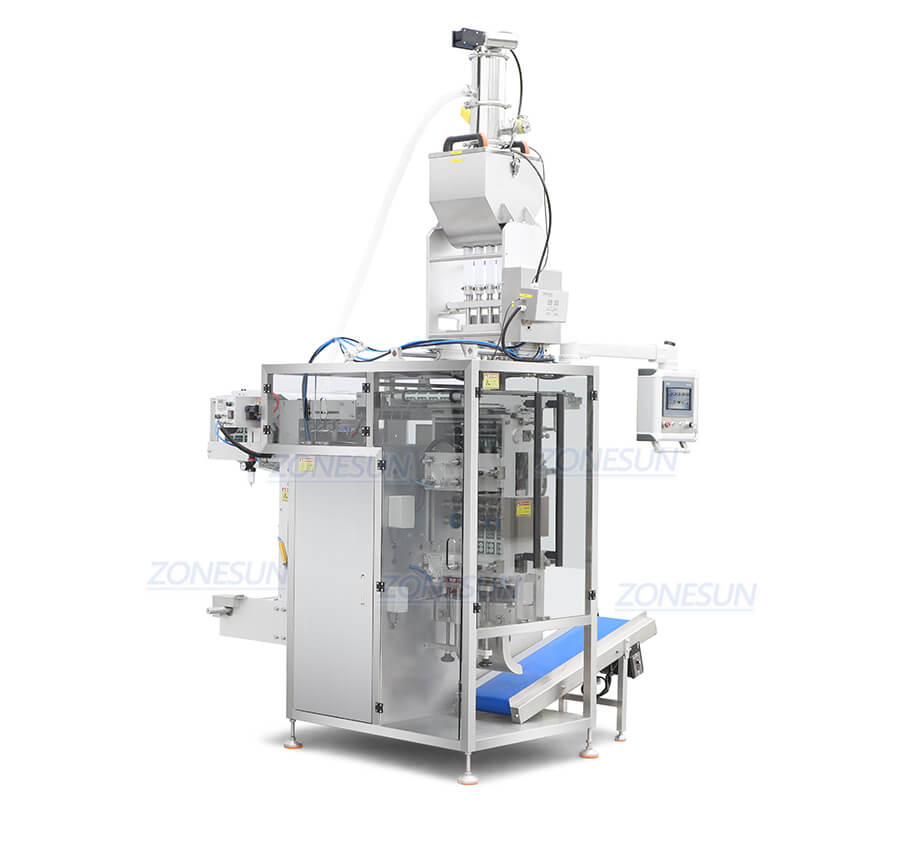

Product Real Shot
