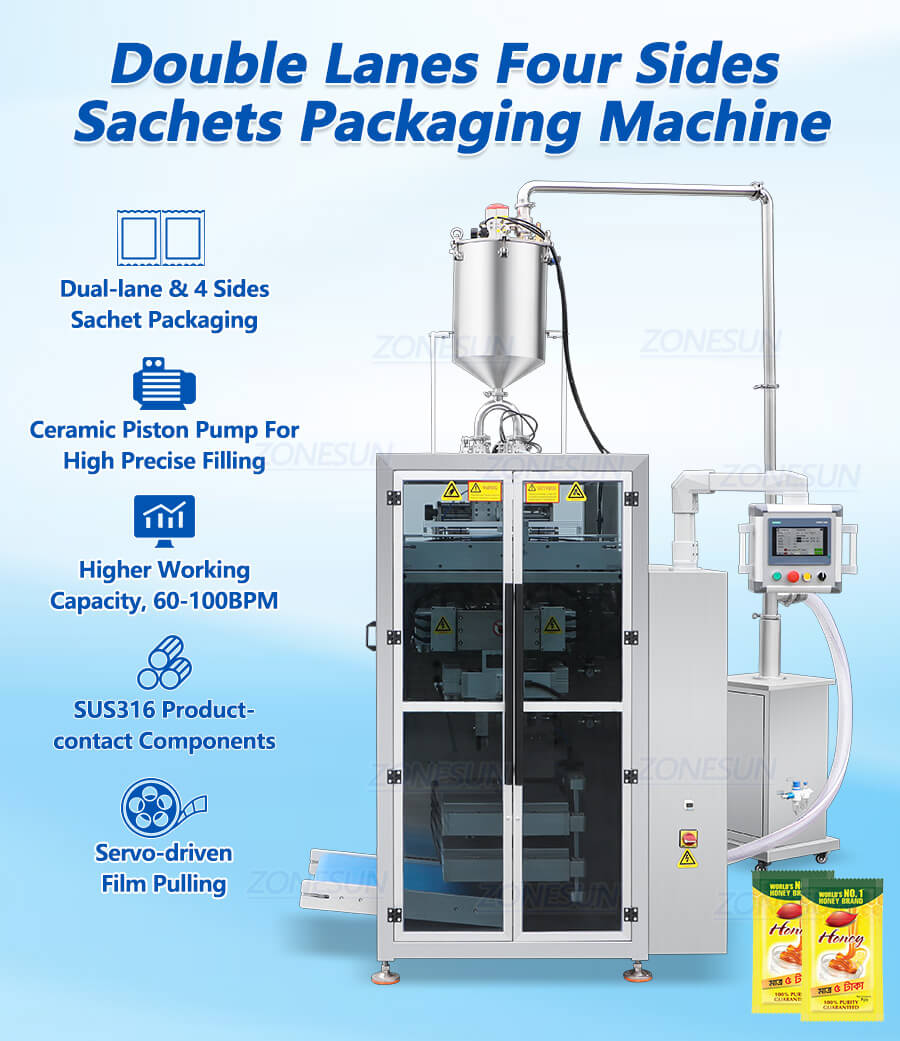

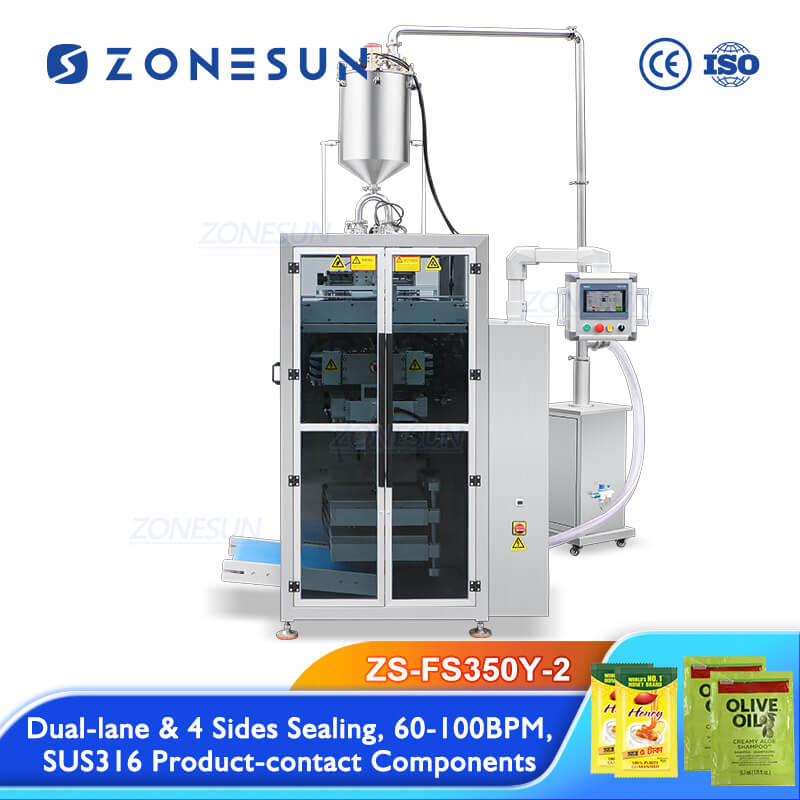

ZONESUN ZS-FS350Y-2 Double Lane Sauce Sachet Filling Sealing Machine
This dual-lane four-side seal sachet filling and sealing machine is designed for small-dose liquid packaging. It features a Siemens PLC control system with fault alarm and data storage. Servo-driven film pulling and precise ceramic piston filling ensure stable operation at 60–100 sachets per minute.It is suitable for packaging sauce, honey, syrup and so on.
$24,599.00
Share to
Product Description
This dual-lane four-side seal sachet filling and sealing machine is designed for small-dose liquid packaging. It features a Siemens PLC control system with fault alarm and data storage. Servo-driven film pulling and precise ceramic piston filling ensure stable operation at 60–100 sachets per minute.It is suitable for packaging sauce, honey, syrup and so on.
Product Applications
Product Parameter
| Machine Model | ZS-FS350Y-2 |
| Power Supply | AC 380V / 50Hz / 60Hz |
| Power Consumption | 6.8 kW |
| Packaging Type | Four-side seal |
| Dosing Method | Pneumatic ceramic piston pump(Customizable as needed) |
| Filling Range | 1-12 ml |
| Filling Accuracy | ±5-7% (depending on product and packaging material) |
| Bag Length | 40-180 mm |
| Bag Width | 60 mm |
| Packaging Speed | (30-50)*2 lane=60-100 bags/min (depending on product and packaging material) |
| Optional Function | Date Coding, Easy-tear Notch & Vacuum Feeding |
| Air Pressure Requirement | ≥0.6 MPa |

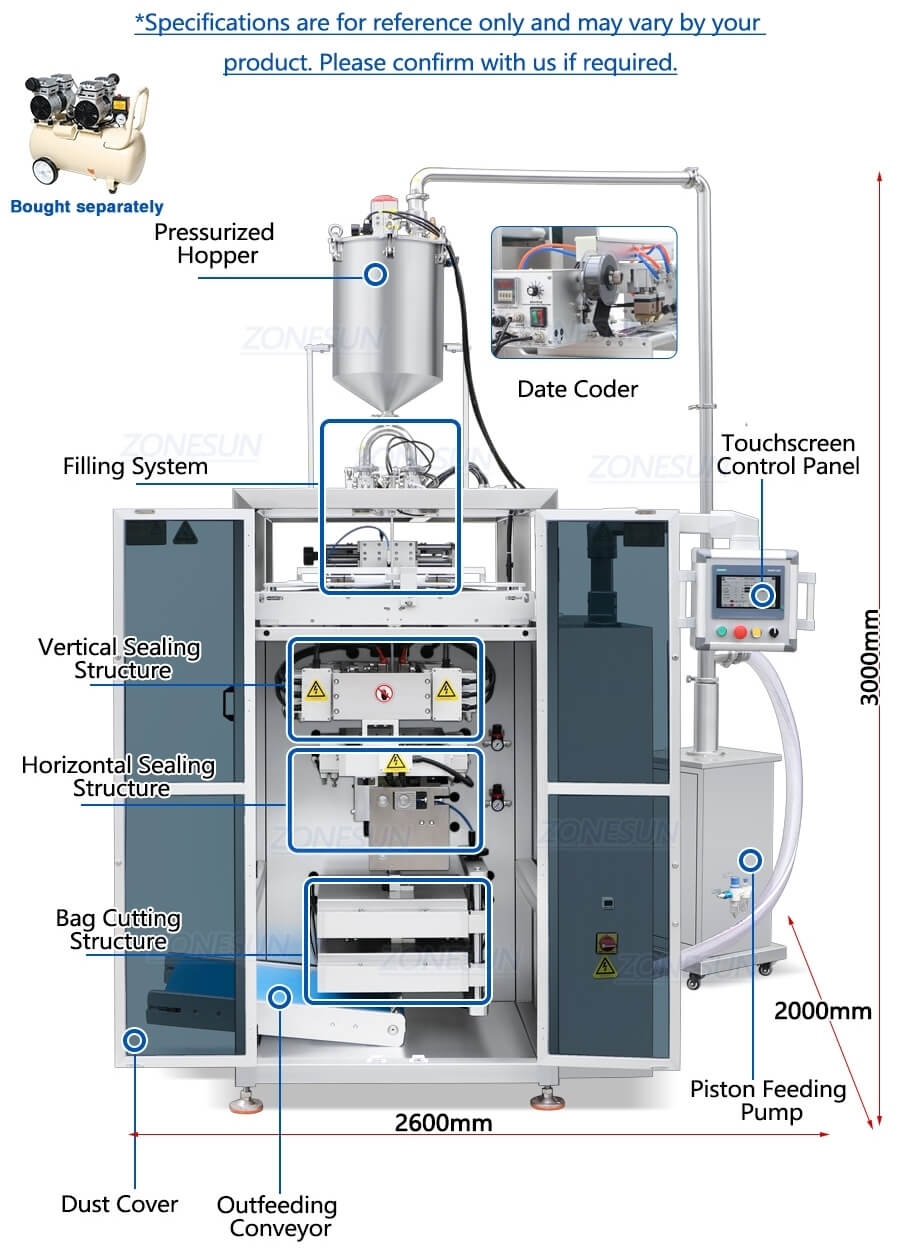

| Machine Size | About 2600*2000*3000mm(L*W*H) |
| Machine Weight | About 800 kg |
| Package Size | About 2390*1750*2170mm(L*W*H) |
| Package Weight | About 1200kg |
Product Details

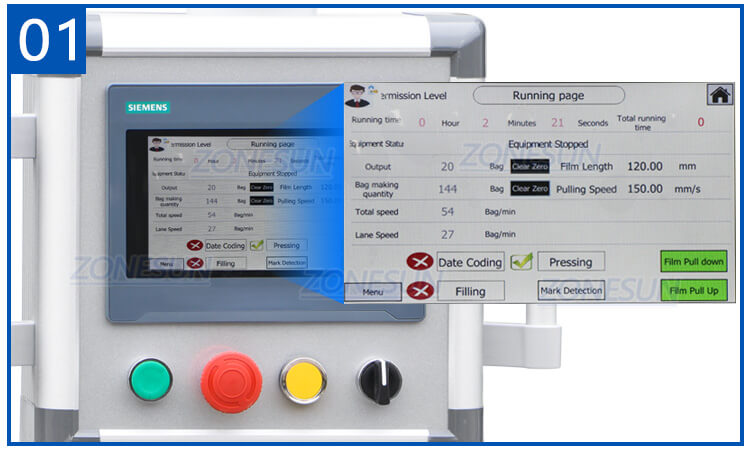

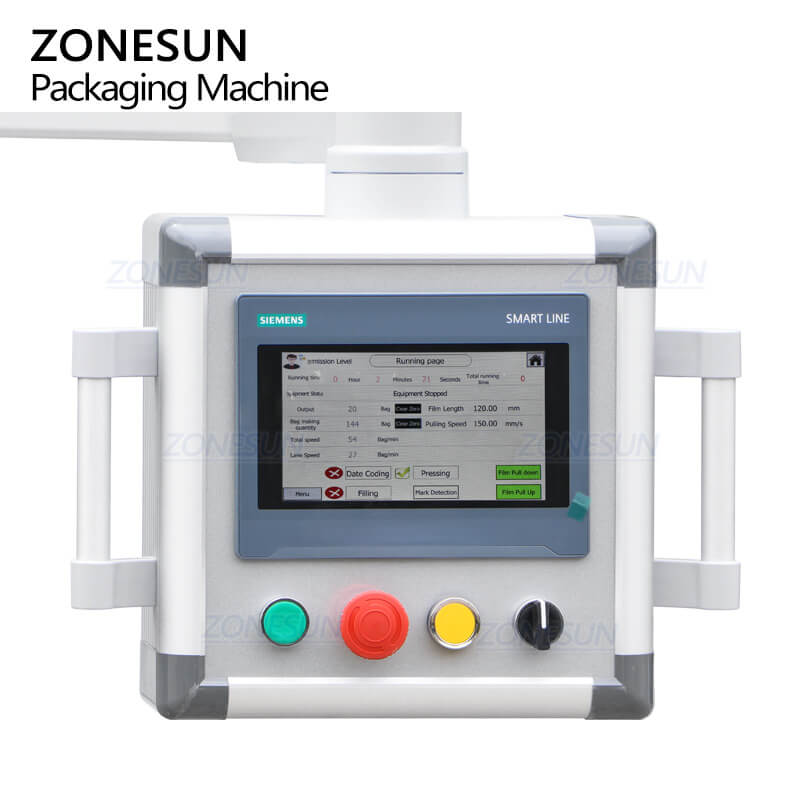

Control Panel
The Siemens PLC system supports fault alerts, data storage, and self-diagnostic functions for intuitive and user-friendly operation.

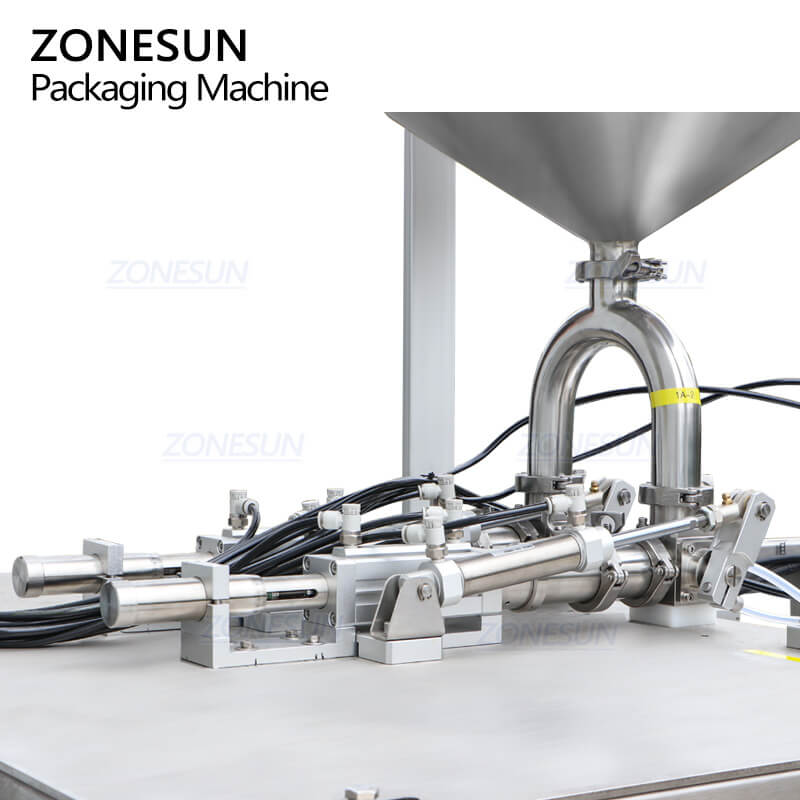

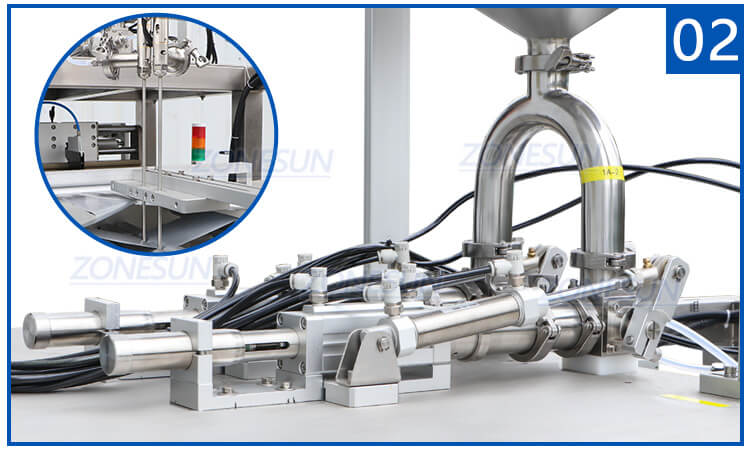

Filling System
Pneumatic ceramic piston pumps enable precise filling from 1–12 ml, ideal for small-dose liquid products.

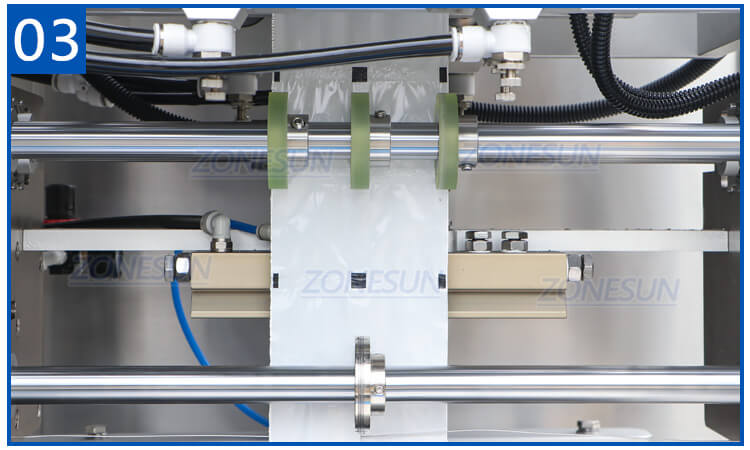

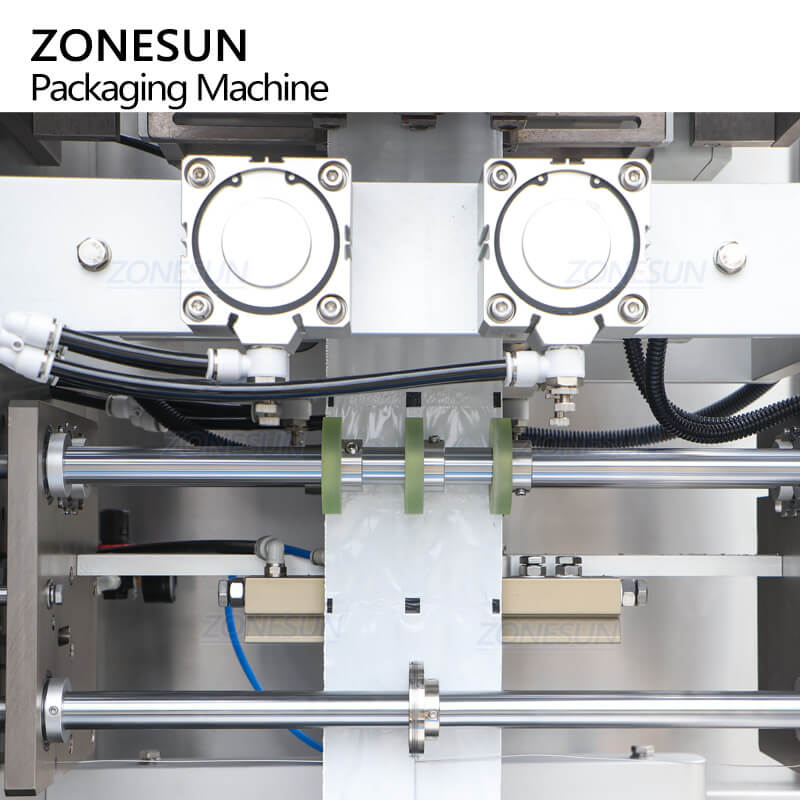

Lane Separation Assembly
Upper metal separators and lower guide plates prevent multi-lane film adhesion and deviation, ensuring neat sachet forming and uniform spacing across all lanes.

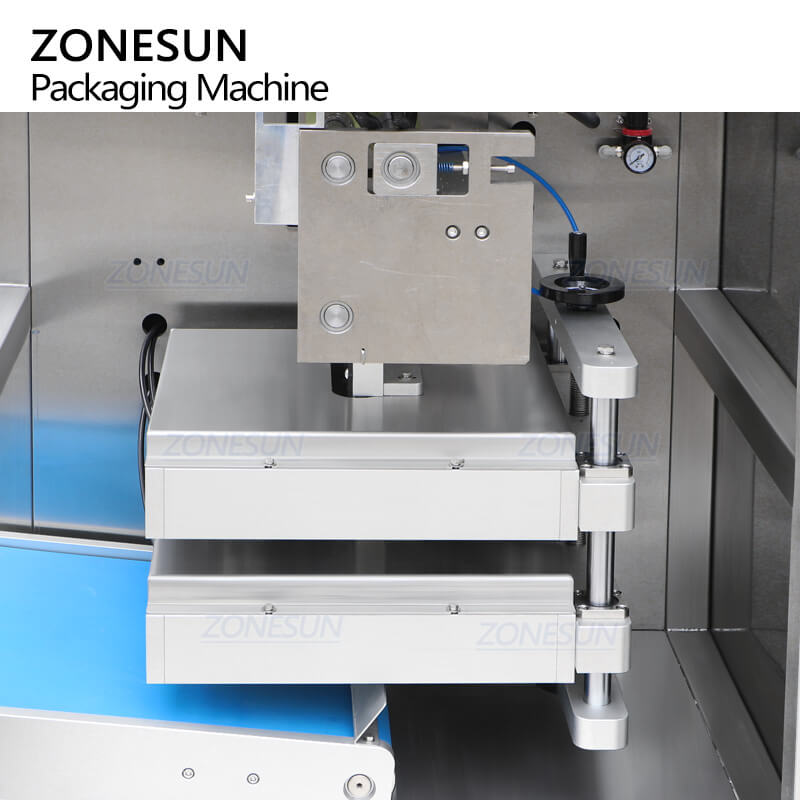

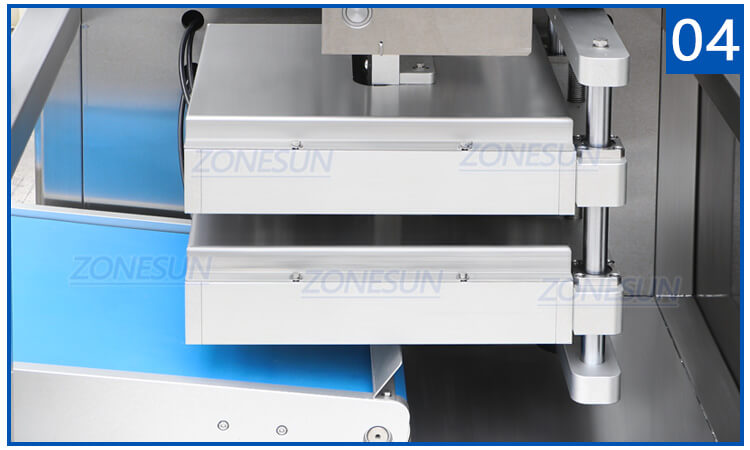

Pneumatic Cutting and Easy-tear Structure
Uses independently removable cutting blades and optional tear-notch design for convenient sachet opening.

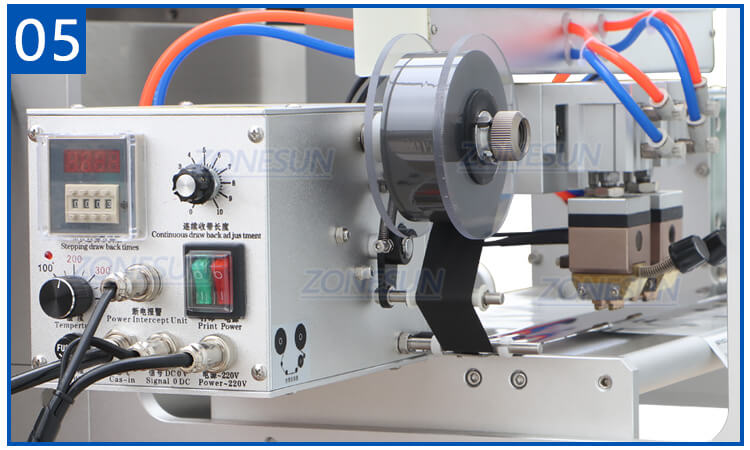

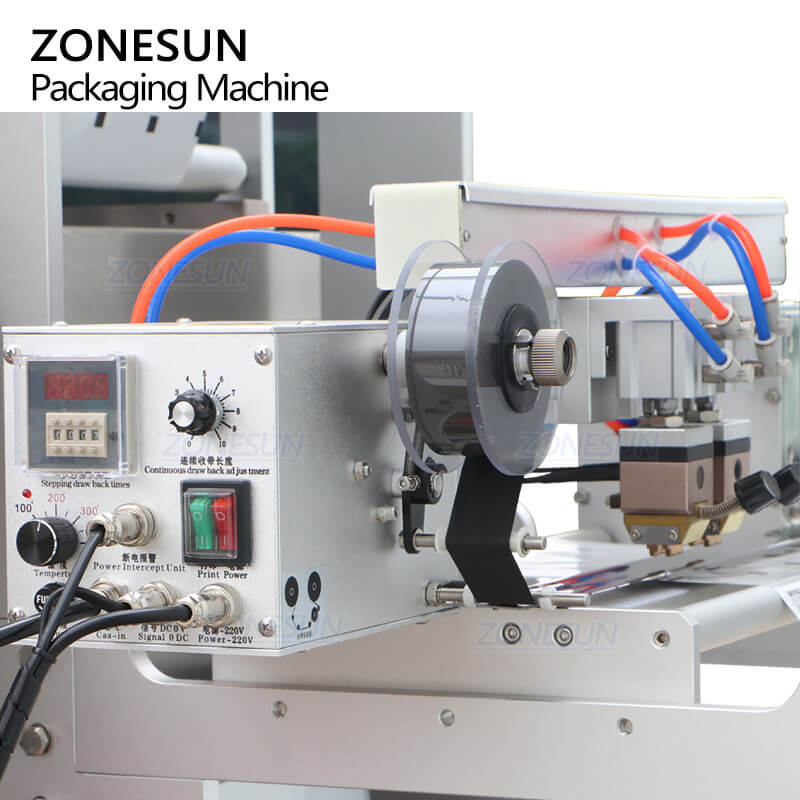

Date Coder
Prints batch numbers or production dates directly during the packaging process.

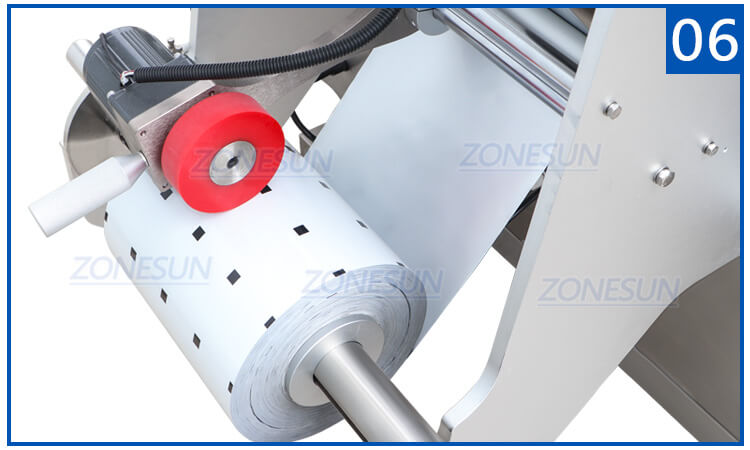

Film Pulling System
A Siemens servo motor combined with photoelectric sensors tracks color marks accurately for uniform bag length and pattern alignment.

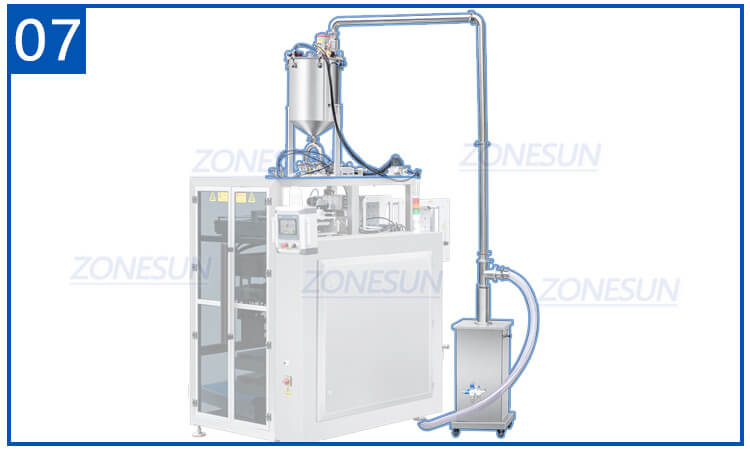

Pressurized Hopper with Feeding Pump
Works with an optional piston feeder and level sensor for automatic material replenishment.

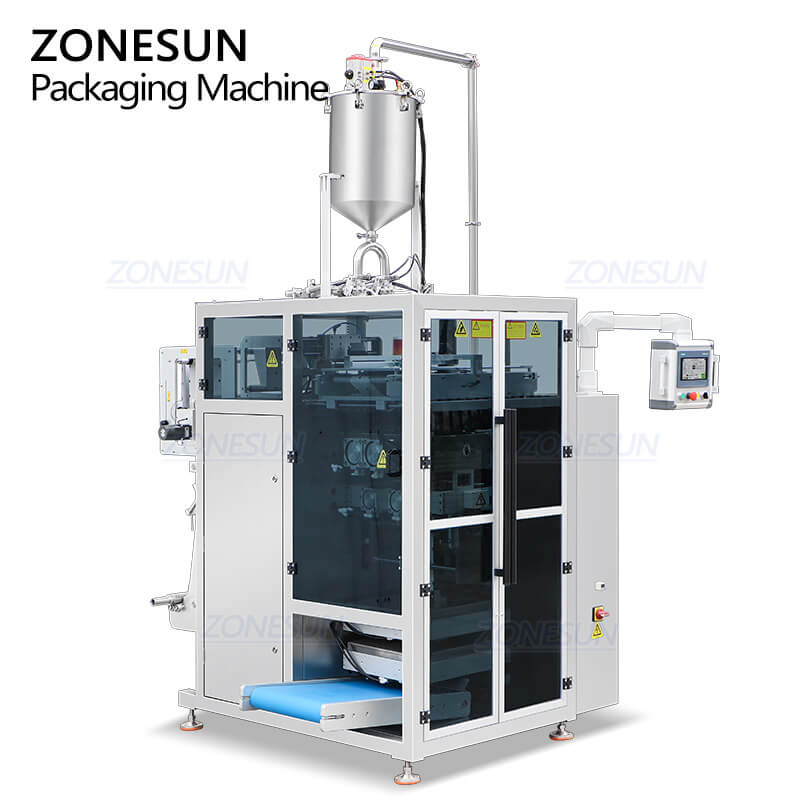

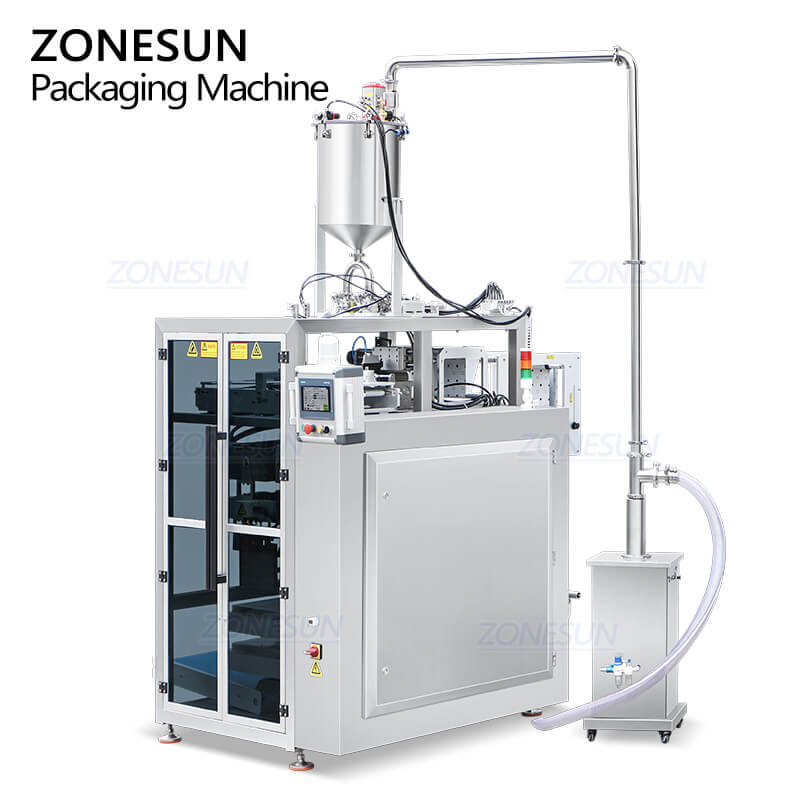

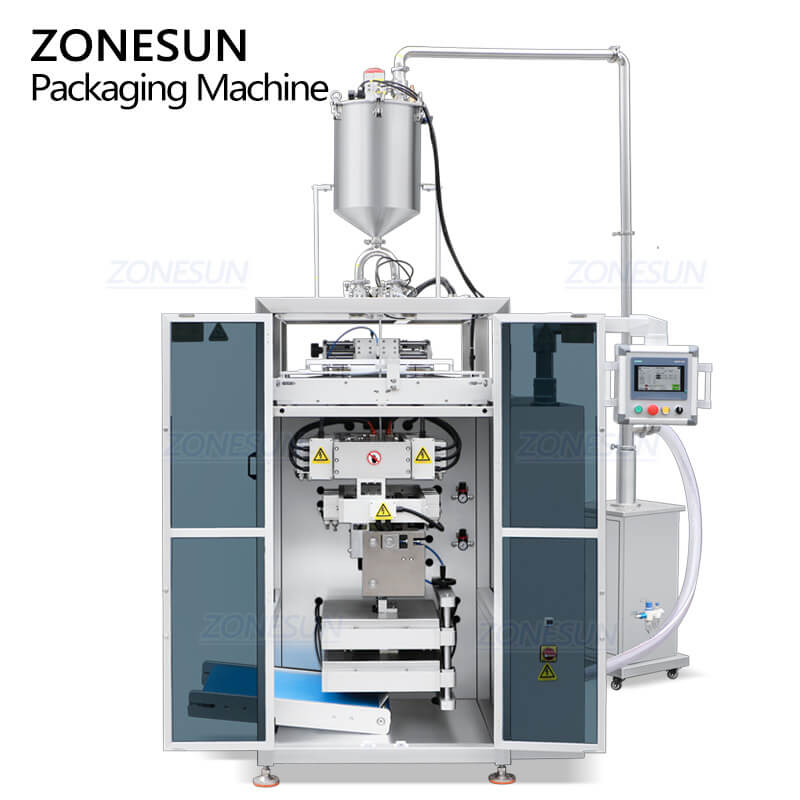

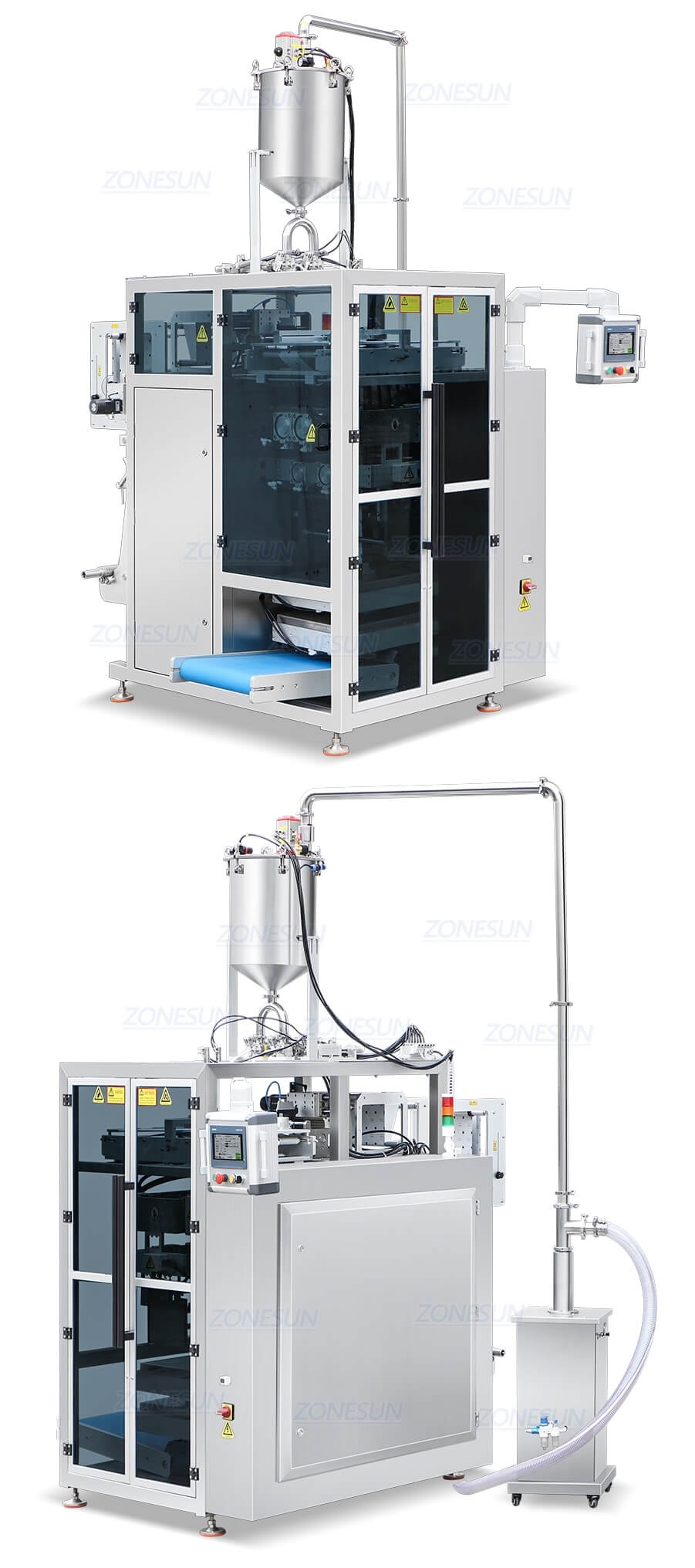

Product Real Shot
