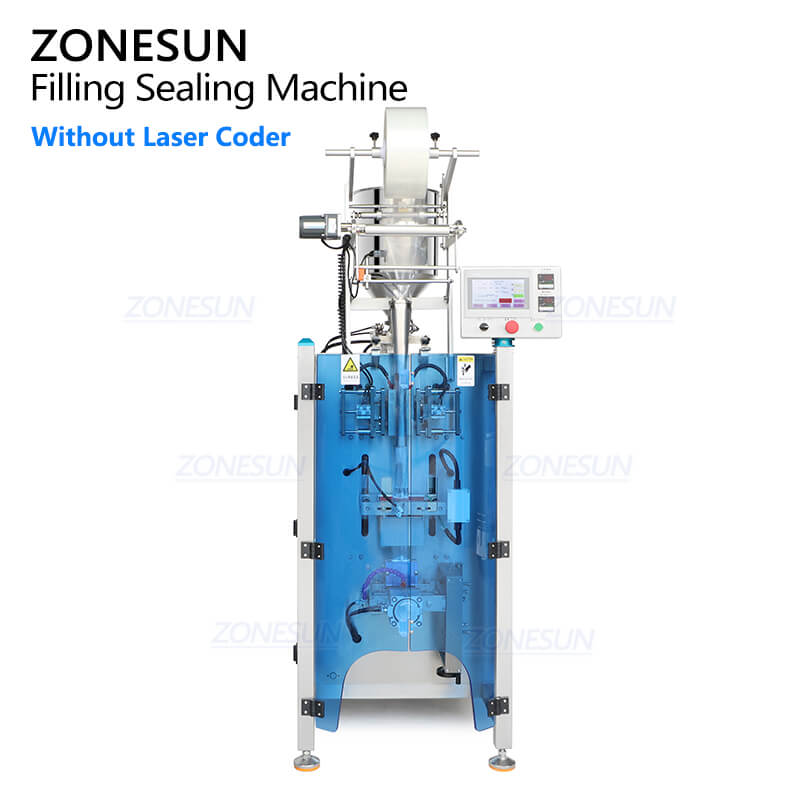

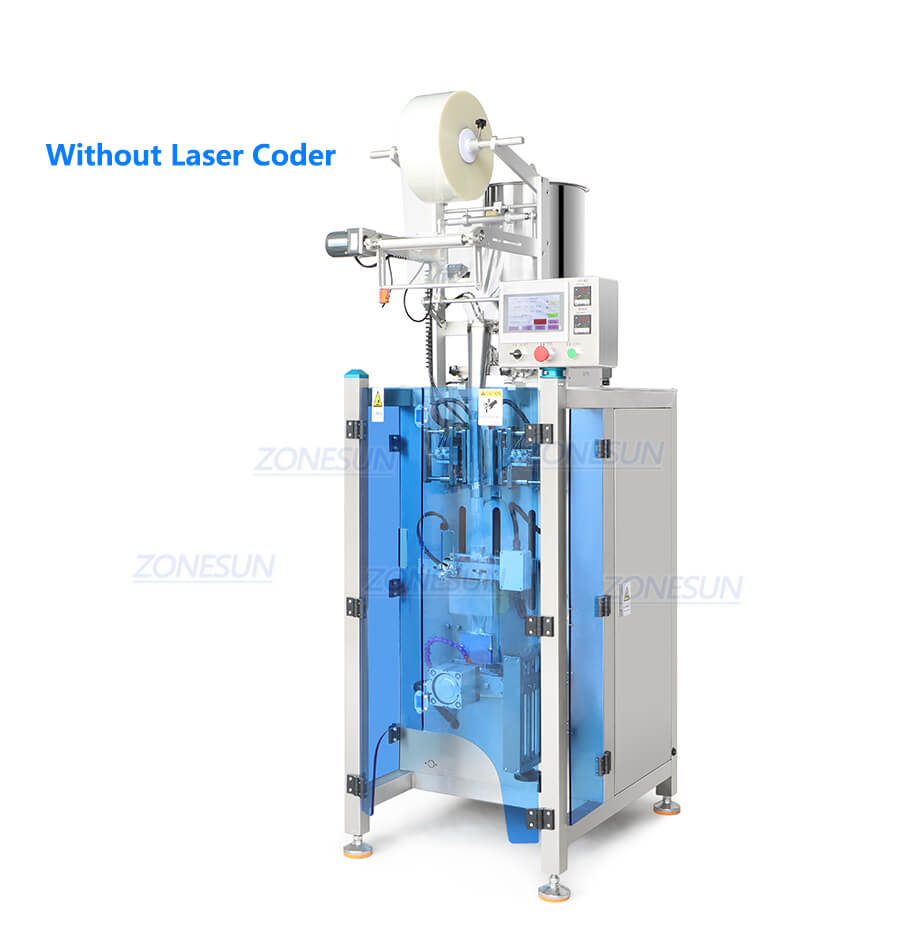

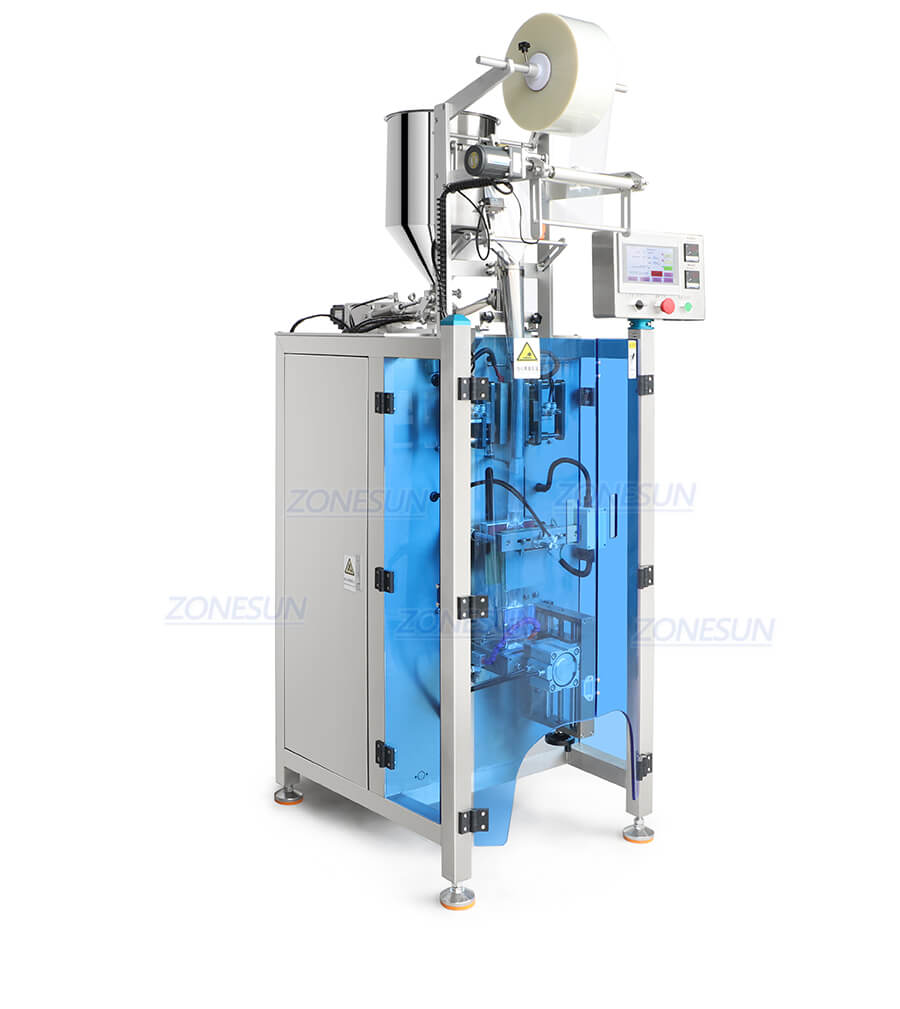

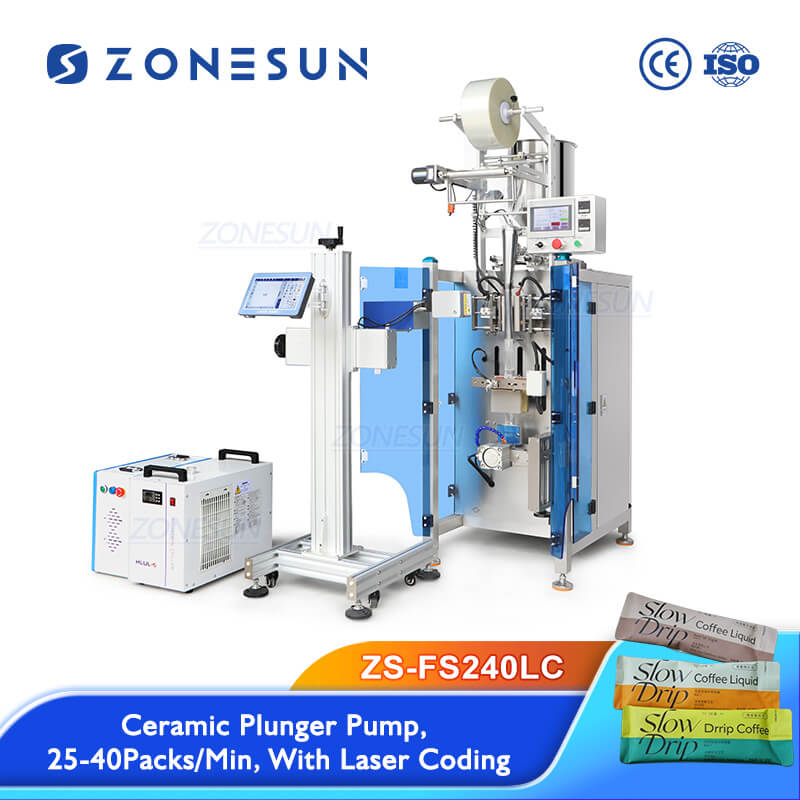

ZONESUN ZS-FS240LC Paste Sachet Filling Machine

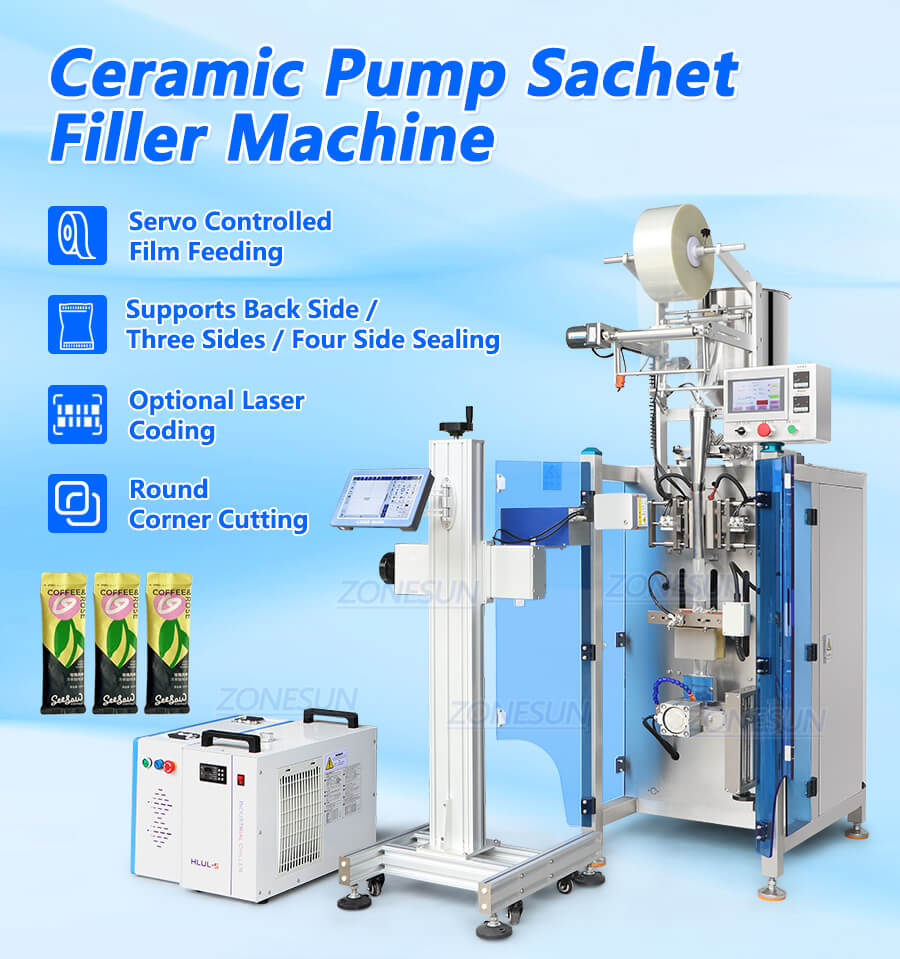

The paste sachet filling machine Driven by a high-precision ceramic pump, it handles serums, honey, sauces, and liquid condiments with zero contamination. Supports back, three-side, and four-side sealing with optional laser coding and round-corner cutting.
Price range: $14,499.00 through $18,999.00
Share to
Product Description
The paste sachet filling machine Driven by a high-precision ceramic pump, it handles serums, honey, sauces, and liquid condiments with zero contamination. Supports back, three-side, and four-side sealing with optional laser coding and round-corner cutting.
Product Applications
Product Parameter
| Machine Model | ZS-FS240LC |
| Machine Voltage | 110/220V 50-60HZ |
| Power | 2.5 KW |
| Metering Method | Ceramic Pump |
| Packaging Form | Round Corner & Back Side Sealing (Can Be Customized) |
| Dosage Range | 1-50 ml (Can Be Customized) |
| Hopper Size | 30 L |
| Bag Size | Length 40-200 mm, Bag width 20-110 mm |
| Packaging Speed | 25-40 Bags/Minute (Depending on the actual material) |
| Machine Size | About 1055*825*2195 mm(L*W*H) |
| Machine Weight | 300 KG |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

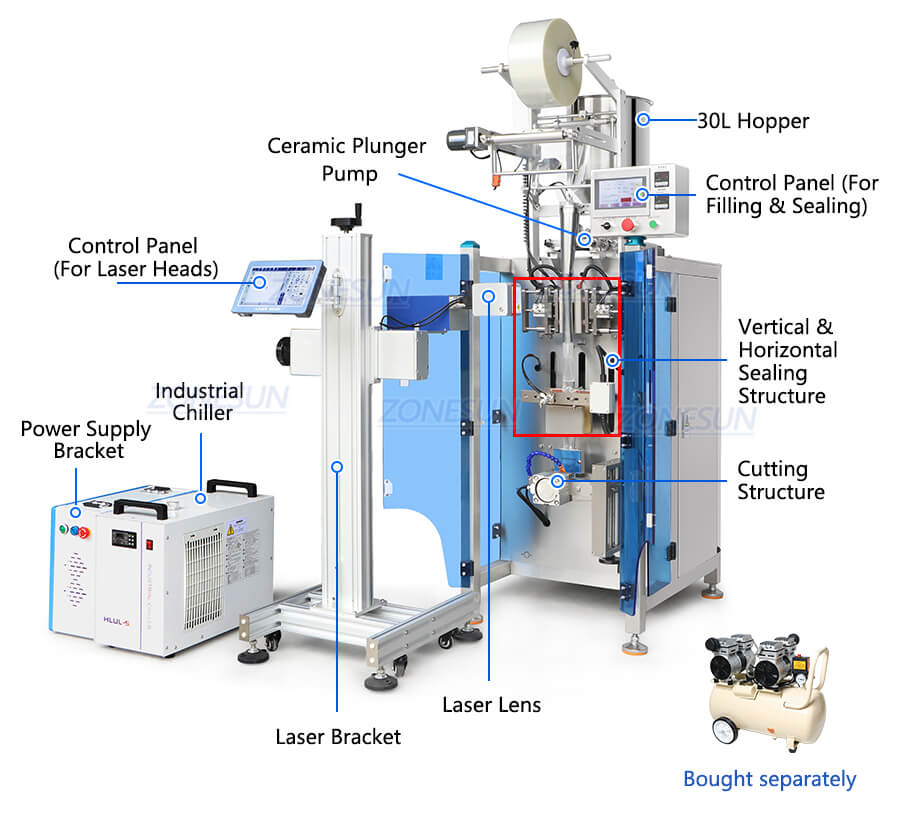

Product Details

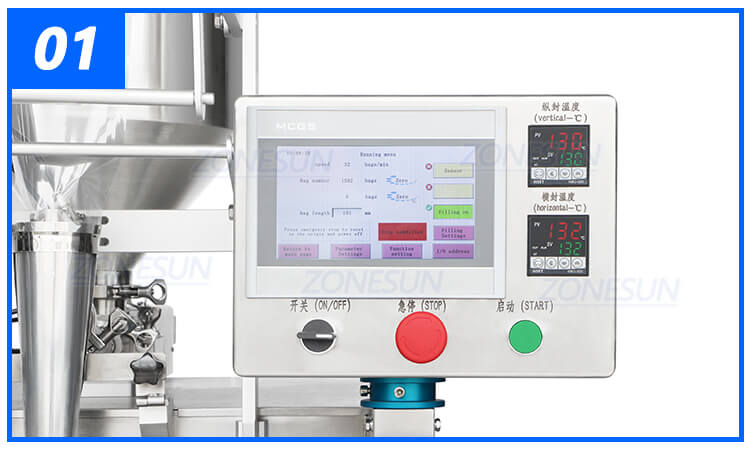

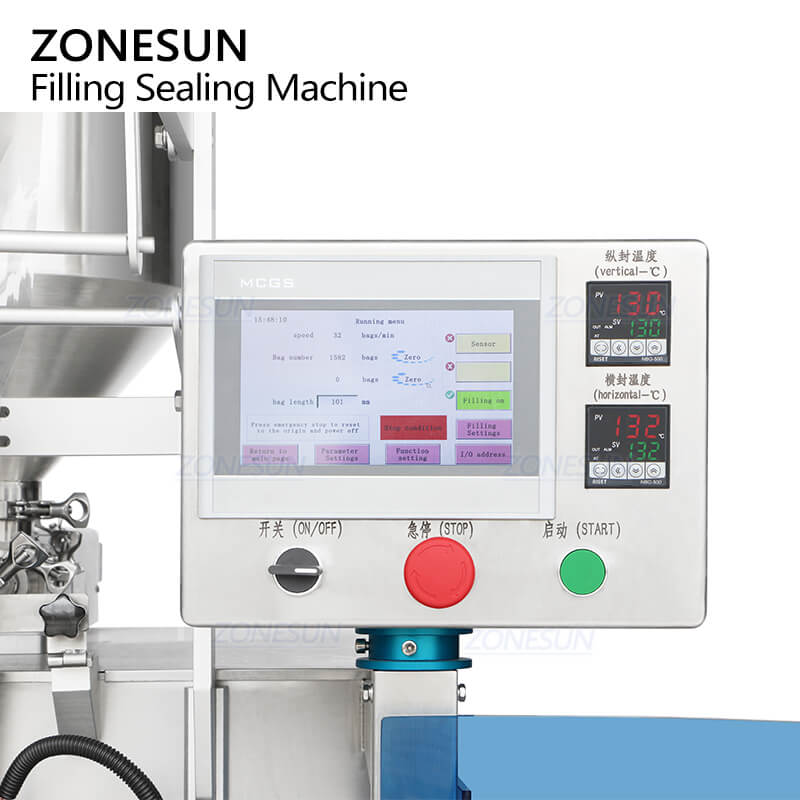

PLC Touchscreen Control
Operators can directly set filling volume, bag length and production parameters through the touchscreen interface, simplifying setup and product changeovers.

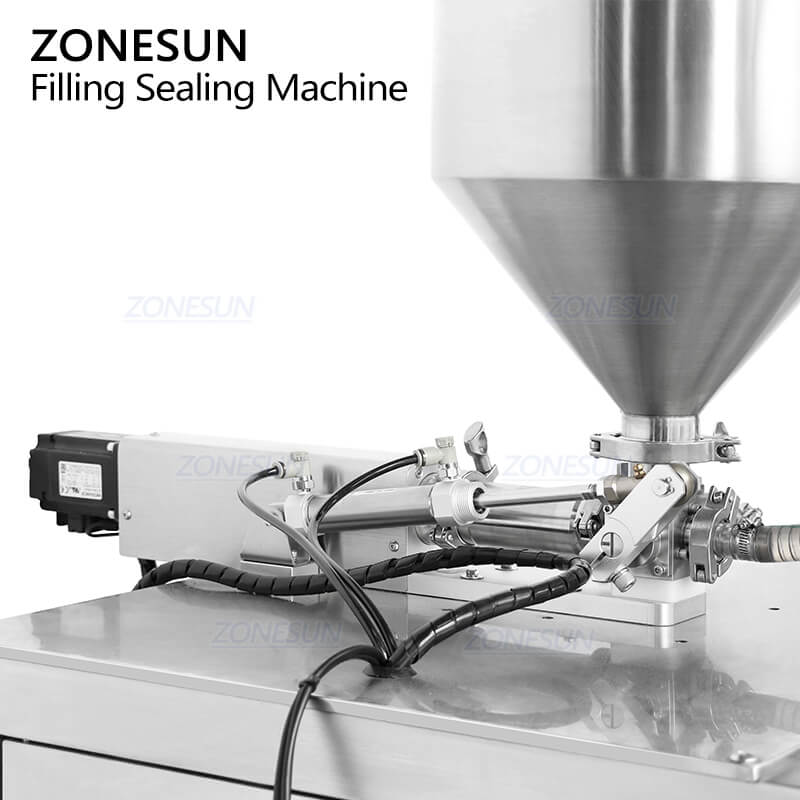

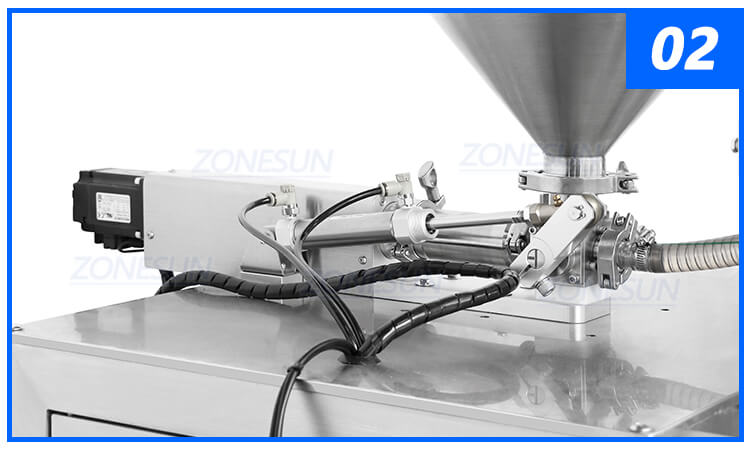

Ceramic Pump Filling Structure
Designed for accurate dosing of liquids and pastes, the ceramic piston pump ensures stable filling performance for viscous products.

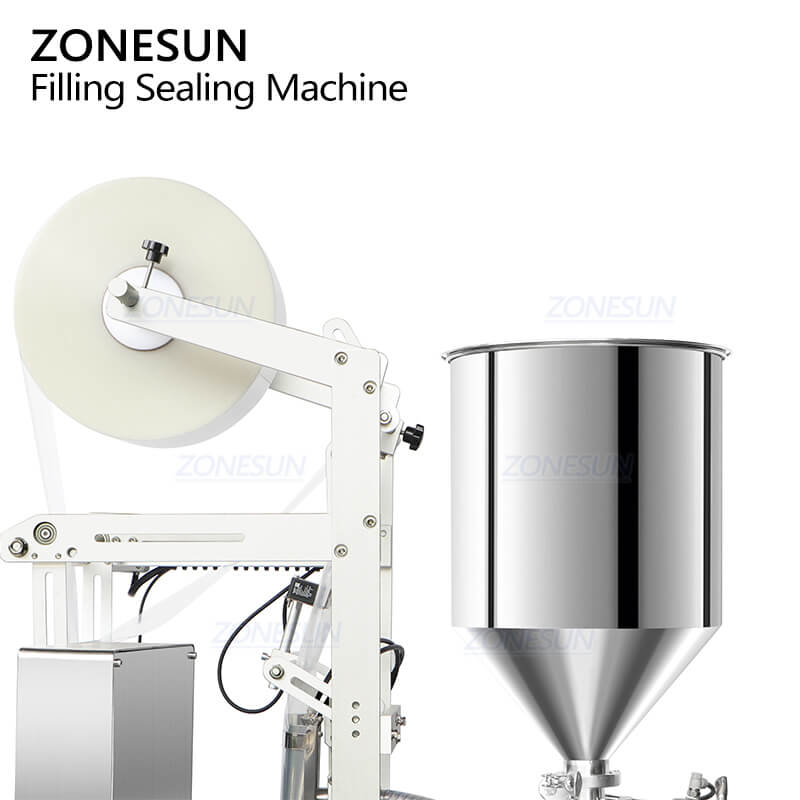

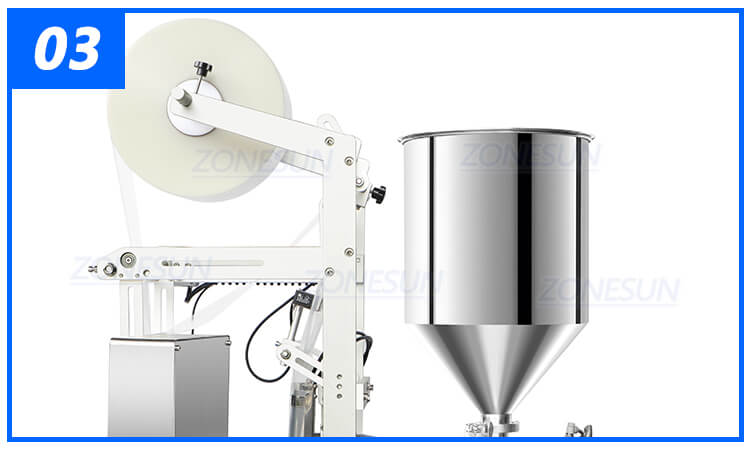

30L Hopper
The large-capacity hopper can be equipped with optional heating and mixing functions to maintain product consistency during production.

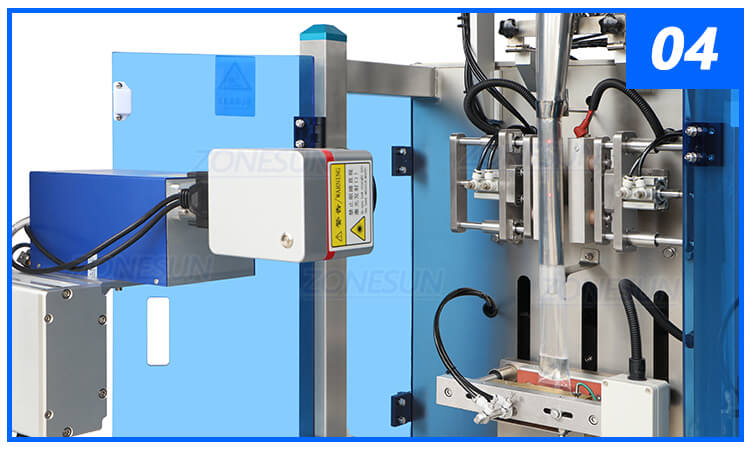

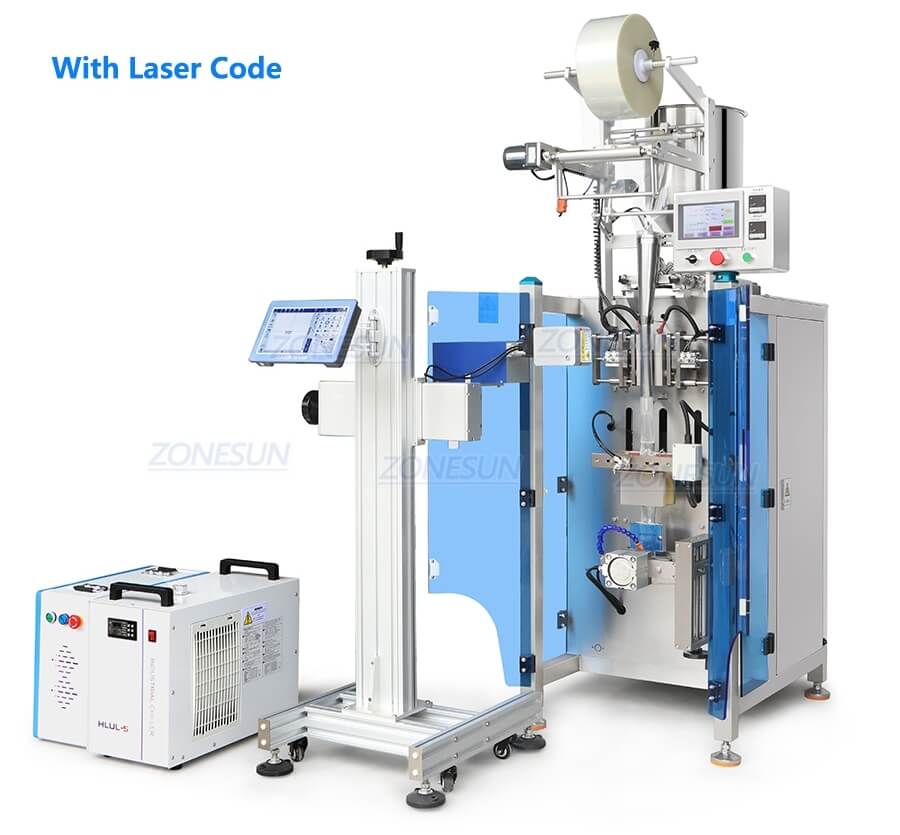

Laser Coding Structure
Optional laser coding prints batch numbers, dates and traceability information directly onto the packaging film.

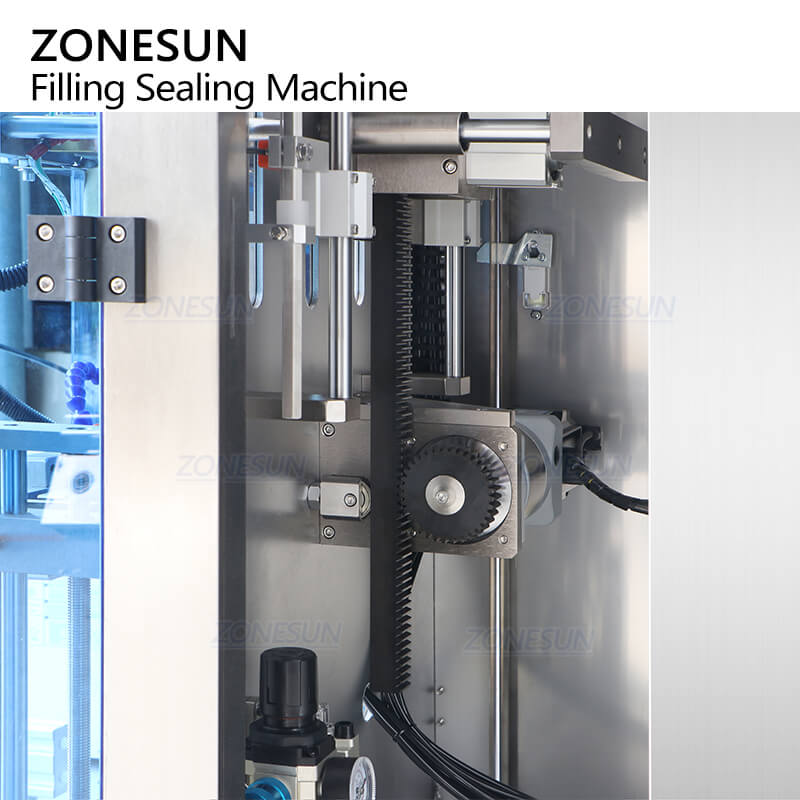

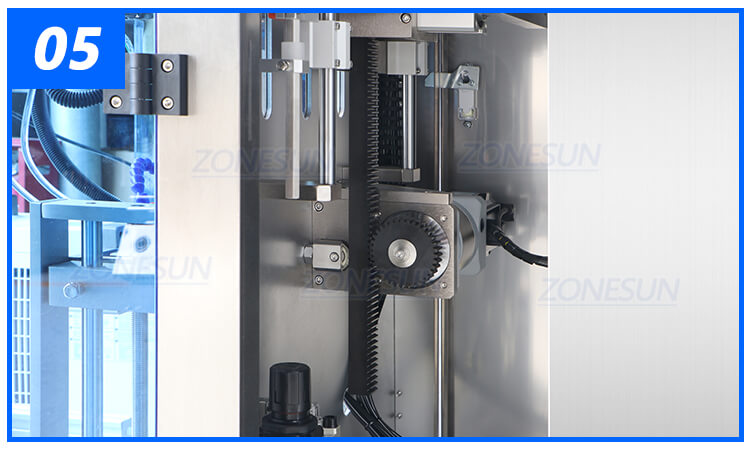

Servo Film Feeding Structure
A servo motor precisely controls film transport length and speed, allowing one-touch bag length adjustment.

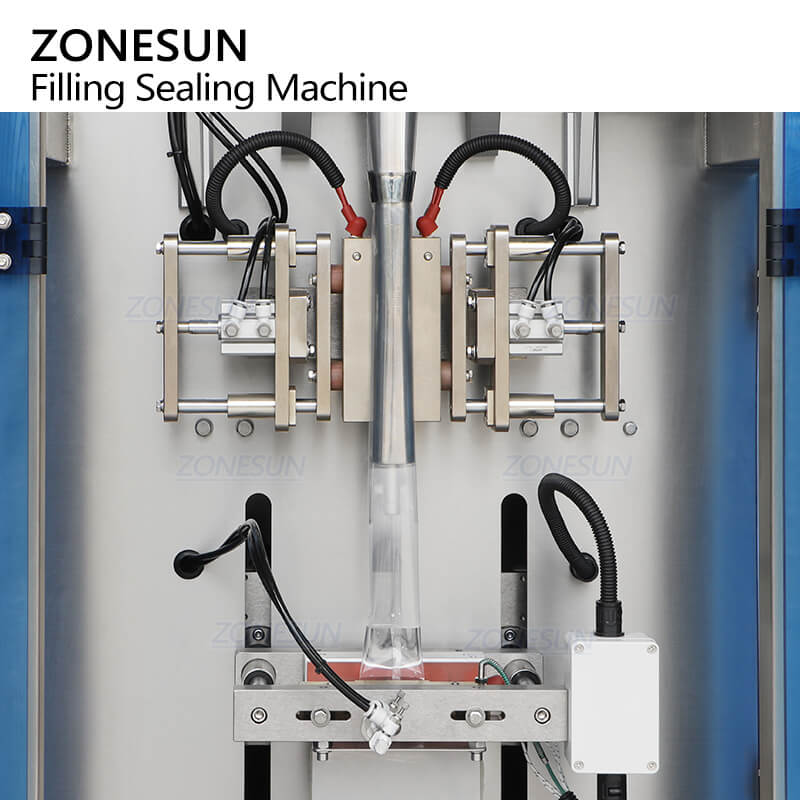

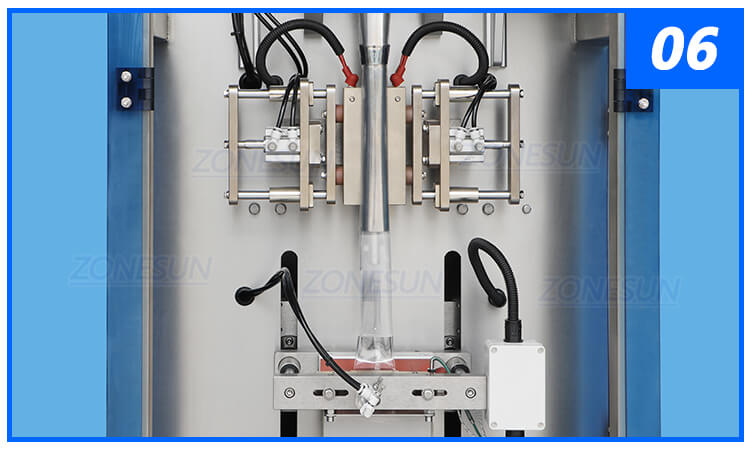

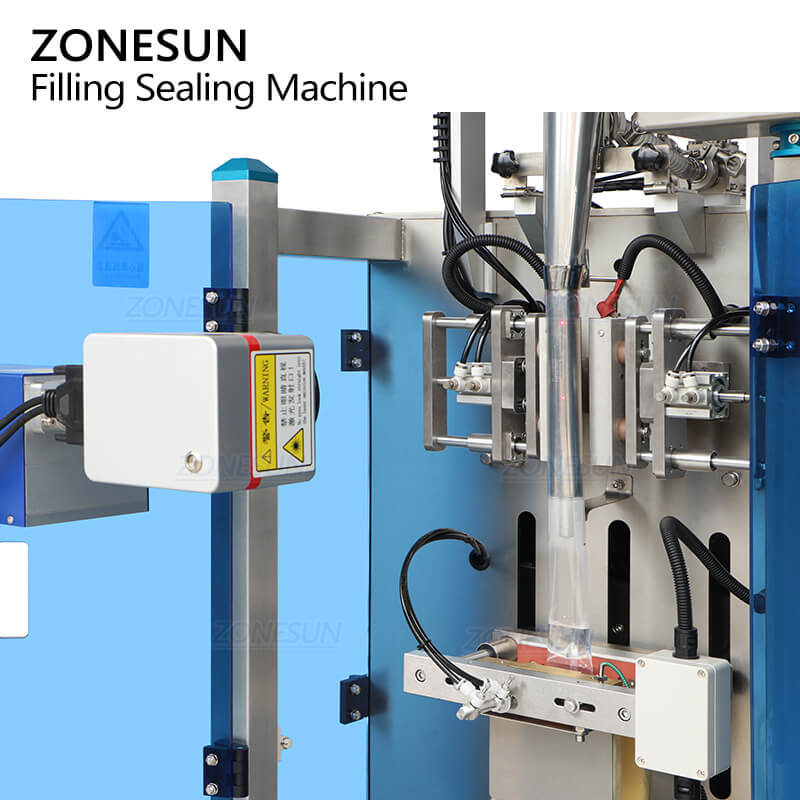

Vertical & Horizontal Sealing Structure
Independently controlled sealing temperatures ensure even heat distribution across different packaging film.

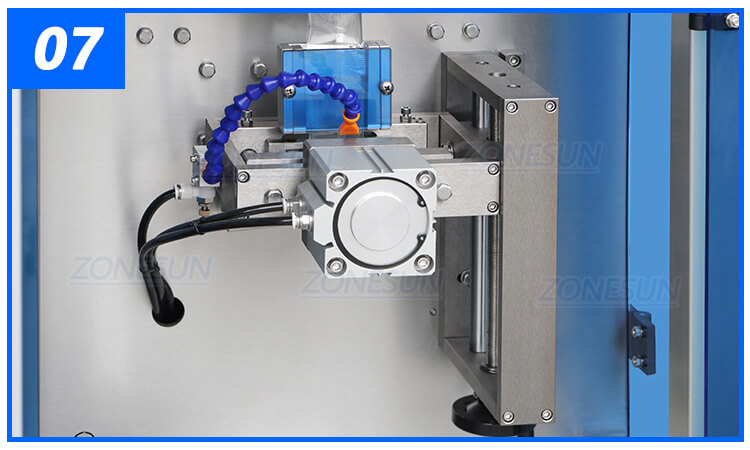

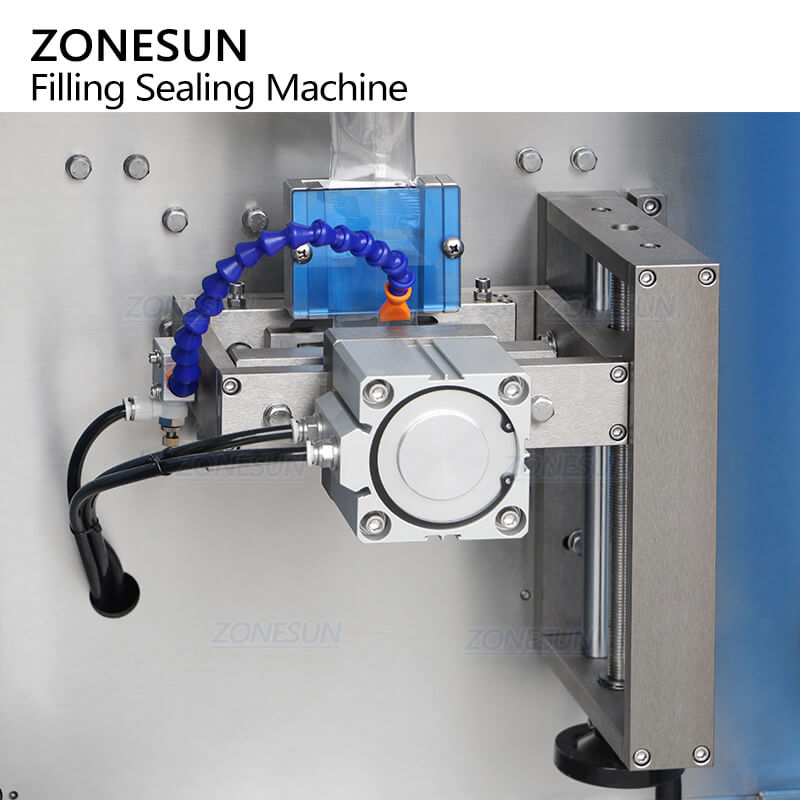

Sachet Cutting Structure
Interchangeable cutting blades support straight-cut, patterned-cut and connected-sachet designs while ensuring smooth and stable pouch separation.

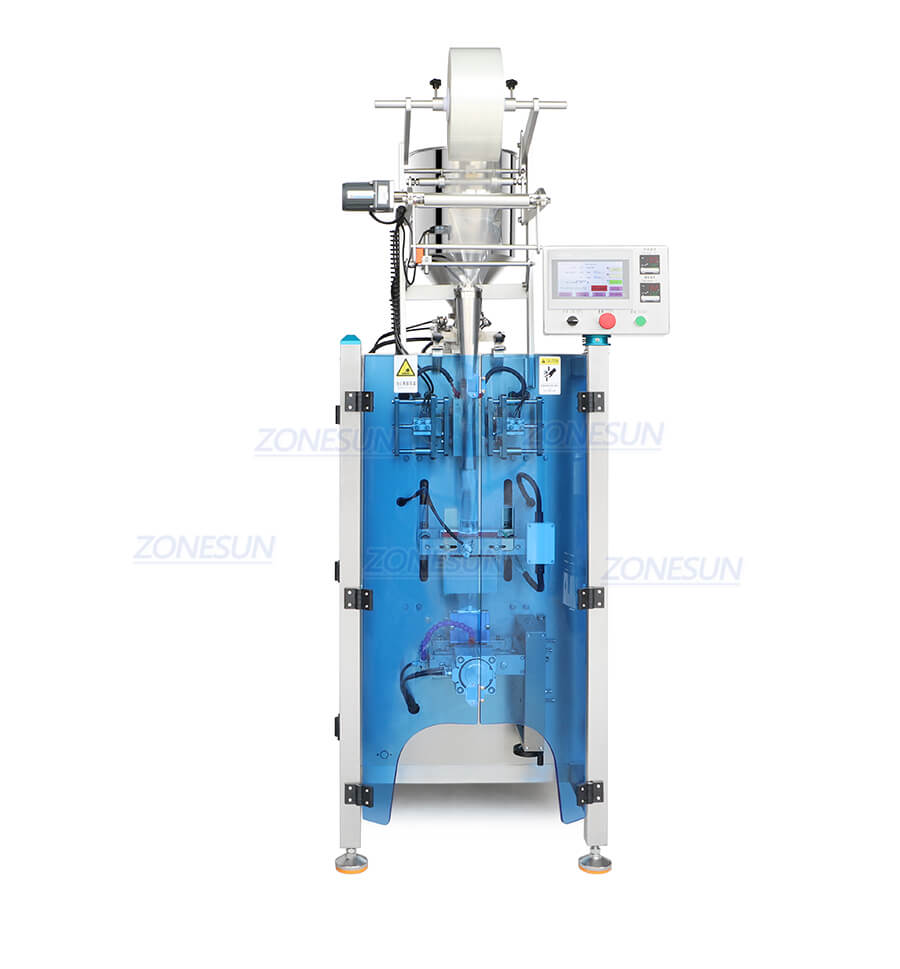

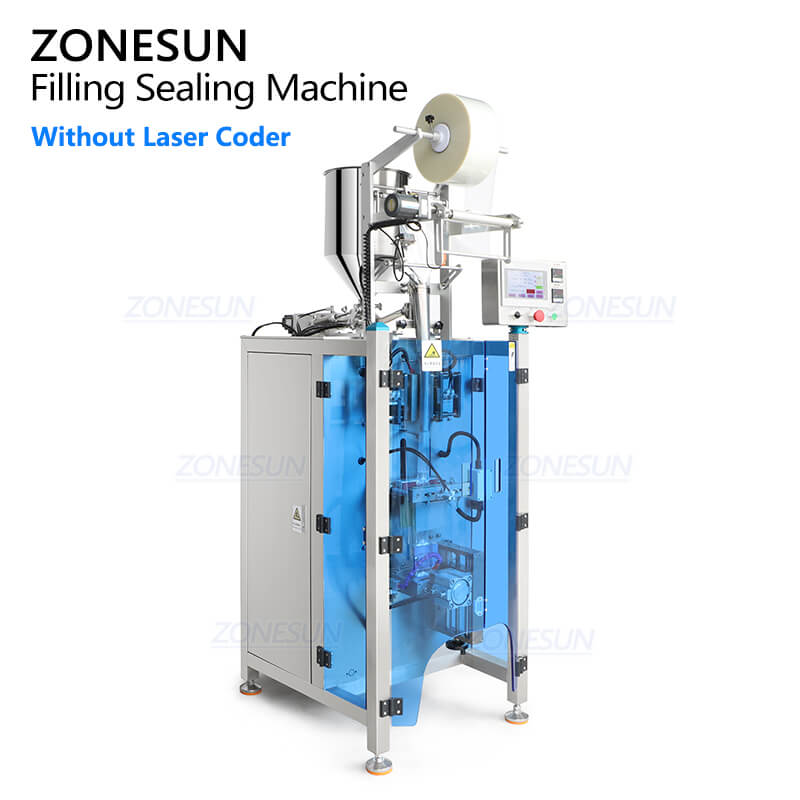

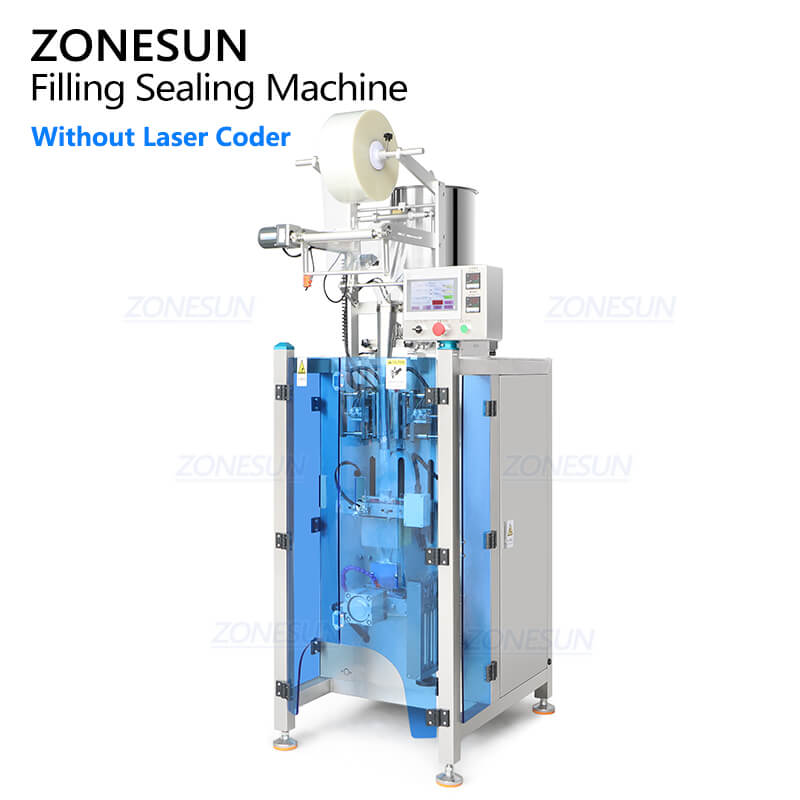

Product Real Shot
