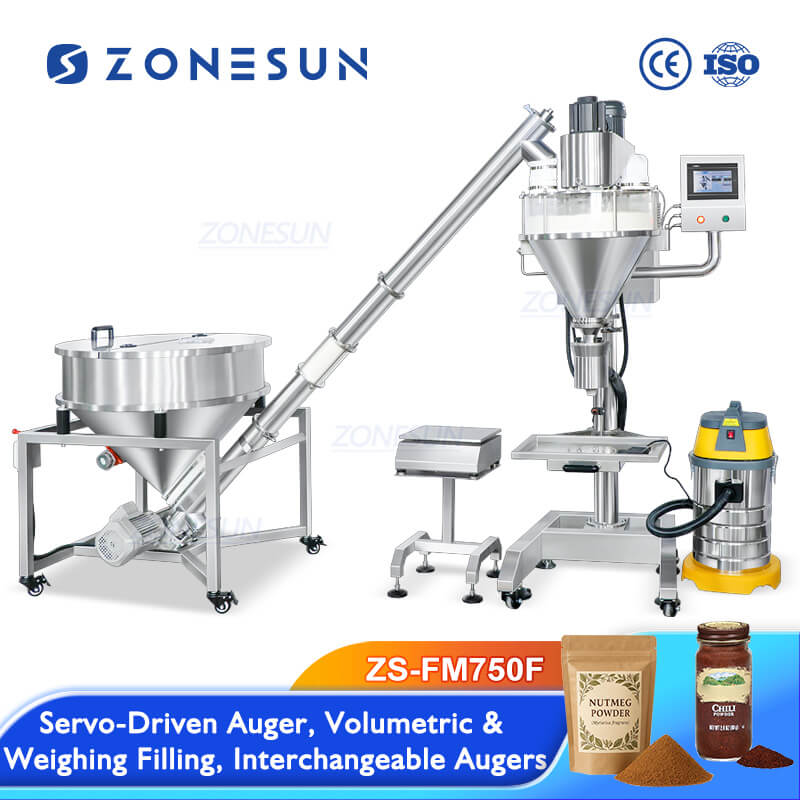

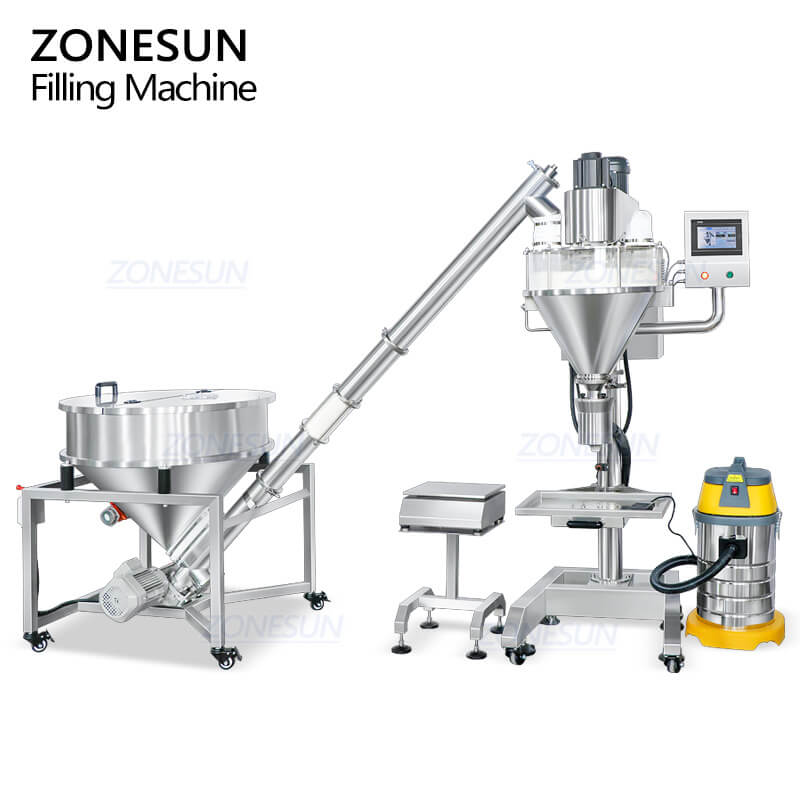

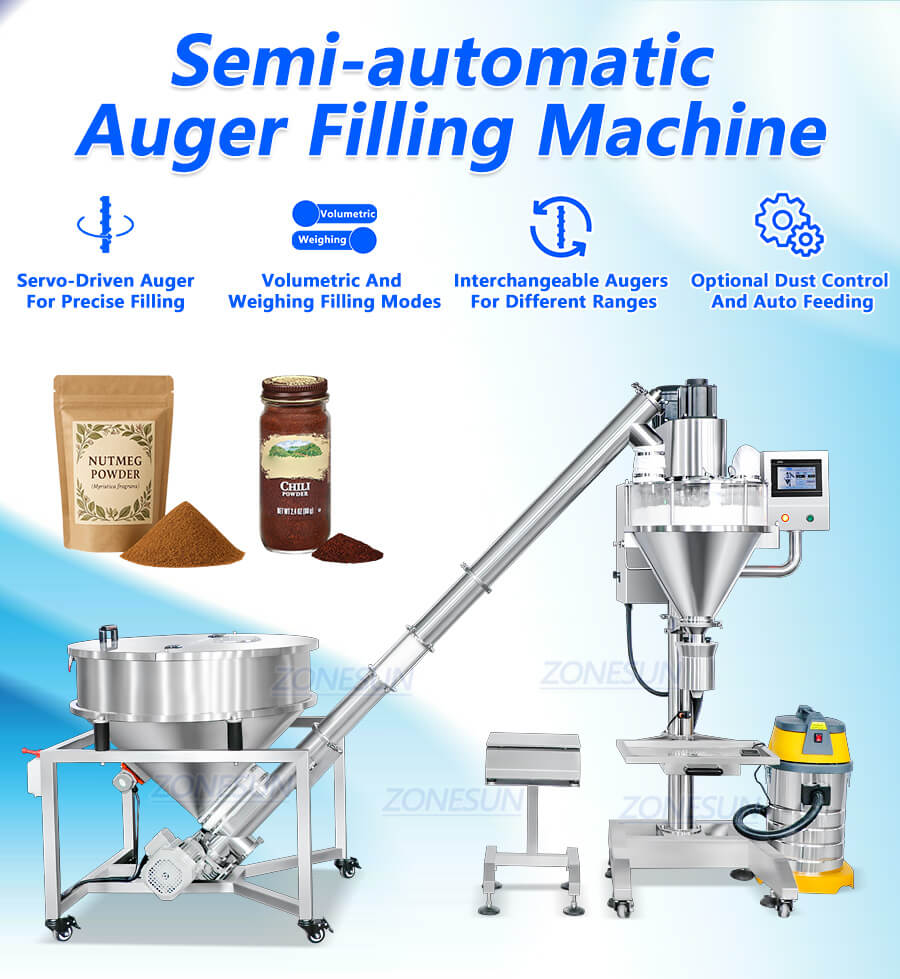

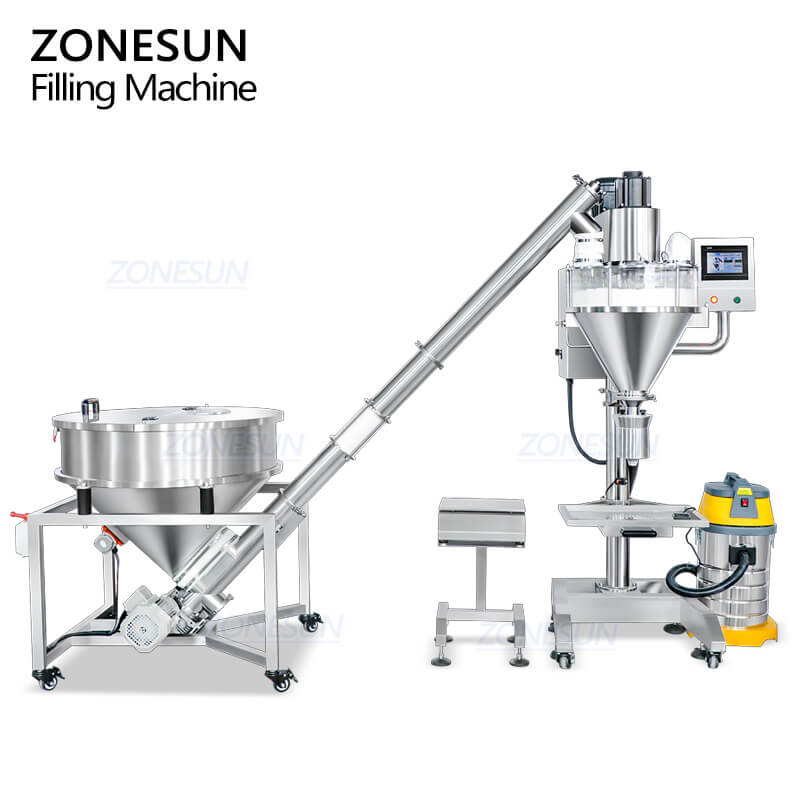

ZONESUN ZS-FM750F Servo Volumetric Auger Powder Filling Machine
The semi automatic servo volumetric auger powder filling machine is designed for accurate dosing of dry powders.It uses a servo-driven auger system for volumetric filling, and can also integrate a weighing feedback system to achieve precise weight-based filling regardless of material density changes.
Price range: $6,019.00 through $8,369.00
Share to
Product Description:
The semi automatic servo volumetric auger powder filling machine is designed for accurate dosing of dry powders.It uses a servo-driven auger system for volumetric filling, and can also integrate a weighing feedback system to achieve precise weight-based filling regardless of material density changes.
Product Parameters:
| Machine model | ZS-FM750F |
| Machine Supply | 380V 50Hz/60Hz |
| Powder | 2.2 KW |
| Production Capacity | Based on filling volume |
| Filling Volume | 5-50g 50-300g 300-1000g 1000-5000g (Change auger) |
| Hopper Size of Filling Machine | 50L |
| Hopper Size of Feeding Machine | 150 L |
| Feeder Pipe Diameter | 102 mm |
| Feeder Ground Height | Customizable |
| Number of Filling Heads | 1 head (multiple heads are optional) |
| Measurement Error | ±1% |

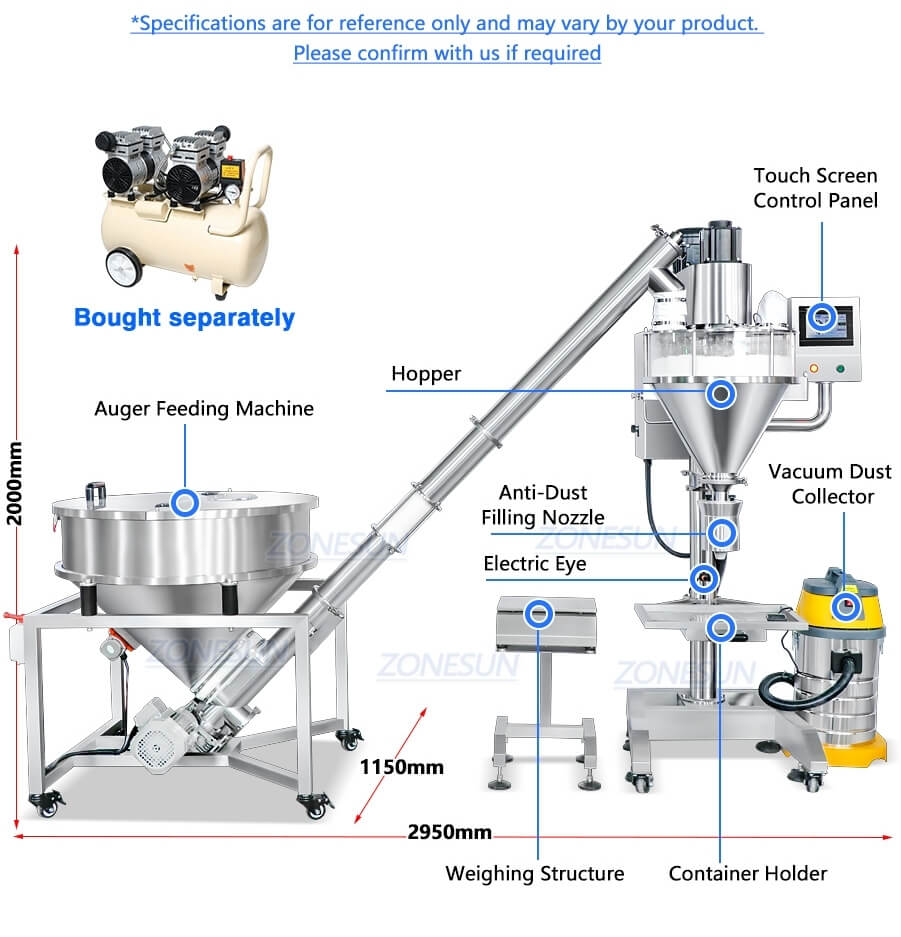

| Machine Size | About 2950*1150*2000 mm |
Product Details:

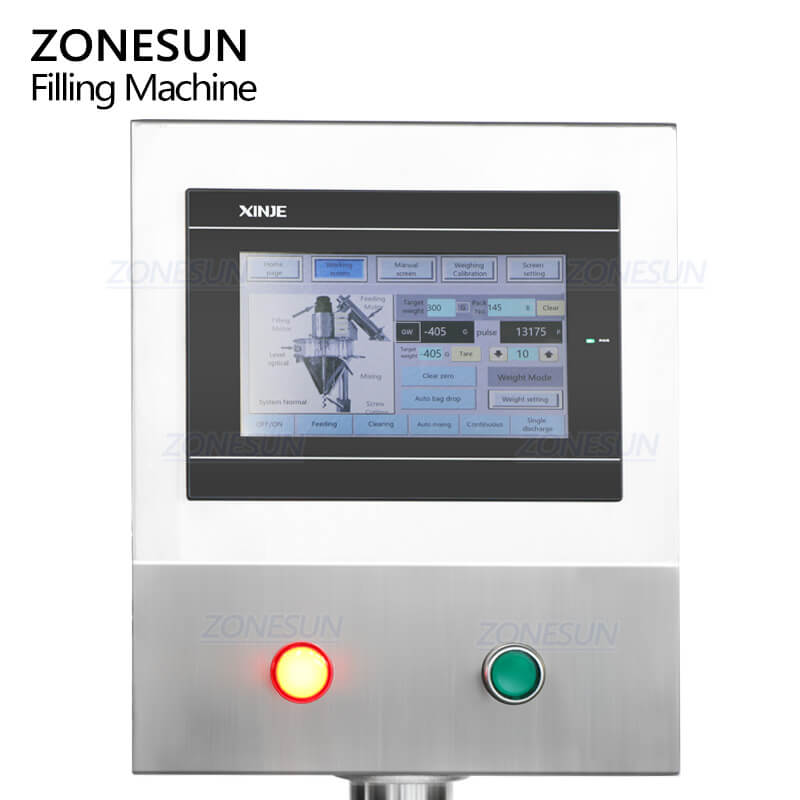

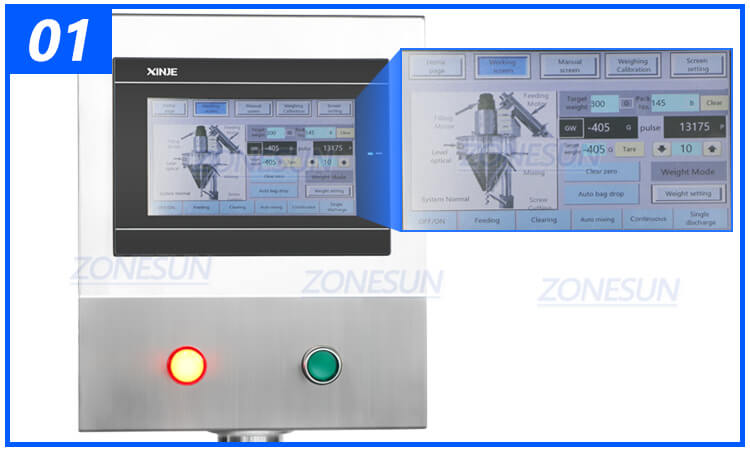

Touchscreen Control Panel
Auger powder filling machine PLC-based interface allows easy adjustment of filling speed, weight, and operation parameters.

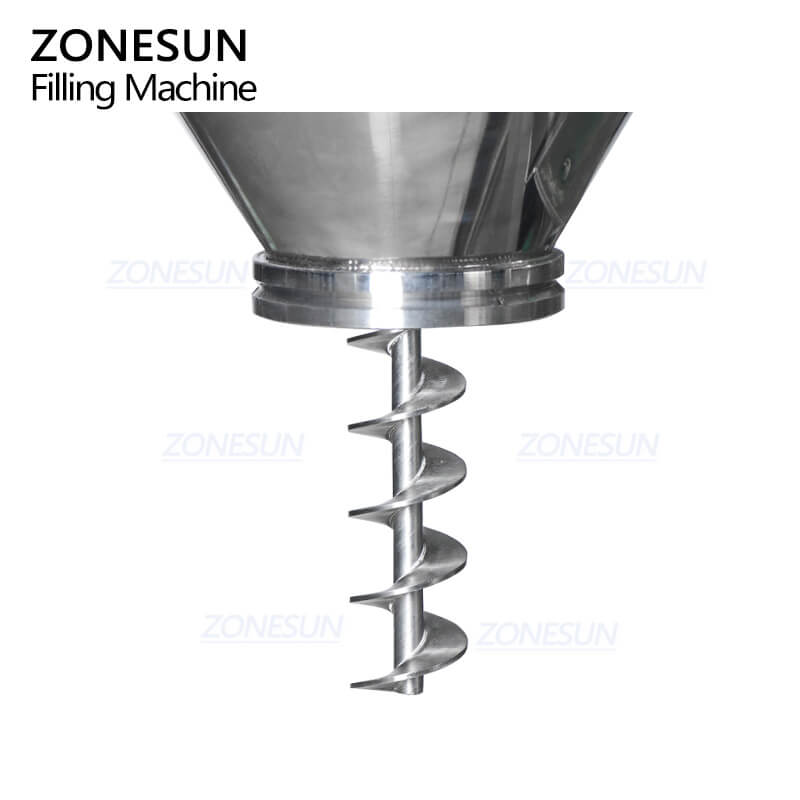

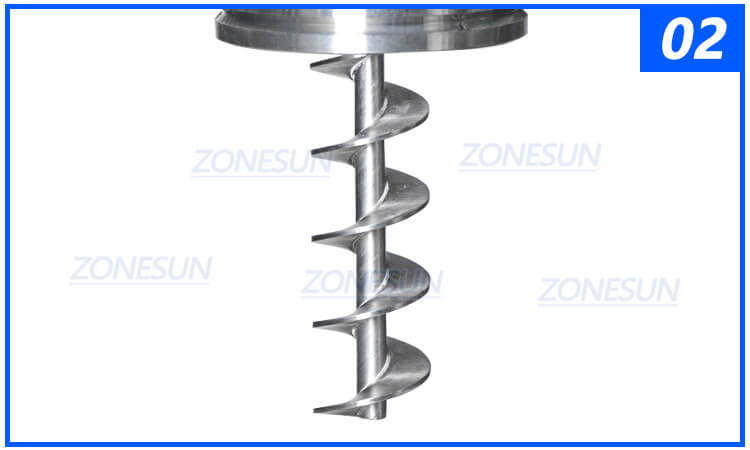

Auger Filling System
Servo-driven auger precisely dispenses powders by volume or weight.

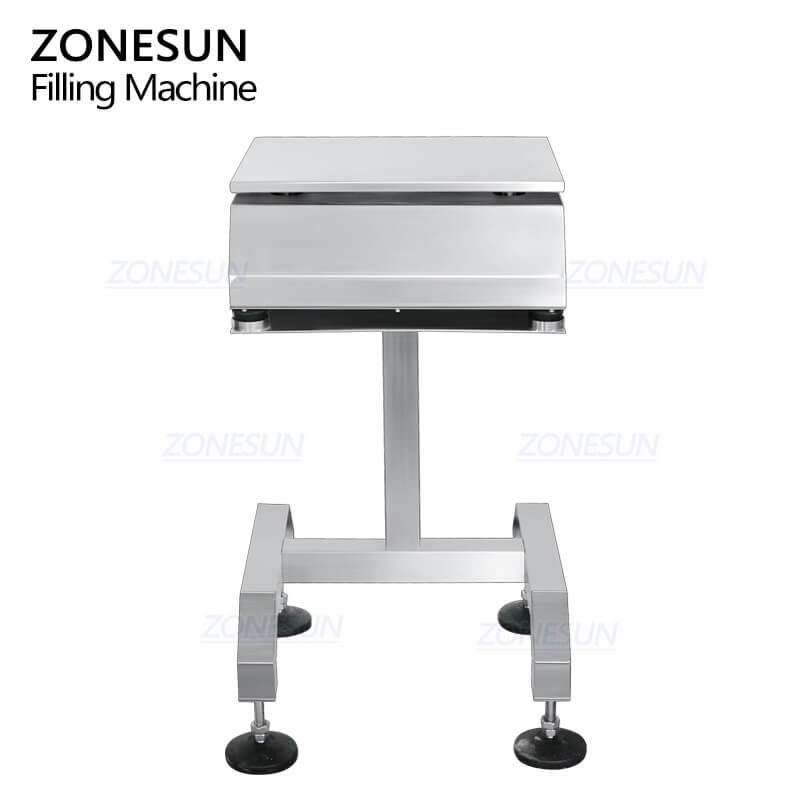

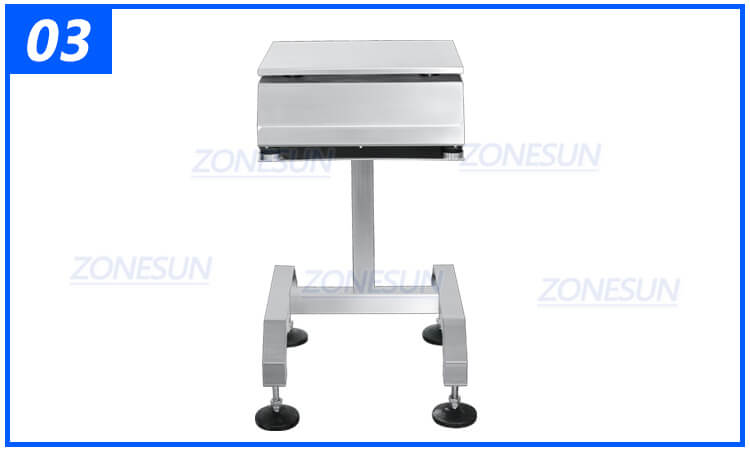

Weighing System
Quantity weighing auger powder filling machine provides feedback control to ensure accurate filling despite material density variations.

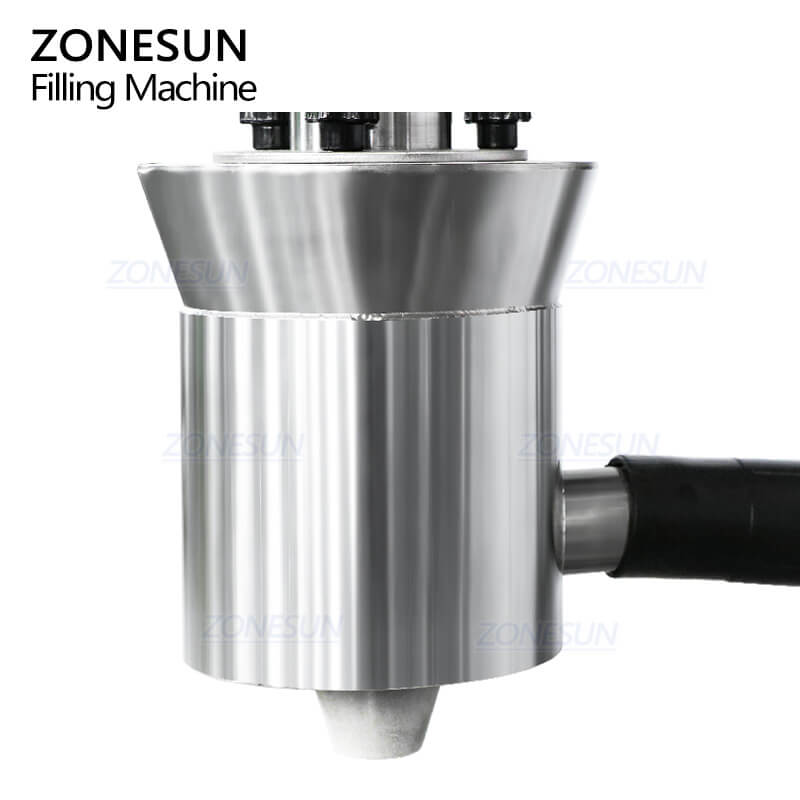

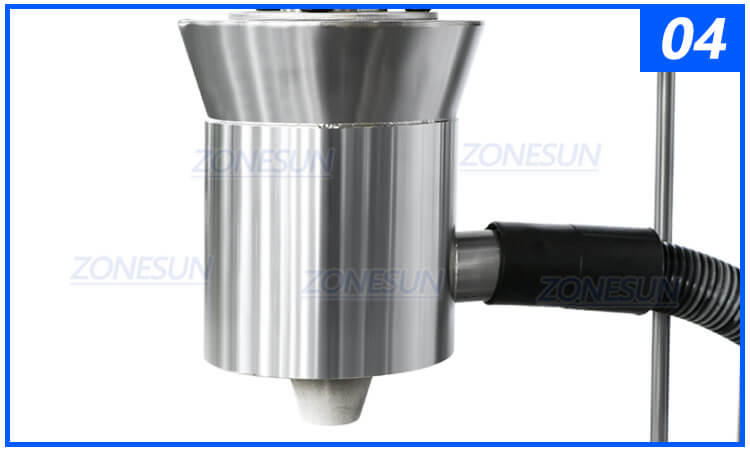

Anti-Dust Filling Nozzle
Reduces powder scattering and keeps the working area clean during filling.

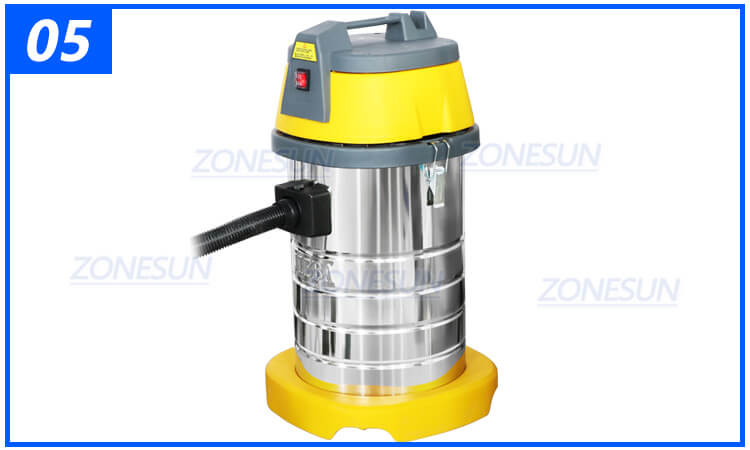

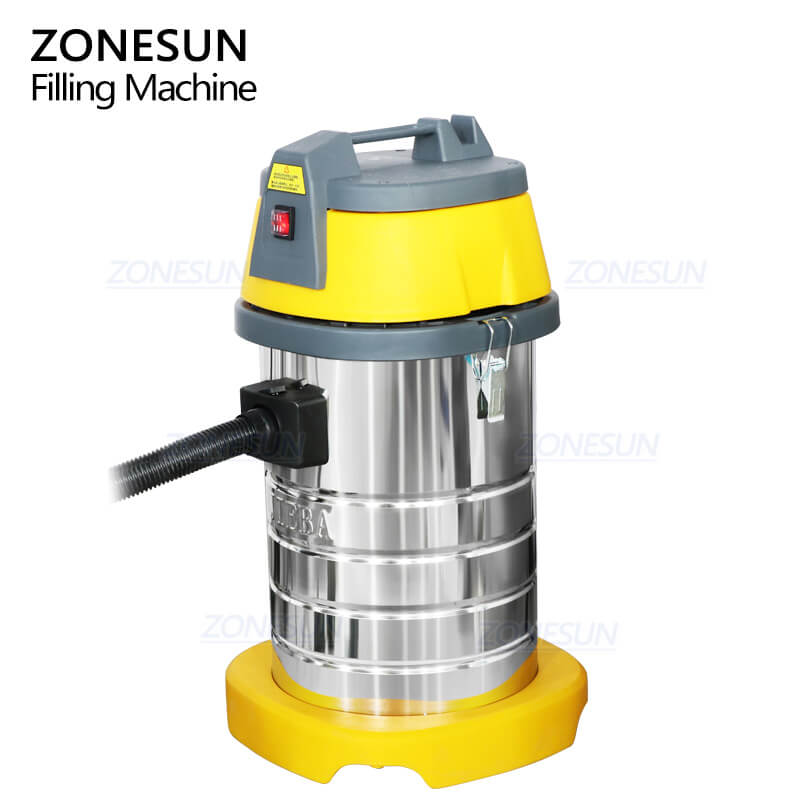

Vacuum Dust Collection System(Optional)
Removes airborne powder and improves working environment and product cleanliness.

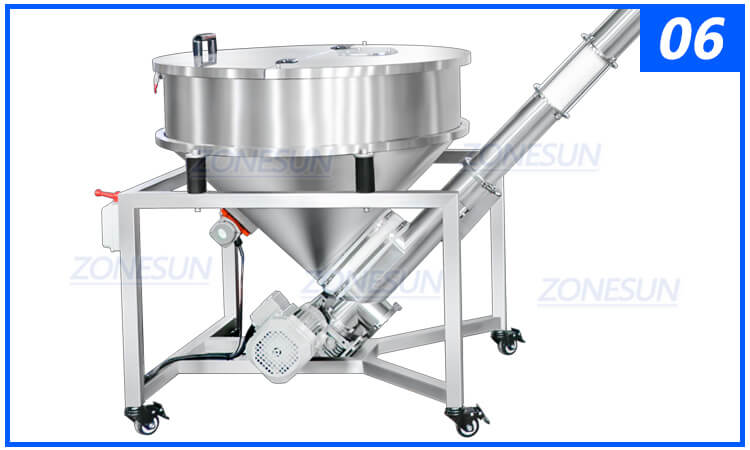

Screw Feeder (Optional)
Automatically supplies powder to the hopper for continuous operation.

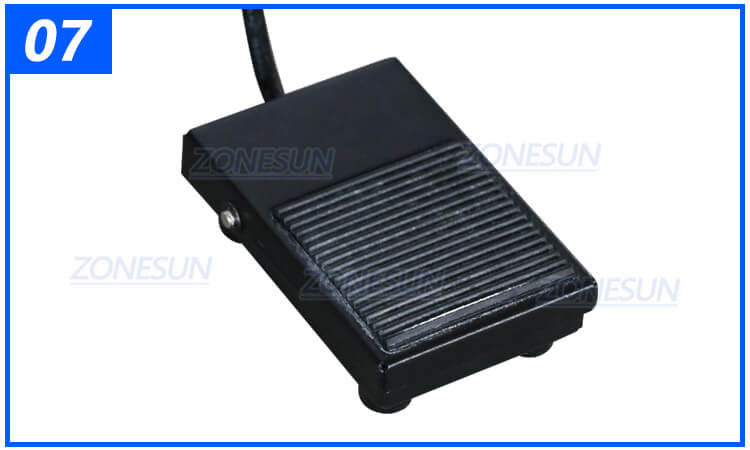

Foot Pedal Switch
Enables hands-free control, improving convenience and operation efficiency.
