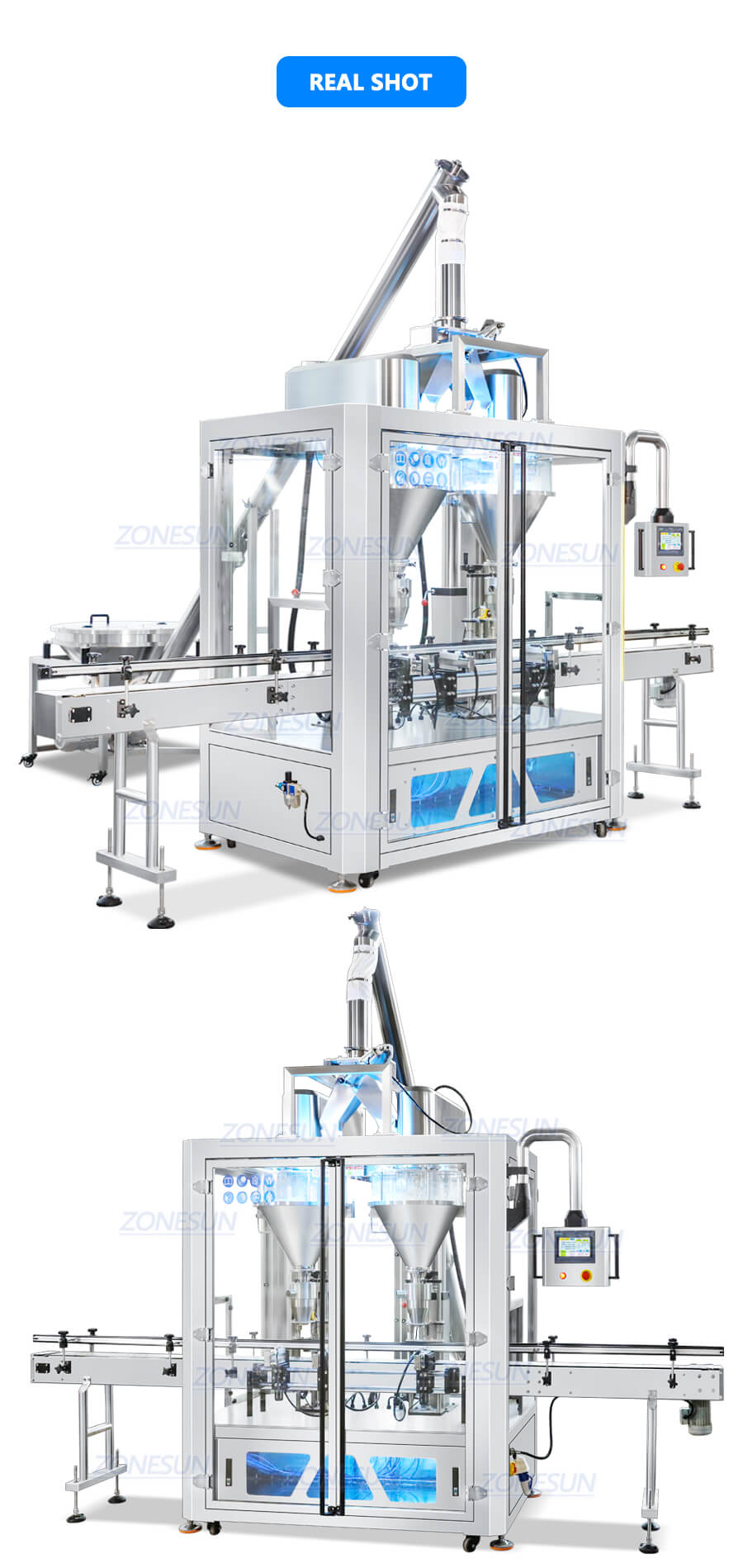

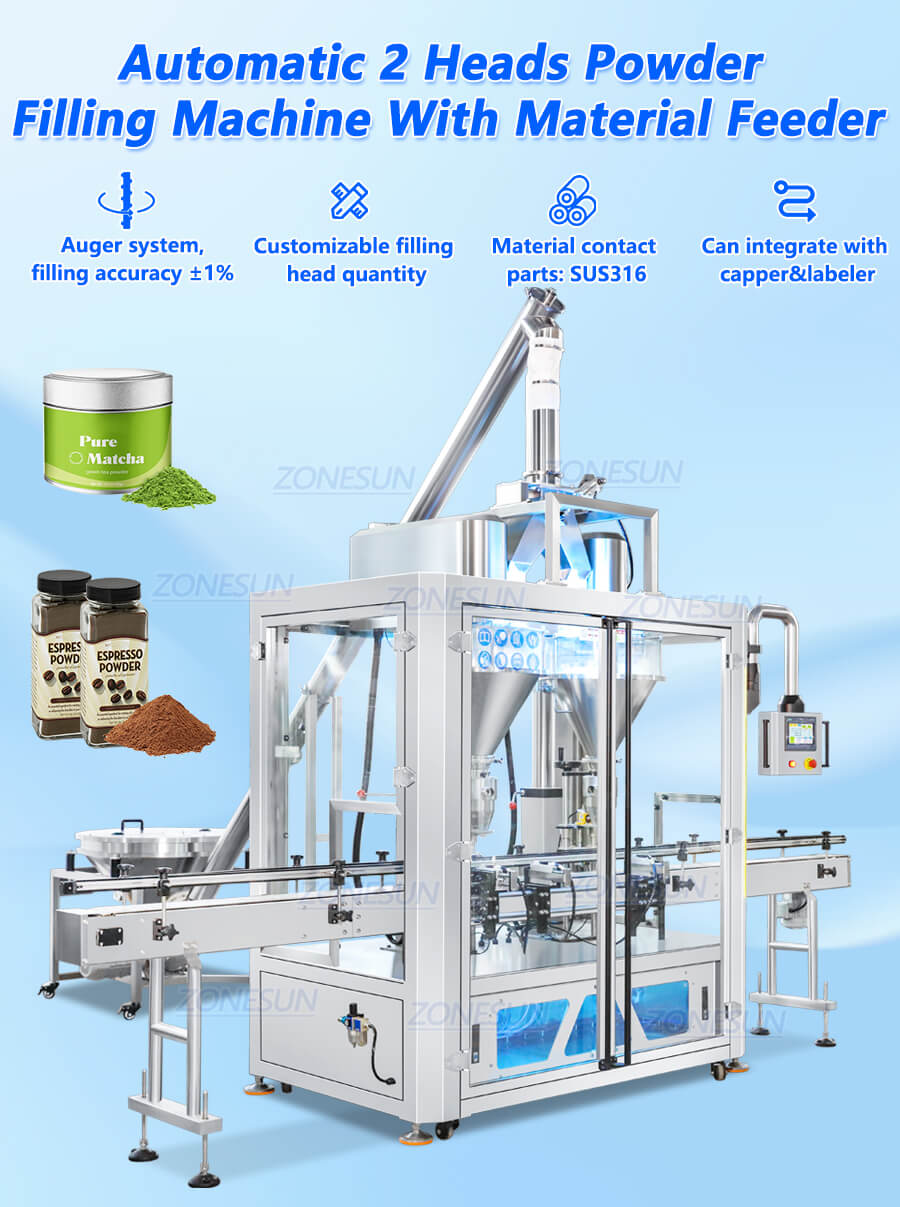

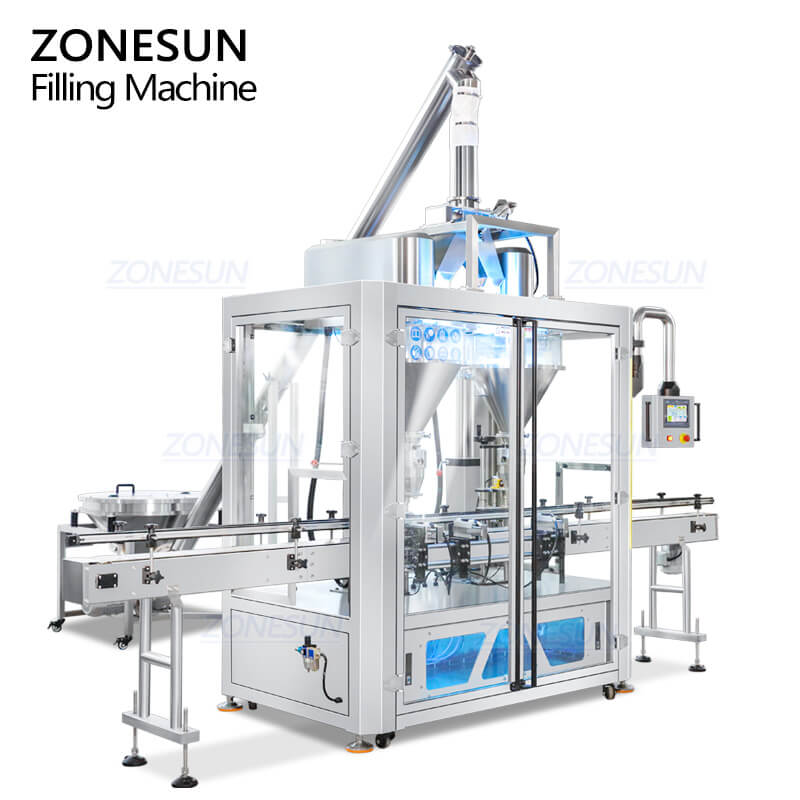

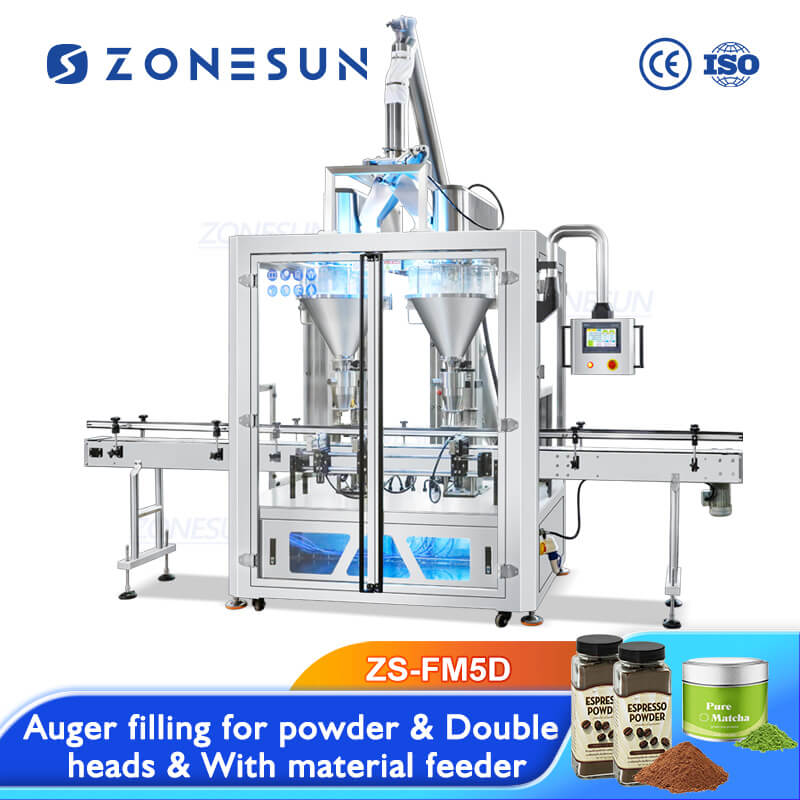

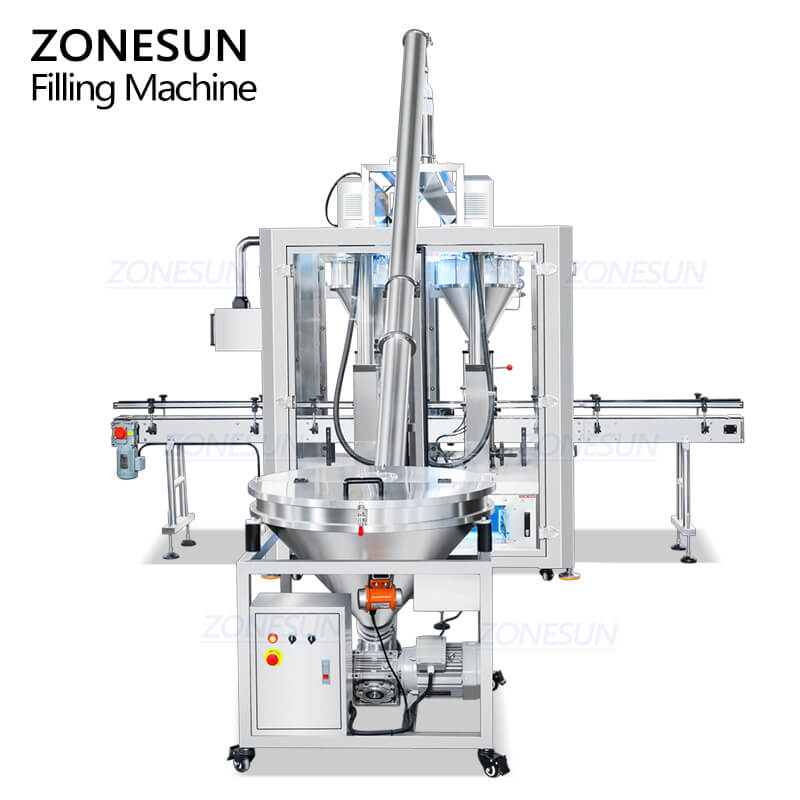

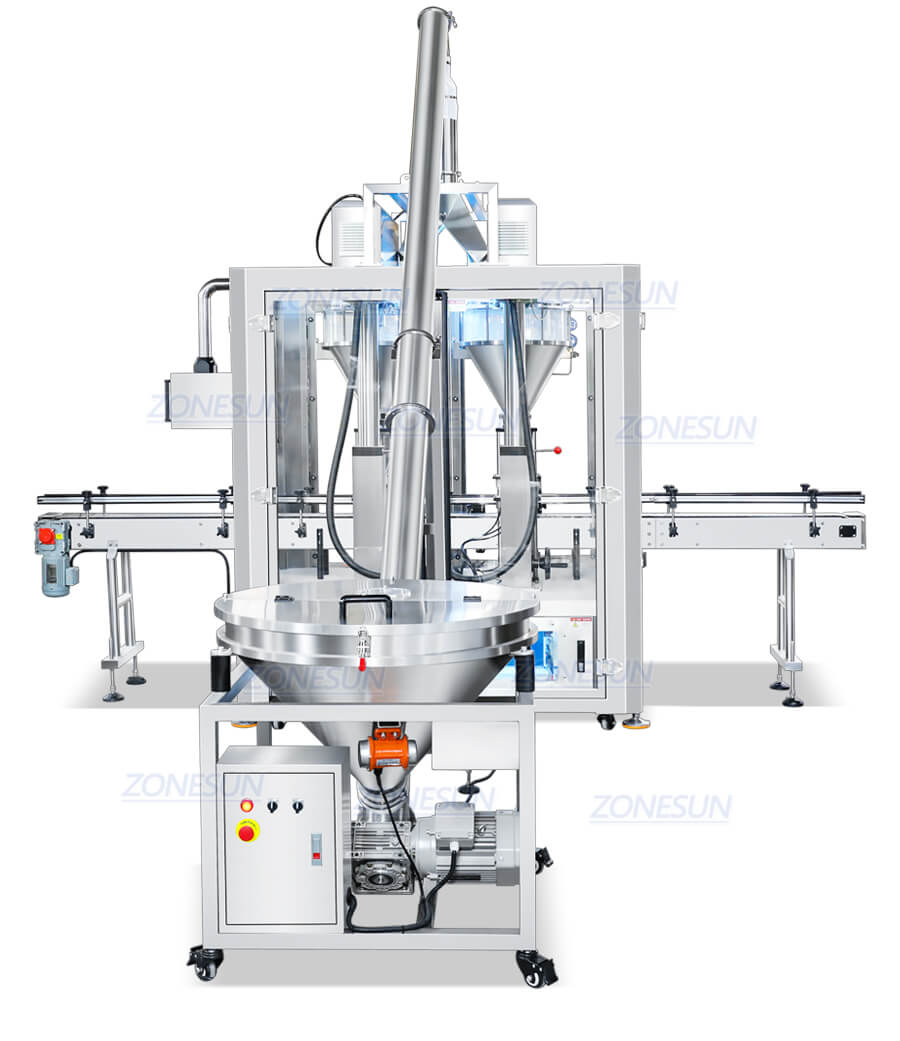

ZONESUN ZS-FM5D Double Head Bottle Auger Powder Filling Machine
A vertical double head auger powder filling machine with material feeder is an automated packaging equipment designed for high-precision, high-speed filling of dry powders into bottles, jars, or containers. It is widely used in industries like food (milk powder, protein powder, spices, flour), nutraceuticals, chemicals, and cosmetics.
Price range: $21,199.00 through $23,699.00
Share to
Product Description:
A vertical double head auger powder filling machine with material feeder is an automated packaging equipment designed for high-precision, high-speed filling of dry powders into bottles, jars, or containers. It is widely used in industries like food (milk powder, protein powder, spices, flour), nutraceuticals, chemicals, and cosmetics.
Product Parameters:
| Machine model | ZS-FM5D |
| Voltage | 110V/220V/380V 50Hz/60Hz |
| Power | About 10KW |
| Quantity of filling heads | 2(Customizable) |
| Production capacity | 20-40bottles/min(depending on filling materials) |
| Filling volume | 5-50g/50-300g/300-1000g/1000-5000g(Change auger) |
| Filling accuracy | ±1% |
| Hopper size of feeding machine | 150L |
| Feeder pipe diameter | 133mm |
| Feeder ground height | 2800mm |

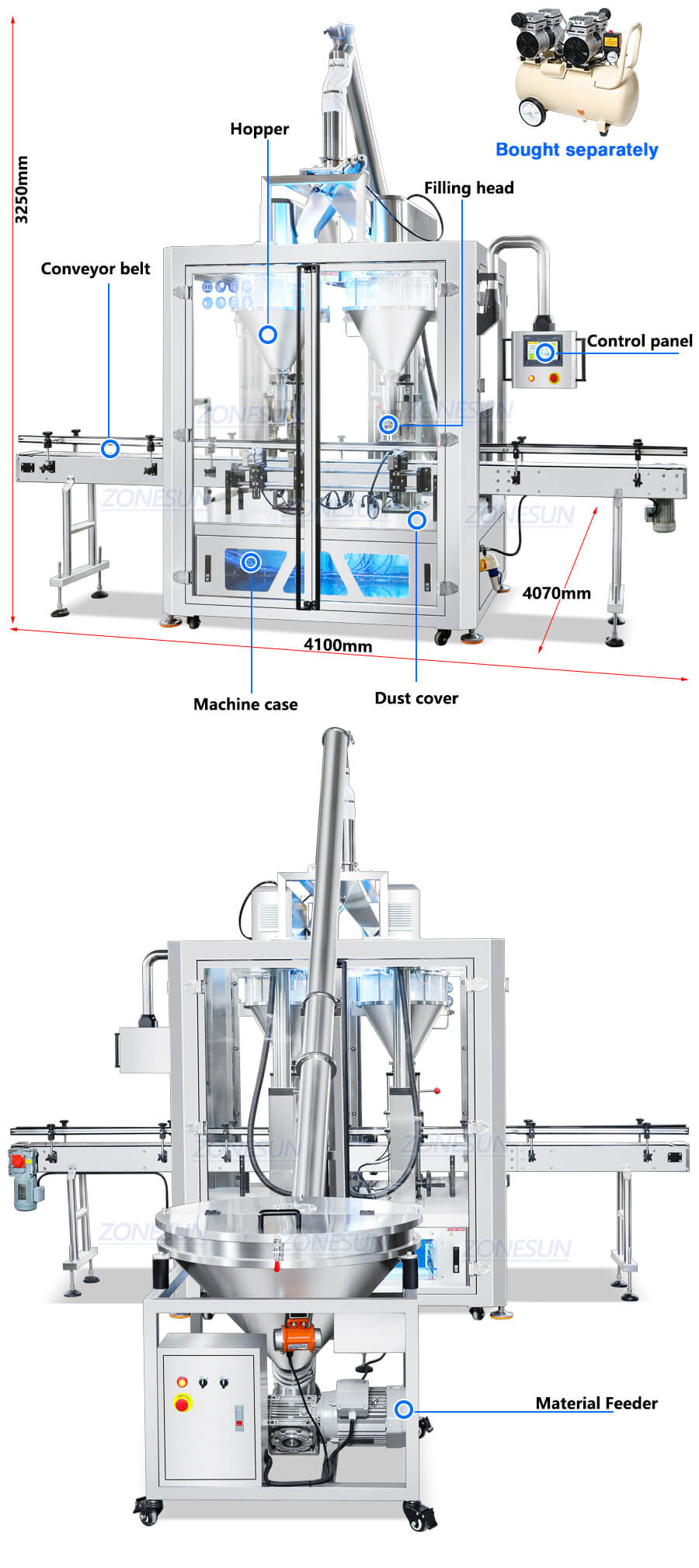

| Machine dimension | About 4100*4070*3250mm(L*W*H) |
| Package size | About 2190*1320*2400mm(filling machine)
About 4350*250*410mm(material feeder) |
| Package weight | About 940kg(filling machine)+63kg(material feeder) |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details:

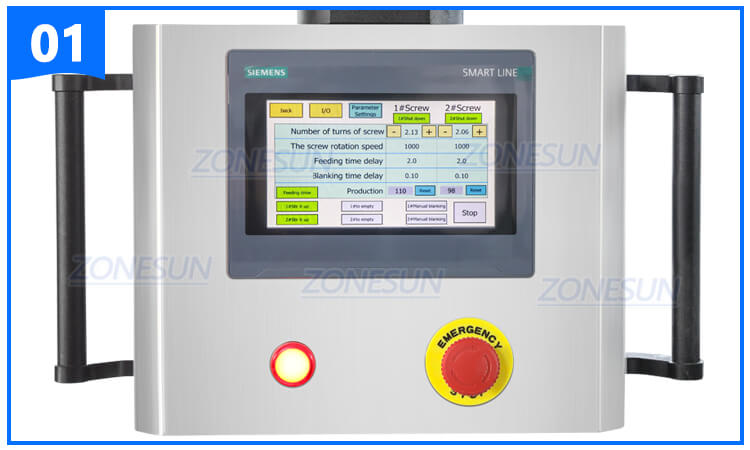

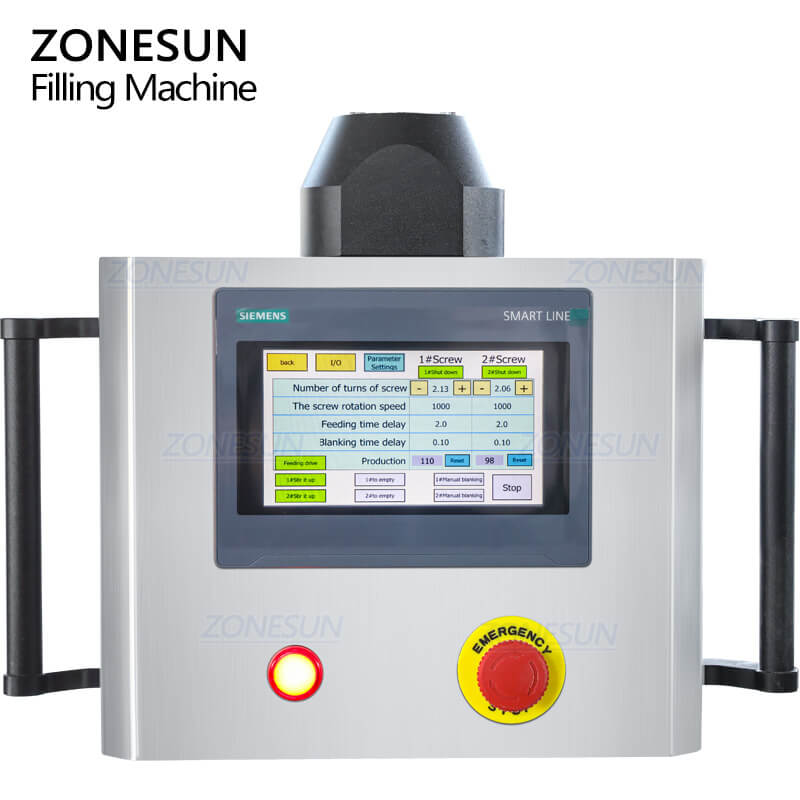

Control Panel
A vertical double head auger powder filling machine with touchscreen panel allows for easy control and parameter adjustment. Multiple languages are customizable.

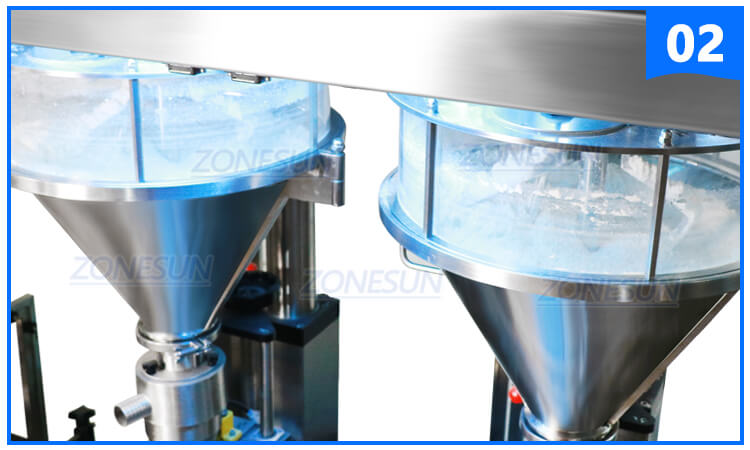

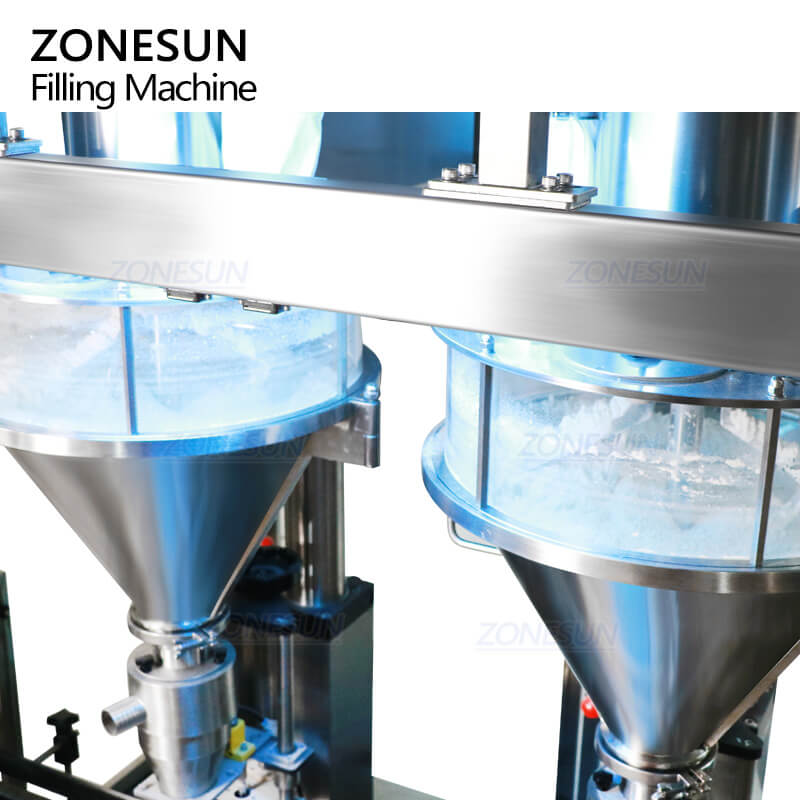

Double Hoppers
Double head auger powder filling machine with mixing function, it allows for even and smooth filling. Hopper size can be customized.

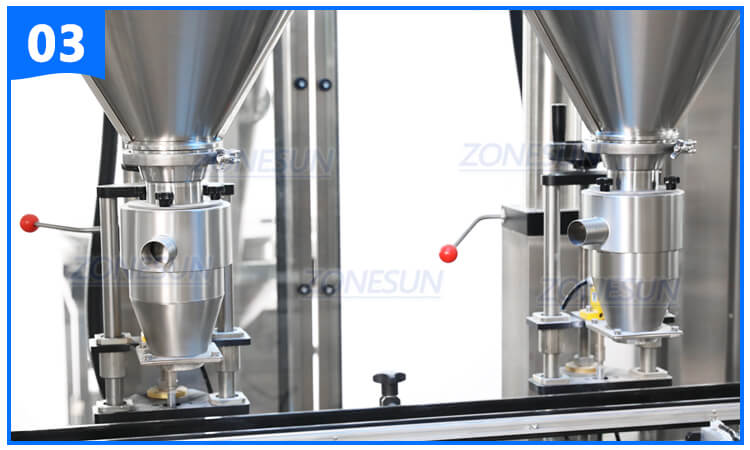

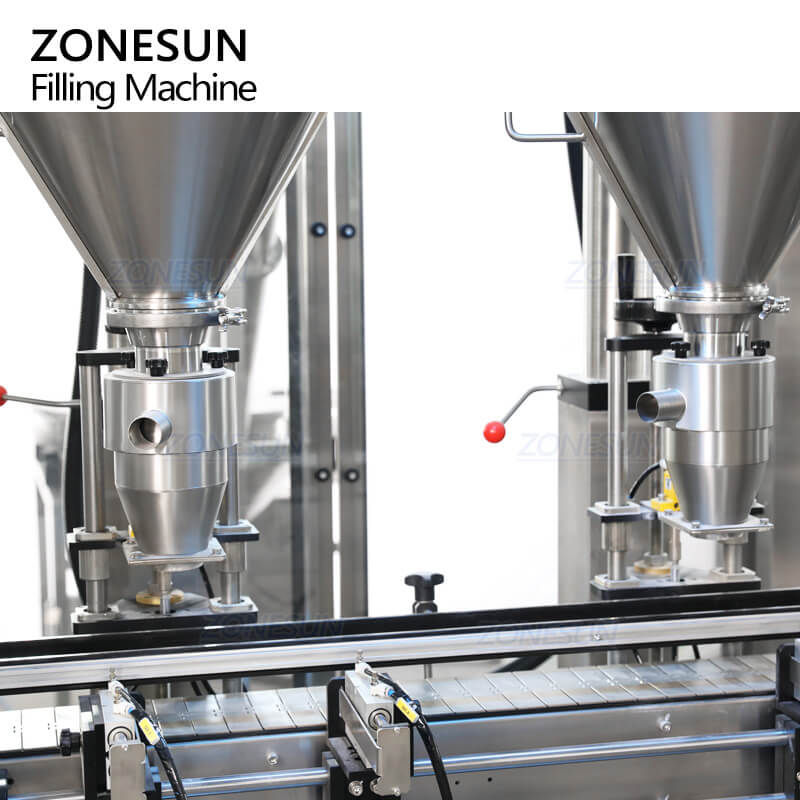

Auger Filling
The Auger powder filling machine ensures accurate and consistent powder dosing for each bottles. Multiple filling heads are customizable.

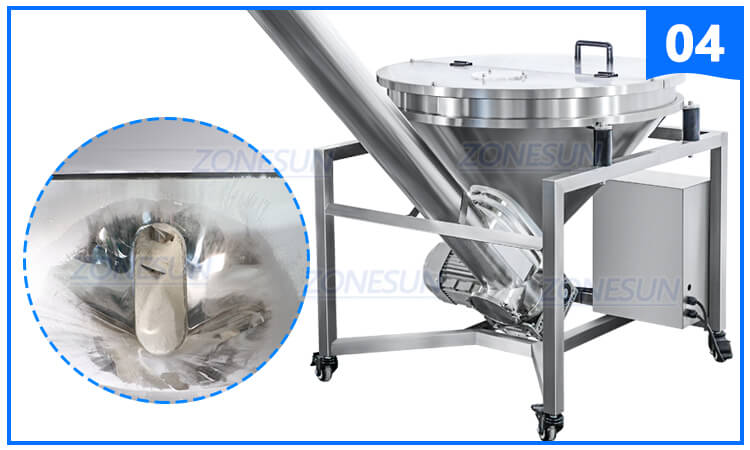

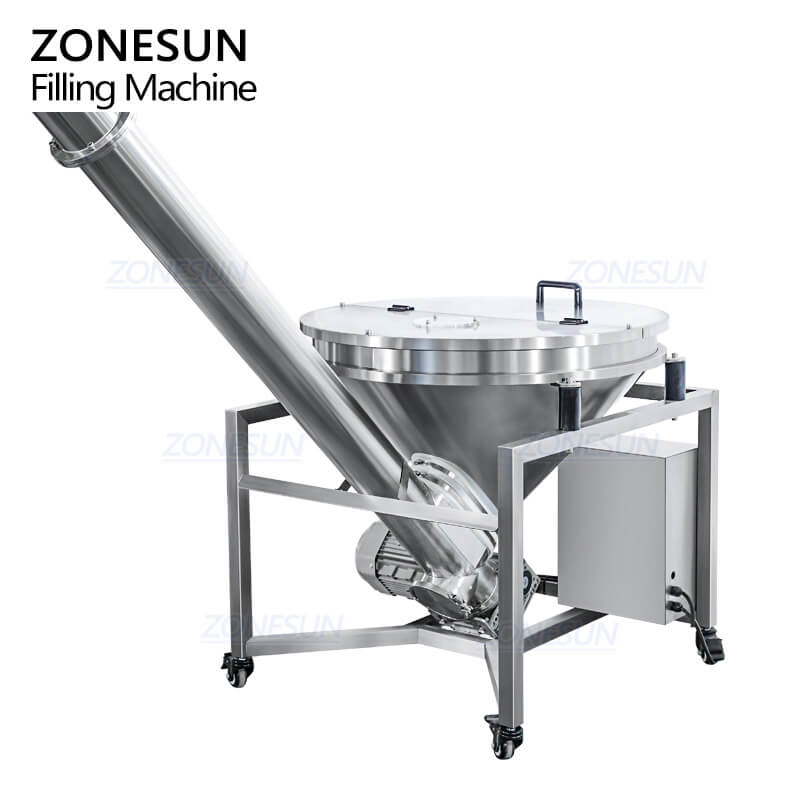

Material Feeder
A vertical double head auger powder filling machine with Material Feeder, it can feed materials into hoppers automatically. It is customized according to your materials.

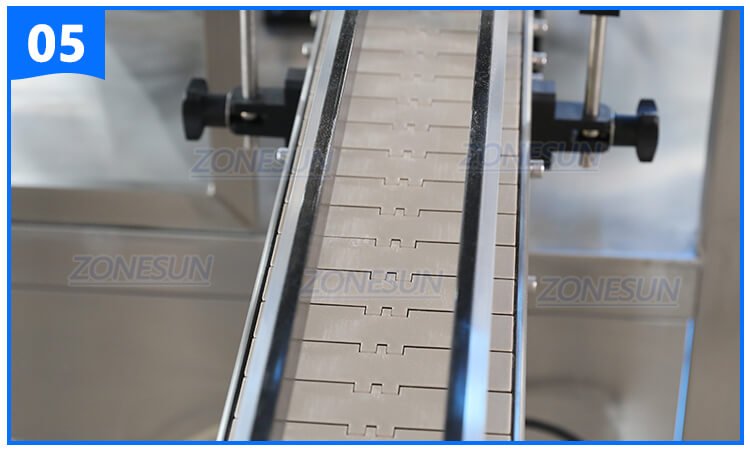

Conveyor
Chain conveyor has larger weight capacity, and its width & length are customizable as needed.
