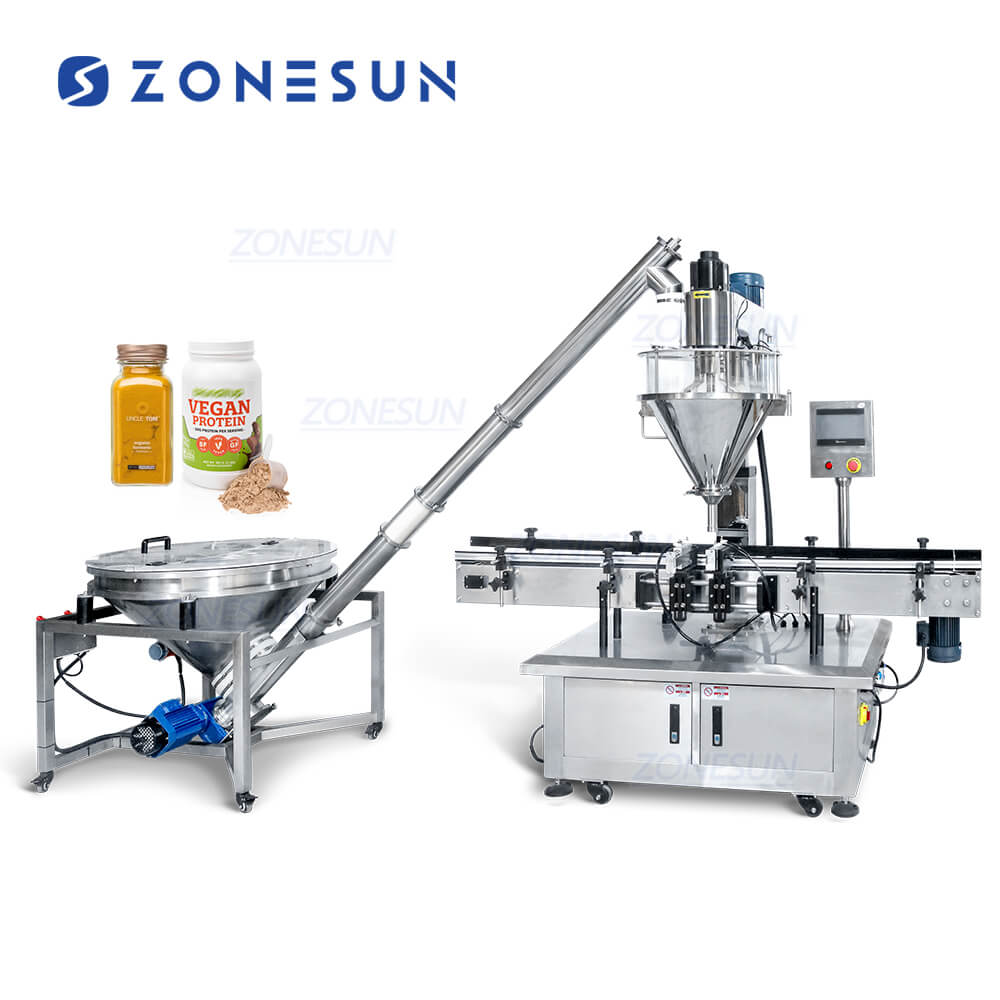

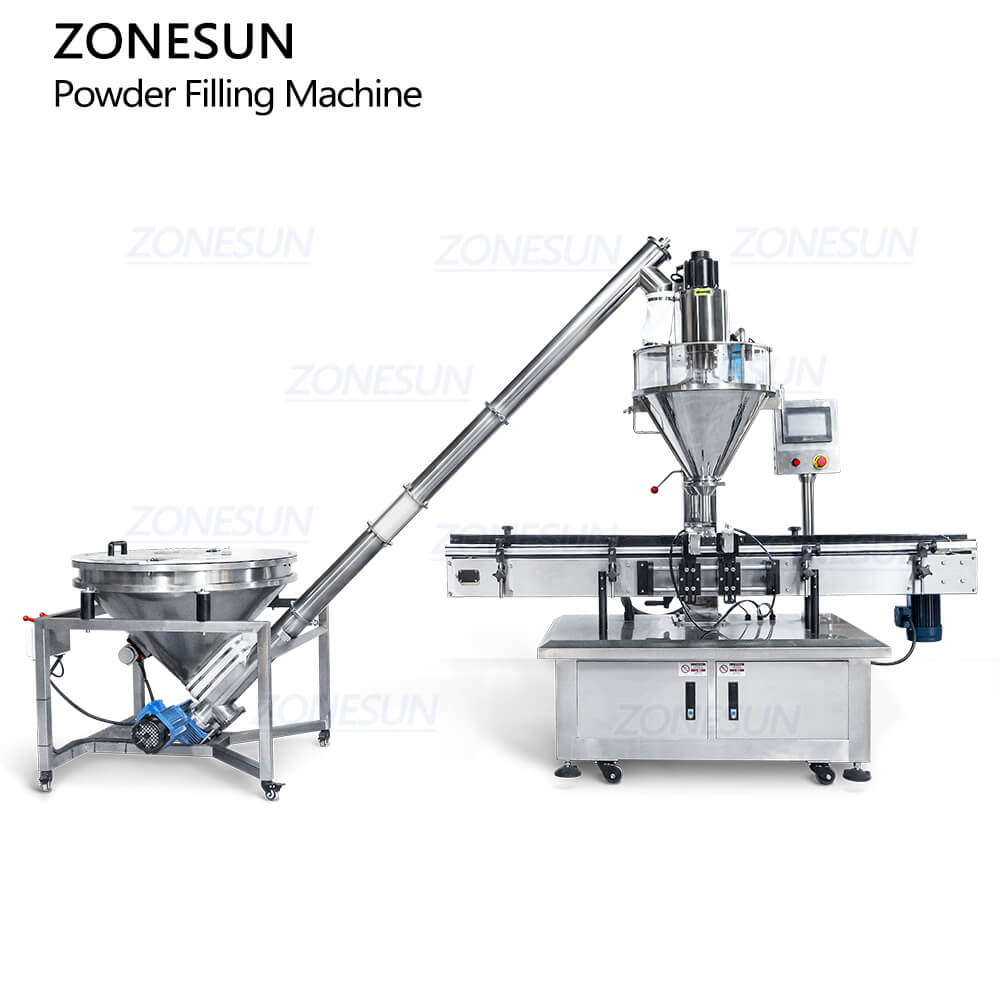

ZONESUN ZS-FM5A Automatic Auger Powder Filling Machine

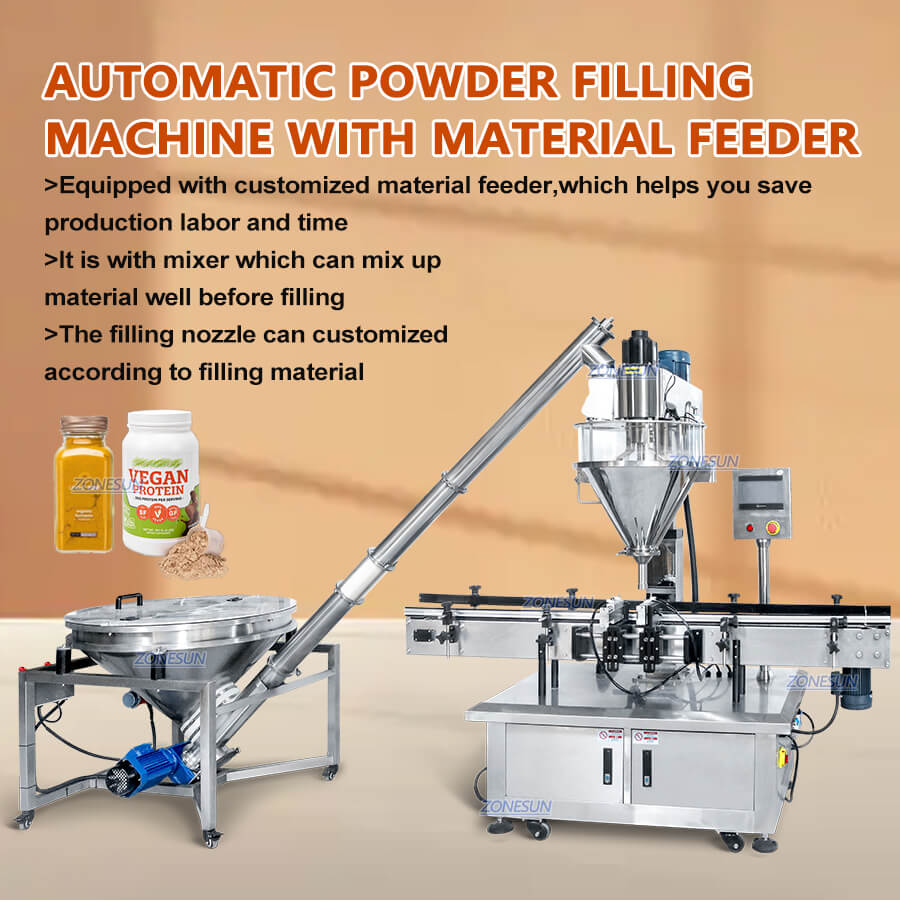

Compared with other filling machine,this one is designed with a powder feeder,which can helps to feed material automatically.Helps you save production labor and time.This machine is suitable for powder cookie,salt etc.
Price range: $8,199.00 through $8,449.00
Share to
Product Description:
Compared with other filling machine,this one is designed with a powder feeder,which can helps to feed material automatically.Helps you save production labor and time.This machine is suitable for powder cookie,salt etc.
Product Parameters:
|
Machine model
|
ZS-FM5A
|
|||
|
Machine supply
|
380V 50Hz/60Hz
|
|||
|
Powder
|
2.2KW(Machine)+1.1KW(Feeder)
|
|||
|
Production capacity
|
15-30 cans/min
|
|||
|
Filling volume
|
5-50g/50-300g/300-1000g/1000-5000g (Change auger)
|
|||
|
Hopper size of feeding machine
|
150L
|
|||
|
Feeder pipe diameter
|
102mm
|
|||
|
Feeder ground height
|
1650mm
|
|||
|
Number of filling heads
|
1 head (multiple heads are optional)
|
|||
|
Measurement error
|
±1%
|
|||
|
Dimensions
|
About 2000*1000*1980mm
|
|||
|
Weight
|
About 200kg
|
|||
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | ||||

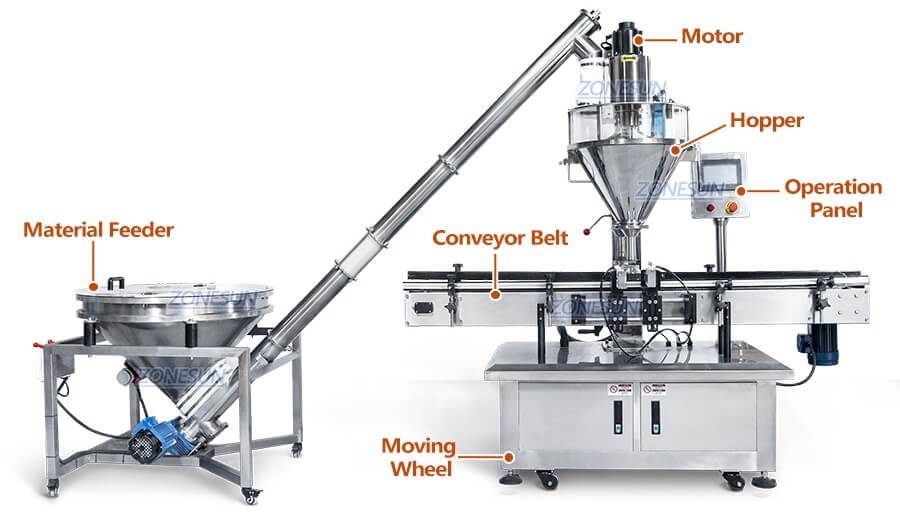

Product Details:

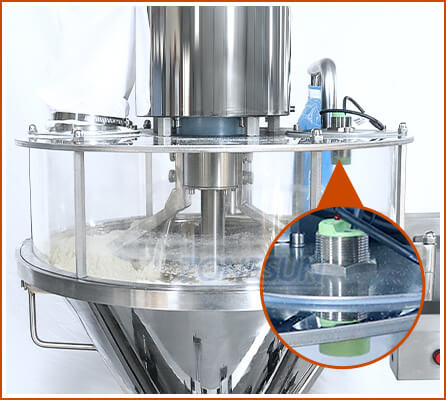

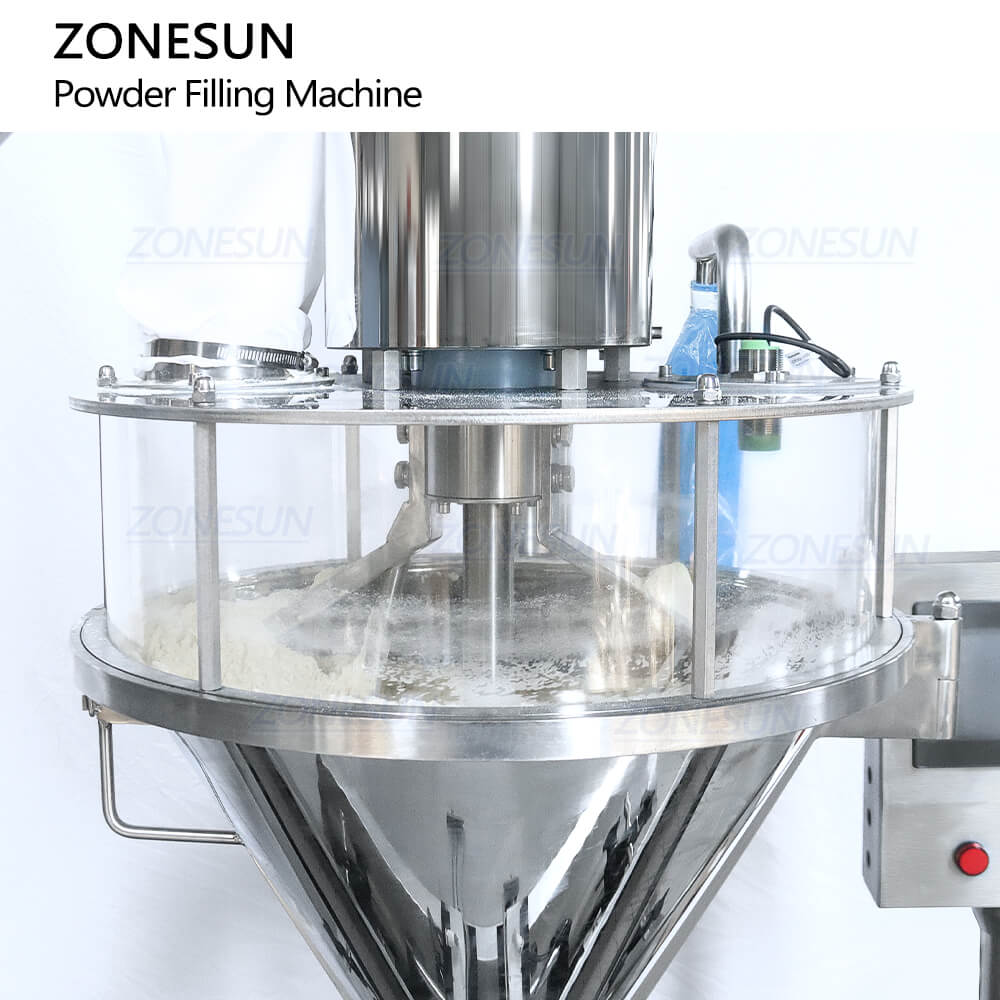

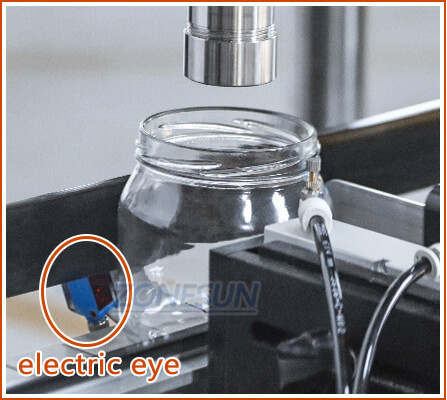

The electric eye is used to detecting the filling material,when material is not enough to fill,it will send the signal to the system and control the material feeder to feed material.

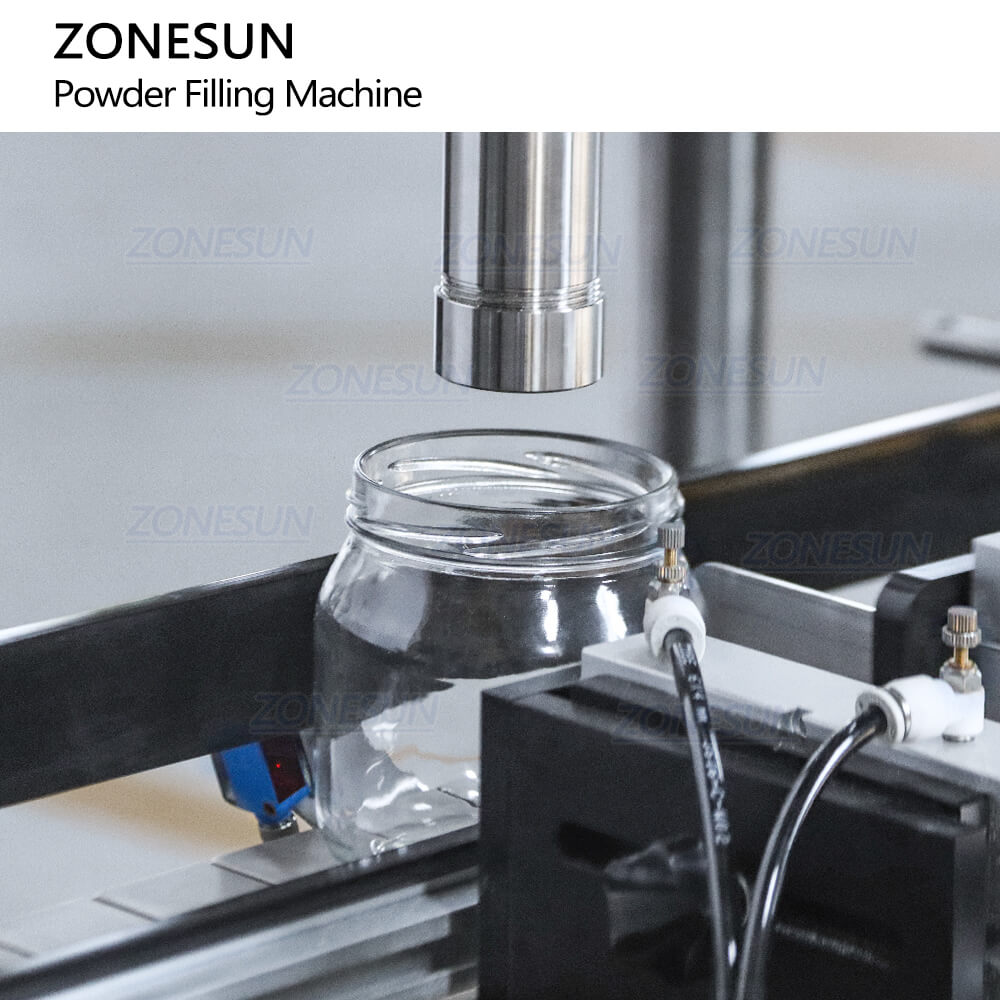

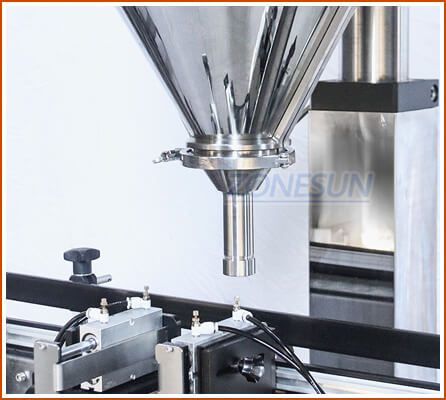

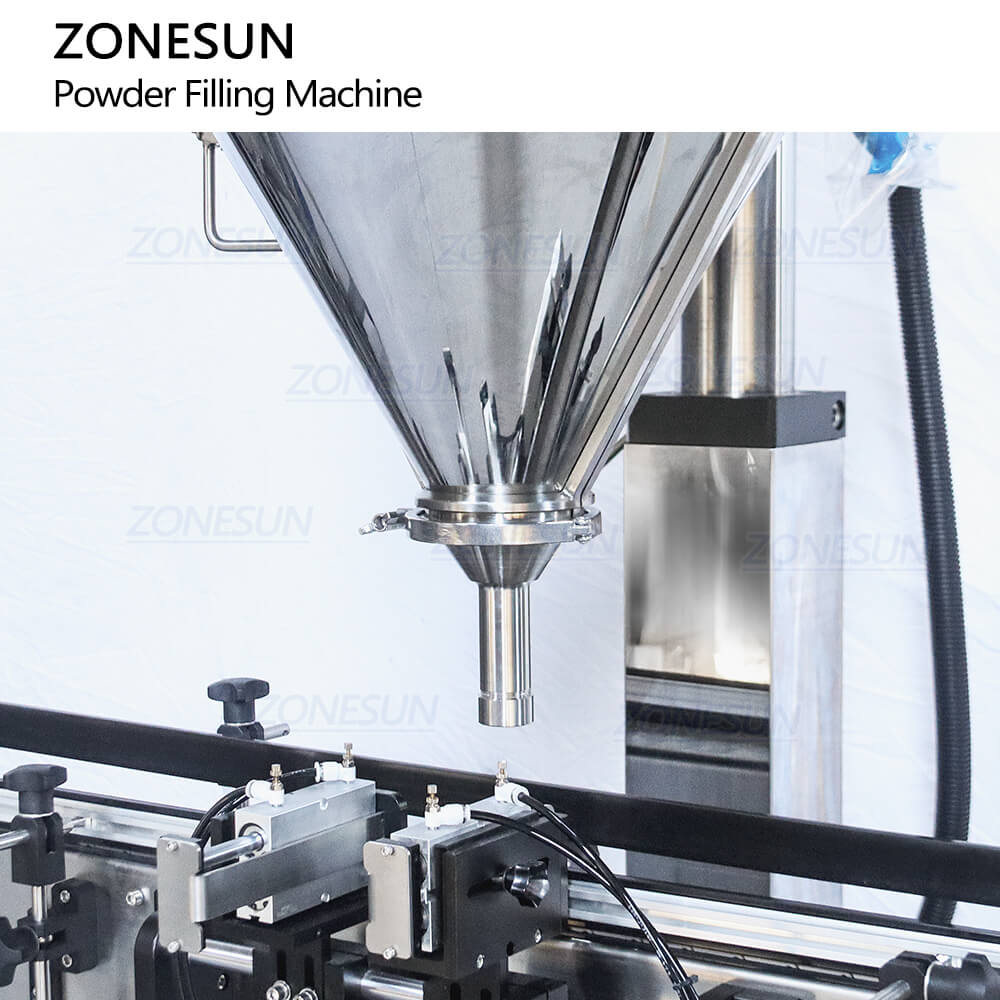

The size of filling nozzle will be customized according to bottle mouth and material.Multiple filling heads can be customized as production need.

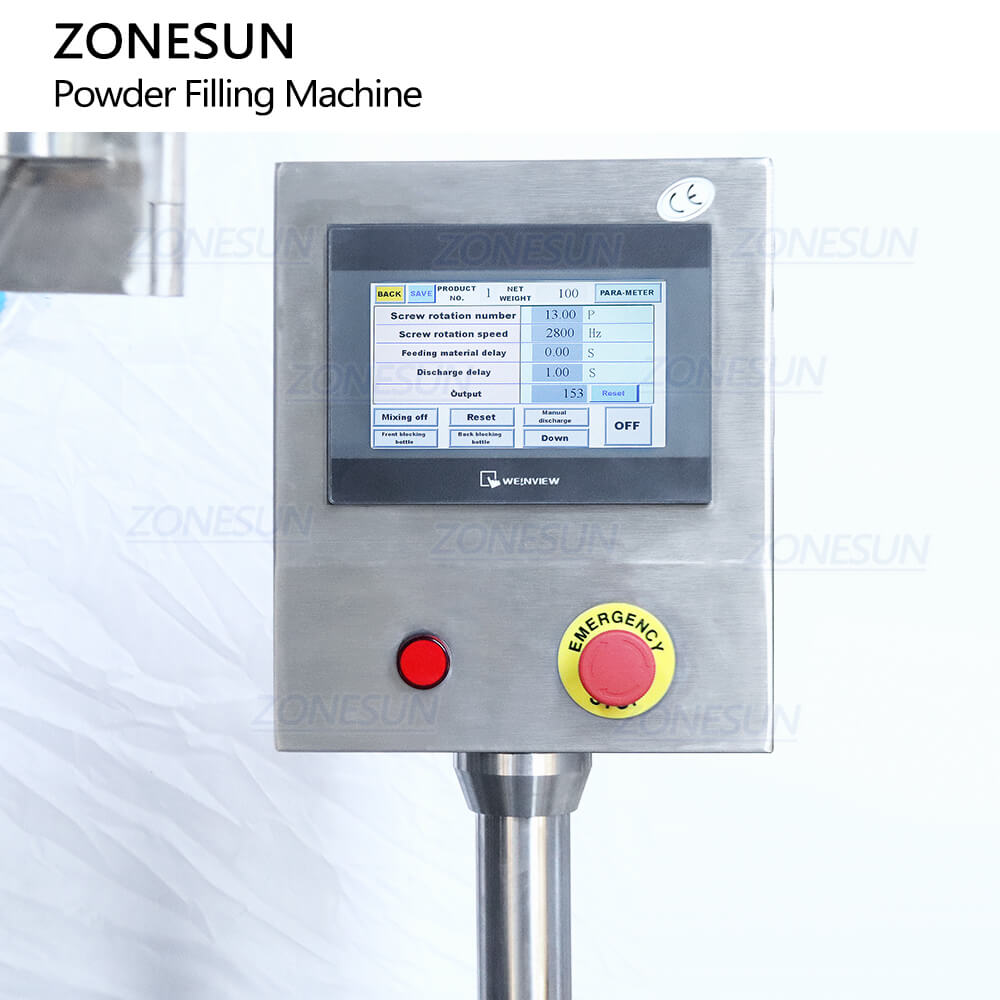

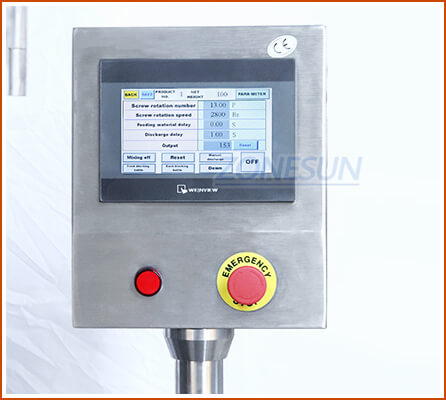

Equipped with touch screen control panel,it is more convenient to adjust working data like filling weight,conveying speed during testing process.We can customize different kinds of language for the operation panel,if you need this please contact us.

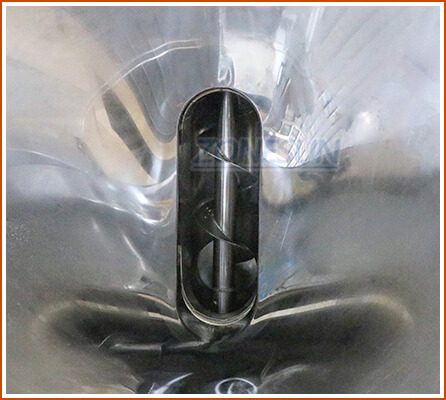

This machine is the auger filling machine which fill material according to controlling predetermined number of revolutions,it can control dust during working,which help you improve your production quality.

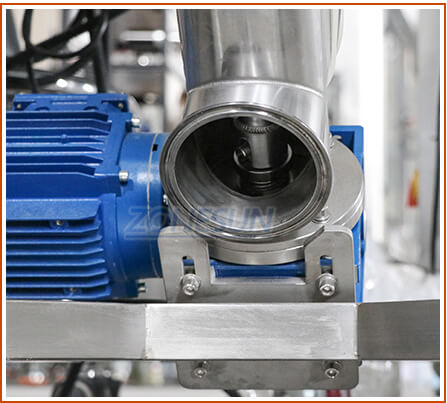

The material feeder can be customized for different kinds of materials,it is designed with discharging outlet which can help you discharge left material faster and easier.
The length conveyor belt can be customized according to operation need it will help to transport bottles greatly The electric eye will detect passing by bottles and control the macchine to fill materials,reduce production error and save production labor.
