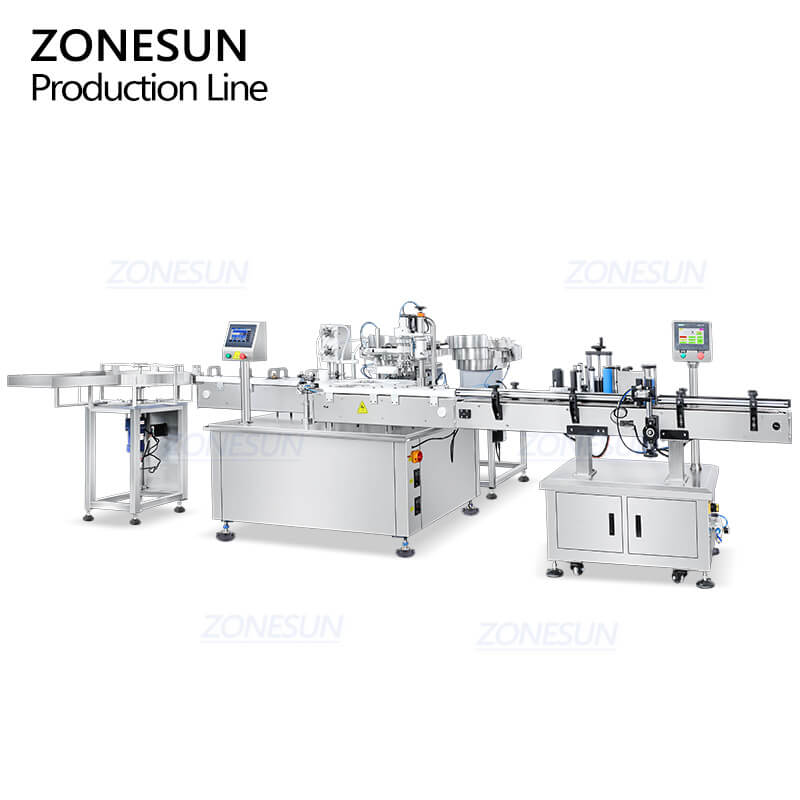

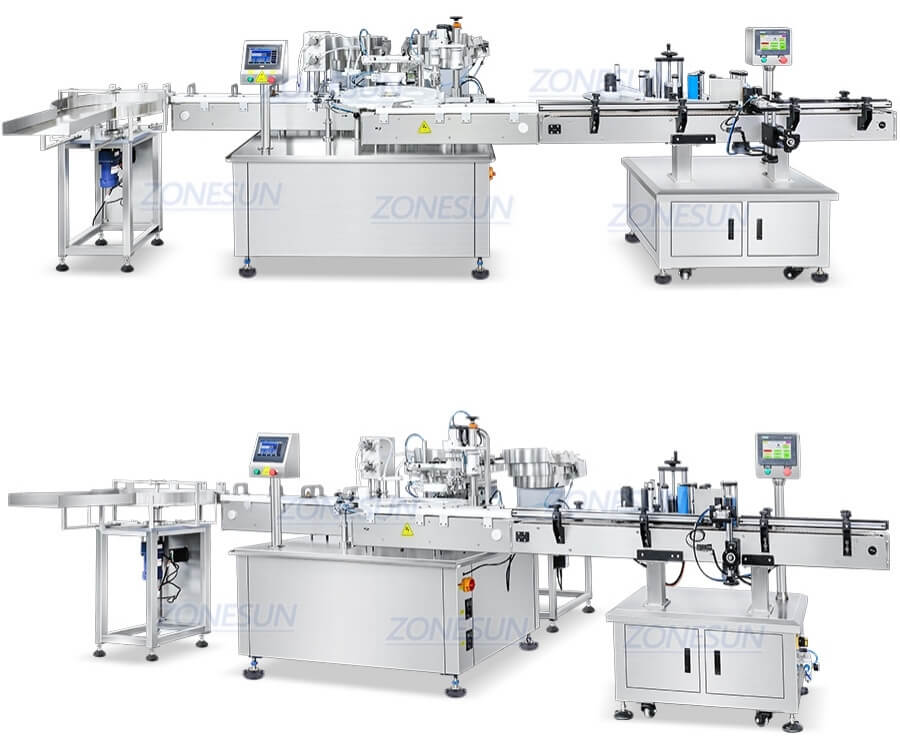

ZONESUN ZS-FAL180YT Cosmetic Dropper Bottle Bottling Line

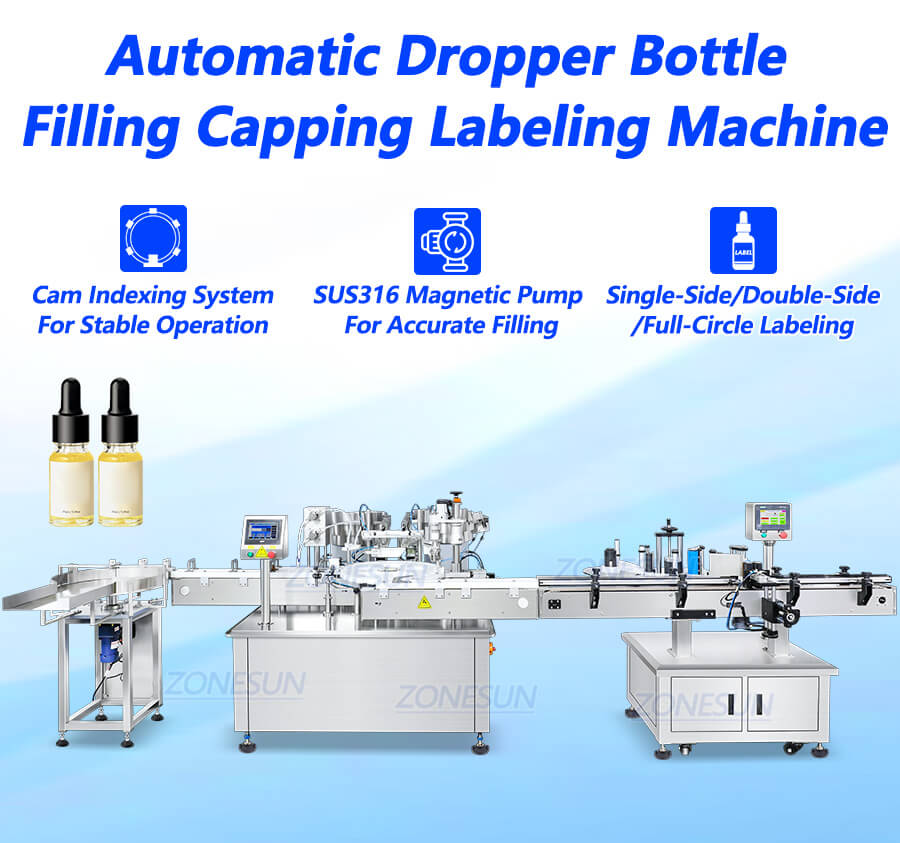

This cosmetic dropper bottle bottling line runs filling, capping and labeling on one line. A SUS316 magnetic pump doses the liquid, and a cam indexing system moves the bottles from station to station, so every bottle stops at a fixed position before the next action. Labels can be applied to one side, both sides or around the whole bottle, which suits round dropper bottles that take a wrap label.
$30,299.00
Share to
Product Description
This cosmetic dropper bottle bottling line runs filling, capping and labeling on one line. A SUS316 magnetic pump doses the liquid, and a cam indexing system moves the bottles from station to station, so every bottle stops at a fixed position before the next action. Labels can be applied to one side, both sides or around the whole bottle, which suits round dropper bottles that take a wrap label.
Product Applications
This Filling line suits small dropper bottles for skin care and aromatherapy products, where the bottle is filled with an oil or a serum and closed with a dropper cap. The applications shown are facial serum and face oil bottles in clear and amber glass, essential oil bottles, a hair oil and a conditioning oil. They are all narrow neck, small volume bottles, which is the format this line is set up for.
Product Production Process

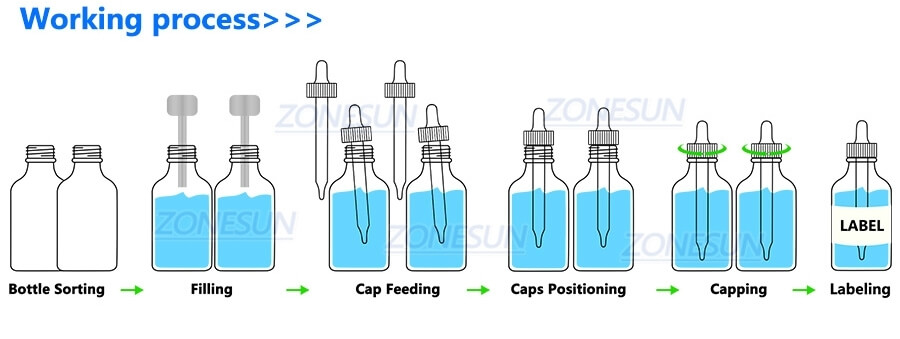

How the production line runs: bottles are sorted and stood upright on the conveyor, then filled with the liquid. The dropper caps are fed in, positioned over the bottle mouths and pressed down, and each bottle then moves to the labeling station, where the label is applied to the body. The full sequence is bottle sorting, filling, cap feeding, caps positioning, capping and labeling.
Product Parameter
>Filling Capping Machine
| Machine model | ZS-AFC27YT |
| Machine voltage | 220V/50HZ/5A (110V is customizable) |
| Recommend filling volume | 1-100ml(customizable) |
| Filling pump type | SUS316 Magnetic Pump |
| Max flow rate | 3L/min(based on water) |
| Working capacity | About 60-70BPM(based on filling volume & filling material) |
| Suitable bottle size | Customizable |
| Bottle cap size | Customizable |
| Air Pressure | 0.6-0.8 MPa |
| Machine size | About 2100*1460*1240 mm |
| Machine weight | About 1500kg |
| Package size | About 2370*1230*1770 mm |
| Package weight | About 1600kg |

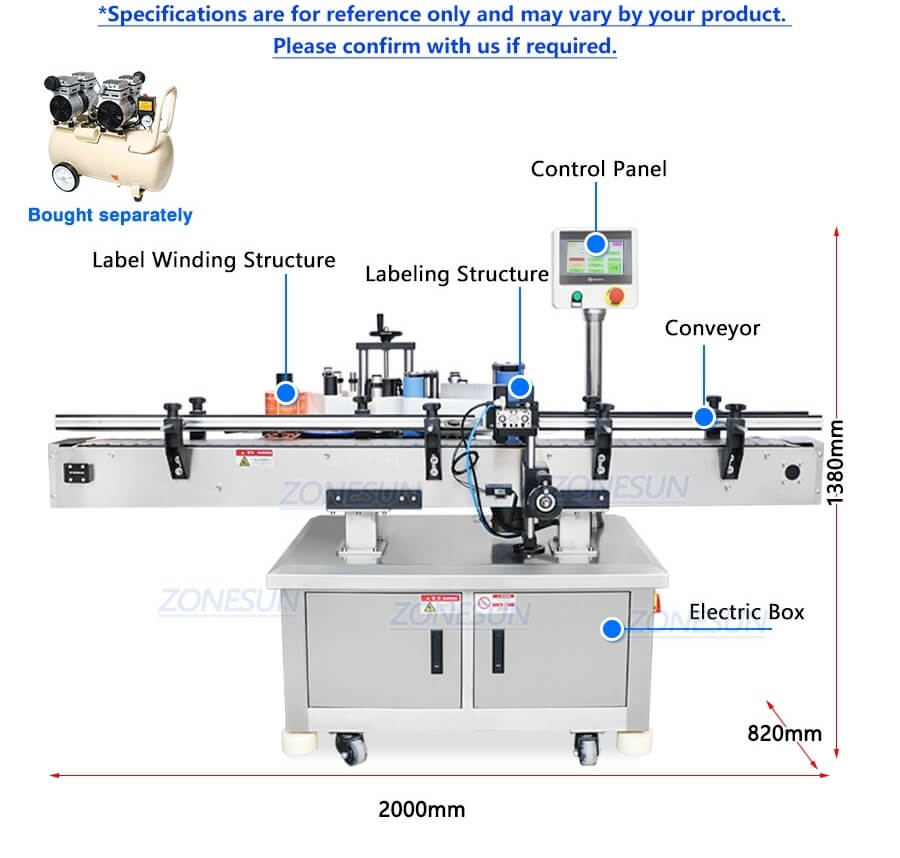

>Labeling Machine
| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | Φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W)890*(H)1520(mm) |
| Package weight | About 250kg |

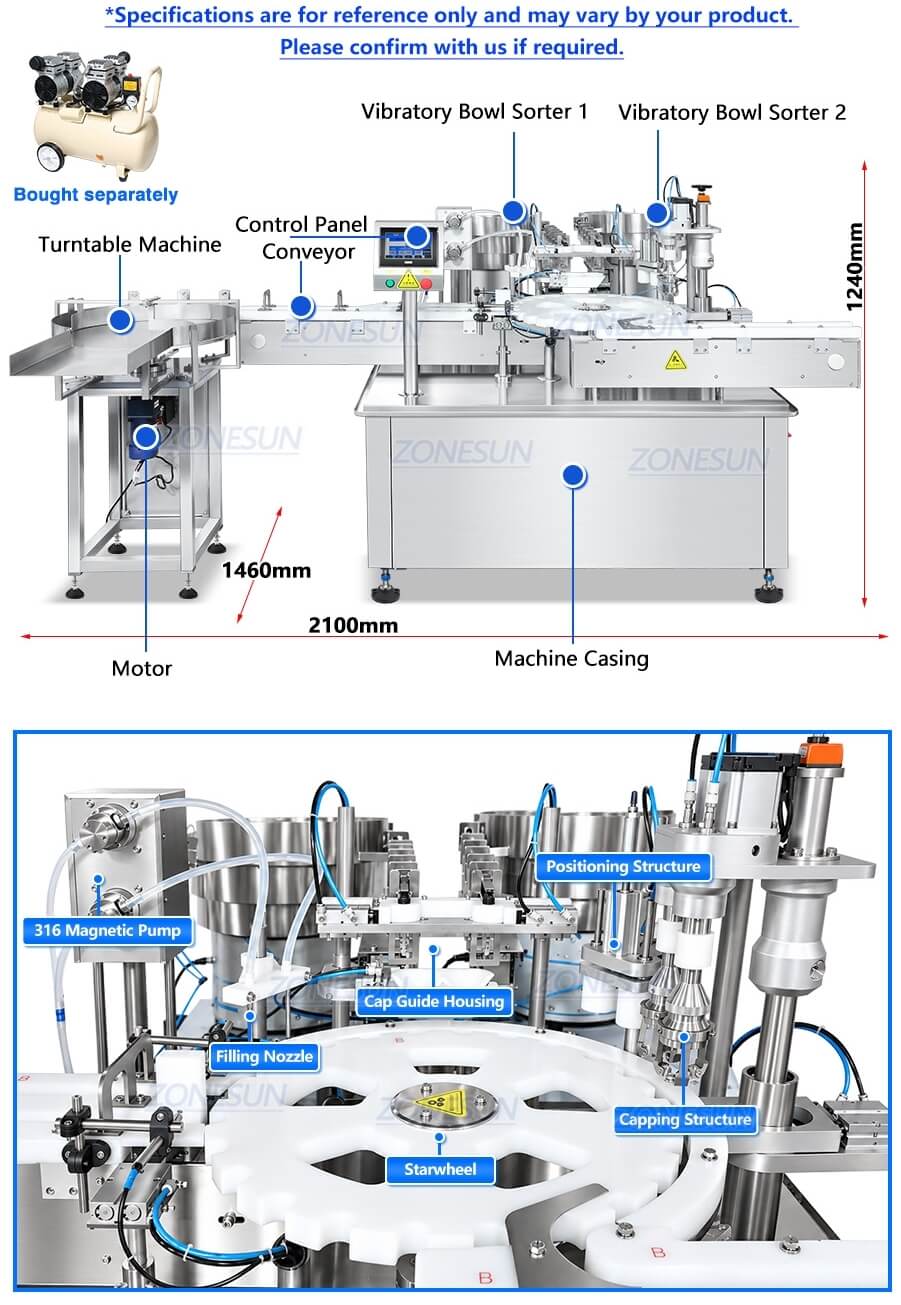

Product Details

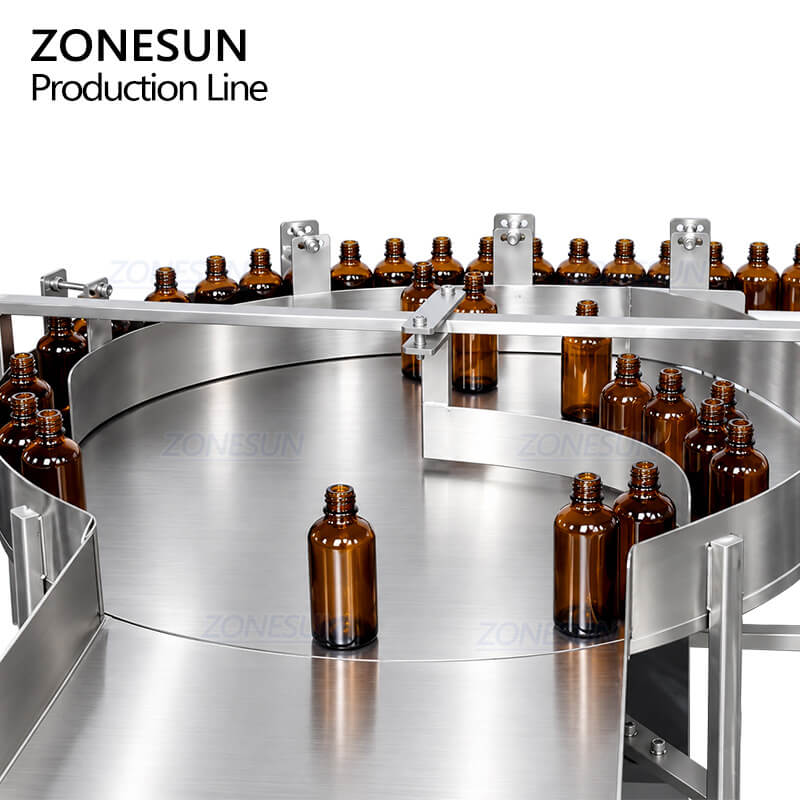

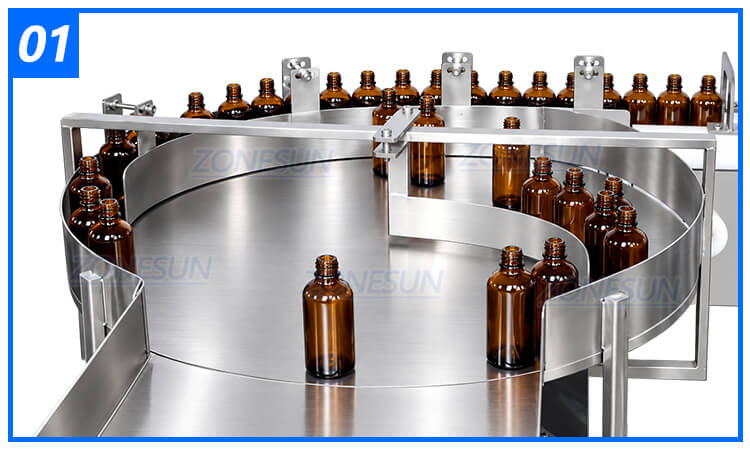

Bottle Unscrambling System
Automatically sorts and feeds bottles into starwheel for continuous operation.

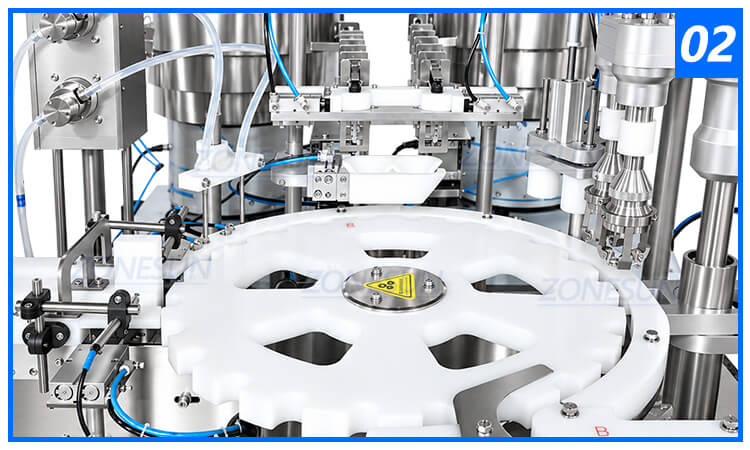

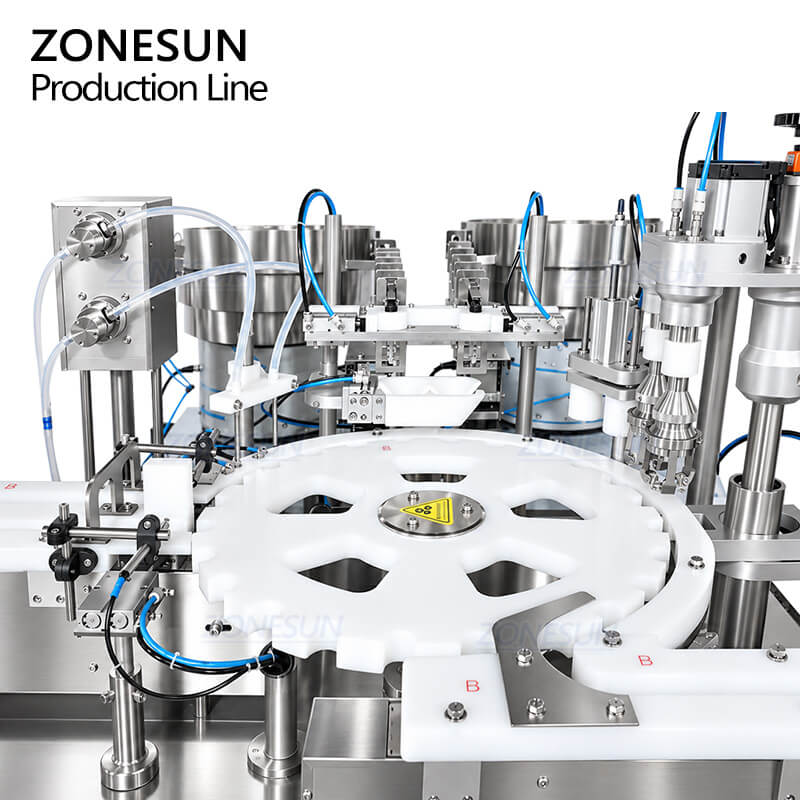

Star-Wheel System
Cam-driven starwheel positions bottles accurately, and synchronizes filling and capping motions for high-speed operation.

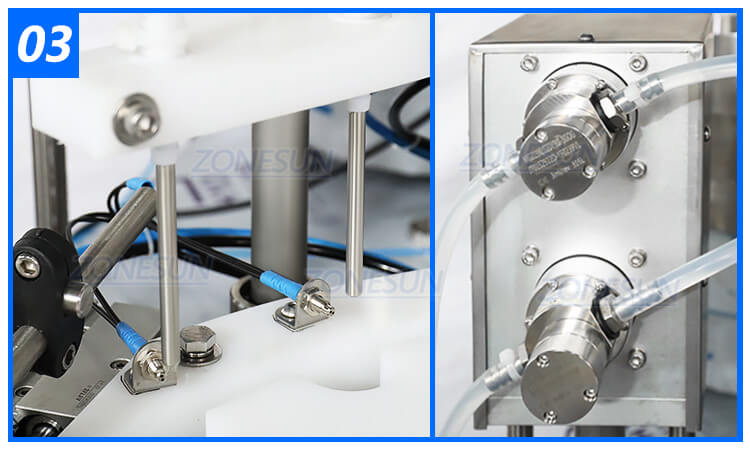

Dual Heads Filling System
SUS316 magnetic pumps deliver accurate and clean liquid dosing.

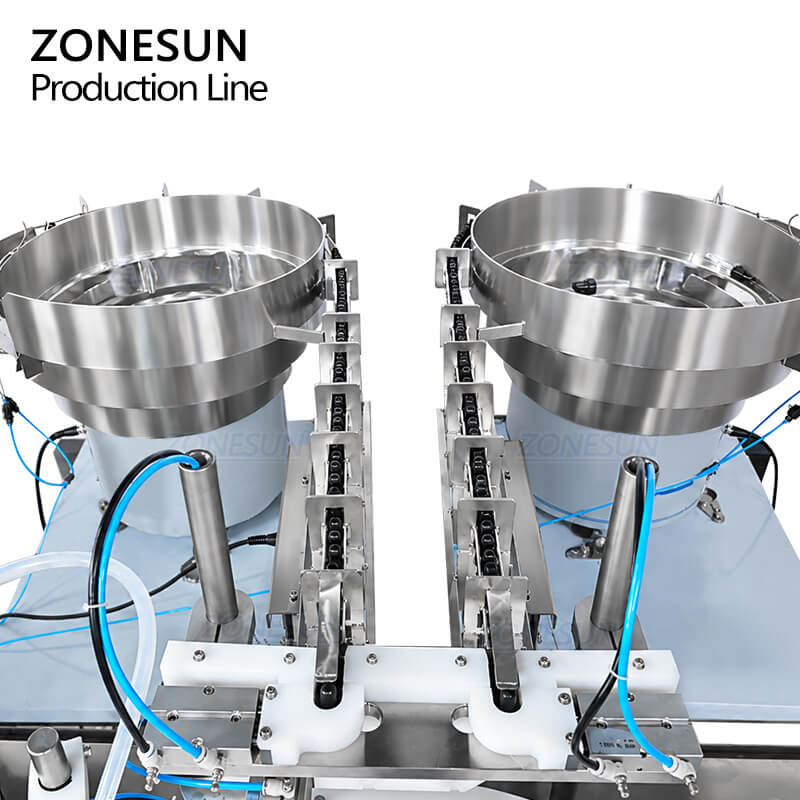

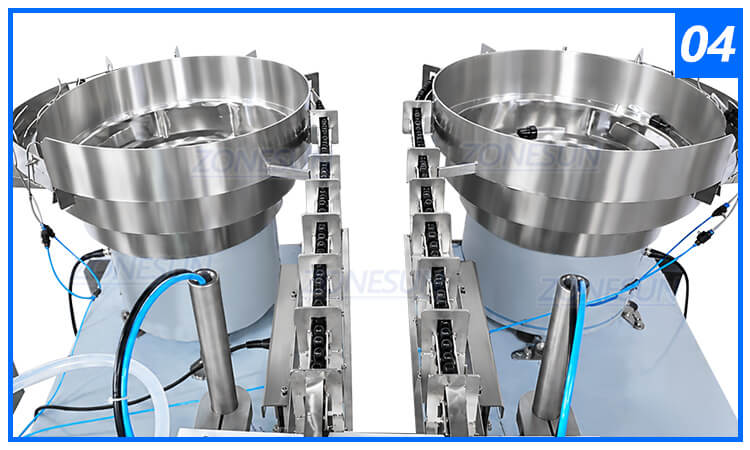

Vibratory Bowl Sorters
Dual vibratory sorters can arrange and transfer caps automatically, ensuring continuous operation and reducing manual handling.

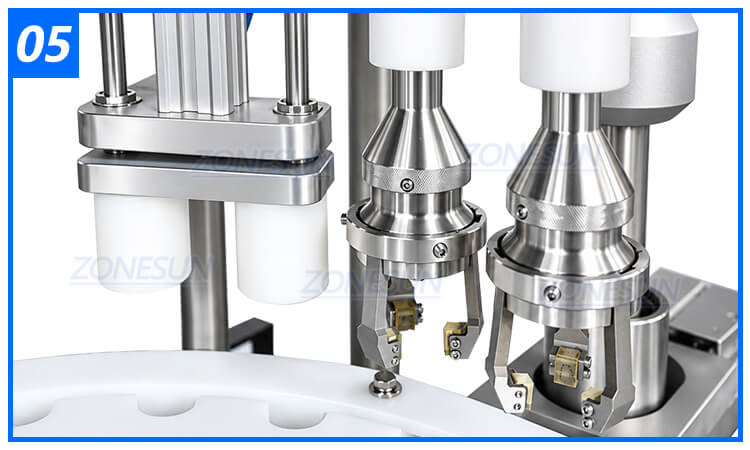

Positioning & Capping Structure
Positioning mechanism aligns the dropper caps before capping structure applies torque for consistent sealing quality.

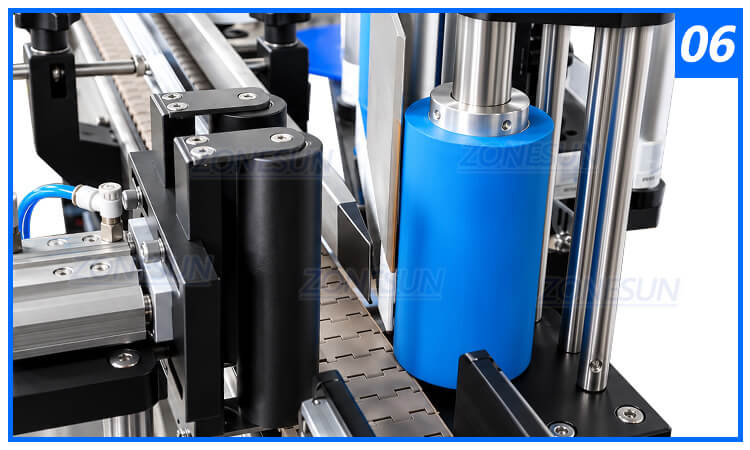

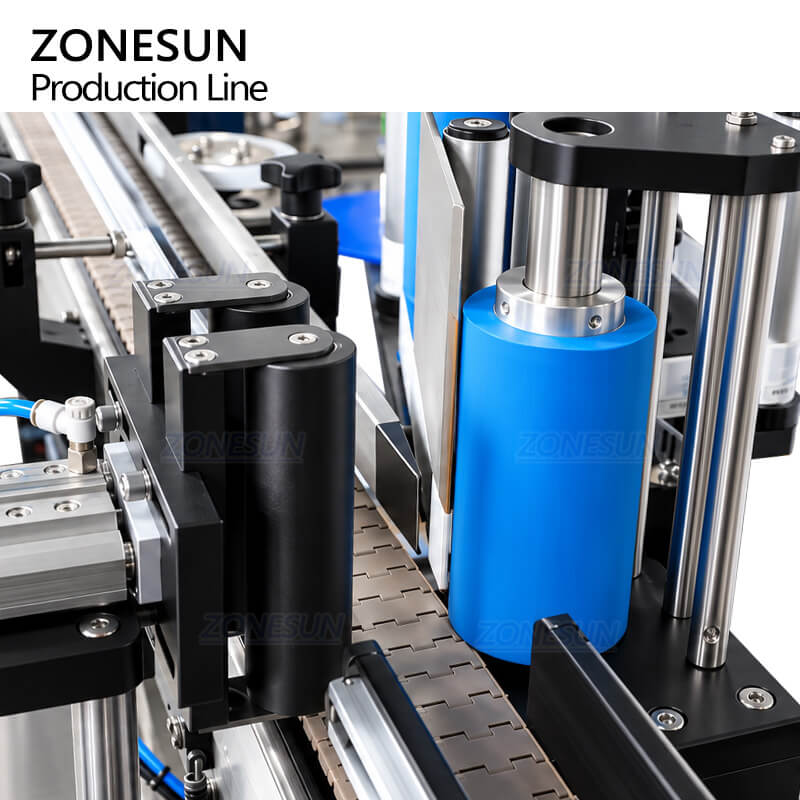

Labeling System
Three-roller labeling structure allows single-side, double-side or full-circle labeling.
