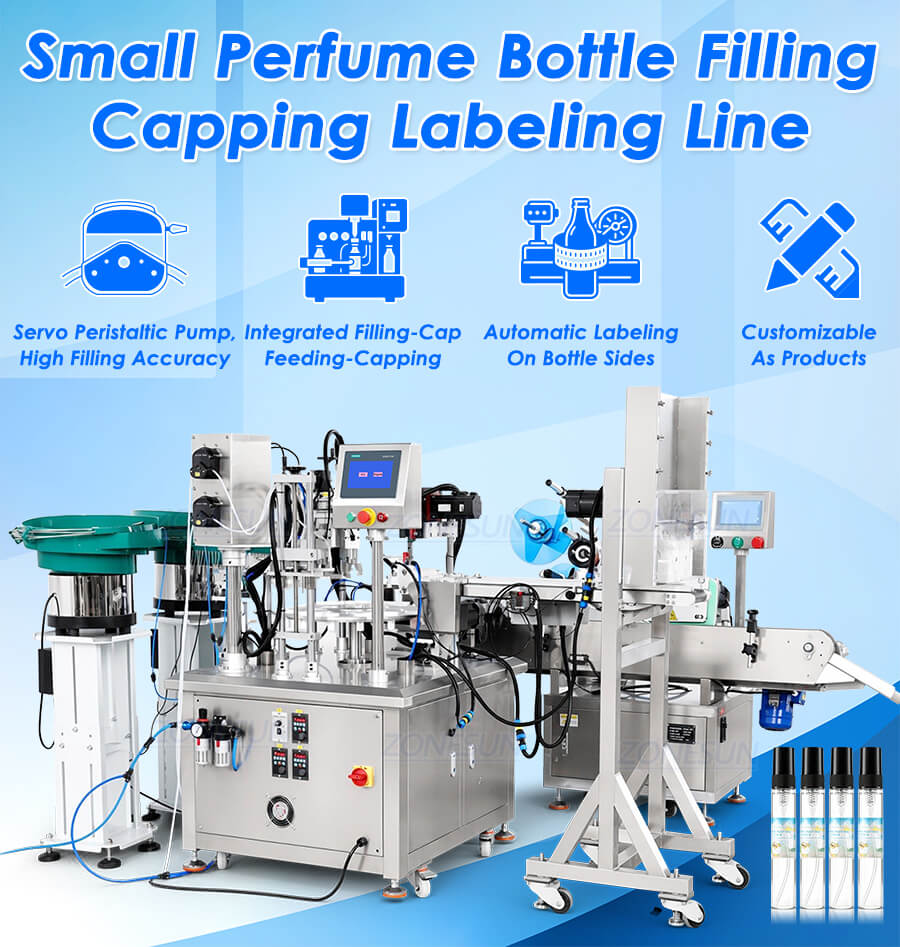

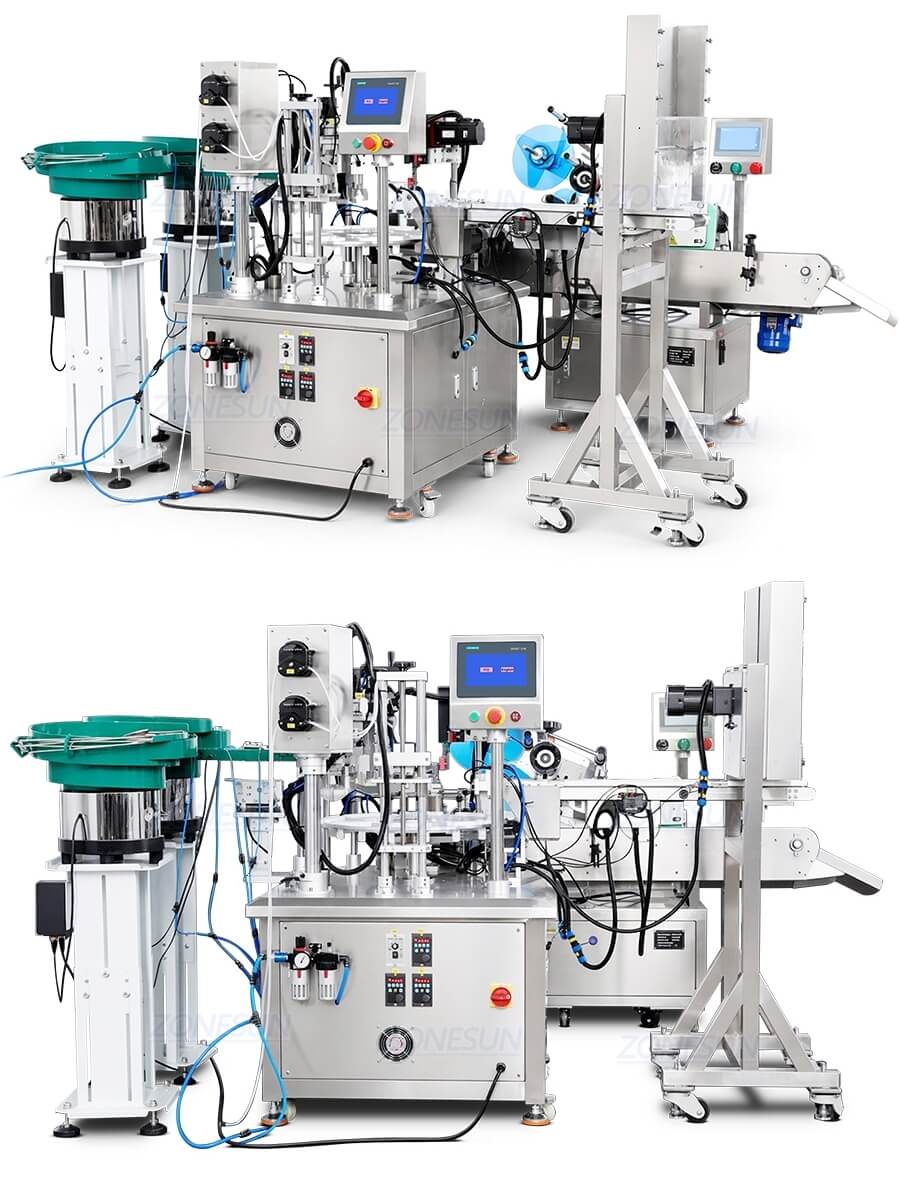

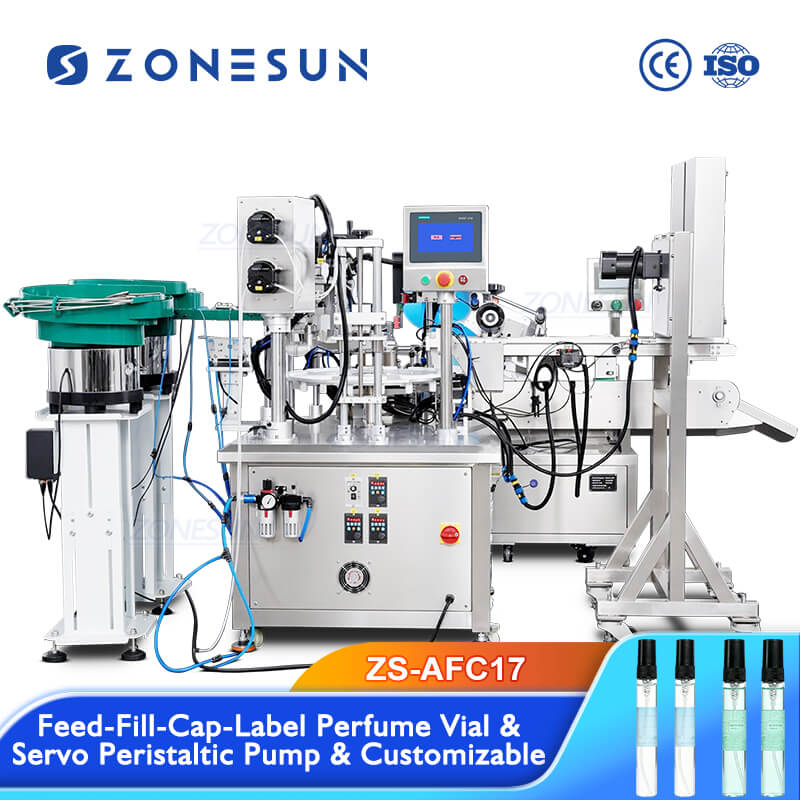

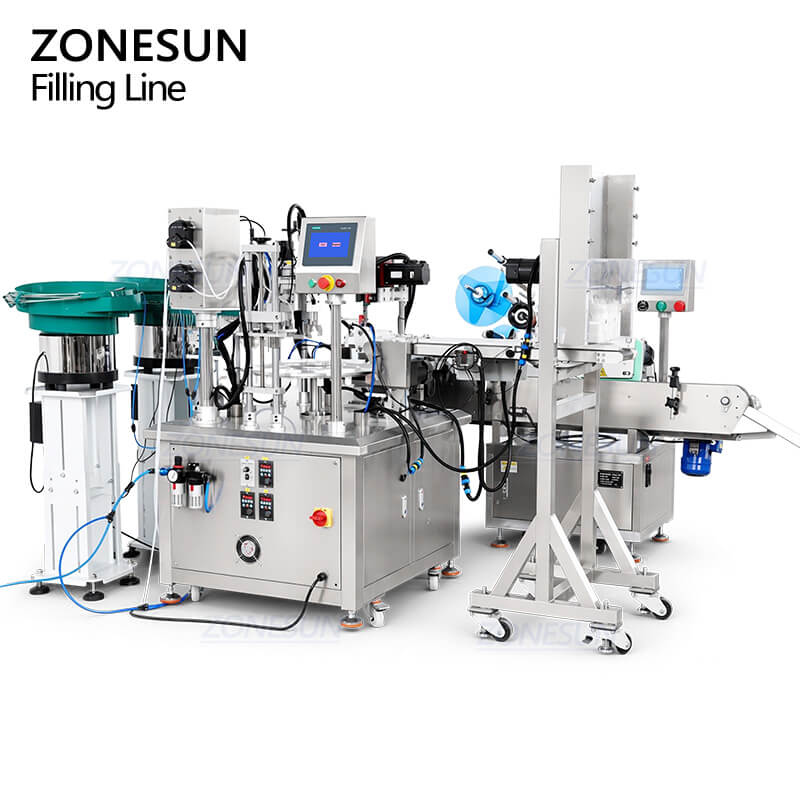

ZONESUN ZS-FAL180X17 Cosmetic Perfume Sample Bottling Line
This cosmetic perfume sample bottling line runs filling, capping and labeling in one pass. A servo peristaltic pump doses the perfume for high filling accuracy, caps are fed and pressed onto the bottle, and the bottle then moves to the labeling station, where the label is applied to the side. Filling, cap feeding and capping are integrated on one frame, and the line is customizable as products change.
$20,599.00
Share to
Product Description
This cosmetic perfume sample bottling line runs filling, capping and labeling in one pass. A servo peristaltic pump doses the perfume for high filling accuracy, caps are fed and pressed onto the bottle, and the bottle then moves to the labeling station, where the label is applied to the side. Filling, cap feeding and capping are integrated on one frame, and the line is customizable as products change.
Product Applications

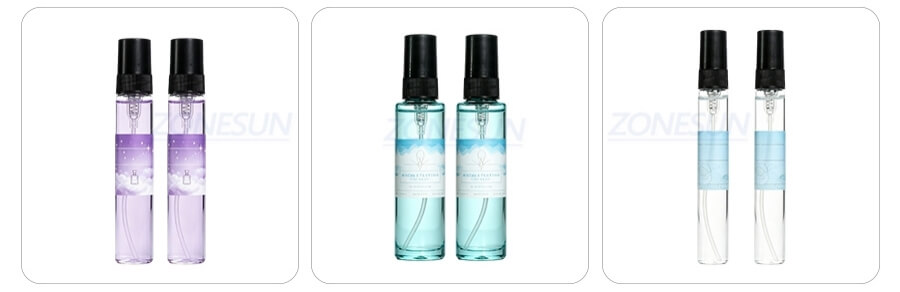

This bottling line suits small perfume and fragrance bottles with a fine mist spray cap, the kind sold as travel or trial size.They share one narrow bottle profile, so the line is built around a single bottle format from infeed to labeling, and the label on the bottle body is applied on the line.
Product Production Process

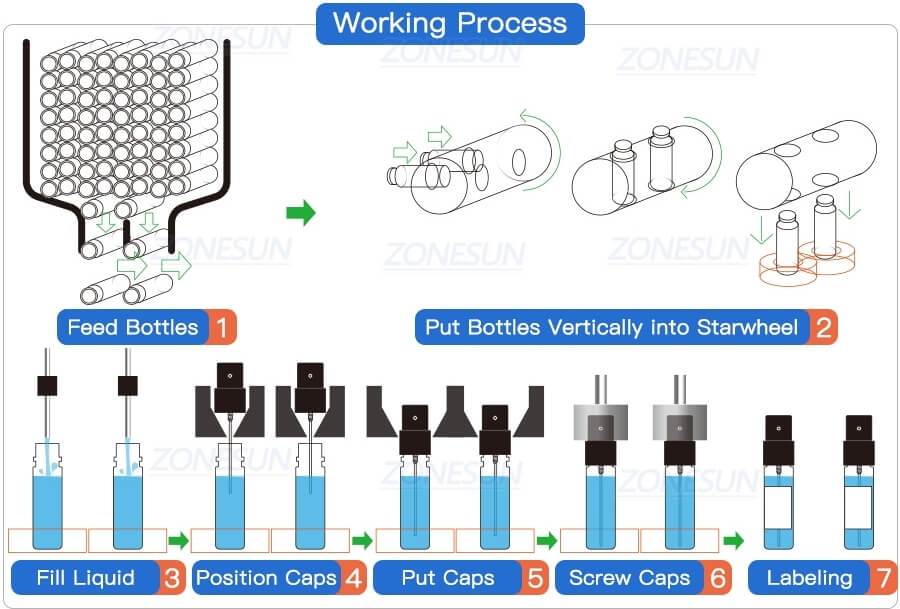

How the bottling line runs: bottles are fed from a hopper and set upright into the starwheel, liquid is filled into each bottle, caps are positioned and put on, the caps are screwed down, and the labeled bottle leaves the line at the end. The full sequence is feed bottles, stand them upright, fill liquid, position caps, put caps, screw caps and label.
Product Parameter
>Filling Capping Machine
| Machine Model | ZS-AFC17 |
| Voltage | AC110/220V 50-60Hz |
| Power | 1.5KW |
| Filling Pump | Servo Peristaltic Pump |
| Number of Filling Heads | 2 |
| Working Speed | About 40BPM |
| Recommended Filling Volume | 15-150ml |
| Filling Accuracy | ±1% |
| Air Pressure | 0.4-0.8MPa |
| Machine Size | About 2300*1500*1700mm |
| Package Size | 1190*1150*1700mm(Filling Machine)
1140*600*600mm(Vibratory Bowls) 760*400*700mm(Vibratory Bowl Bracket) 600*670*1810mm(Bottle Grouping Structure) |
| Package Weight | 410+120+56+120kg=706kg |
>Labeling Machine
| Machine Model | ZS-TB823 |
| Power Supply | 110/220V 50-60HZ |
| Working Speed | 60-170 bottles/min |
| Labeling Accuracy | ±1mm |
| Suitable Labeling Object | Φ10-30mm |
| Suitable Label Size | 20-300mm(L)*20-120mm(W) |
| Label Roll OD | Φ300mm |
| Label Roll ID | Φ76mm |
| Machine Size | 2040*690*1370mm(L*W*H) |
| Machine Weight | About 220kg |
| Package Size | About 2180*1240*1610mm |
| Package Weight | About 482kg |

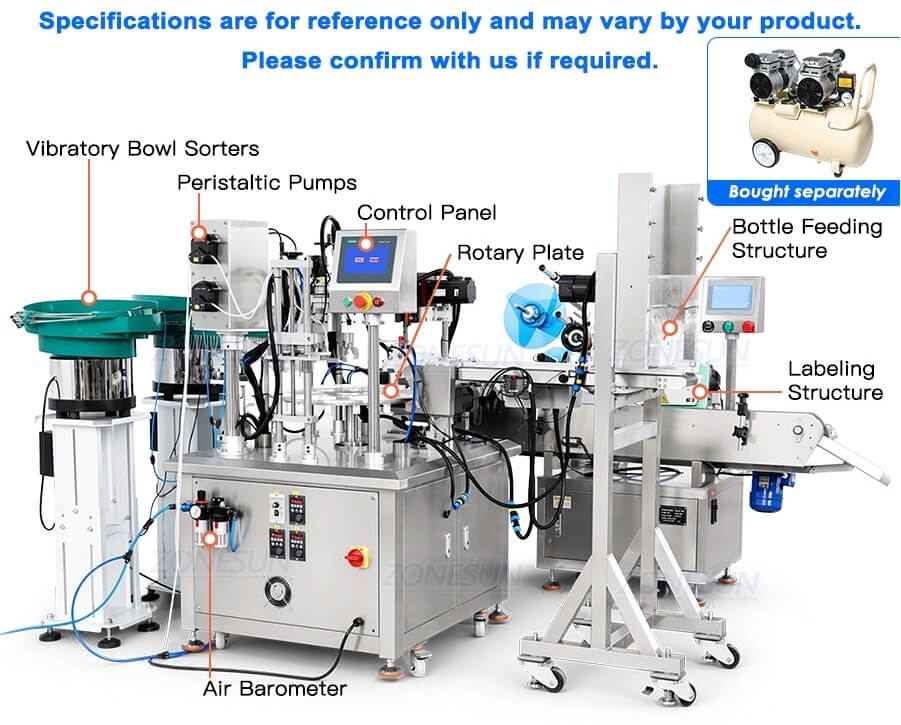

Product Details

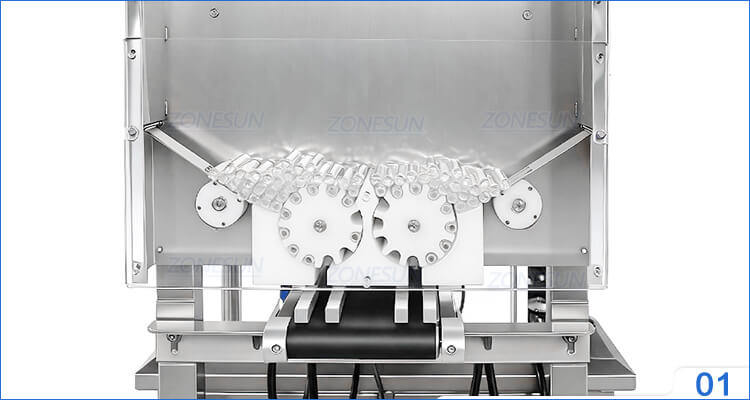

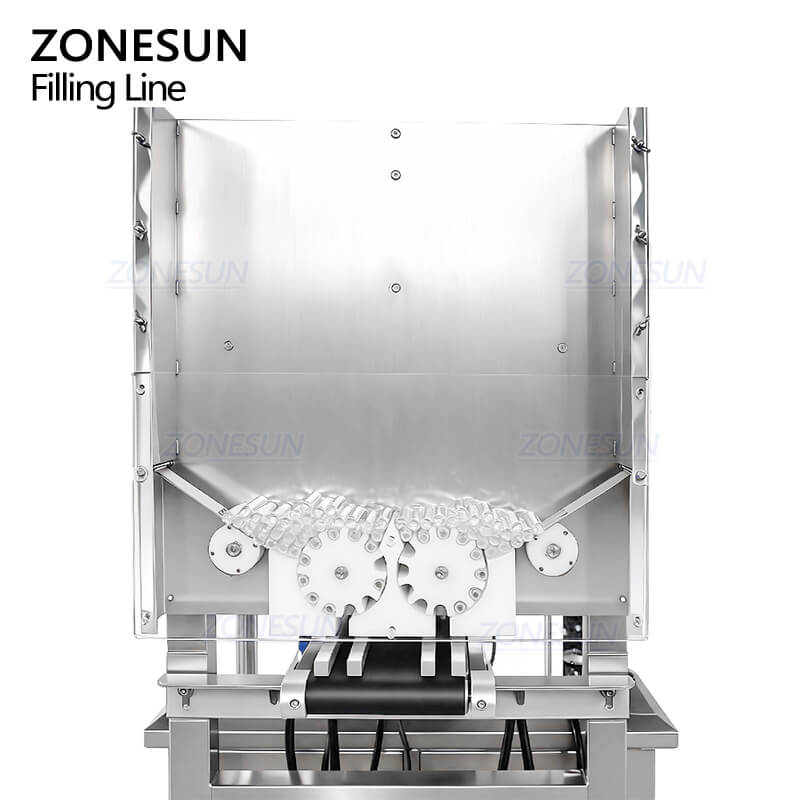

Bottle Grouping Structure
Automatically feeds small bottles into the starwheel for continuous filling and capping.

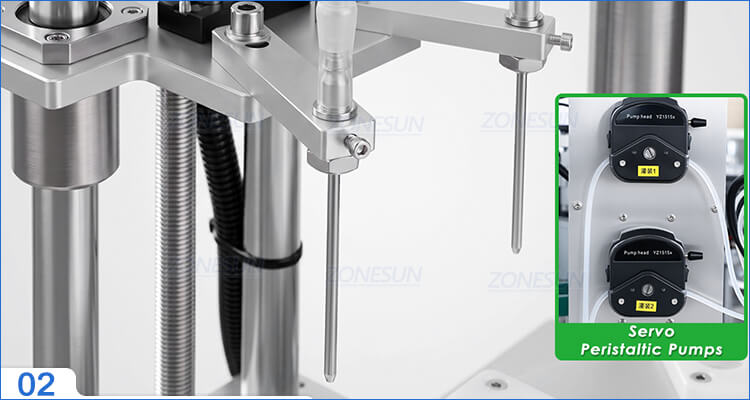

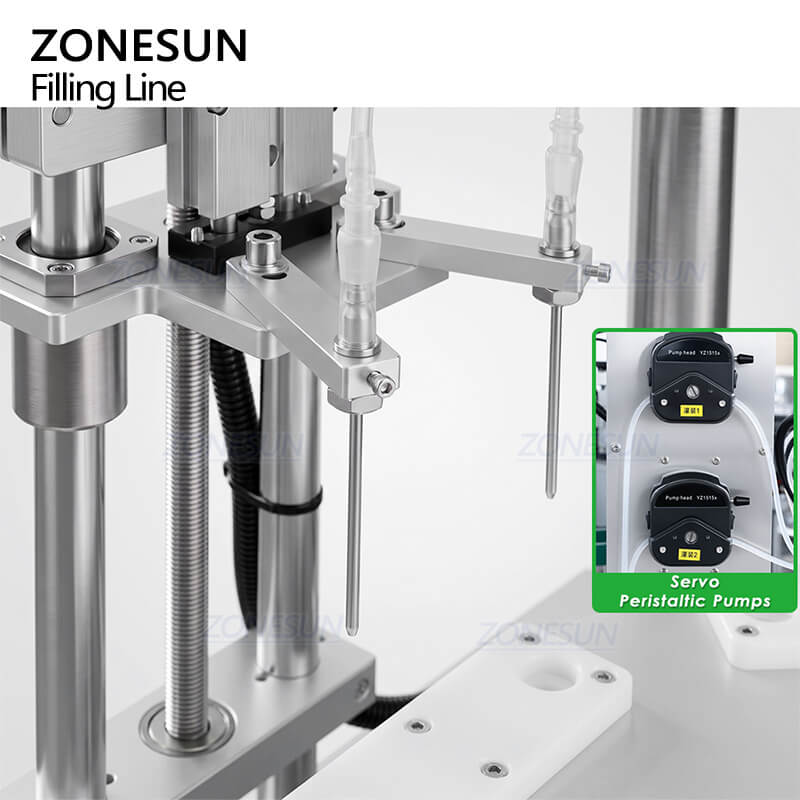

Dual Filling Heads
Servo peristaltic pumps deliver accurate liquid dosing, while the tubing can be easily replaced for filling different liquids.

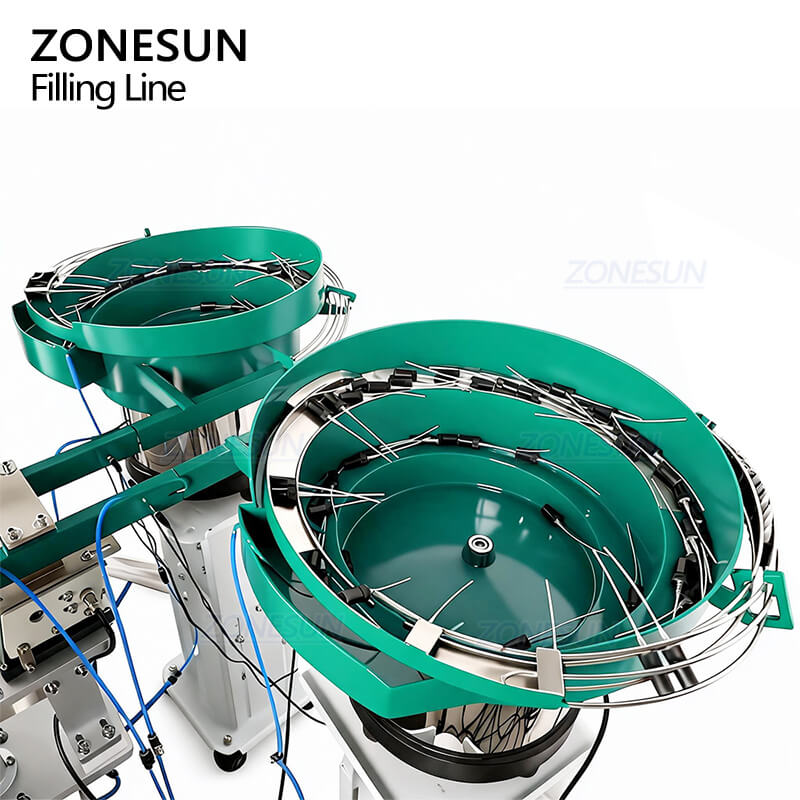

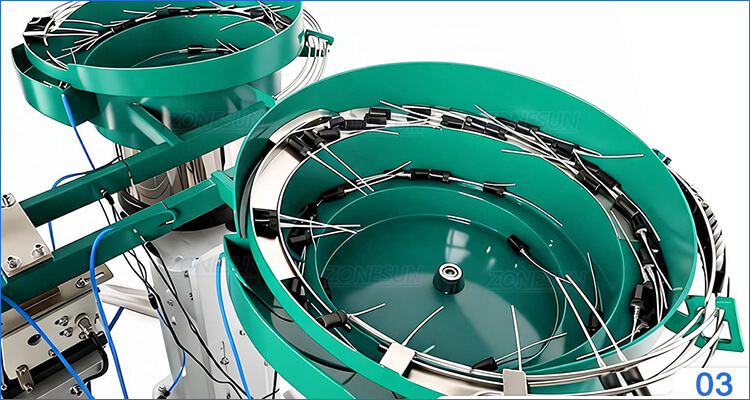

Dual Vibratory Bowl Sorters
Automatic arranges and feeds the spray caps to ensure uninterrupted production.

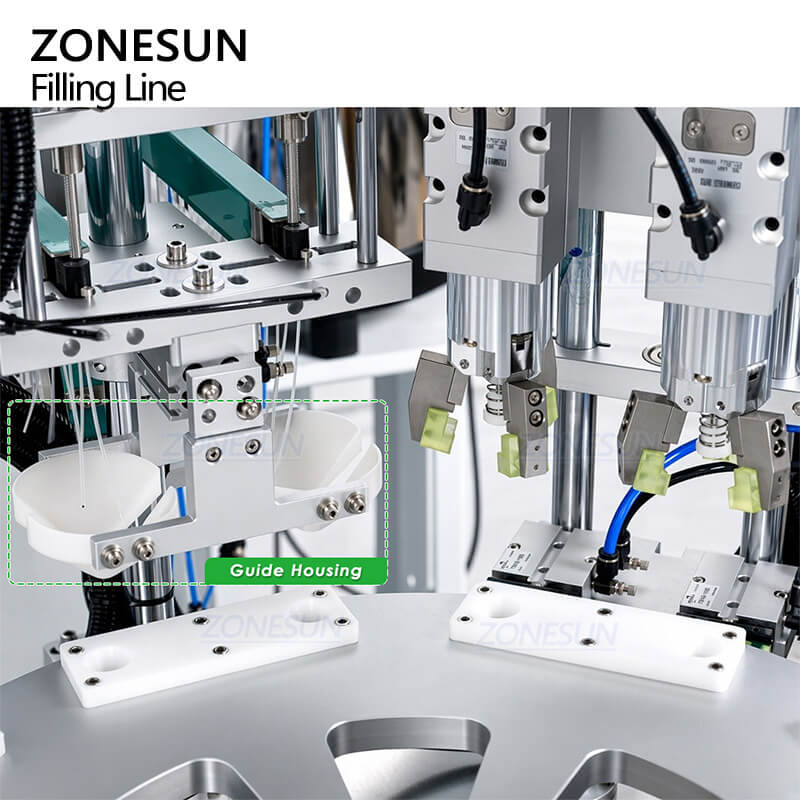

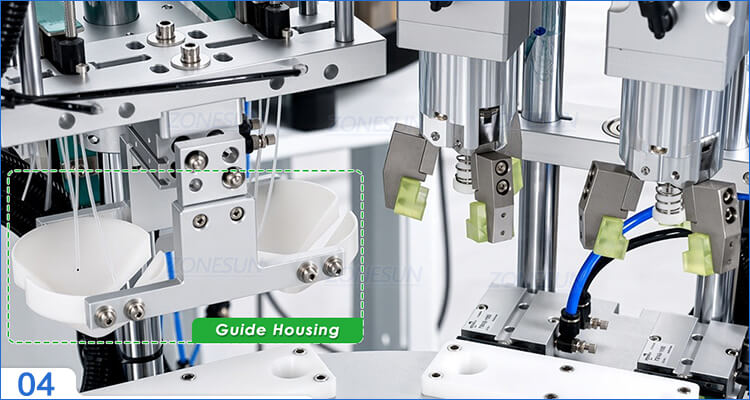

Cap Placing & Servo Capping
Guide housing aligns and drops caps into bottles accurately before servo capping structures apply consistent torque to tighten the caps.

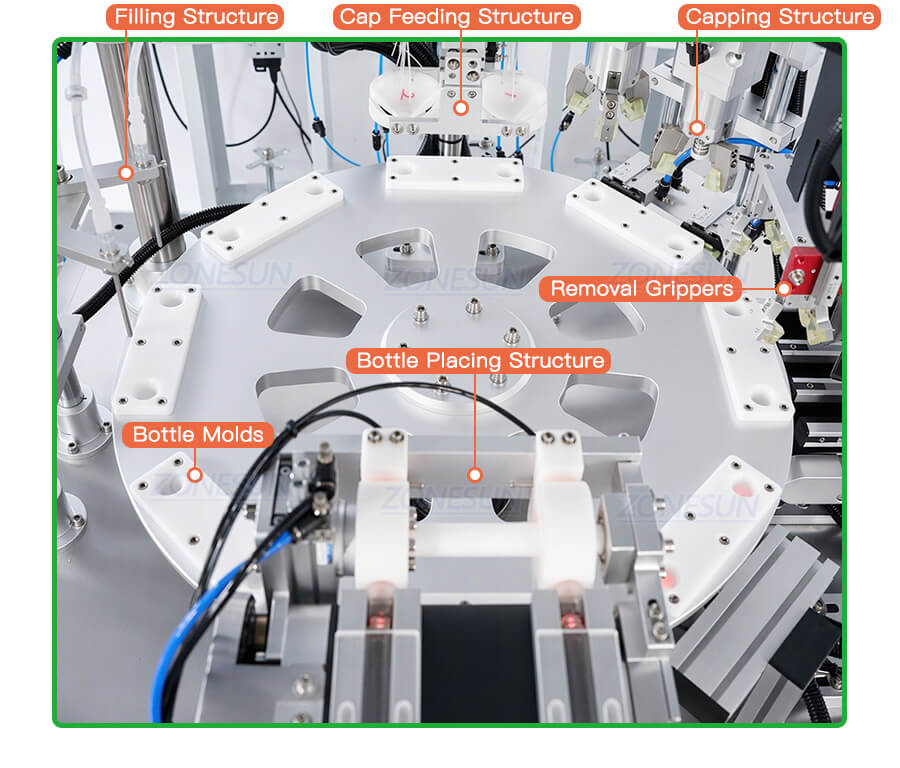

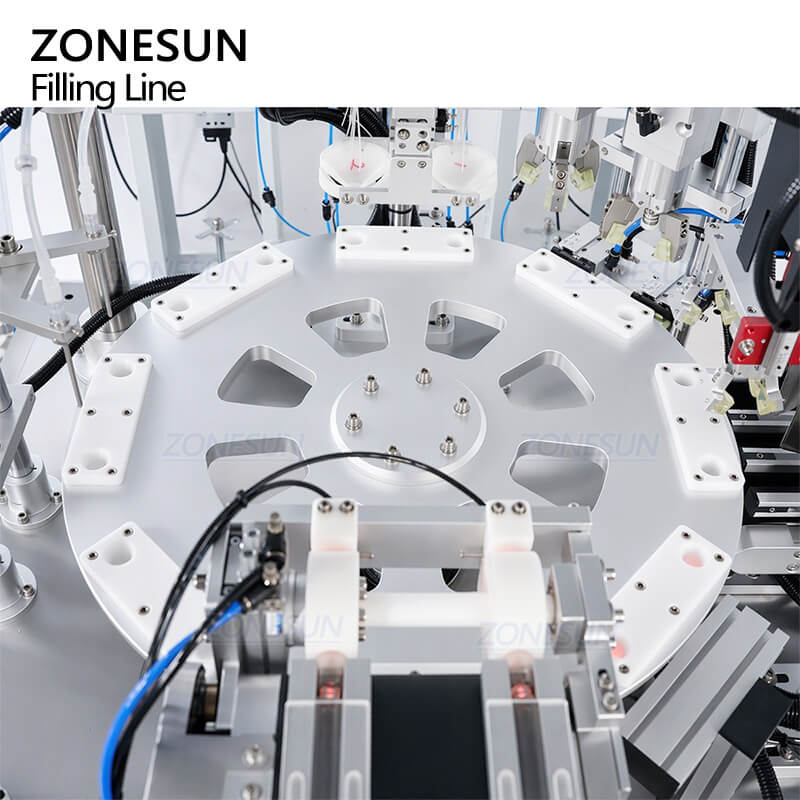

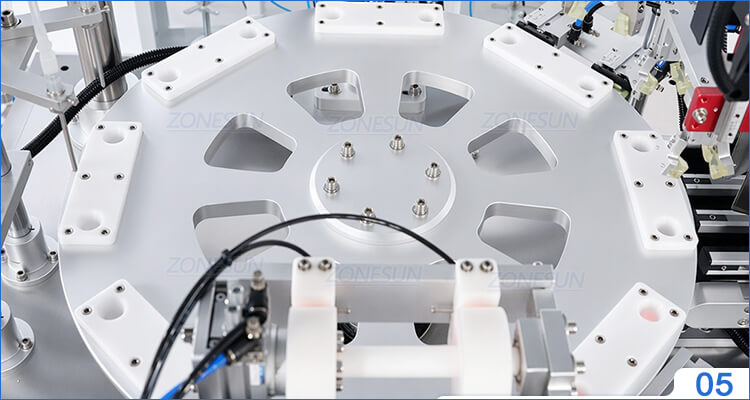

Customizable Starwheel Mechanism
Accurately positions and transfers the small bottles between stations. Starwheel is customizable as bottle size.

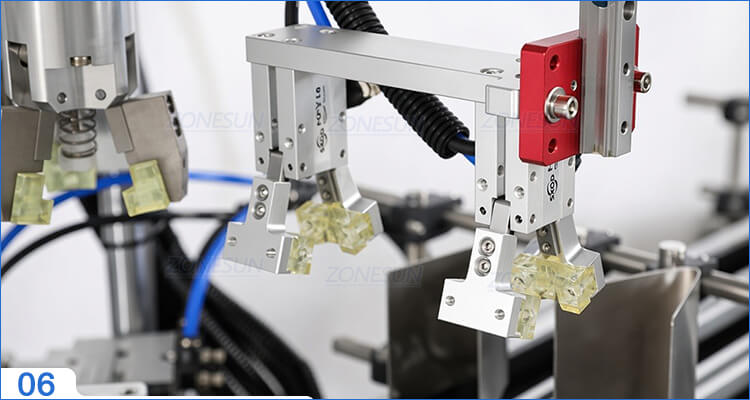

Dual Removal Grippers
Mechanical grippers can lift the bottles out of the molds for smooth transferring to downstream labeling process.

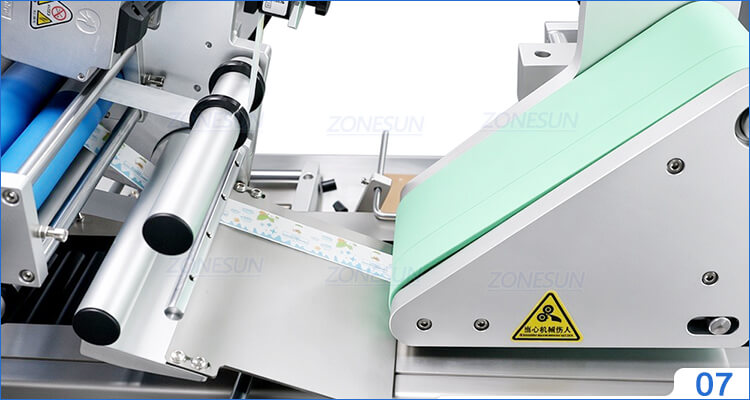

Labeling Structure
Supports semi-circle or full-circle labeling on round bottles. Date coder is optional.
