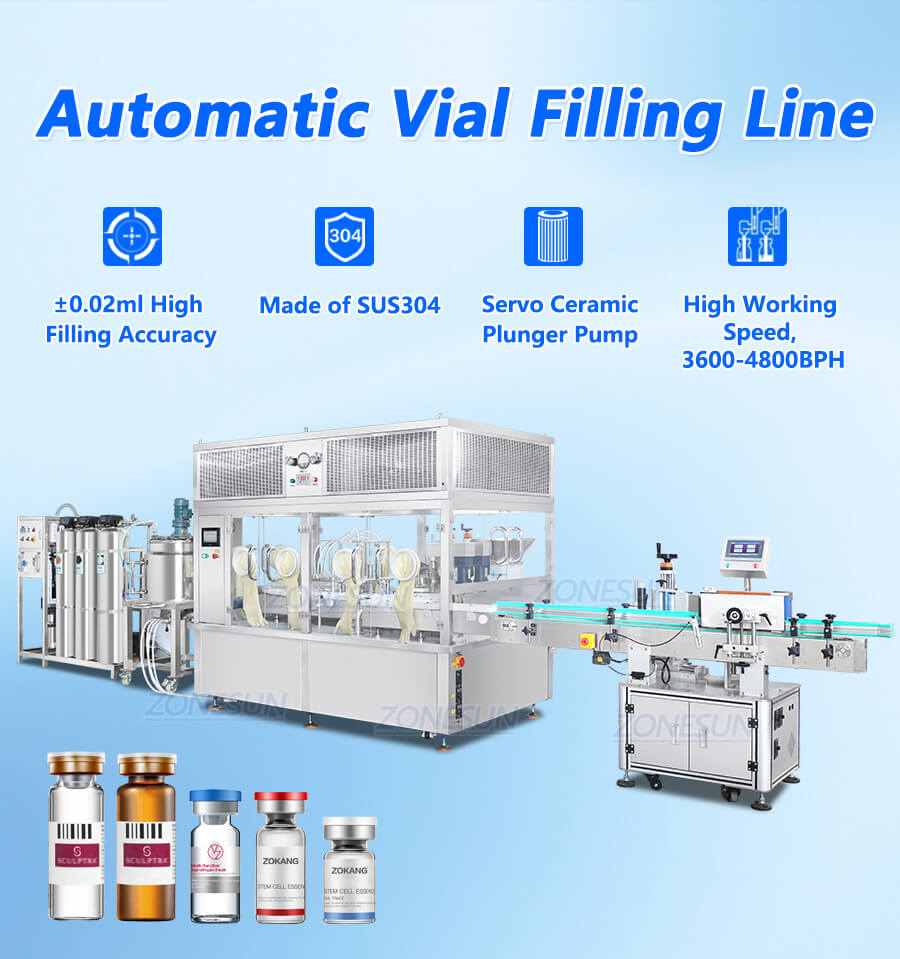

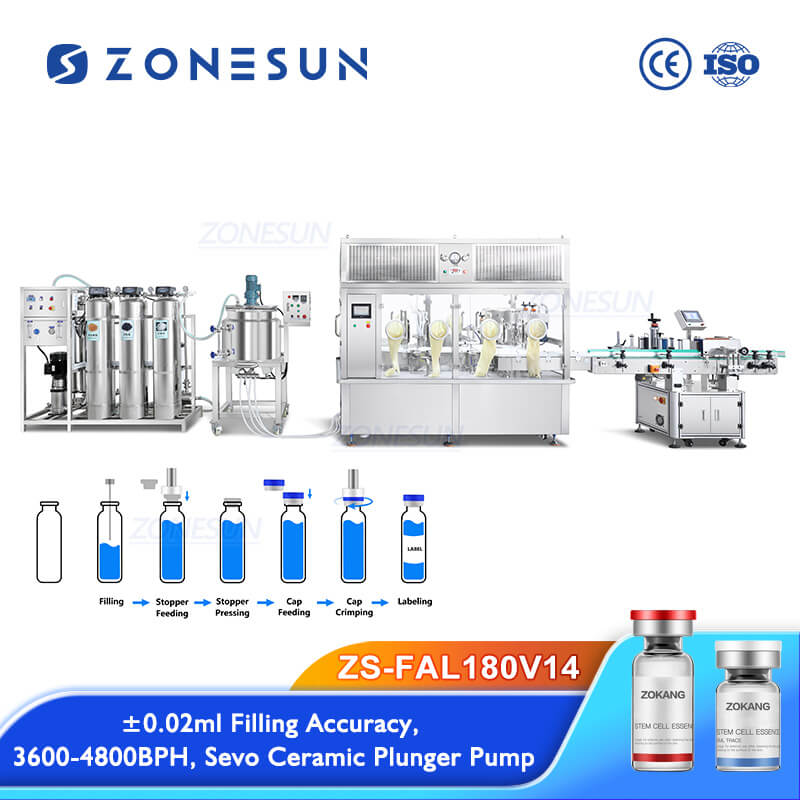

ZONESUN ZS-FAL180V14 Vial Bottling Line
The vial bottling line featuring a high-accuracy Servo Ceramic Plunger Pump (0.02ml error), it ensures zero-contamination and ultra-precise dosing. Built with SUS304 stainless steel and a protective isolator design with glove ports, it meets strict hygiene standards while reaching speeds up to 4800 BPH.
$76,499.00
Share to
Product Description
The vial bottling line featuring a high-accuracy Servo Ceramic Plunger Pump (0.02ml error), it ensures zero-contamination and ultra-precise dosing. Built with SUS304 stainless steel and a protective isolator design with glove ports, it meets strict hygiene standards while reaching speeds up to 4800 BPH.
Product Applications

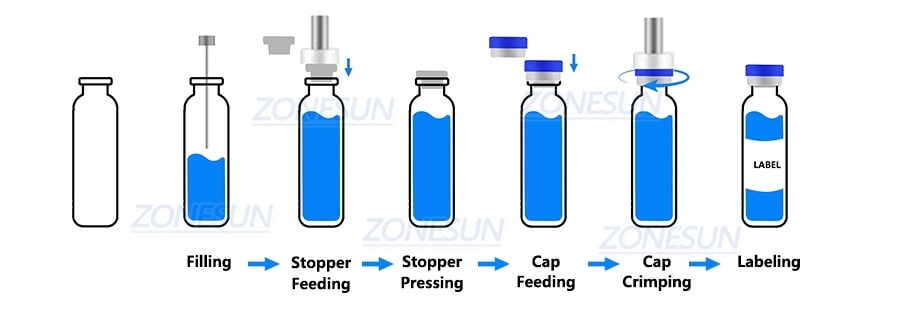

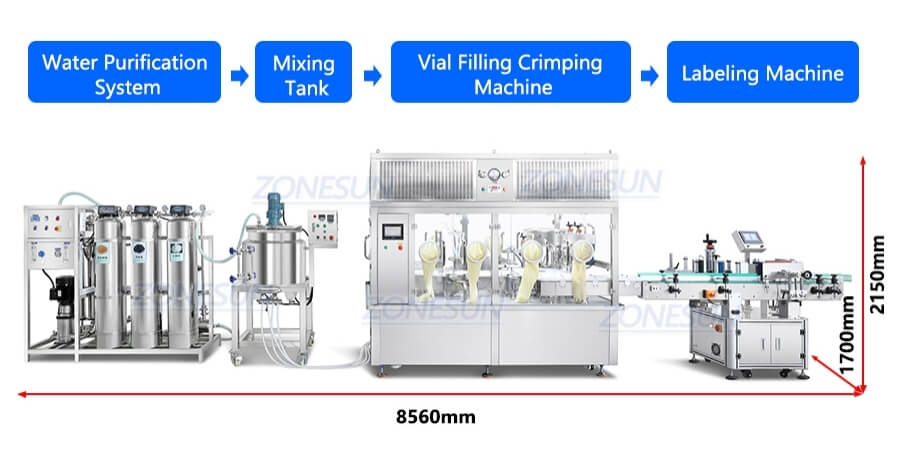

Product Production Process
Product Parameter
Water Purification System
| Product Model | ZS-WP500L |
| Power Supply | 220V 50HZ |
| Product Water Conductivity | 1-10us/cm25℃ |
| Production Capacity | 500 L/H |
| Desalination Rate | 95% |
| Recovery Rate | 50-60% |
| Machine Size | About1900*650*1650 mm(L*W*H) |
| Package Size | About 1960*830*1710mm(L*W*H) |
| Package Weight | About 488kg |

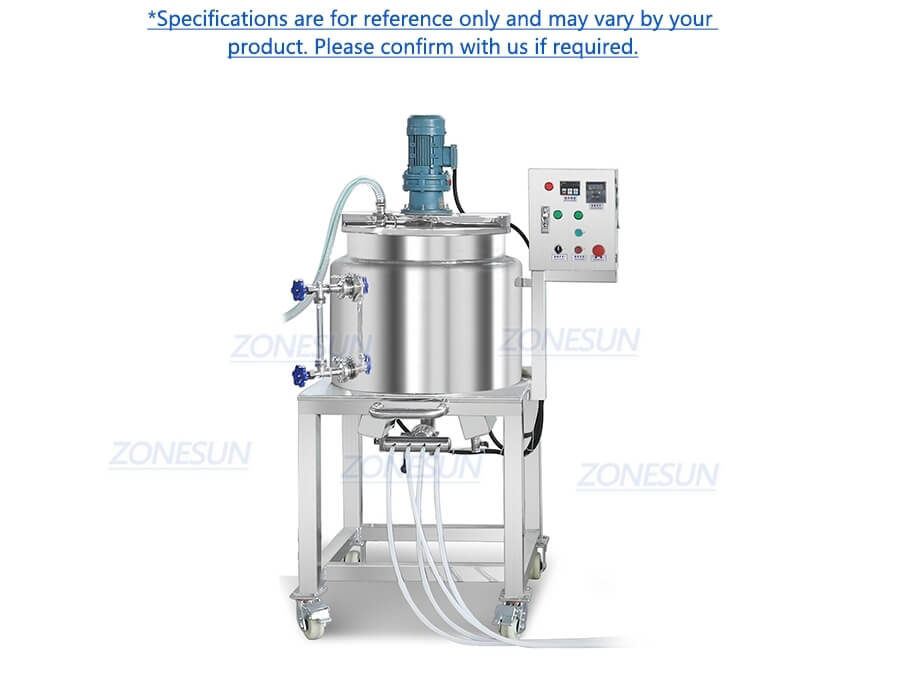

Mixing Tank
| Machine Model | ZS-VMB100RH |
| Voltage | 380V 50Hz (Customizable for 220V &110V) |
| Tank Capacity | 100L (customizable upon request) |
| Wall Thickness | Inner layer: 2 mm , Middle layer: 2 mm , Outer layer: 1.5 mm |
| Tank Material | Inner layer made of SUS316L. middle and outer layers made of SUS304 |
| Heating Power | 12 kW |
| Heating Temperature | 50-200℃ |
| Mixing Motor Power | 0.75kW |
| Mixing Speed | Frequency-controlled, adjustable from 0 to 62 RPM |
| Machine Size | About 1100*800*1760mm(L*W*H) |
| Package Size | About 1160*1000*1910mm(L*W*H) |
| Package Weight | About 197kg |

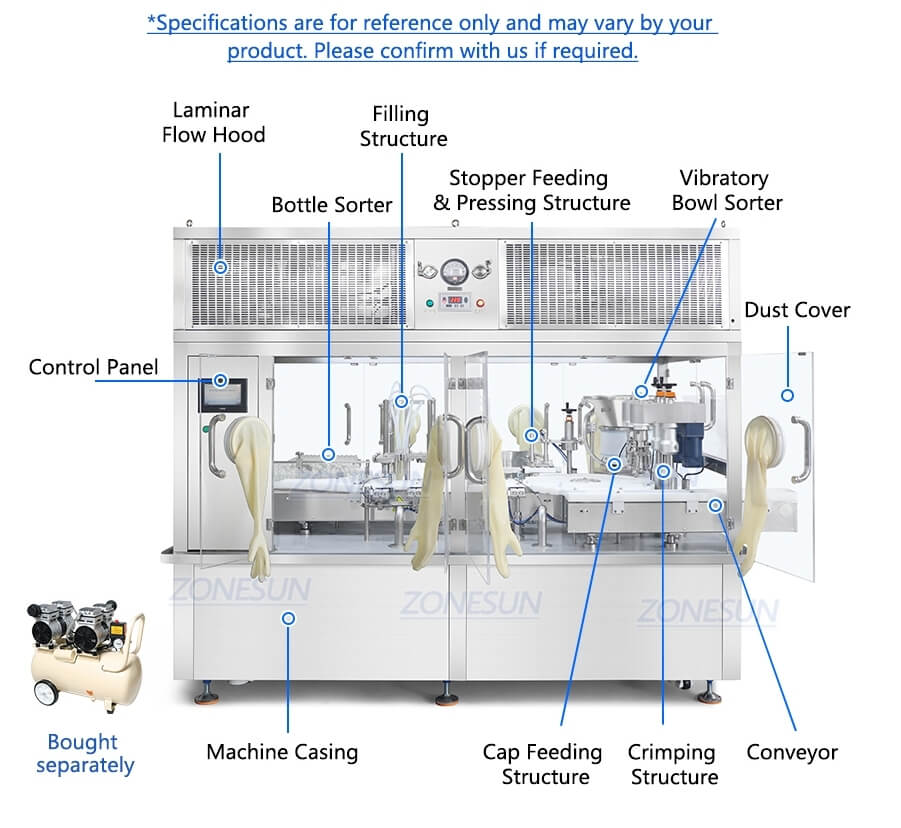

Vial Filling Crimping Machine
| Machine Model | ZS-AFC39F |
| Voltage | AC 110/220 V 50-60 Hz |
| Power | <3000 W/h |
| Working Speed | About 60-80 Bottles/min (Depending on filling range) |
| Filling Pump | Ceramic Plunger Pump |
| Filling Nozzle Quantity | 2 |
| Filling Range | 30ml (Customizable) |
| Filling Accuracy | ±3% |
| Machine Size | About 2660*1700*2150mm(L*W*H) |
| Package Size | About 1180*690*790 mm (Vibratory Bowl Sorter) About 2890*1730*2340 (Main Machine) |
| Package Weight | About 135 kg (Vibratory Bowl Sorter)+1565 kg (Main Machine) |

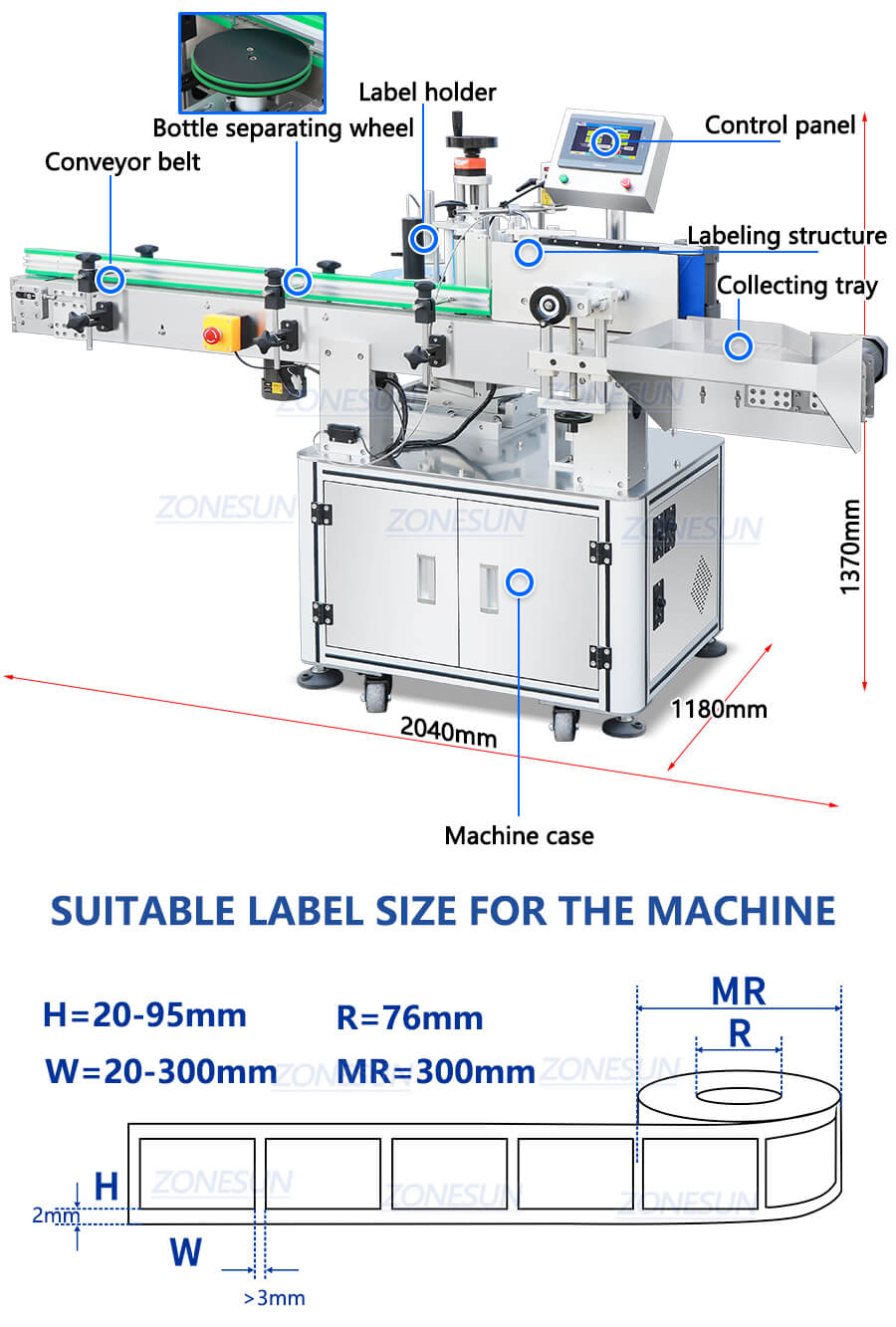

Labeling Machine
| Machine Model | ZS-TB821 |
| Voltage | 220V/110V 50-60Hz |
| Power | 570W |
| Labeling Accuracy | ±1.0mm |
| Labeling Speed | About 40-120 bottles/min(depending on label size) |
| Applicable Product Size | φ25-φ120mm (Round bottle) |
| Label Size | (W)20-300mm*(H)20-95mm |
| Label Roll ID | φ76mm |
| Label Roll OD | φ300mm |
| Machine Size | About 2040*1180*1370mm(L*W*H) |
| Package Size | About 2200*1170*1600mm (L*W*H) |
| Package Weight | About 330KG |
Product Details

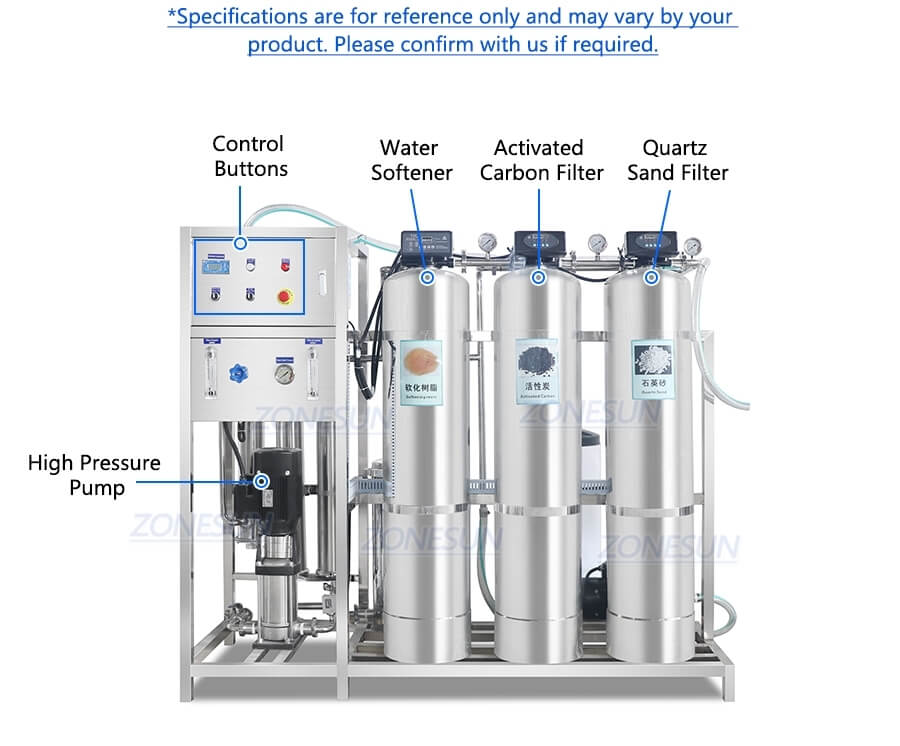

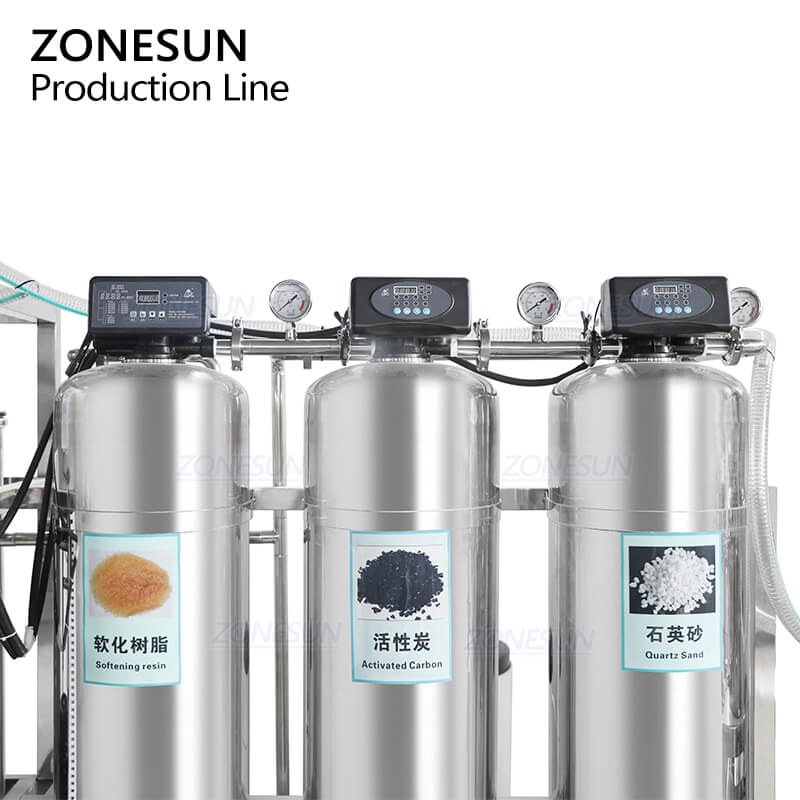

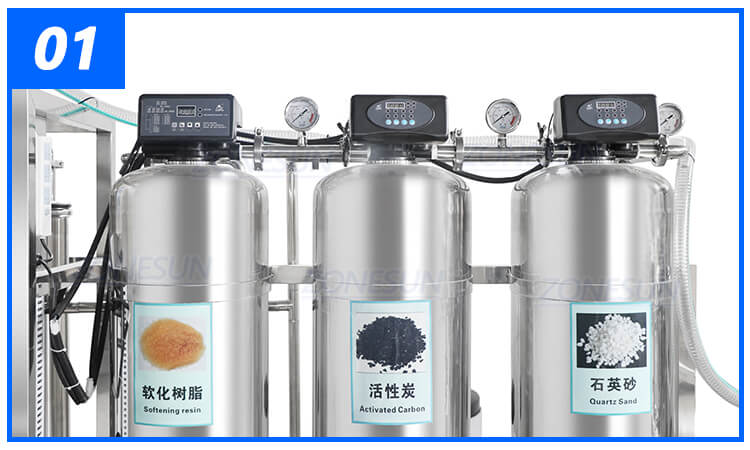

Water Purification System
Removes impurities from process liquids before filling, helping reduce contamination risks.

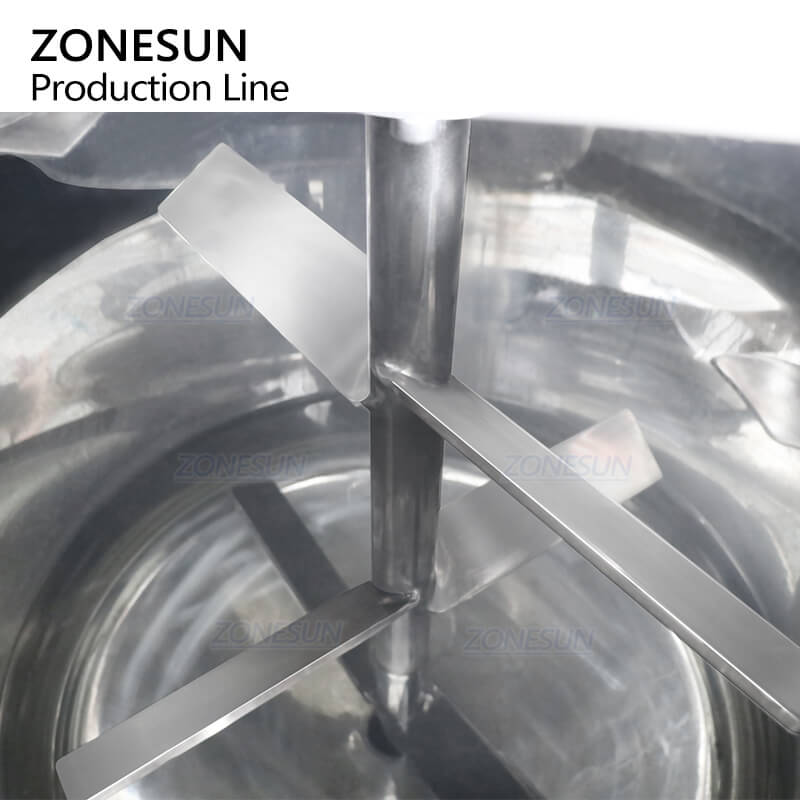

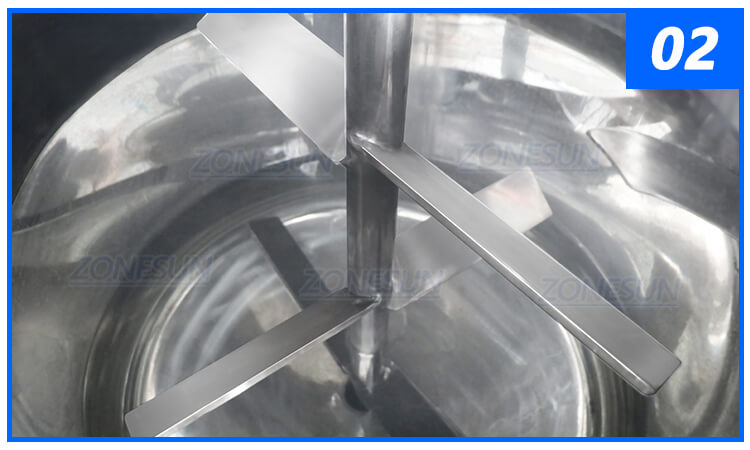

Mixing Tank System
Custom-designed mixing tanks ensure ingredients remain uniformly blended throughout production, customizable working capacity.

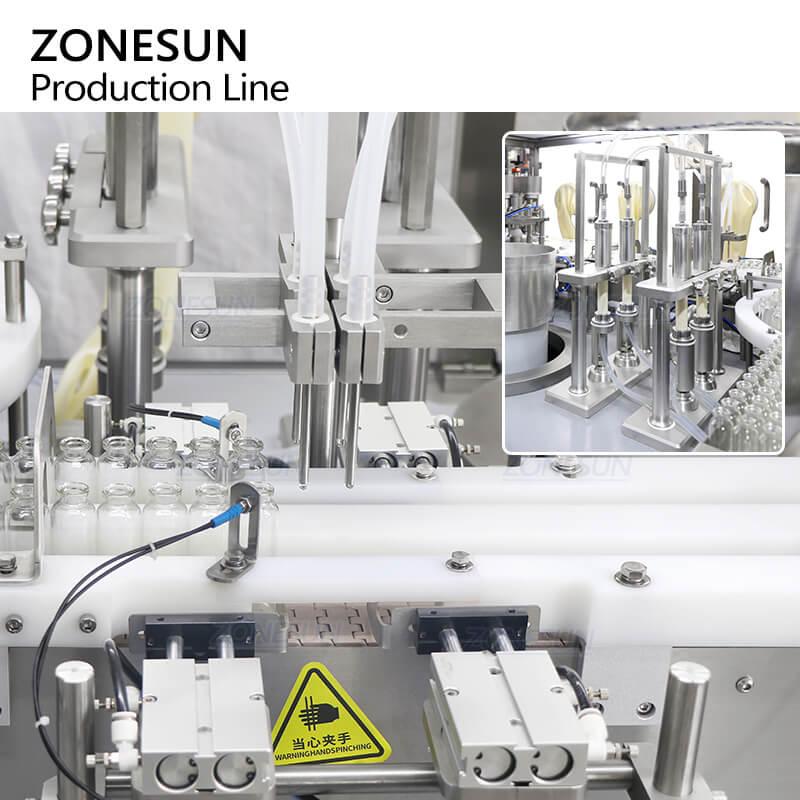

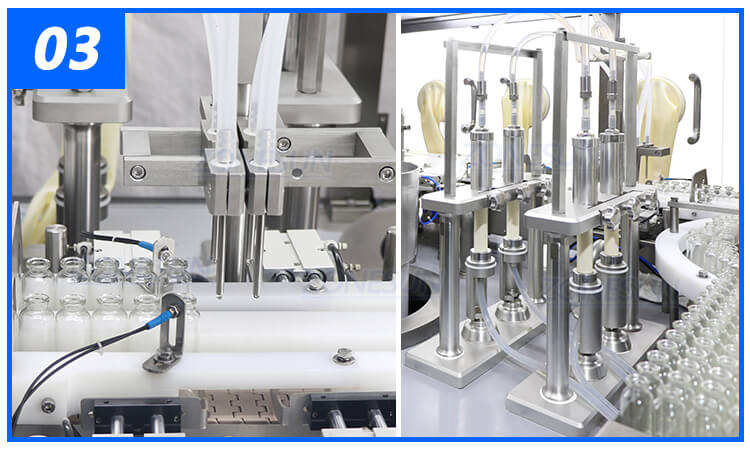

Servo Ceramic Plunger Pump
Servo ceramic piston pumps achieves high filling precision with only ±0.02ml deviation at 30ml filling volume.

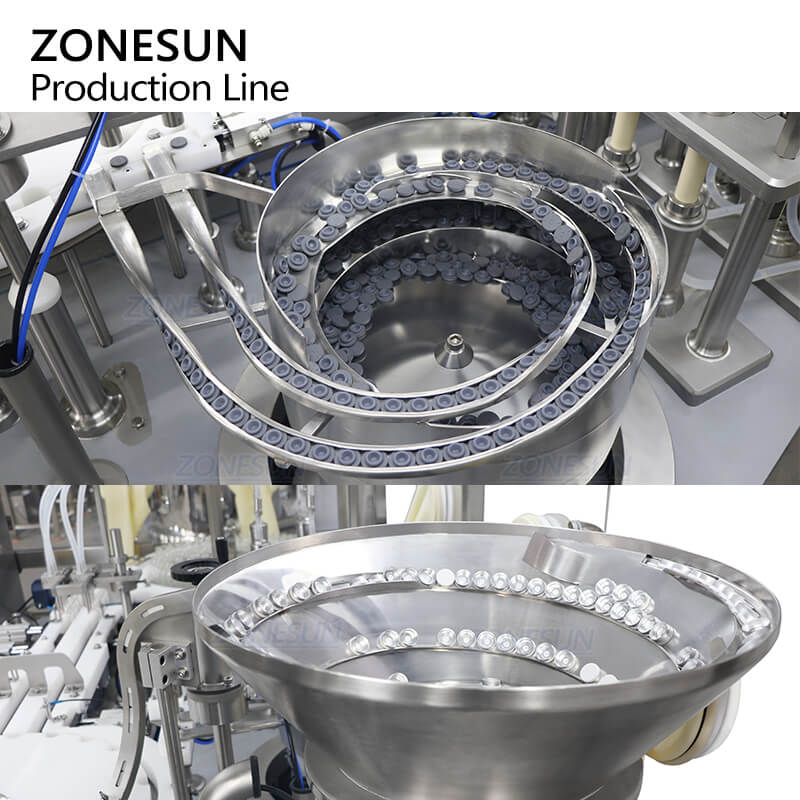

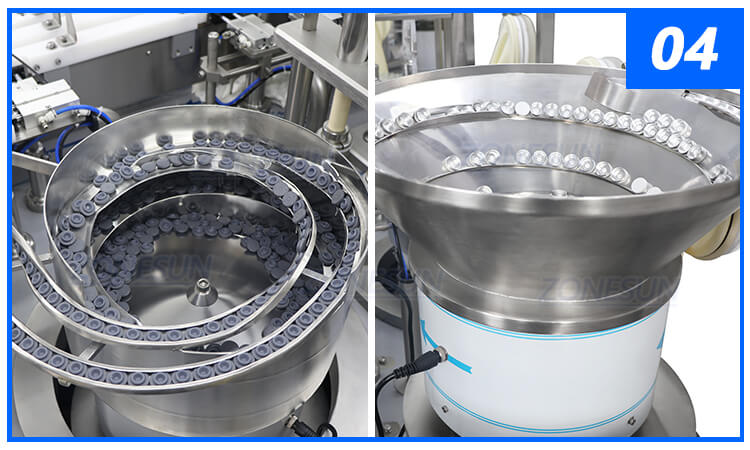

Vibratory Feeding System
Automatically orients and supplies rubber stoppers and aluminum caps to ensure uninterrupted high-speed production.

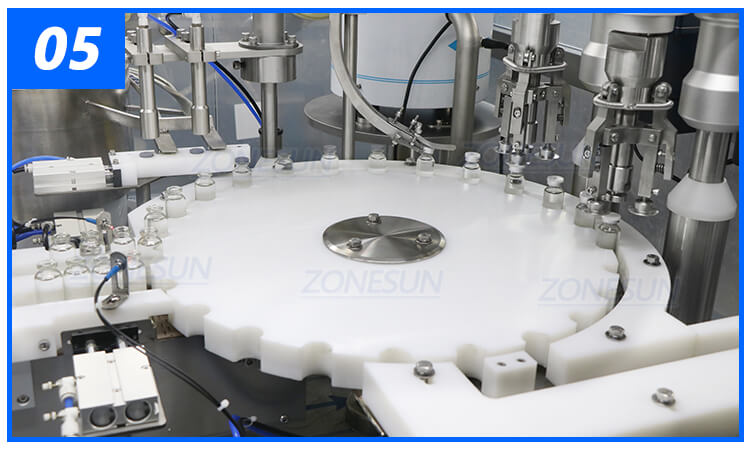

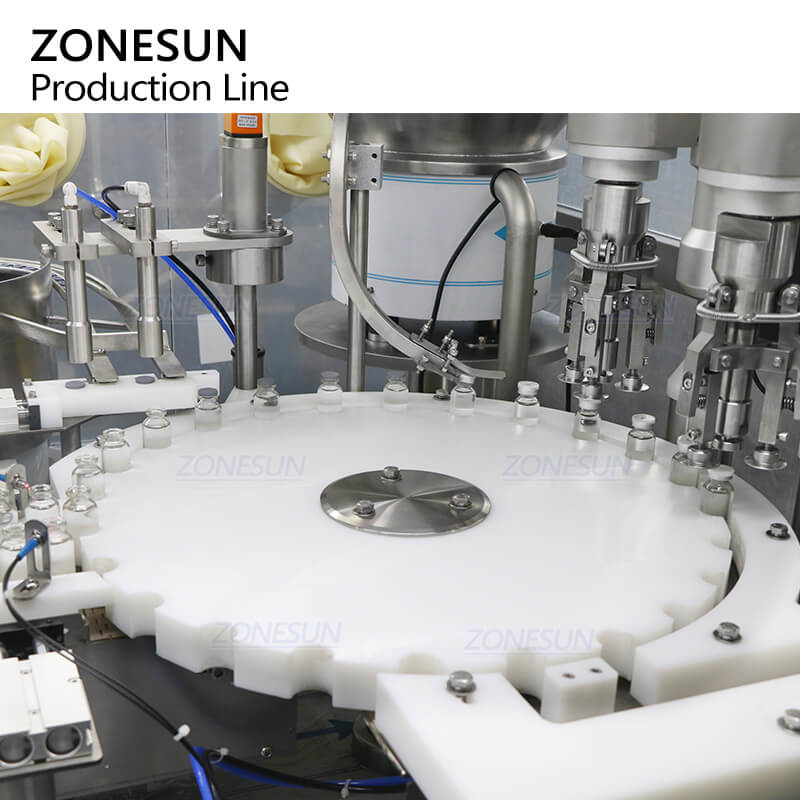

Cam Driven System
Cam mechanism coordinates all working stations (stopper insertion, stopper pressing and caps crimping) simultaneously, ensuring 60-80 BPM high working capacity.

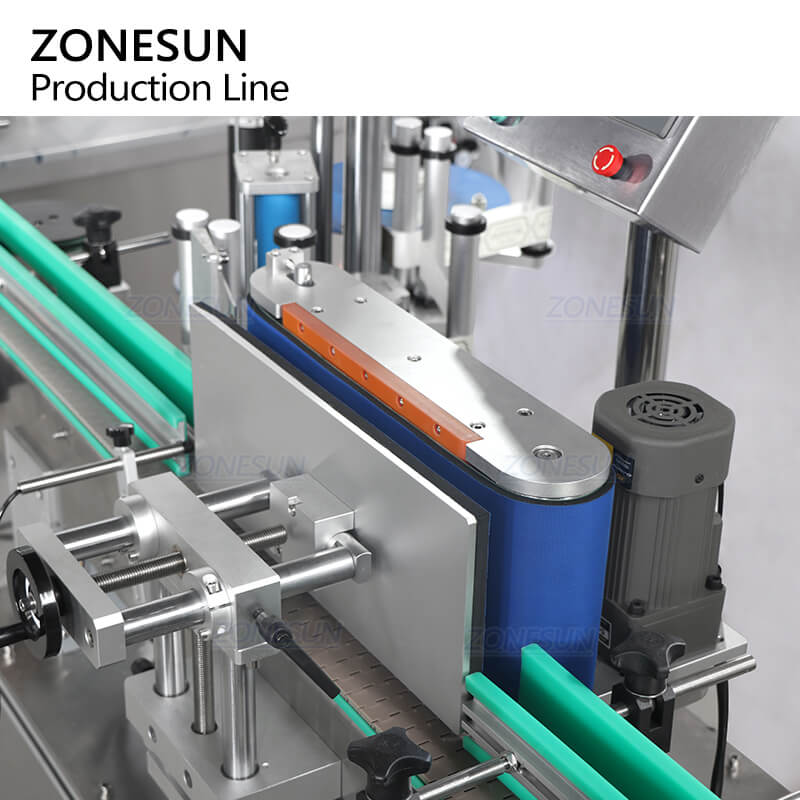

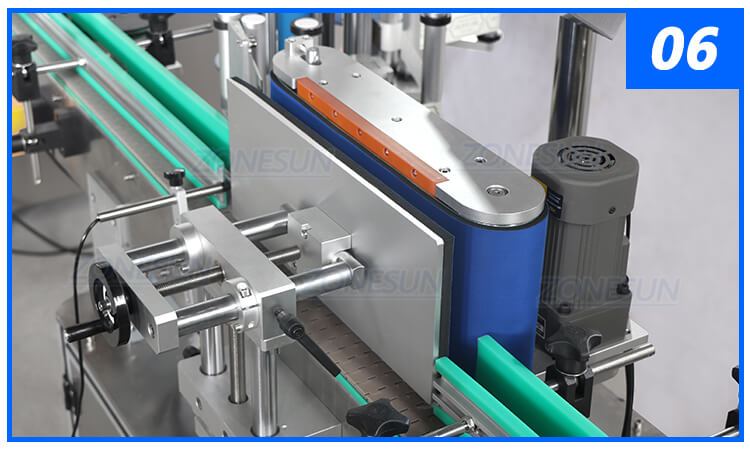

Side Belt Labeling Structure
Designed for self-adhesive sticker, it is suitable for side labeling of vials, reach high labeling accuracy and speed.

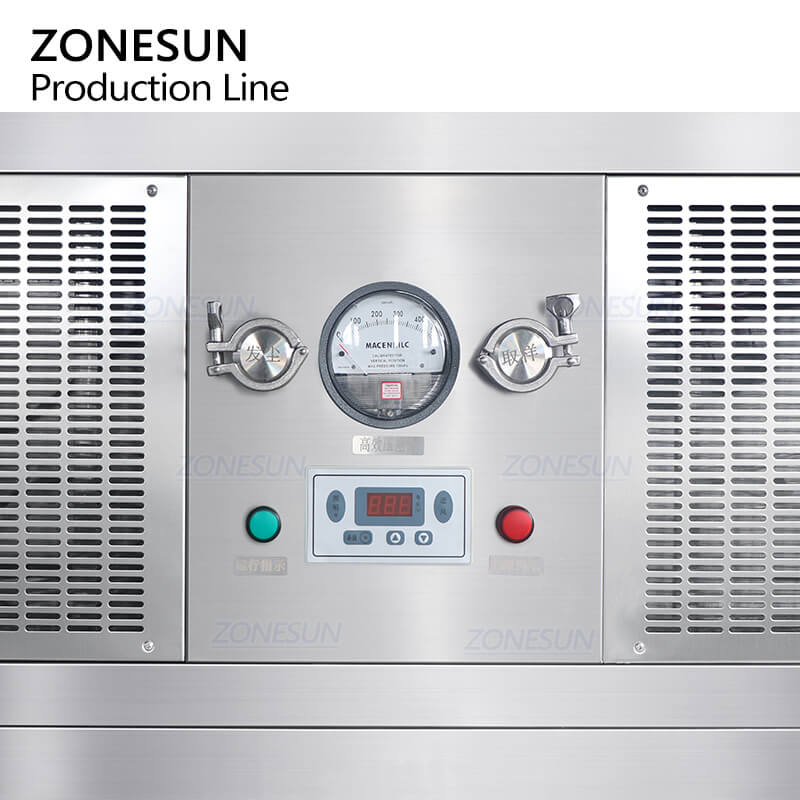

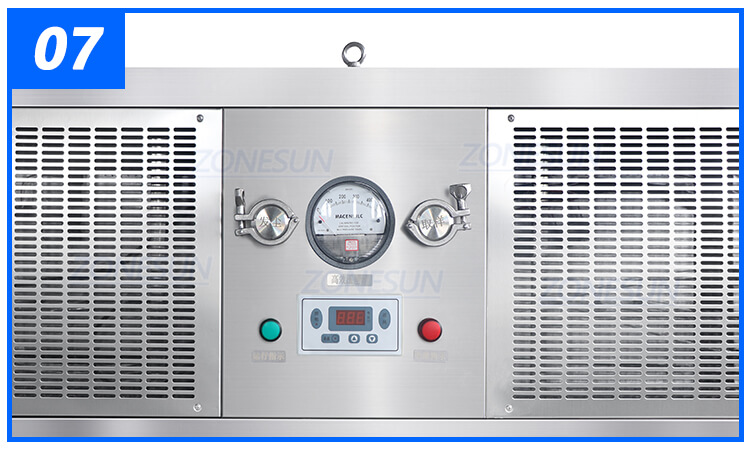

Class 100 Laminar Flow Hood
Provides localized clean air protection above the filling area, minimizing airborne particle contamination.

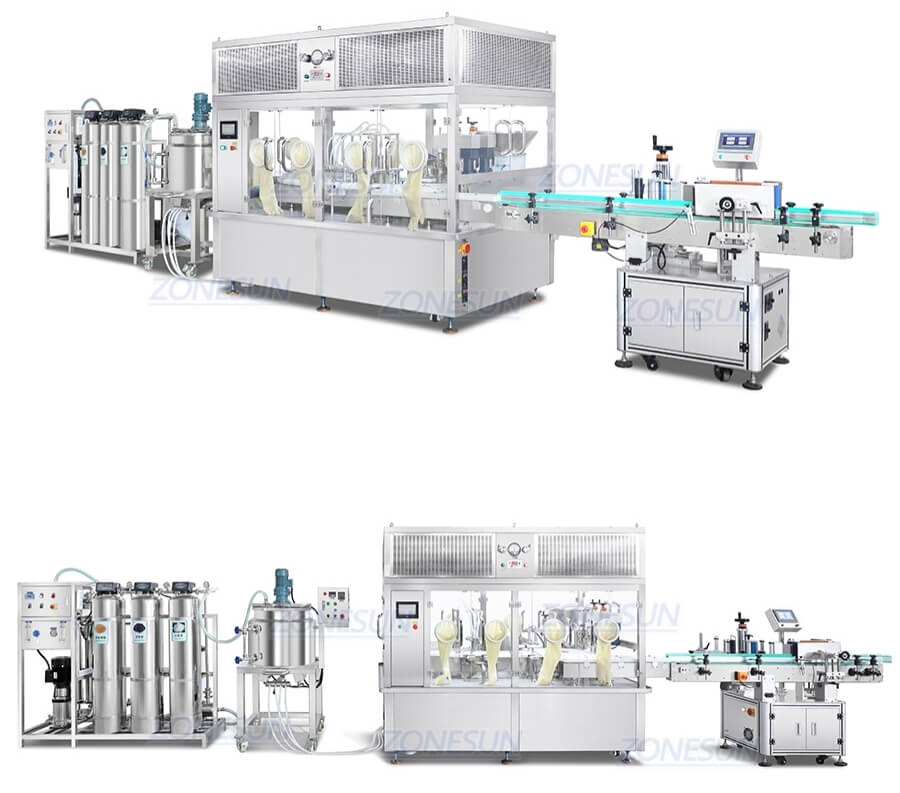

Product Real Shot
