Negative ion cleaning, it can remove and collect the dust from bottle insides.

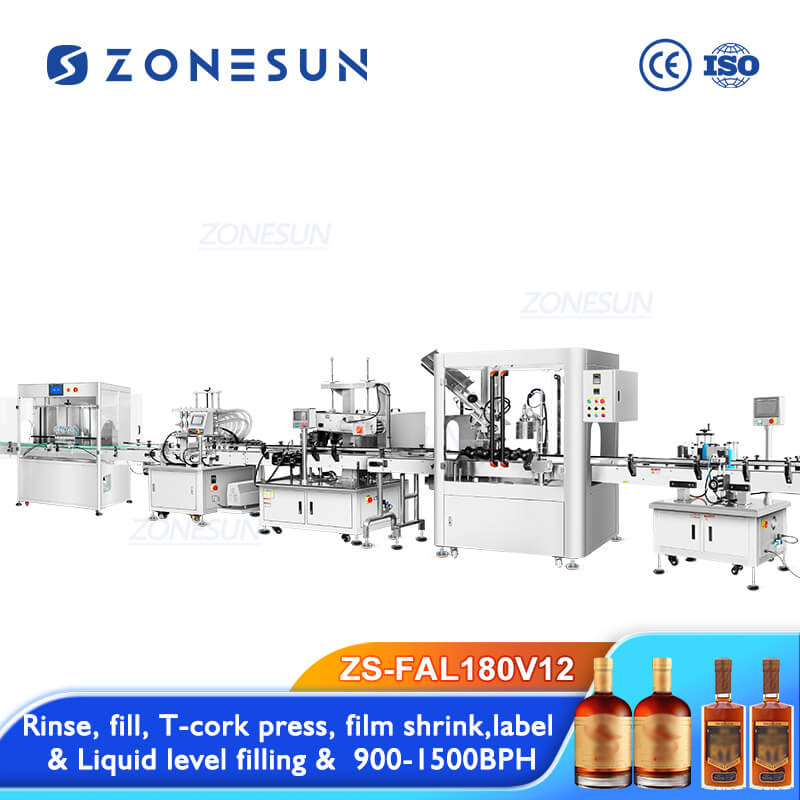

ZONESUN ZS-FAL180V12 Wine Bottles Liquid Level Overflow Bottling Line

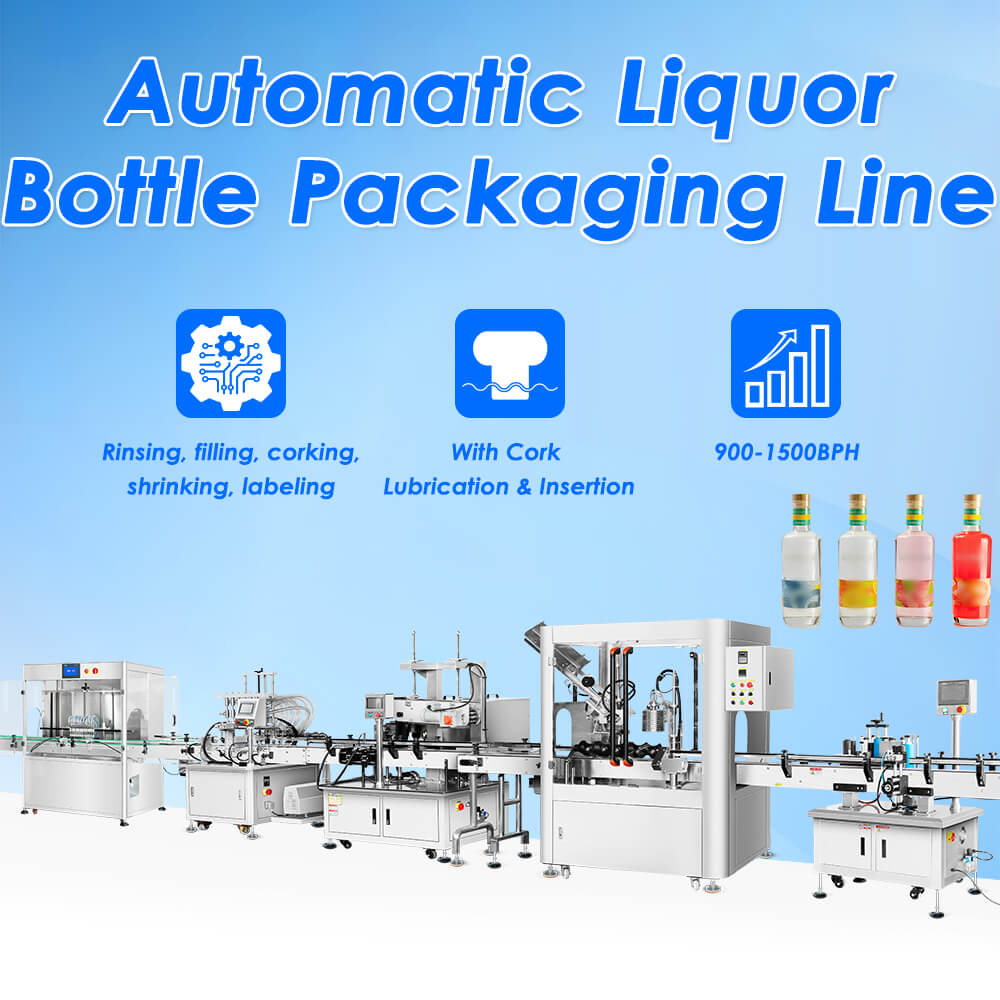

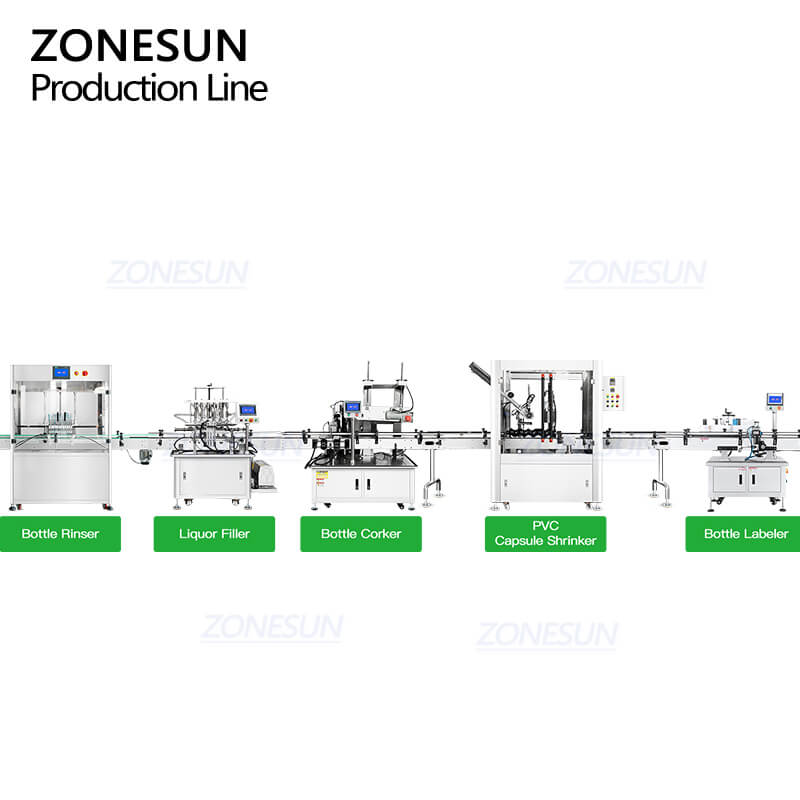

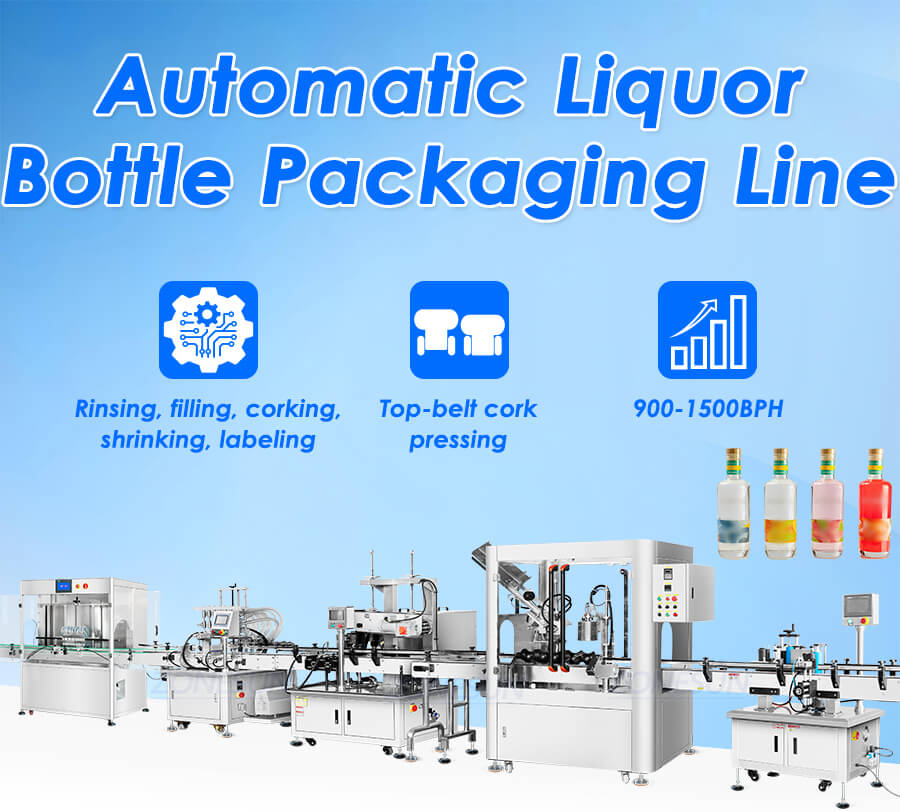

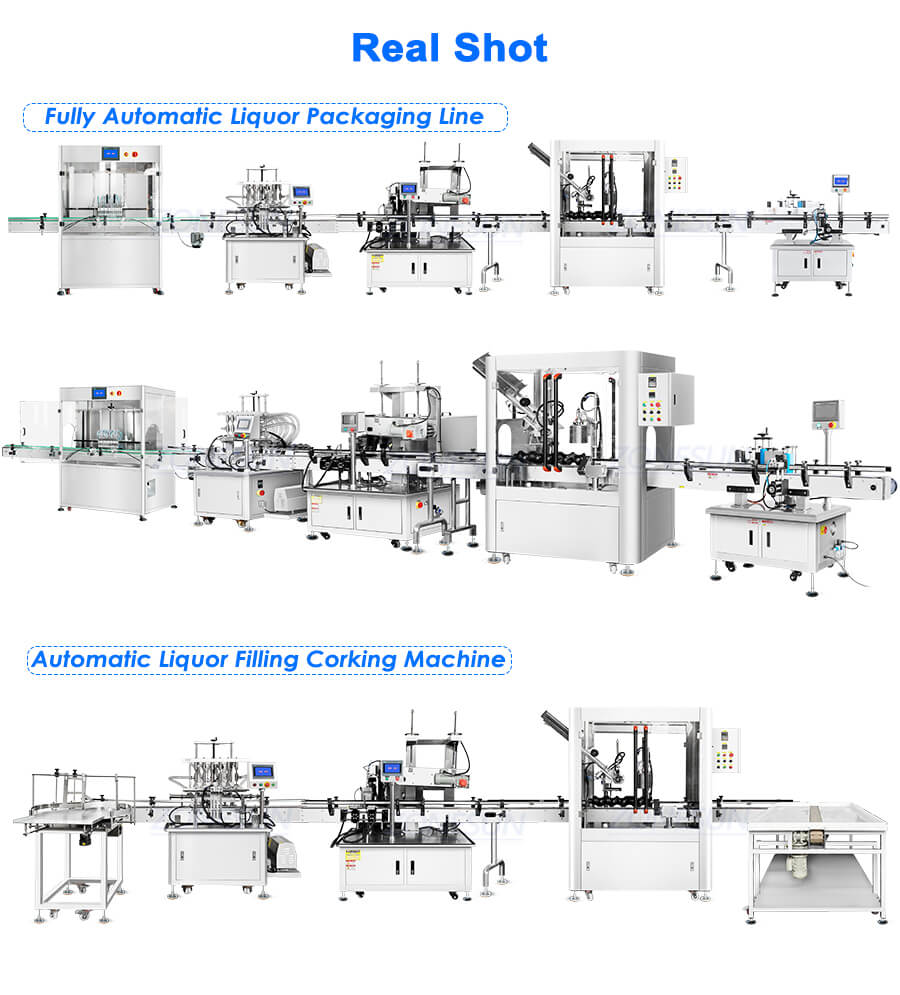

This wine bottle liquid level overflow bottling line can effectively bottle spirits, wine, and other types of liquors. This line features an automated process that incorporates different activities such as rinsing, filling, capping, shrink wrapping, and labeling of the product. It has a production capacity of 900-1500 Bottles Per Hour.
$45,899.00
Share to
Product Description:
This wine bottle liquid level overflow bottling line can effectively bottle spirits, wine, and other types of liquors. This line features an automated process that incorporates different activities such as rinsing, filling, capping, shrink wrapping, and labeling of the product. It has a production capacity of 900-1500 Bottles Per Hour.

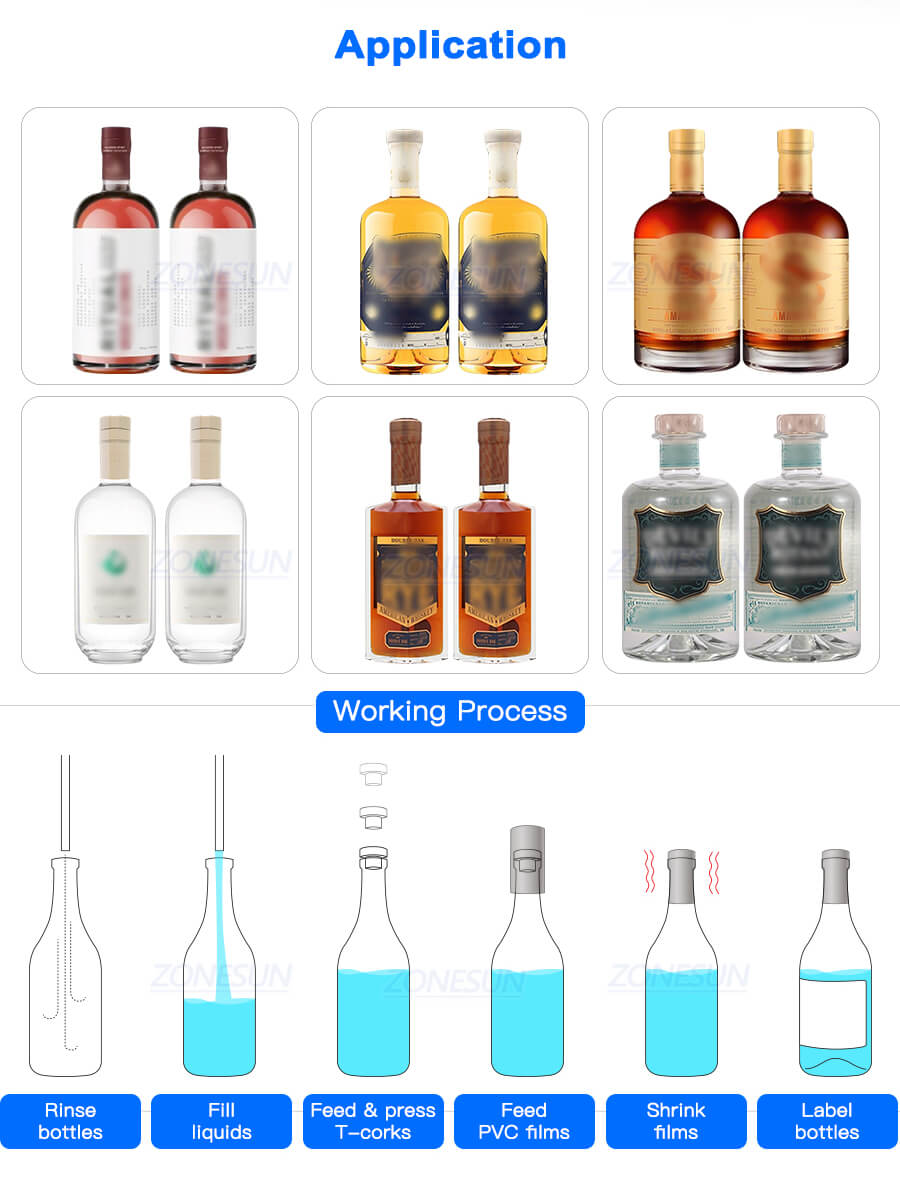

Product Application:
Product Parameters:
>Rinsing Machine
| Machine Model | ZS-NIC3 |
| Voltage | 220V/110V 50-60Hz |
| Power | About 3kW |
| Working Speed | About 40-70bottles/min(depending on bottle size) |
| Suitable Bottle Size | Can be customized |
| Machine Size | About 3000*1000*1720mm/ About 118.1*39.4*67.7 inch |
| Package Size | About 1620*1130*1920mm/ About 63.8*44.5*75.6 inch |
| Package Weight | About 373KG |

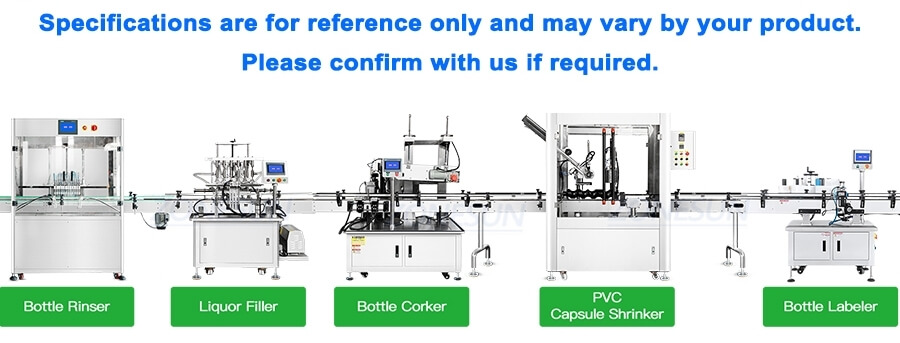

| *Specifications are for reference only and may vary by yourproduct. Please confirm with us if required. | |
>Liquid Level Filling Machine
| Machine model | ZS-VTZL100 |
| Total power | 2.5kW |
| Recommended filling volume | 100-750ml (Rigid Bottles) |
| Suitable bottle diameter | 30-110mm |
| Suitable bottle height | 100-310mm |
| Suitable bottle neck diameter | 25-40mm |
| Working speed | About 50 BPM |
| Filling accuracy | ±2ml |
| Machine size | About 1906*880*1702mm |
| *Specifications are for reference only and may vary by yourproduct. Please confirm with us if required. | |
>T-shape Corking Machine
| Machine model | ZS-XG21U |
| Machine voltage | 110/220/380V 50-60HZ |
| Machine power | 3 KW |
| Suitable cap size | Customziable |
| Suitable bottle size | H≤300mm (Customizable) |
| Working capacity | About 900-1500 BPH |
| Machine size | About 3000*1500*2500(L*W*H) |
| Package size | About 2070*1130*2030mm(Main Machine)+1430*910*950mm (Vibratory Bowl Sorter) |
| Package weight | About 162+414kg=576kg |
| *Specifications are for reference only and may vary by yourproduct. Please confirm with us if required. | |
>PVC Film Shrinking Machine
| Machine Model | ZS-SXRS1 |
| Power Supply | 110/220/380V 50-60HZ 4KW |
| Bottle Height | 180-350mm |
| Wine Capsule Size | L=30-70mm D=30-50mm |
| Bottle Diameter | 60-100mm |
| Working Capacity | 2000BPH |
| Suitable Material | PVC |
| Temperature Range | 0-300℃ |
| Size Of Air Compressor Connector | OD 8mm |
| Machine Size | About 2190*950*1860mm |
| Package Size | About 1850*1120*2180mm |
| Package Weight | About 483kg |
| *Specifications are for reference only and may vary by yourproduct. Please confirm with us if required. | |
>Labeling Machine
| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000 W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0 mm |
| Suitable Bottle Size | Φ=30-100 mm H=30-200mm |
| Label size(mm) | (L)20-300 mm* (H)12-130 mm
(Can be customized) |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W) 890*(H)1520(mm) |
| Package weight | About 250 kg |
Product Details:
12 Washing Heads

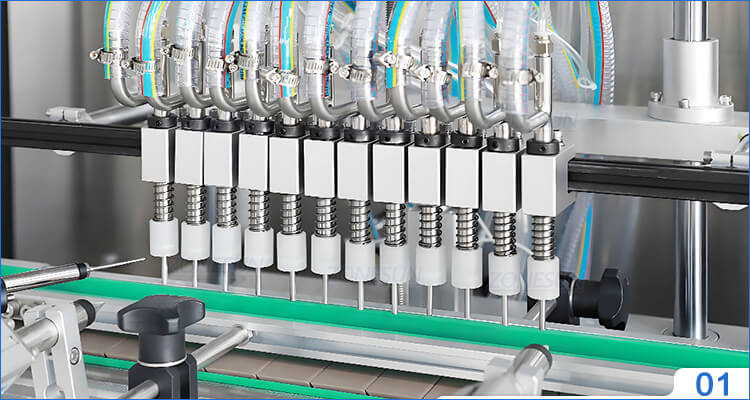

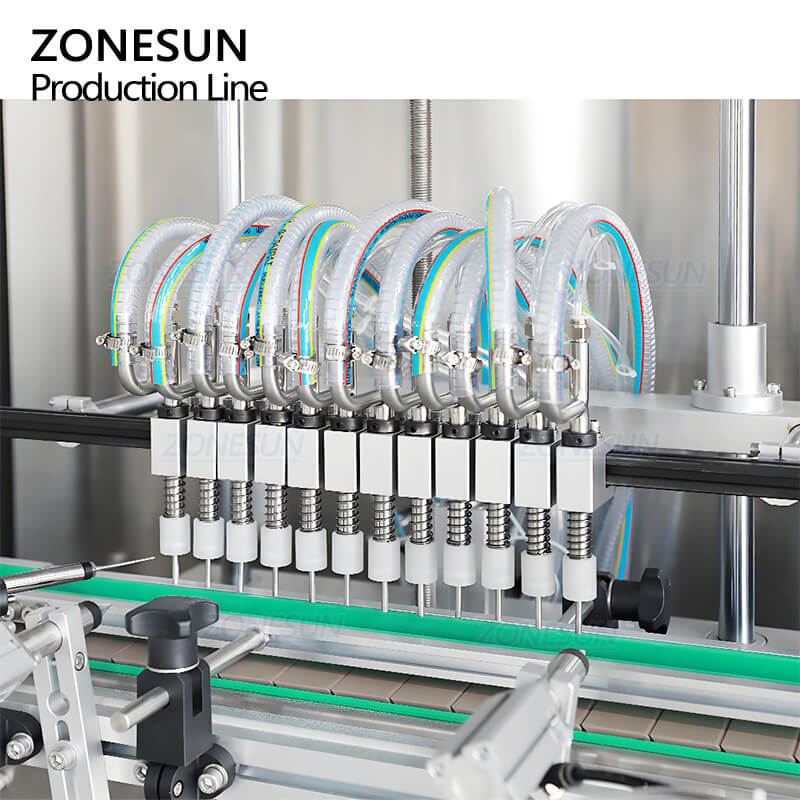

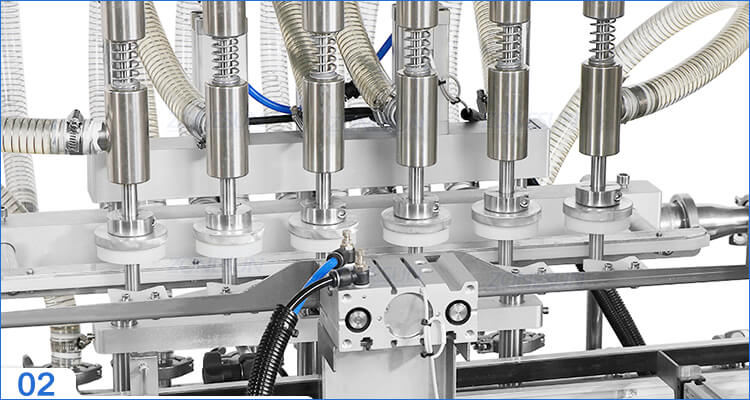

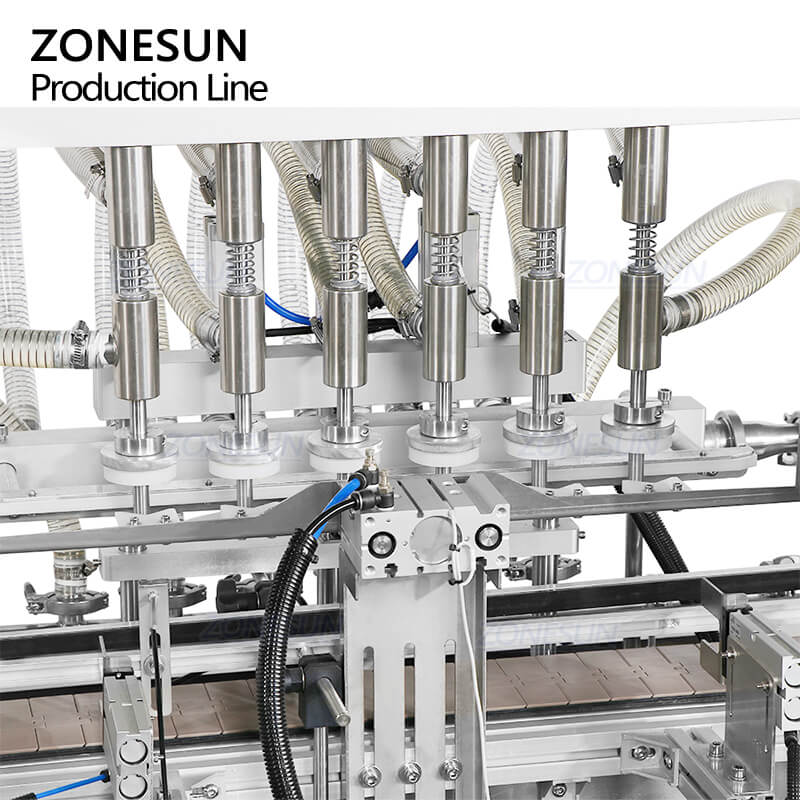

Backflow Filling Nozzles
Allow for consistent liquid level. Multi filling nozzles are customizable.

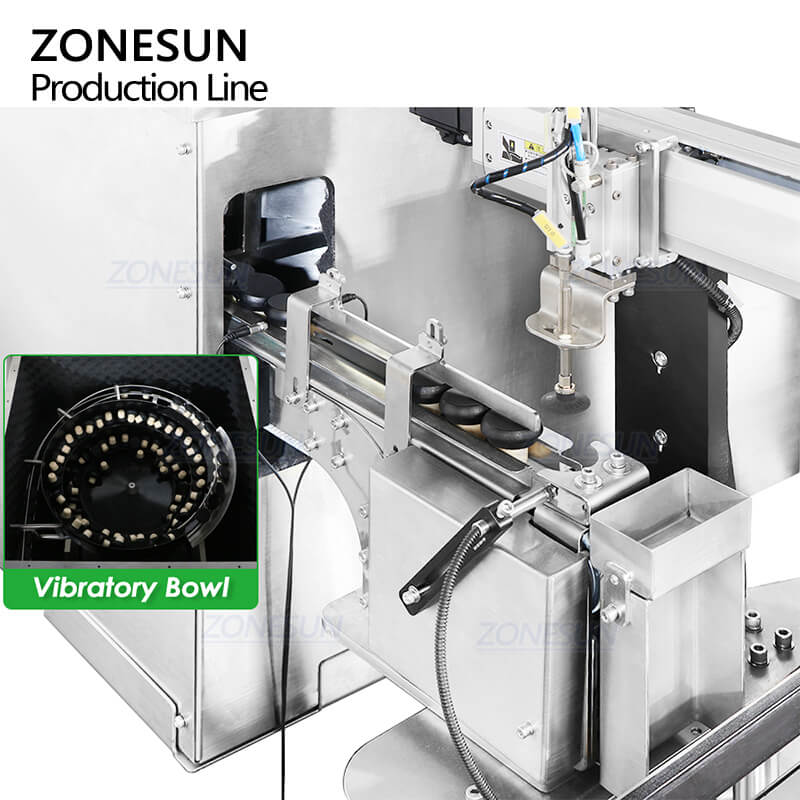

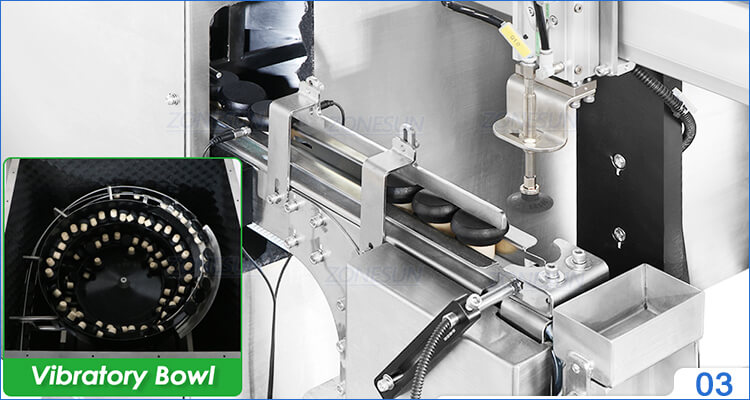

Vacuum Pick-and-Place Feeding System
Accurately transfers T-bar stoppers to the bottleneck, lubricated cork insertion unit reduces friction during pressing.

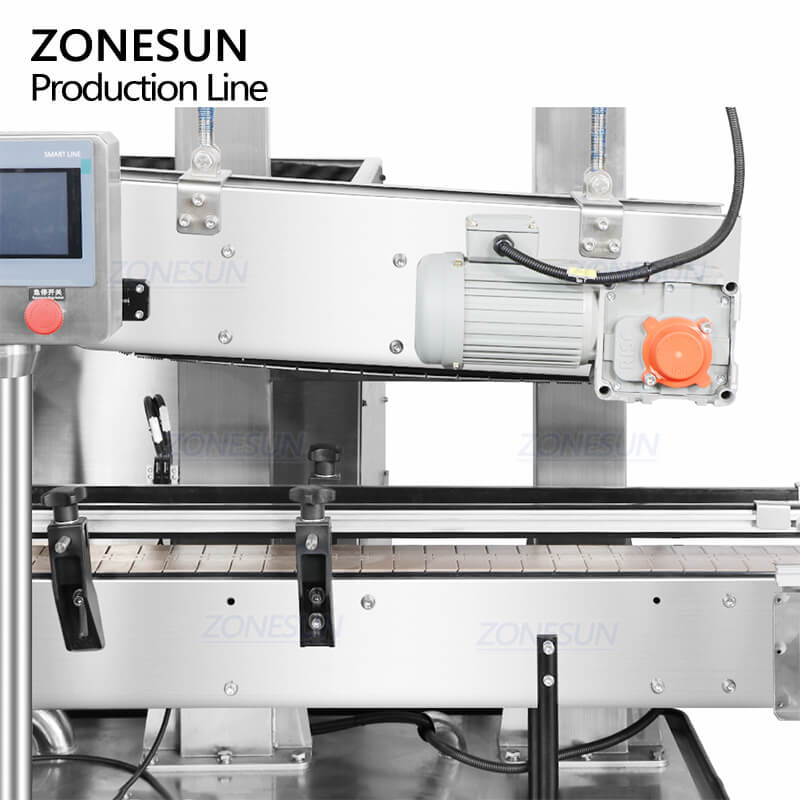

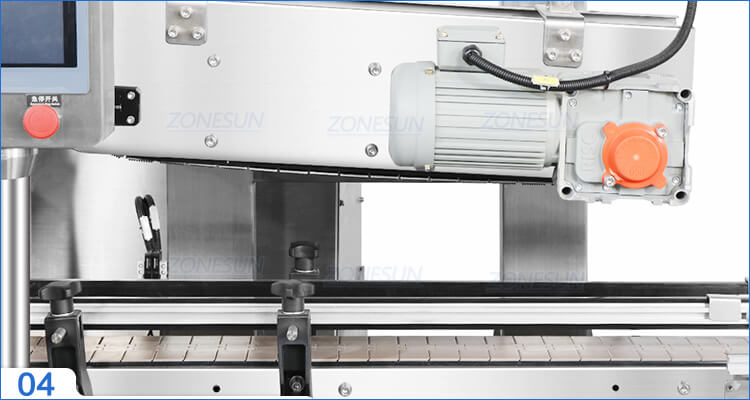

Top Belt Pressing Mechanism
Applies uniform pressure to ensure consistent and reliable cork insertion.

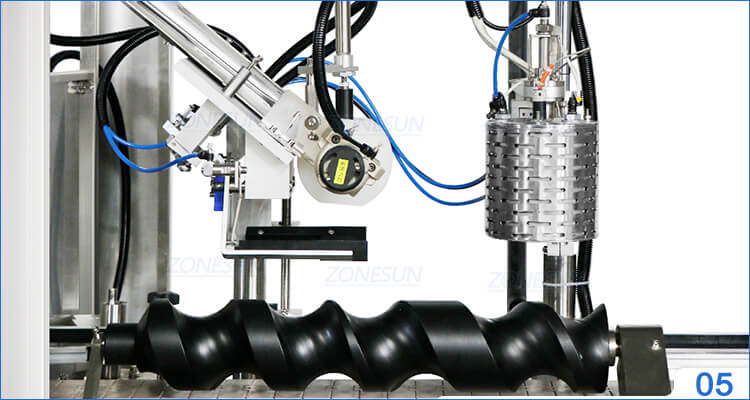

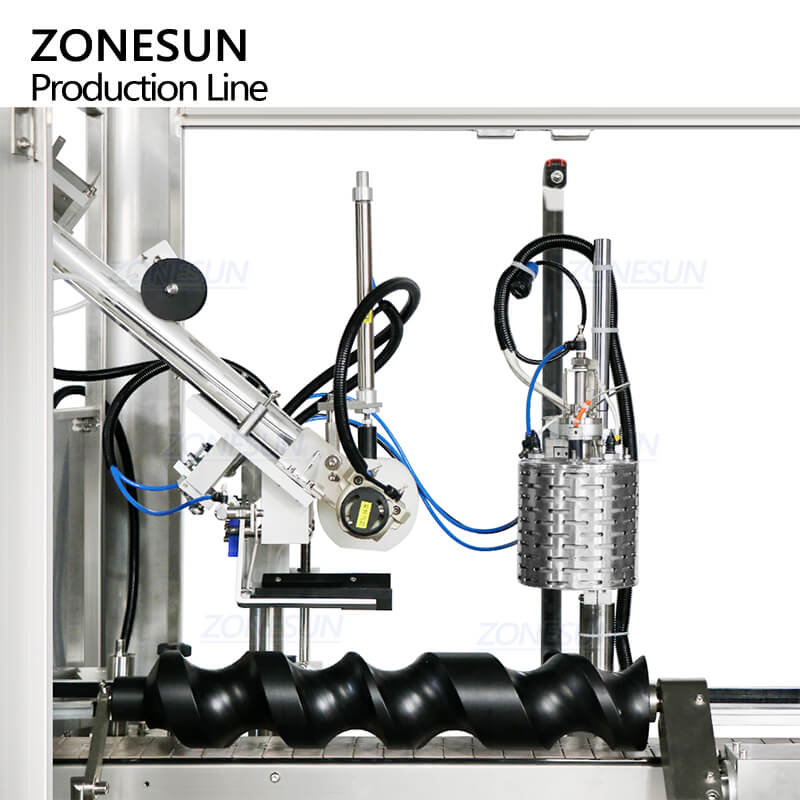

Film Sleeving & Shrinking Structure
Feed and shrink PVC capsules at one machine, saving working space.

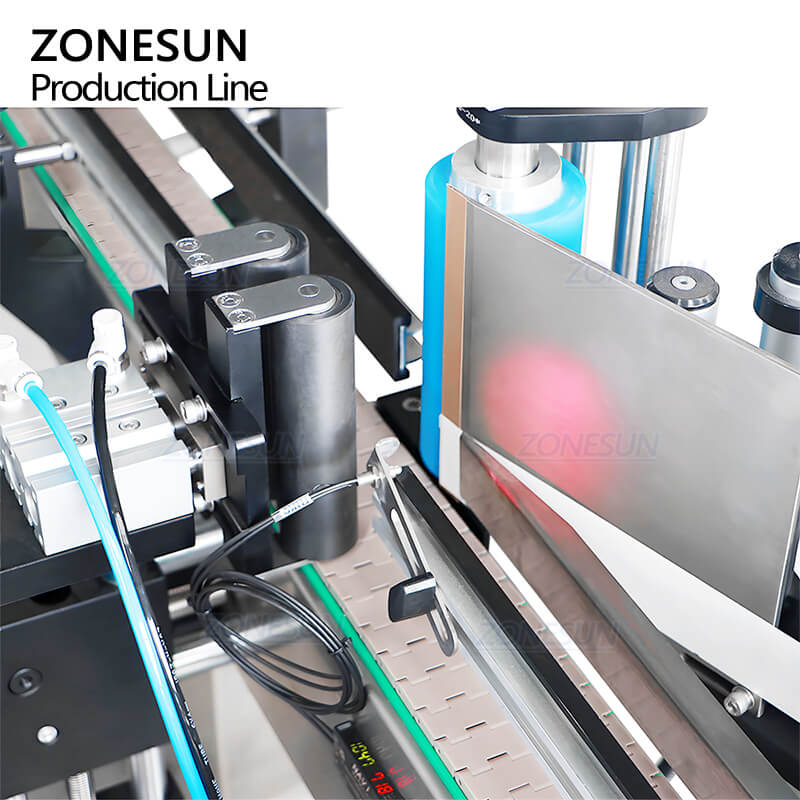

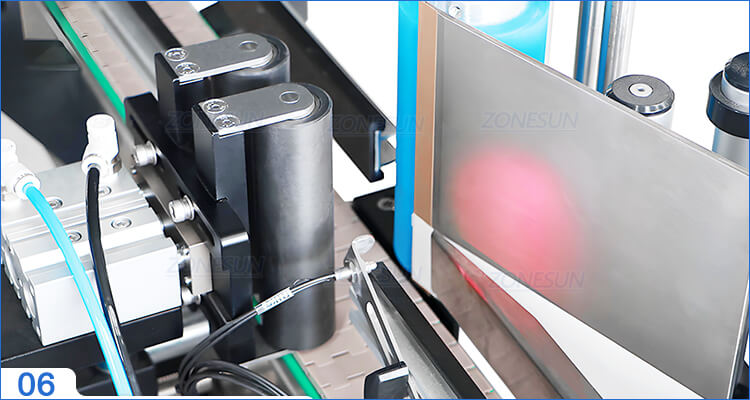

Labeling Structure
Use three rollers to stick labels on bottles,it suits single side, double sides and wrap-around labeling.
