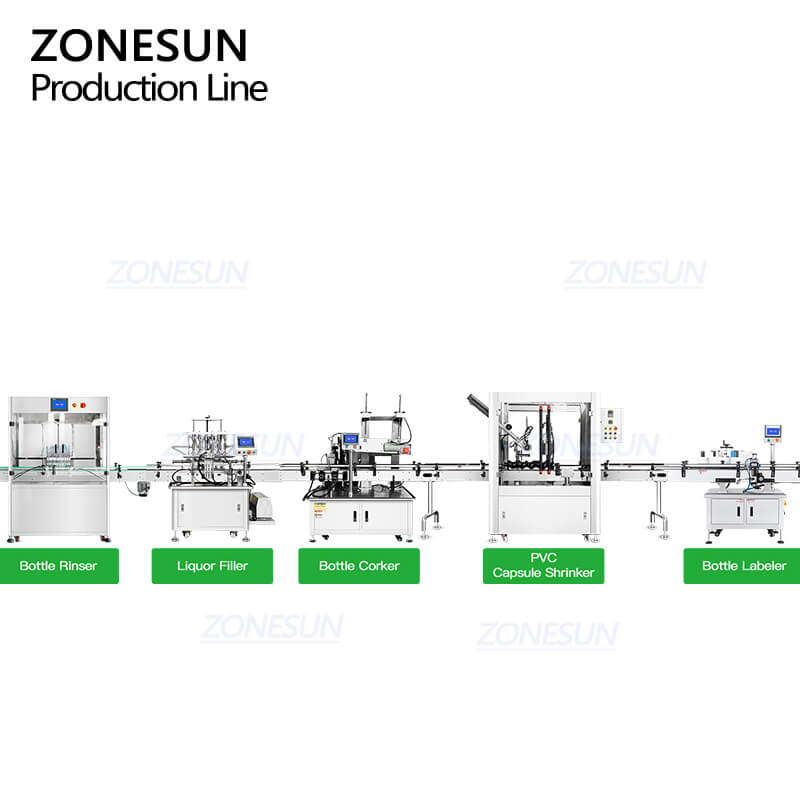

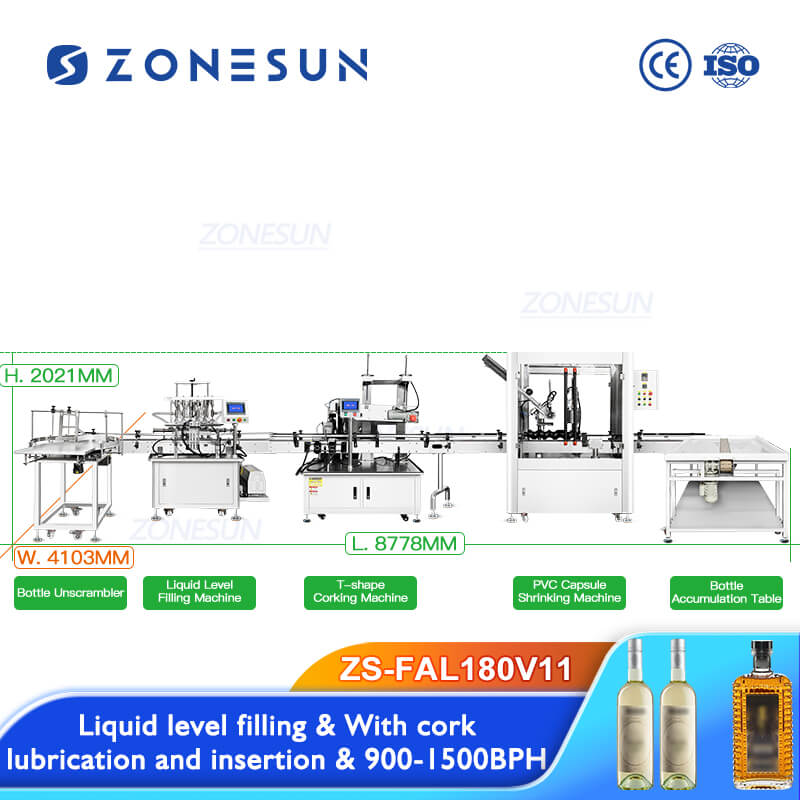

ZONESUN ZS-FAL180V11 Wine Bottles Liquid Level Overflow Bottling Line

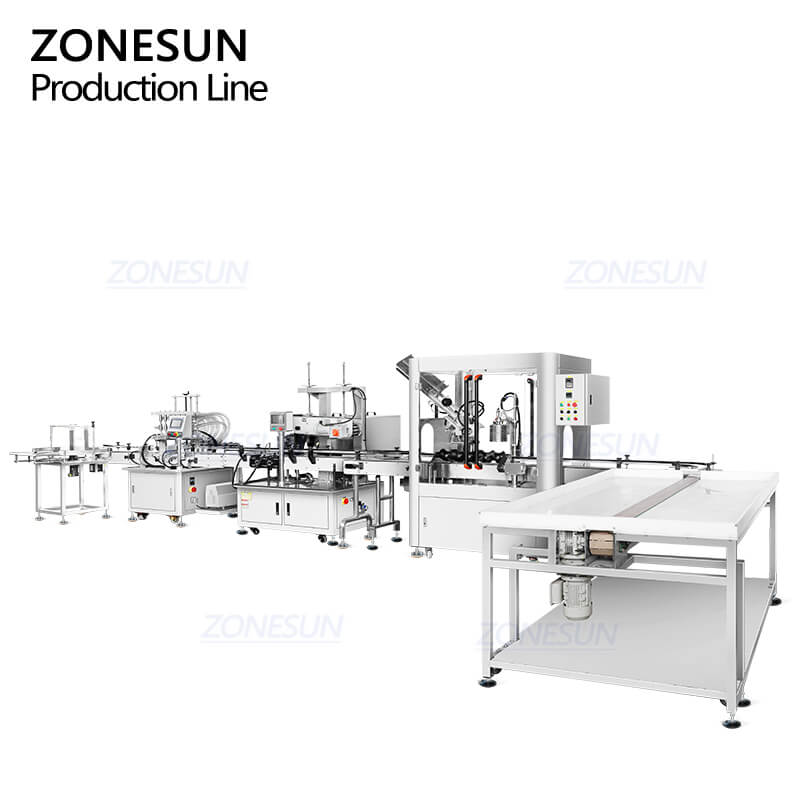

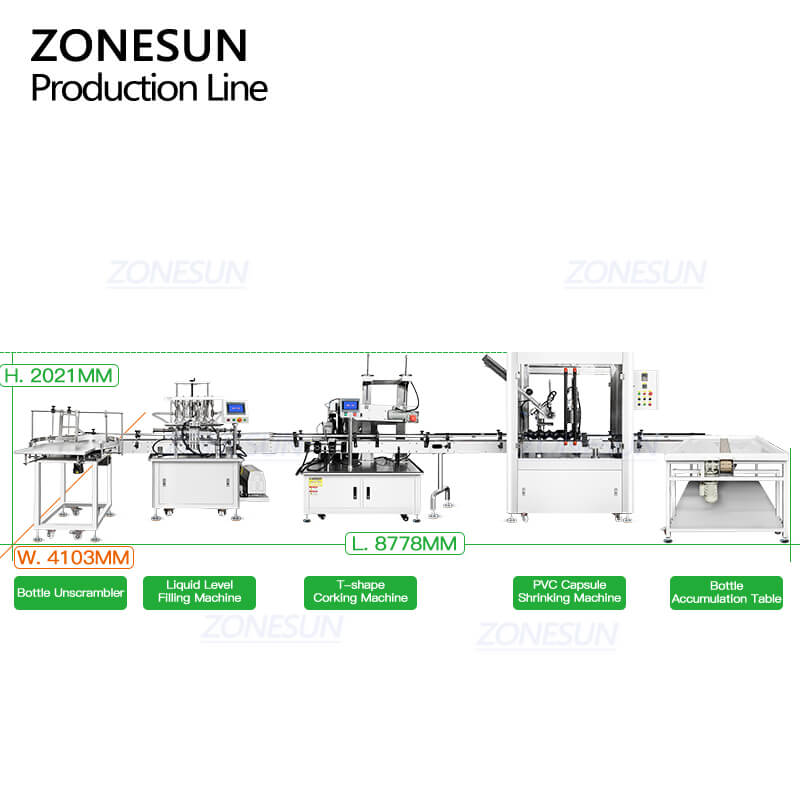

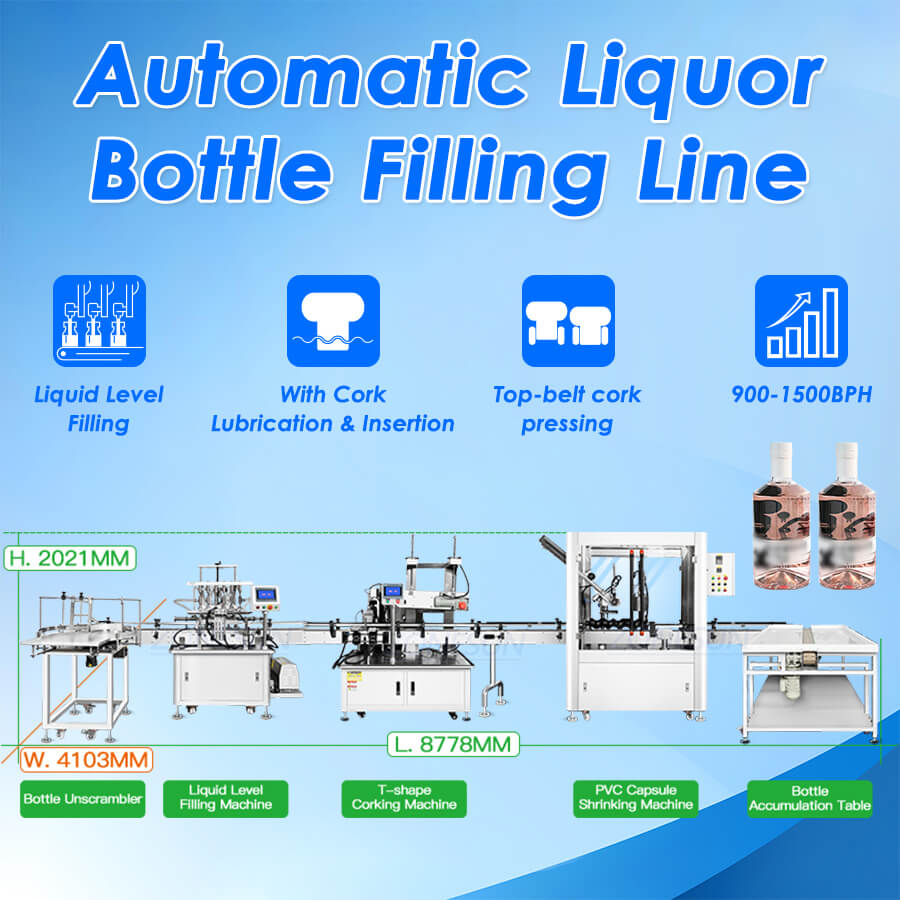

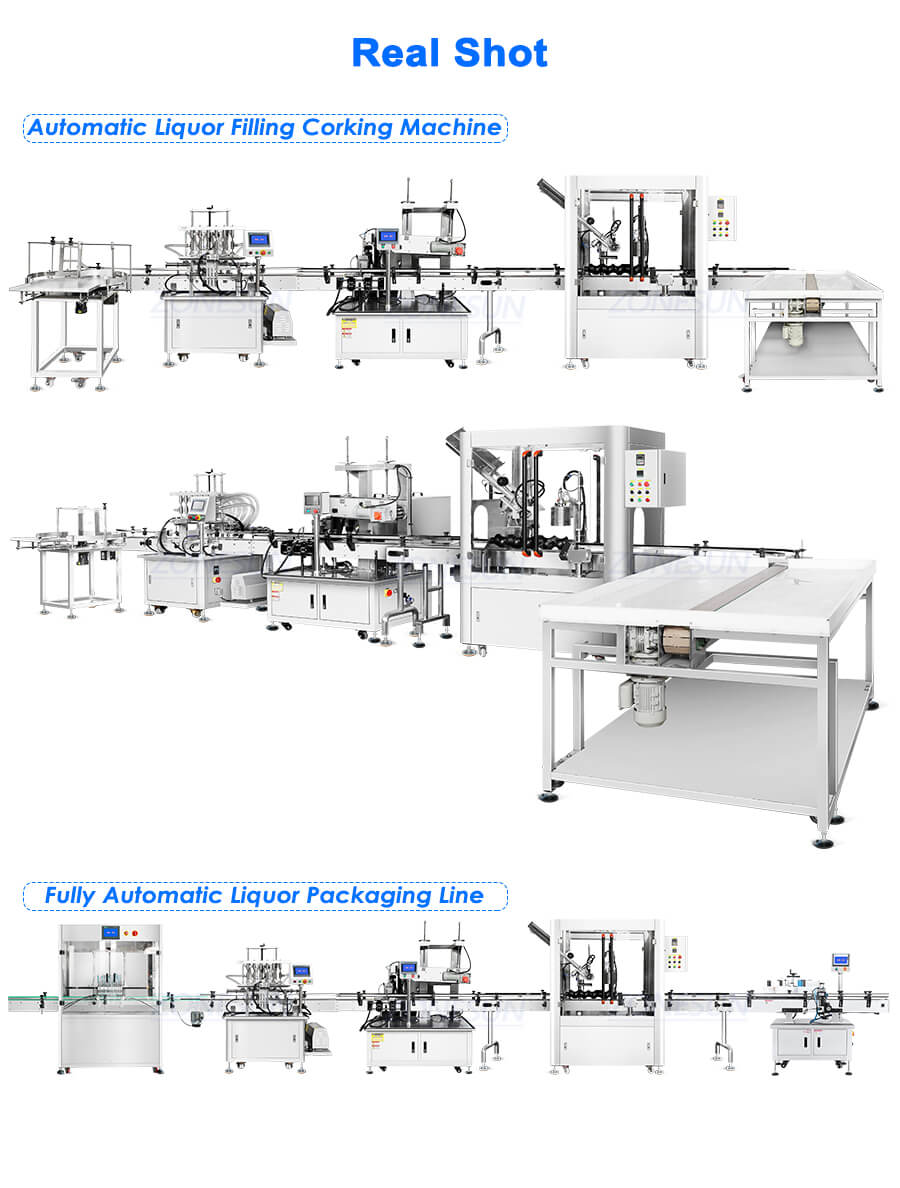

Automatic wine bottle filling line is a complete turnkey solution designed for medium-scale production of liquor, spirits, wine, and other alcoholic beverages. Engineered for precision and reliability, the production line delivers consistent filling, corking, and sealing with minimal operator intervention.
$30,999.00
Share to
Product Description:
Automatic wine bottle filling line is a complete turnkey solution designed for medium-scale production of liquor, spirits, wine, and other alcoholic beverages. Engineered for precision and reliability, the production line delivers consistent filling, corking, and sealing with minimal operator intervention.

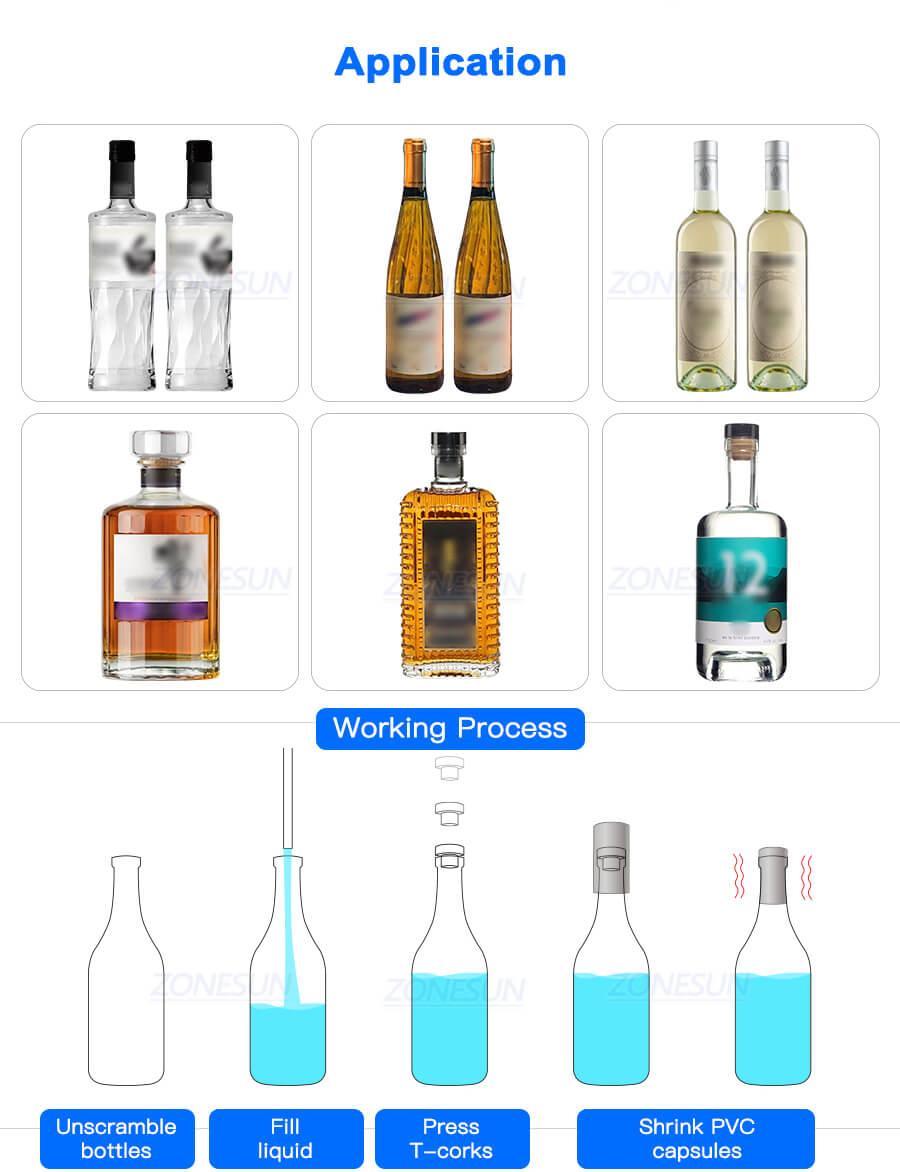

Product Application:
Product Parameters:

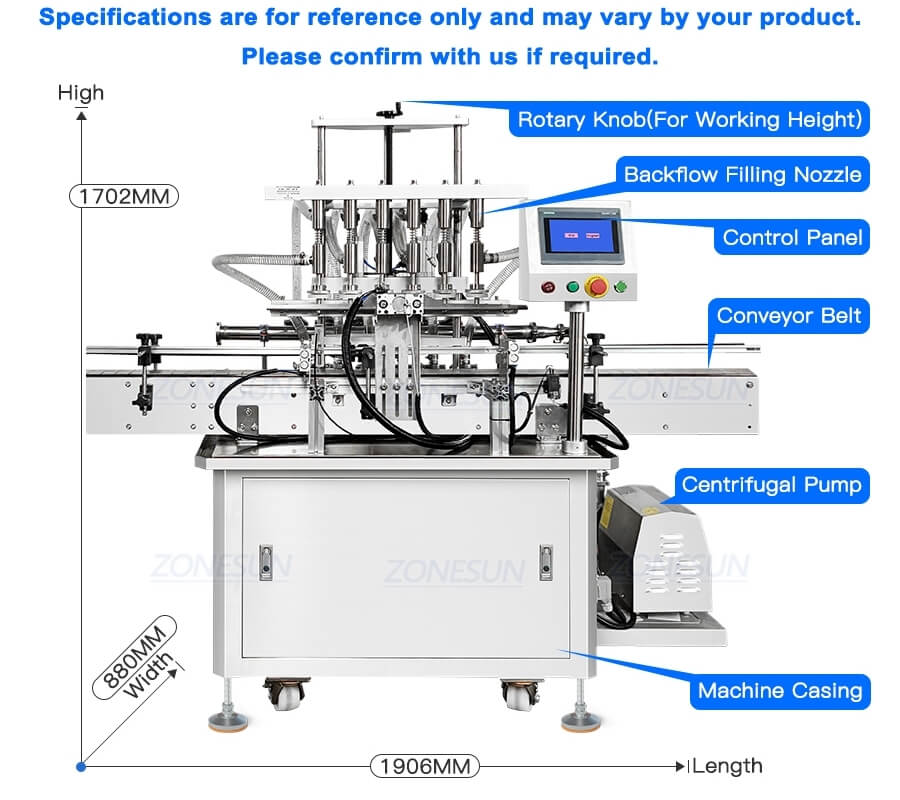

>Liquid Level Filling Machine
| Machine model | ZS-VTZL100 |
| Total power | 2.5kW |
| Recommended filling volume | 100-750ml (Rigid Bottles) |
| Suitable bottle diameter | 30-110mm |
| Suitable bottle height | 100-310mm |
| Suitable bottle neck diameter | 25-40mm |
| Working speed | About 50 BPM |
| Filling accuracy | ±2ml |
| Machine size | About 1906*880*1702mm |

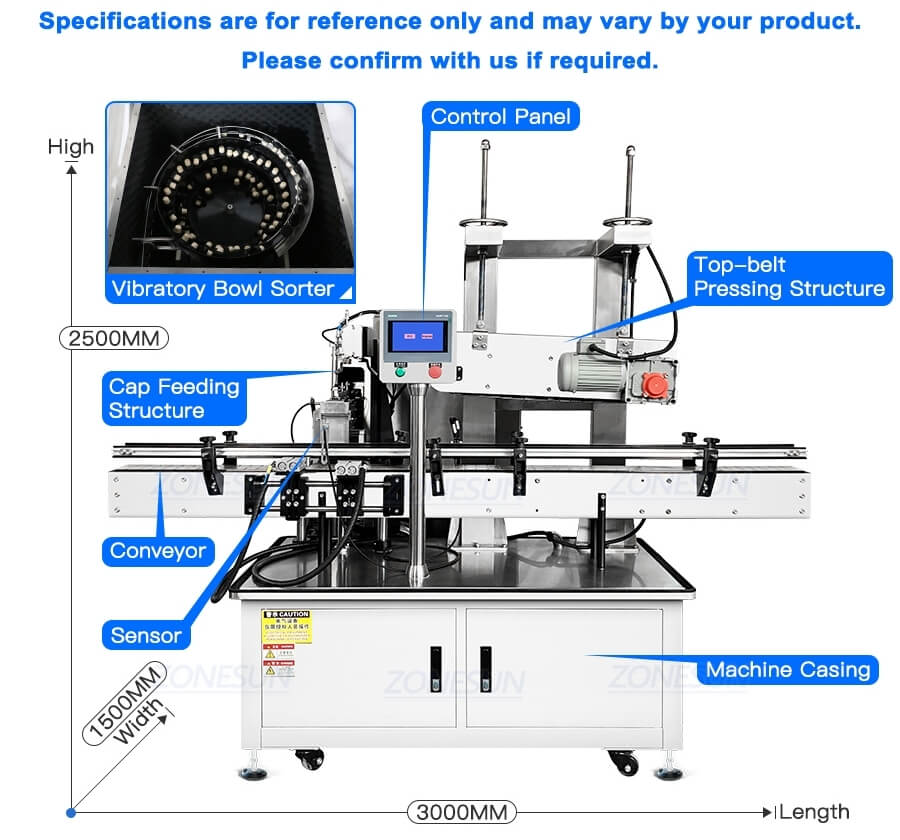

>T-shape Corking Machine
| Machine model | ZS-XG21U |
| Machine voltage | 110/220/380V 50-60HZ |
| Machine power | 3 KW |
| Suitable cap size | Customziable |
| Suitable bottle size | H≤300mm (Customizable) |
| Working capacity | About 900-1500 BPH |
| Machine size | About 3000*1500*2500(L*W*H) |
| Package size | About 2070*1130*2030mm(Main Machine)+1430*910*950mm (Vibratory Bowl Sorter) |
| Package weight | About 162+414kg=576kg |
>PVC Capsule Shrinking Machine
| Machine Model | ZS-SXRS1 |
| Power Supply | 110/220/380V 50-60HZ 4KW |
| Bottle Height | 180-350mm |
| Wine Capsule Size | L=30-70mm D=30-50mm |
| Bottle Diameter | 60-100mm |
| Working Capacity | 2000BPH |
| Suitable Material | PVC |
| Temperature Range | 0-300℃ |
| Size Of Air Compressor Connector | OD 8mm |
| Machine Size | About 2190*950*1860mm |
| Package Size | About 1850*1120*2180mm |
| Package Weight | About 483kg |
Product Details:

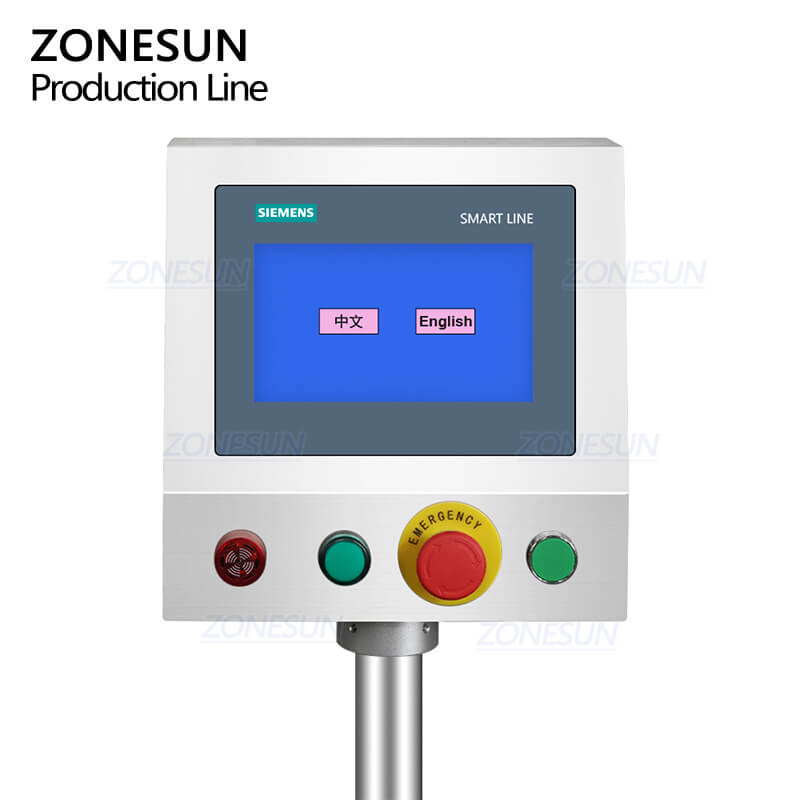

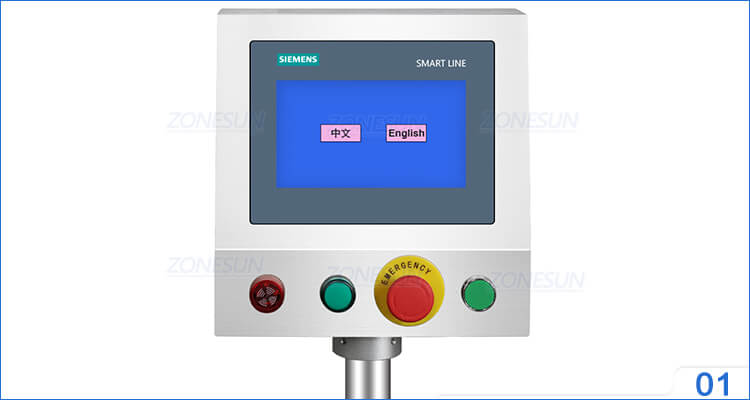

Control Panel
Using branding components to ensure safety operation, parameter setting more intuitively.

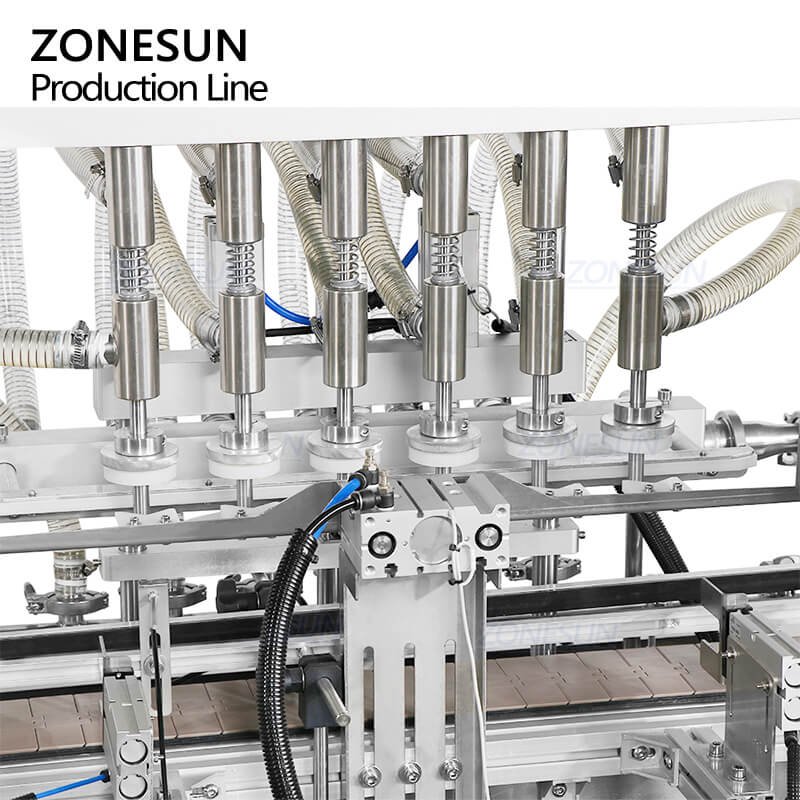

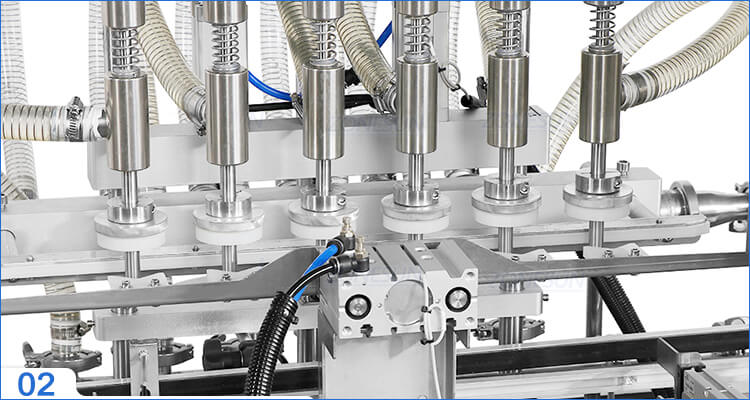

Backflow Filling Nozzles
Allow for consistent liquid level. Centrifugal pump can pump low-viscosity fluids efficiently.

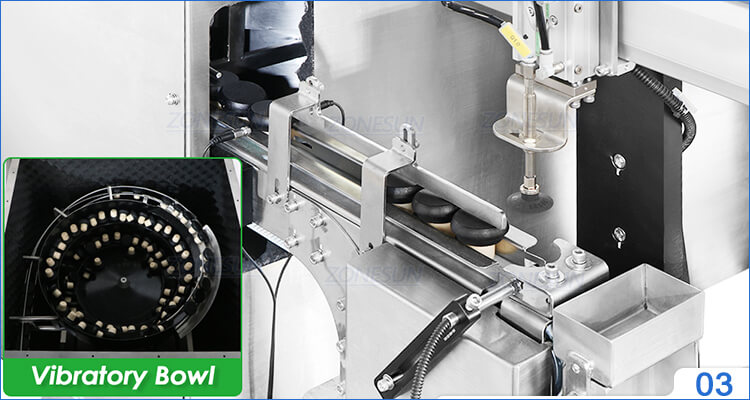

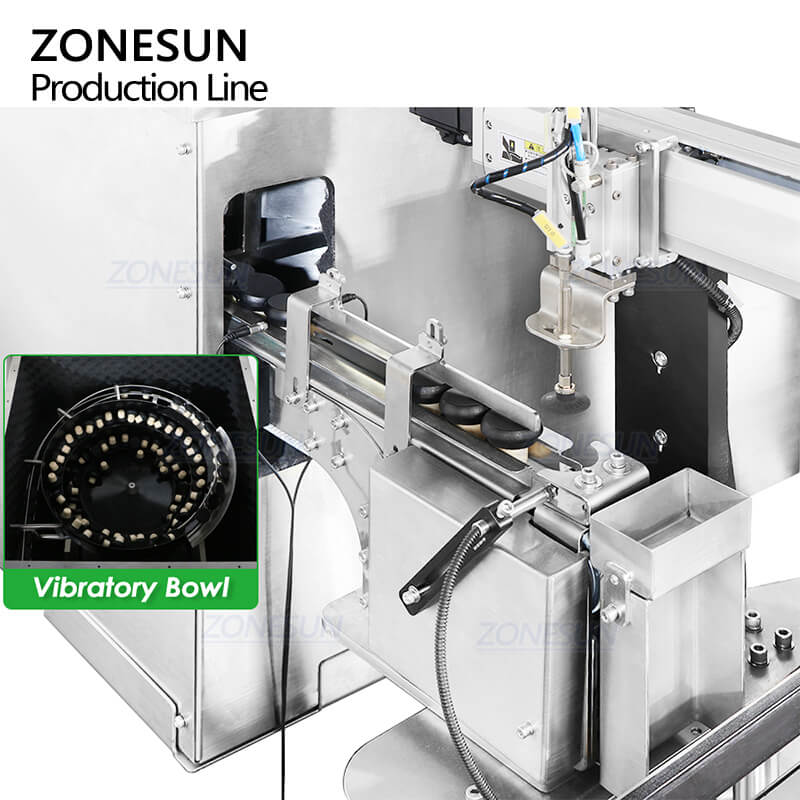

Vacuum Pick-and-Place Feeding System
Accurately transfers T-bar stoppers to the bottleneck, lubricated cork insertion unit reduces friction during pressing.

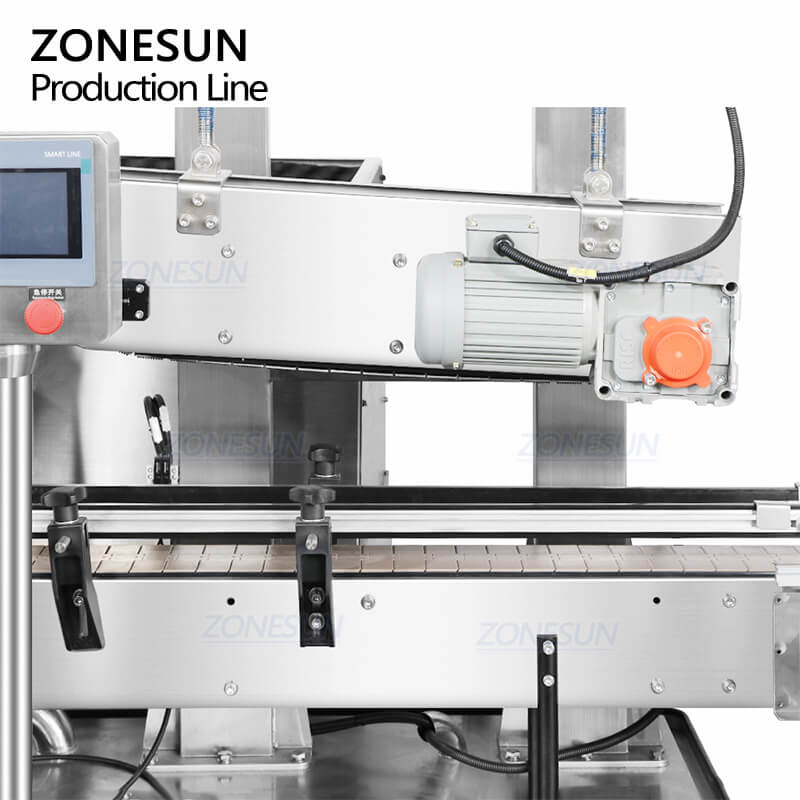

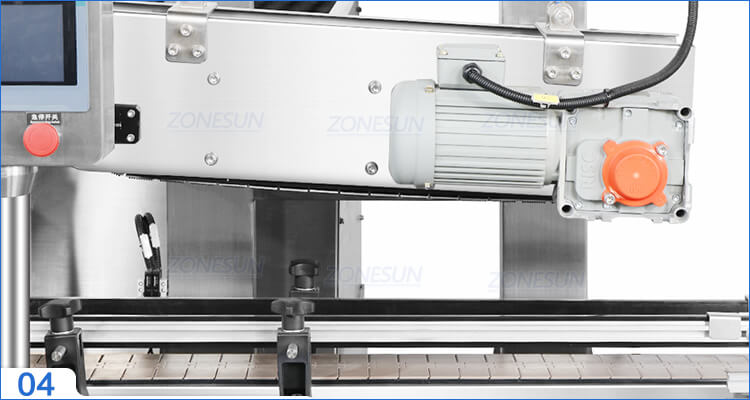

Top Belt Pressing Mechanism
Applies uniform pressure to ensure consistent and reliable cork insertion.

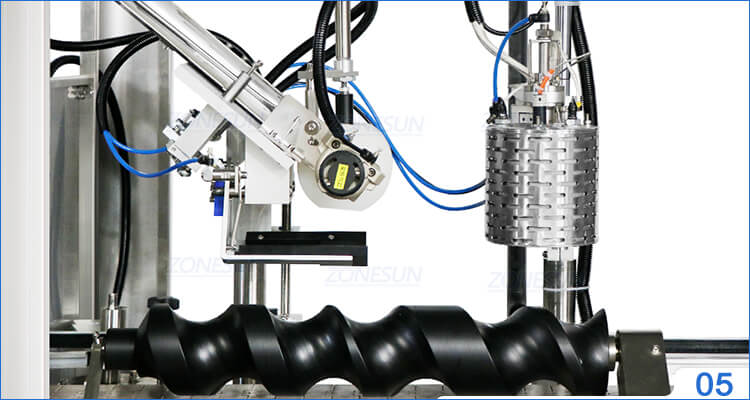

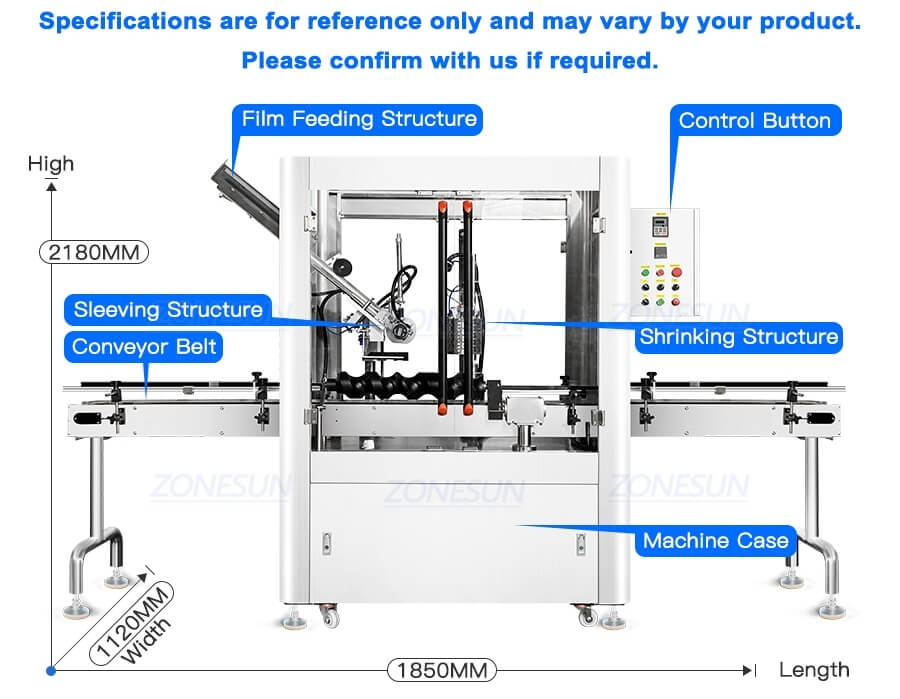

Film Sleeving & Shrinking Structure
Feed and shrink PVC capsules at one machine, saving working space.

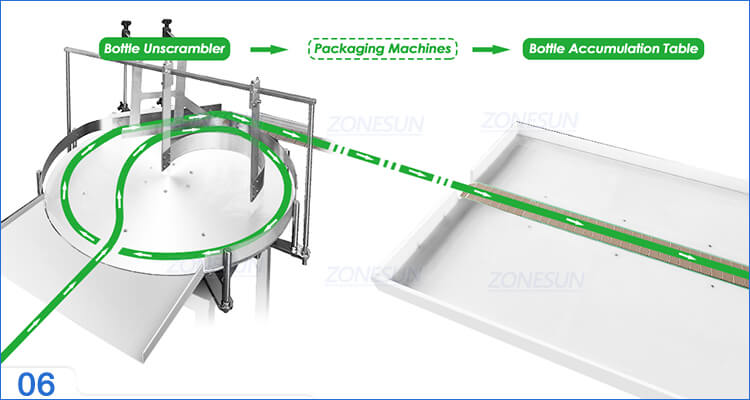

Bottle Sorting Structure
Size of sorting machines is customizable based on production need.
