ZONESUN ZS-FAL180V10 Servo Bottle Paste Syrup Bottling Line

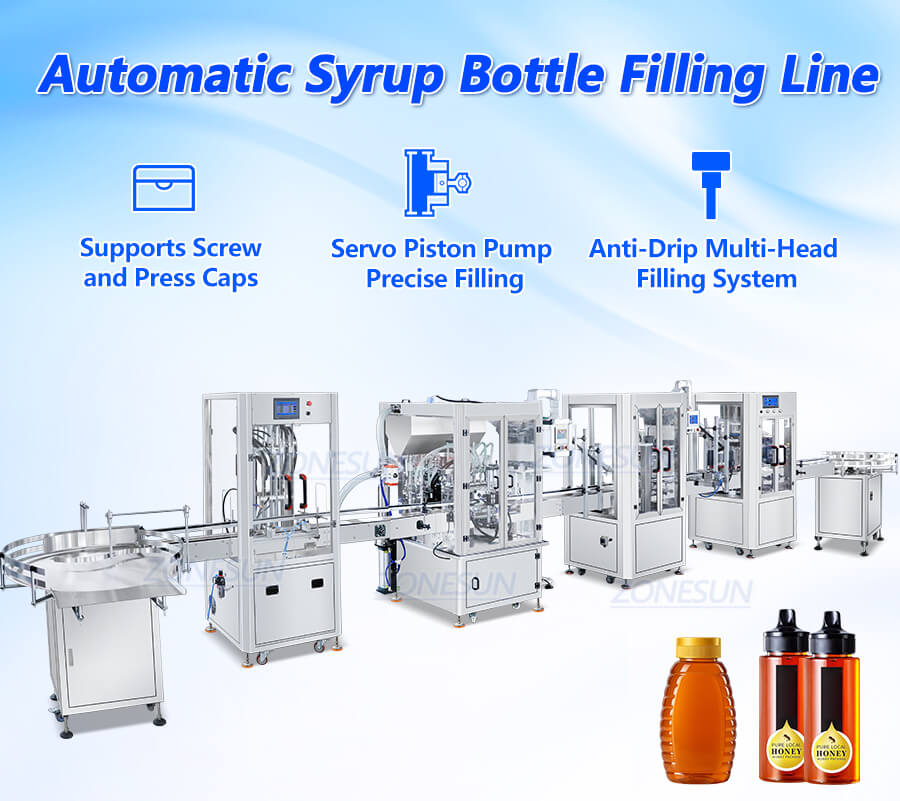

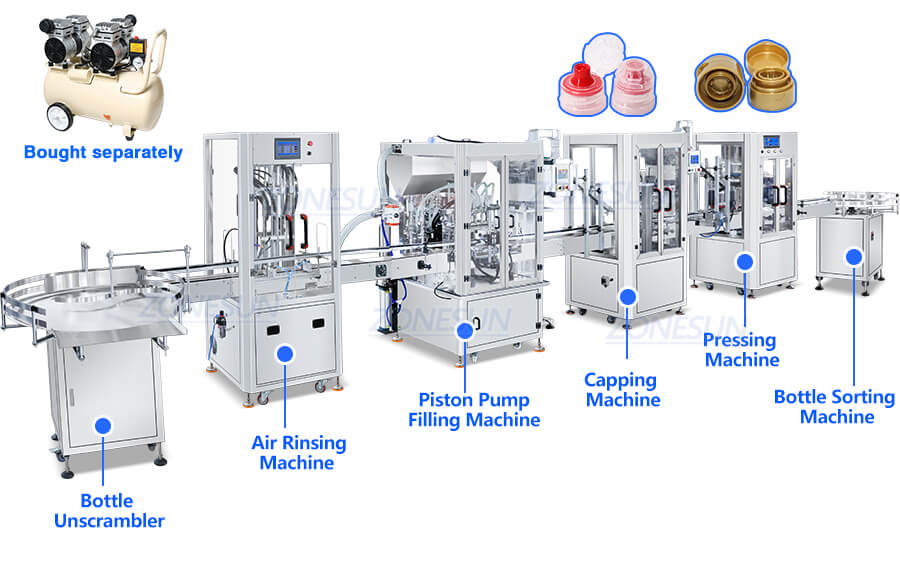

The syrup filling line is designed for automatic packaging of paste syrup products in bottles with different cap types. This syrup filling line integrates bottle unscrambling, air rinsing, filling, capping, pressing, and bottle collection into one complete system. It adopts a servo piston pump filling system with anti-drip nozzles to ensure accurate and clean filling. All product-contact parts are made of food-grade SUS304 stainless steel.
$30,199.00
Share to
Product Description
The syrup filling line is designed for automatic packaging of paste syrup products in bottles with different cap types. This syrup filling line integrates bottle unscrambling, air rinsing, filling, capping, pressing, and bottle collection into one complete system. It adopts a servo piston pump filling system with anti-drip nozzles to ensure accurate and clean filling. All product-contact parts are made of food-grade SUS304 stainless steel.
Product Application

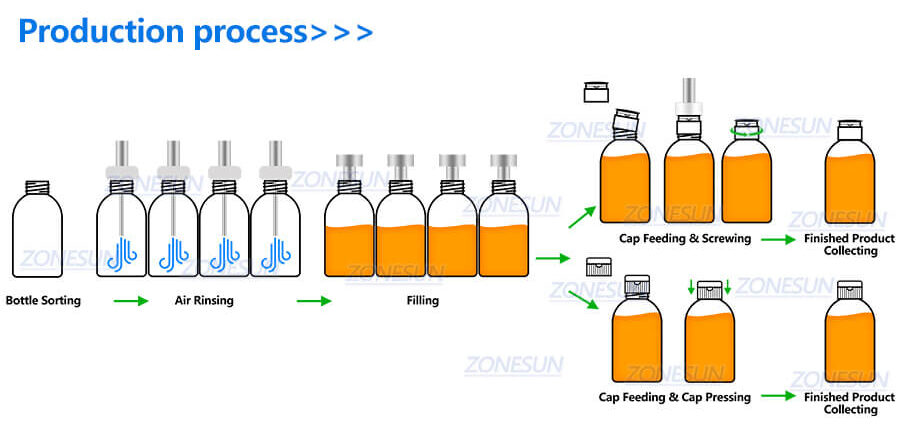

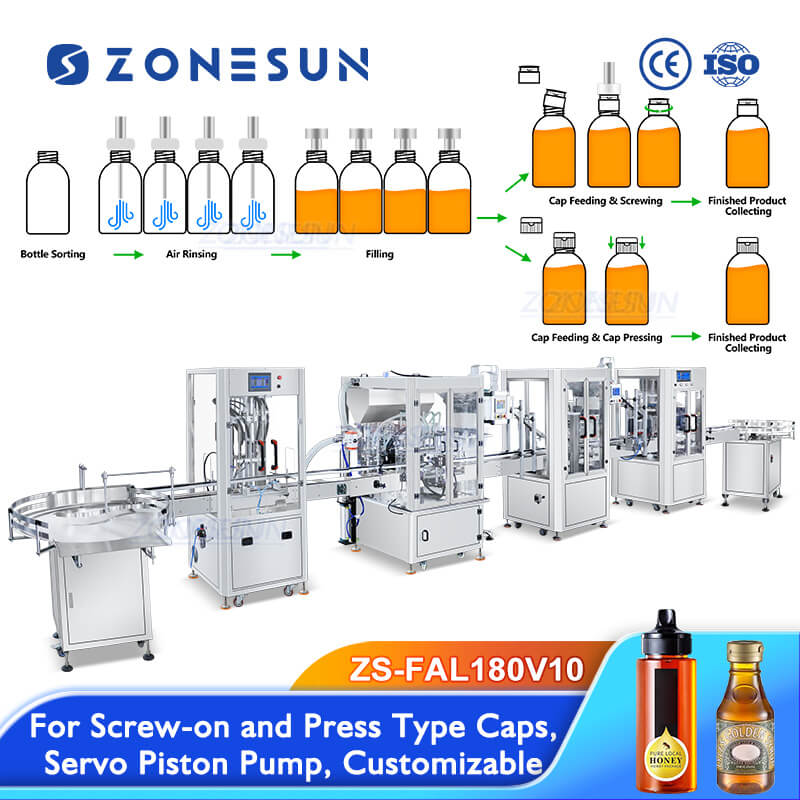

Product Production Process
Product Parameters
Automatic 4 Heads Bottle Air Rinsing Machine
| Machine Model | ZS-NIC4 |
| Voltage | 220V/110V 50-60 Hz |
| Power | About 2.7kW |
| Working Speed | About 40-70 Bottles/min(Depending On Bottle Size) |
| Suitable Bottle Size | Can Be Customized |
| Air Pressure | 0.6-0.8MPa |
| Air Consumption | 6-8m³/h |
| Air suction capacity | 30 m³/h |
| Machine Size | About 2000*800*1900mm(L*W*H) |
| Package Size | About 1900*1020*2100 mm |
| Package Weight | About 320KG |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Automatic 4 Heads Paste Filling Machine
| Machine Model | ZS-YT4T-4PXD |
| Voltage | 110/220V 50-60HZ 2KW |
| Filling Range | 10-180 ml/30-500 ml/100-1000 ml/＞1000ml(Customizable) |
| Working Speed | About 30-50 Bottles/min |
| Hopper Size | 90L (＜1000 ml filling range) |
| Filling Pump | Servo Piston Pump |
| Air Pressure | 0.6-0.8 MPa |
| Filling Accuracy | ±1% |
| Filling Nozzle | 4(Can be customized) |
| Machine Size | About 2000*1050*1900 mm |
| Packaging Size | About 2080*1190*2090 mm(1000 ml) |
| Packaging Weight | About 620 kg(1000 ml) |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Automatic Capping Machine With Vibratory Bowl
| Machine Model | ZS-XG16PD |
| Working Voltage | AC220V/110V 50-60HZ |
| Bottle Height | 50-300 mm |
| Cap Diameter | 18-70 mm |
| Suitable Cap Type | Screw-on Caps |
| Bottle Diameter | 20-160 mm |
| Working Speed | 10-25 bottles / minute (based on cap size) |
| Working Pressure | 0.4-0.6 MPa |
| Machine Size | About 2500*1050*2000 mm |
| Package Size | About 2040*970*2040mm |
| Package Weight | About 480kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Automatic Pressing Machine With Vibratory Bowl
| Machine Model | ZS-XG21D |
| Working Voltage | AC220V/110V 50-60HZ |
| Bottle Height | 50-300 mm |
| Cap Diameter | 18-70 mm |
| Suitable Cap Type | Pressing Type Caps |
| Bottle Diameter | 20-160 mm |
| Working Speed | 10-25 bottles / minute (based on cap size) |
| Working Pressure | 0.4-0.6 MPa |
| Machine Size | About 2500*1050*2000 mm |
| Package Size | About 2040*970*2040mm |
| Package Weight | About 480kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

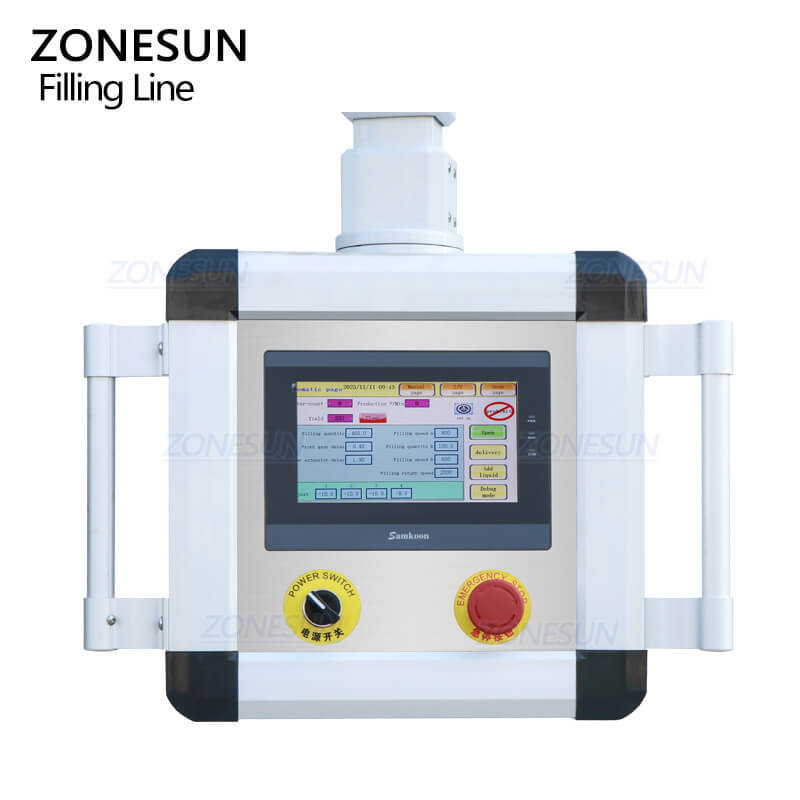

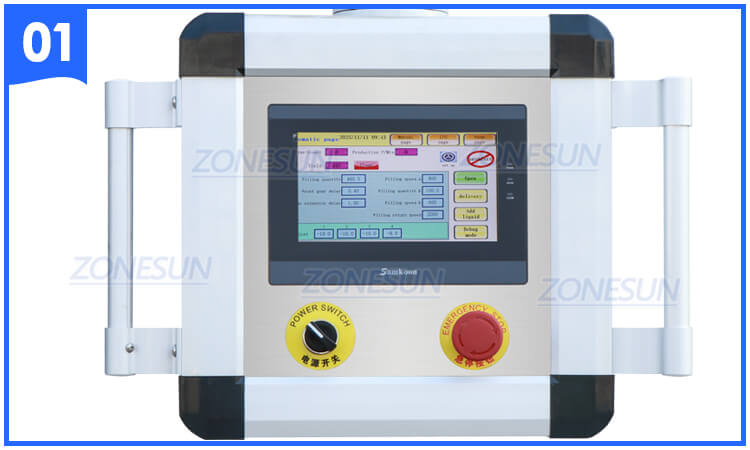

Control Panel
Using swing arm touch screen control panel, machine operation will be more convenient and intuitive.

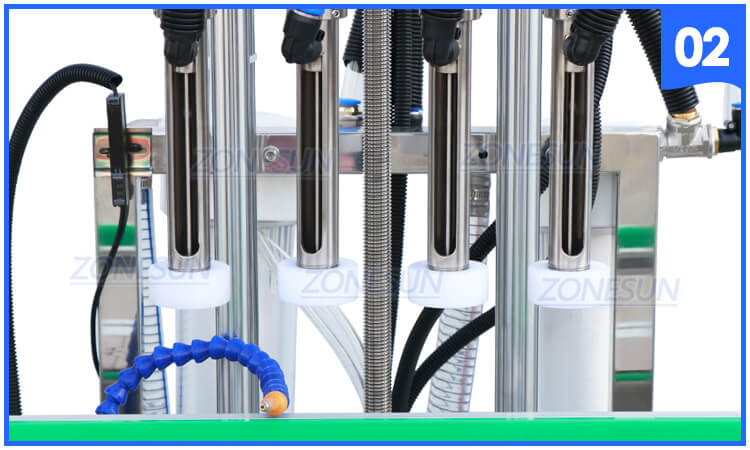

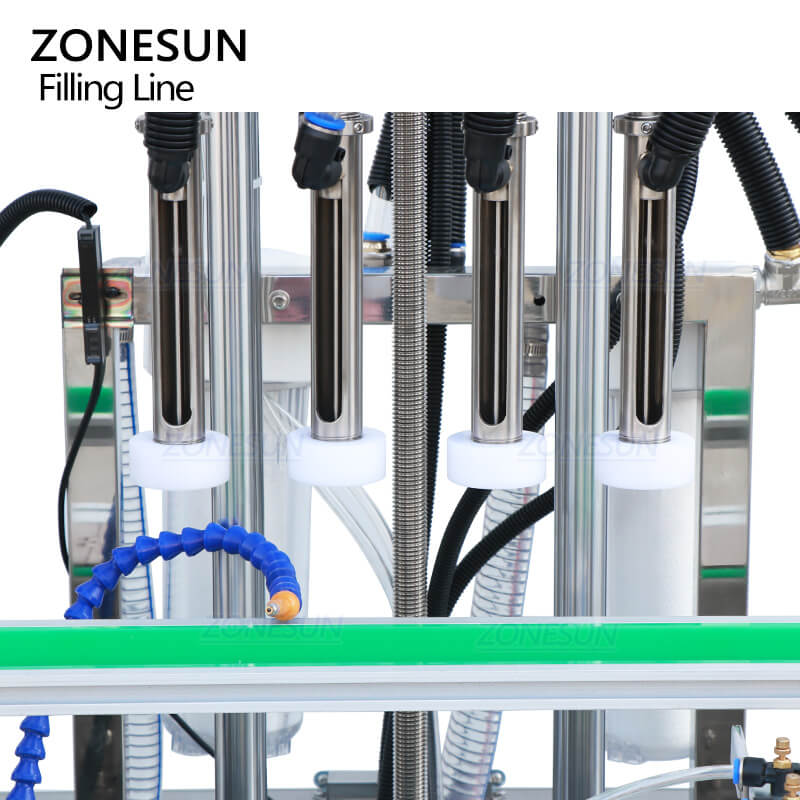

Air Rinsing Nozzles
Using negative ion to remove internal dust, the quantity of air rinsing nozzles is customziable as needed.

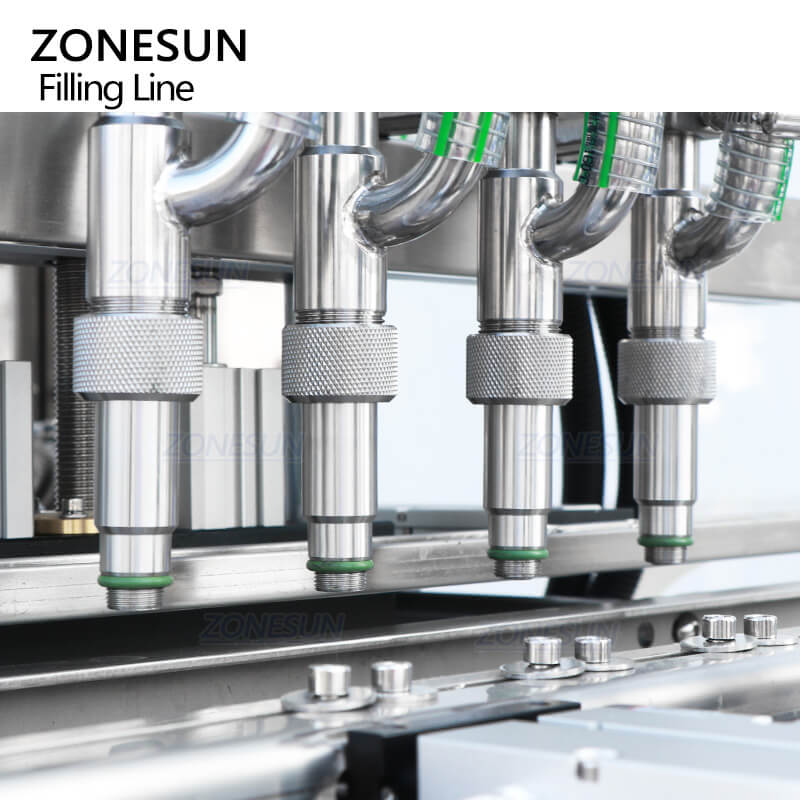

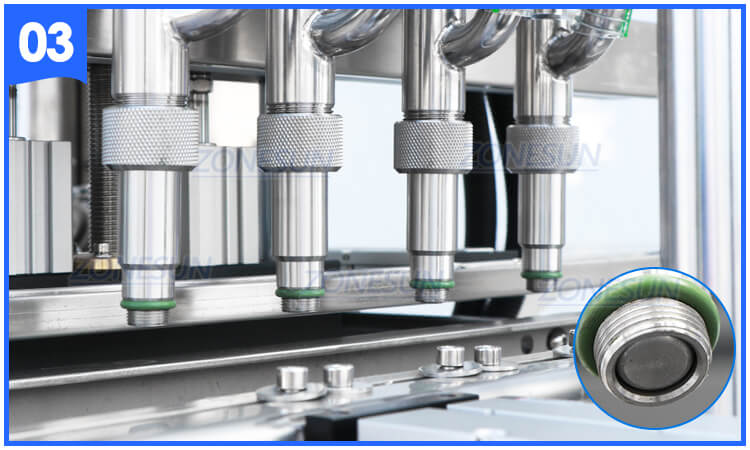

Filling Nozzles
Using anti-dripping filling nozzles to achieve precise filling, quantity of filling nozzles is customizable.

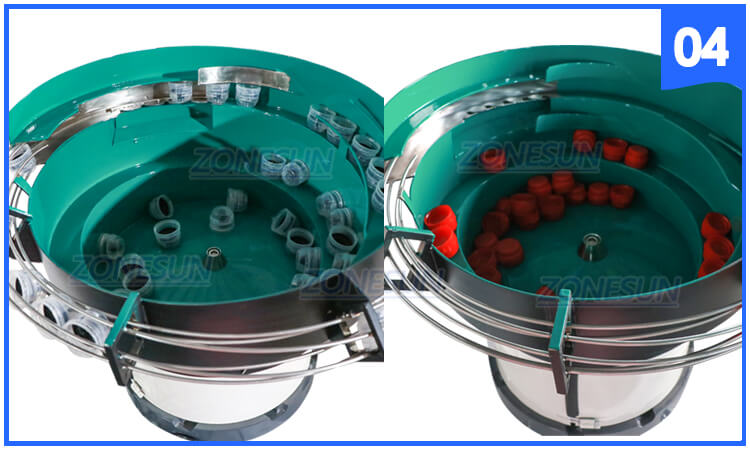

Vibratory Bowl Sorter
Automatically sorts and feeds caps for continuous operation, customized according to cap size.

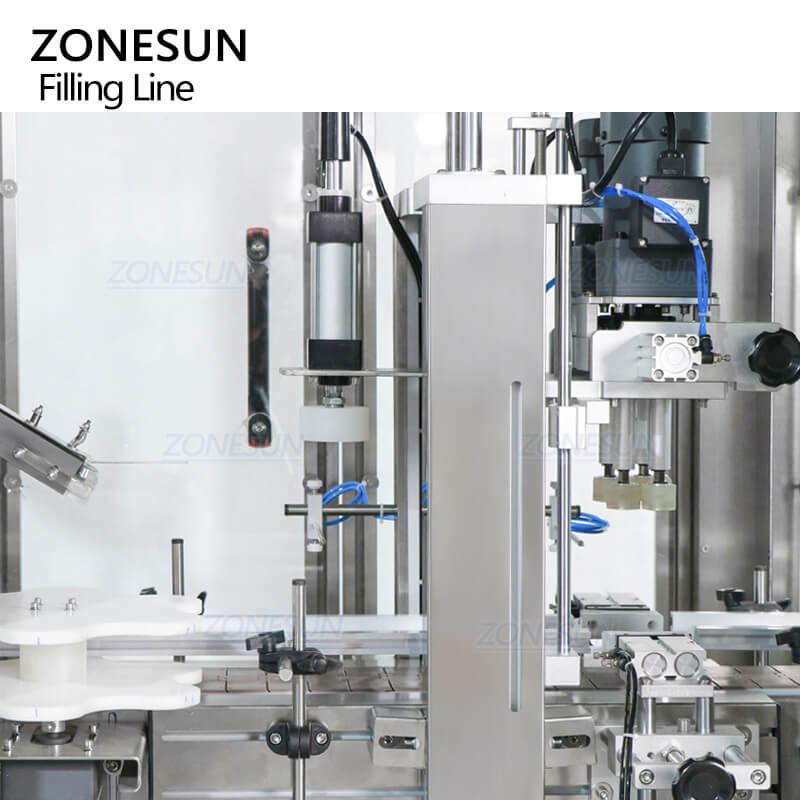

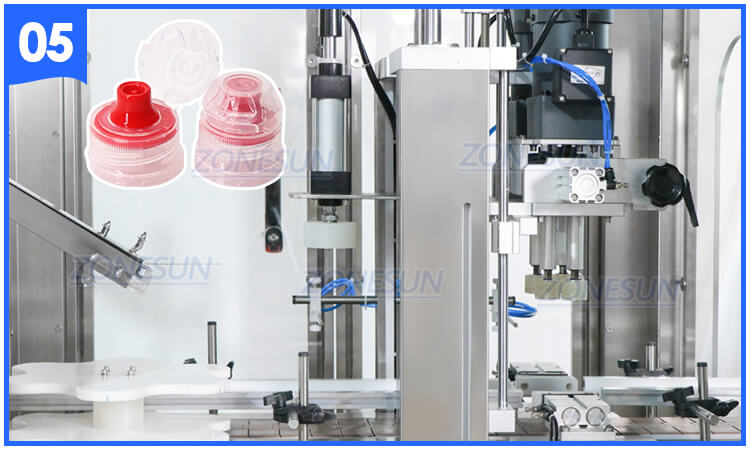

Cap Tightening Structure
Suits screw-on caps, working height is adjustable as bottle height.

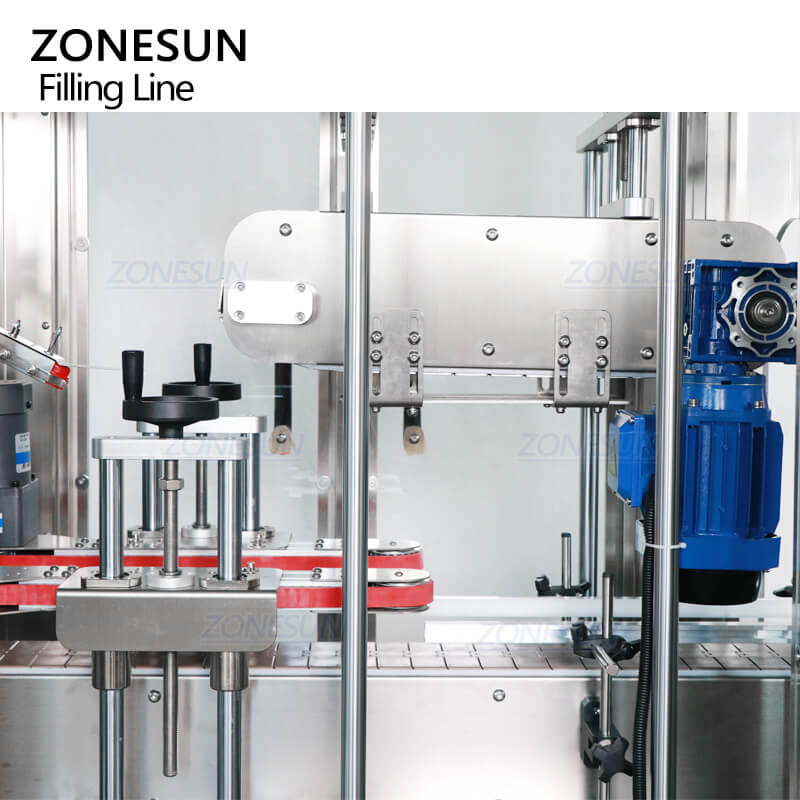

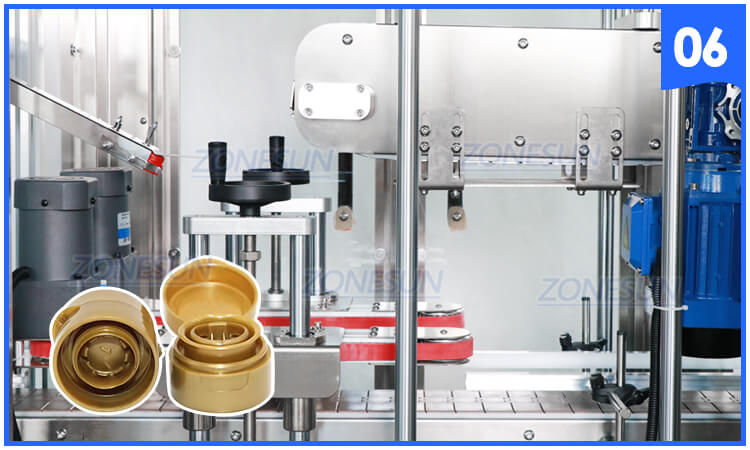

Cap Pressing Structure
With clamp conveyor belt to prevent bottles from falling down, it is suitable for pressing.

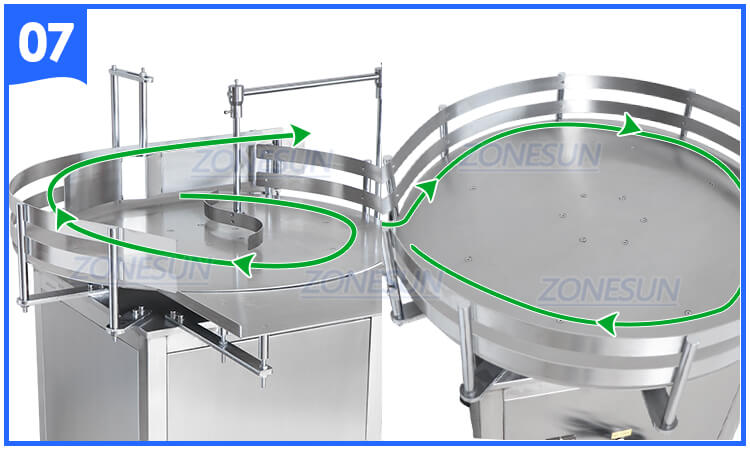

Bottle Sorting
Feed and collect bottles in time, ensure the smooth packaging work.

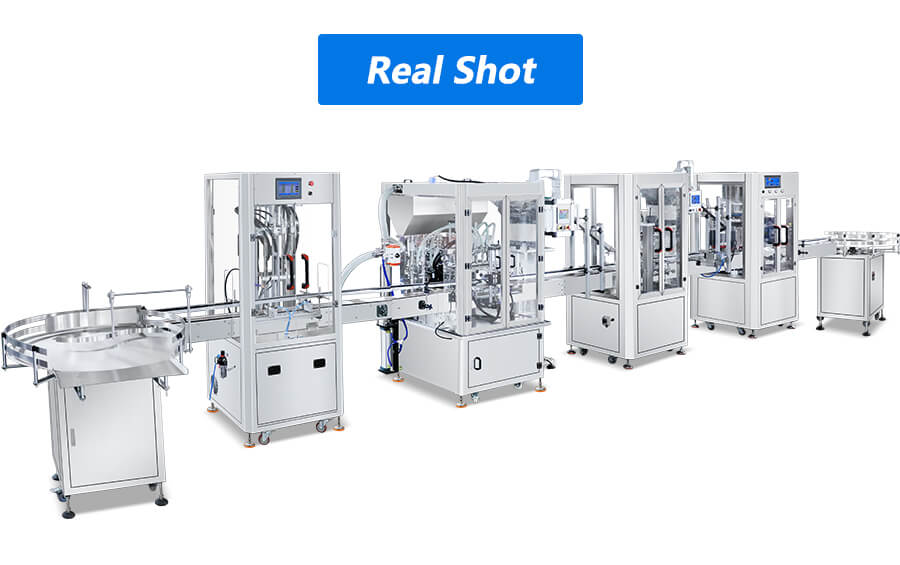

Product Real Shot
